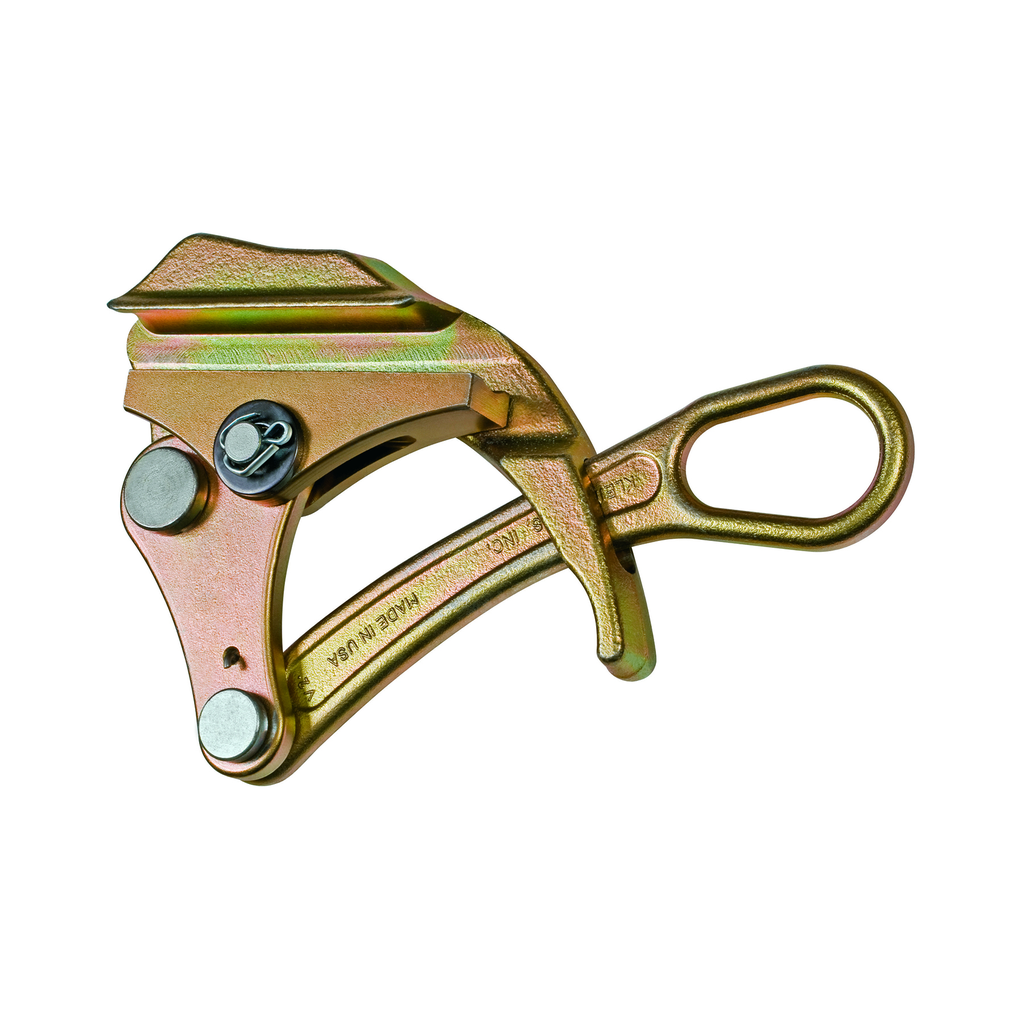

Parallel Jaw Grip 4500 Series for ACSR

This versatile grip holds a wider range of ACSR cable sizes reducing the number of grips needed. Klein Parallel Jaw Grips are lightweight and compact. The round jaw holds 0.18 - 0.60-inch diameter cable with a maximum safe load of 5000 lbs. Features a spring that closes the grip on the cable to maintain the initial position.

Warnings

• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.

Features

• Round serrated jaw holds 0.18 to 0.60-Inch (4.57 to 15.20 mm) diameter cable range
• Made in USA
• Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed
• Sawtooth Jaw Profile Resists Build-up
• Spring closes grip on cable to hold the initial position
• Max Safe Load of 5000-Pound (2268 kg)
• Spring‐loaded for easy one‐handed operation
• Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks

Specifications

• Overall Height (cm): 11.7
• Type: Parallel Jaw Grip
• Cable Diameter: 0.18" to 0.6" (4.57 to 15.2 mm)
• Swing Latch: No
• Weight (lb): 3.8
• Overall Height (Inch): 4.6
• Maximum Safe Load (kg): 2268
• Height: 1.0000 in
• Overall Length (cm): 27.7
• Spring: Yes
• Depth: 8.0000 in
• Jaw Length (cm): 10.2
• Hot Latch: No
• Locking Handle: No
• Weight (kg): 1.7
• Weight: 3.7500 lbs
• Application: Wire Pulling
• Maximum Safe Load (lb): 5000
• Jaw Length (Inch): 4
• Overall Length (Inch): 10.9
• Cable Type: ACSR, AAC, Copper
• Overall Width (Inch): 1.9
• Width: 5.0000 in
• Jaw Type: Round
• Overall Width (cm): 4.8
• Teeth Type: Coarse
• Material: Steel
