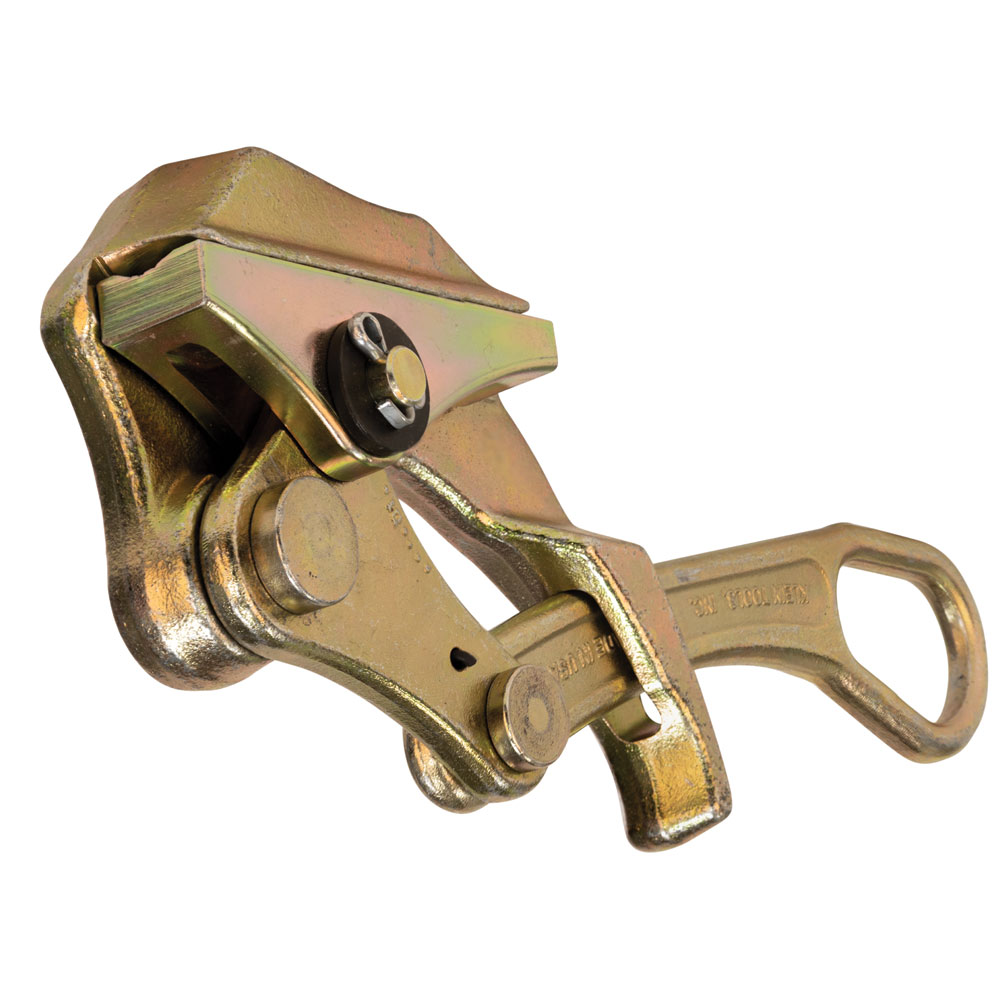

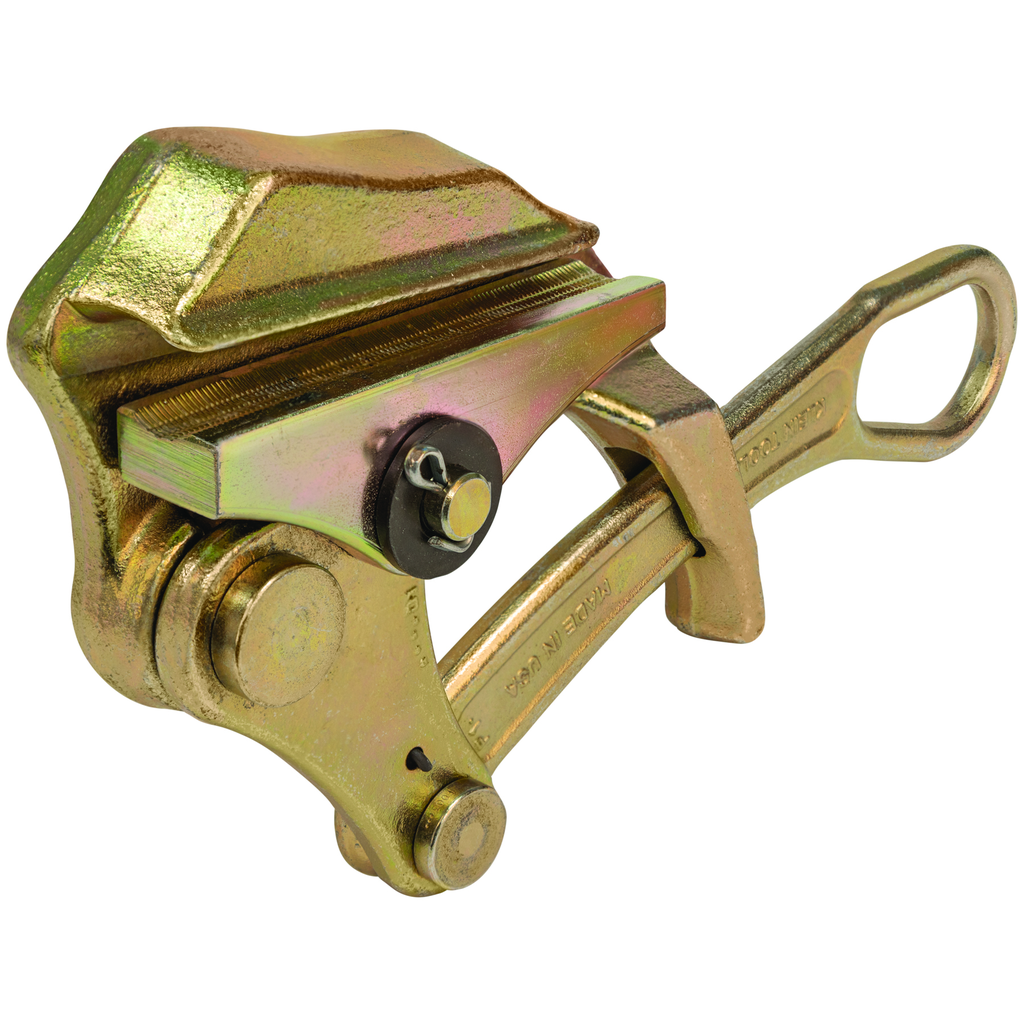

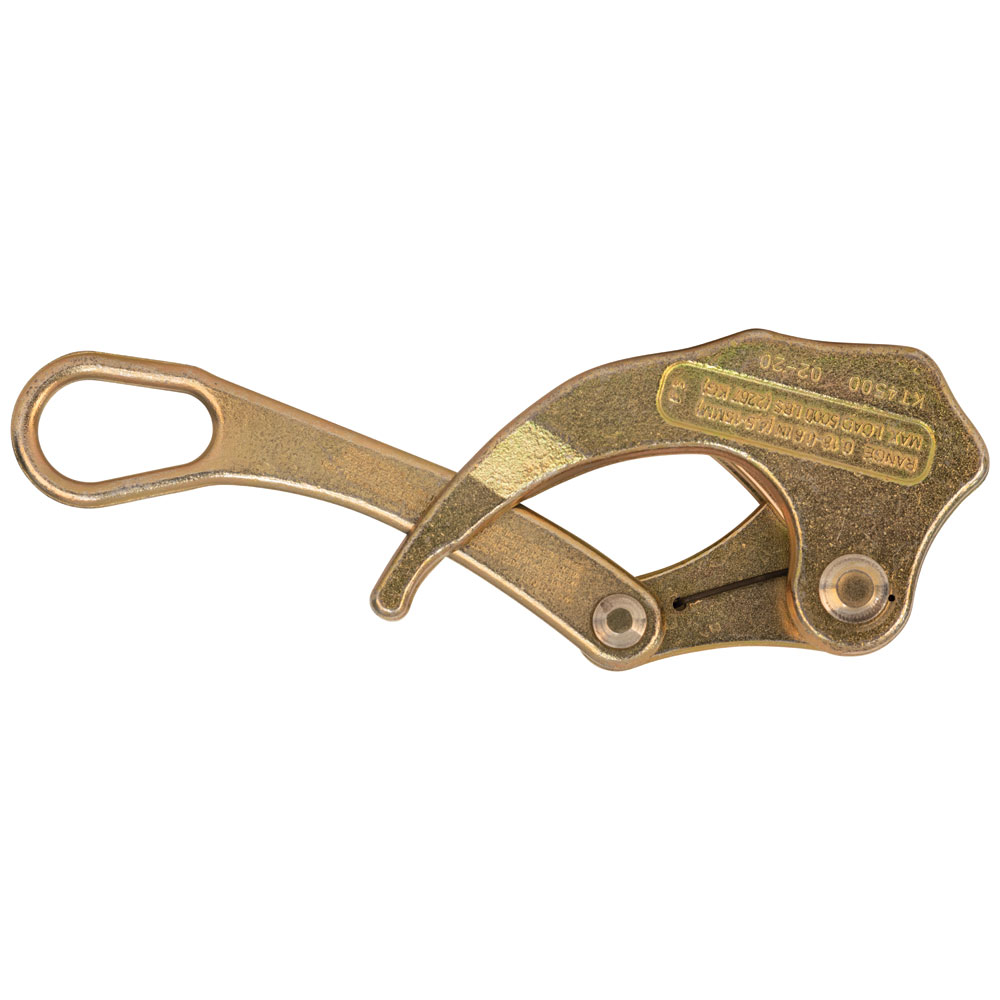

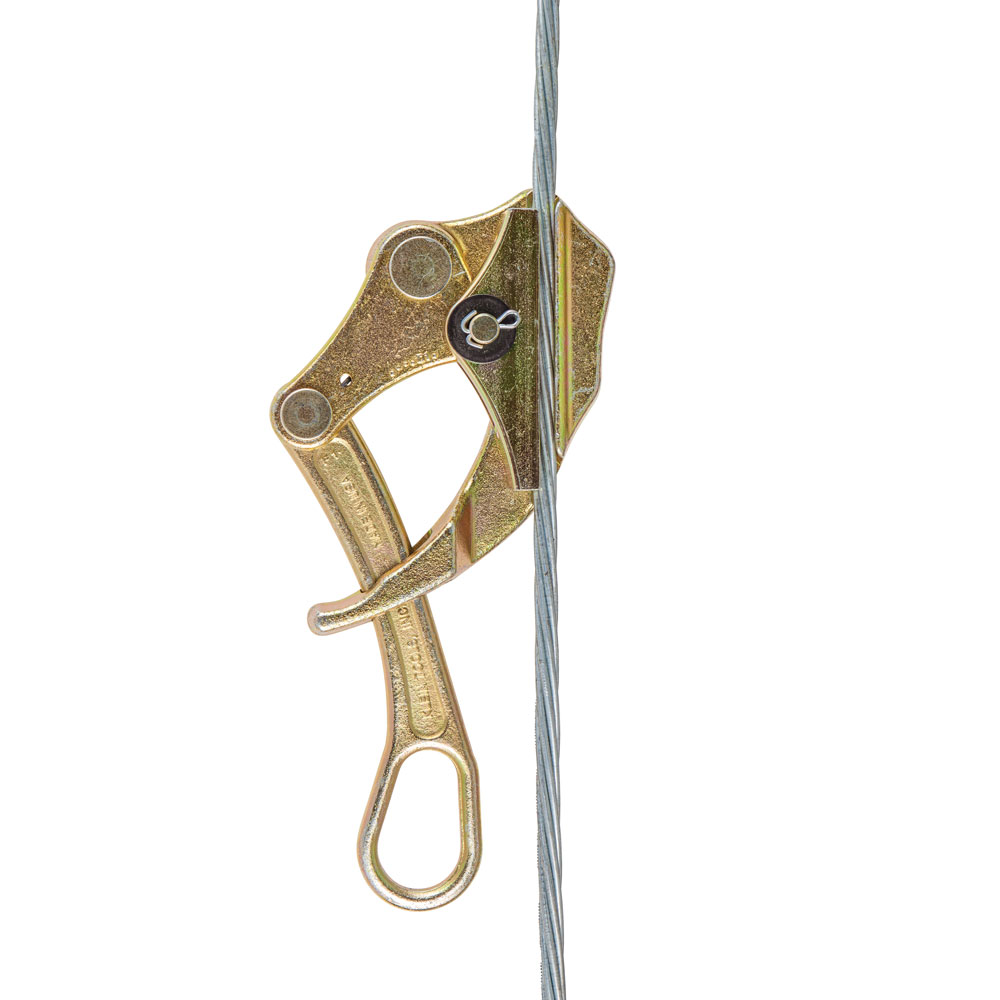

Parallel Jaw Grip 4500 Series for Guy Strand, EHS, Coated Cable

This versatile grip holds a wider range of ACSR cable sizes reducing the number of grips needed. Klein Parallel Jaw Grips are lightweight and compact. The round jaw holds 0.18 to 0.60-Inch diameter cable with a maximum safe load of 5000 lbs. Features a spring that closes the grip on the cable to maintain the initial position.

Features

• Versatile grip holds a wider range of Guy Strand, EHS and coated cable sizes reducing the number of grips needed
• Made in USA

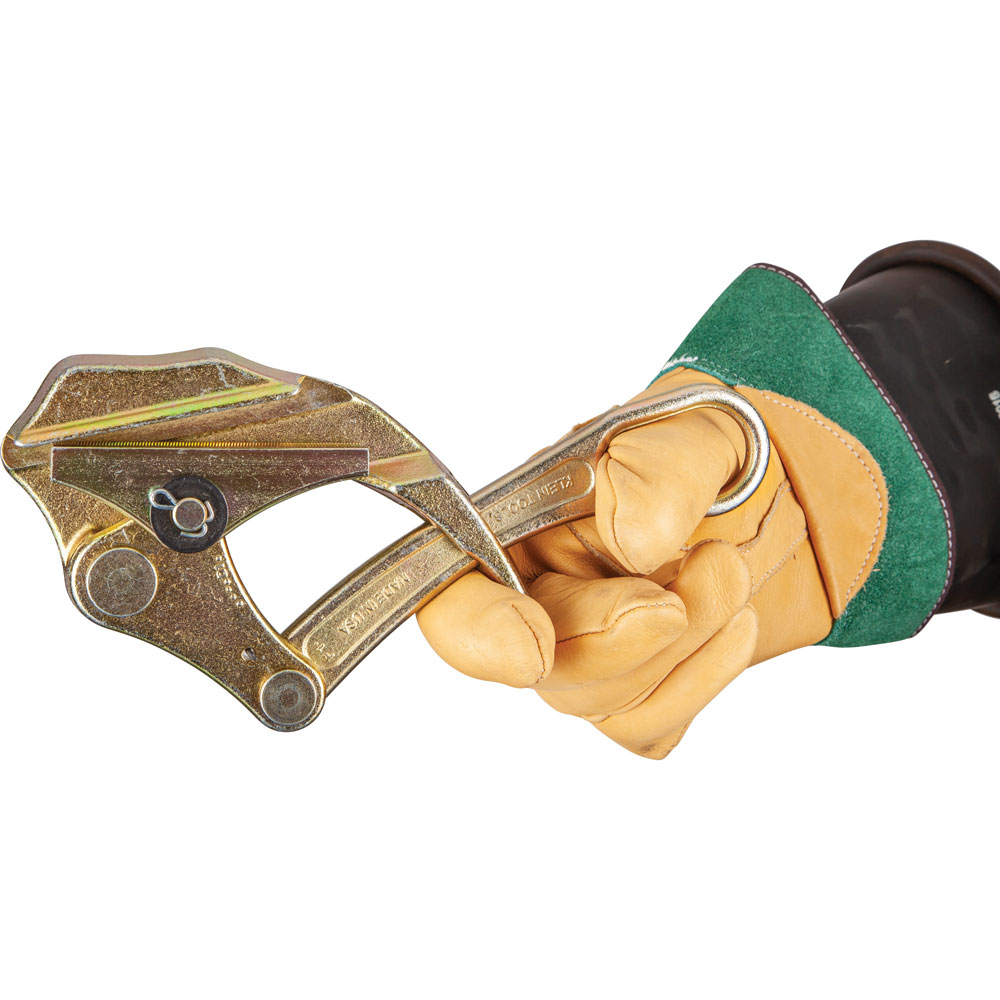

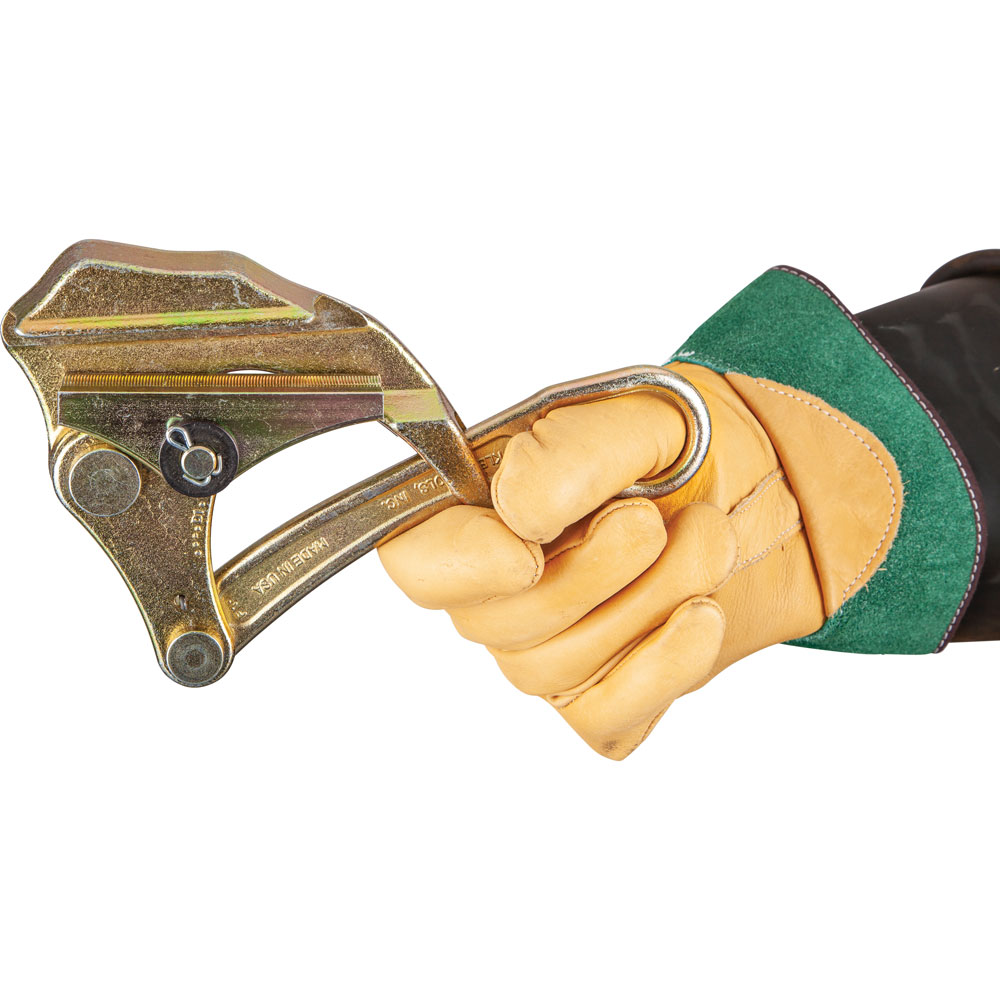

• Spring‐loaded for easy one‐handed operation
• Spring helps maintain cable position in grip jaw

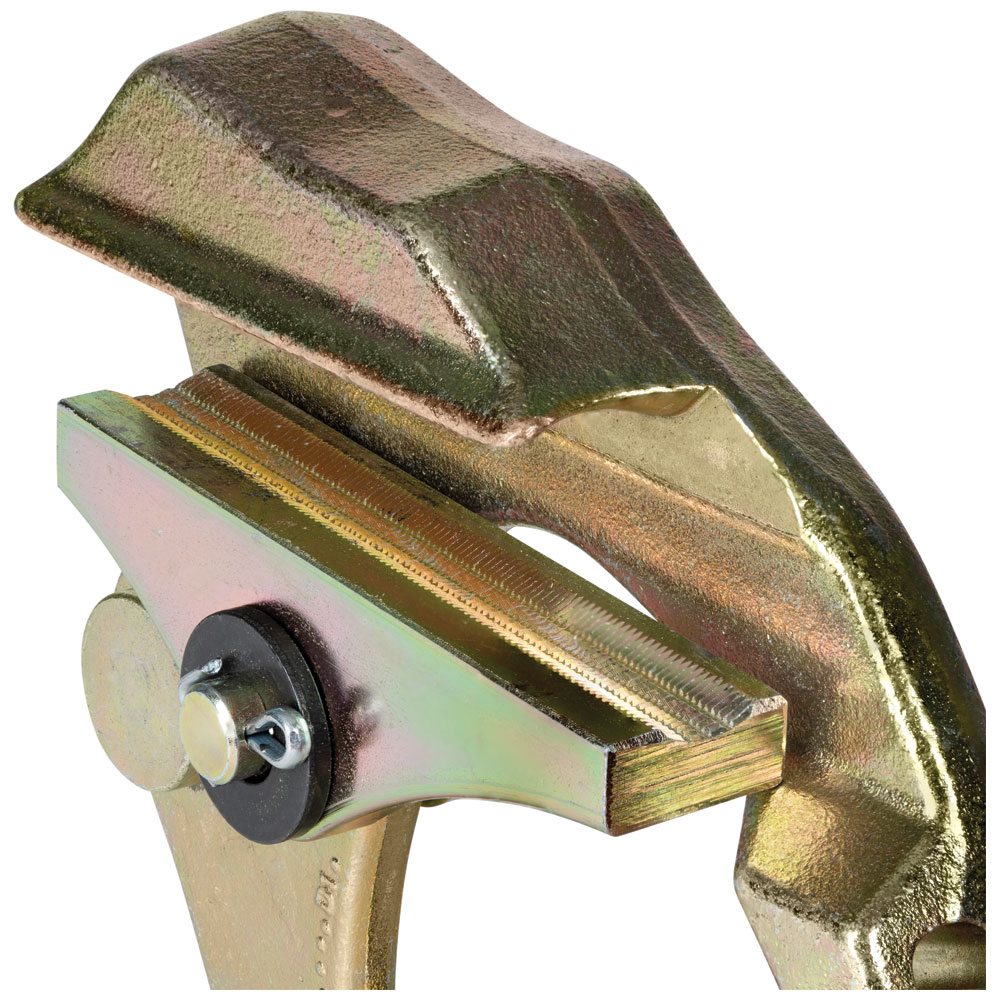

• Alternating sawtooth jaw geometry provides greater grip strength
• Round jaw holds 0.18 to 0.60-Inch (4.57 to 15.24 mm) diameter cable range

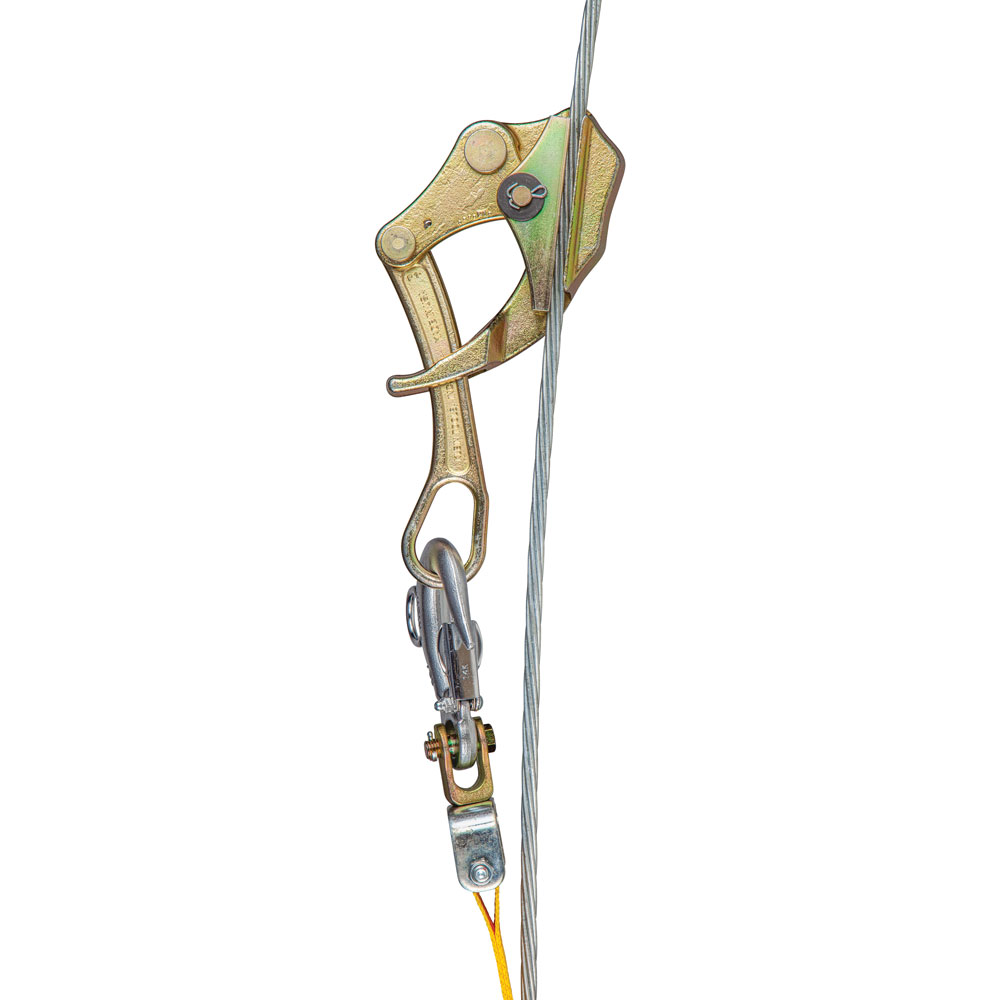

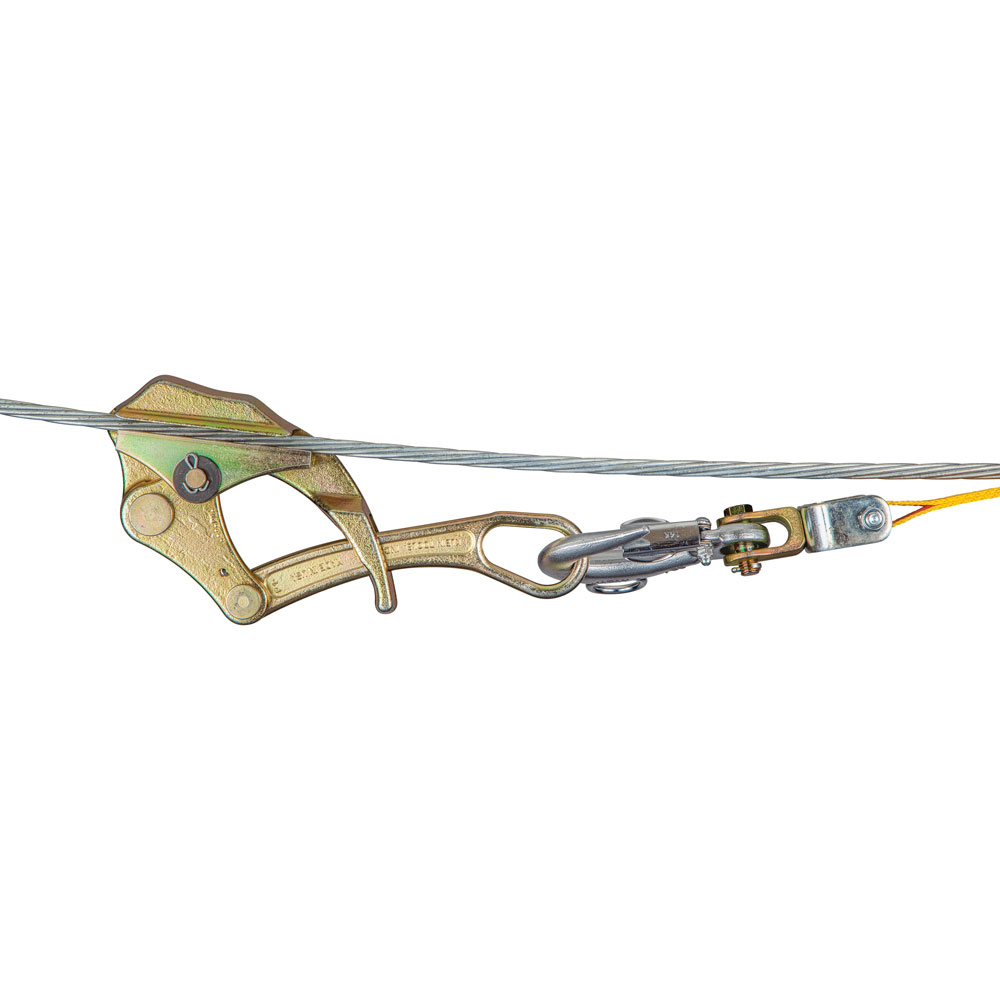

• Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks

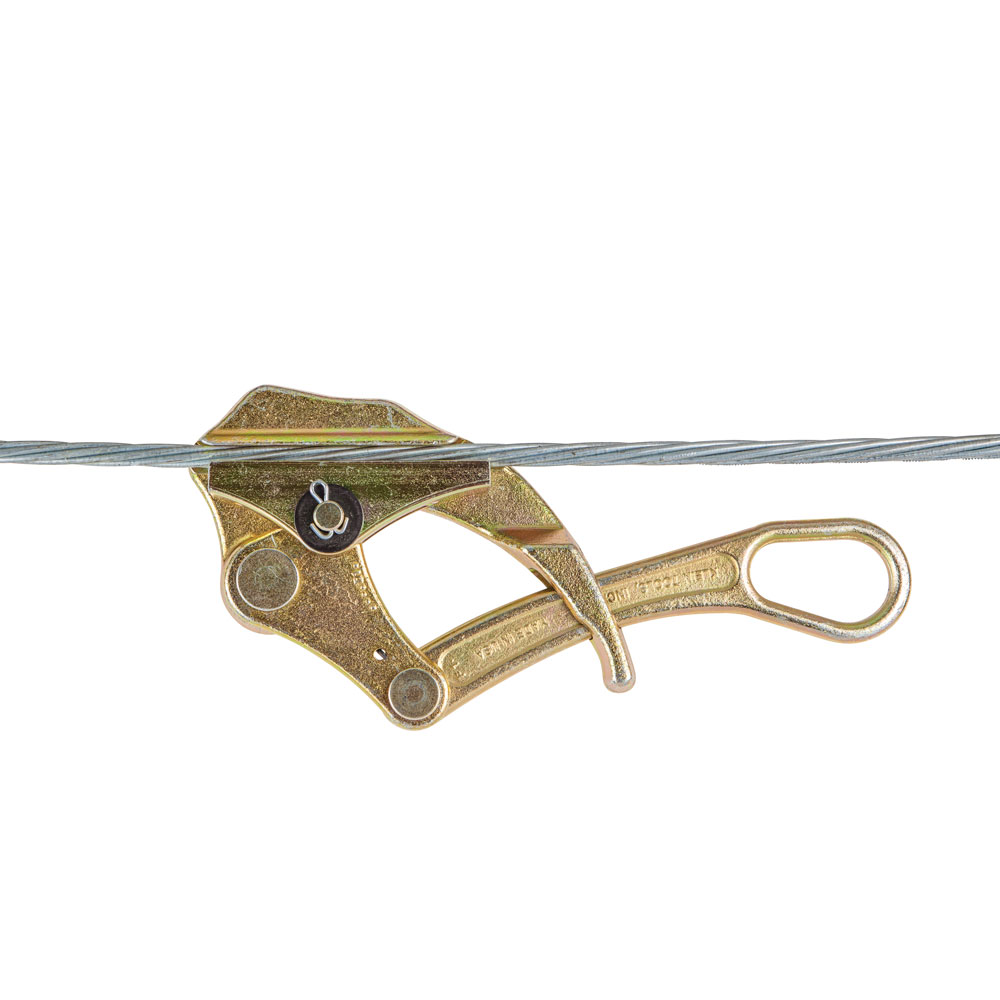

• Spring closes grip on cable to hold the initial position
• Sawtooth jaw profile ensures optimal grip strength on guy strand and EHS cables
• Longer jaw increases surface area contact with cable eliminating cable damage
• Sawtooth Jaw Profile Ensures Optimal Grip Strength on the Cable/Wire
• Max Safe Load of 5000-Pound (2268 kg)
• Designed to work with galvanized guy wire

Warnings

• Do not exceed rated capacity.
• Always match proper size and type of grip to application.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/or near energized lines, ground, insulate, or isolate grip before pulling.

Specifications

• Maximum Safe Load (kg): 2268
• Cable Diameter: 0.18" to 0.6'' (4.57 to 15.2 mm)
• Overall Height (Inch): 4.6
• Overall Length (cm): 27.7
• Teeth Type: Coarse
• Application: Wire Pulling
• Material: Steel
• Weight: 3.9500 lbs
• Jaw Length (Inch): 4
• Overall Width (cm): 4.8
• Jaw Type: Round
• Spring: Yes
• Width: 5.0000 in
• Type: Parallel Jaw Grip
• Weight (kg): 1.7
• Cable Type: Guy Strand, EHS, Coated
• Overall Width (Inch): 1.9
• Swing Latch: No
• Jaw Length (cm): 10.2
• Maximum Safe Load (lb): 5000
• Overall Length (Inch): 10.9
• Overall Height (cm): 11.7
• Depth: 8.0000 in
• Hot Latch: No
• Locking Handle: No
• Weight (lb): 3.8
• Height: 1.0000 in
