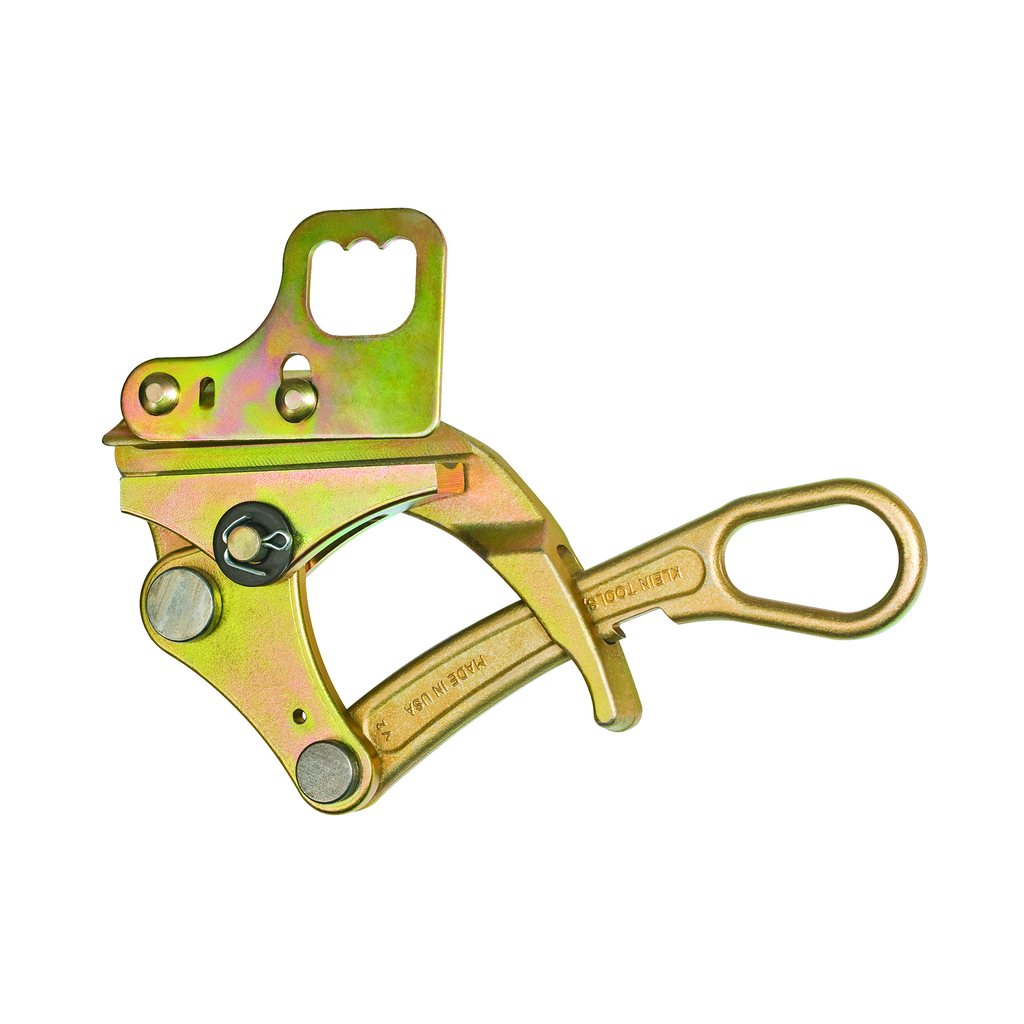

Parallel Jaw Grip 4501 Series with Hot Latch

Klein Tools has been manufacturing high quality grips for more than 135 years. Klein Parallel Jaw Grips are lightweight and compact. They can pull an exceptionally wide range of cable types and sizes.

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.

Features

• Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed
• Locking handle keeps jaw open while grip is placed on cable with a hot stick
• Hot Latch, Spring, Locking Handle
• Hot latch closes automatically to guard against grip accidentally disengaging from wire
• Max Safe Load of 5000-Pound (2268 kg)
• Round jaw holds 0.18 to 0.60-Inch (4.57 to 15.20 mm) diameter cable range
• Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks
• Made in USA

Specifications

• Material: Steel
• Jaw Length (Inch): 4
• Maximum Safe Load (lb): 5000
• Teeth Type: Coarse
• Jaw Type: Round
• Overall Height (Inch): 5.5
• Maximum Safe Load (kg): 2268
• Overall Width (cm): 4.8
• Overall Length (cm): 27.9
• Application: Wire Pulling
• Type: Parallel Jaw Grip
• Spring: Yes
• Cable Diameter: 0.18" to 0.6" (4.57 to 15.2 mm)
• Overall Length (Inch): 11
• Cable Type: ACSR, AAC, Copper
• Weight (lb): 3.8
• Hot Latch: Yes
• Width: 6.0000 in
• Height: 1.0000 in
• Jaw Length (cm): 10.2
• Depth: 9.0000 in
• Locking Handle: Yes
• Weight: 3.7500 lbs
• Swing Latch: No
• Overall Width (Inch): 1.9
• Weight (kg): 1.7
• Overall Height (cm): 14
