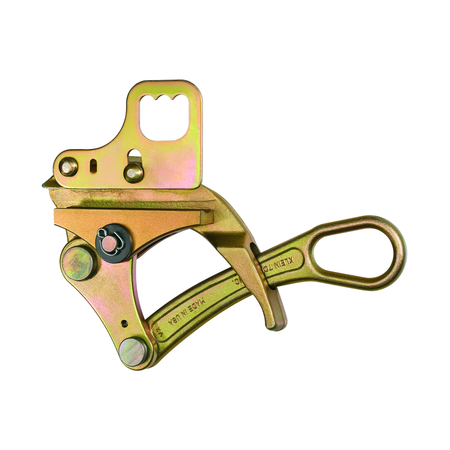

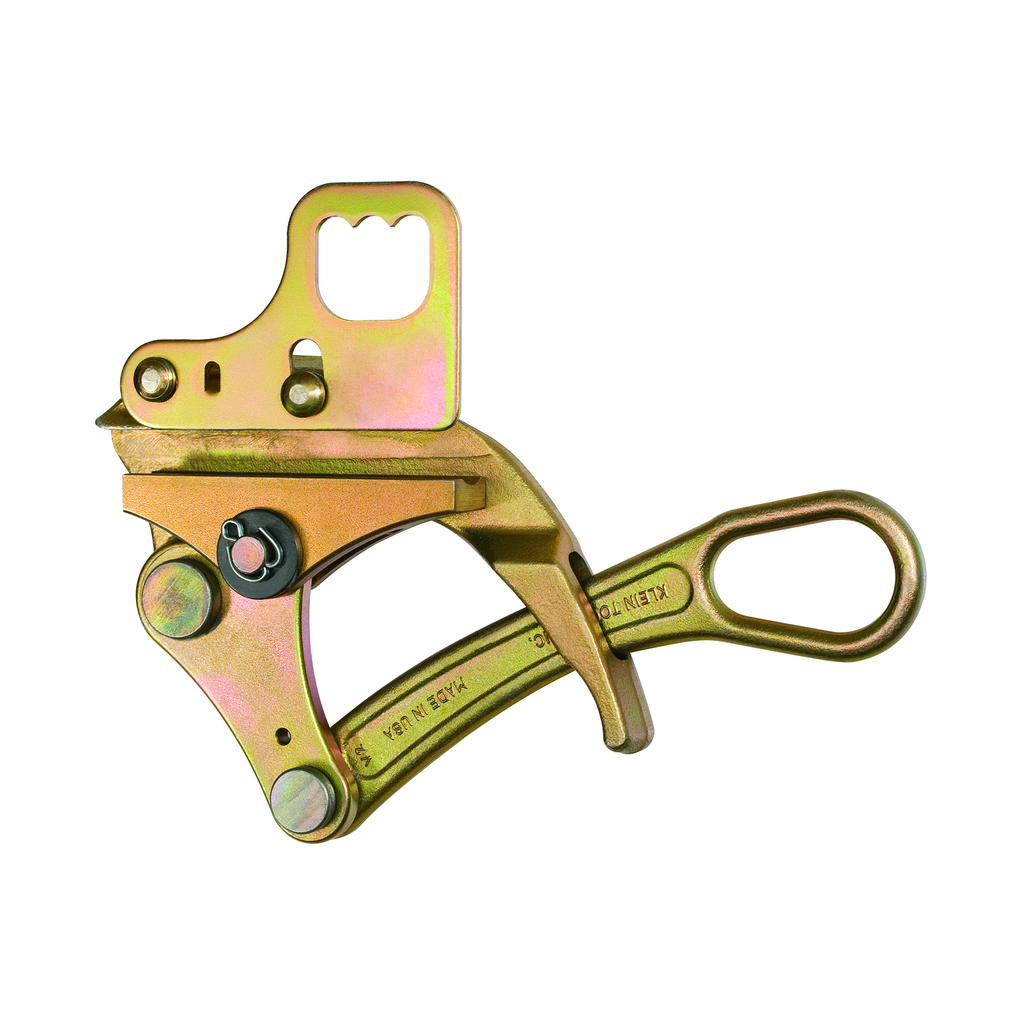

Parallel Jaw Grip 4502 Series with Hot Latch

The Klein KT4502 Forged Parallel Jaw Grips with Hot-Latch's large round eyelet opening in the handle is perfect for accommodating a wide variety of hooks on hoists, winches and tackle blocks. The hot latch closes automatically to guard against grip accidently disengaging from the wire. The KT4502 has a jaw length of 3-Inches.

Features

• Max Safe Load of 5000-Pound (2268 kg)
• Weight: 3.75 pounds
• Made in USA
• Hot Latch
• Round jaw holds 0.18 to 0.60-Inch (4.57 to 15.20 mm) diameter cable range
• Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed
• Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks
• Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product

Warnings

• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Always match proper size and type of grip to application.
• Do not exceed rated capacity.
• Grips are to be used for temporary installation, not for permanent anchorage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.

Specifications

• Teeth Type: Coarse
• Jaw Length (Inch): 4
• Material: Steel
• Jaw Type: Round
• Weight (kg): 1.7
• Weight (lb): 3.8
• Cable Type: ACSR, AAC, Copper
• Overall Width (Inch): 4
• Height: 1.5000 in
• Application: Wire Pulling
• Width: 4.0000 in
• Cable Diameter: 0.18" to 0.6" (4.57 to 15.2 mm)
• Overall Length (cm): 27.9
• Depth: 11.0000 in
• Hot Latch: Yes
• Maximum Safe Load (kg): 2268
• Jaw Length (cm): 10.2
• Overall Length (Inch): 11
• Maximum Safe Load (lb): 5000
• Locking Handle: No
• Swing Latch: No
• Spring: Yes
• Overall Width (cm): 10.2
• Overall Height (cm): 3.8
• Overall Height (Inch): 1.5
• Type: Parallel Jaw Grip
• Weight: 3.7500 lbs
