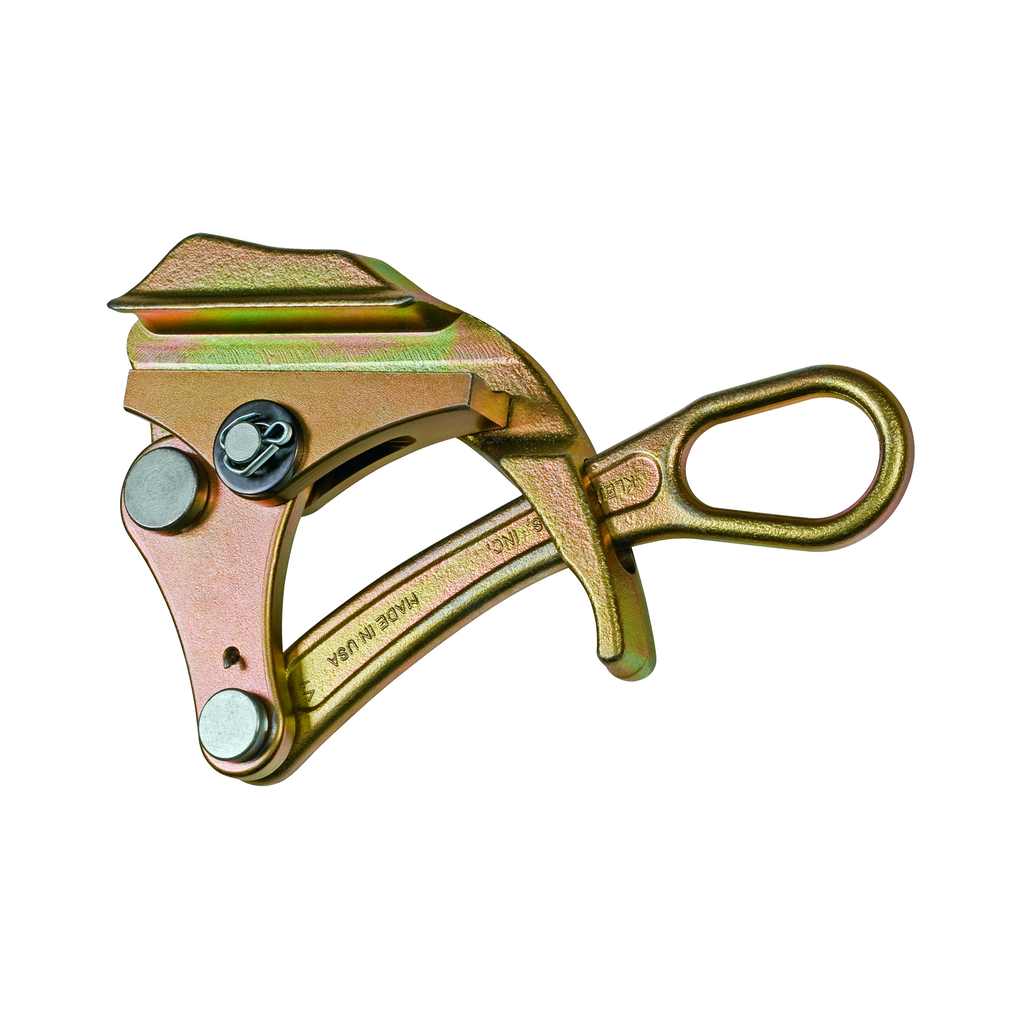

Parallel Jaw Grip 4600 Series

Lightweight, compact grips pull an exceptionally wide range of cable sizes and types. Designed with a round serrated jaw to firmly grip insulated cables and conductors. A hot latch closed automatically to guard against grip accidently disengaging from wire. A large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks.

Warnings

• Always match proper size and type of grip to application.
• Grips are to be used for temporary installation, not for permanent anchorage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Features

• Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed
• Spring
• Made in USA
• Max Safe Load of 10,000-Pound (4536 kg)
• Round jaw holds 0.30 to 0.80-Inch (7.62 to 20.30 mm) diameter cable range
• Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks

Specifications

• Maximum Safe Load (lb): 10000
• Hot Latch: No
• Application: Wire Pulling
• Overall Width (cm): 12.7
• Overall Width (Inch): 5
• Depth: 13.0000 in
• Overall Length (cm): 33
• Maximum Safe Load (kg): 4535.9
• Cable Type: ACSR, AAC, Copper
• Jaw Type: Round
• Weight (kg): 3.2
• Weight (lb): 7
• Jaw Length (Inch): 5
• Overall Length (Inch): 13
• Material: Steel
• Height: 1.5000 in
• Swing Latch: No
• Teeth Type: Coarse
• Locking Handle: No
• Spring: Yes
• Width: 5.0000 in
• Overall Height (Inch): 1.5
• Jaw Length (cm): 12.7
• Weight: 7.0000 lbs
• Cable Diameter: 0.3" to 0.8" (7.62 to 20.3 mm)
• Overall Height (cm): 3.8
• Type: Parallel Jaw Grip
