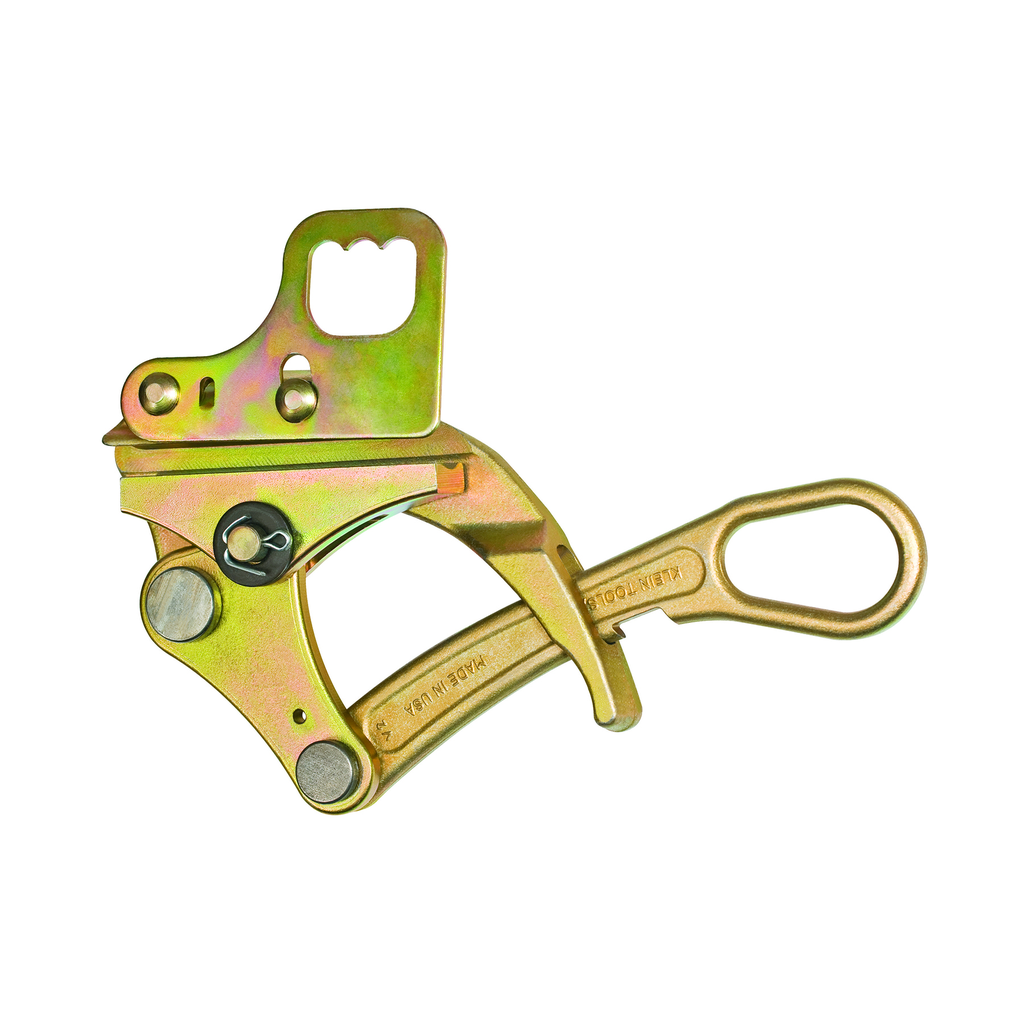

Parallel Jaw Grip 4601 Series with Hot Latch/Spring

Klein Tools has been manufacturing high quality grips for more than 135 years. Klein Parallel Jaw Grips are lightweight and compact. They can pull an exceptionally wide range of cable types and sizes.

Warnings

• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.
• Grips are to be used for temporary installation, not for permanent anchorage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Always match proper size and type of grip to application.

Features

• Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks
• Hot latch closes automatically to guard wire
• Made in USA
• Hot Latch, Spring, Locking Handle
• Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed
• Round jaw holds 0.30 to 0.80-Inch (7.62 to 20.30 mm) diameter cable range
• Max Safe Load of 10,000-Pound (4536 kg)
• Locking handle keeps jaw open while grip is placed on cable with a hot stick

Specifications

• Weight (kg): 3.2
• Cable Type: ACSR, AAC, Copper
• Weight (lb): 7
• Depth: 10.0000 in
• Swing Latch: No
• Overall Height (cm): 2.5
• Height: 1.0000 in
• Teeth Type: Coarse
• Jaw Type: Round
• Type: Parallel Jaw Grip
• Spring: Yes
• Weight: 7.0000 lbs
• Width: 8.0000 in
• Locking Handle: Yes
• Overall Length (Inch): 10
• Material: Steel
• Maximum Safe Load (lb): 10000
• Overall Width (Inch): 8
• Cable Diameter: 0.3" to 0.8" (7.62 to 20.3 mm)
• Application: Wire Pulling
• Jaw Length (Inch): 5
• Maximum Safe Load (kg): 4535.9
• Overall Length (cm): 25.4
• Hot Latch: Yes
• Overall Height (Inch): 1
• Jaw Length (cm): 12.7
• Overall Width (cm): 20.3
