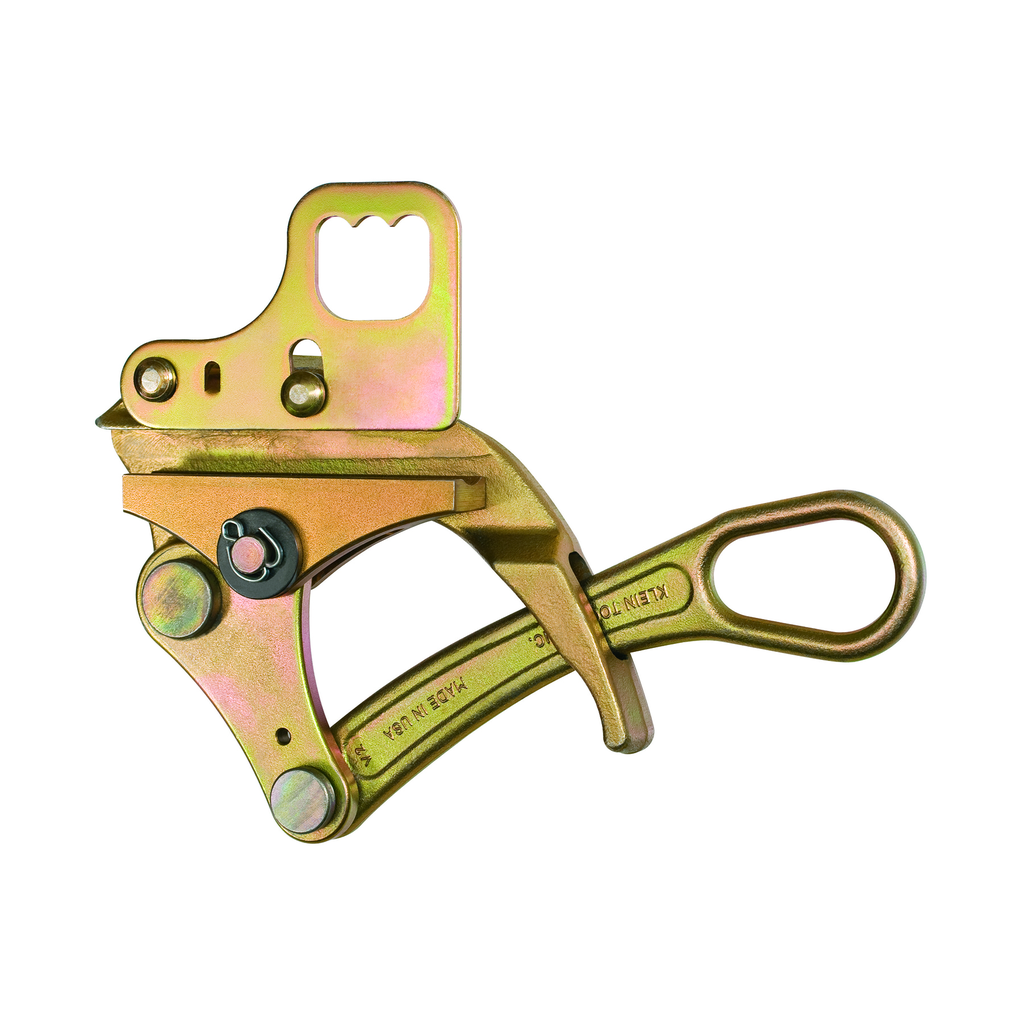

Parallel Jaw Grip 4602 Series with Hot Latch

The Klein KT4602 Forged Parallel Jaw Grips with Hot-Latch's large round eyelet opening in the handle is perfect for accommodating a wide variety of hooks on hoists, winches and tackle blocks. The hot latch closes automatically to guard against grip accidently disengaging from the wire. The KT4602 has a jaw length of 5-Inches.

Features

• Hot latch closes automatically to guard wire
• Hot Latch
• Versatile grip holds a wider range of ACSR cable sizes reducing the number of grips needed
• Max Safe Load of 10,000-Pound (4536 kg)
• Weight: 7.2 pounds
• Round jaw holds 0.30 to 0.80-Inch (7.62 to 20.30 mm) diameter cable range
• Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks
• Made in USA
• Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product

Warnings

• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Grips are to be used for temporary installation, not for permanent anchorage.

Specifications

• Jaw Type: Round
• Width: 6.5000 in
• Locking Handle: No
• Teeth Type: Coarse
• Overall Width (Inch): 6.5
• Cable Type: ACSR, AAC, Copper
• Overall Length (Inch): 13
• Cable Diameter: 0.3" to 0.8" (7.62 to 20.32 mm)
• Hot Latch: Yes
• Overall Width (cm): 16.5
• Jaw Length (cm): 12.7
• Maximum Safe Load (lb): 10000
• Spring: Yes
• Jaw Length (Inch): 5
• Weight: 7.0000 lbs
• Overall Length (cm): 33
• Swing Latch: No
• Maximum Safe Load (kg): 4535.9
• Overall Height (cm): 3.5
• Weight (kg): 3.2
• Weight (lb): 7
• Depth: 13.0000 in
• Material: Steel
• Type: Parallel Jaw Grip
• Overall Height (Inch): 1.375
• Application: Wire Pulling
• Height: 1.3750 in
