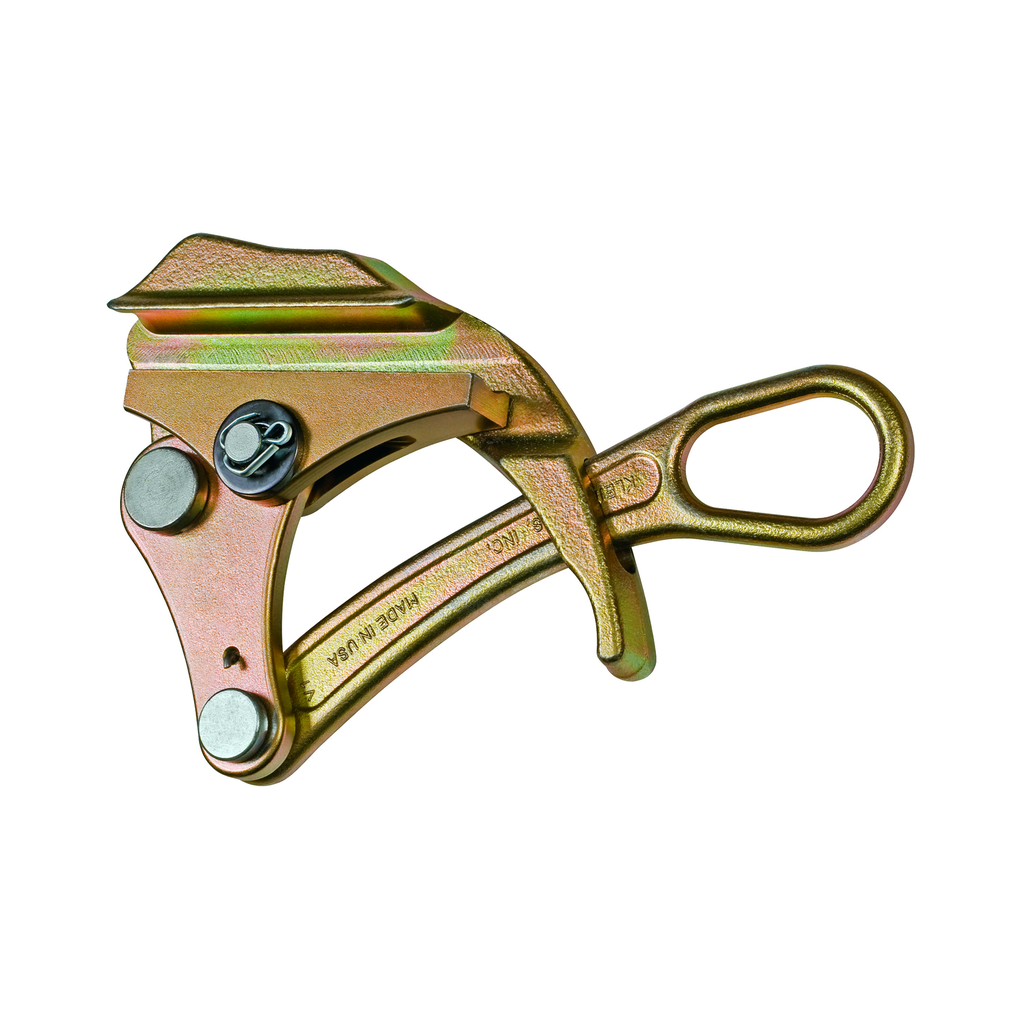

Parallel Jaw Grip 4800 Series

Klein Tools has been manufacturing high quality grips for more than 135 years. Klein Parallel Jaw Grips are lightweight and compact. They can pull an exceptionally wide range of cable types and sizes.

Features

• Lightweight, compact design perfect for pulling a wide range of cable types and sizes
• Manufactured from drop-forged, heat-treated steel for excellent durability
• Spring
• Large eyelet opening in the handle to accommodate a wide variety of hooks on hoists, winches and tackle blocks
• Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
• Made in USA
• Round jaw shape provides maximum contact with cable, helping to eliminate conductor damage

Warnings

• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.

Specifications

• Overall Height (cm): 15.1
• Cable Type: ACSR, AAC, Copper
• Type: Parallel Jaw Grip
• Maximum Safe Load (kg): 5443.1
• Locking Handle: No
• Spring: Yes
• Application: Wire Pulling
• Weight (kg): 4.1
• Overall Length (Inch): 13.4
• Height: 1.0000 in
• Overall Height (Inch): 5.95
• Jaw Length (Inch): 5.125
• Cable Diameter: 0.7" to 1.25" (17.78 to 31.75 mm)
• Hot Latch: No
• Overall Width (Inch): 2.4
• Weight (lb): 9
• Depth: 10.0000 in
• Width: 6.0000 in
• Weight: 9.0000 lbs
• Material: Steel
• Maximum Safe Load (lb): 12000
• Teeth Type: Coarse
• Jaw Type: Round
• Overall Length (cm): 34
• Swing Latch: No
• Overall Width (cm): 6.1
• Jaw Length (cm): 13
