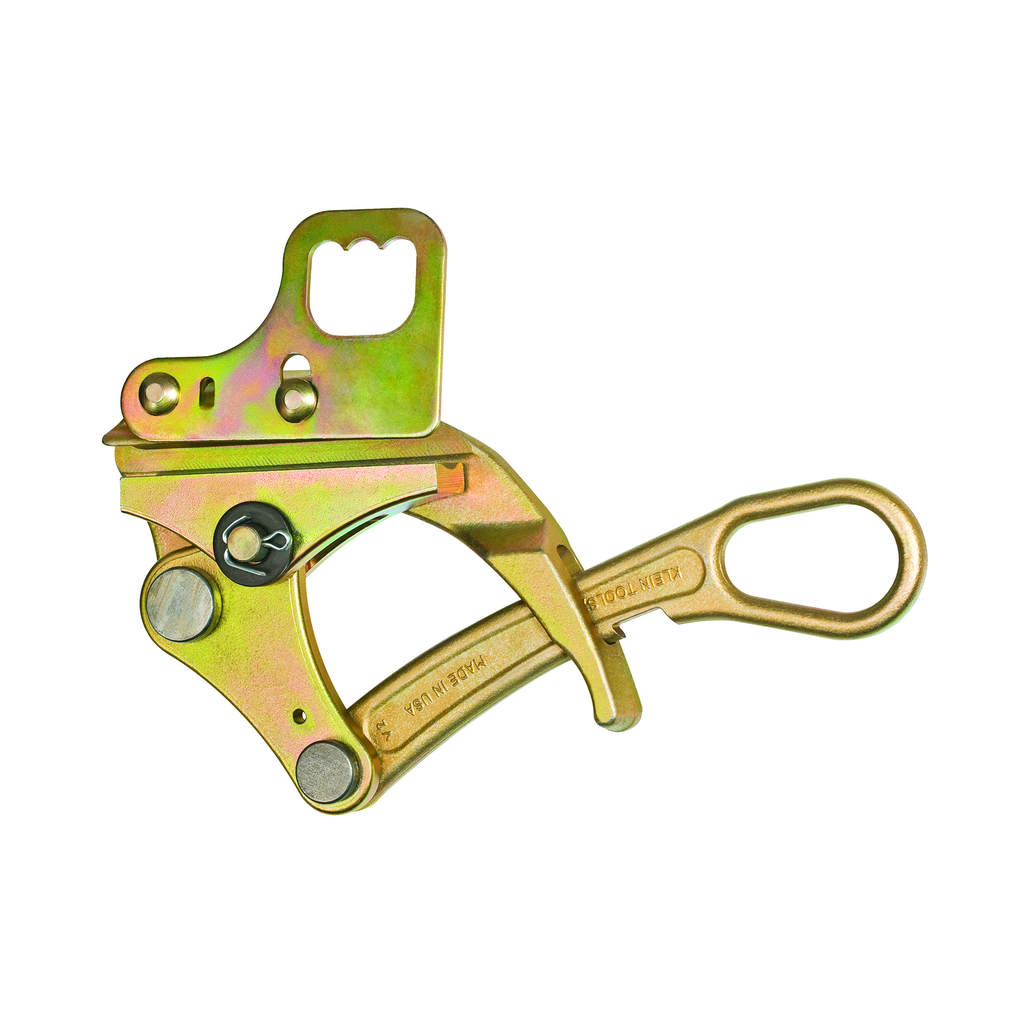

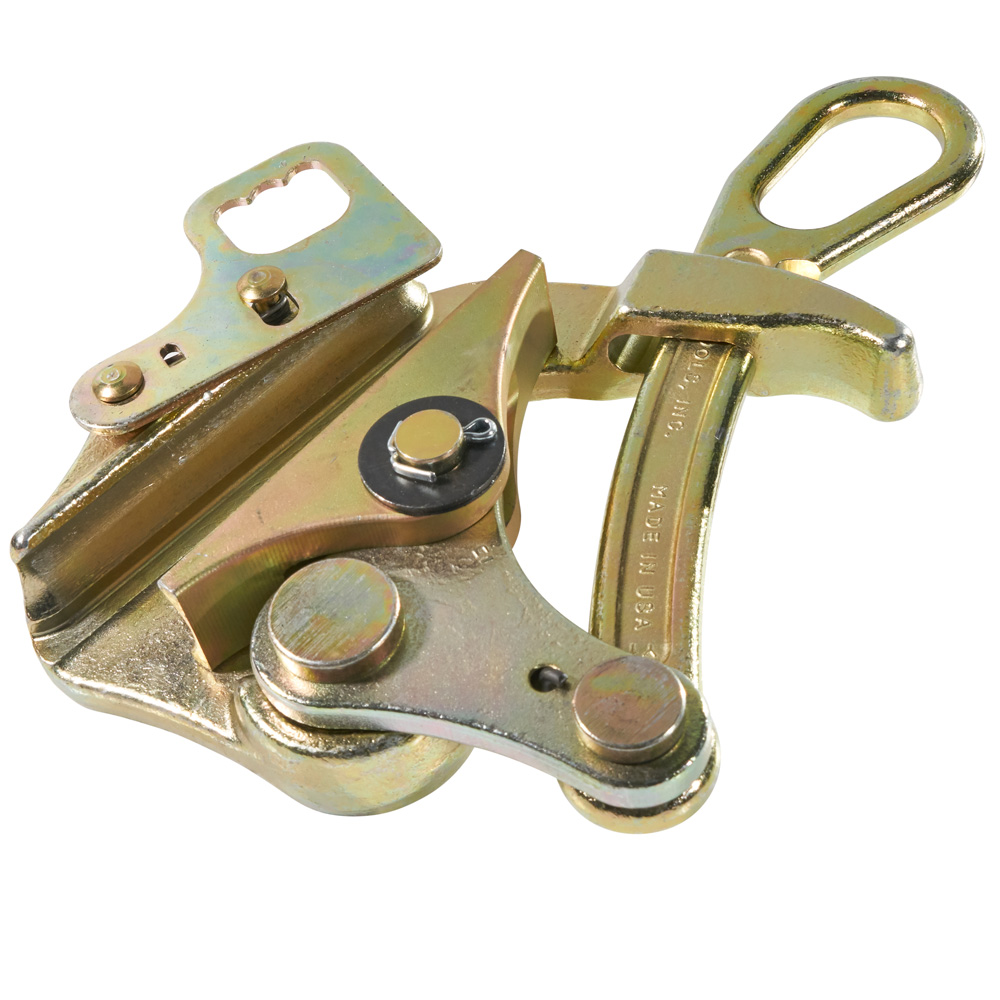

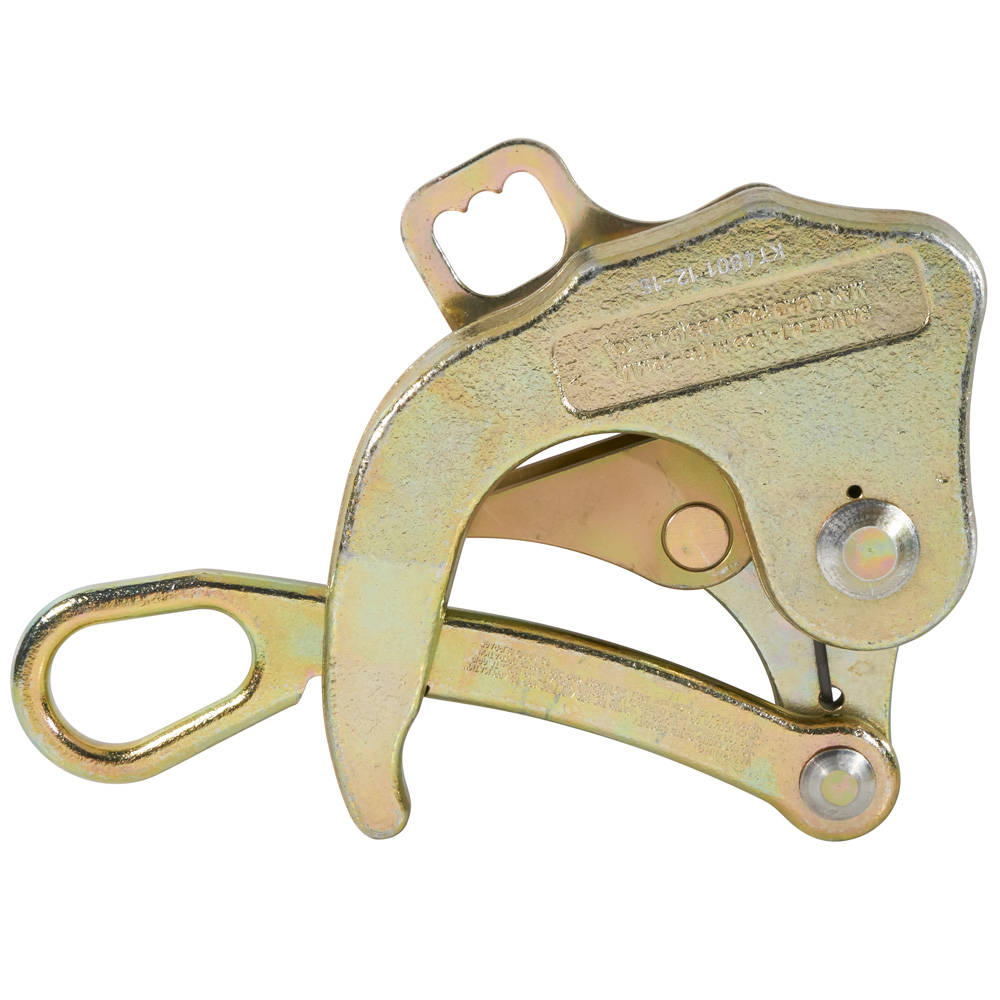

Parallel Jaw Grip 4801 Series with Hot Latch/Spring

Klein Tools has been manufacturing high quality grips for more than 135 years. Klein Parallel Jaw Grips are lightweight and compact. They can pull an exceptionally wide range of cable types and sizes.

Features

• Locking handle keeps jaw open while grip is placed on cable with a hot stick
• Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
• Max Safe Load of 12,000-Pound (5443 kg)
• Securely pulls 0.700 - 1.25-Inch (17.78 - 31/75 mm) diameter ACSR cables
• Hot latch closes automatically to guard against grip accidently disengaging from wire
• Hot Latch, Spring, Locking Handle
• Made in USA
• Round jaw provides maximum contact with the cable minimizing deformation
• Large eyelet opening in the handle to accommodate a wide variety of hooks on hoists, winches and tackle blocks

Warnings

• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.
• Grips are to be used for temporary installation, not for permanent anchorage.

Specifications

• Application: Wire Pulling
• Jaw Type: Round
• Maximum Safe Load (kg): 5443.1
• Weight: 9.0000 lbs
• Jaw Length (Inch): 5.125
• Cable Diameter: 0.7" to 1.25" (17.78 to 31.75 mm)
• Overall Width (cm): 6.4
• Swing Latch: No
• Type: Parallel Jaw Grip
• Overall Width (Inch): 2.5
• Overall Length (Inch): 13.4
• Weight (lb): 9
• Width: 8.0000 in
• Cable Type: ACSR, AAC, Copper
• Weight (kg): 4.1
• Depth: 10.0000 in
• Hot Latch: Yes
• Jaw Length (cm): 13
• Overall Length (cm): 34
• Locking Handle: Yes
• Overall Height (Inch): 7.6
• Maximum Safe Load (lb): 12000
• Teeth Type: Coarse
• Material: Steel
• Overall Height (cm): 19.3
• Spring: Yes
• Height: 1.0000 in
