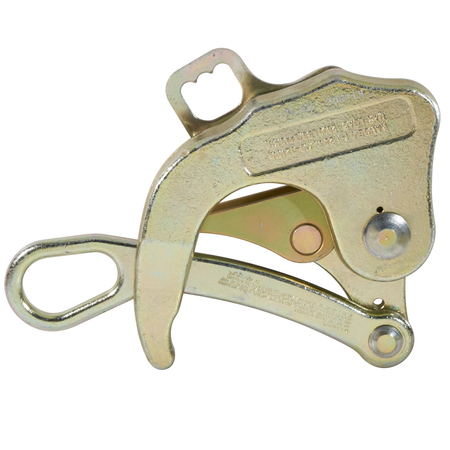

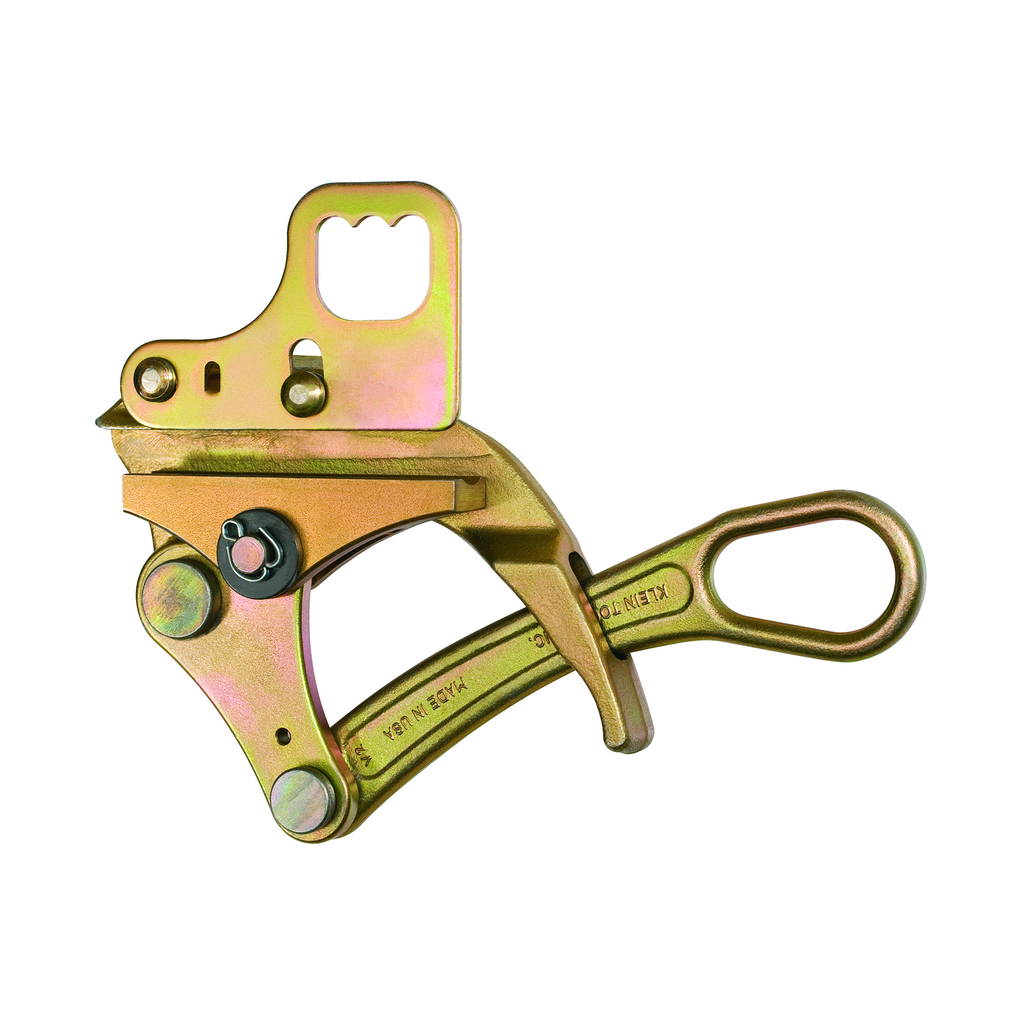

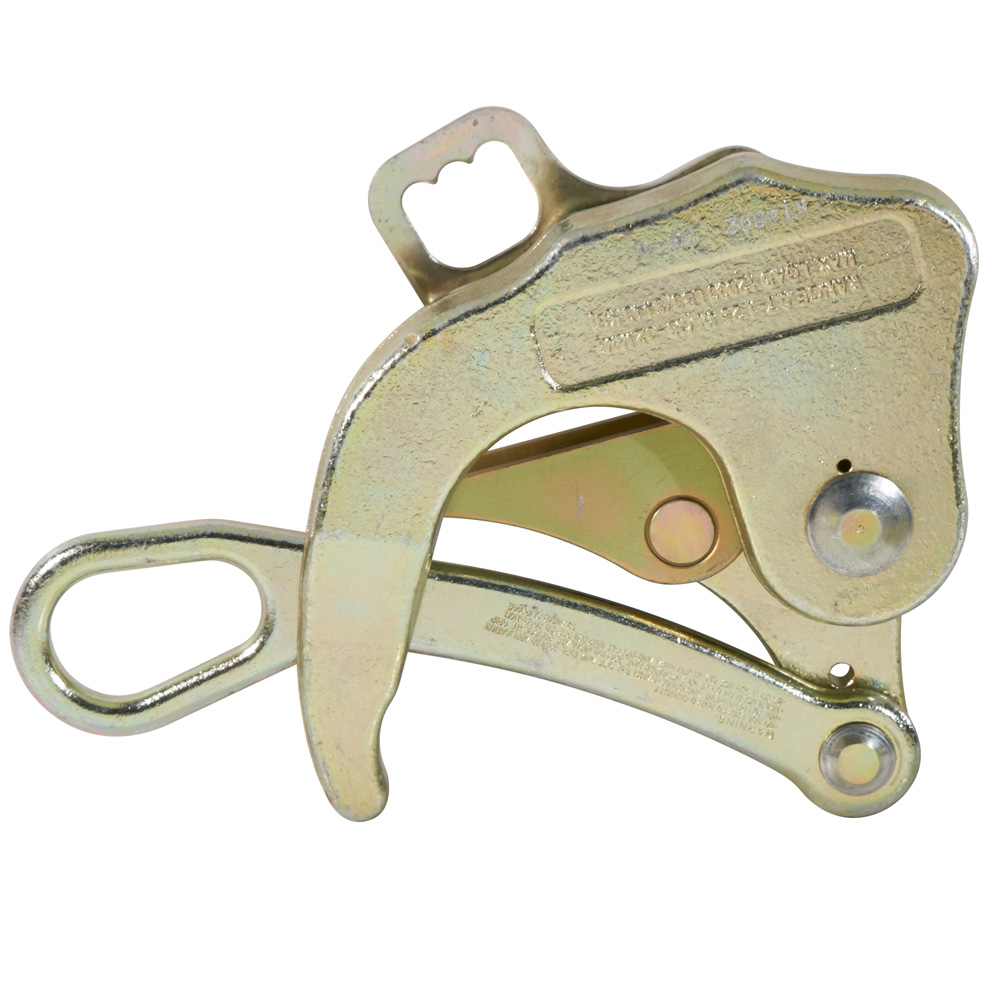

Parallel Jaw Grip 4802 Series with Hot Latch

The Klein KT4802 Forged Parallel Jaw Grips with Hot-Latch's large round eyelet opening in the handle is perfect for accommodating a wide variety of hooks on hoists, winches and tackle blocks. The hot latch closes automatically to guard against grip accidently disengaging from the wire. The KT4802 has a jaw length of 5-1/8 - Inches.

Features

• Hot latch closes automatically to guard against grip accidently disengaging from wire
• Round jaw provides maximum contact with the cable minimizing deformation
• Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
• Hot Latch
• Securely pulls 0.700 - 1.25-Inch (17.78 - 31/75 mm) diameter ACSR cables
• Maximum Safe Load of 12,000-pounds (5443 kg)
• Large eyelet opening in the handle to accommodate a wide variety of hooks on hoists, winches and tackle blocks
• Made in USA

Warnings

• Do not exceed rated capacity.
• Grips are to be used for temporary installation, not for permanent anchorage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Specifications

• Jaw Length (cm): 13
• Teeth Type: Coarse
• Overall Length (Inch): 13.4
• Cable Diameter: 0.7" to 1.25" (17.78 to 31.75 mm)
• Height: 2.2500 in
• Width: 7.5000 in
• Spring: Yes
• Material: Steel
• Weight: 9.0000 lbs
• Jaw Type: Round
• Swing Latch: No
• Overall Width (Inch): 2.5
• Jaw Length (Inch): 5.125
• Weight (kg): 4.1
• Application: Wire Pulling
• Locking Handle: No
• Overall Height (Inch): 7.6
• Hot Latch: Yes
• Type: Parallel Jaw Grip
• Overall Height (cm): 19.3
• Overall Length (cm): 34
• Depth: 13.5000 in
• Weight (lb): 9
• Cable Type: ACSR, AAC, Copper
• Overall Width (cm): 6.4
• Maximum Safe Load (kg): 5443.1
• Maximum Safe Load (lb): 12000
