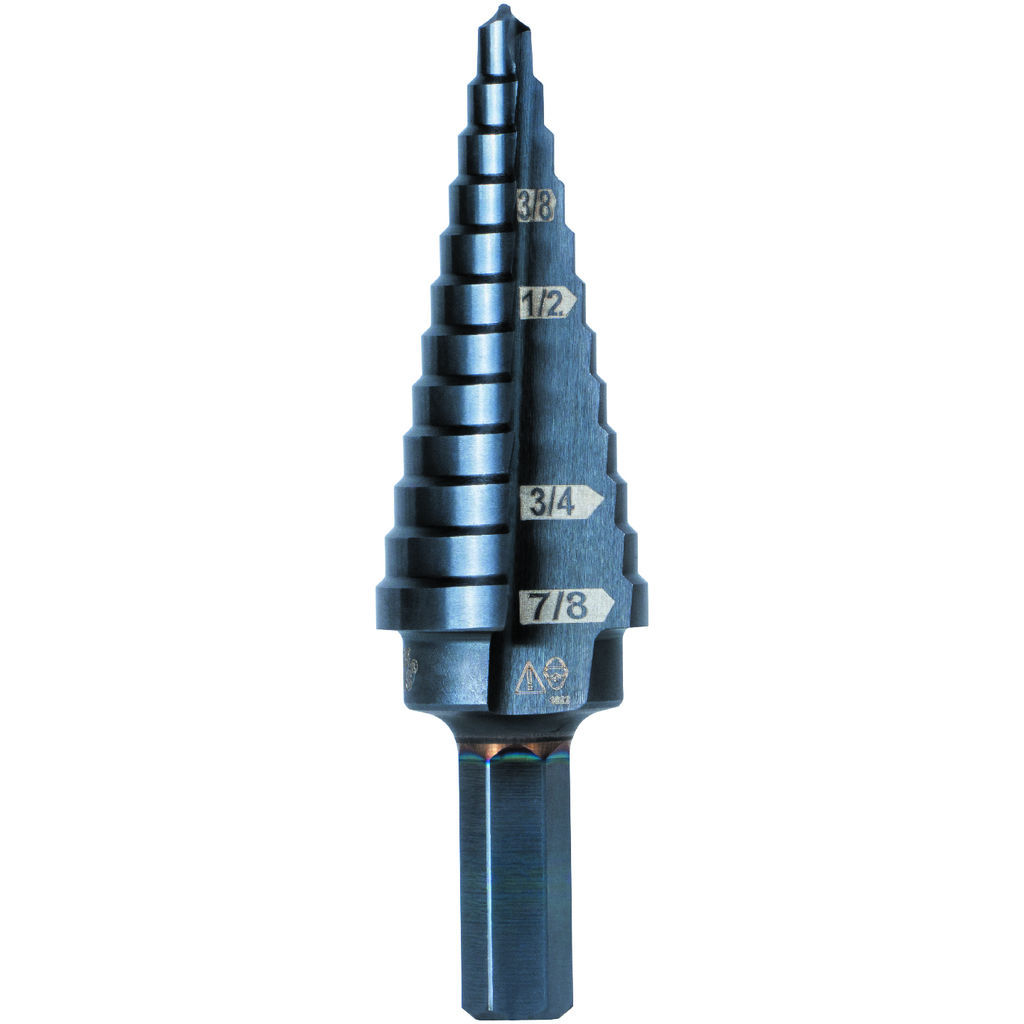

12-Step Drill Bit, 3/8-Inch Hex, Double Straight Flute, 3/16-Inch to 7/8-Inch

Straight, Double Fluted Step Drill Bits from Klein Tools provide cleaner cutting and drilling. The aluminum titanium coating is 10 times more durable than steamed black oxide for longer bit life. 3/8-Inch hex shank is durable, and has a firm, positive grip. Laser-etched markings provide quick size identification on primary holes. This step bit has 12-hole sizes from 3/16-Inch to 7/8-Inch (4.8 to 22.2 mm).

Features

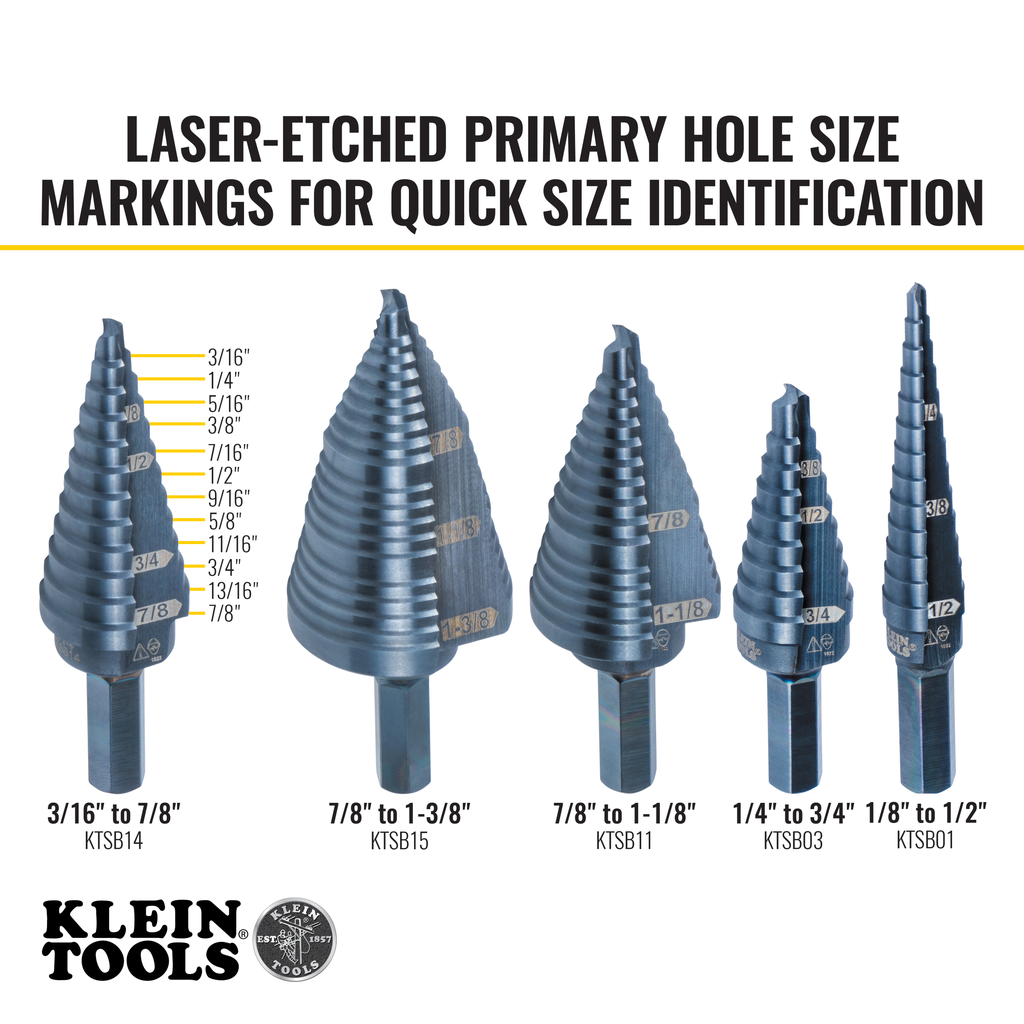

• Laser markings are easy to read for quick size identification

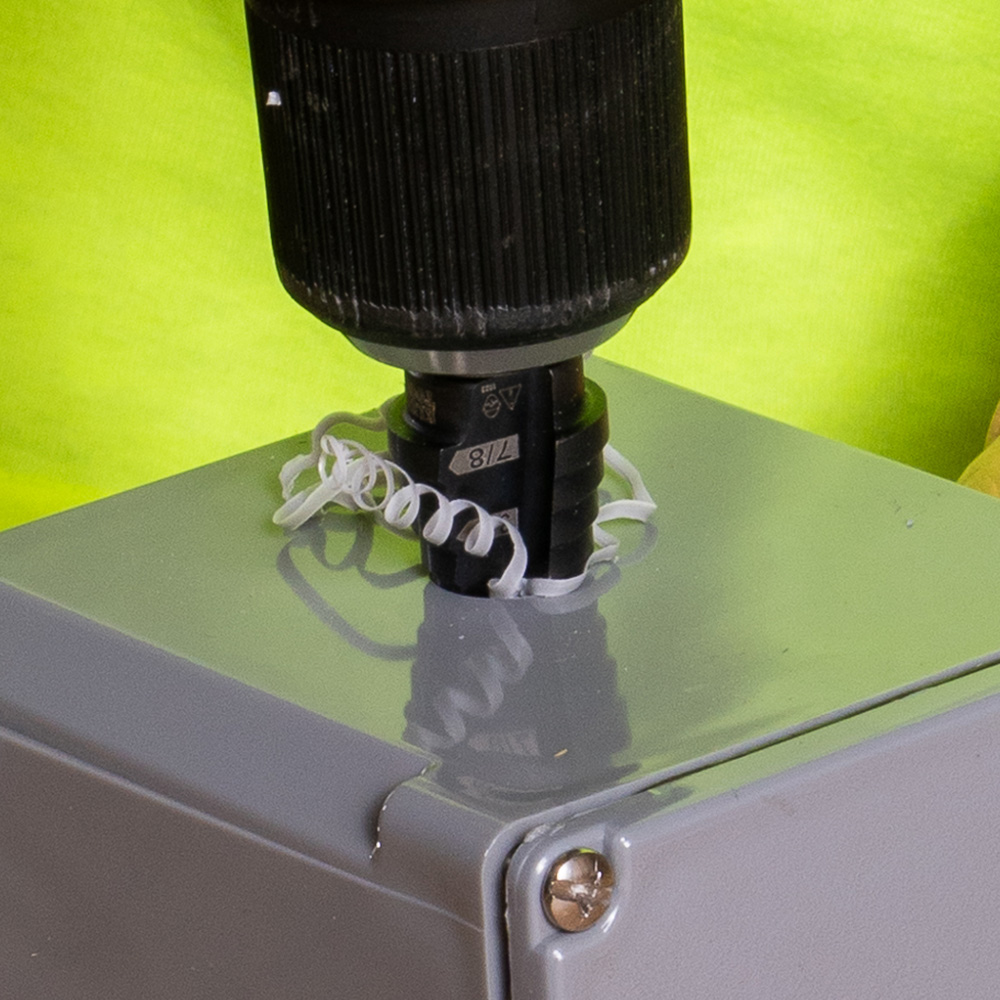

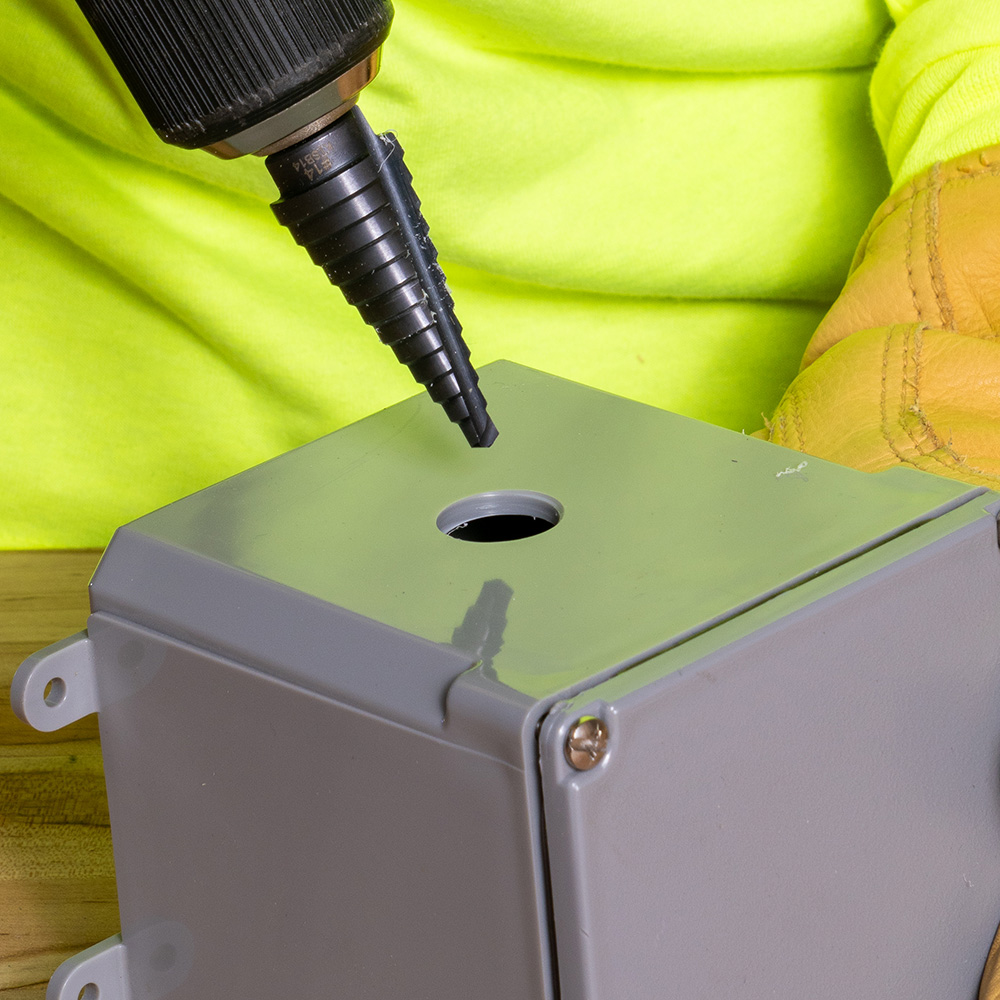

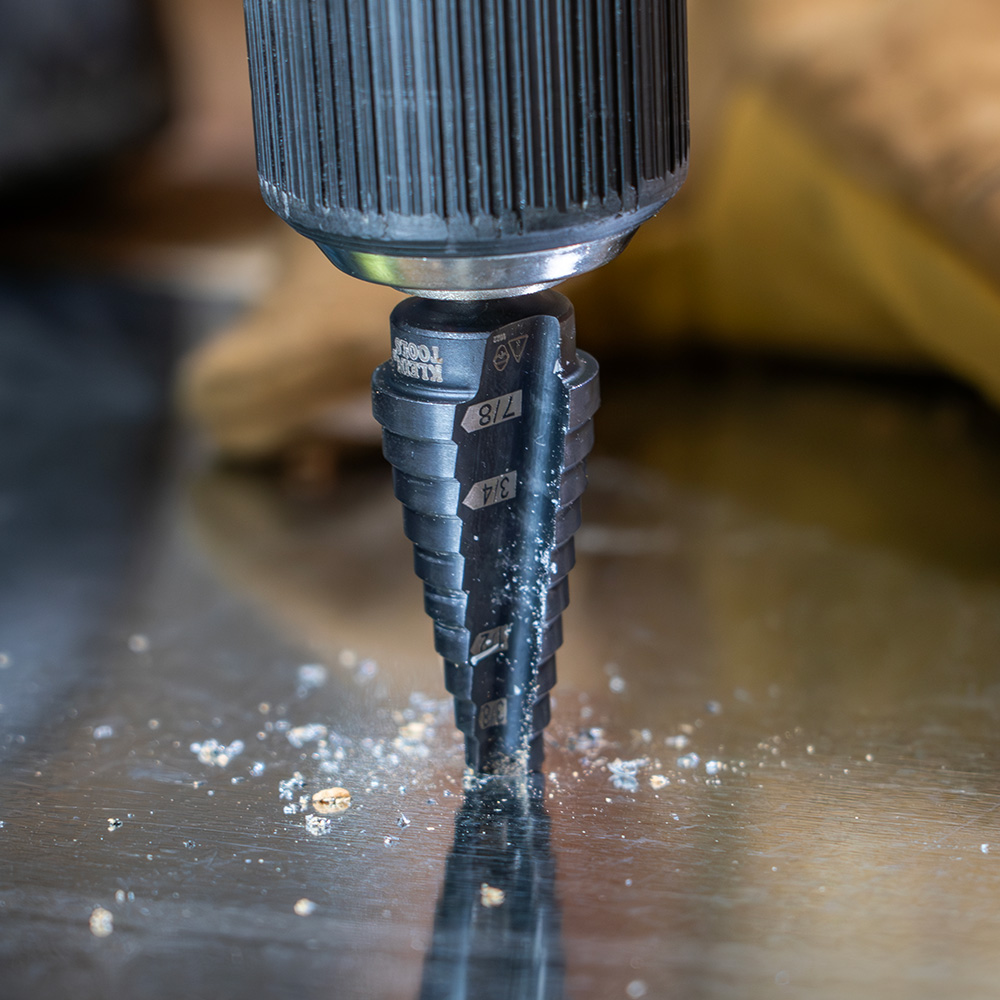

• For use on steel (up to 16 gauge), wood, plastic, and aluminum

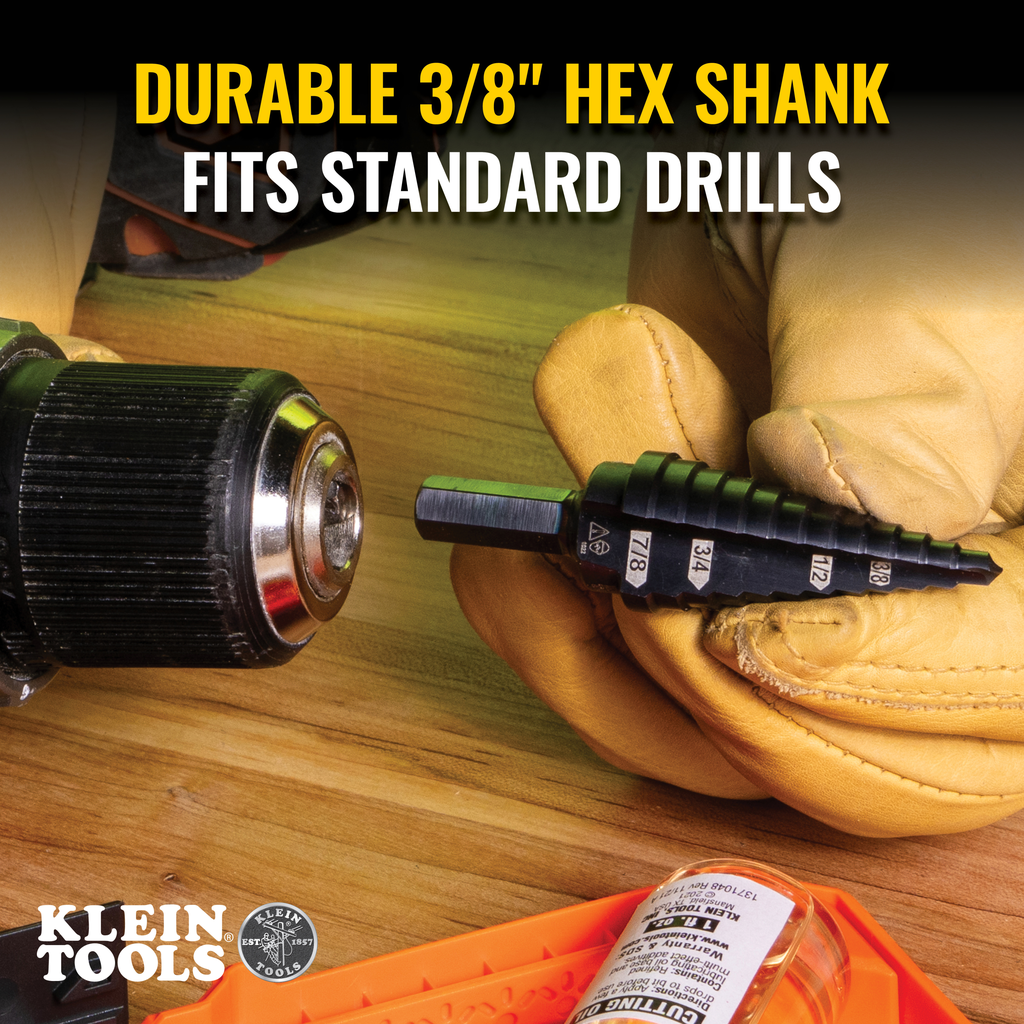

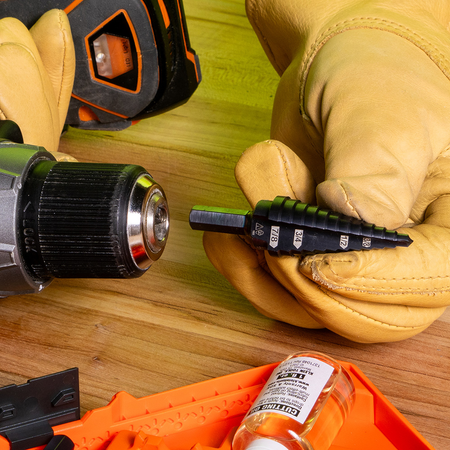

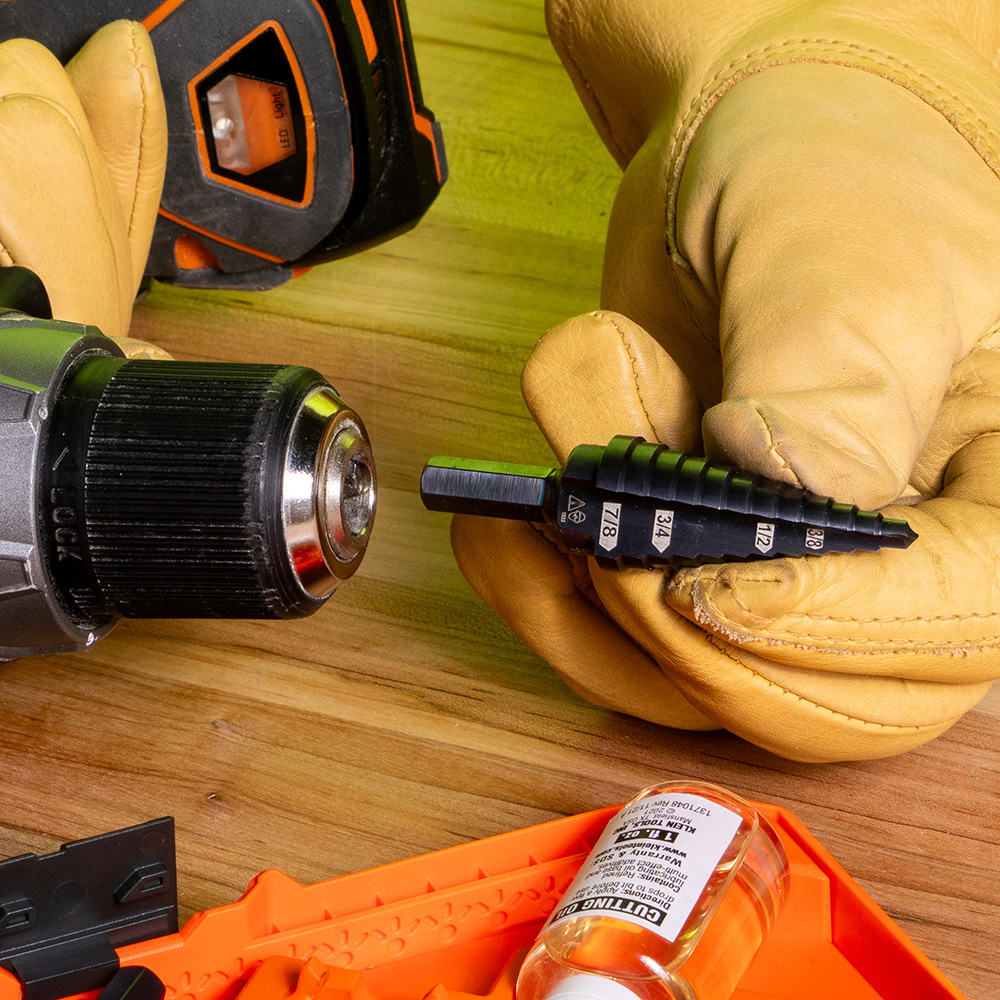

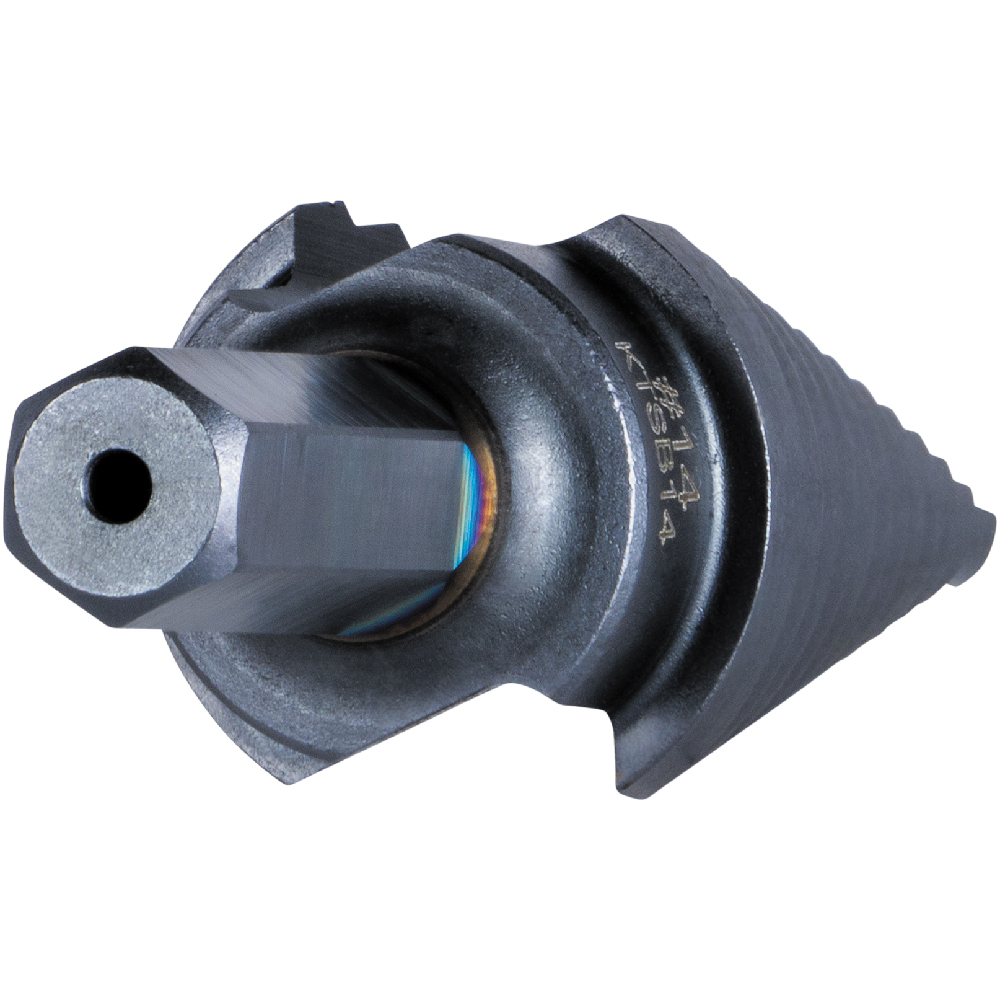

• Durable, 3/8-Inch hex shank provides a firm, positive grip and won't spin out in the drill

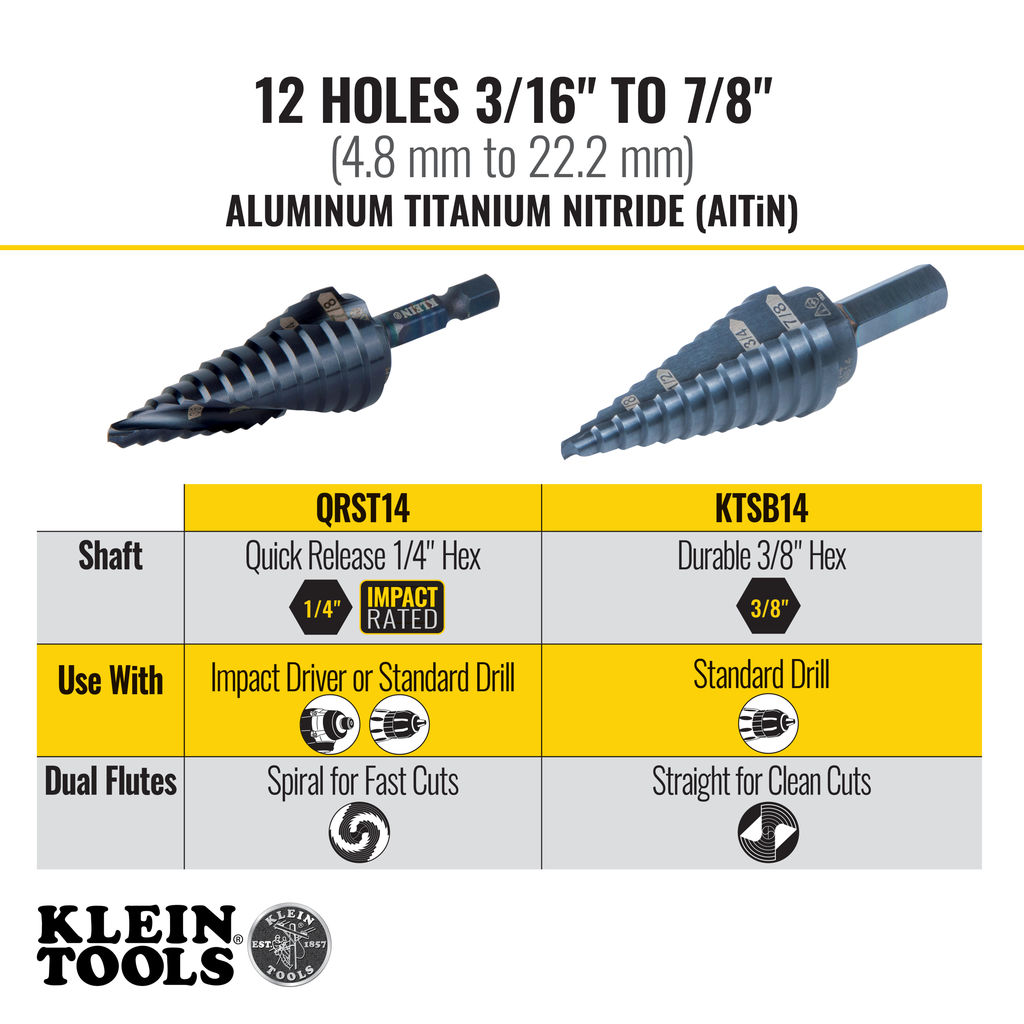

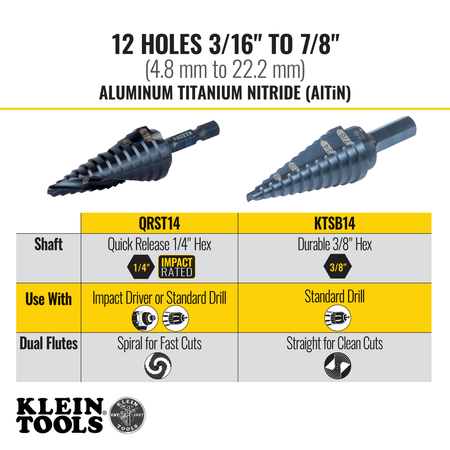

• 3/16-Inch to 7/8-Inch (4.8 to 22.2 mm), 12-Step sizes

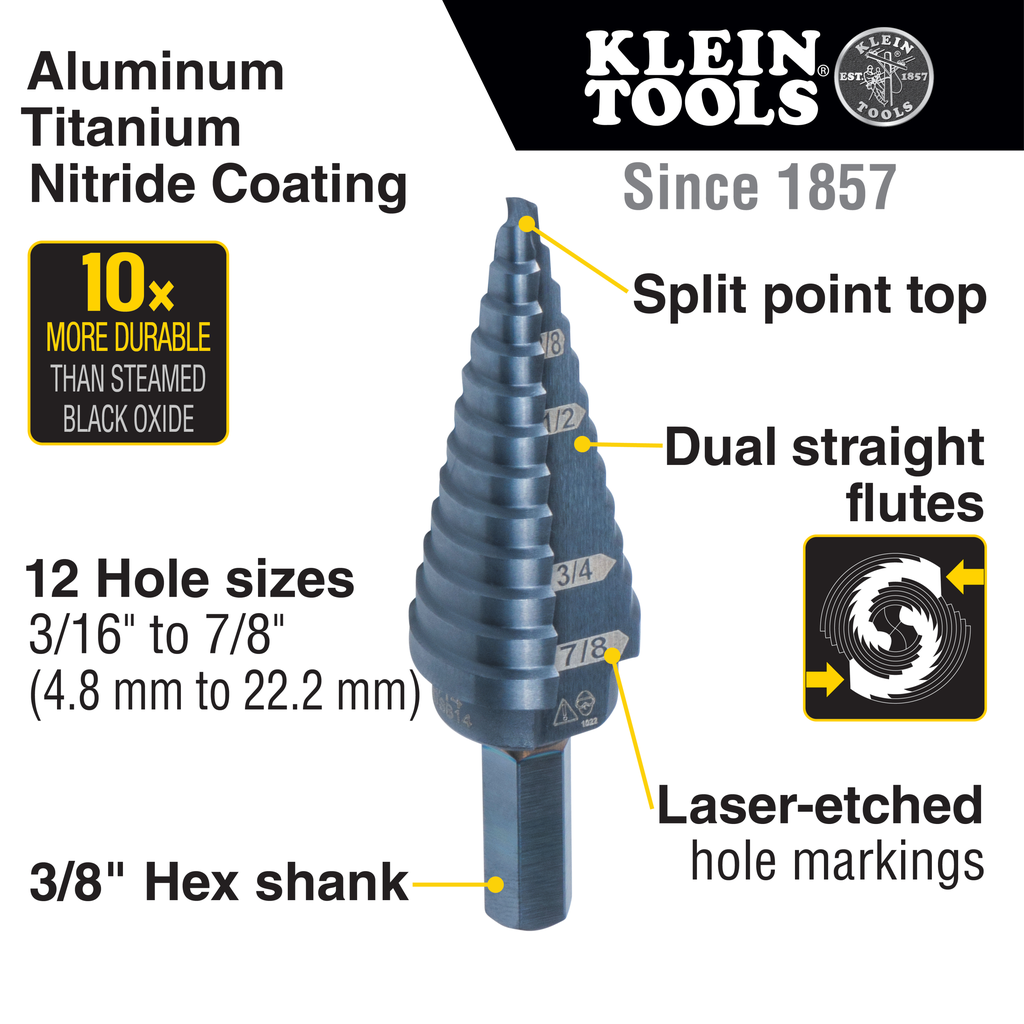

• Aluminum Titanium Nitride Coating; Dual Straight Fluting

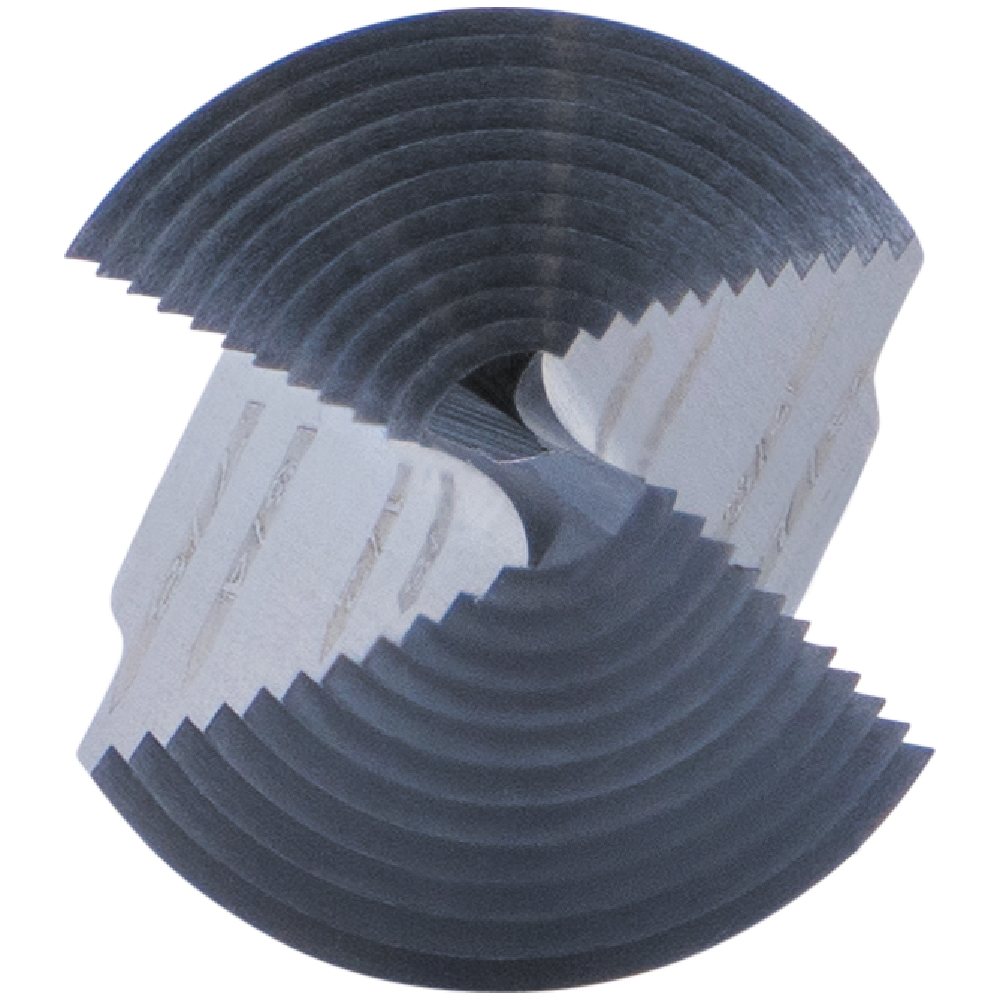

• Double, straight flute removes chips for clean cuts and drilling
• Fast-starting, non-walking drill tip
• Step bits are coated with aluminum titanium nitride and are 10 times more durable than steamed black oxide coating for longer bit life

Note

• Read and follow safety instructions in power tool owner's manual.

Warnings

• Always ensure that you and persons in the vicinity wear approved eye protection.

Specifications

• Weight: 0.1500 lbs
• Size: 3/16" to 7/8" (4.8 to 22.2 mm)
• Overall Length (Inch): 0.88
• Depth: 1.0000 in
• Overall Height (Inch): 3.2
• Increment: 1/16" (1.6 mm)
• Number of Holes: 12
• Flute Type: Straight
• Coating: Aluminum Titanium Nitride (AlTiN)
• Overall Length (cm): 2.2
• Weight (oz): 2.24
• Weight (g): 64
• Quick Reference: #14
• Material: High Speed Steel
• Overall Height (cm): 8.1
• Overall Width (Inch): 0.88
• Overall Width (cm): 2.2
• Type: Step Drill Bit
• Shank Type: 3/8" Hex
• Height: 1.0000 in
• Width: 1.0000 in
• Application: Multi-Material Drilling
