Premium Electrician's 3/8-Inch Hex Step Bit Set, 3 Piece

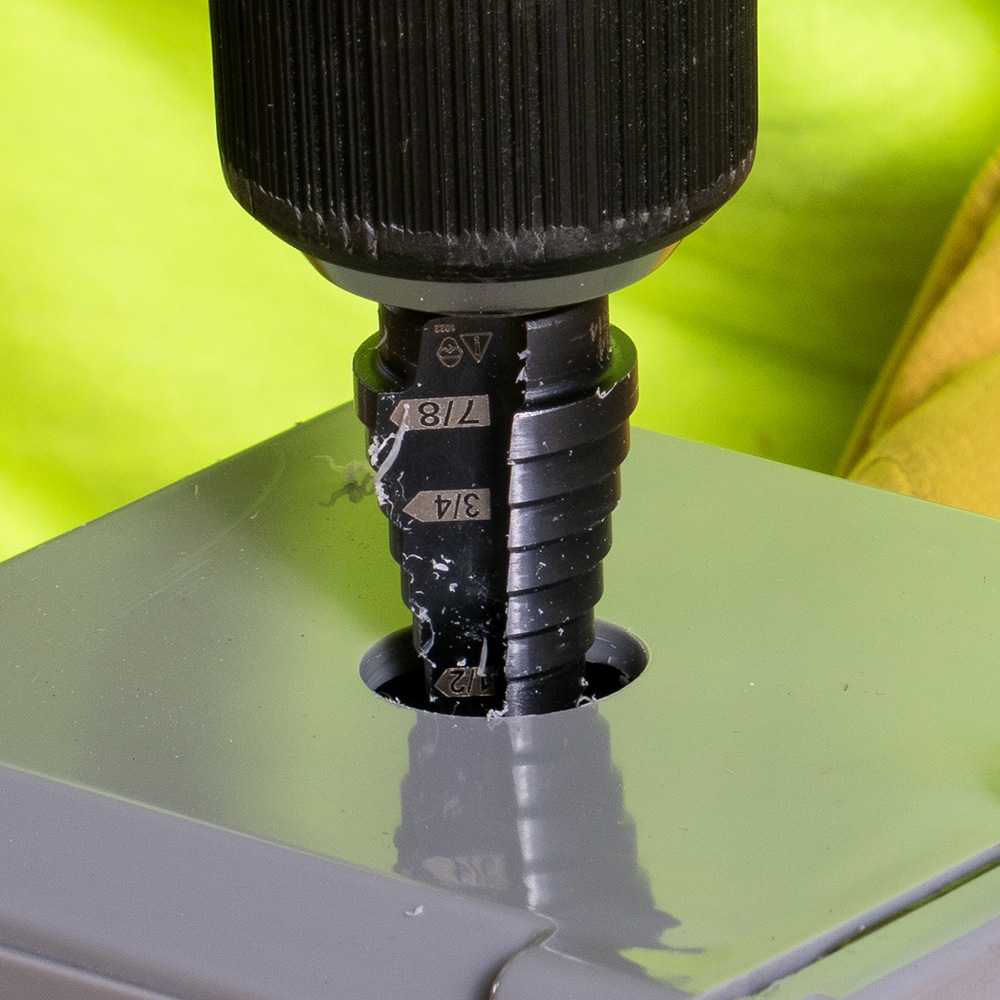

The Premium Electrician's 3/8-Inch Hex Step Bit Set contains 3 step bits sized 7/8-Inch, 1-1/8-Inch, and 1-3/8-Inch for creating hole cutouts in panels and j-boxes to accommodate most commonly used 1/2-Inch, 3/4-Inch, and 1-Inch conduit. Dual straight flutes help pull the step bit through the material for clean cuts. The aluminum titanium nitride coating is 10 times more durable than steamed black oxide for longer bit life. The durable 3/8-Inch hex shank provides a firm, positive grip. The compact, modular case comes with cutting oil and is designed to nest neatly within MODbox™ toolboxes and on the MODbox™ Case Adapter Side Rail Attachment.

Warnings

• Always ensure that you and persons in the vicinity wear approved eye protection.

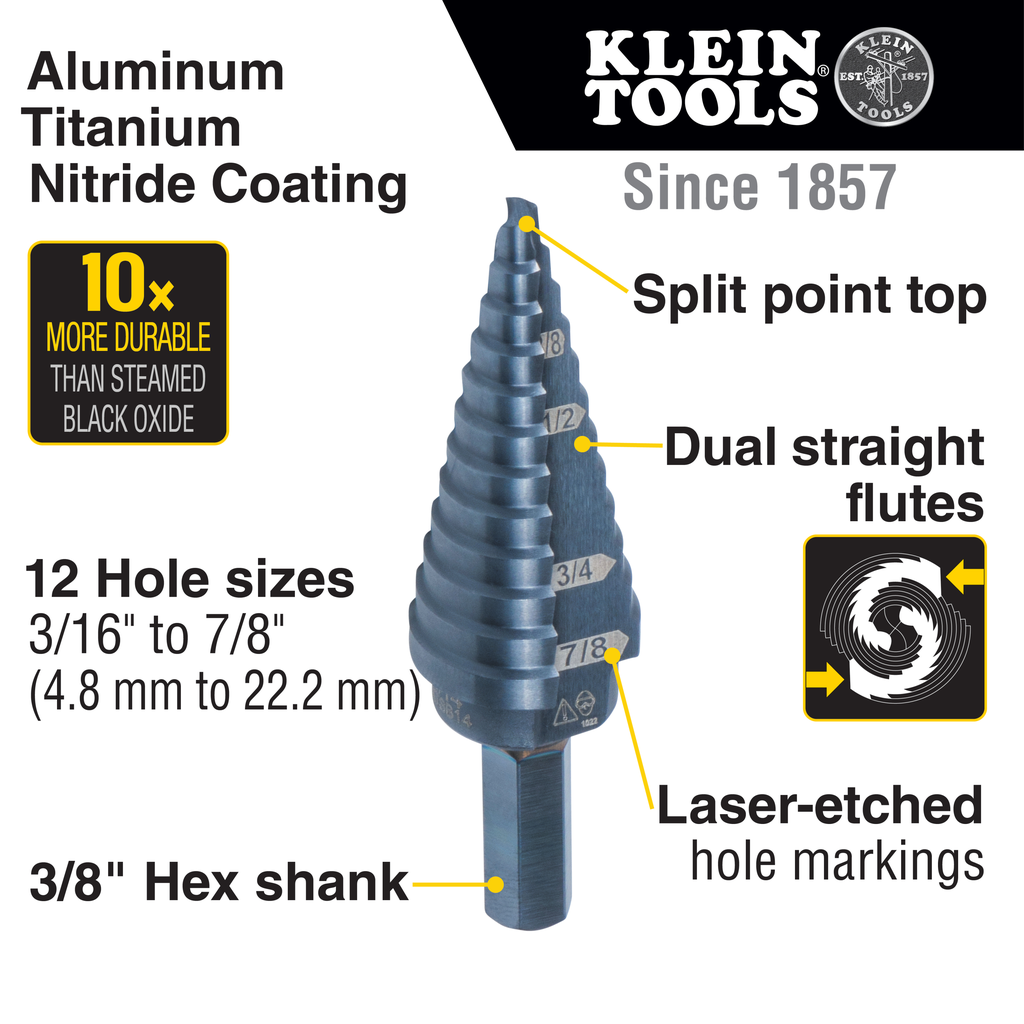

Features

• Aluminum Titanium Nitride Coating; Dual Straight Fluting; Cutting Oil Included; Modular Case

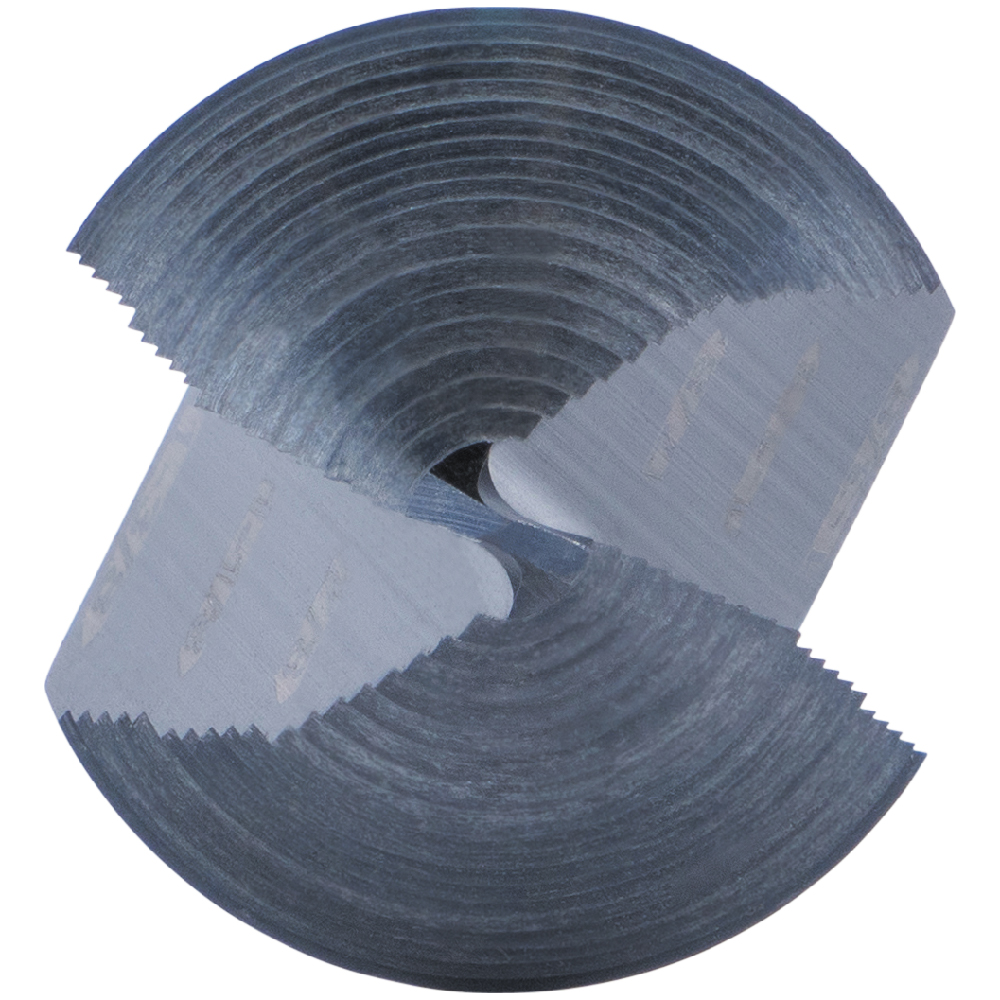

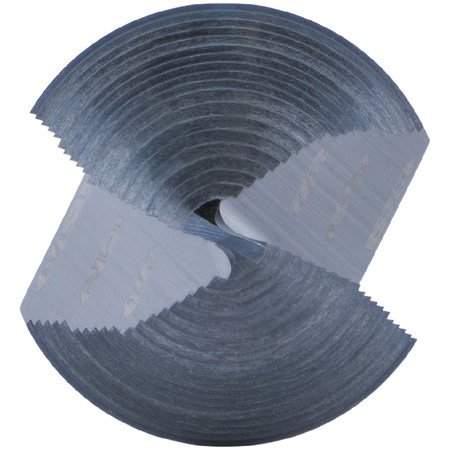

• Double, straight flute removes chips for clean cuts and drilling

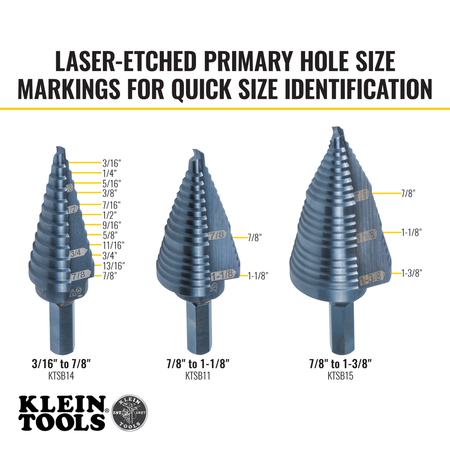

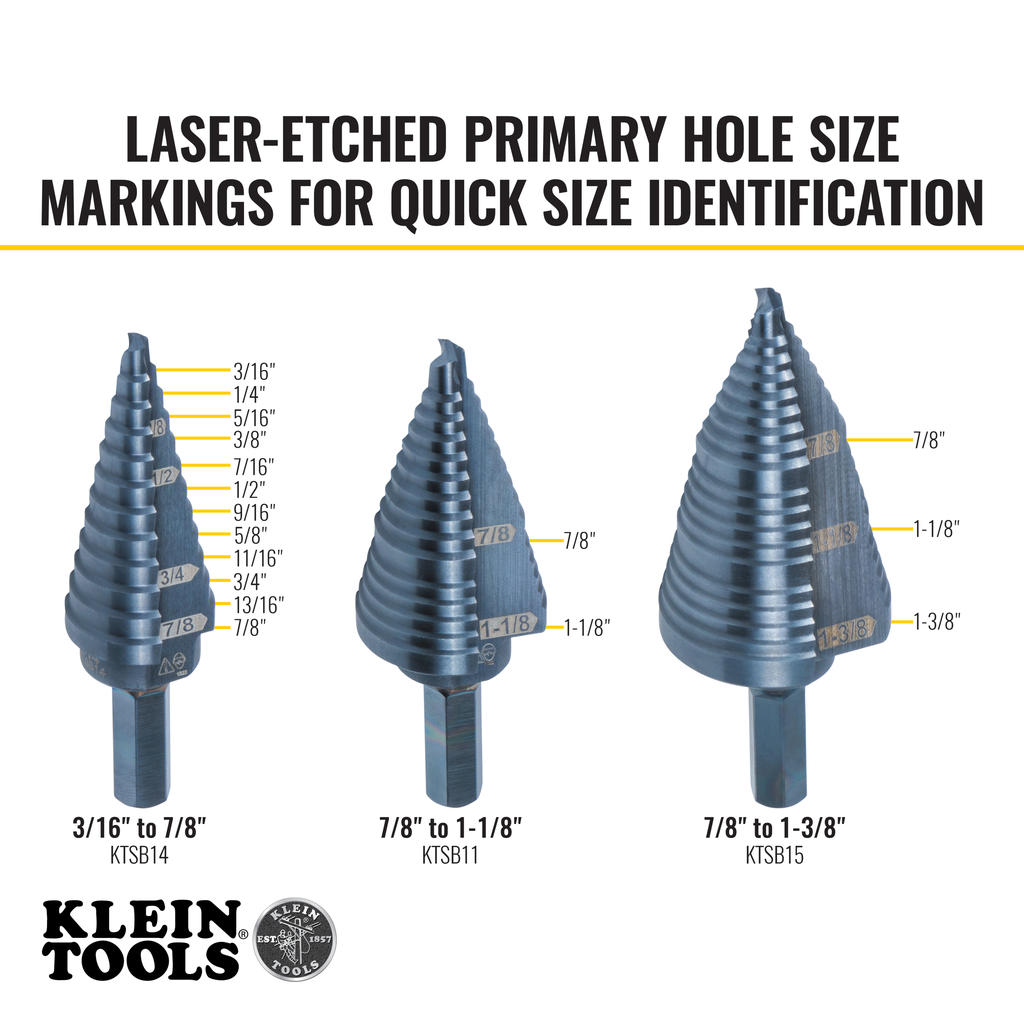

• Laser markings are easy to read for quick size identification

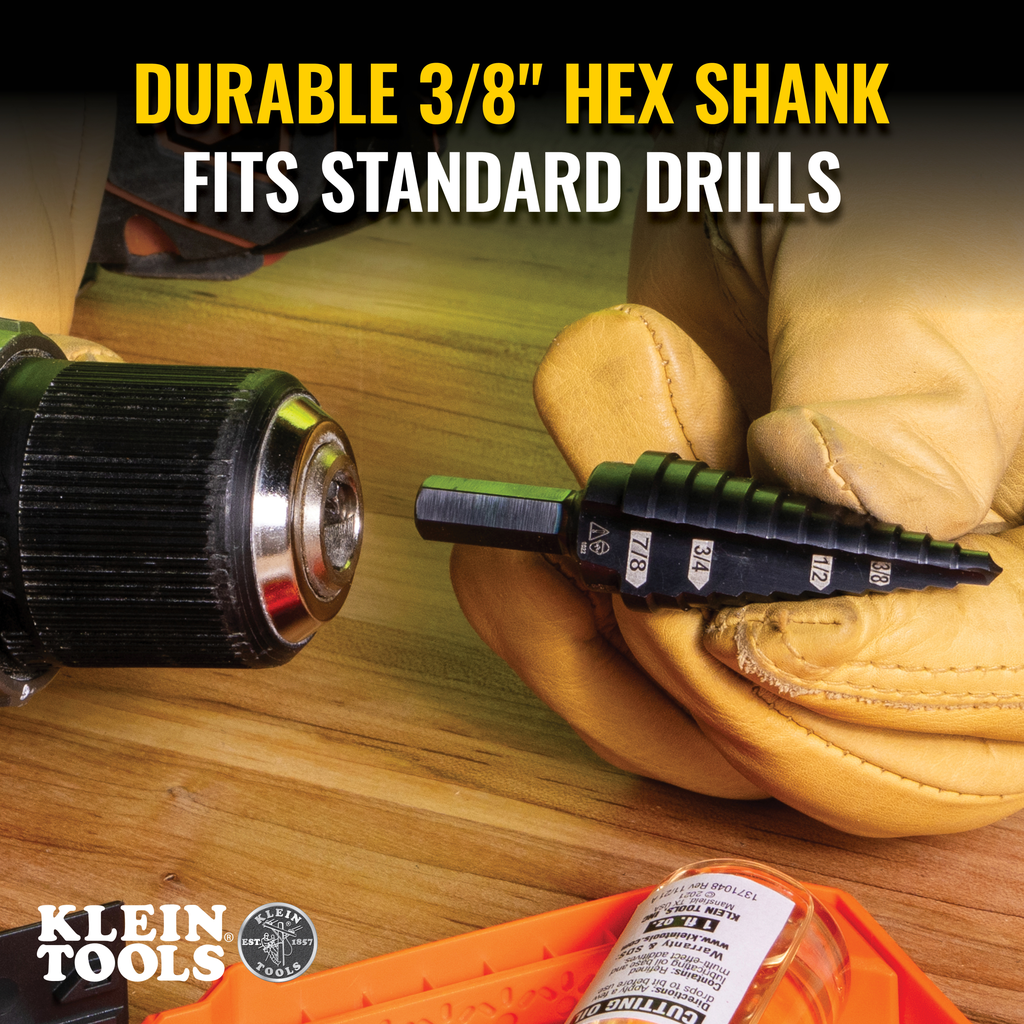

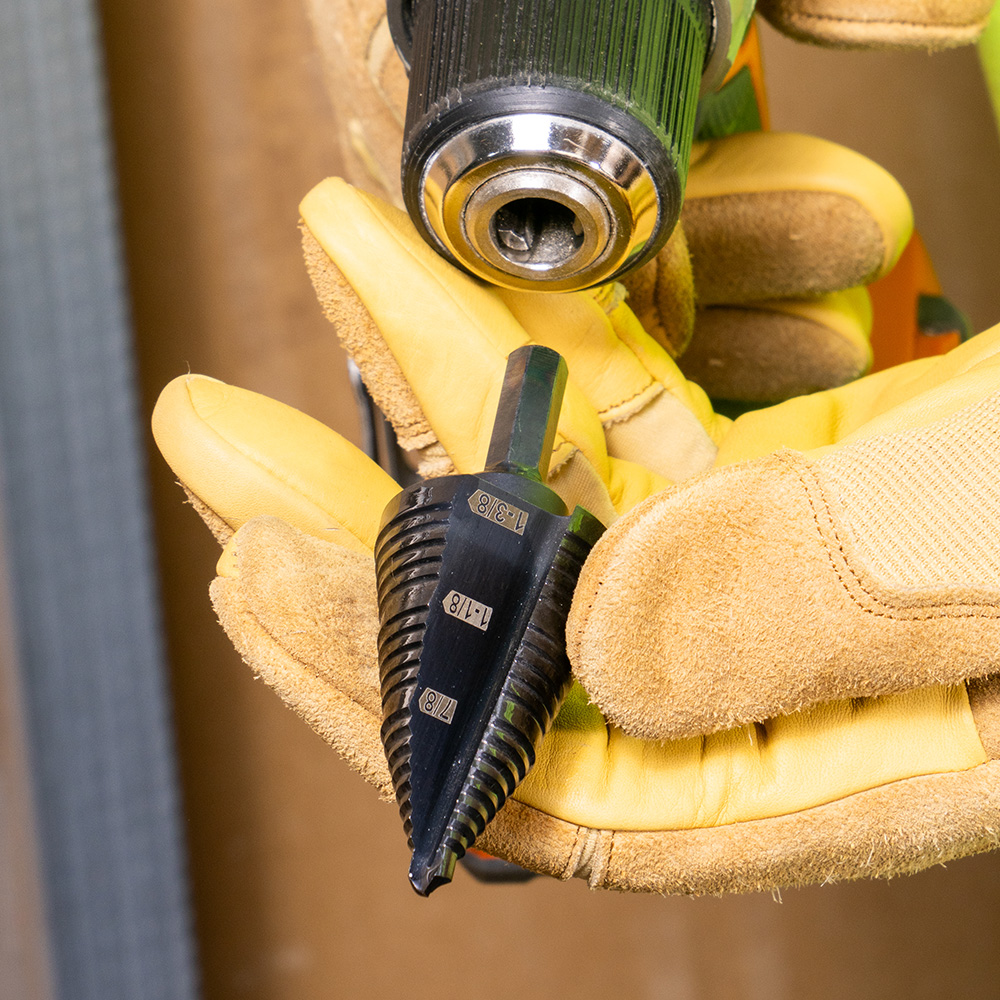

• Durable, 3/8-Inch hex shank provides a firm, positive grip and won't spin out in the drill

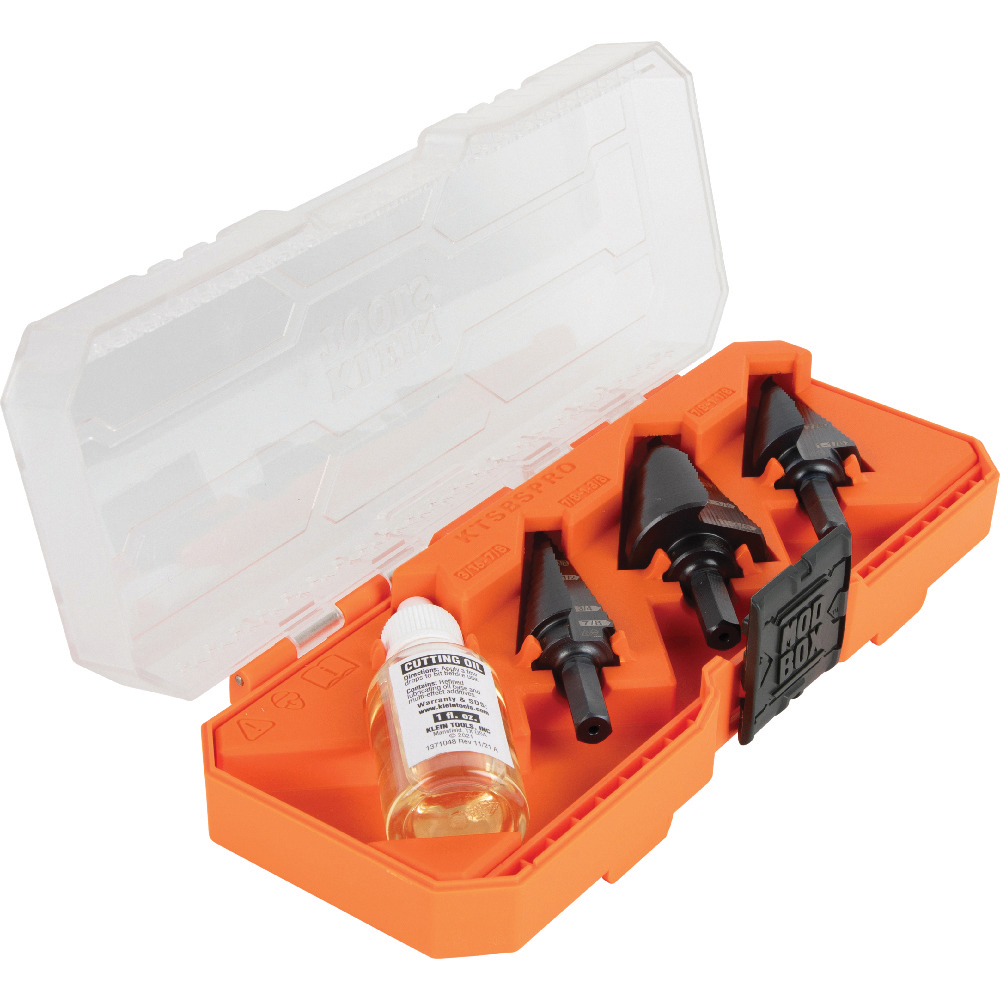

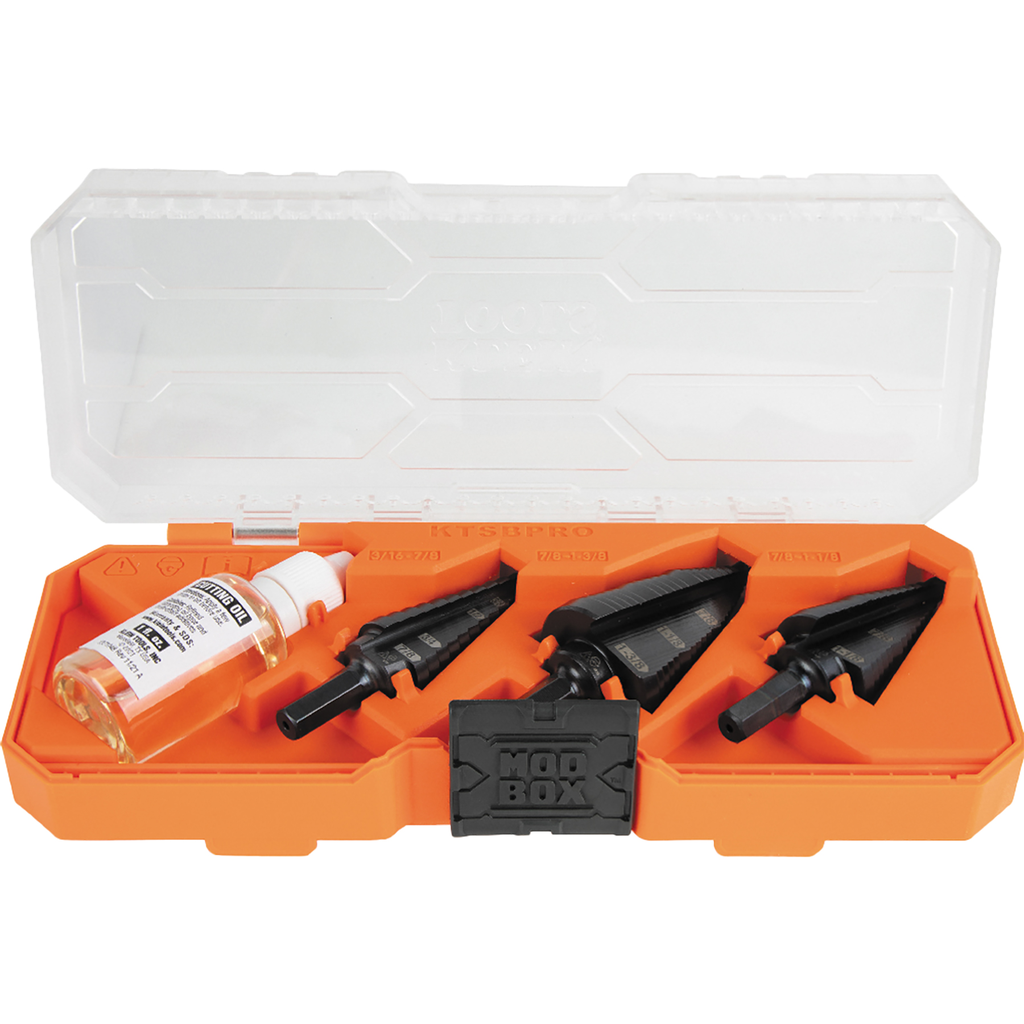

• The compact, modular case comes with cutting oil and is designed to nest neatly within MODbox™ toolboxes and on the MODbox™ Case Adapter Side Rail Attachment

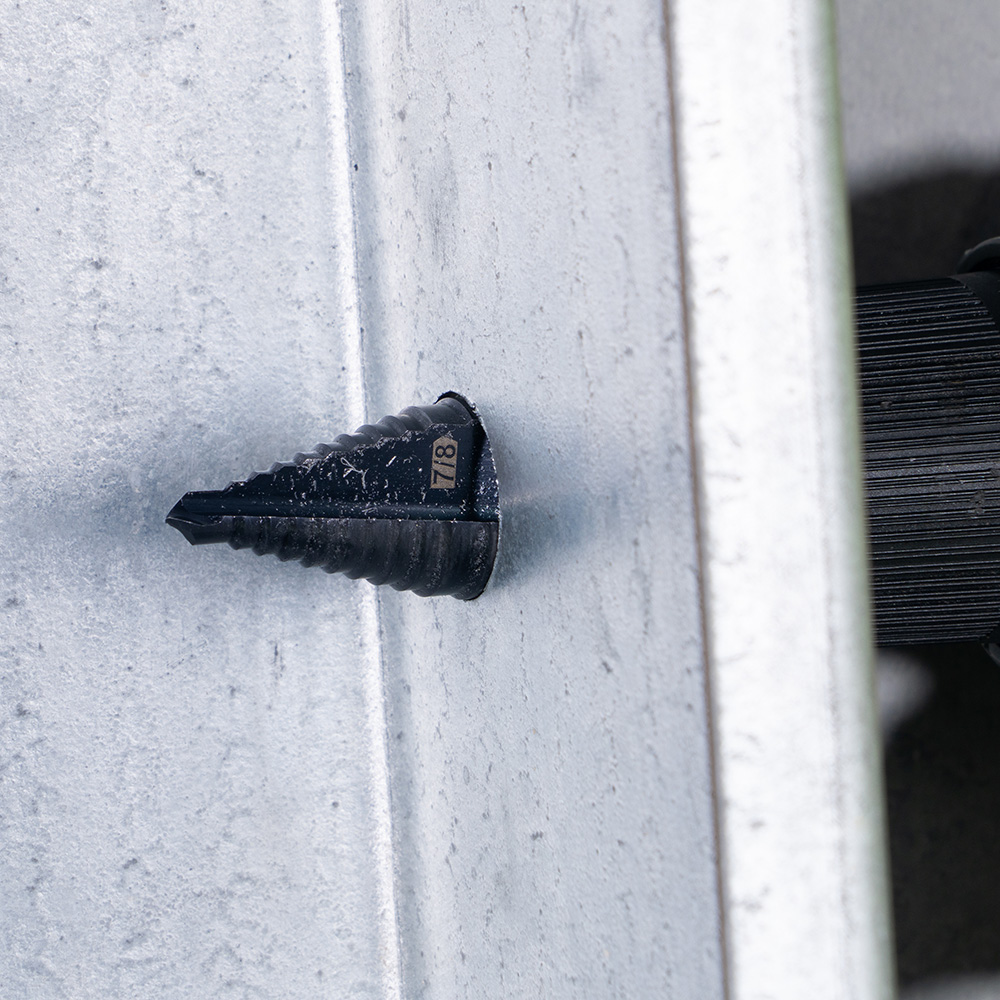

• For use on steel (up to 16 gauge), wood, plastic, and aluminum
• Step bits are coated with aluminum titanium nitride and are 10 times more durable than steamed black oxide coating for longer bit life

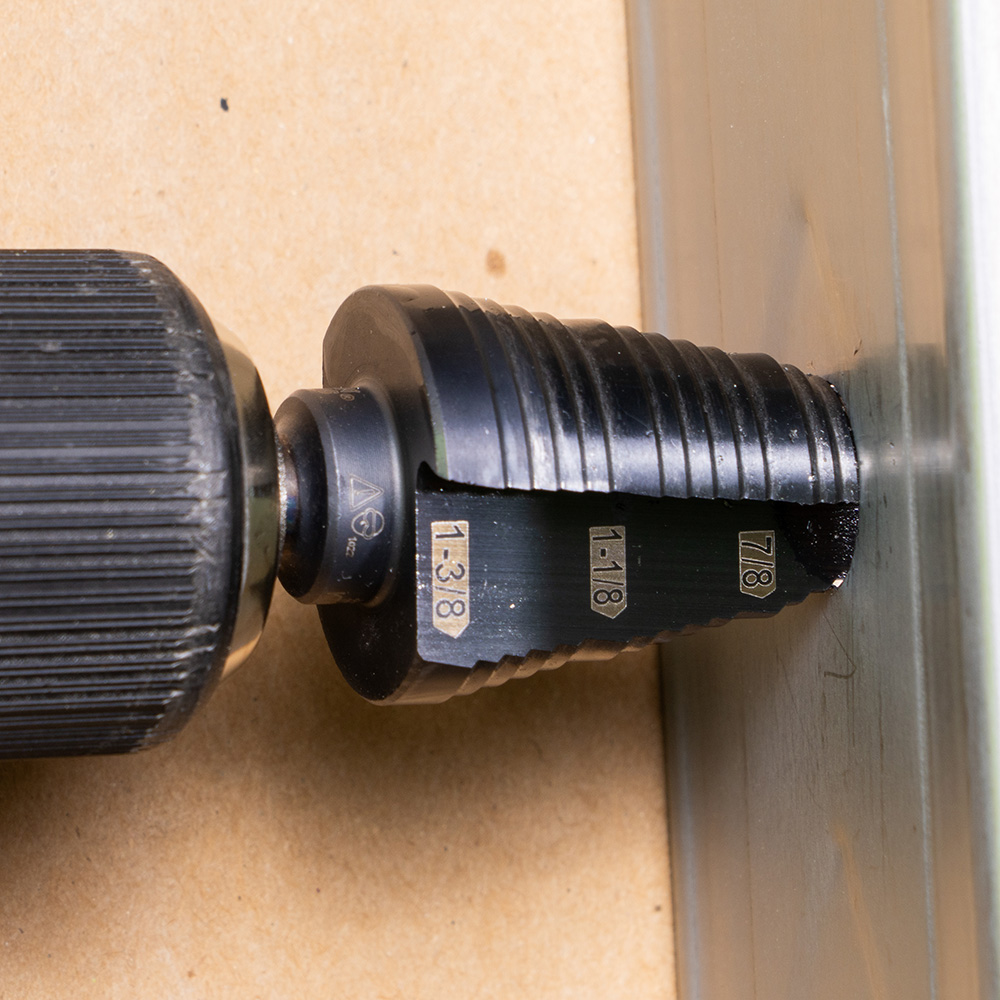

• Fast-starting, non-walking drill tip

Note

• Read and follow safety instructions in power tool owner's manual.

Specifications

• Width: 3.7200 in
• Type: Step Drill Bit
• Flute Type: Straight
• Size: 3/16" to 7/8" (4.8 to 22.2 mm); 7/8" to 1-1/8" (22.2 to 28.6 mm); 7/8" to 1-3/8" (22.2 to 34.9 mm)
• Overall Width (Inch): 3.72
• Depth: 9.2500 in
• Overall Length (cm): 23.5
• Material: High Speed Steel
• Weight (g): 585
• Weight: 1.2900 lbs
• Quick Reference: #14, #11, #15
• Overall Width (cm): 9.4
• Height: 1.8000 in

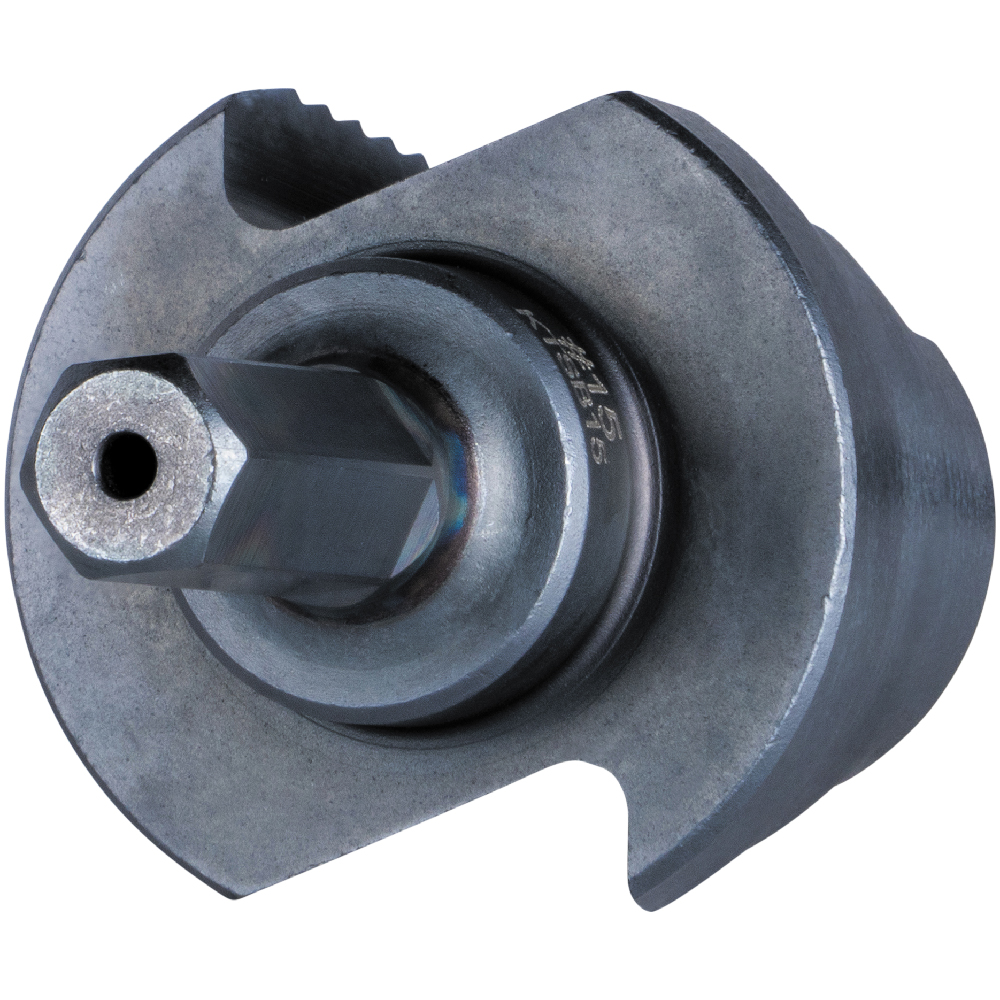

• Shank Type: 3/8" Hex
• Coating: Aluminum Titanium Nitride (AlTiN)
• Weight (oz): 20.64
• Overall Length (Inch): 9.25
• Application: Multi-Material Drilling
• Overall Height (cm): 4.6
• Increment: Varies
• Overall Height (Inch): 1.8
• Number of Holes: 12, 2, 3
