Digital Multimeter, Manual-Ranging, 600V

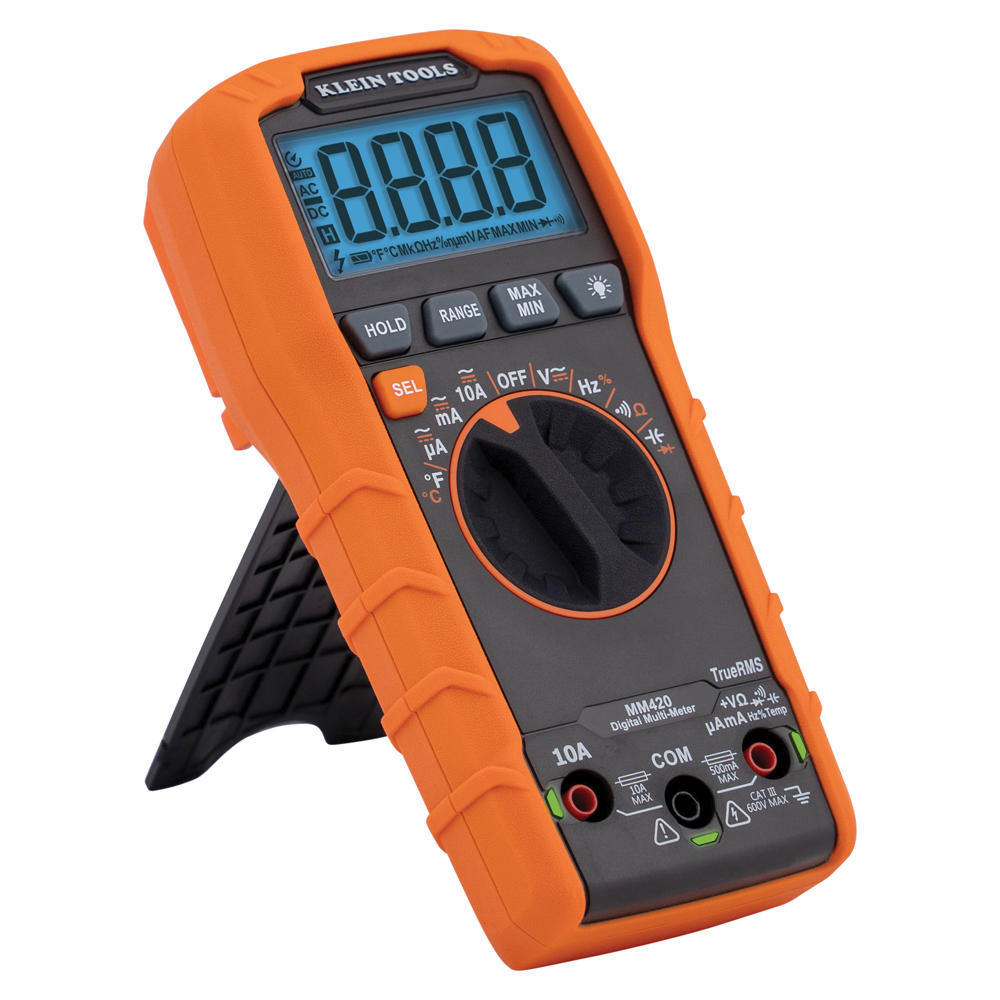

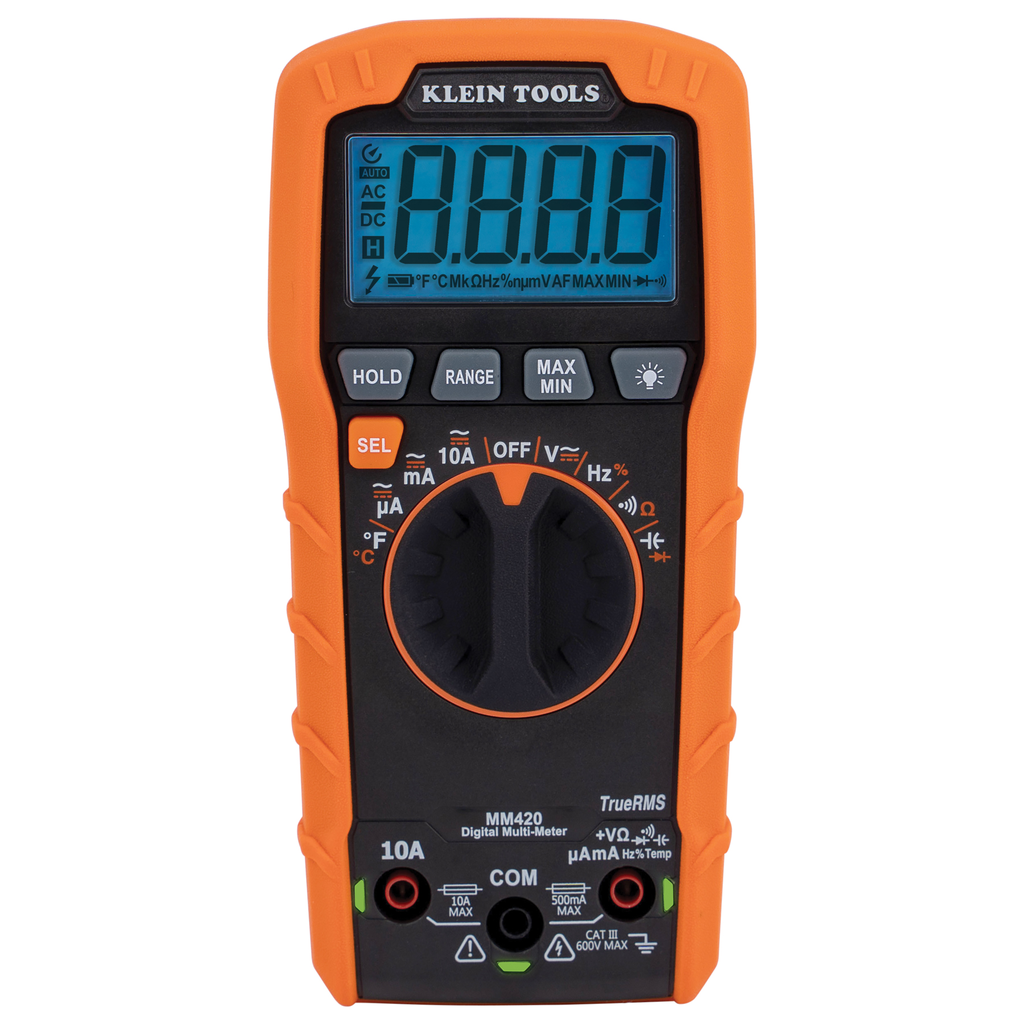

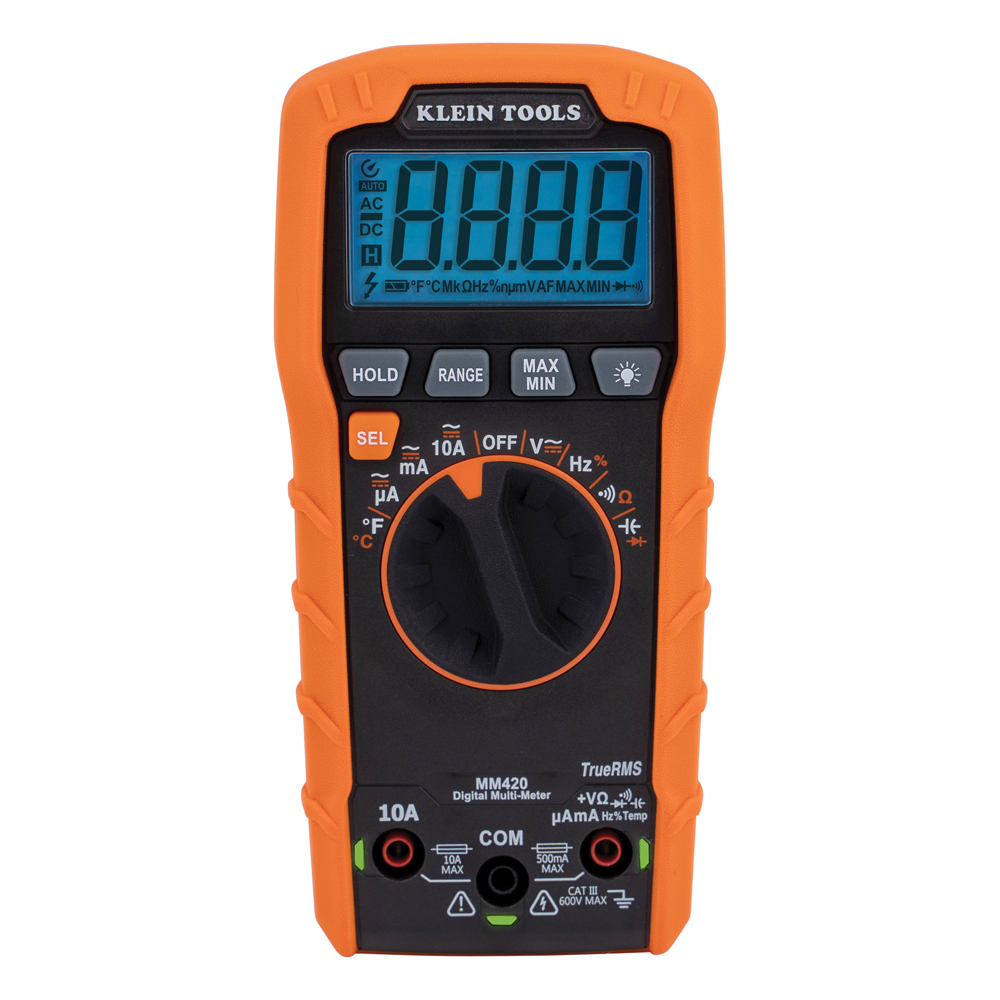

Klein Tools MM420 Multimeter is an auto-ranging, true root mean square (TRMS) multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, and test diodes and continuity. Klein Tools' Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.

Features

• Lead-Alert; Auto-Range; Min/Max Measurements; Backlight; Auto Power-Off; Data-Hold

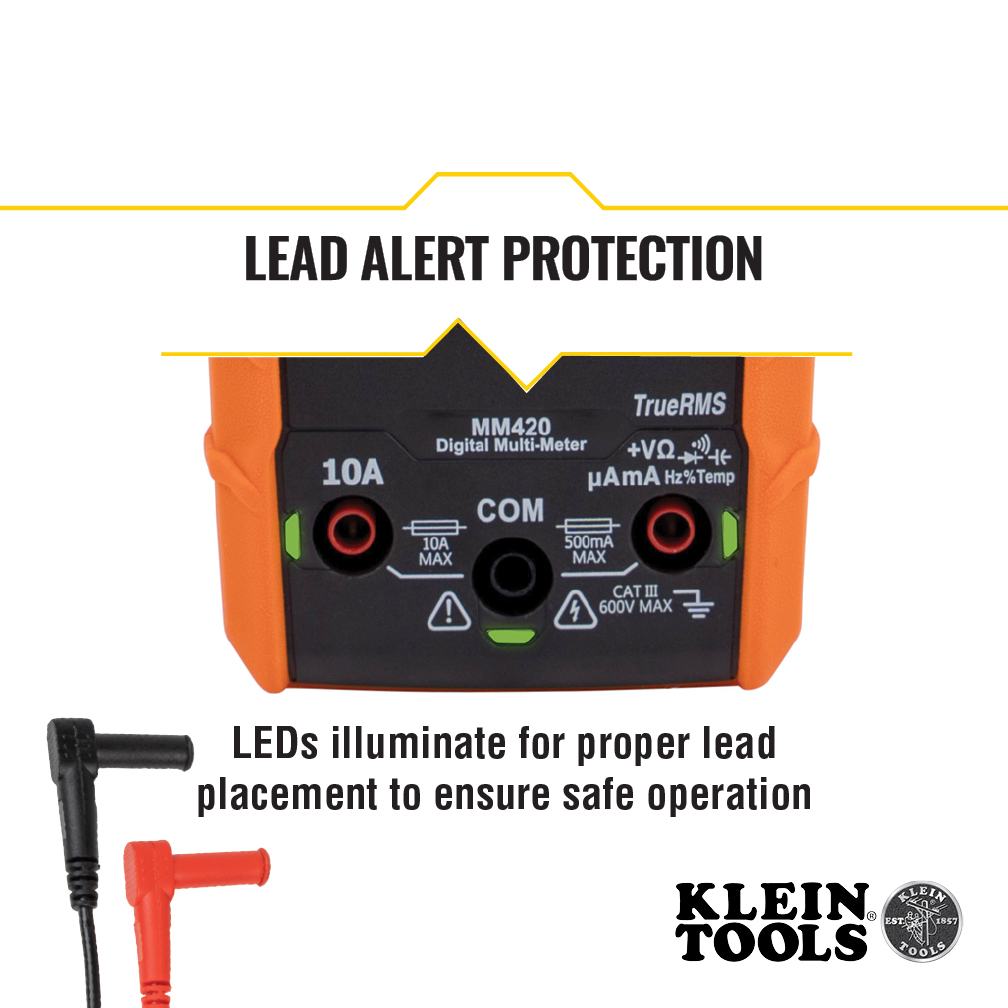

• Lead Alert protection with LED illumination for lead placement and an easy-to-view backlit display
• Low battery indicator and easily accessible battery and fuse compartment
• Durable meter built to withstand a 6.6-Foot (2 m) drop
• CAT III 600V safety rating

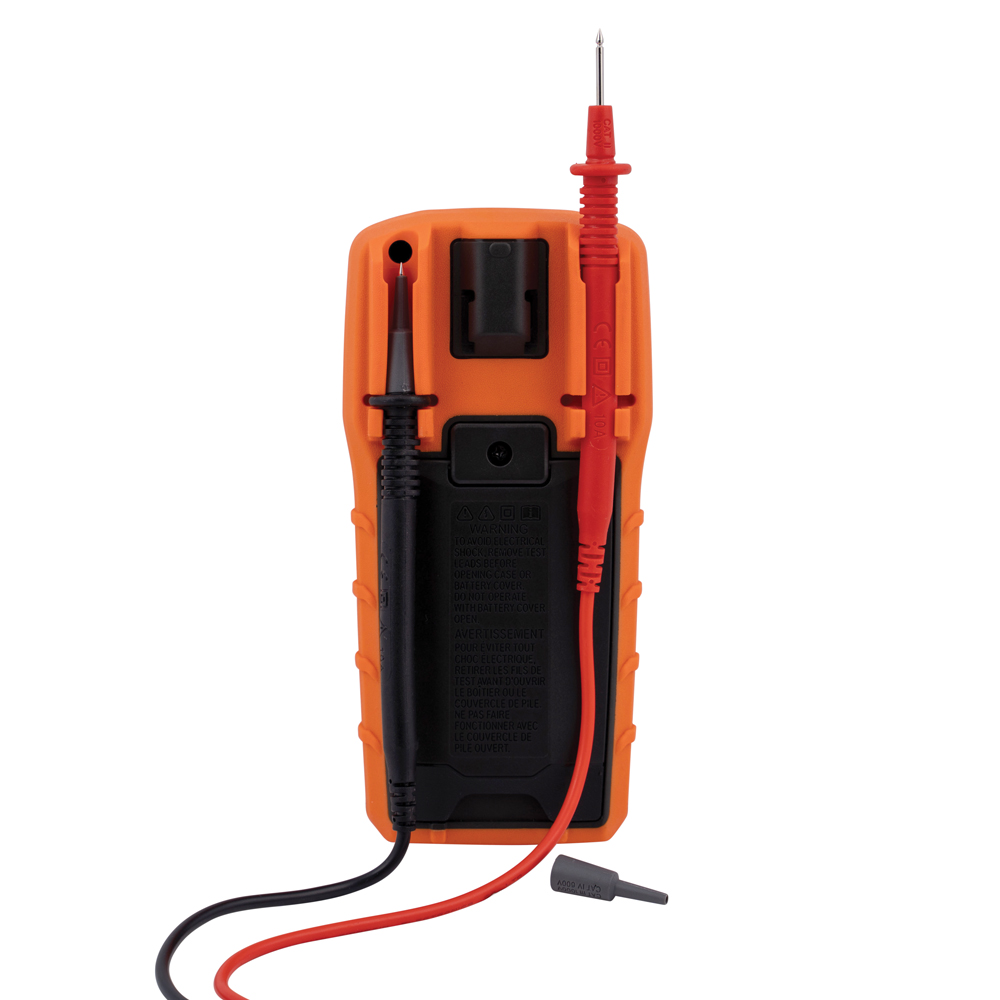

• Includes test leads, thermocouple with adapter, batteries and user manual
• For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations

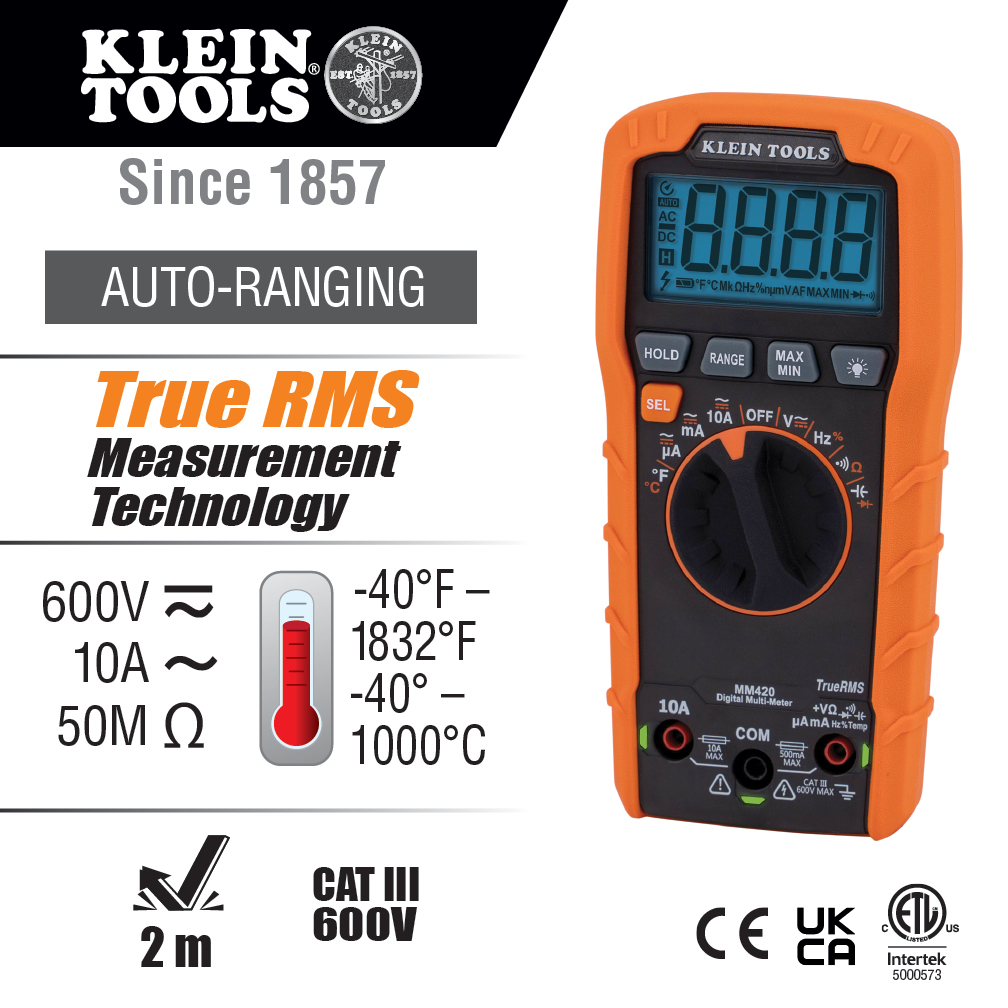

• Measures up to 600V AC/DC voltage, 10A AC/DC current and 50 MOhms resistance, continuity, temperature, capacitance, frequency, duty-cycle, and test diodes

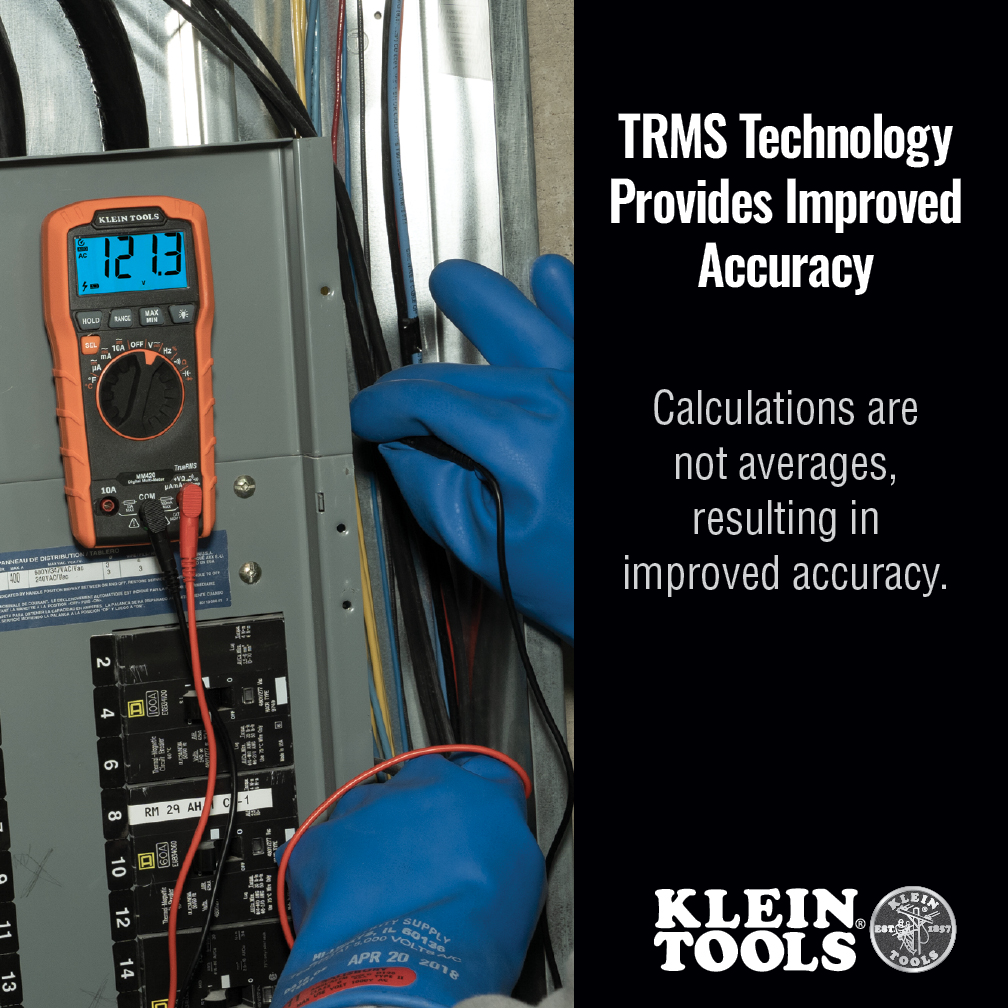

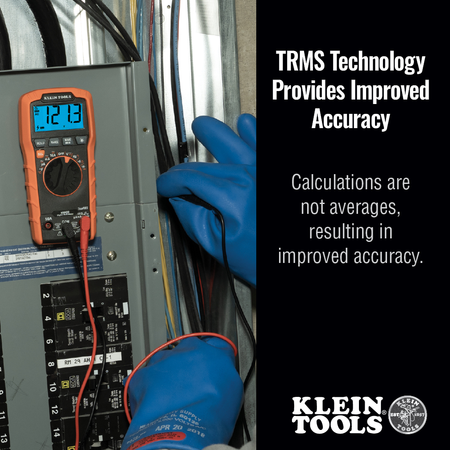

• Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy

Warnings

• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
• Before each use verify meter operation by measuring a known voltage or current.
• Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.

Specifications

• Frequency: 1 Hz - 50 KHz
• Functions: Measures up to 600V AC/DC Voltage, 10A AC/DC Current, 50MΩ Resistance, Temperature, Capacitance, Frequency, Duty-Cycle, Test Diodes, and Continuity
• Overall Length (Inch): 6.41
• Overall Height (cm): 4.5
• Accuracy: See Instructions
• Batteries: 2 x AAA
• Overall Height (Inch): 1.78
• Overall Length (cm): 16.3
• Voltage: 600V AC/DC
• Weight (oz): 8.2
• Display: 4000 Count LCD
• Height: 3.8200 in
• Capacitance: 400 µF
• Application: Testing and Measuring Voltage
• Depth: 9.3300 in
• Ohms (Resistance): 50MΩ
• Included: Multimeter, Test Leads with CAT III/CAT IV Safety Caps, Thermocouple, Instructions, 2 x AAA Batteries
• Width: 5.0800 in
• Overall Width (cm): 8
• Overall Width (Inch): 3.16
• Current: 10A AC/DC
• Temperature Range: -40° to 1832°F (-40° to 1000°C)
• Weight (g): 232
• Type: Digital Multimeter
• Standard: CAT III 600V; CE and UKCA Certified
• Drop Protection: 6.6' (2 m)
• Weight: 0.9100 lbs
• Color: Orange/Black
• Material: ABS, Electrical Components
