Slim Digital Multimeter, TRMS Auto-Ranging, 600V, Temp

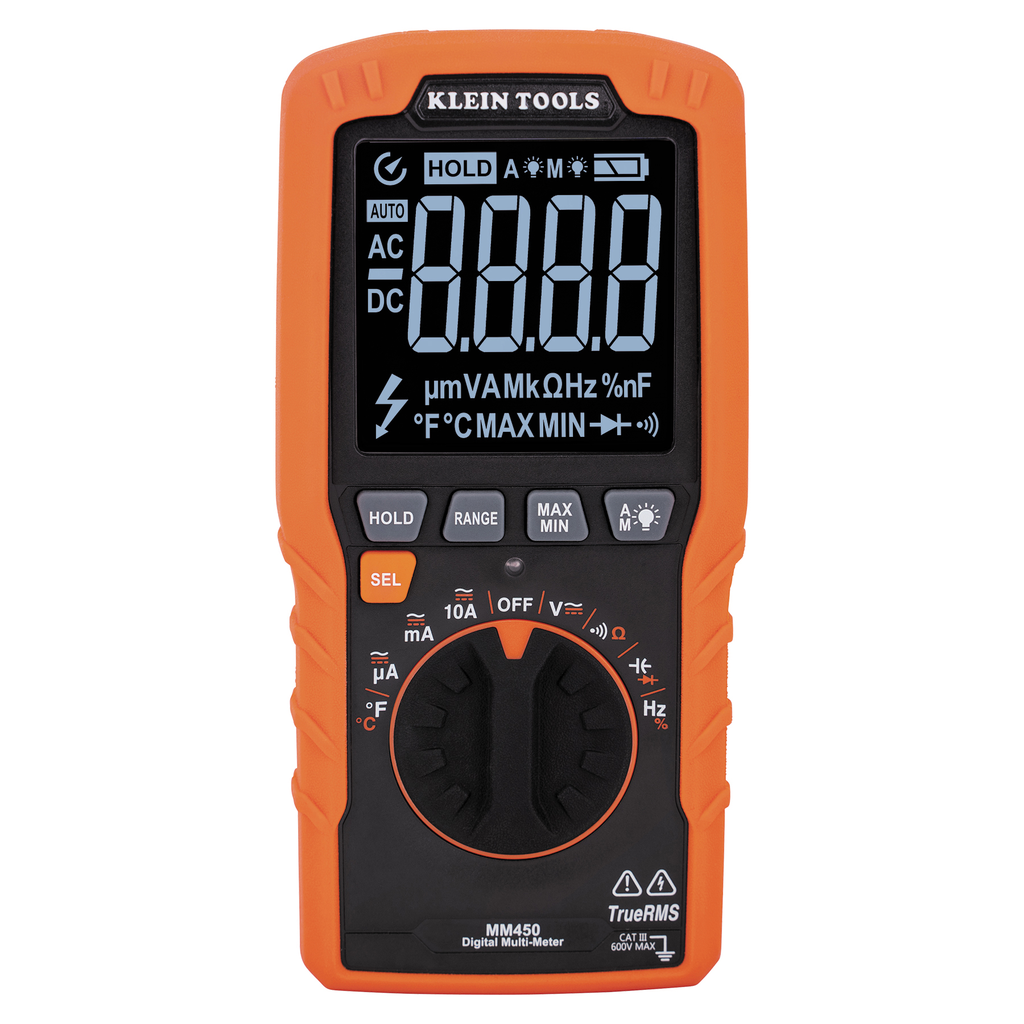

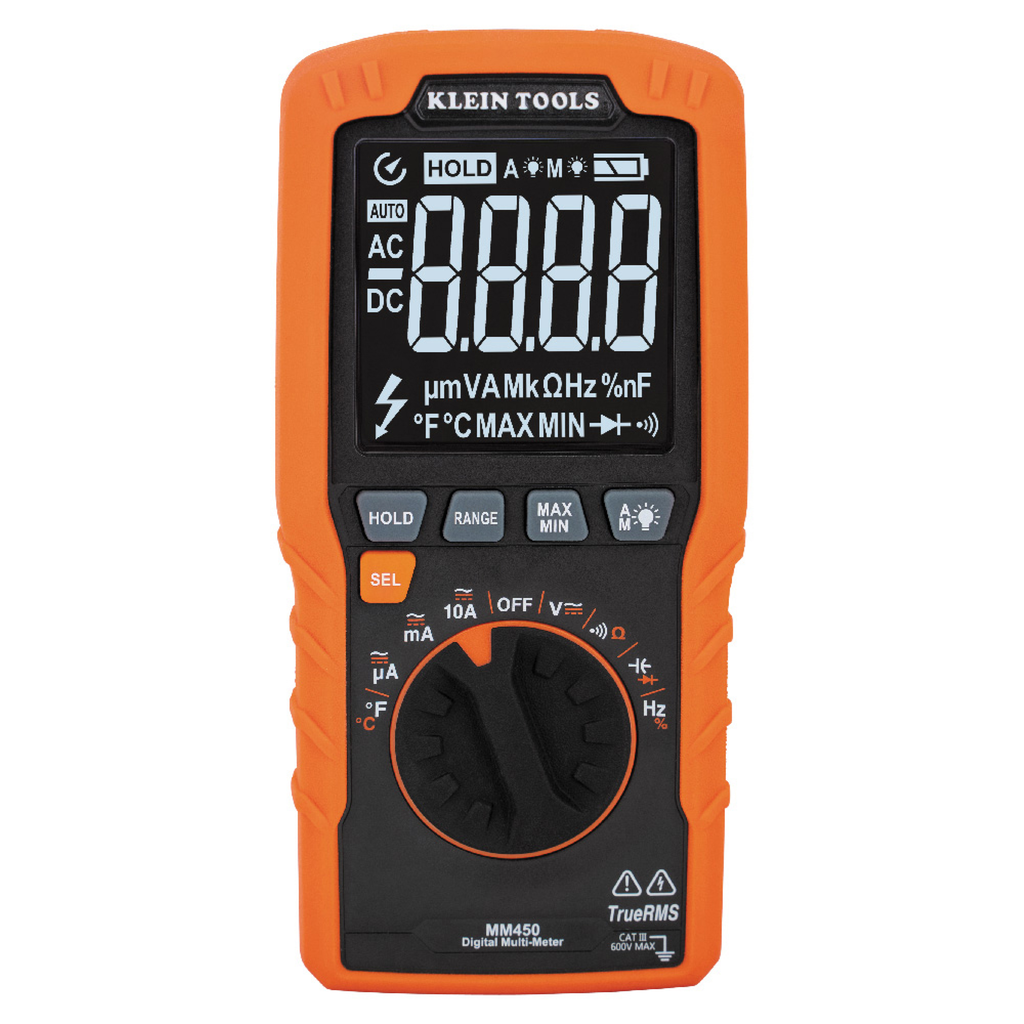

Klein Tools MM450 Multimeter is a TRMS auto-ranging slim multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, and test diodes and continuity. It features a high visibility, reverse contrast display with an optical sensor to automatically optimize viewing in dark or bright ambient light. The slim profile of the MM450 makes this meter almost the size of a cell phone and it conveniently fits into most pockets. The MM450 features the same quality leads you have come to expect from the Digital Multimeter line at Klein Tools. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.

Warnings

• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
• Before each use verify meter operation by measuring a known voltage or current.
• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.

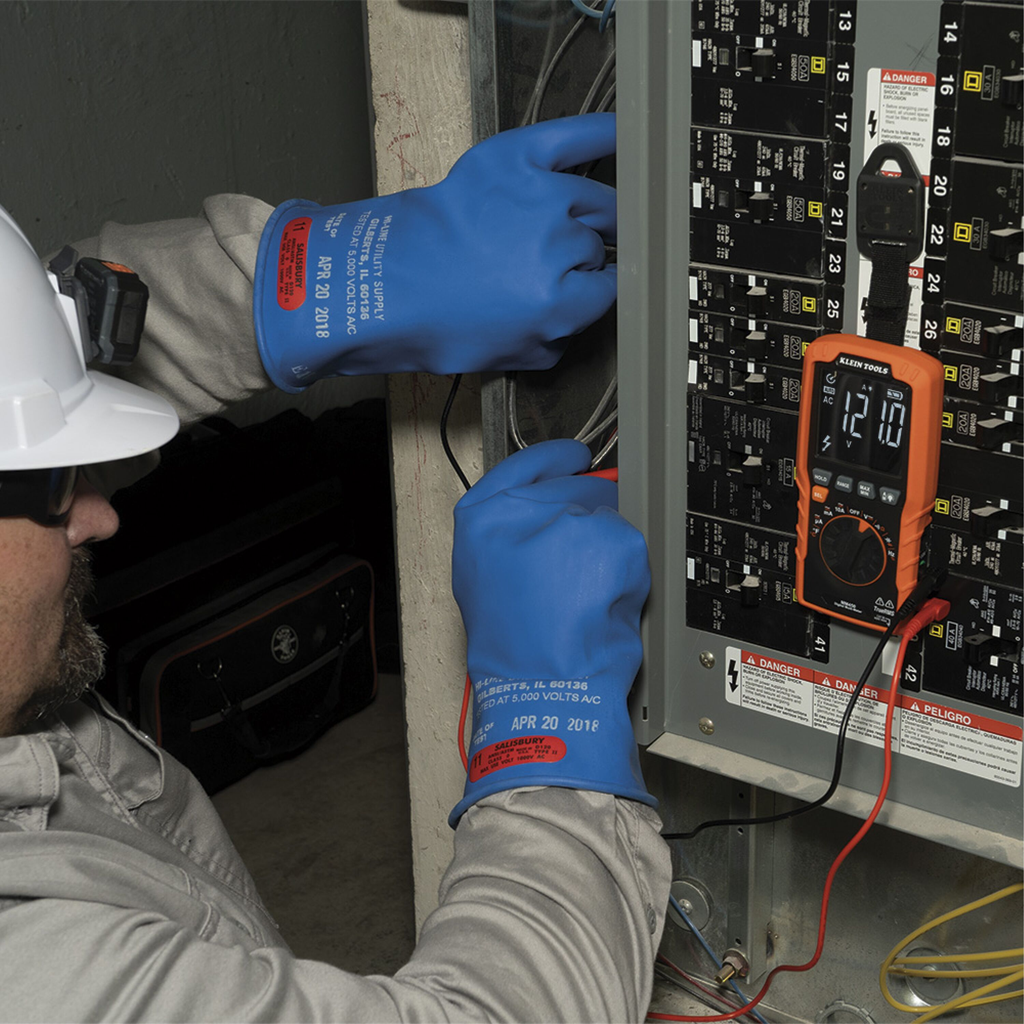

• Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.

Features

• Slim Profile; Lead-Alert; High-Visibility Display with Optical Sensor; Auto-Range; Min/Max Measurements; Auto Power-Off; Data-Hold
• Low battery indicator and easily accessible battery and fuse compartment

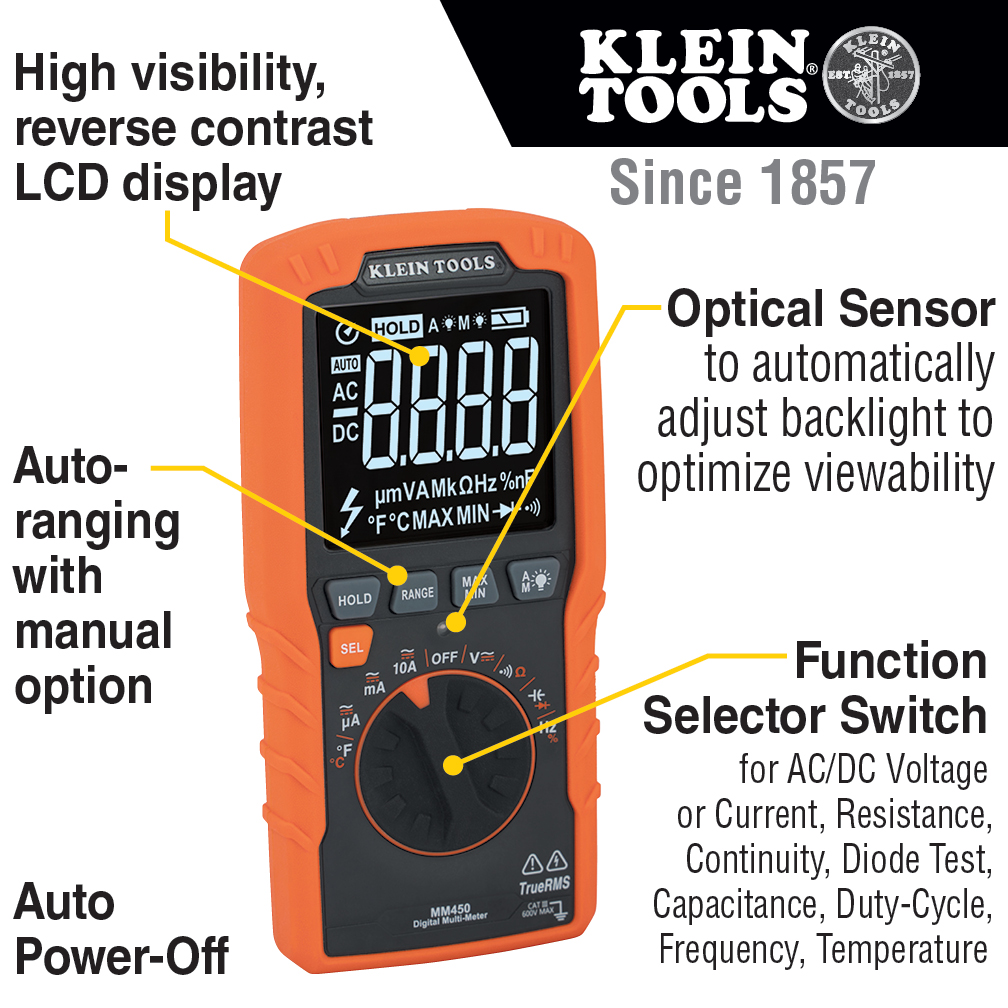

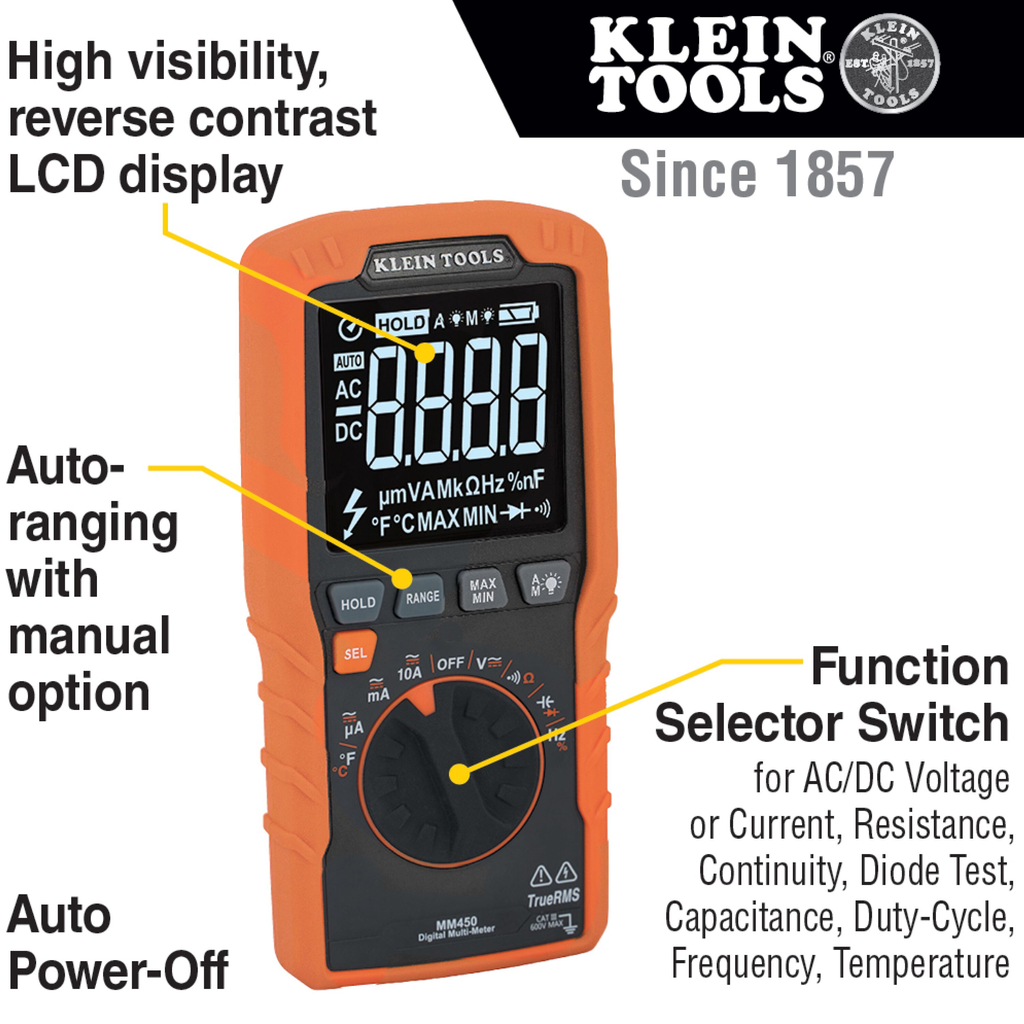

• High visibility, reverse contrast display with automatic backlight adjustment

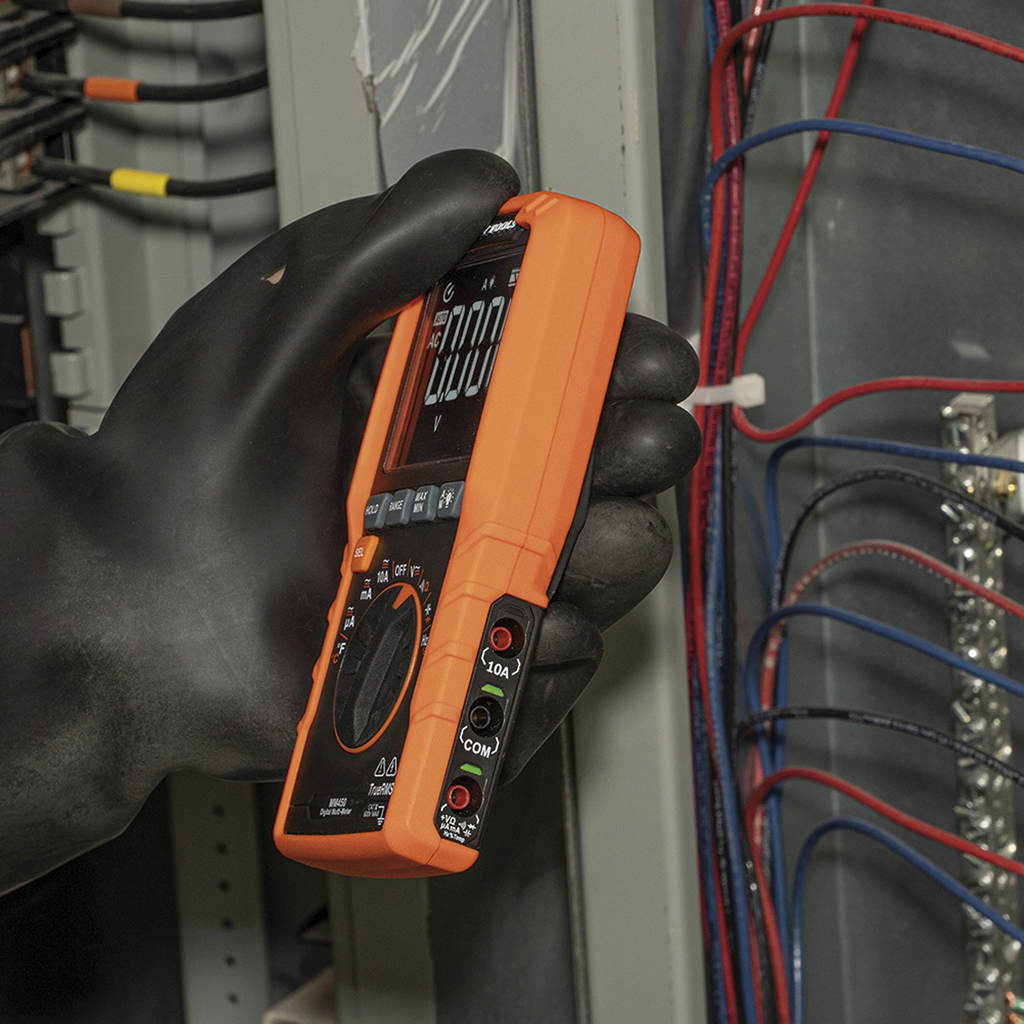

• Lead-Alert protection with LEDs for test lead placement
• Includes carrying pouch, safety rated CAT III 1000V/CAT IV 600V test leads, thermocouple with adapter and 2 x AAA batteries
• Durable meter built to withstand a 6.6-Foot (2 m) drop
• CAT III 600V safety rating
• Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy
• For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations

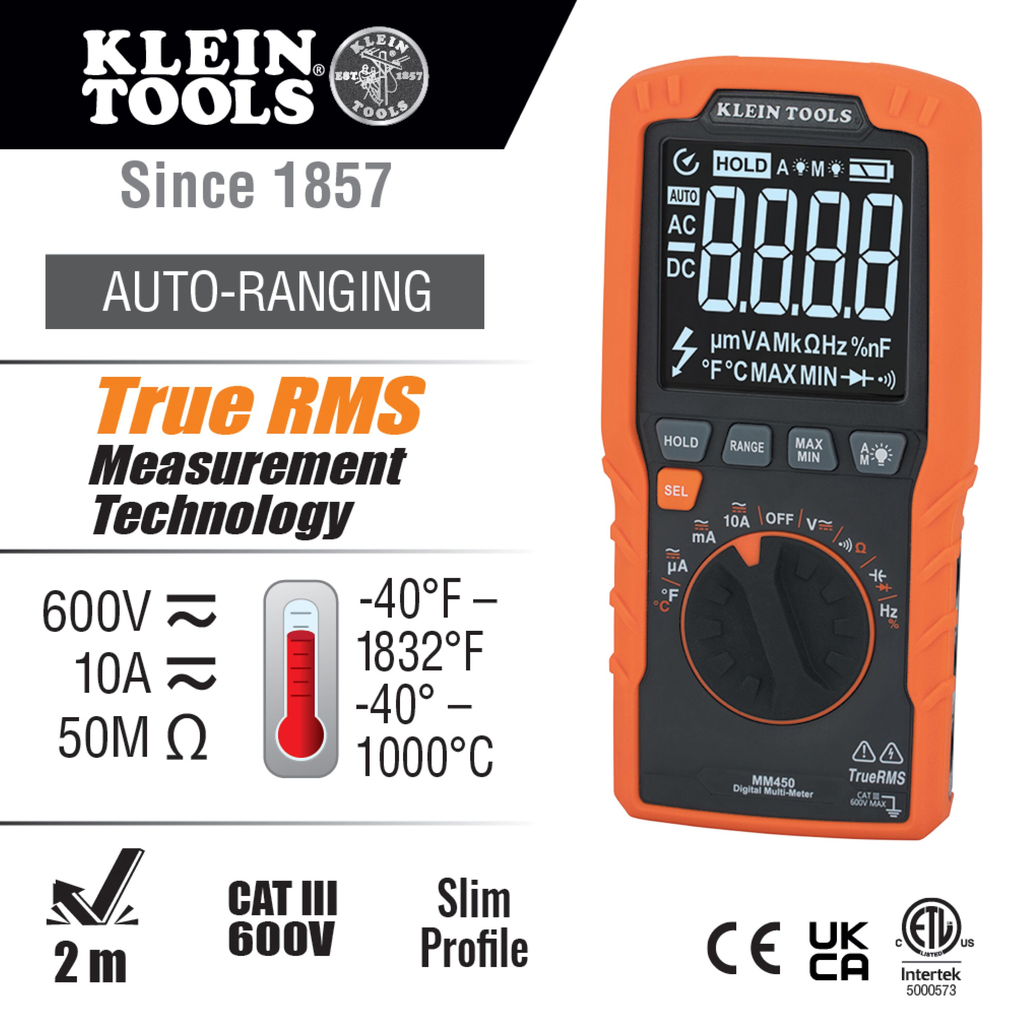

• Measures up to 600V AC/DC voltage, 10A AC/DC current and 50 MΩ resistance, continuity, temperature, capacitance, frequency, duty-cycle, and test diodes

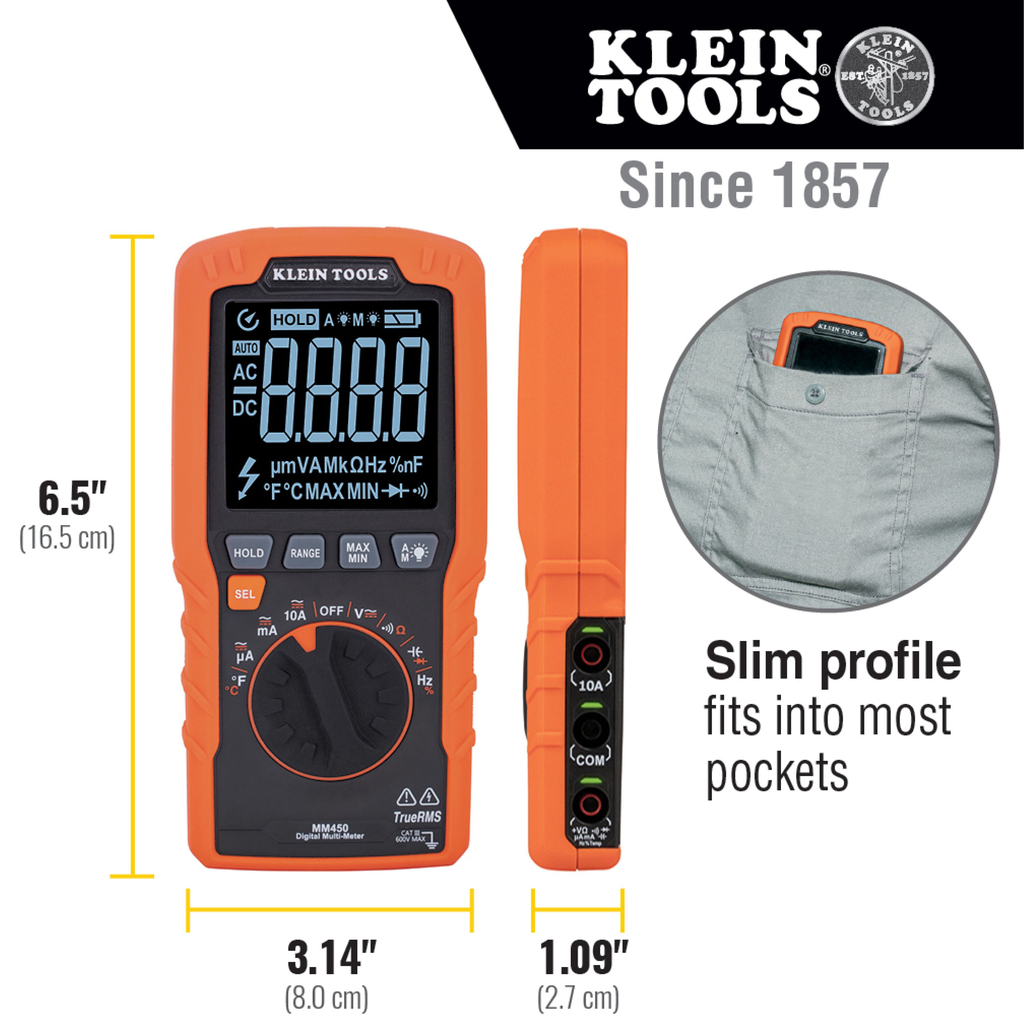

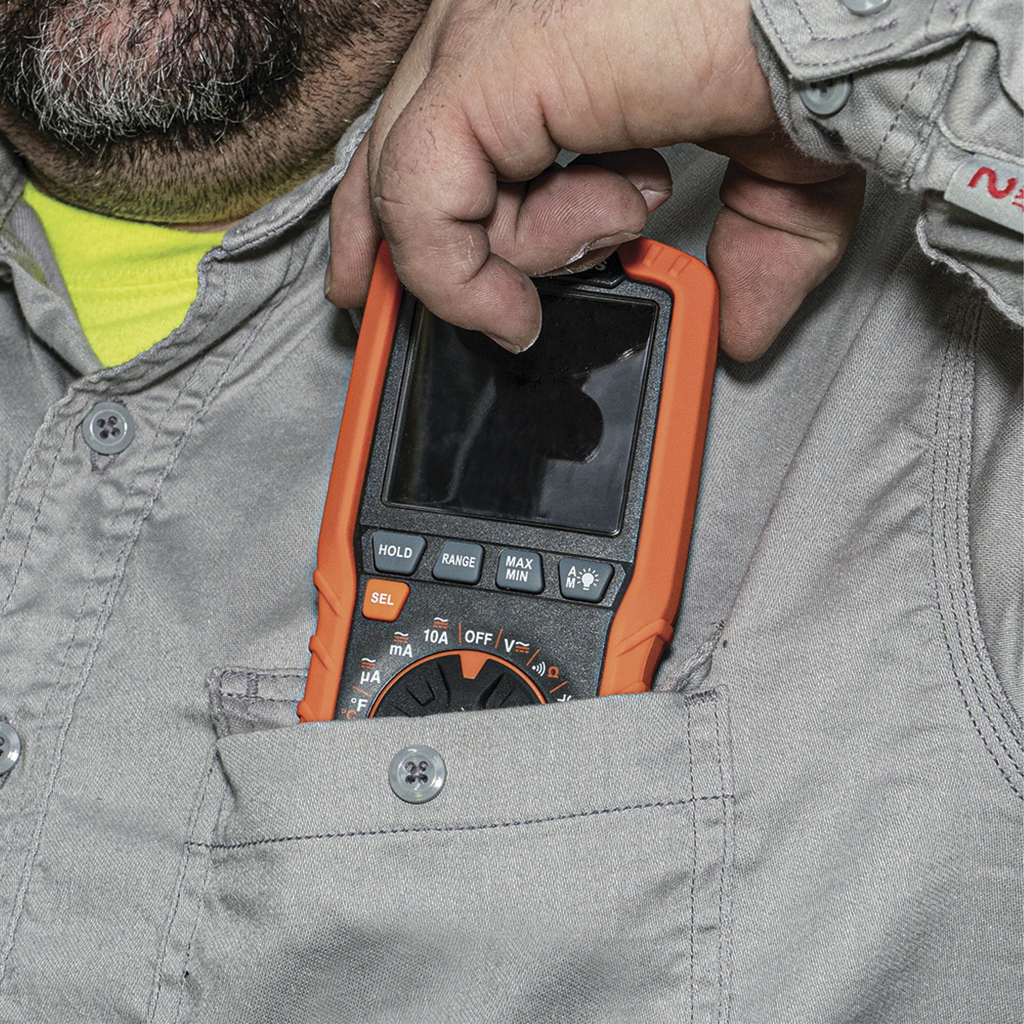

• Slim profile allows multimeter to conveniently fit into most pockets

Specifications

• Overall Width (Inch): 3.14
• Overall Height (cm): 2.8
• Drop Protection: 6.6' (2 m)
• Color: Orange/Black
• Accuracy: See Instructions
• Overall Height (Inch): 1.09
• Depth: 6.5000 in
• Height: 1.0900 in
• Temperature Range: -40° to 1832°F (-40° to 1000°C)
• Ohms (Resistance): 50 MΩ
• Included: Multimeter, Carrying Case, Test Leads with CAT III/CAT IV Safety Caps, Thermocouple, Instructions, 2 x AAA Batteries
• Overall Length (Inch): 6.5
• Standard: CAT III 600V; CE and UKCA Certified
• Type: Digital Multimeter
• Batteries: 2 x AAA
• Display: 4000 Count LCD
• Current: 10A AC/DC
• Weight (g): 258
• Frequency: 1 Hz to 50 KHz
• Width: 3.1500 in
• Material: ABS, Electrical Components
• Capacitance: 400 µF
• Overall Width (cm): 8
• Overall Length (cm): 16.5
• Weight: 0.5750 lbs
• Voltage: 600V AC/DC
• Application: Testing and Measuring Voltage
• Weight (oz): 9.1
• Functions: Measures up to 600V AC/DC Voltage, 10A AC/DC Current and 50MΩ Resistance, Temperature, Capacitance, Frequency, Duty-Cycle, Test Diodes and Continuity
