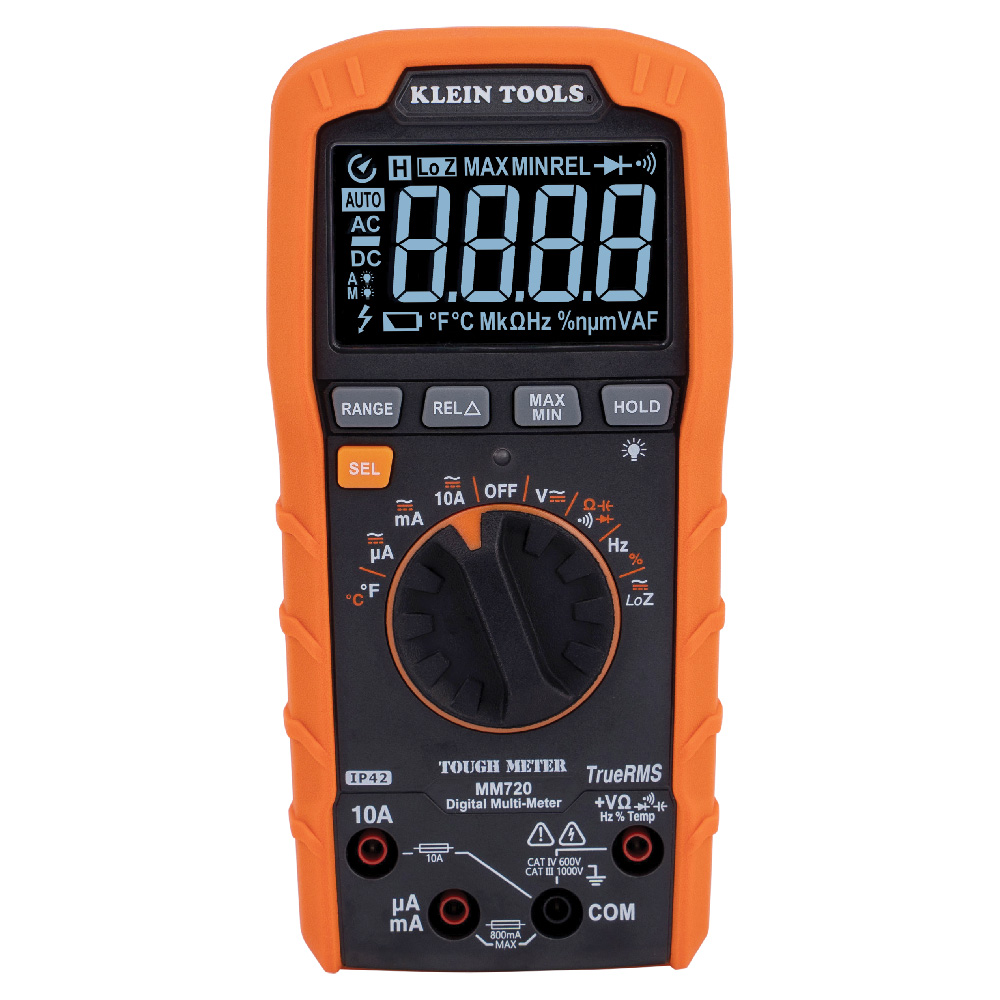

Digital Multimeter, TRMS Auto-Ranging, 1000V, Temp, Low Impedance

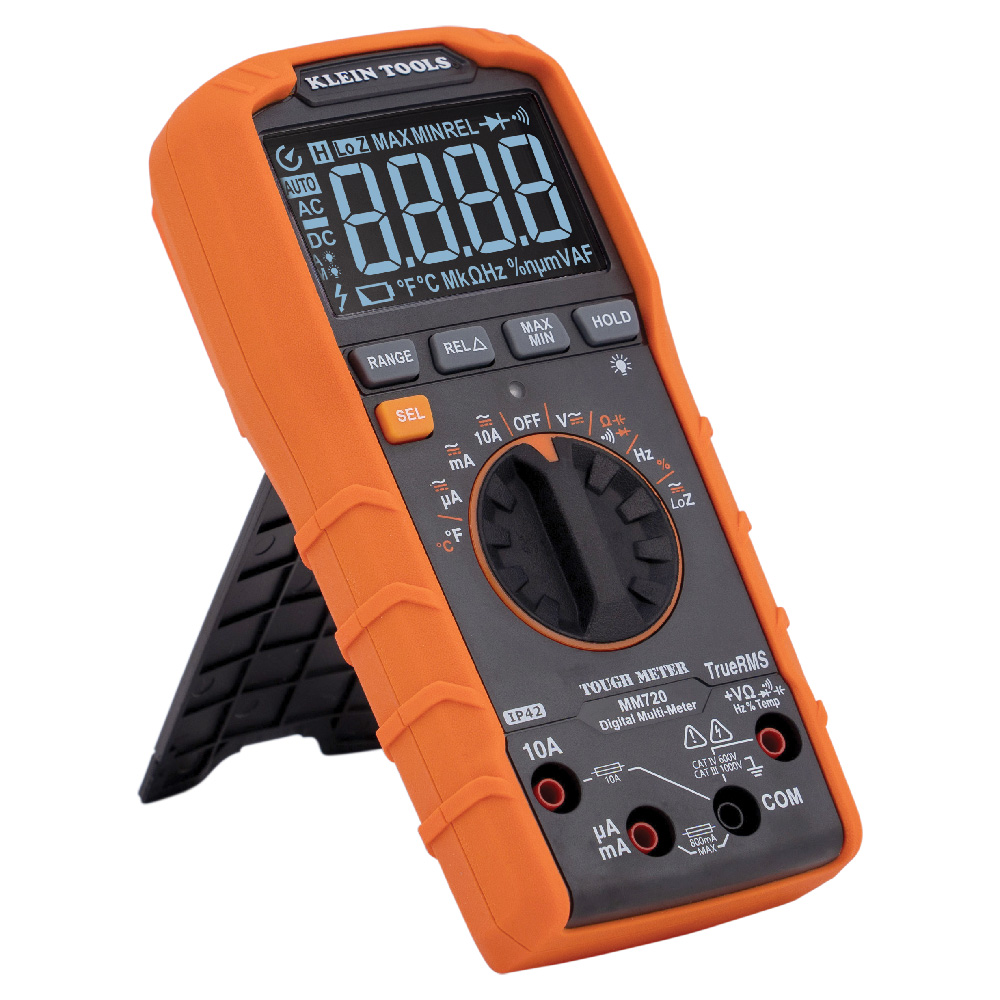

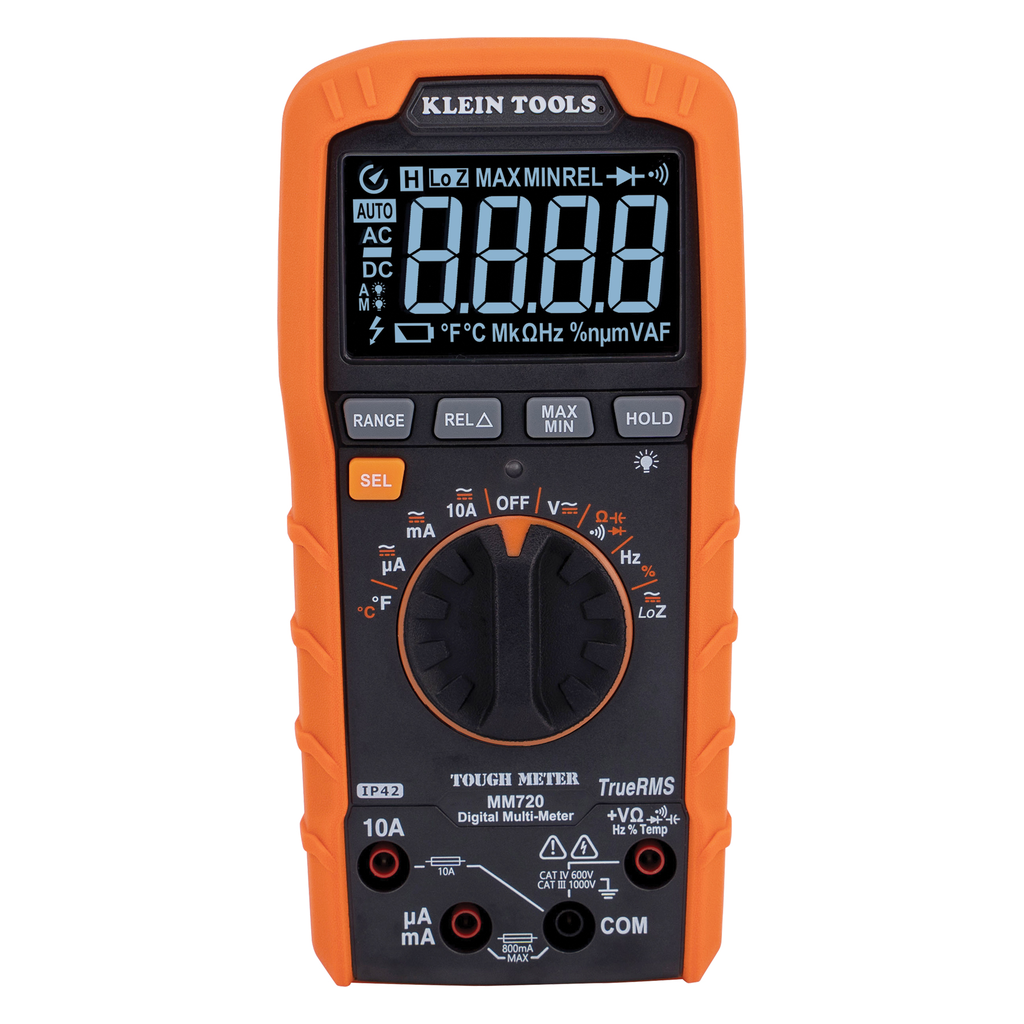

Klein Tools MM720 Multimeter is an automatically ranging true root mean squared (TRMS) digital multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, diodes and continuity. It features a high visibility, reverse contrast LCD display with an optical sensor to automatically optimize viewability in dark or bright ambient lighting.

Features

• CAT IV 600V Safety Rating

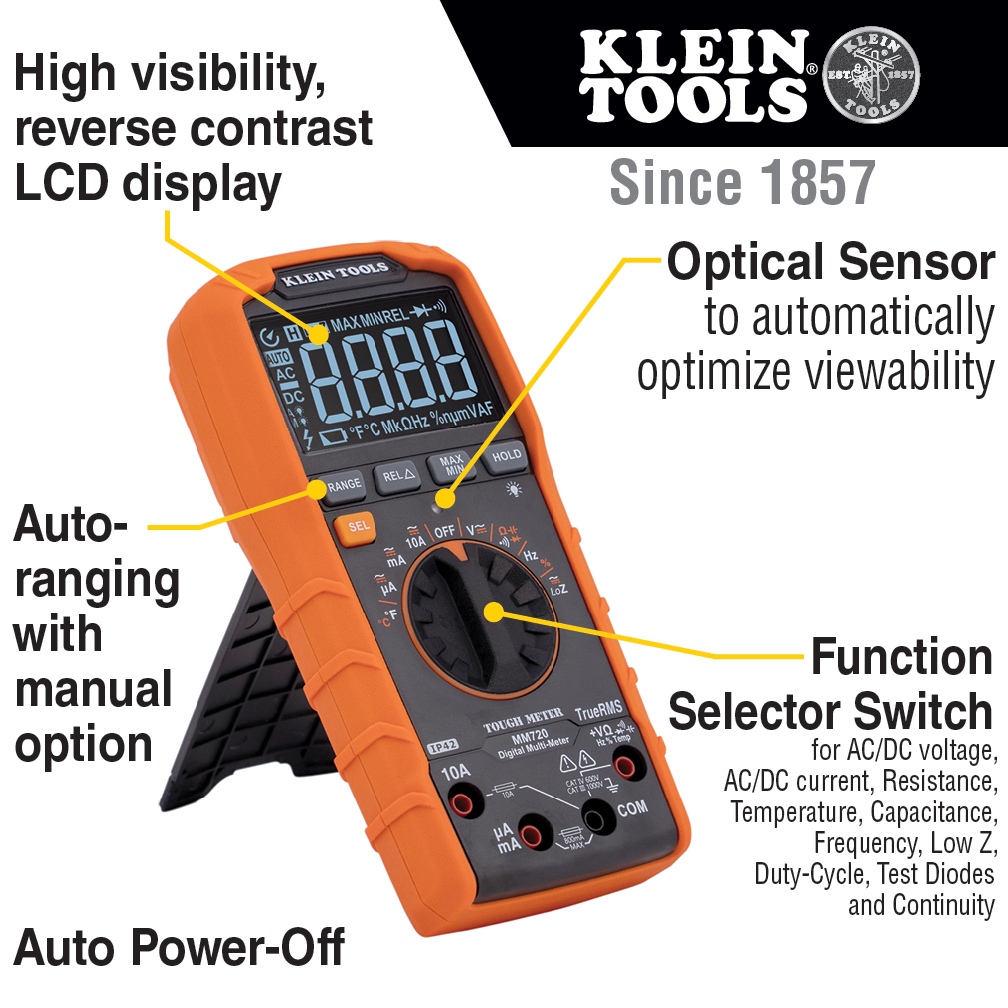

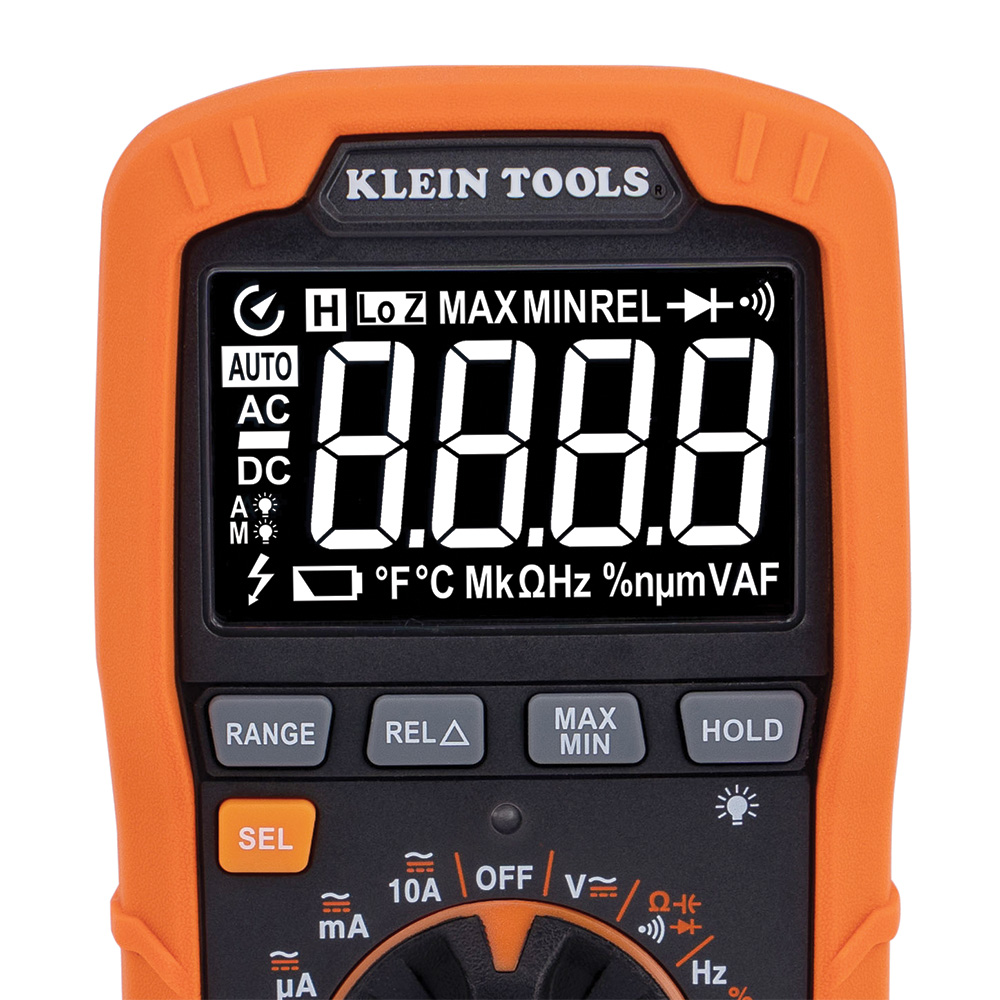

• High visibility, reverse contrast display with optical sensor to automatically optimize viewability in dark or bright ambient lighting
• For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations
• Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages

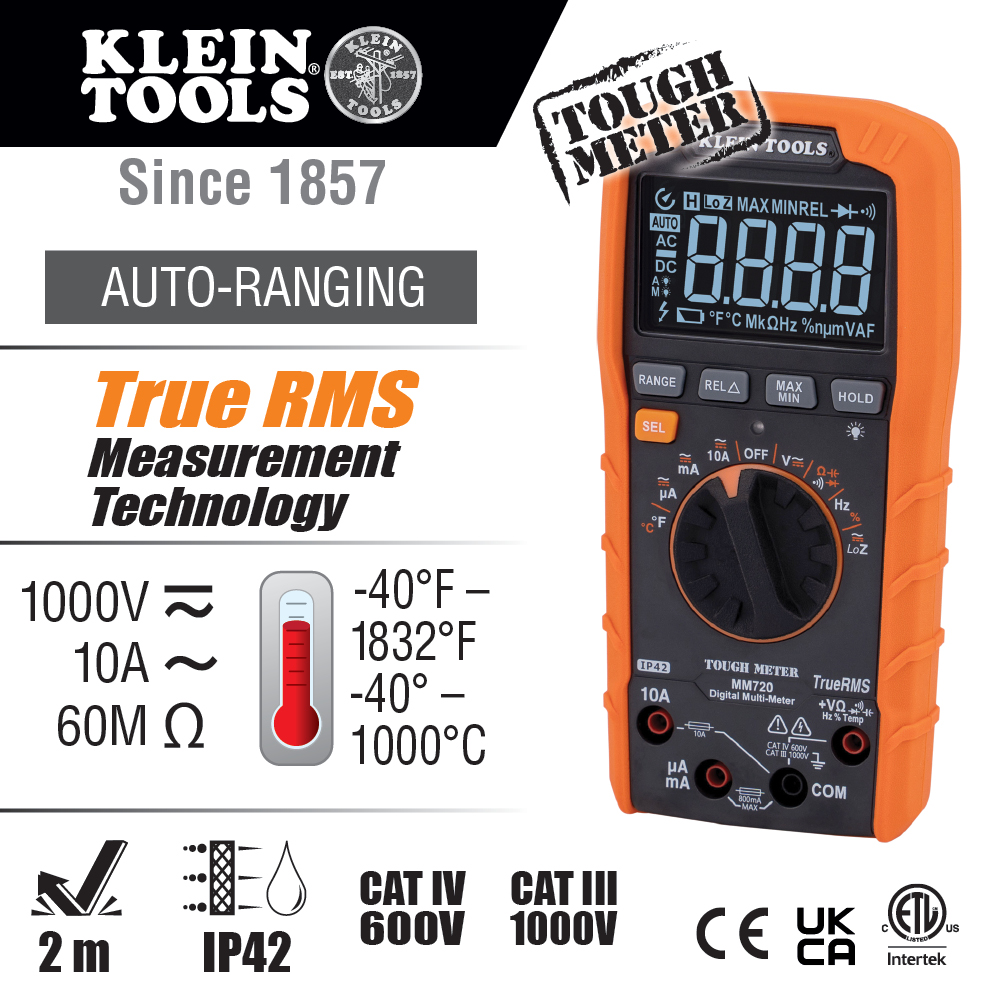

• Tester measures up to 1000V AC/DC voltage, 10A AC/DC current and 60 MOhms resistance plus temperature, capacitance, frequency, low impedance (LoZ), duty-cycle, test diodes and continuity

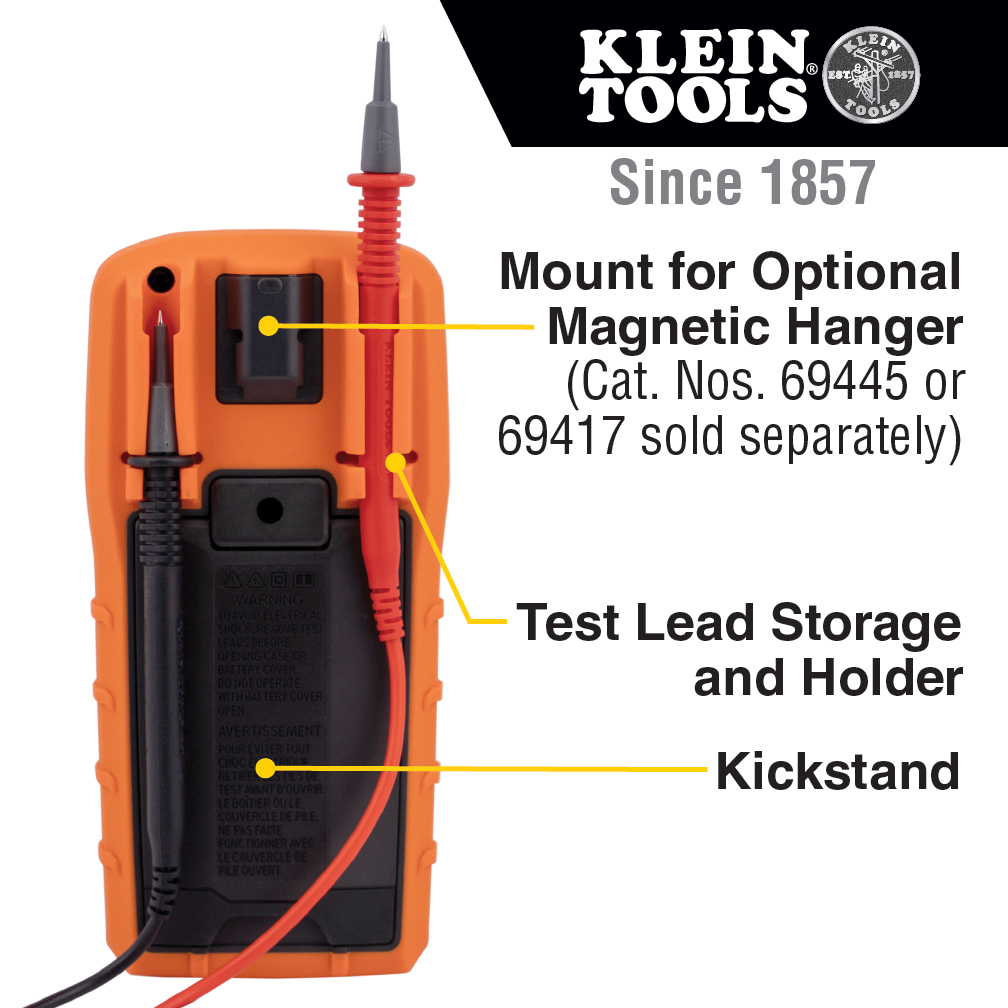

• Low battery indicator and easily accessible battery and fuse compartment
• Includes carrying pouch, test leads, thermocouple with adapter, and batteries
• Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy
• High-Visibility Display with Optical Sensor; Auto-Range; Min/Max/Relative; Low Impedance (LoZ) Mode; Auto Power-Off; Data Hold
• Tough meter built to withstand a 6.6-Foot (2 m) drop and is rated IP42

Warnings

• Before each use verify meter operation by measuring a known voltage or current.
• Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.

Specifications

• Current: 10A AC/DC
• Width: 5.8700 in
• Ingress Protection: IP42
• Standard: CAT IV 600V; CAT III 1000V
• Overall Width (Inch): 3.37
• Temperature Range: -40° to 1832°F (-40° to 1000°C)
• Batteries: 2 x AAA
• Overall Height (Inch): 1.88
• Weight (g): 346
• Display: 6000 Count LCD
• Capacitance: 6000 µF
• Overall Width (cm): 8.6
• Color: Orange/Black
• Overall Height (cm): 4.8
• Weight: 1.3900 lbs
• Depth: 10.6300 in
• Drop Protection: 6.6' (2 m)
• Overall Length (cm): 17.6
• Material: ABS, Electrical Components
• Height: 3.7300 in
• Frequency: 1 Hz - 500 KHz
• Type: Digital Multimeter
• Functions: Measures up to 1000 VAC/DC Voltage, 10A AC/DC Current, 60MΩ Resistance, Temperature, Capacitance, Frequency, Duty-Cycle, Diodes, and Continuity
• Application: Testing and Measuring Voltage
• Voltage: 1000V AC/DC
• Weight (oz): 12.2
• Ohms (Resistance): 60MΩ
• Overall Length (Inch): 6.94
• Included: Multimeter, Carrying Case, Test Leads with CAT III/CAT IV Safety Caps, Thermocouple, Instructions, 2 x AAA Batteries
