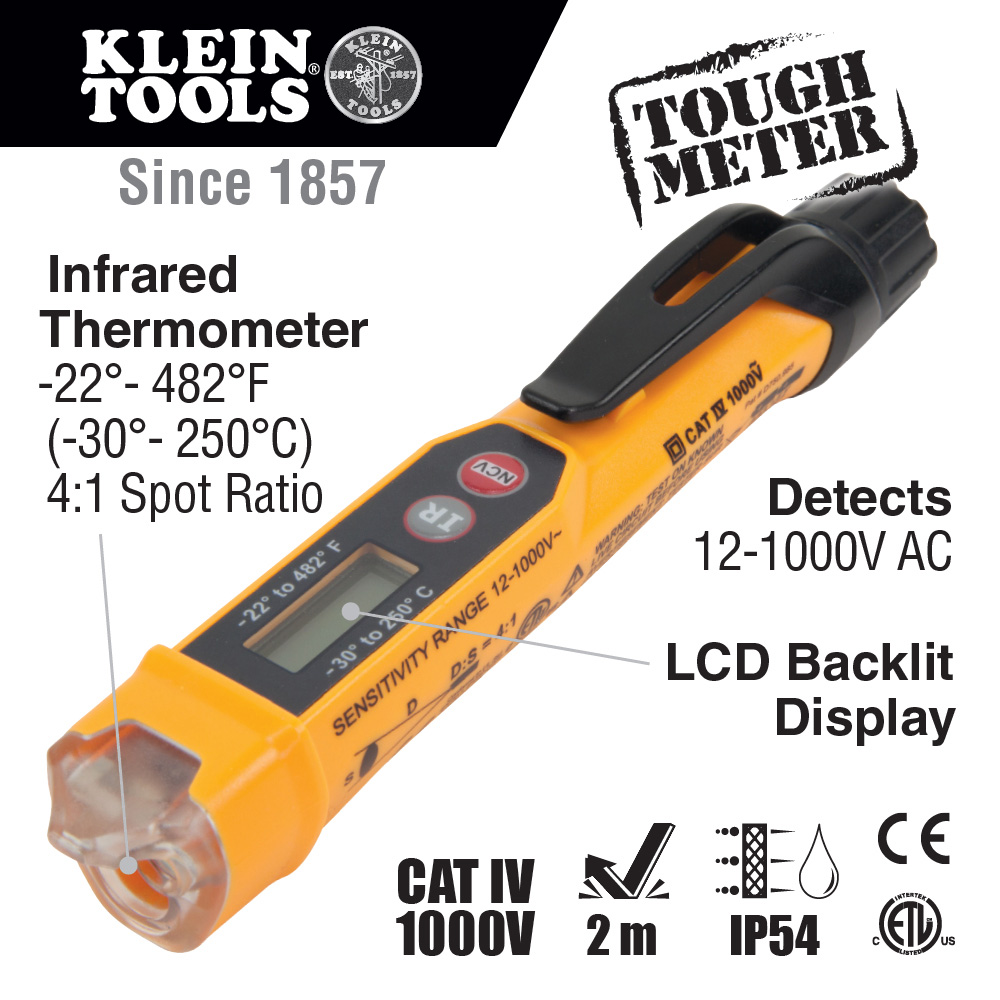

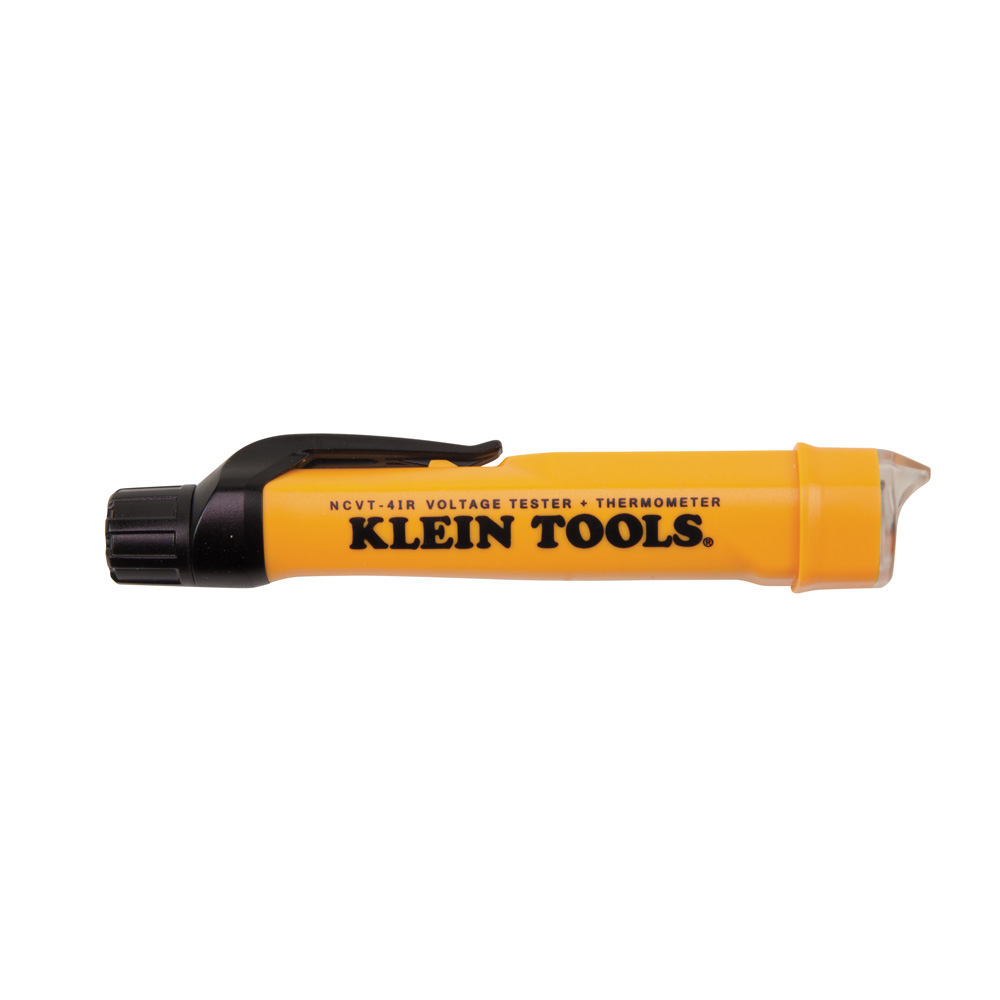

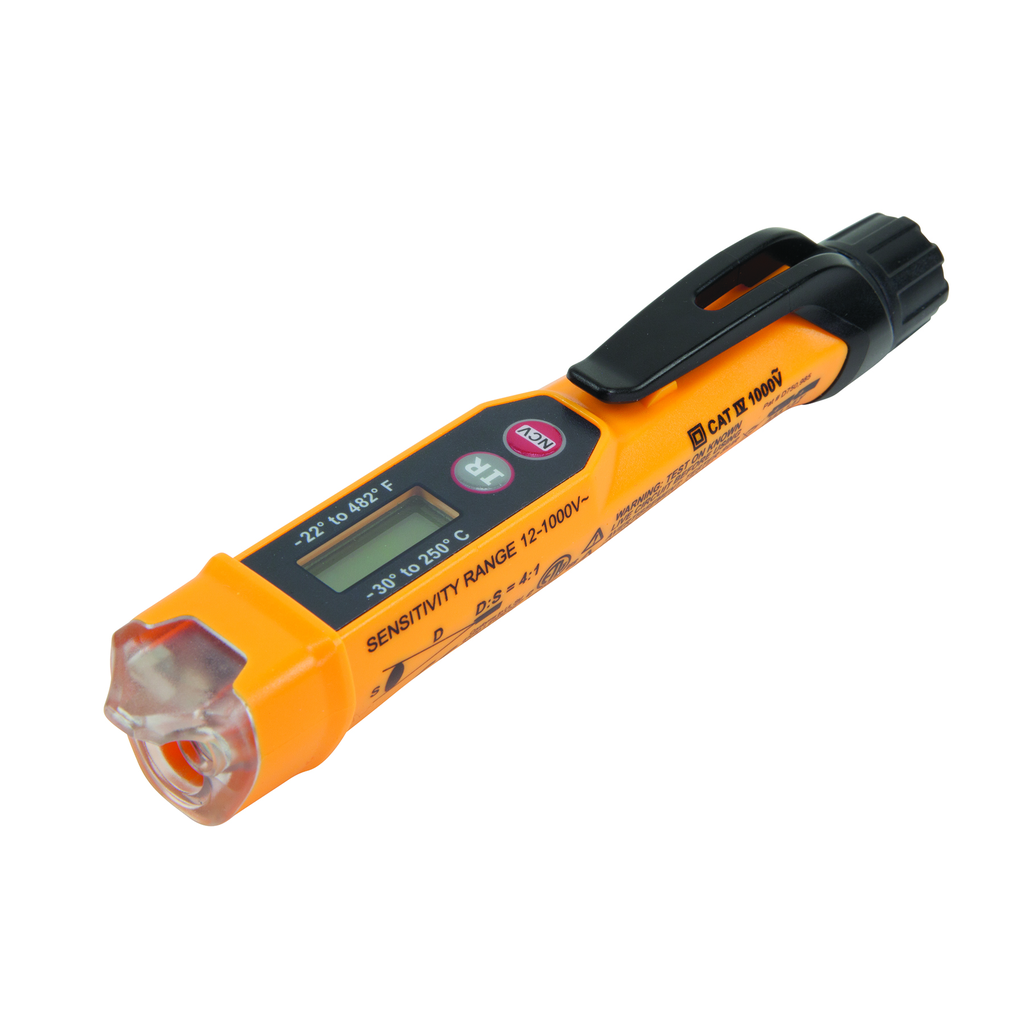

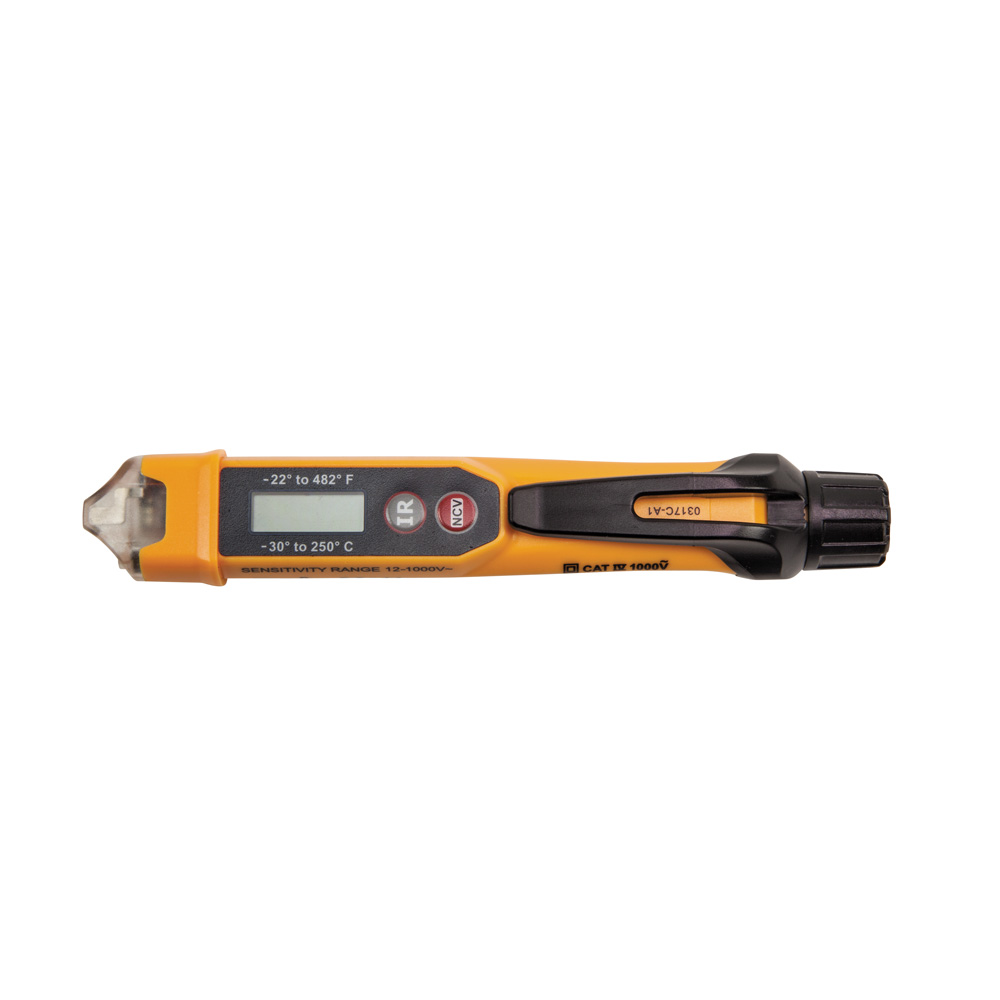

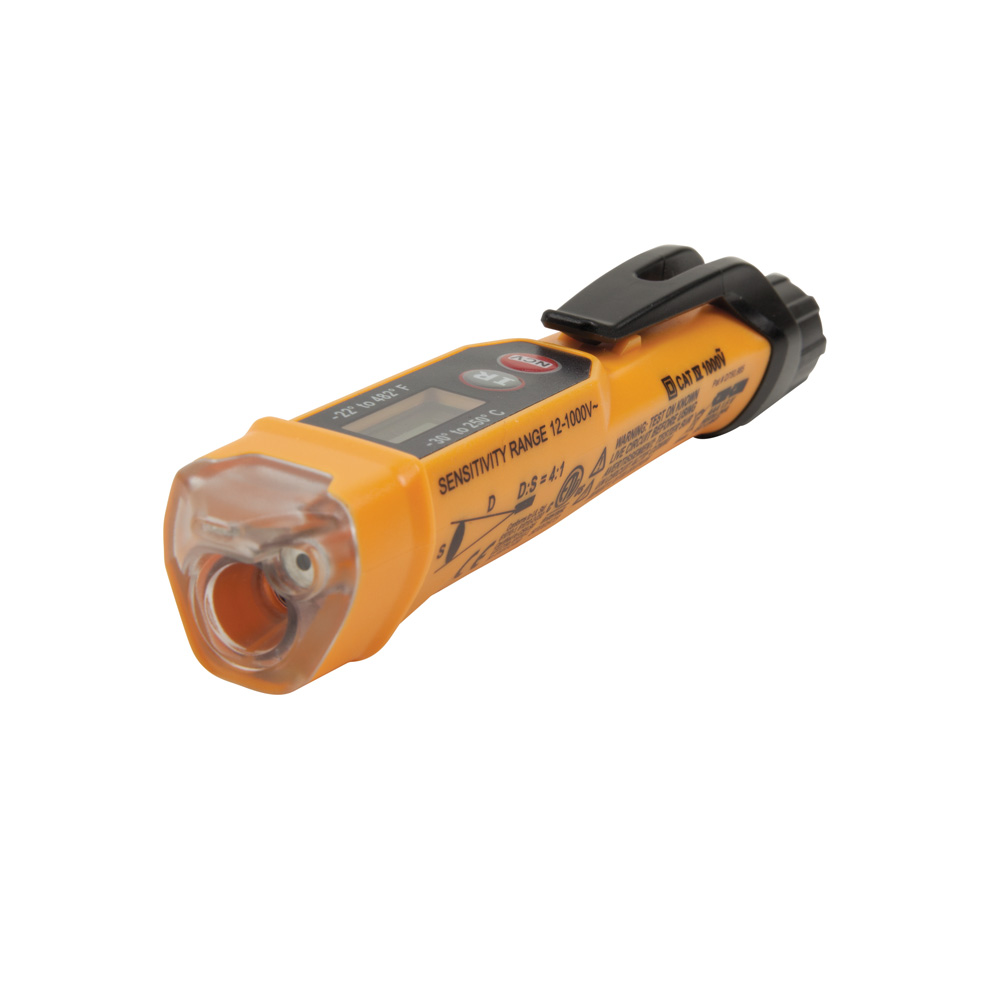

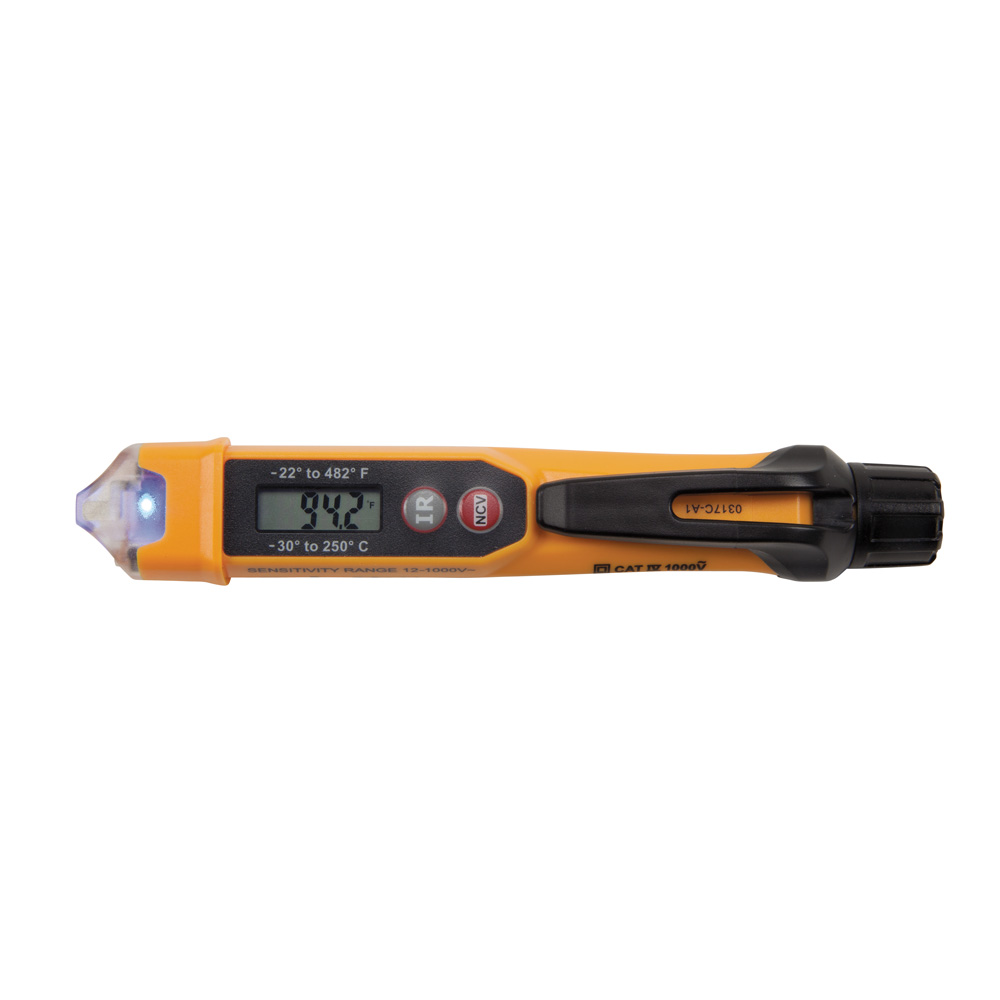

Non-Contact Voltage Tester Pen with Infrared Thermometer, 12 to 1000V AC

Klein Tools NCVT-4IR is a voltage tester that provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires; as well as infrared (IR) thermometer measurements, making it the perfect choice for HVAC professionals.

Features

• Voltage Tester designed specifically for HVAC applications
• Non-Contact Voltage Tester provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, and AC voltage in security, entertainment, communications, environmental control, and irrigation systems
• Lightweight, compact tool with pocket clip provides easy storage and quick access
• IR Thermometer, Laser Pointer, LCD, LED and Audible Beep Indications, Auto-Power Off, Pocket Clip

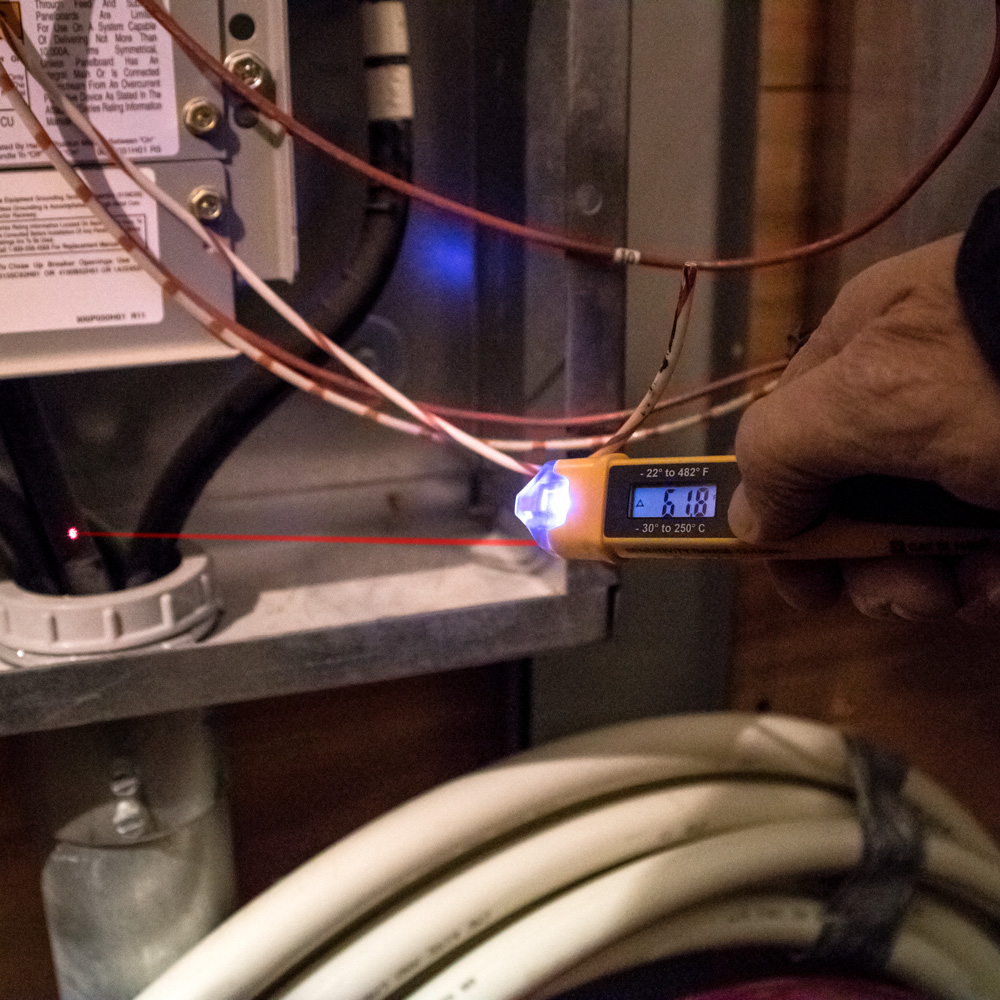

• Convenient laser pointer to target measurement area for temperature measurement
• Auto power-off conserves and extends battery life
• Backlit LCD display with 0.1-Degree resolution
• Detects AC voltage from 12 to 1000V with visual and audible indicators
• 4:1 distance-to-spot ratio IR thermometer with user selectable Degrees Fahrenheit or Degrees Celsius from -22 to 482-Degree Fahrenheit (-30 to 250-Degree Celsius)
• Screw-thread battery cap with O-ring ensures dust and water resistance

Warnings

• Thermometer is NOT intended for use on people or animals.
• Do not direct laser beam into eyes, as this can cause permanent eye damage.
• Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all Test & Measurement devices before each use.

Specifications

• Overall Width: 3.2 cm (1.25 Inch)
• Height: 1.2100 in
• Voltage: 12 - 1000V AC
• Batteries: 2 x AAA
• Battery Life: Average - 134 hr; Continuous IR - 64 hr
• Type: Non-Contact
• Drop Protection: 6.6' (2 m)
• Ingress Protection: IP54
• Overall Height: 3 cm (1.19 Inch)
• Application: HVAC
• Included: NCVT; Batteries
• Overall Length: 6.25 Inch (15.9 cm)
• Frequency: 50 - 500 Hz
• Weight: 0.1120 lbs
• Standard: CAT IV 1000V
• Width: 1.0800 in
• Depth: 6.2600 in
