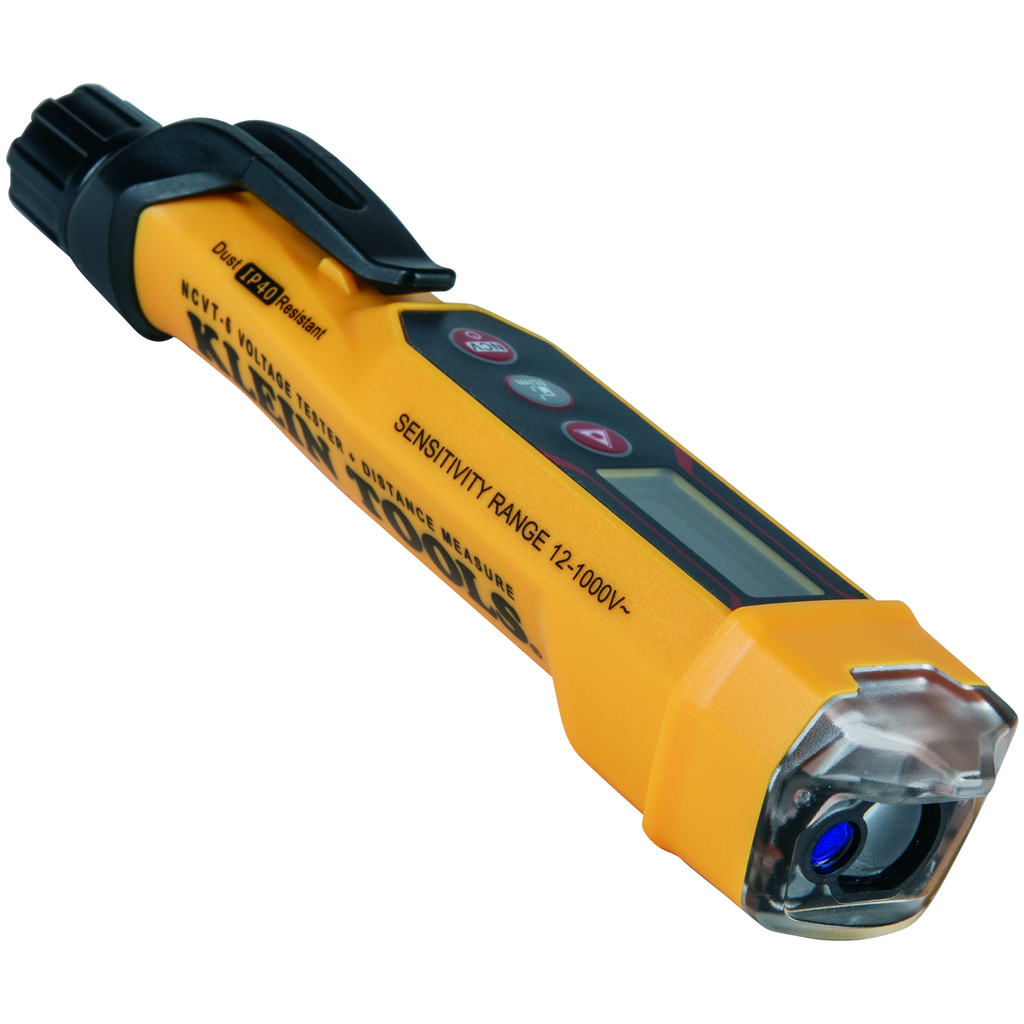

Non-Contact Voltage Tester Pen with Laser Distance Meter, 12 to 1000V AC

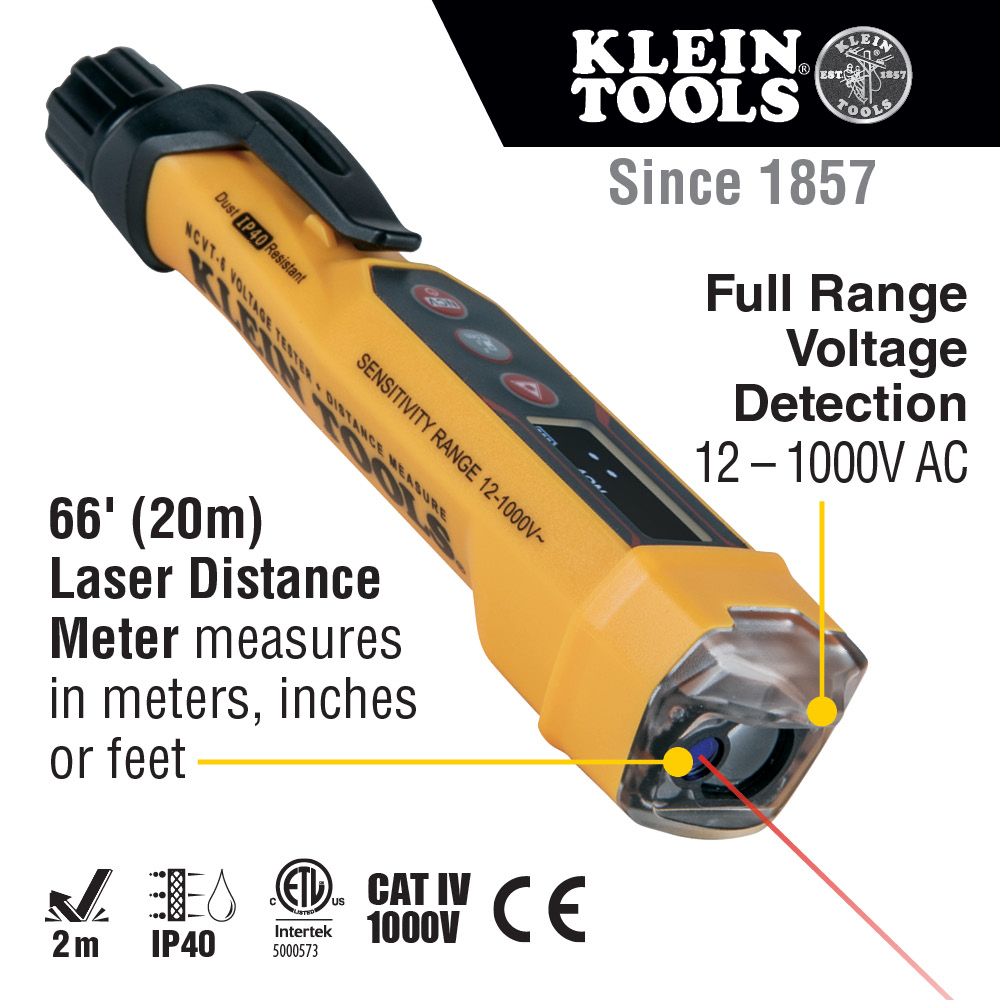

The Klein Tools NCVT-6 is a non-contact voltage tester (NCVT) with an integrated laser distance meter. It can detect voltage over the full-range from 12 to 1000 VAC and can measure distances from 2-Inch (51 mm) up to 66-Feet (20 m). The laser distance meter functions independently from the NCVT with a simple-to-use intuitive interface. Easy, single-button changes between voltage detection and laser distance measurements.

Features

• Delivers simultaneous visual and audible voltage indicators when AC voltage is detected
• Simple-to-use intuitive interface; easy single-button changes between laser distance measurements and voltage detection
• Built to withstand a 6.6-Foot (2 m) drop
• Ingress Protection IP40 Dust Resistant
• Screw-thread battery cap
• CAT IV 1000V safety rating

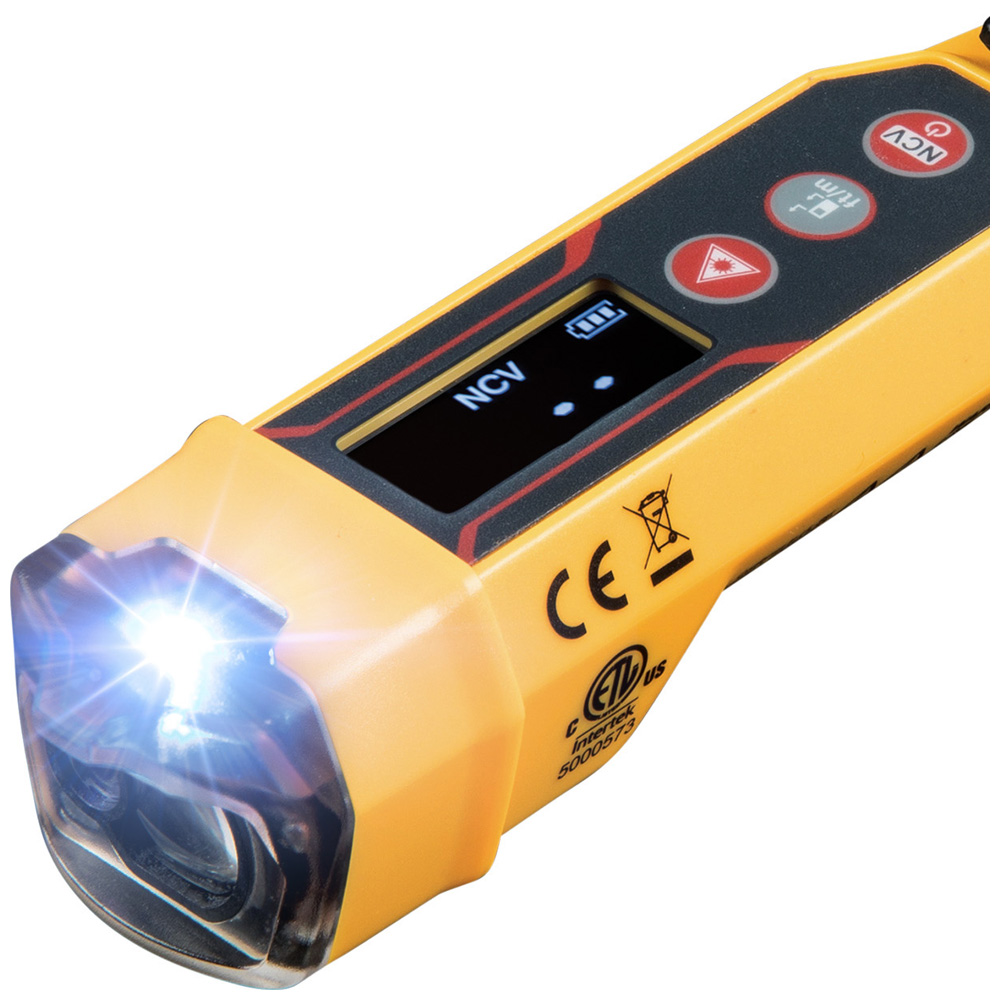

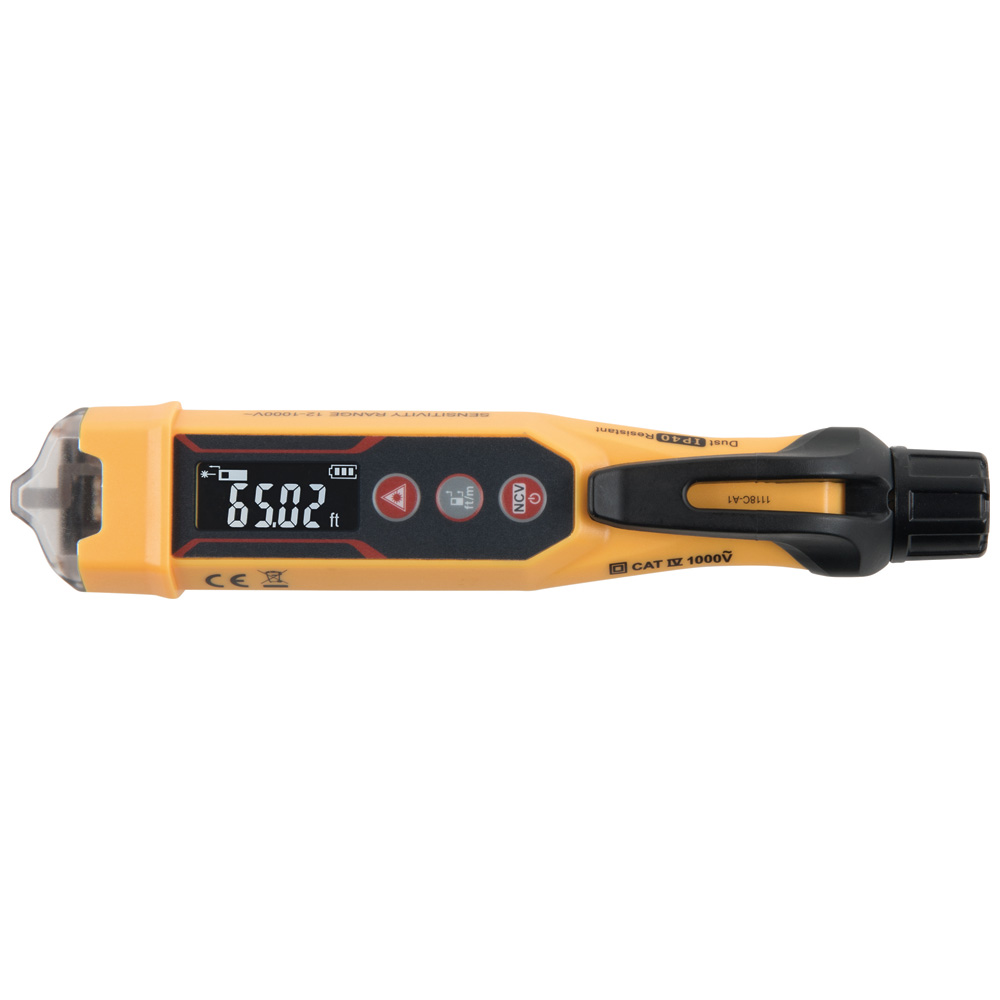

• High-visibility reverse contrast display for better viewing in low light conditions

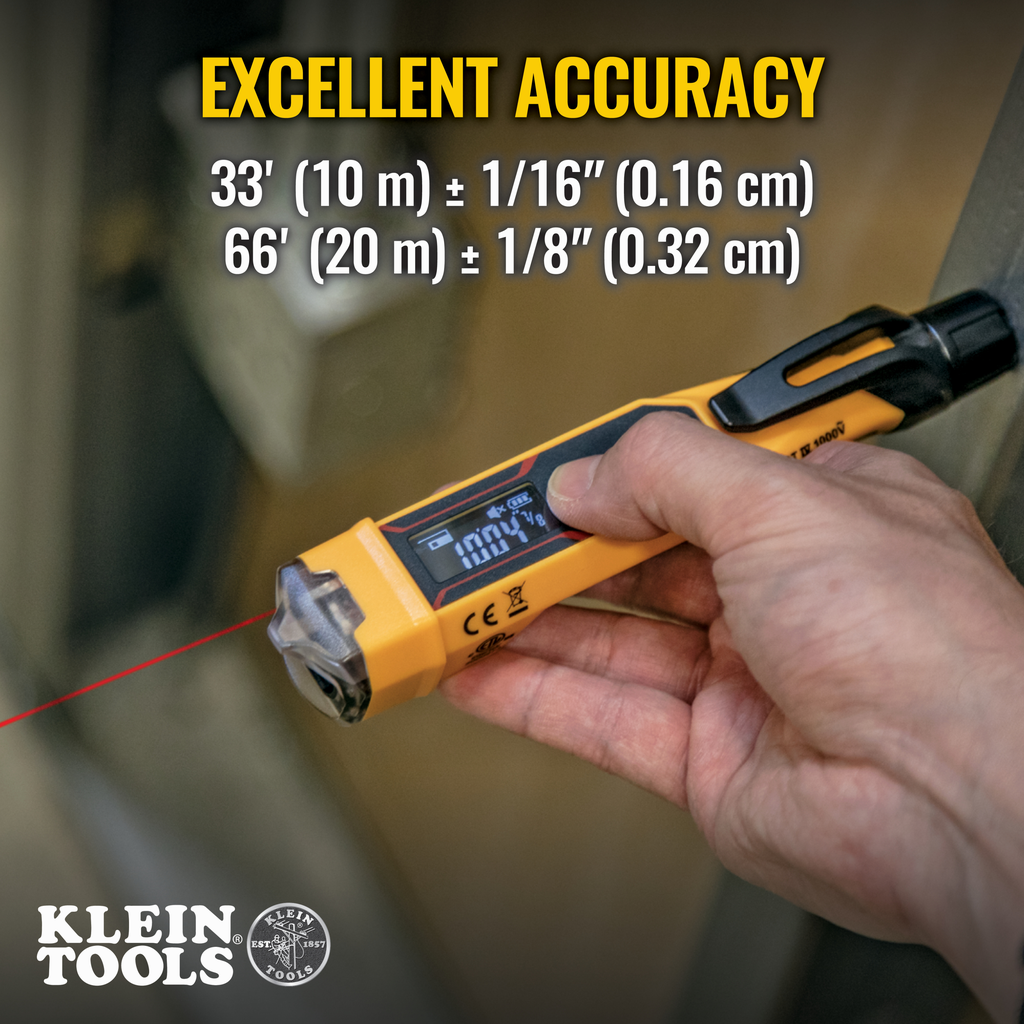

• Under normal operating conditions, at distances from 2-Inch to 32.8-Foot the NCVT-6 has an accuracy of +/- 1/16-Inch; and at distances greater than 32.8-Foot up to 65.6-Foot, accuracy of +/- 1/8-Inch
• Laser Class II, 630 to 670nm, Max. Power <1mW
• Laser Distance Measuring, Laser Pointer, Reverse Contrast LCD, LED and Audible Beep Indications, Auto-Power Off, Pocket Clip
• Auto Power-Off conserves and extends battery life
• Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source
• Lightweight tool with pocket clip for easy everyday carrying and storage

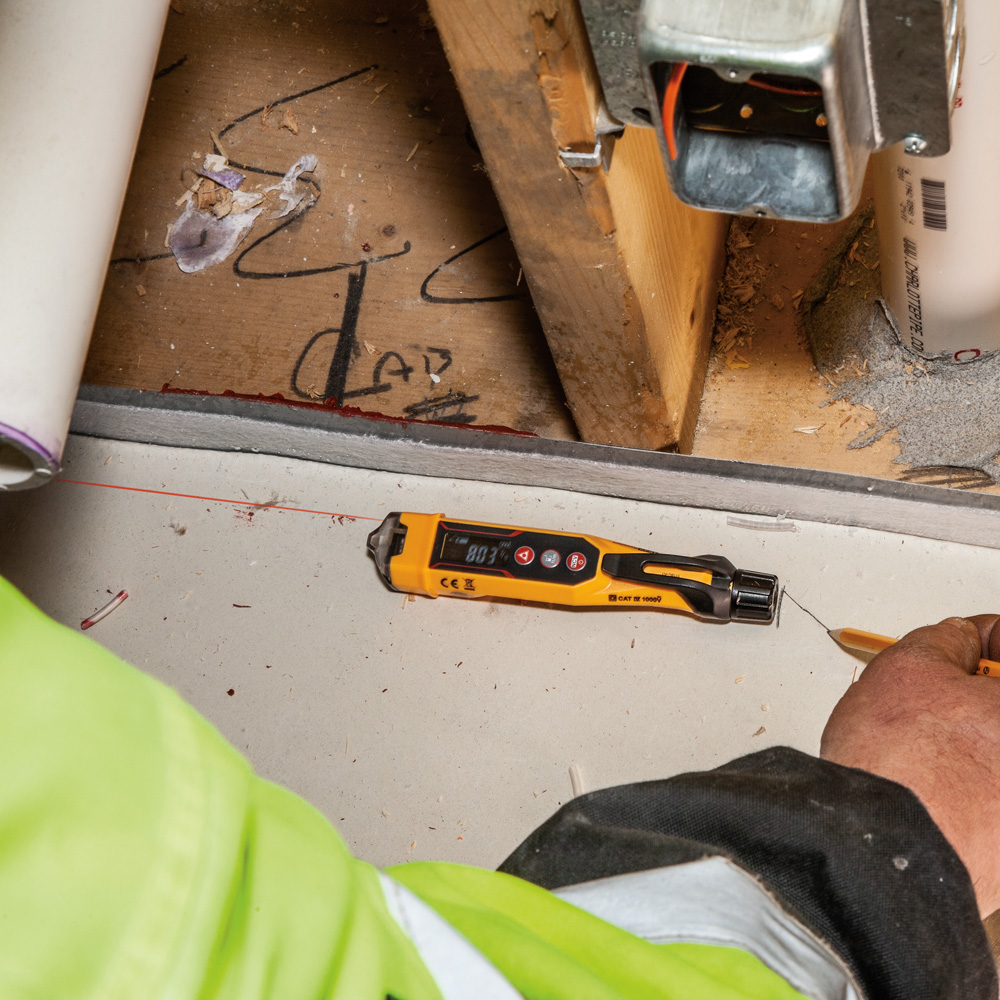

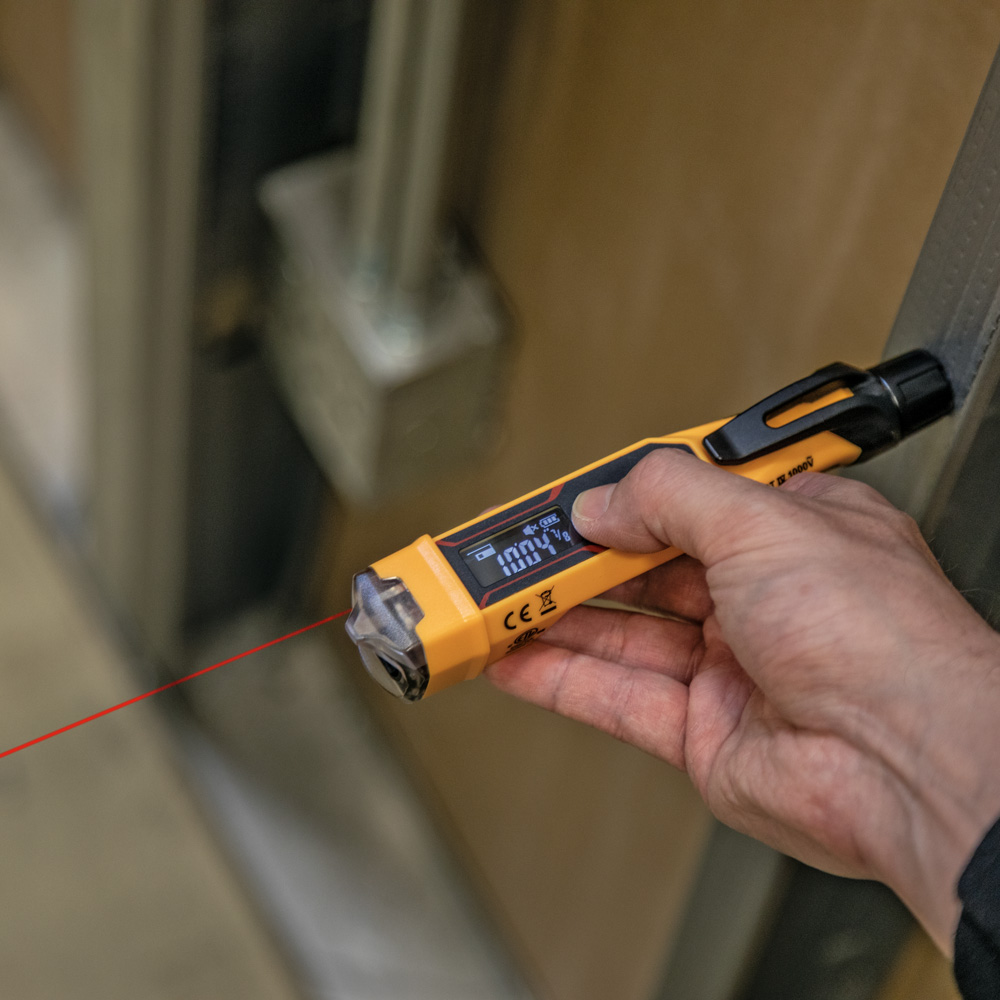

• Incorporates a 66-Foot (20 m) Laser Distance Meter that can measure in meters, inches in fractions or decimals, and feet in fractions or decimals, with accuracy up to 1/16-Inch (0.16 cm)
• Volt Pen detects AC voltage from 12 to 1000V with visual and audible indicators

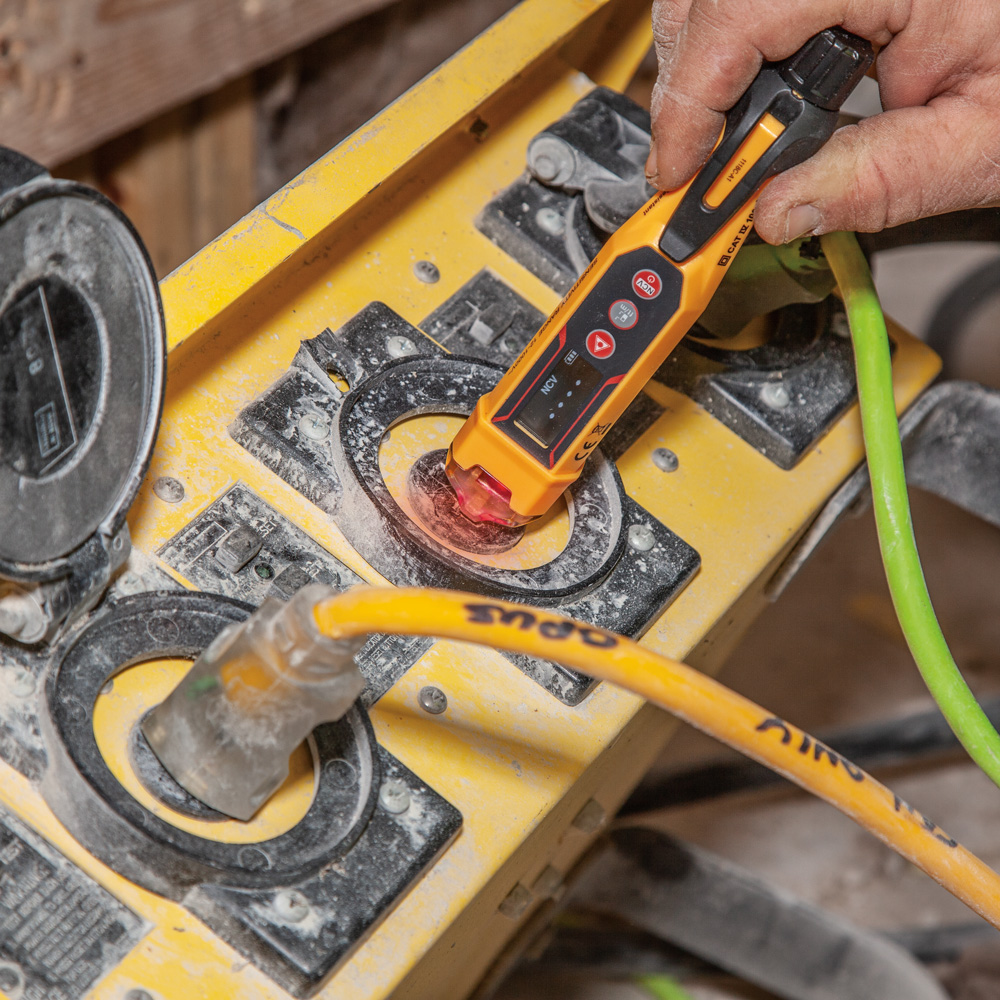

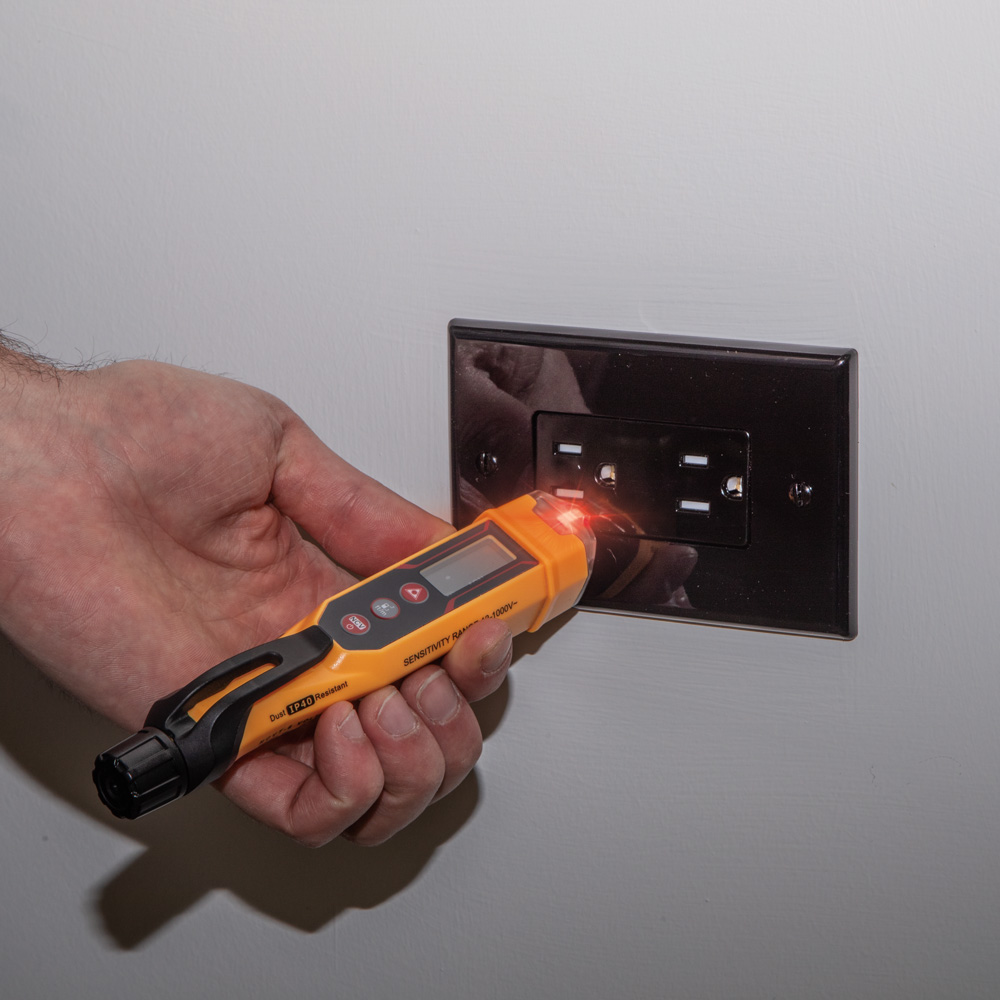

• Non-contact Tester determines AC voltage in cables, cords, circuit breakers, switches, outlets, wires, as well as security, entertainment, communications, environmental control, and irrigation systems

Warnings

• Usage of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
• LASER RADIATION, Class II laser. DO NOT direct laser beam into eyes, DO NOT stare into the beam, or DO NOT view directly with optical instruments as this can cause severe and permanent eye damage.
• Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
• Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
• Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.

Specifications

• Standard: CATIV 1000V, Laser: Class II, 630nm to 670nm, Max. Power <1mW
• Overall Height: 3.4 cm (1.32 Inch)
• Voltage: 12-1000V AC
• Batteries: 2 x AAA
• Accuracy: 1/16" from 2" to 32.8'; 1/8" from 32.8' to 65.6'
• Material: Plastic and Electronic Assemblies
• Width: 1.3200 in
• Pollution Degree: 2
• Overall Length: 6.45 Inch (16.4 cm)
• Ingress Protection: IP40 Dust Resistant
• Included: NCVT; 2 x Alkaline 1.5V AAA Batteries
• Weight: 0.1560 lbs
• Frequency: 50 - 500 Hz
• Overall Width: 3.1 cm (1.21 Inch)
• Drop Protection: 6.6' (2 m)
• Height: 1.2100 in
• Type: Non-Contact Voltage Tester
• Application: Non-Contact Detection and Testing of AC Voltage with Integrated Laser Distance Meter
• Depth: 6.4500 in
