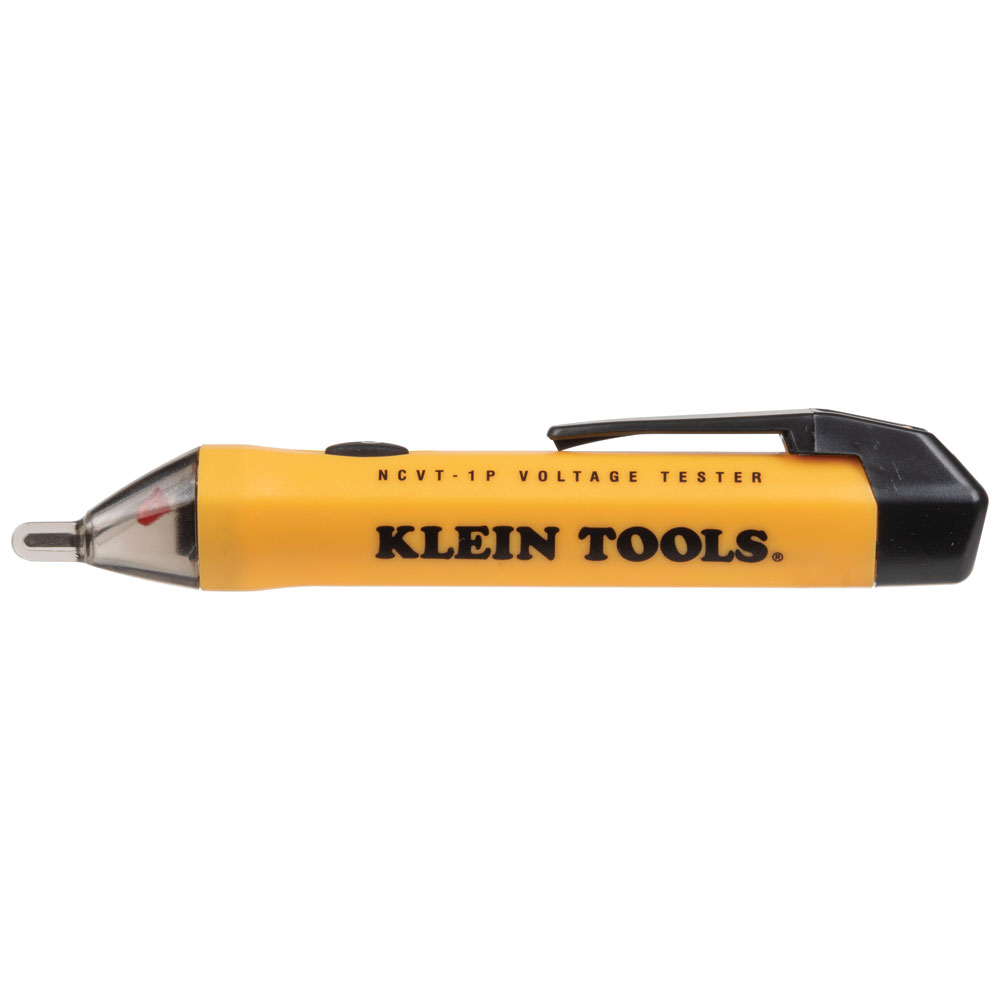

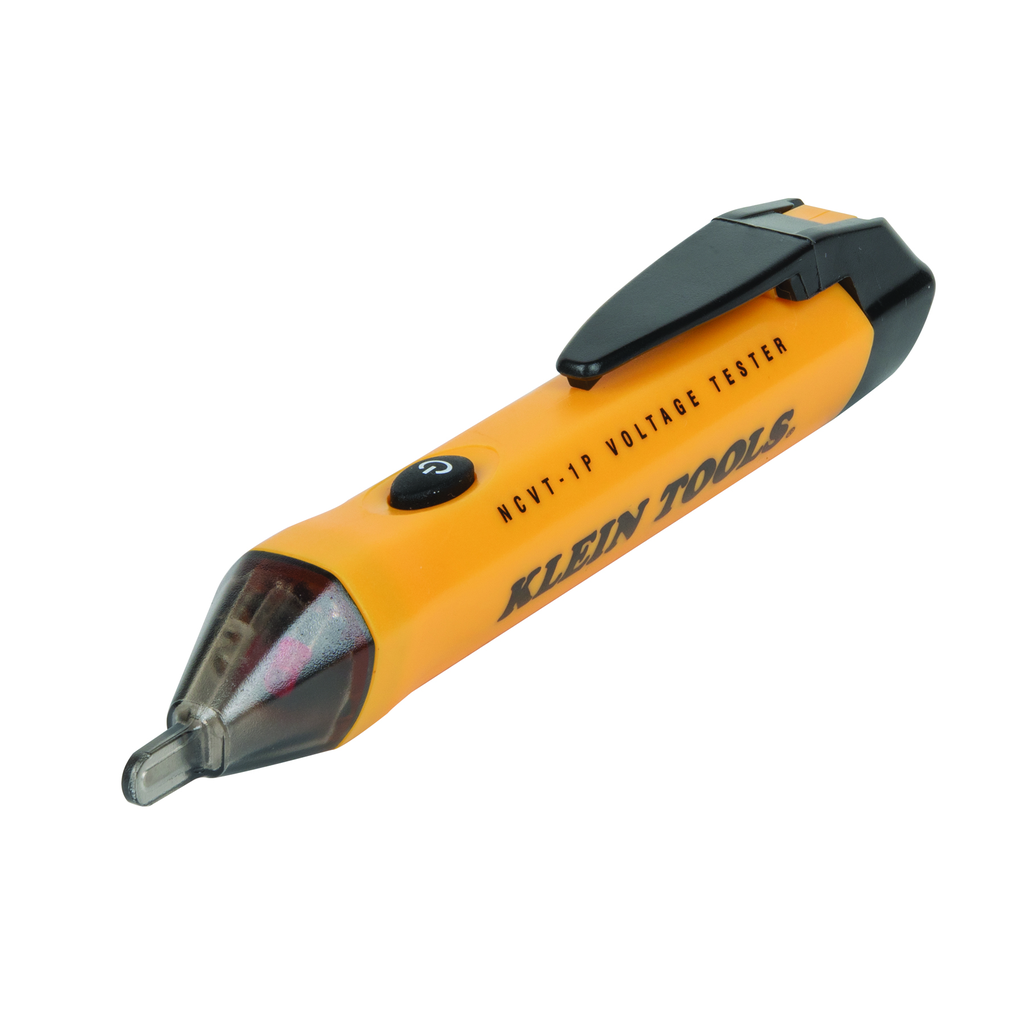

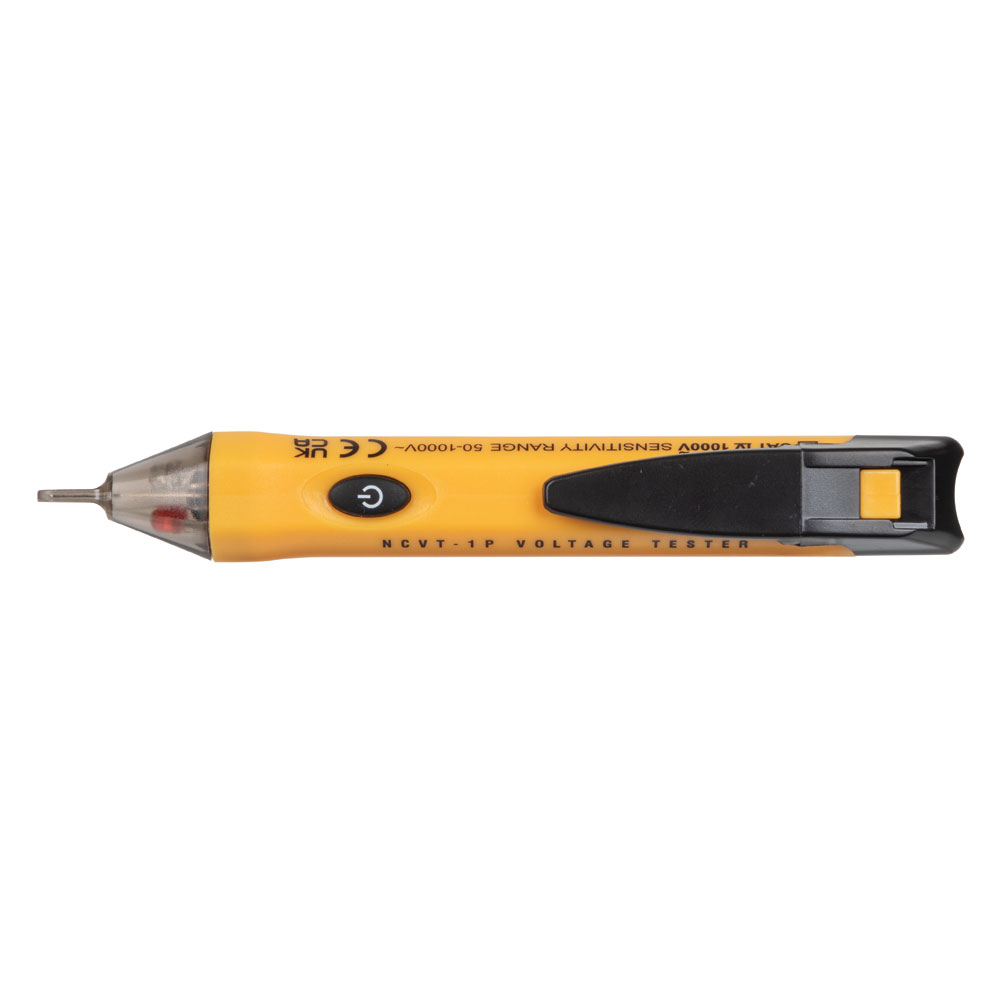

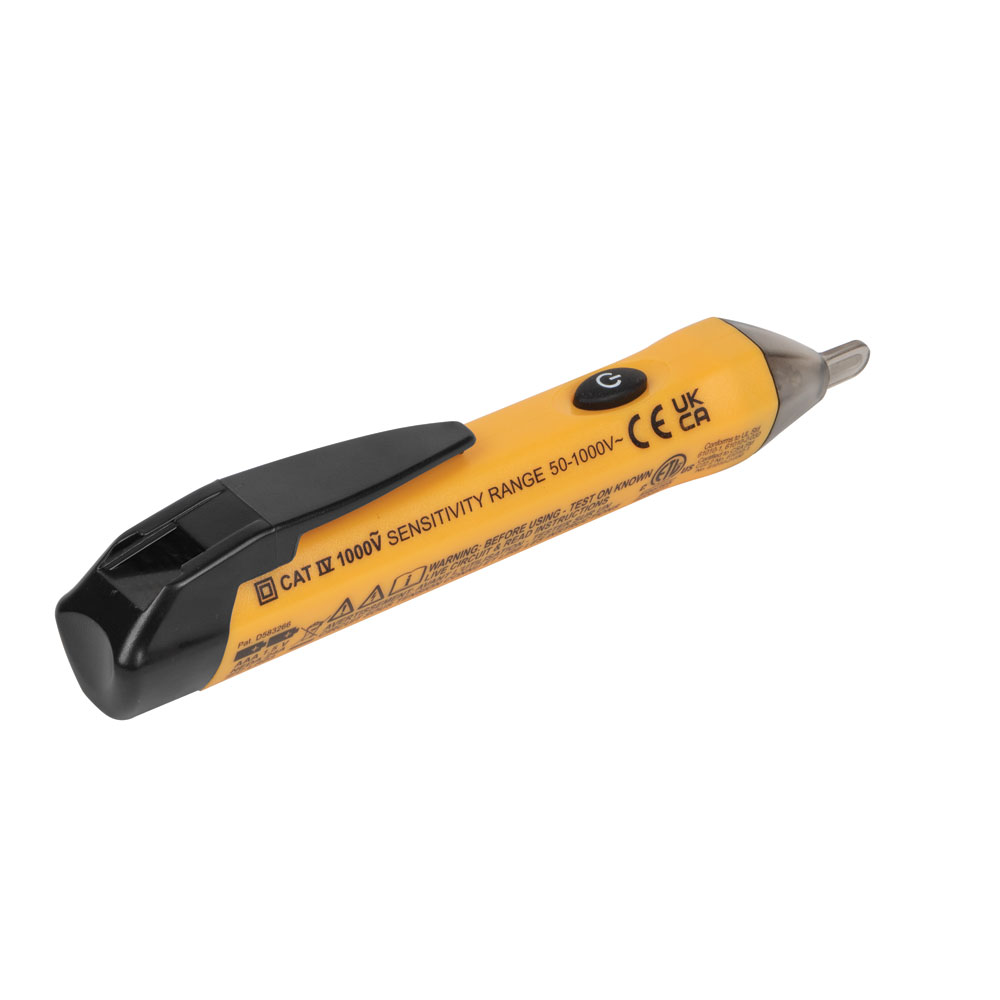

Non-Contact Voltage Tester Pen, 50 to 1000V AC

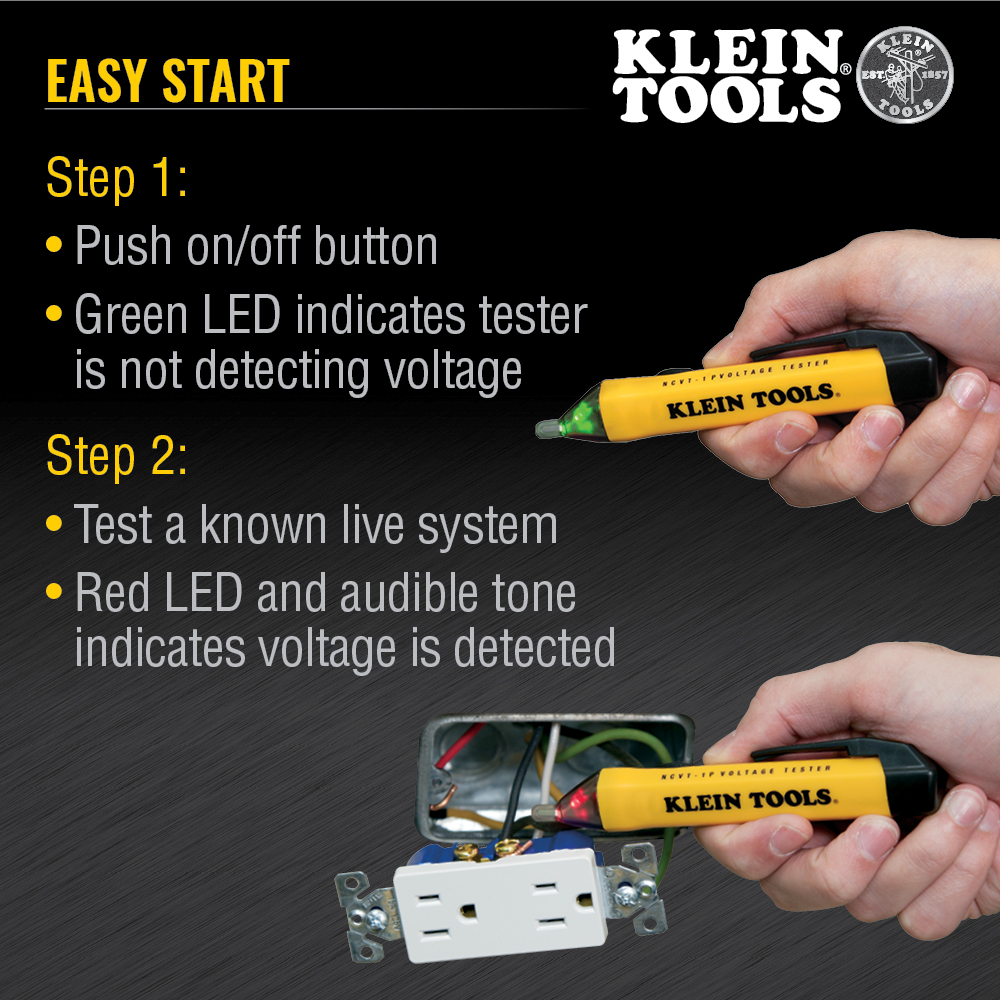

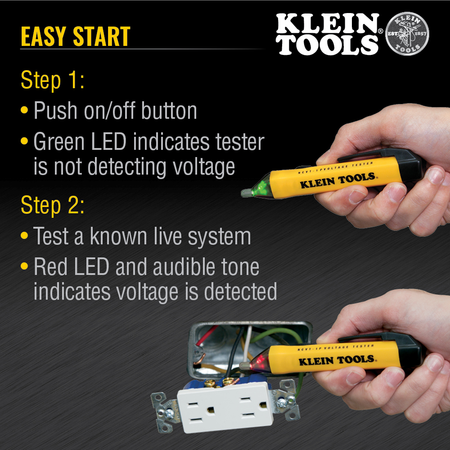

Klein Tools Non-Contact Voltage Tester detects standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, non tamper-resistant outlets and wires. A bright green LED indicates the tester is powered on. It changes to red and an audible tone sounds when voltage is detected.

Features

• Volt Pen with high intensity, bright green LED indicates the tester is powered on
• 6.6-Foot (2 m) drop protection
• When voltage is detected, a high intensity, bright red LED illuminates and an audible tone will sound
• Voltage Tester provides non-contact detection of voltage in cables, cords, circuit breakers, lighting fixtures, switches, non tamper-resistant outlets and wires

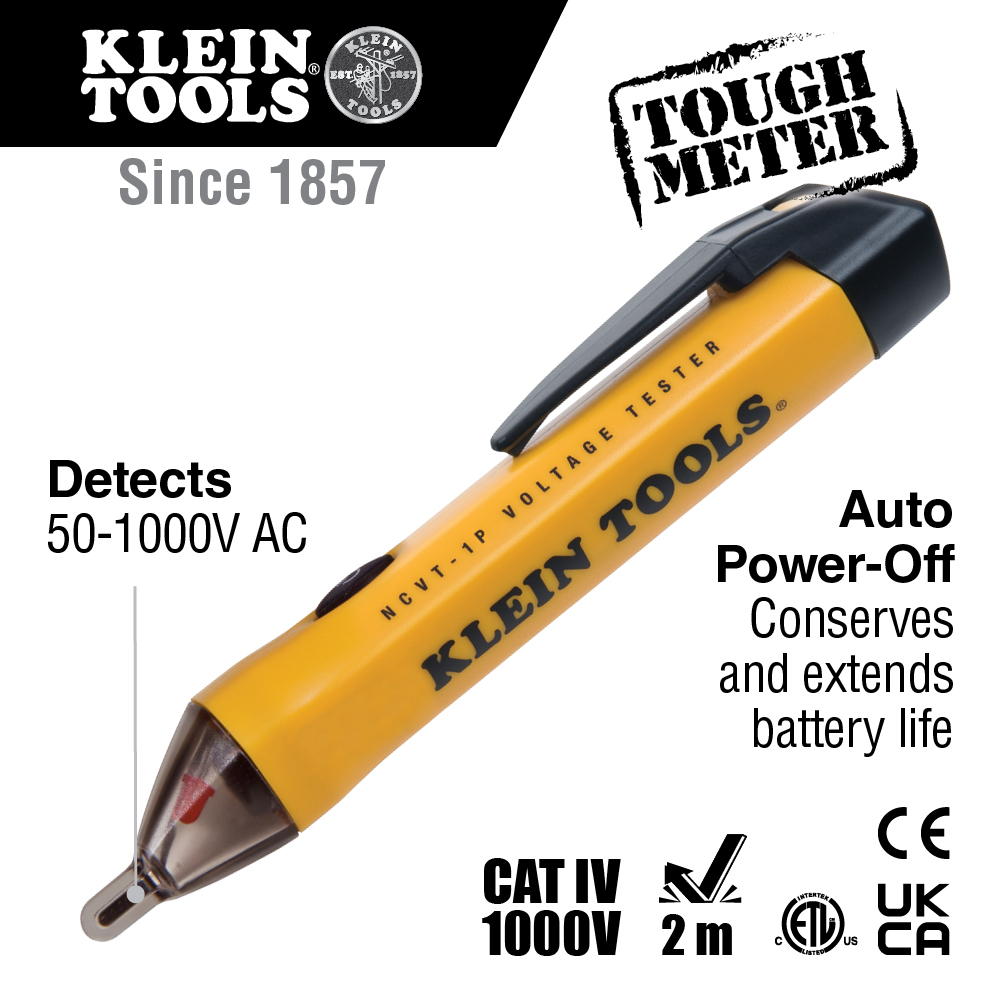

• 50 to 1000 VAC power operating range allows broad application

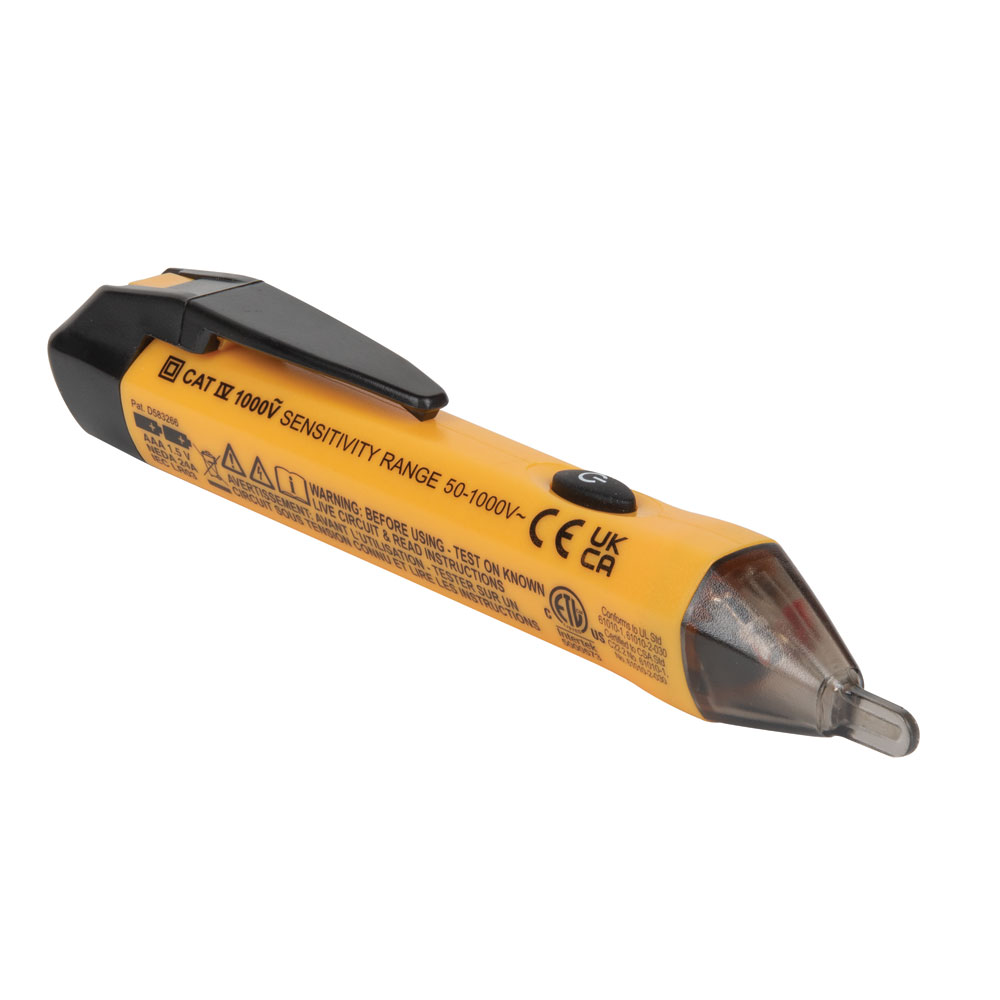

• CAT IV 1000V safety rating
• Lightweight compact design with a convenient clip to fit securely in your pocket
• LED and Audible Beep Indications, Auto-Power Off, Pocket Clip
• Includes instructions and 2 x AAA 1.5 volt batteries
• Auto power-off feature conserves and extends battery life

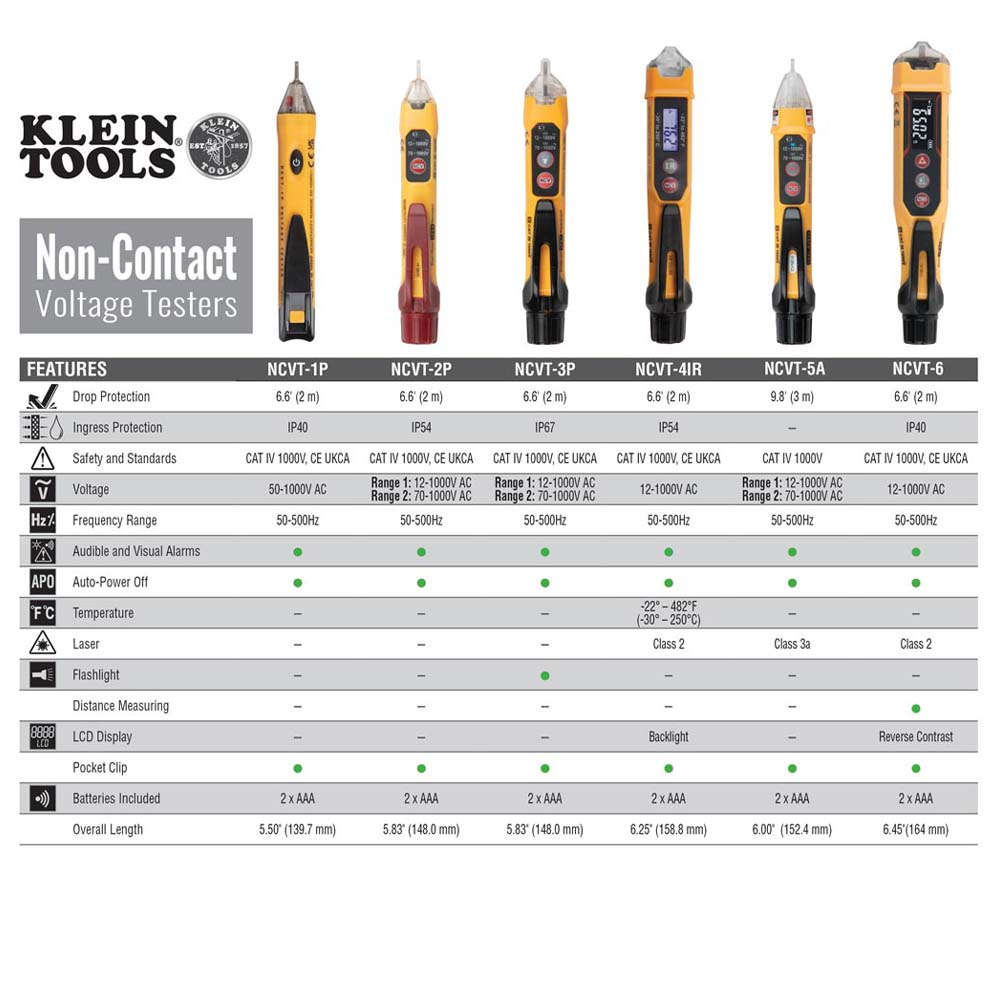

• Product not recommended for testing tamper-resistant outlets; use Cat. Nos. NCVT-2P or NCVT-3P in low voltage mode

Warnings

• Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
• Read, understand, and follow all warnings, cautions, safety information, and instructions in this manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.

Specifications

• Frequency: 50 - 500 Hz
• Height: 1.0000 in
• Weight (oz): 0.8
• Overall Height (Inch): 0.72
• Standard: CAT IV 1000V
• Drop Protection: 6.6' (2 m)
• Width: 0.7200 in
• Overall Height (cm): 1.8
• Material: Polymer Body and Electronic Components
• Overall Length (Inch): 5.5
• Weight: 0.0500 lbs
• Pollution Degree: 2

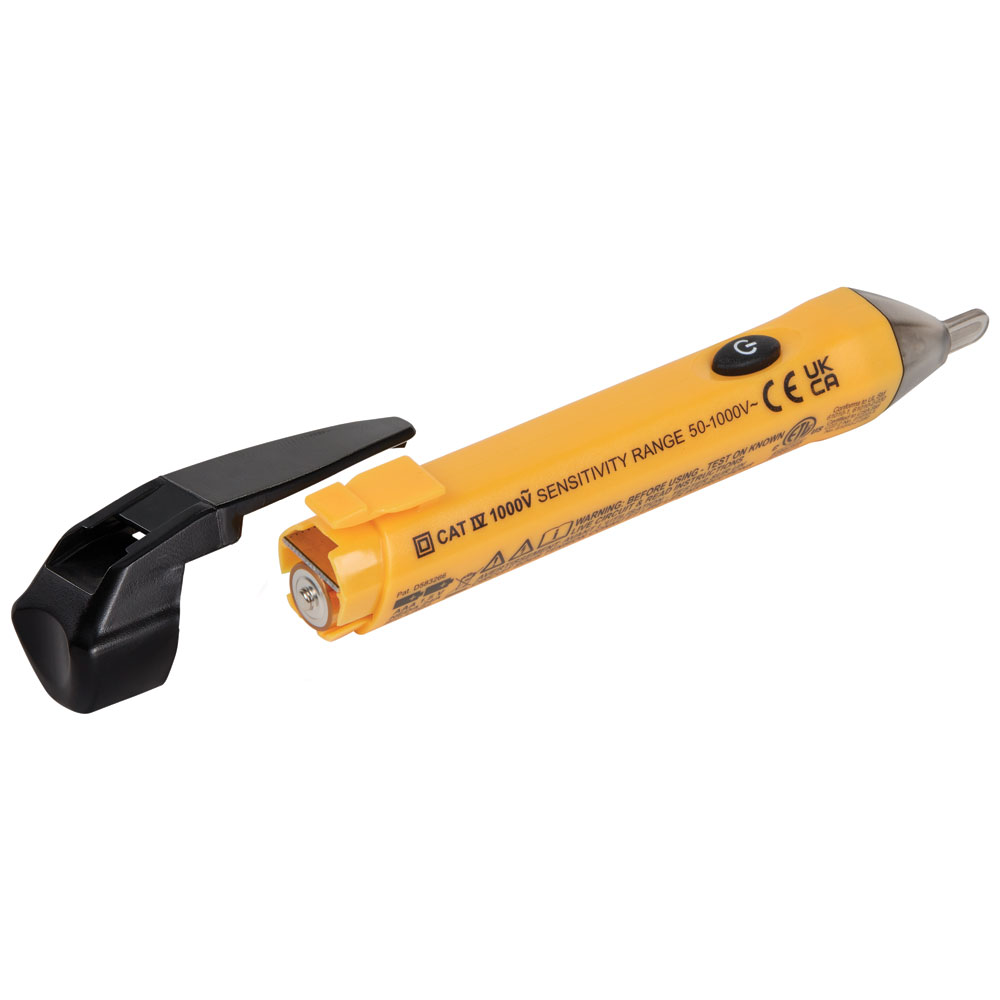

• Batteries: 2 x AAA
• Overall Width (cm): 2.5
• Overall Length (cm): 14
• Type: Voltage Tester Pen
• Included: NCVT; Instructions; 2 x AAA 1.5 Volt Batteries
• Weight (g): 23
• Overall Width (Inch): 1
• Voltage: 50 - 1000V AC
• Application: Non-Contact Detection and Testing of AC Voltage; Not Recommended for Tamper-Resistant Outlets
• Depth: 5.5000 in
