Non-Contact Voltage and GFCI Receptacle Test Kit

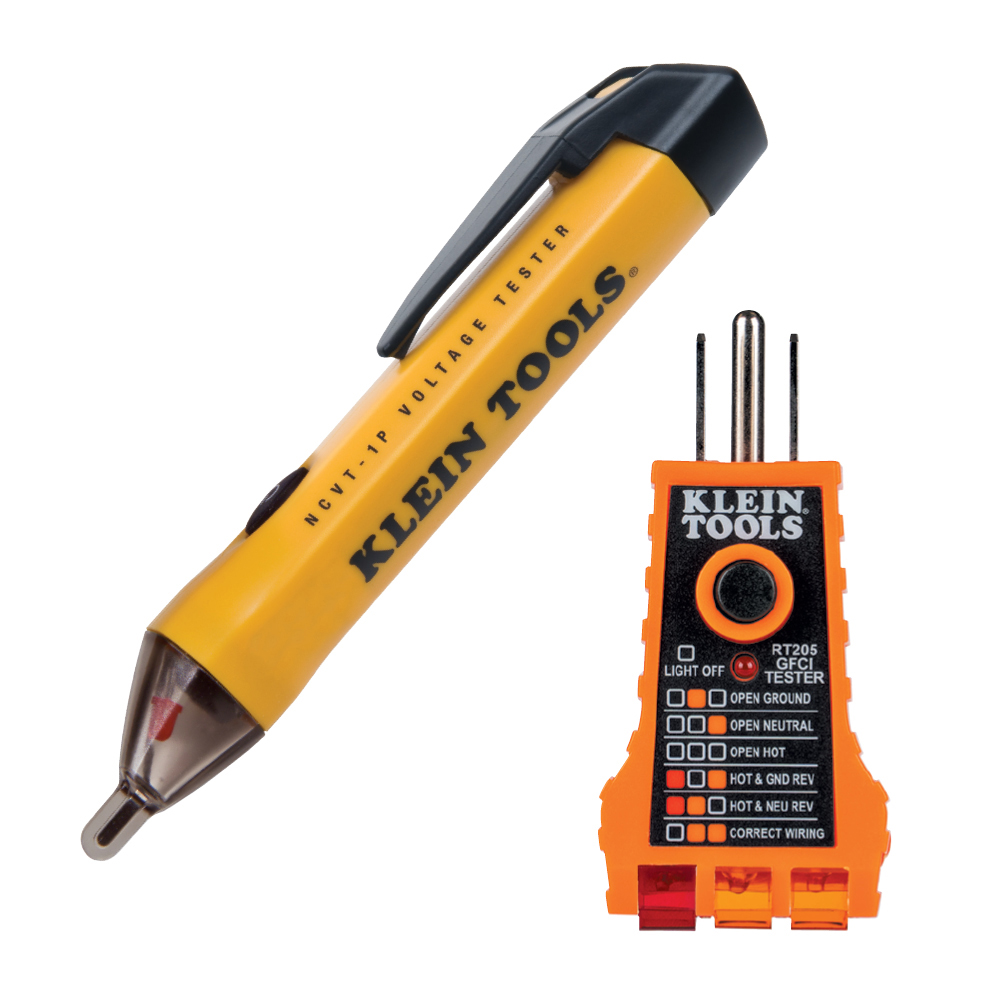

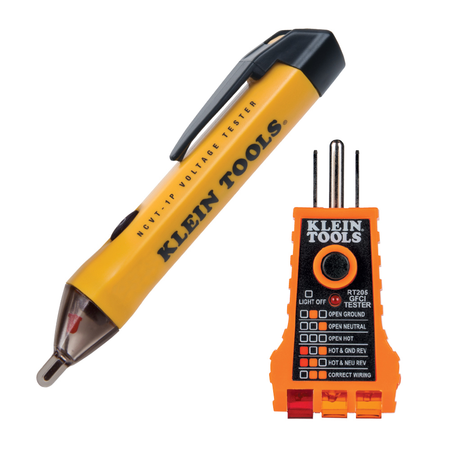

Klein Tools Test Kit includes the NCVT1P Non-Contact Voltage Tester and RT205 GFCI Receptacle Tester. The Non-Contact Voltage Tester detects standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, non tamper-resistant outlets and wires. The GFCI Receptacle Tester detects the most common wiring problems in standard receptacles.

Features

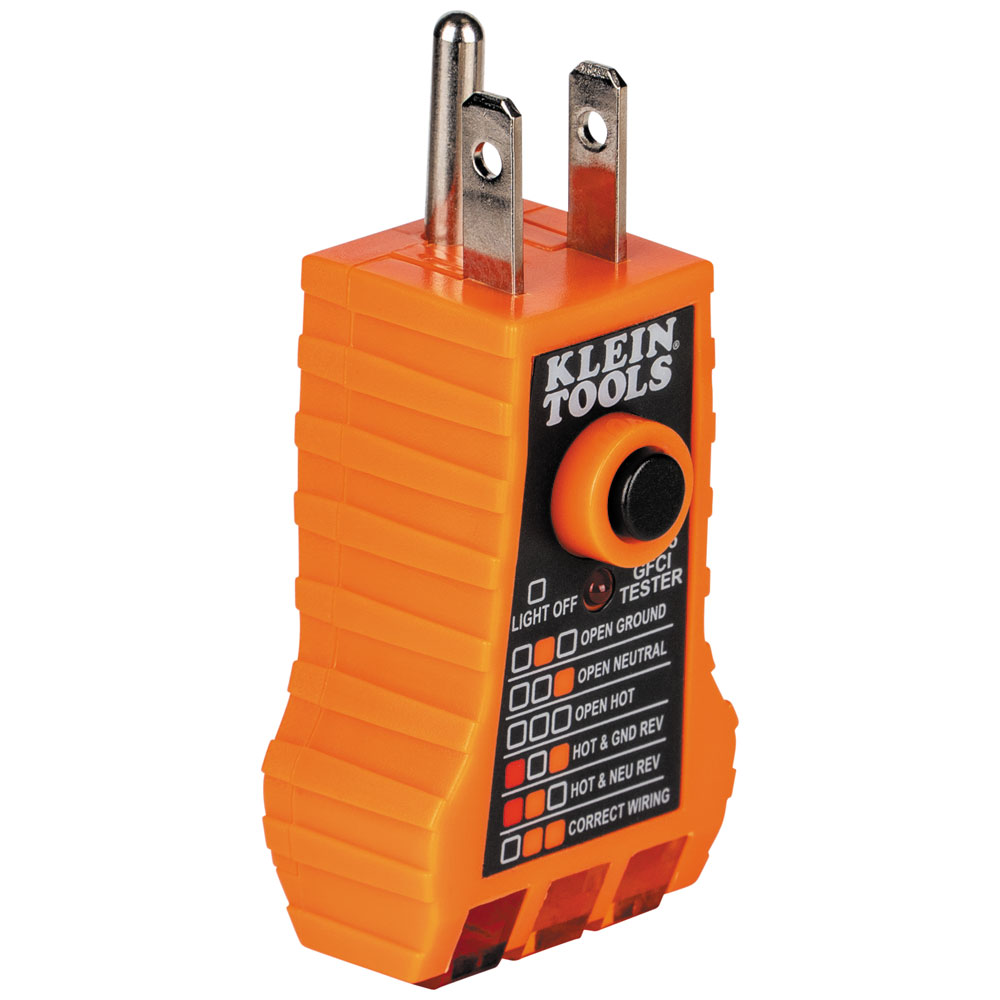

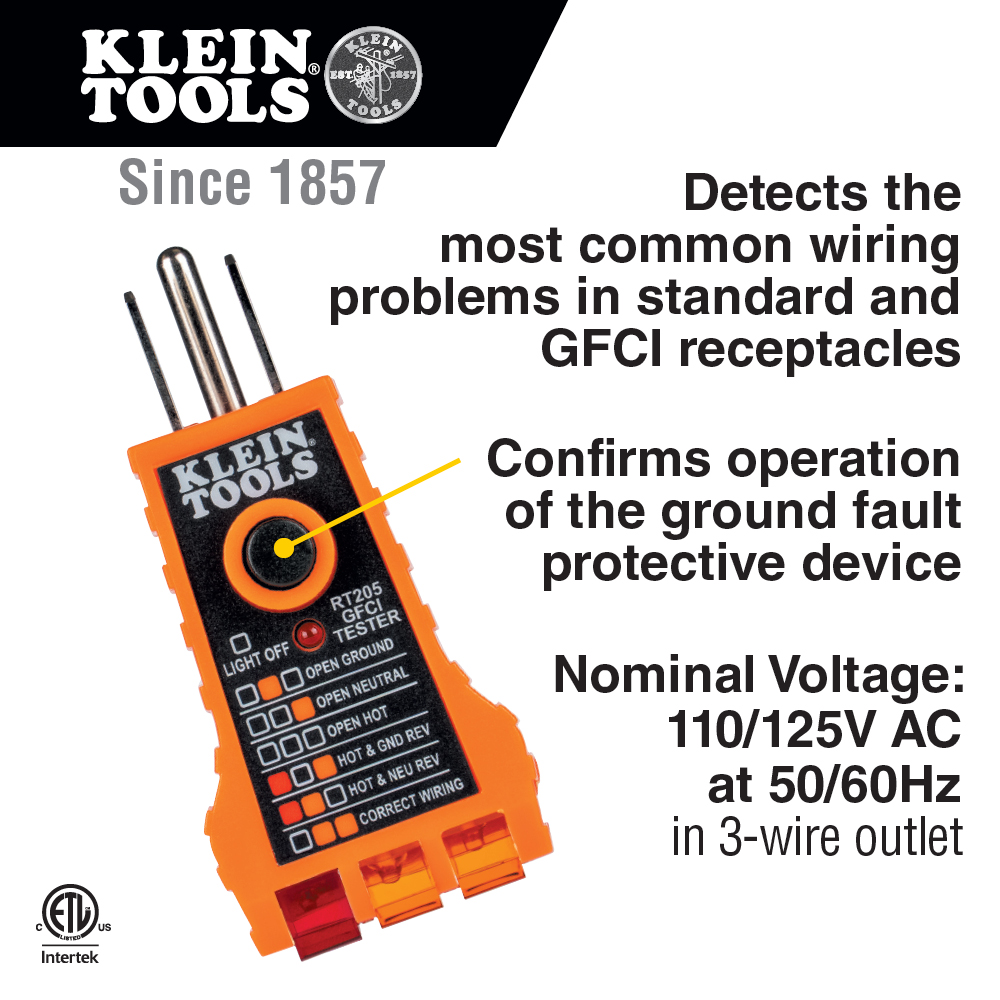

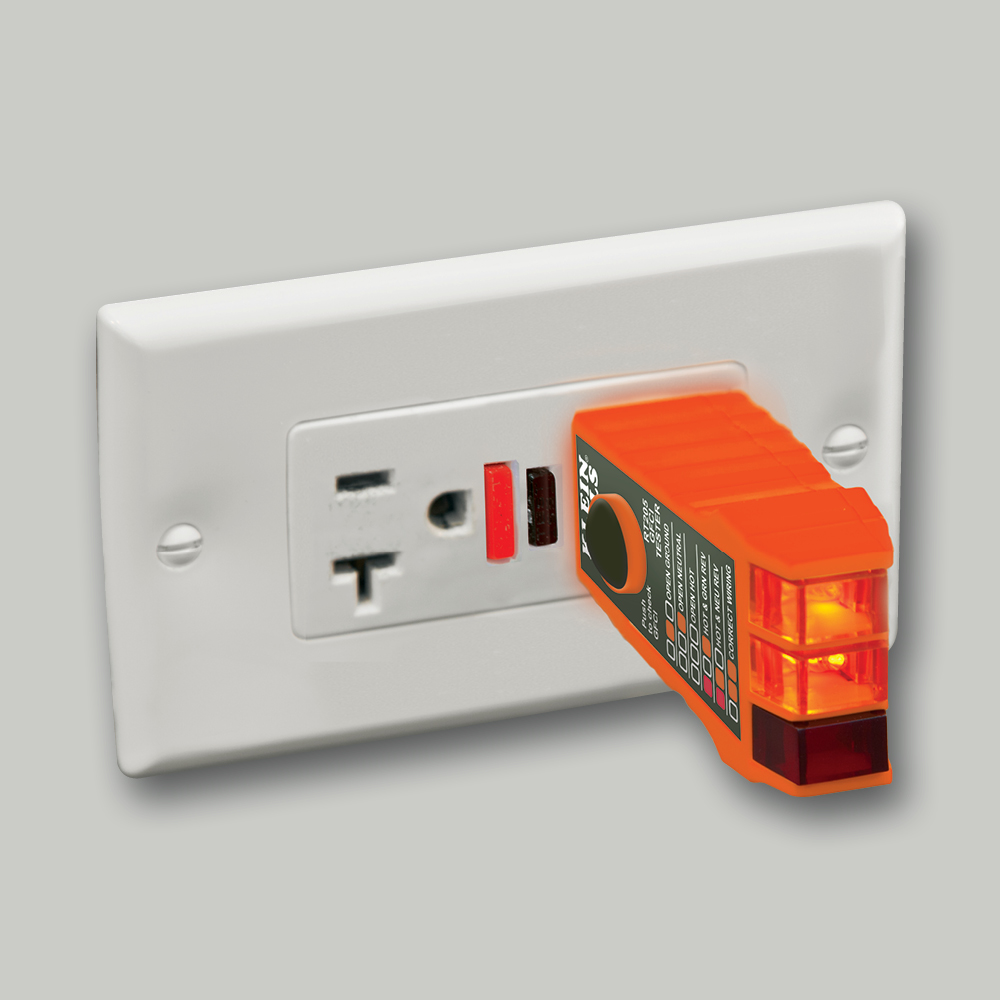

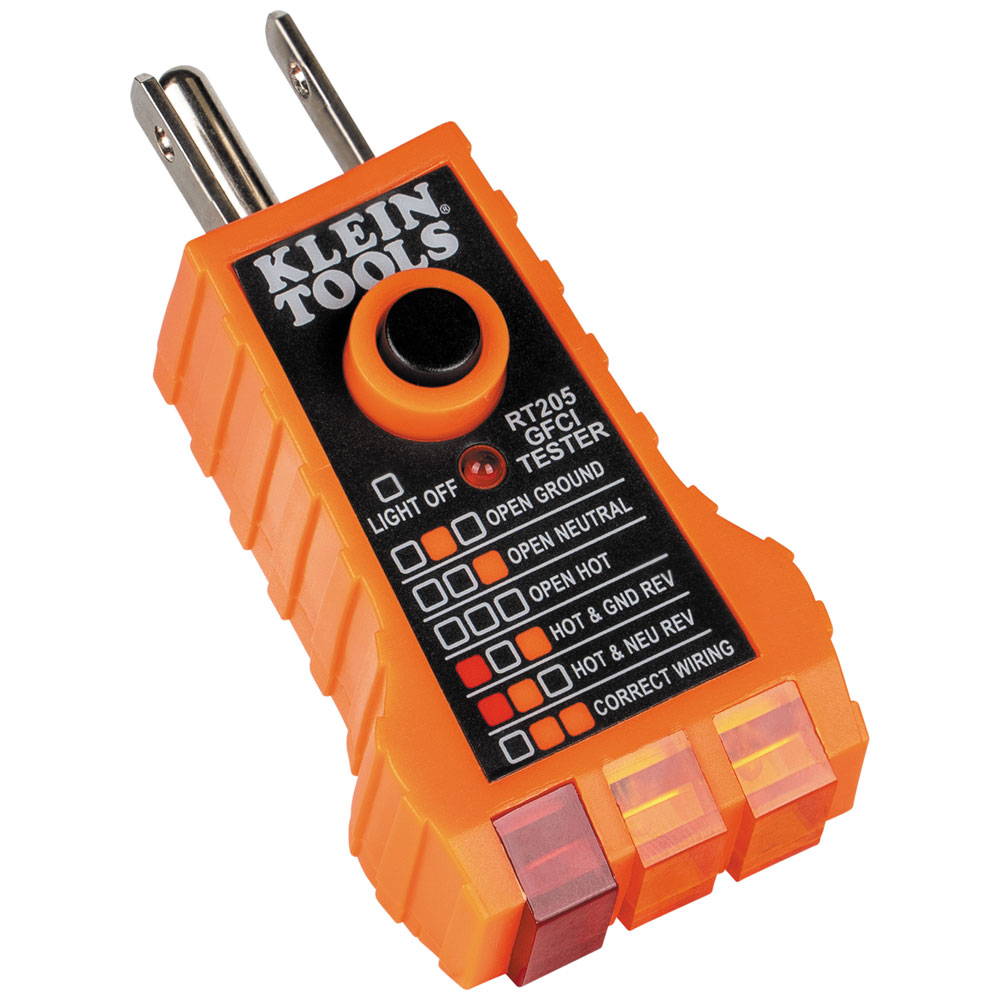

• Receptacle tester is designed to detect the most common wiring problems in standard receptacles: Open ground, reverse polarity, open hot, open neutral, hot/ground reversed
• High intensity, bright green LED indicates the tester is operational and aids in illuminating the workspace

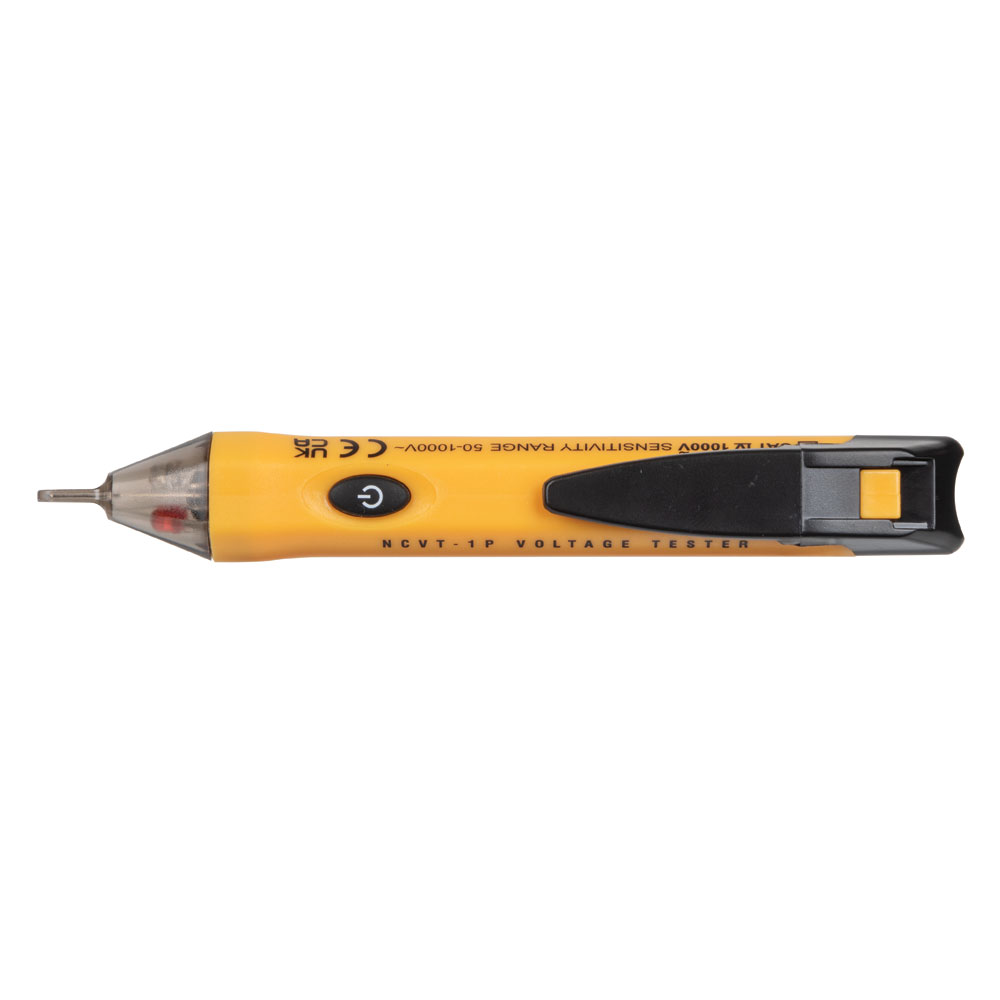

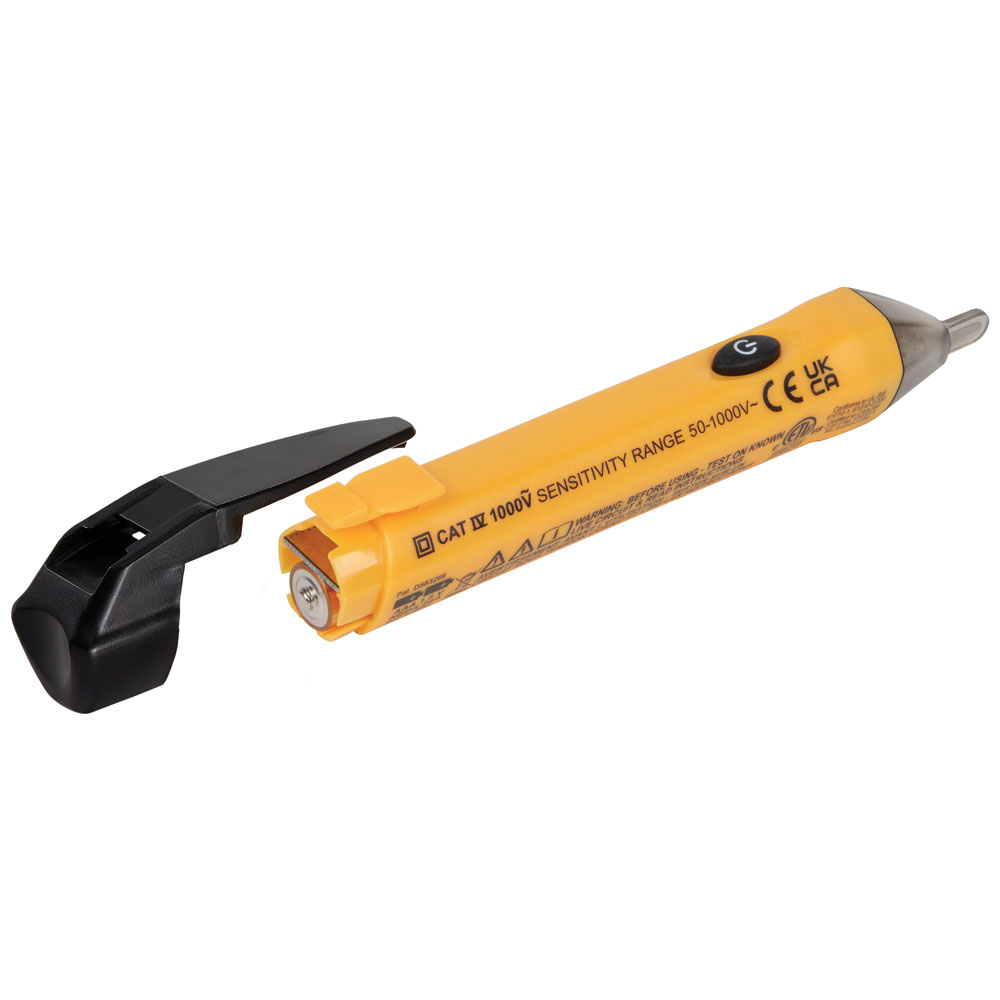

• NCVT1P: Green LED Indicates Power On; Red LED Indicates Voltage Detected with Audible Beeps; Not Recommended for Tamper-Resistant Outlets
• Kit comes with NCVT1P Non-Contact Voltage Tester, RT205 GFCI Receptacle Tester, Instructions, and all required batteries

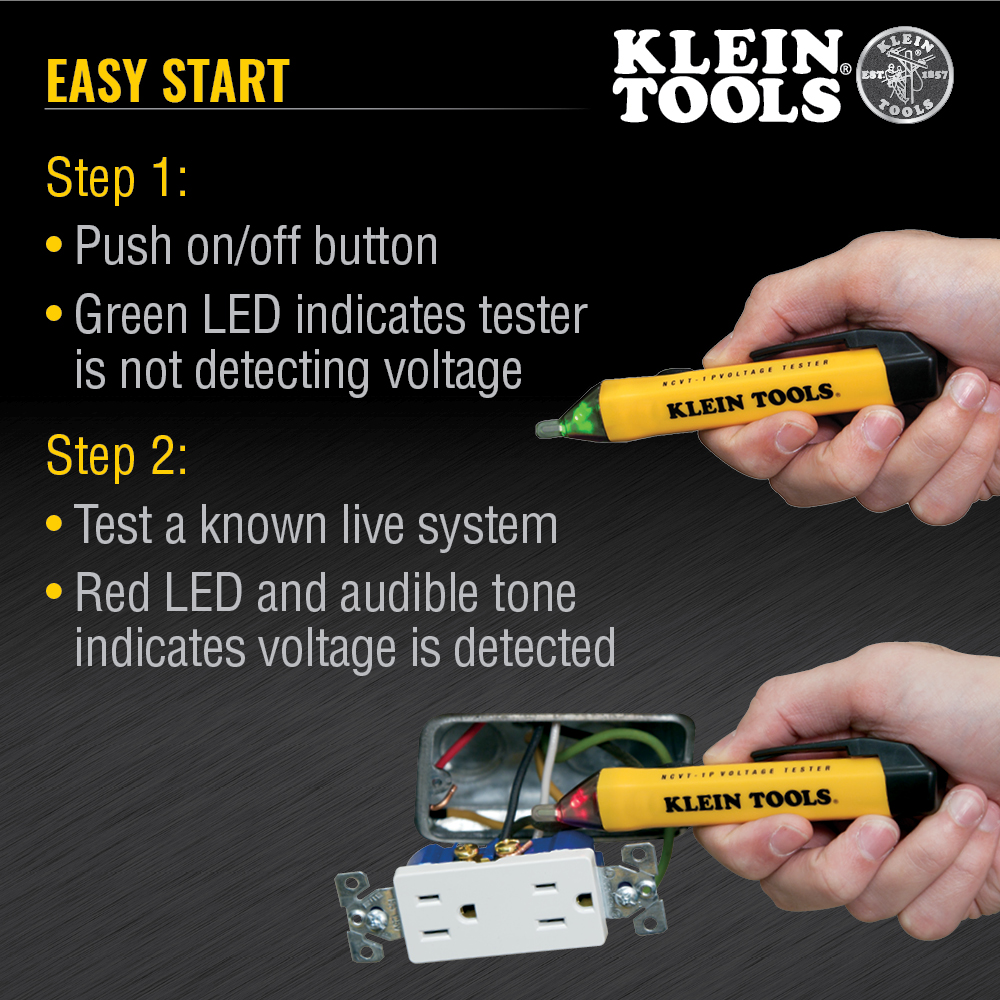

• When voltage is detected, a high intensity, bright red LED illuminates and a beeping sound is generated
• Auto power-off feature conserves and extends battery life

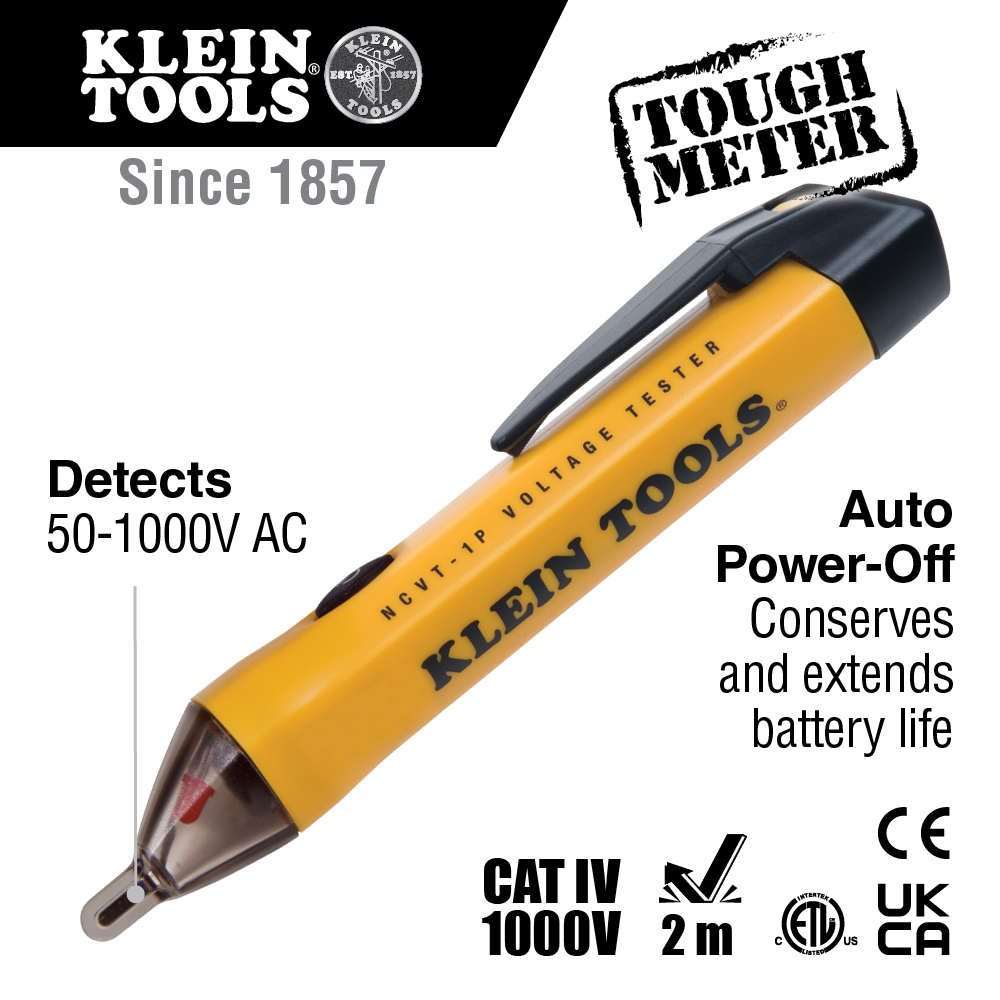

• 50 to 1000V AC power operating range allows broad application

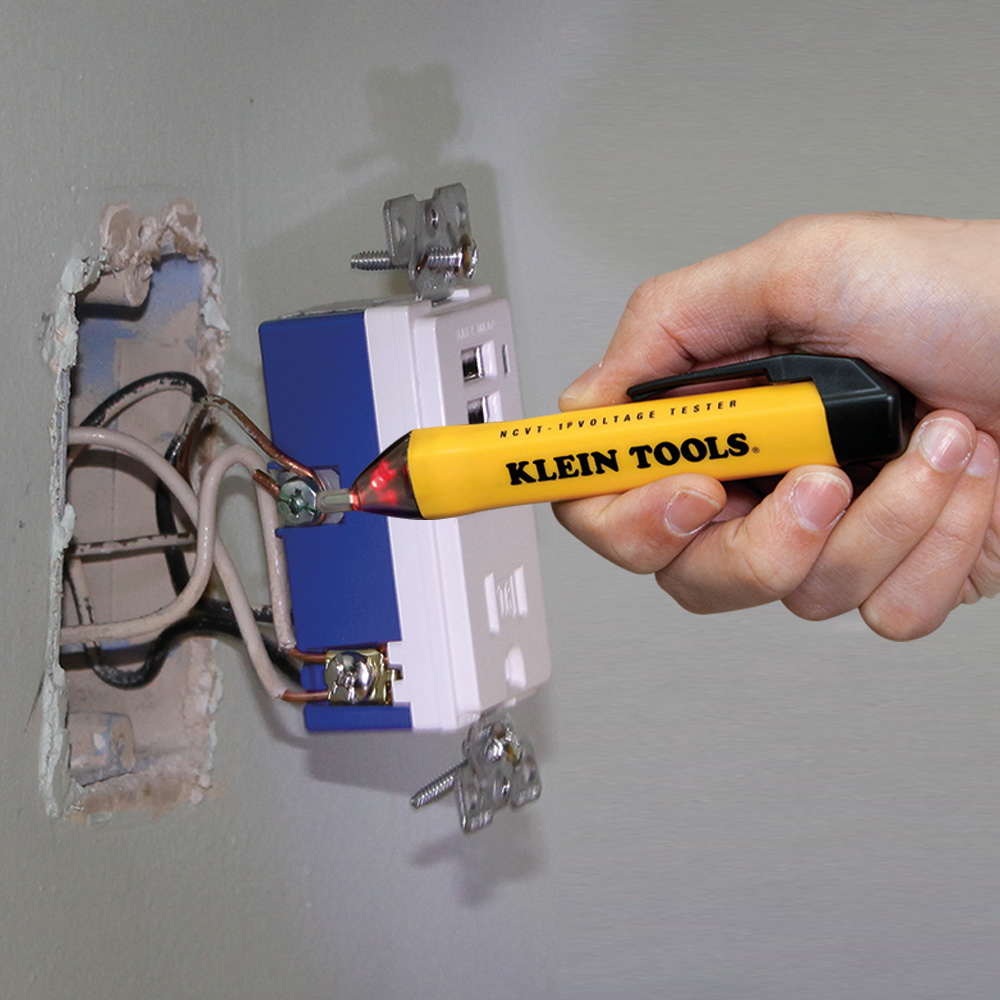

• Non-Contact Voltage Tester detects voltage in cables, cords, circuit breakers, lighting fixtures, switches, outlets, and wires

Specifications

• Material: Polymer Body and Electronic Components
• Overall Height (Inch): 2.05
• Pollution Degree: NCVT1P and RT205 - 2
• Application: Non-Contact Detection and Testing of AC Voltage; Determine Wiring Condition in Outlet
• Weight (g): 119
• Weight (oz): 4.2
• Voltage: NCVT1P - 50 - 1000V AC; RT205 - 110 - 125V
• Batteries: 2 x AAA
• Depth: 8.6600 in
• Type: Voltage Tester Pen and GFCI and Standard Receptacle Tester
• Overall Width (cm): 10
• Drop Protection: NCVT1P and RT205 - 6.6' (2 m)
• Height: 2.0500 in
• Overall Length (cm): 22
• Standard: NCVT1P: CAT IV 1000V; RT205: CAT II 125V
• Overall Height (cm): 5.2
• Frequency: NCVT1P - 50 - 500 Hz
• Weight: 0.2600 lbs
• Overall Length (Inch): 8.66
• Included: NCVT1P Non-Contact Voltage Tester; RT205 GFCI Receptacle Tester; Instructions; 2 x AAA 1.5 Volt Batteries
• Overall Width (Inch): 3.94
• Width: 3.9400 in
