Non-Contact Voltage and GFCI Receptacle Premium Test Kit

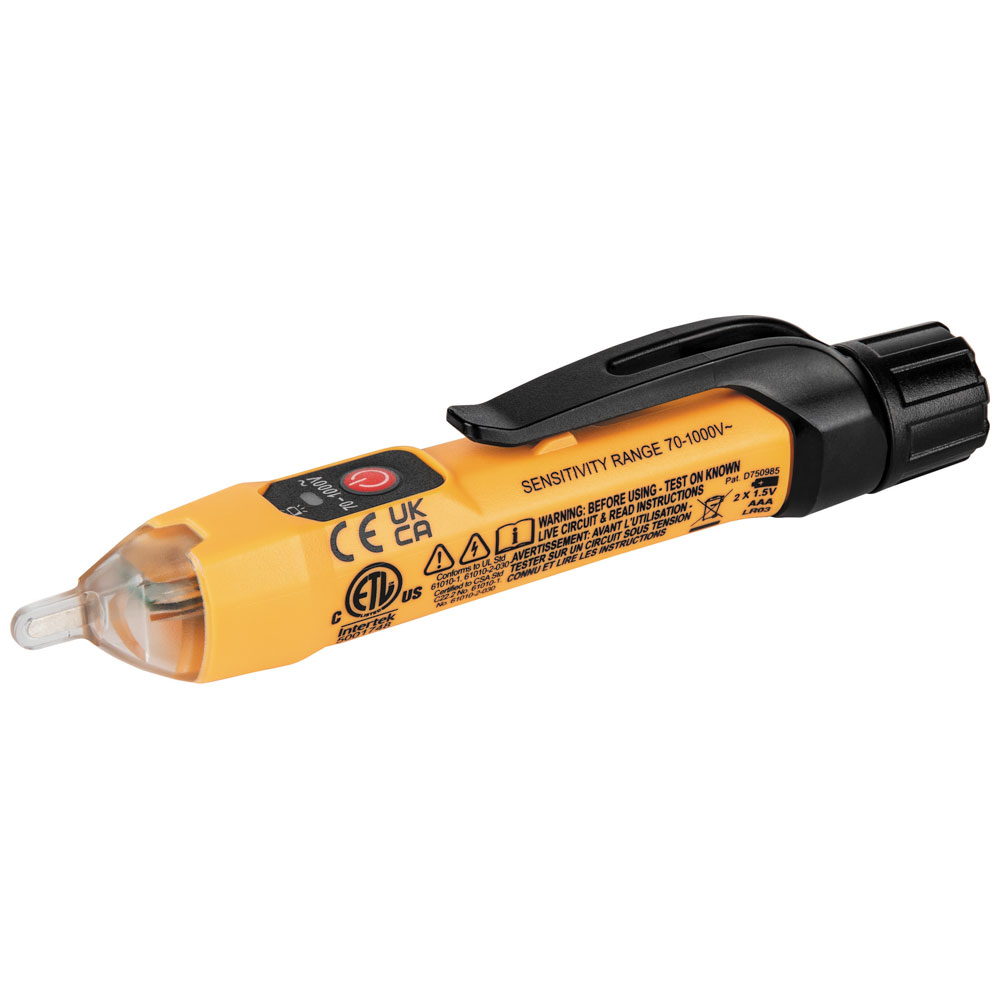

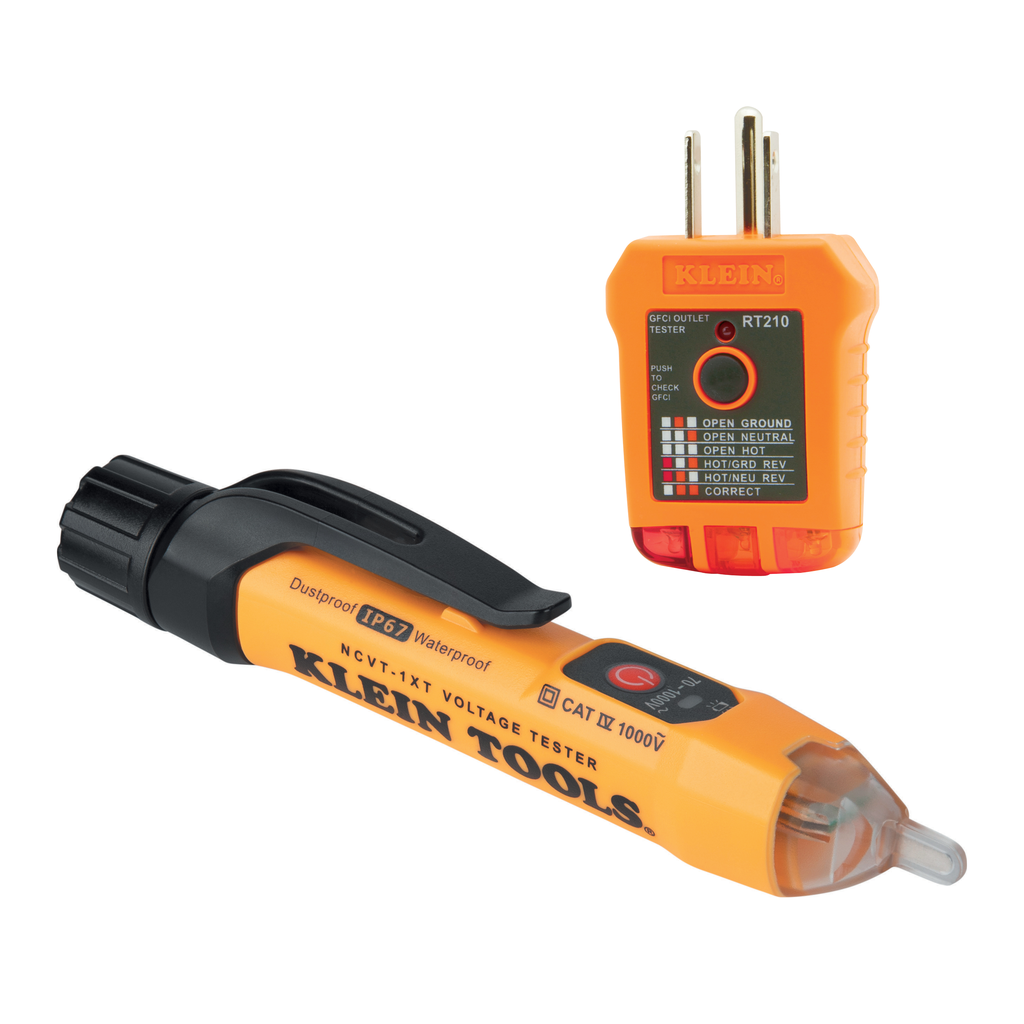

Klein Tools Non-Contact Voltage and GFCI Receptacle Premium Test Kit (Cat. No. NCVT1XTKIT) includes a Non-Contact Voltage Tester and a GFCI Receptacle Tester. The Non-contact Voltage Tester (Cat. No. NCVT1XT) detects voltage 70 to 1000V AC, is dustproof and waterproof with an IP67 rating, and has durable 9.8-Foot (3 m) drop protection. The GFCI Receptacle Tester (Cat. No. RT210) is designed to detect the most common wiring problems in standard and GFCI receptacles.

Features

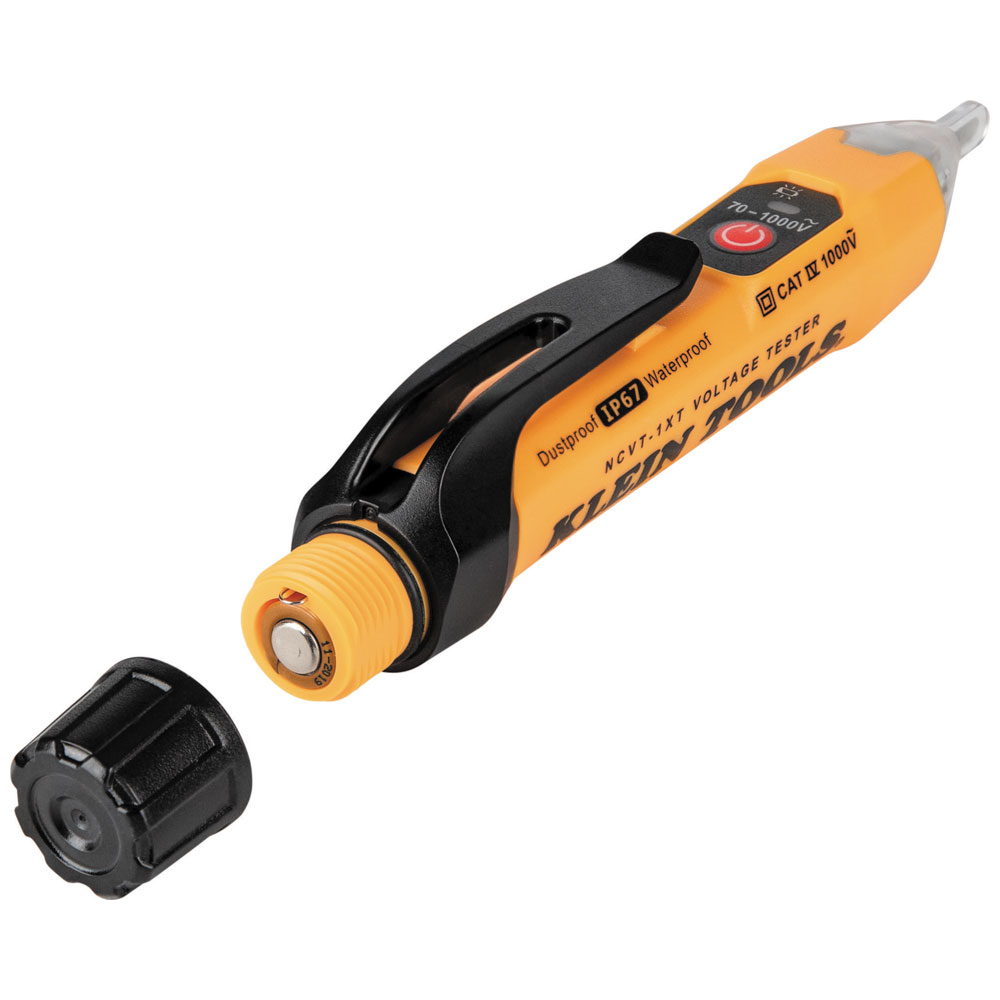

• CAT IV 1000V safety rating, low battery indicator, and easy access to battery compartment
• CAT II 300V safety rating, works on GFCI outlets, and confirms operation of the ground fault protective device
• Durable tester is dustproof and waterproof with an IP67 rating and 9.8-Foot (3 m) drop protection
• NCVT1XT: Dustproof and Waterproof; Low Battery Indicator; Easy Access Battery Compartment; RT210: Convenient Chart on the Tester; Includes GFCI Tester
• Volt Pen with high intensity, bright green LED indicates the tester is powered on

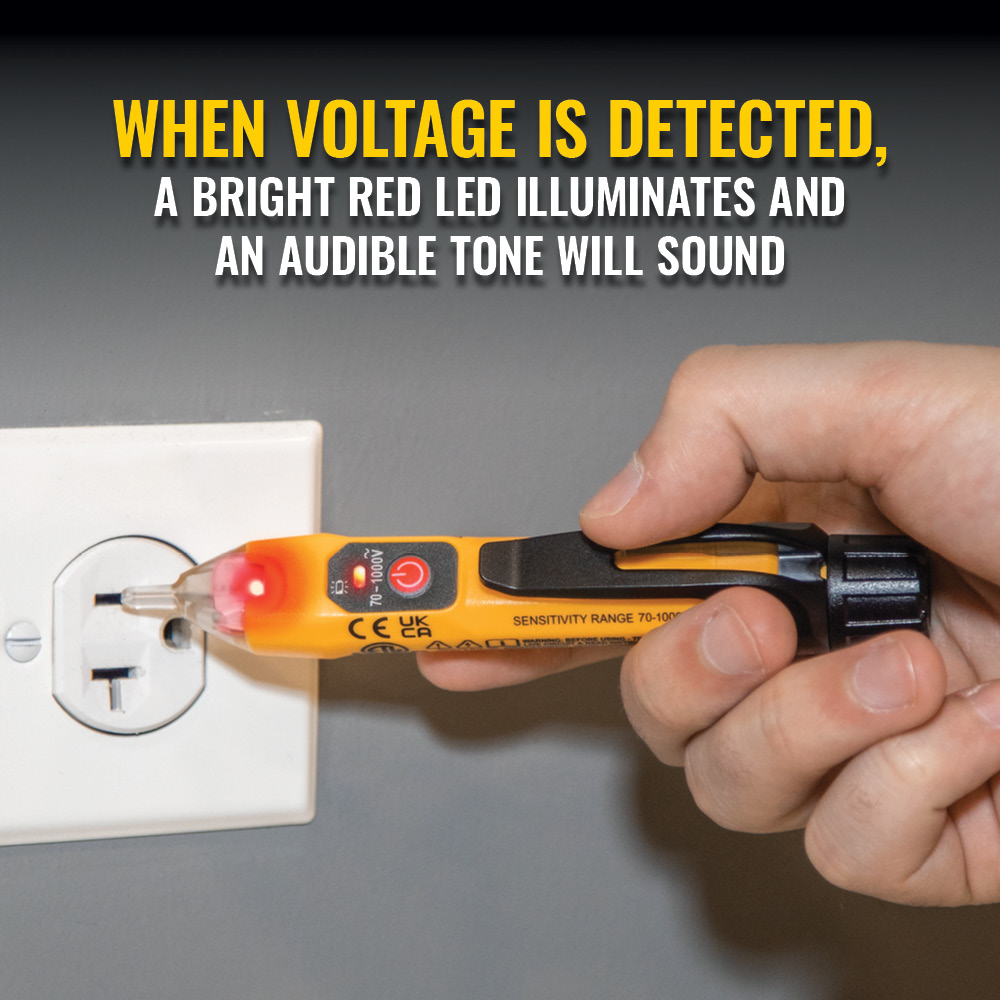

• When voltage is detected, a high intensity, bright red LED illuminates and an audible tone will sound

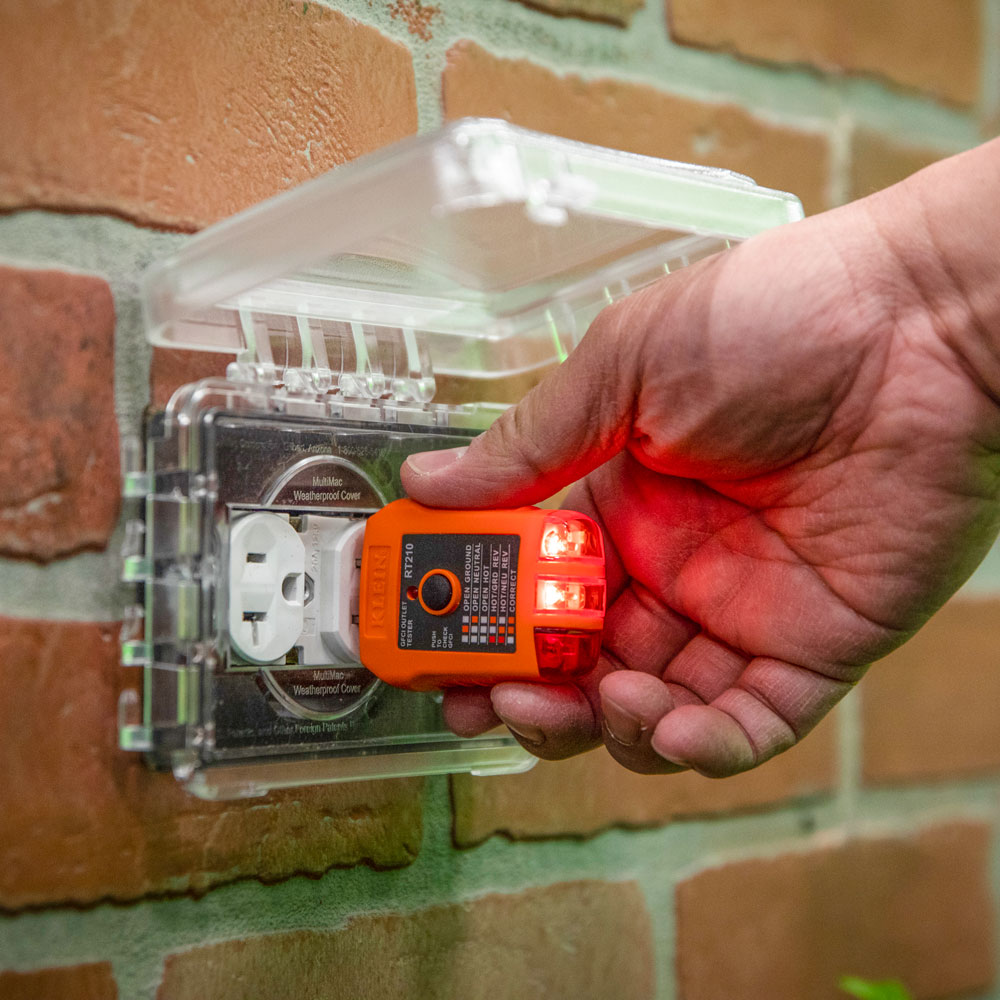

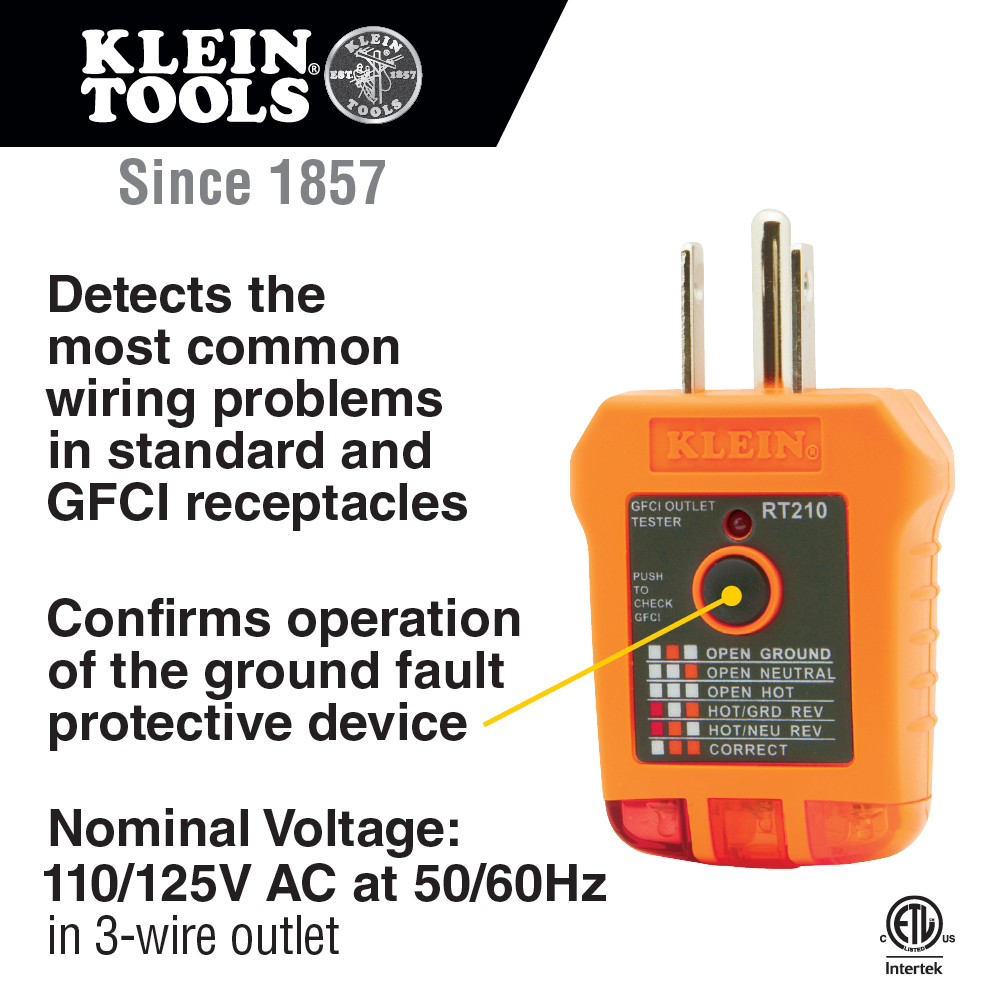

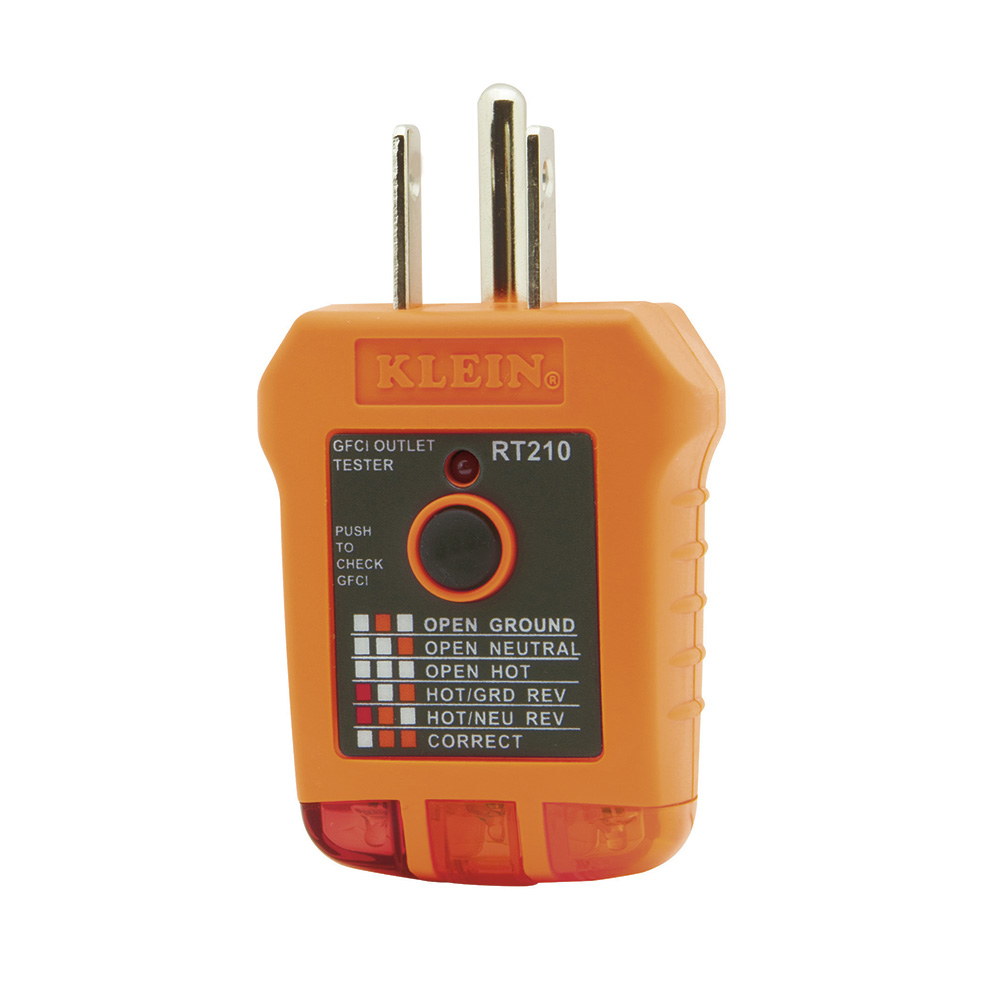

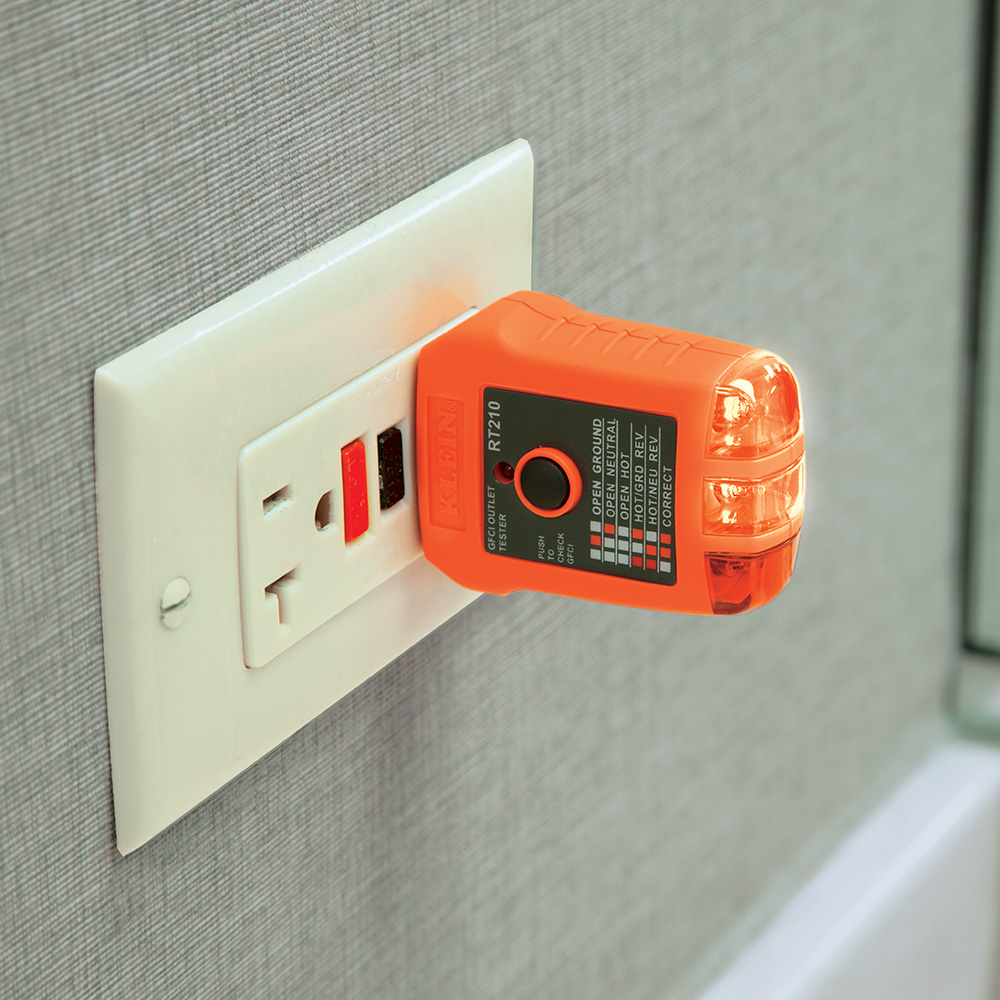

• GFCI Tester detects the most common wiring problems in standard and GFCI receptacles: open ground, reverse polarity, open hot, open neutral, hot/ground reversed

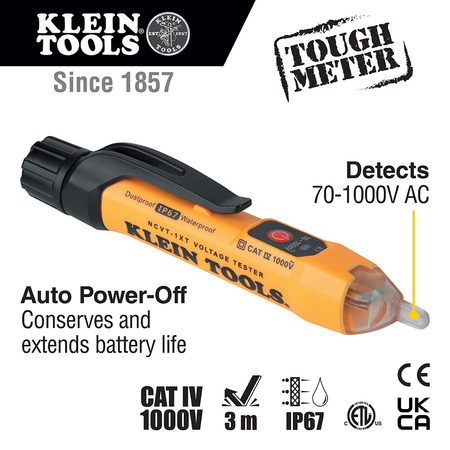

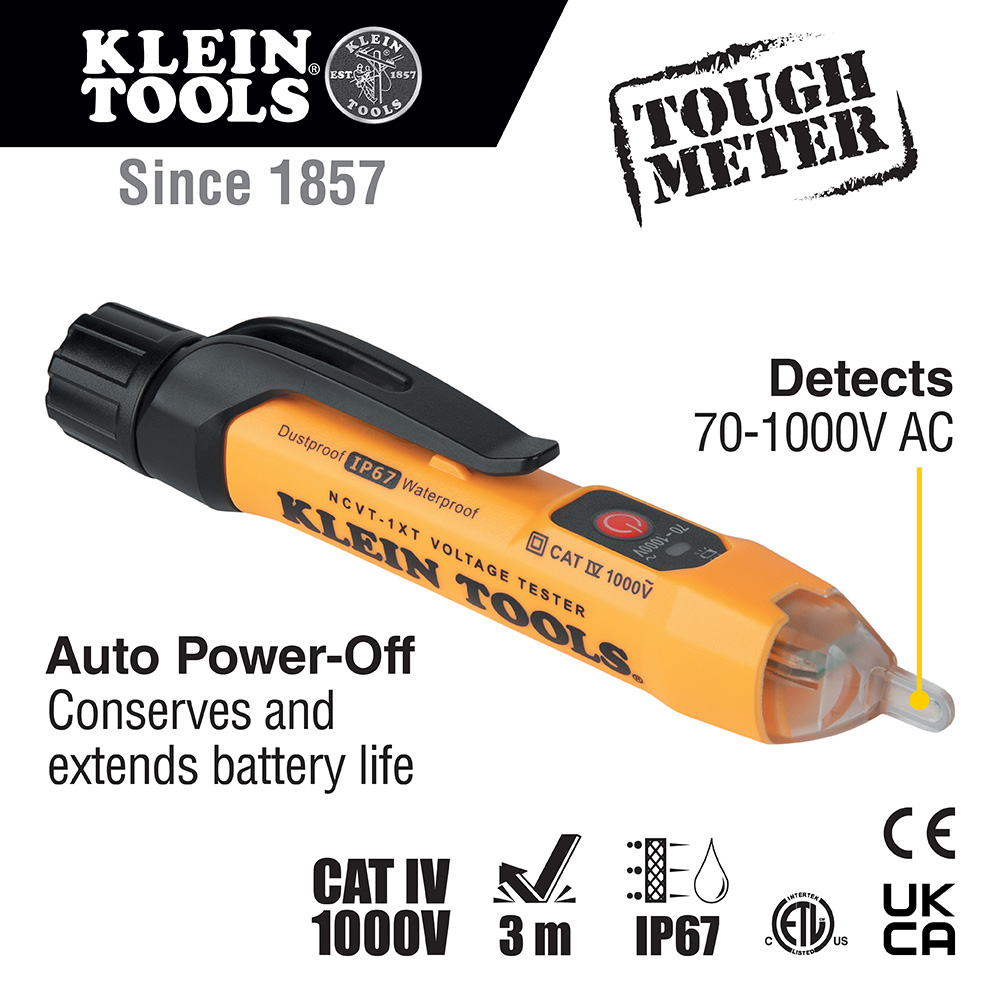

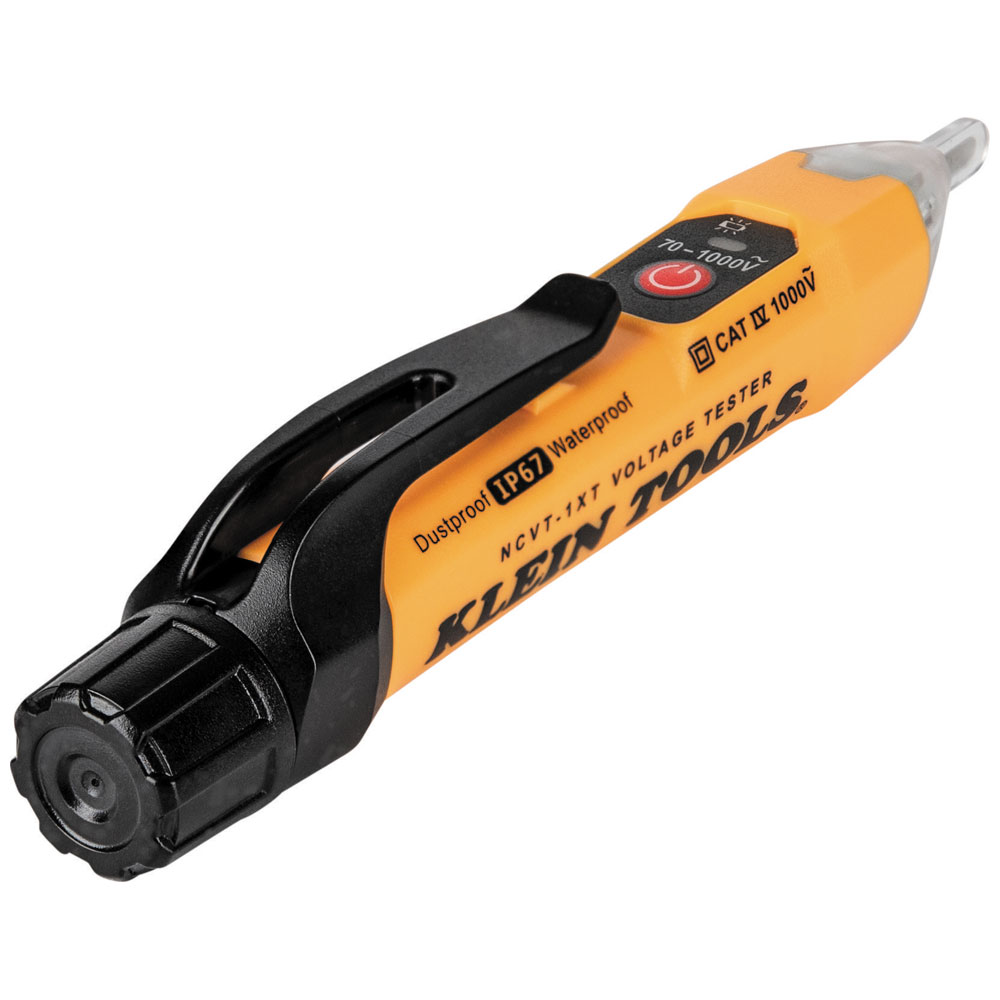

• Voltage Tester provides non-contact detection of 70 to 1000V AC in cables, cords, circuit breakers, lighting fixtures, switches, non tamper-resistant outlets and wires
• NCV Tester is not recommended for testing tamper-resistant outlets; use Cat. Nos. NCVT-2P or NCVT-3P in low voltage mode

Warnings

• Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
• Read, understand, and follow all warnings, cautions, safety information, and instructions in this manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.
• Always consult a qualified electrician to resolve wiring problems.
• Always wear approved eye protection.

Specifications

• Standard: NCVT1XT: CAT IV 1000V; RT210: CAT II 300V
• Included: NCVT1XT Non-Contact Voltage Tester; RT210 GFCI Outlet Tester; Instructions; and All Required Batteries
• Material: Polymer Body and Electronic Components
• Weight: 0.2810 lbs
• Batteries: NCVT1XT - 2 x AAA
• Type: NCVT1XT - Voltage Tester Pen; RT210 - GFCI and Standard Receptacle Tester
• Application: NCVT1XT - Non-Contact Detection and Testing of AC Voltage; RT210 - Determine Wiring Condition in Outlet
• Depth: 9.1300 in
• Overall Length: 23.2 cm (9.13 Inch)
• Width: 4.7500 in
• Overall Height: 3.8 cm (1.5 Inch)
• Overall Width: 12.1 cm (4.75 Inch)
• Height: 1.5000 in
