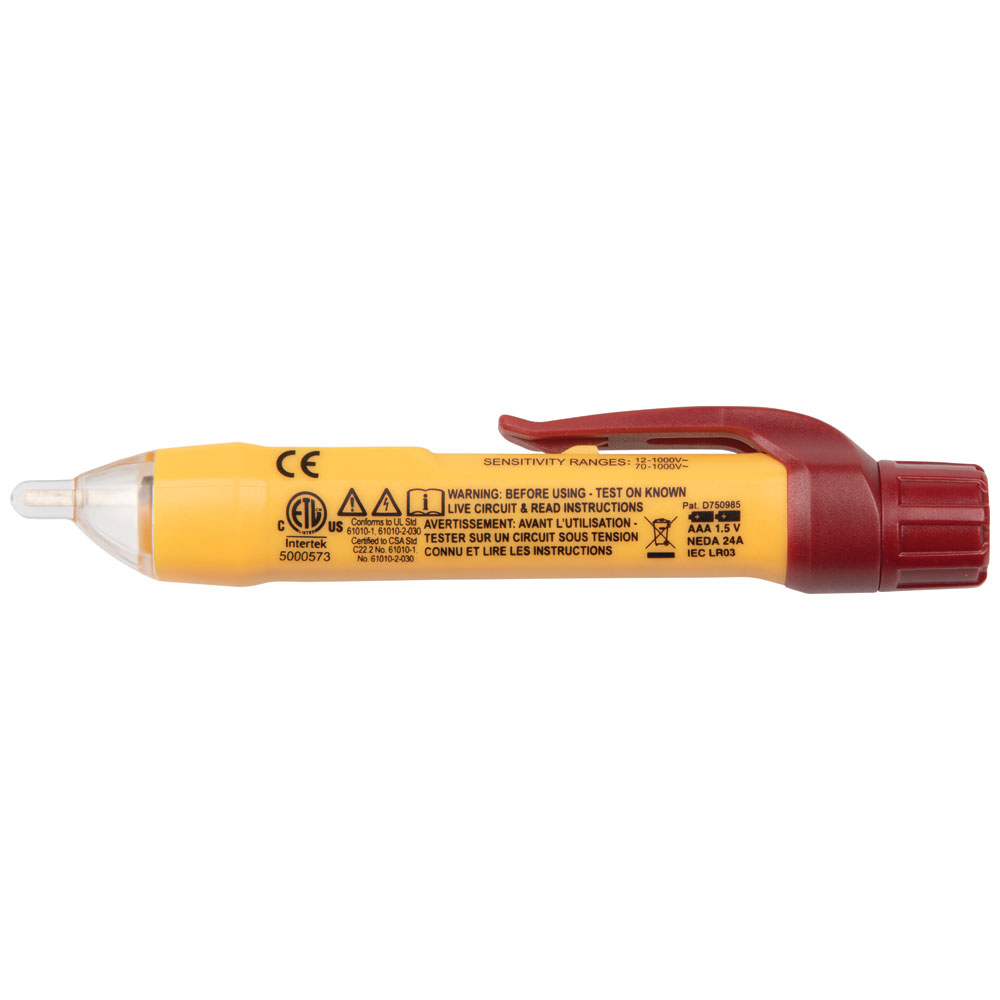

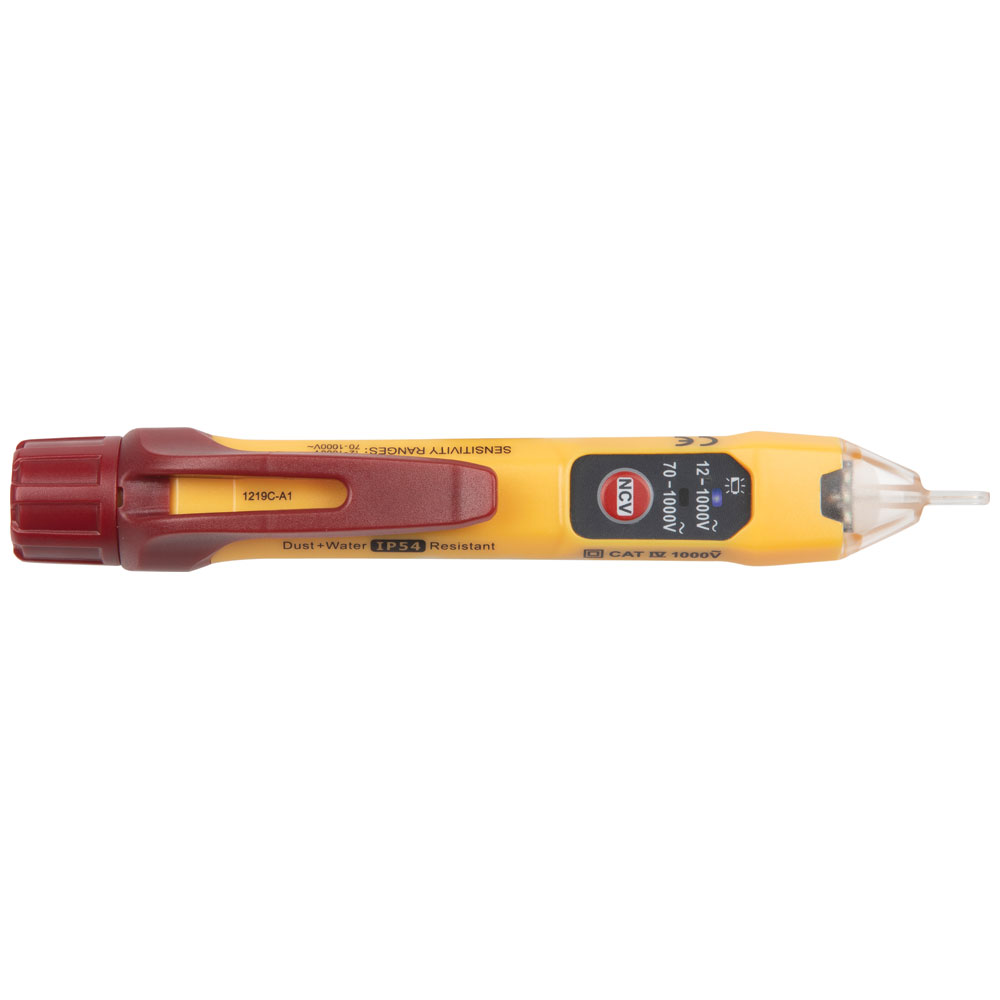

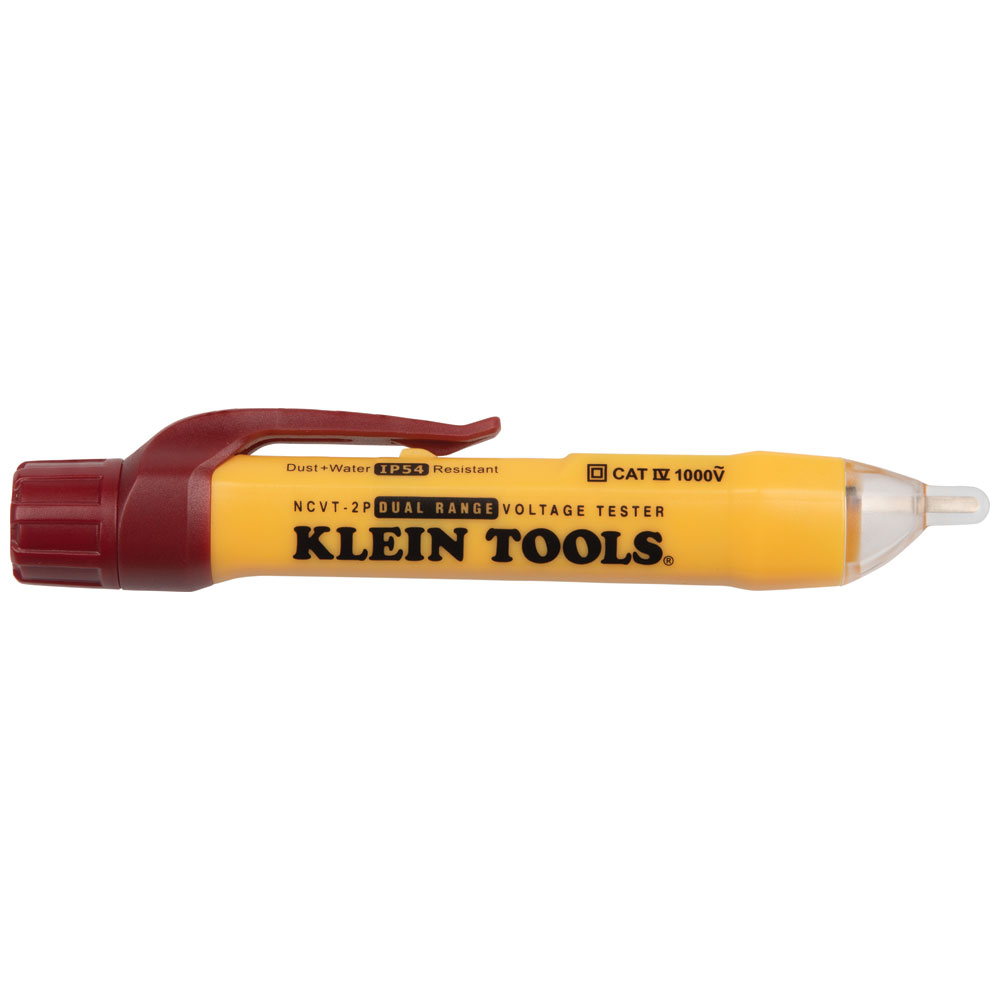

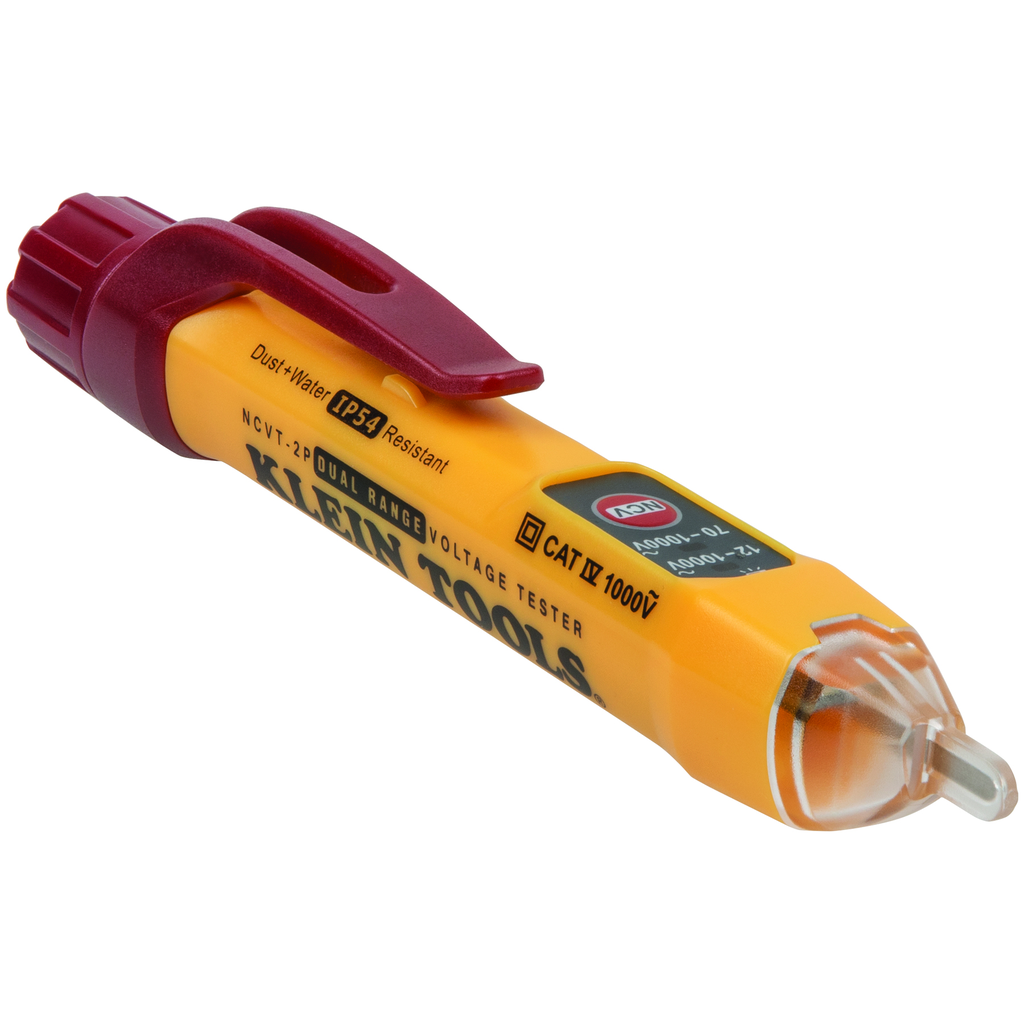

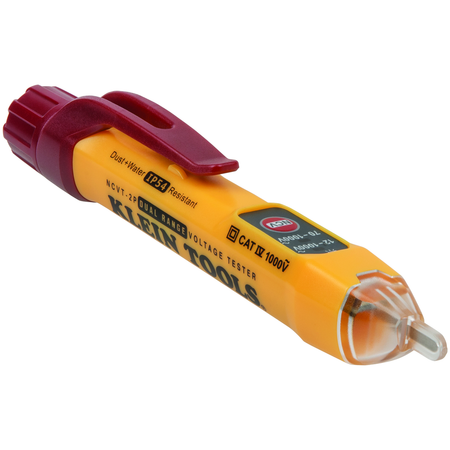

Dual Range Non-Contact Voltage Tester 12 to 1000V AC

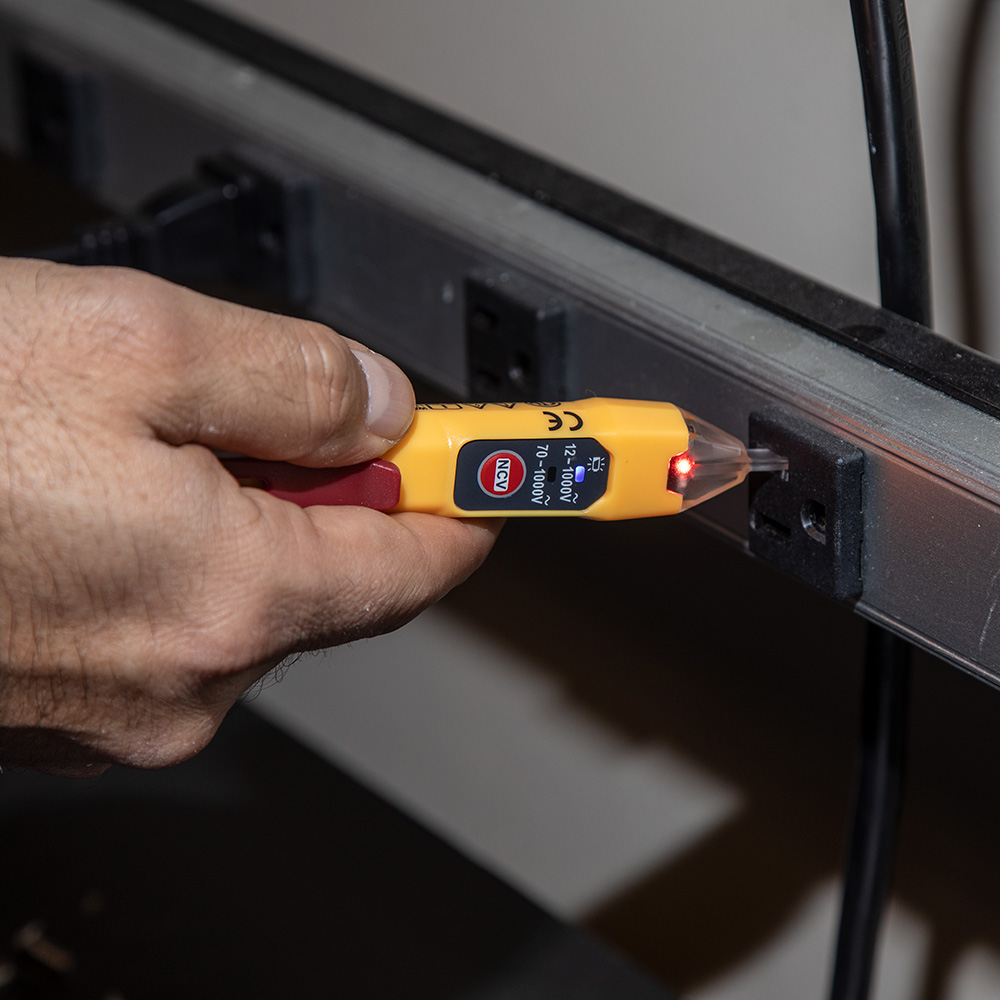

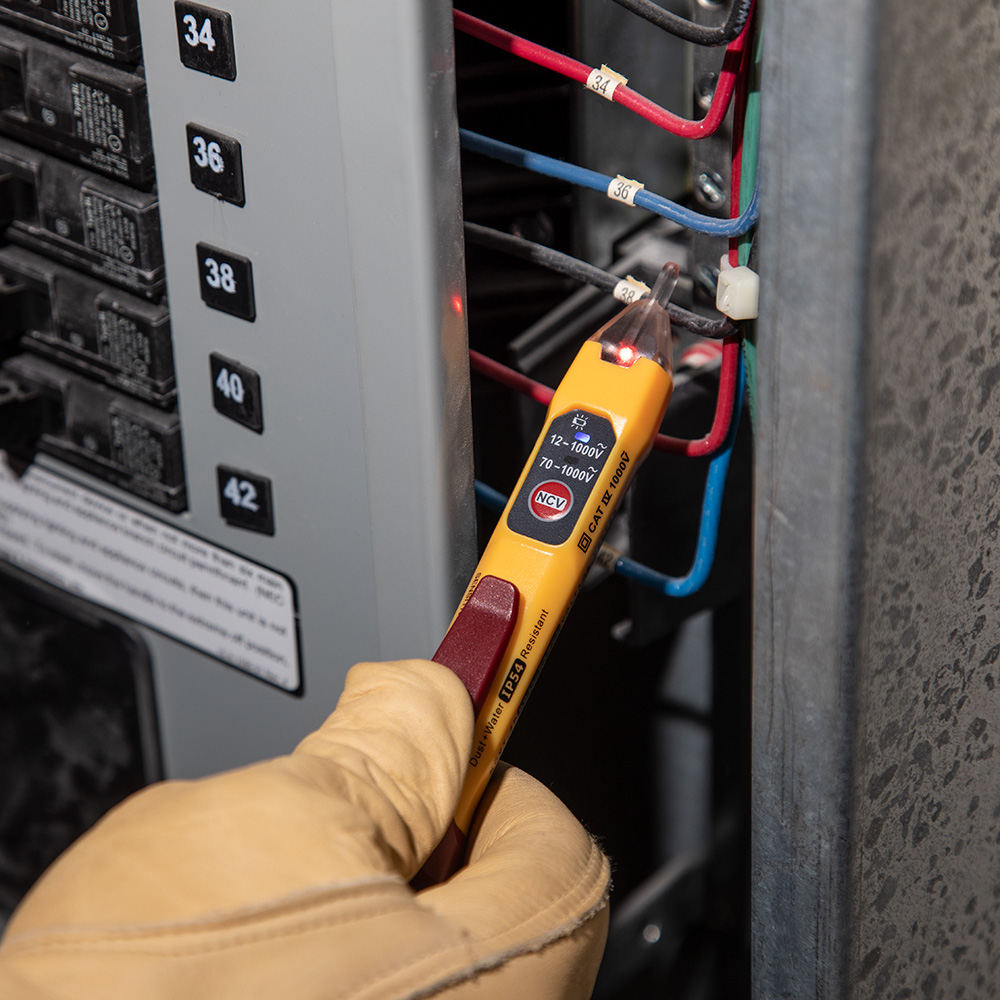

The NCVT-2P is a non-contact voltage tester that detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The NCVT-2P is rugged enough for any job site.

Features

• Auto power-off feature conserves and extends battery life
• 6.6-Foot (2 m) drop protection

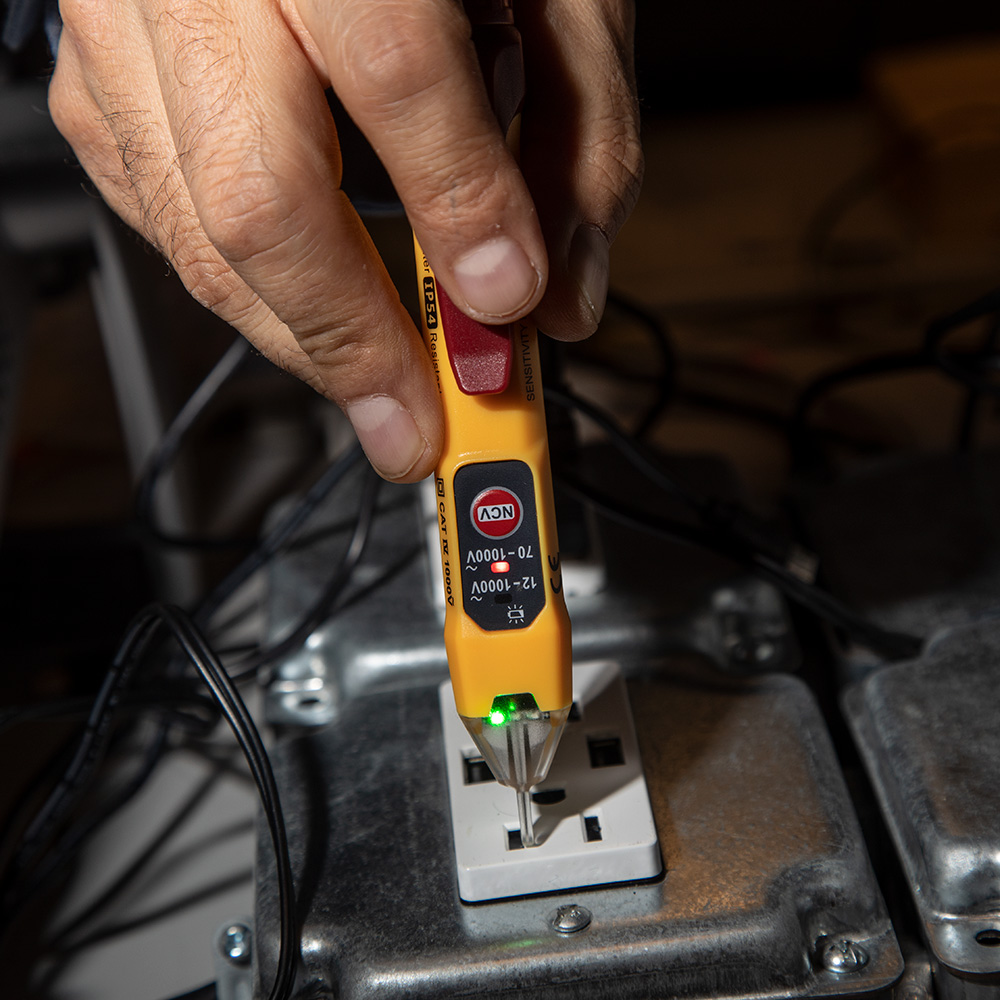

• Green light indicates no voltage
• IP54: Dustproof and waterproof
• CAT IV 1000 V rating provides expanded operation and protection

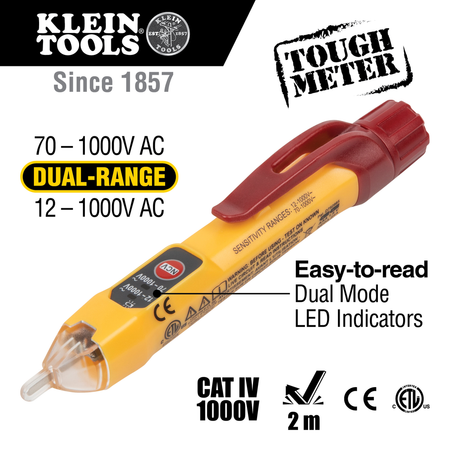

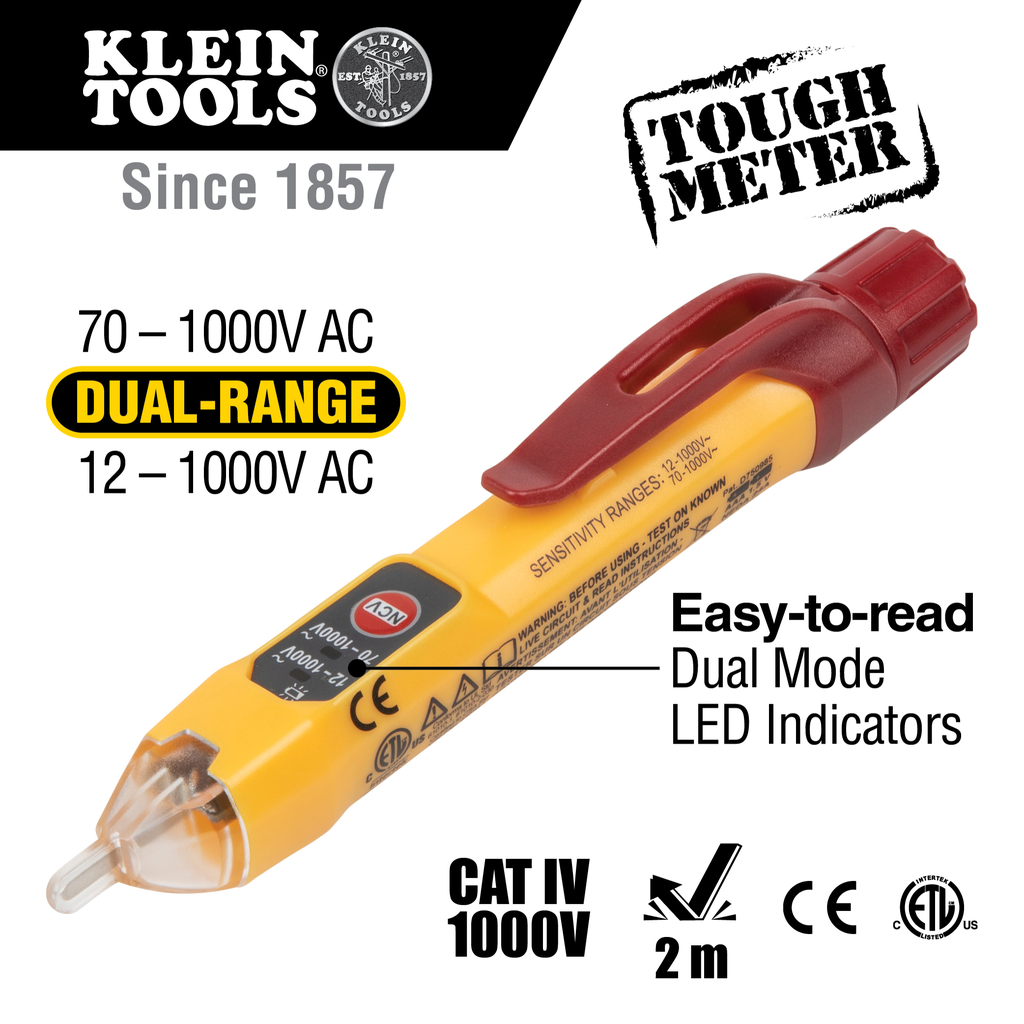

• Non contact voltage tester's dual-range capabilities allow tester to detect from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
• Conforms to CE requirements
• Non-contact detection of low voltage in security, entertainment, communications, environmental control, and irrigation systems
• LED and Audible Beep Indications, Auto-Power Off, Pocket Clip

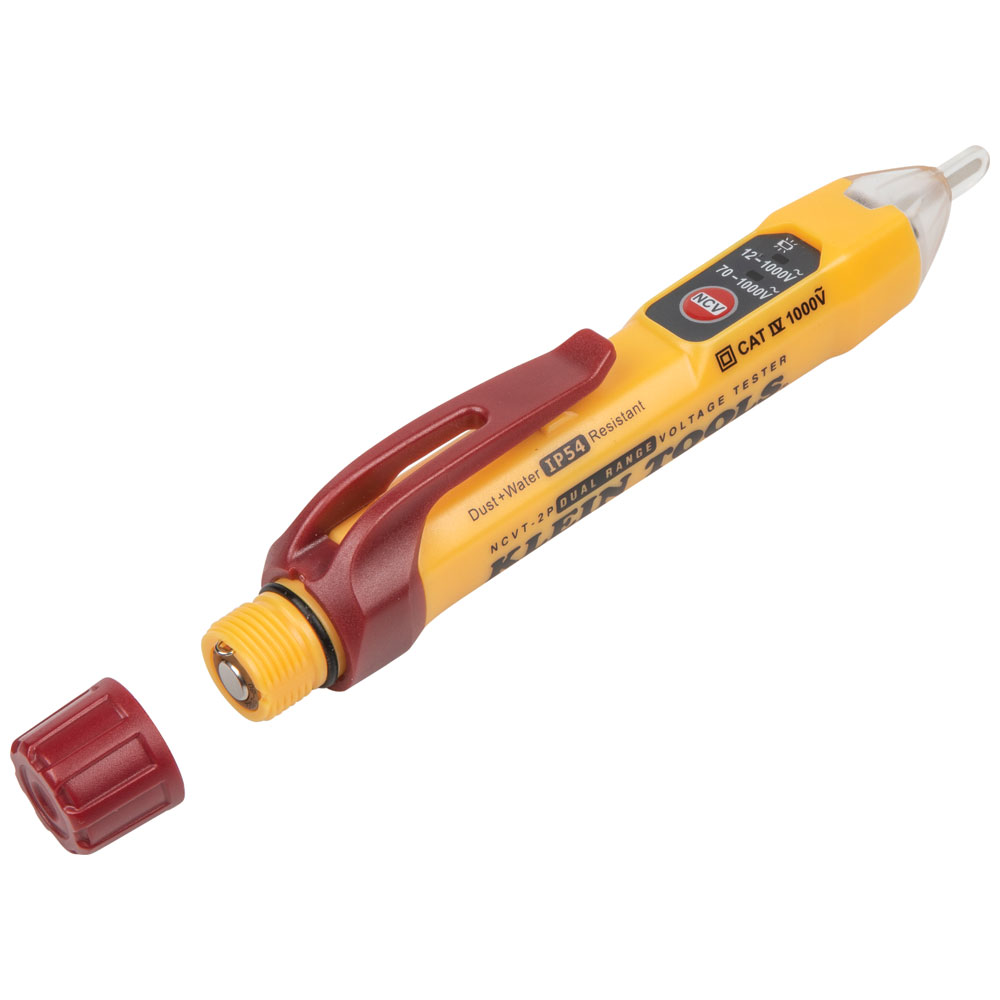

• Screw-thread battery cap with O-ring ensures protection against dust and water ingress
• Electrical voltage tester detects voltage with simultaneous visual and audible indicators
• Lightweight, compact tool with pocket clip provides convenient storage and quick access
• US Patent 10,073,142, D750,985 and other patents pending

Warnings

• Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.
• Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.

Specifications

• Frequency: 50 - 500 Hz
• Overall Width (cm): 2.8
• Material: Polycarbonate
• Type: Dual Range
• Overall Width (Inch): 1.09
• Application: Non-Contact Detection and Testing of AC Voltage
• Standard: CAT IV 1000V
• Overall Length (cm): 14.8
• Weight (oz): 1.7
• Width: 1.0900 in
• Weight: 0.0520 lbs
• Overall Length (Inch): 5.82
• Weight (g): 48
• Overall Height (Inch): 0.86
• Included: NCVT; Batteries
• Batteries: 2 x AAA
• Ingress Protection: IP54
• Depth: 5.8300 in
• Pollution Degree: 2
• Drop Protection: 6.6' (2 m)
• Voltage: 12 – 1000V AC; 70 – 1000V AC
• Overall Height (cm): 2.2
• Battery Life: 142 hr
• Height: 0.8600 in

Downloads

Instructions
