Dual Range NCVT with Receptacle Tester Electrical Test Kit

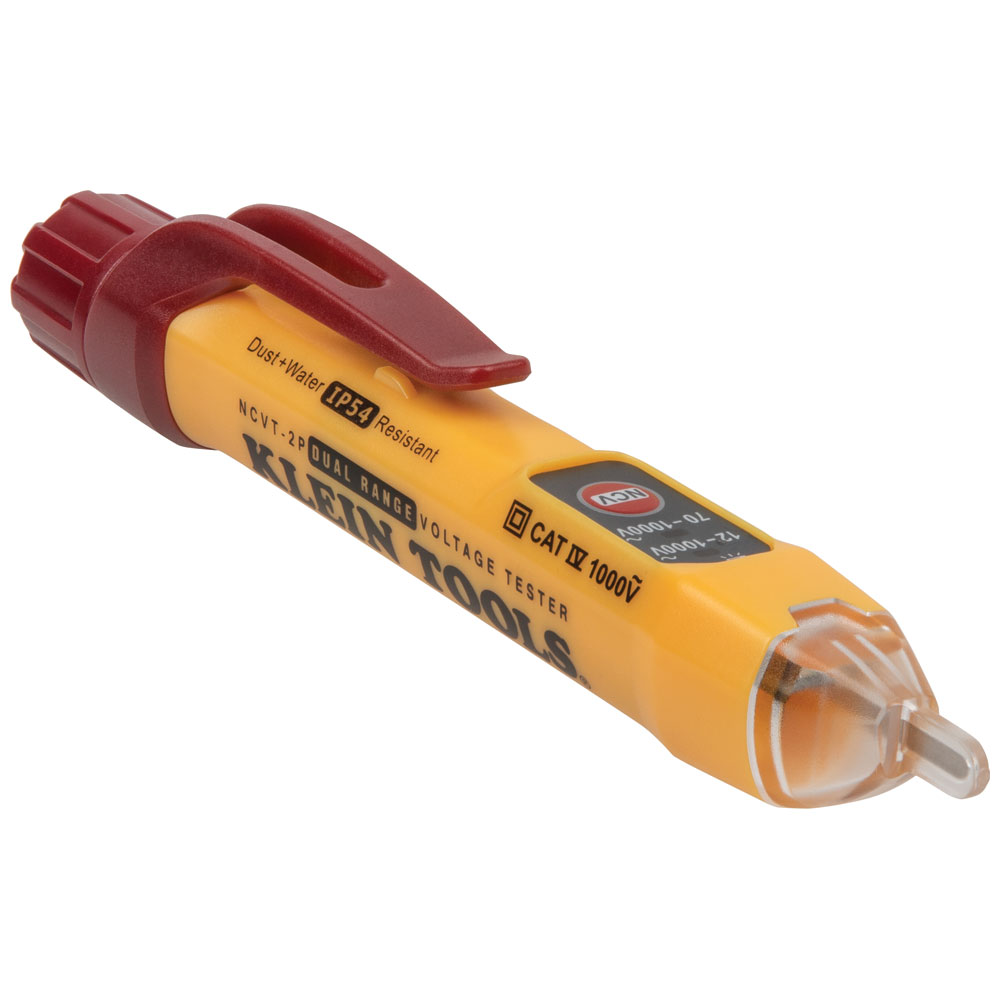

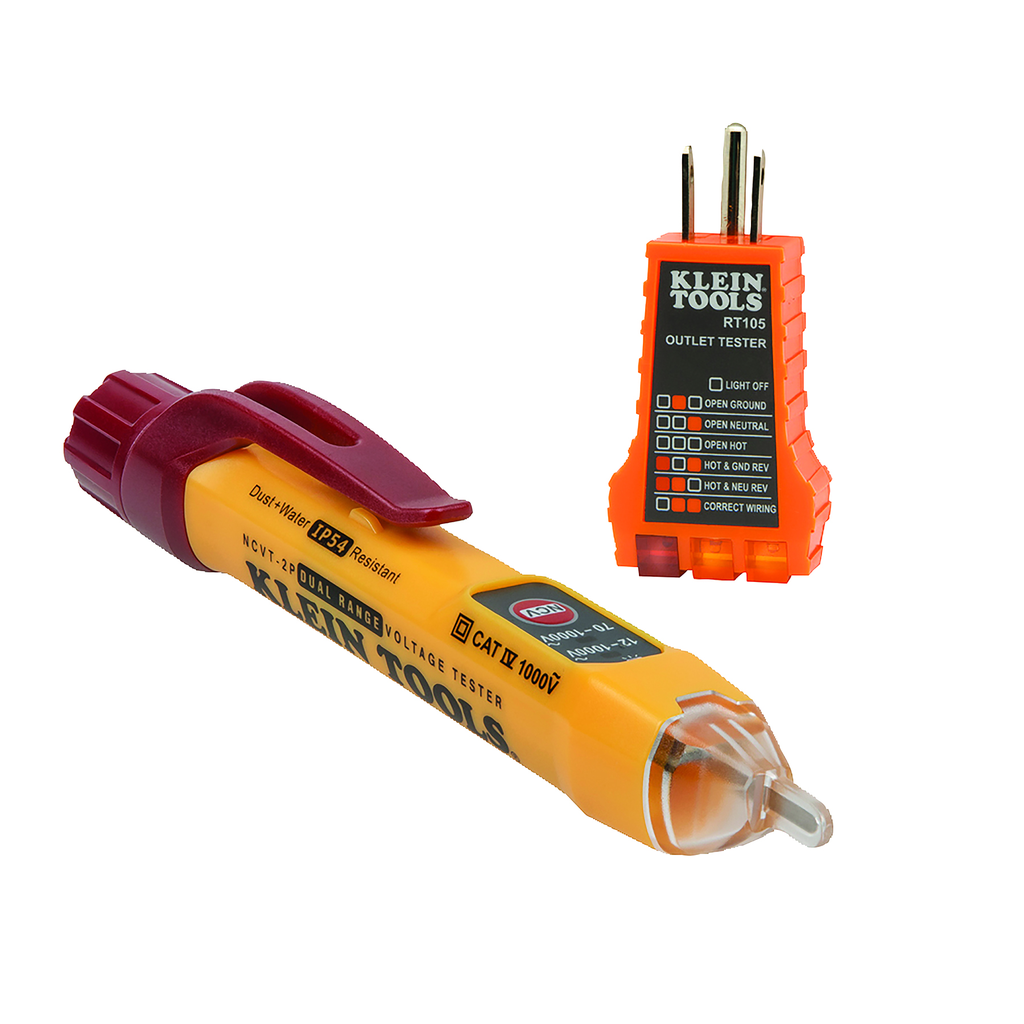

The NCVT2PKIT from Klein Tools includes a dual-range, non-contact voltage tester as well as a receptacle tester. The NCVT-2P is a non-contact voltage tester that detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The receptacle tester will troubleshoot standard 120V AC grounded outlets.

Features

• Dual range NCVT-2P automatically detects and indicates low voltage range and standard voltage (48-1000V AC)

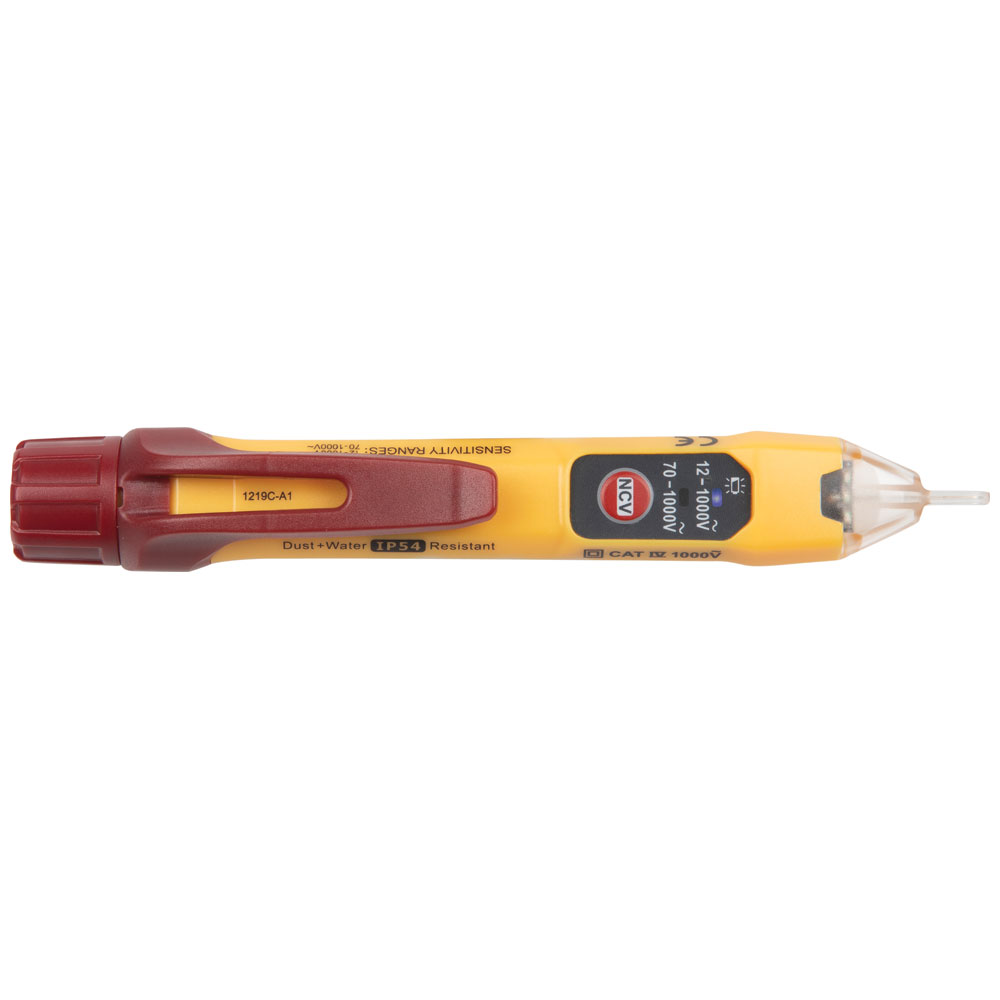

• NCVT-2P is a lightweight, compact tool with pocket clip for convenient storage and quick access

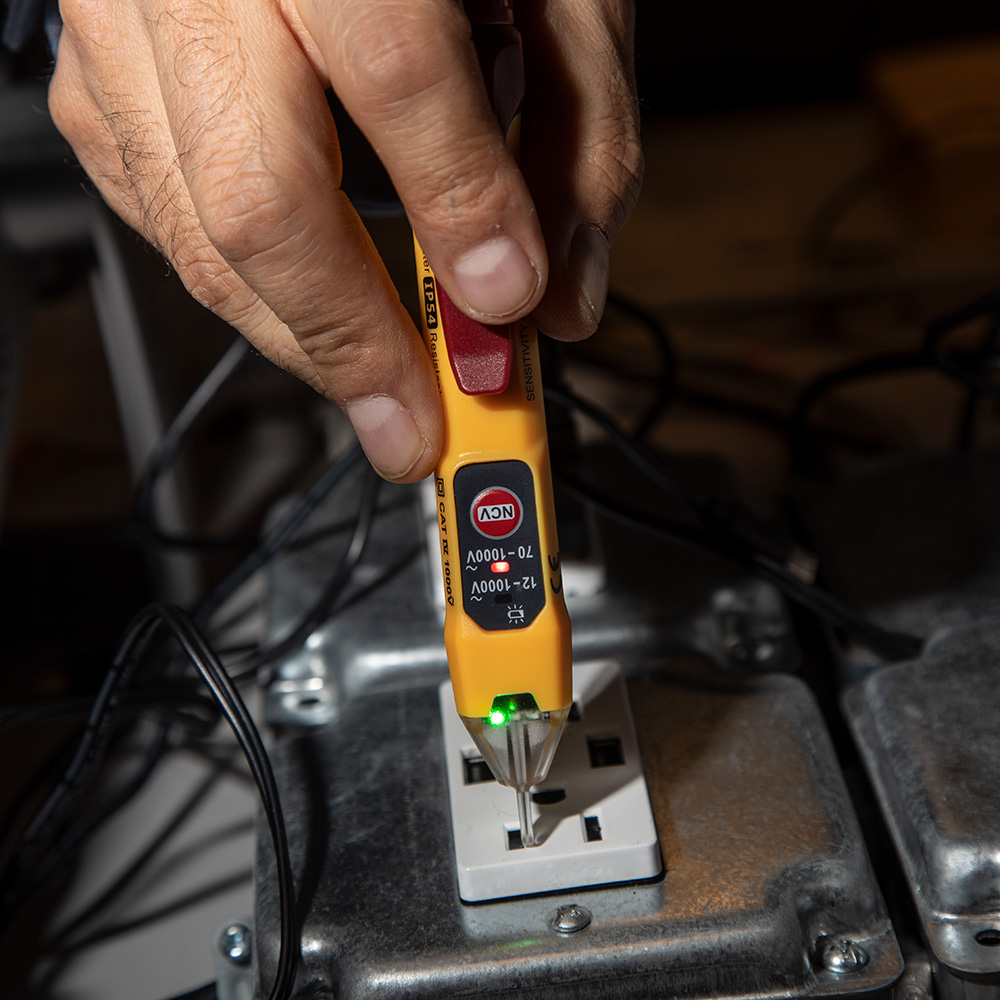

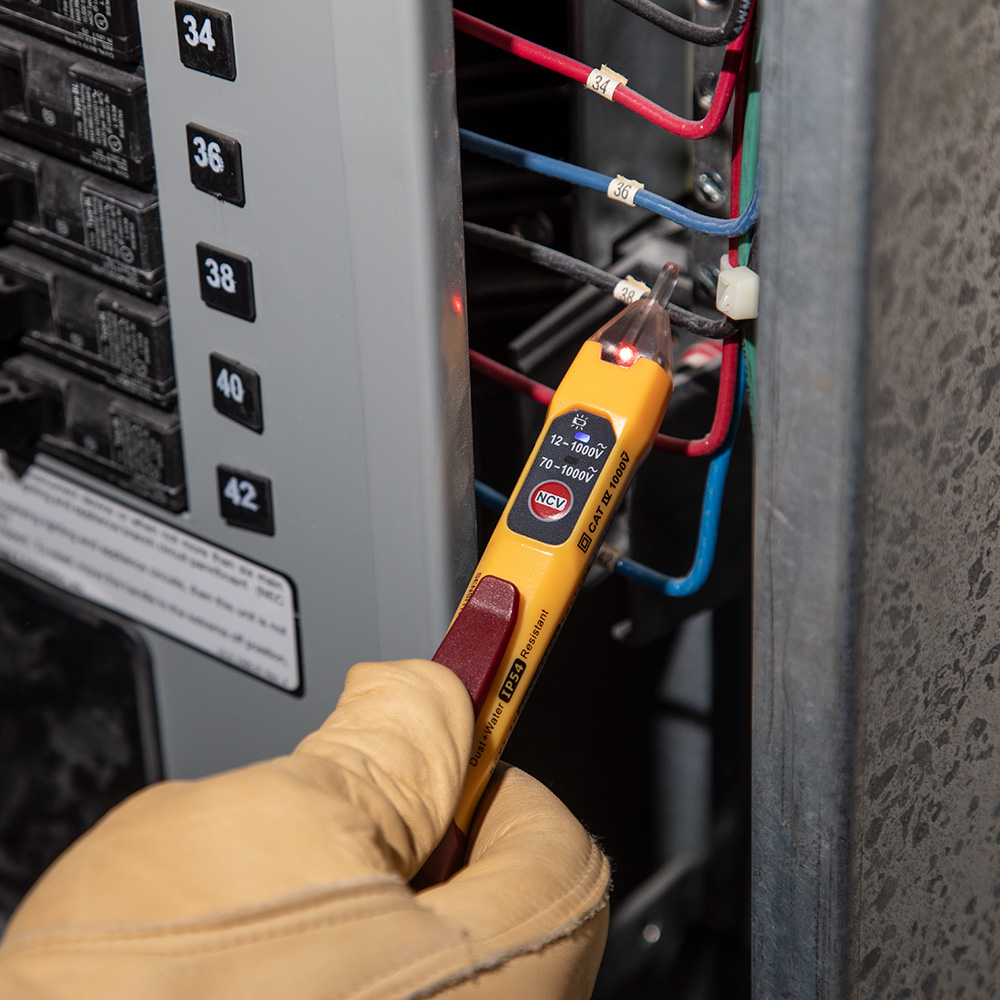

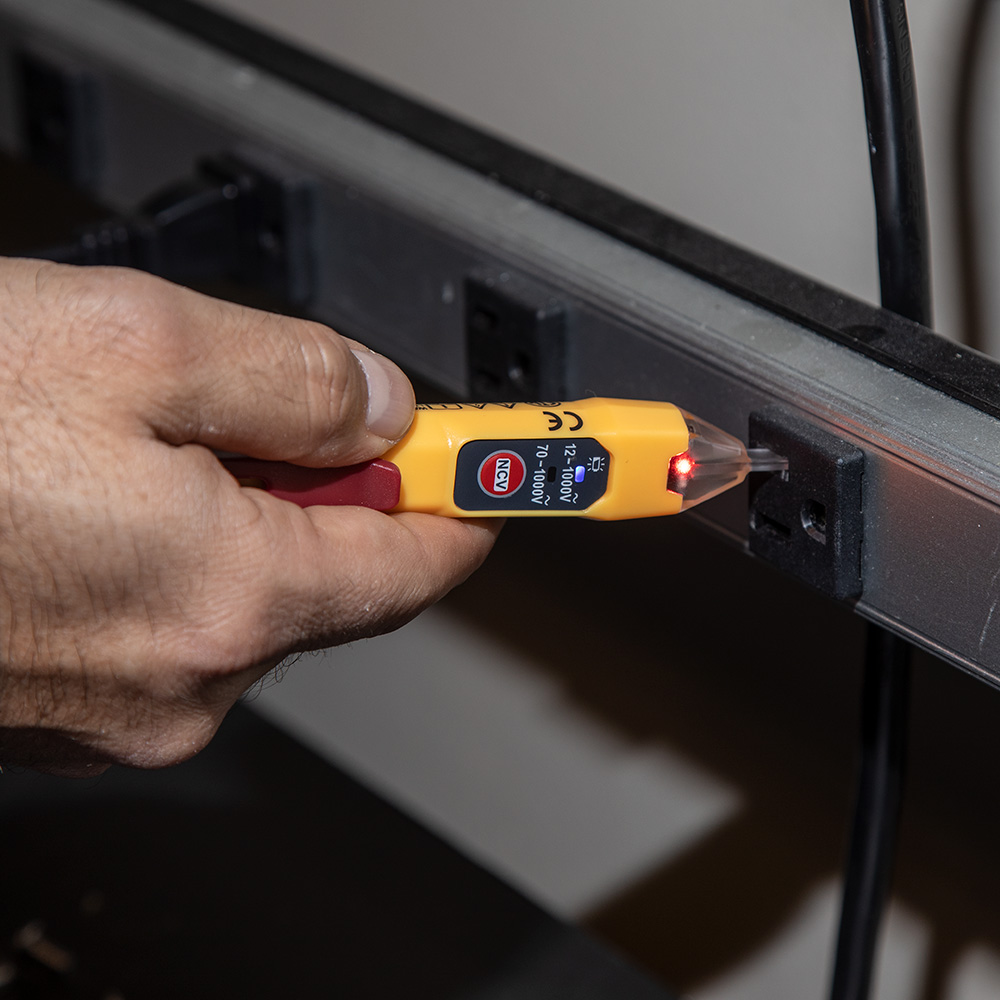

• NCVT-2P provides non-contact detection of standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, outlets and wires

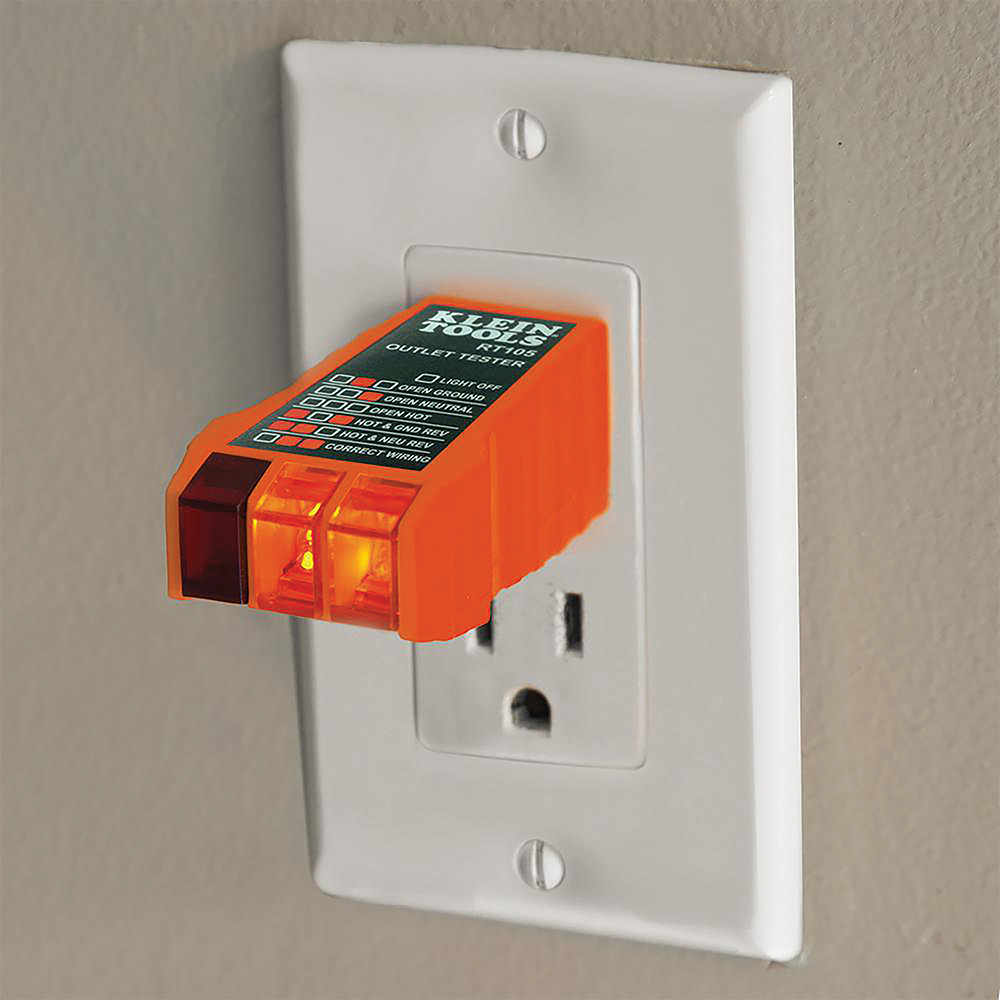

• Conditions the Receptacle Tester indicates: wiring correct, open ground, reverse polarity, open hot, open neutral, hot/ground reversed

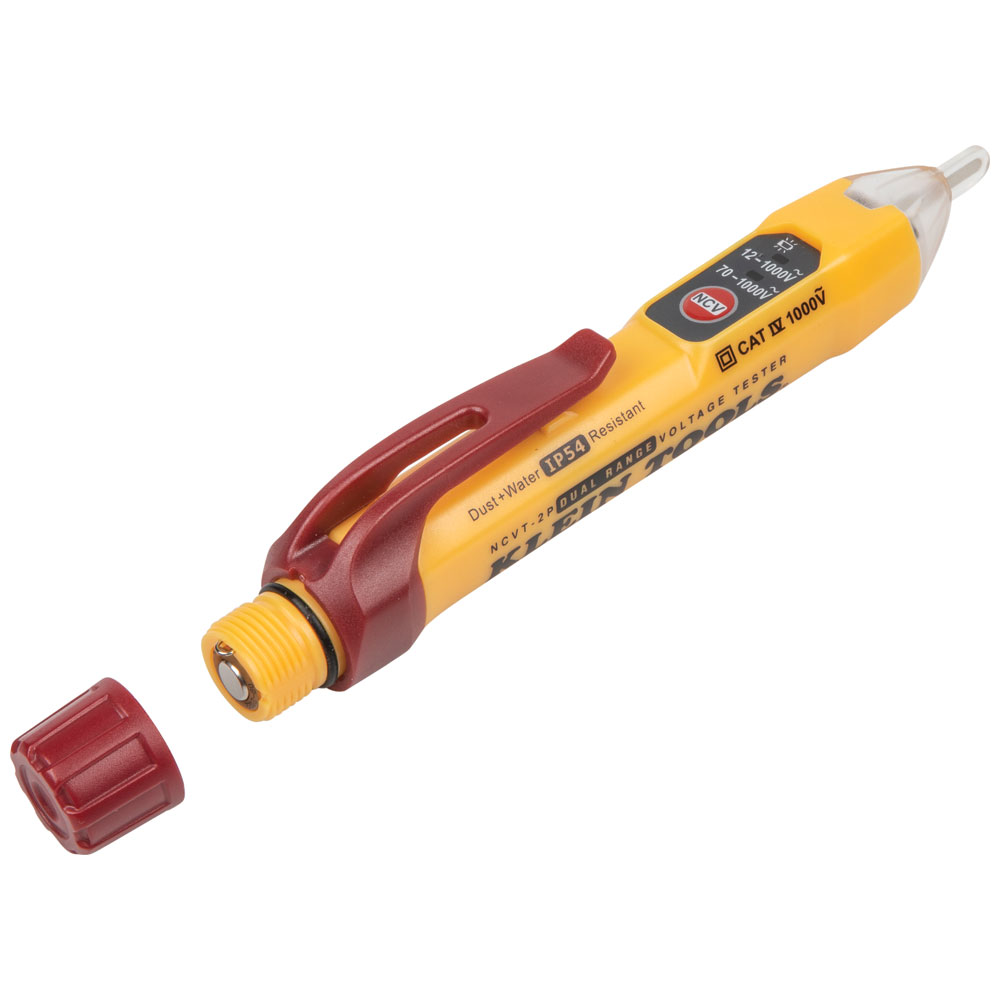

• Screw-thread battery cap with O-ring ensures protection against dust and water ingress for the NCVT-2P
• Receptacle Tester is designed to detect the most common wiring problems in standard receptacles

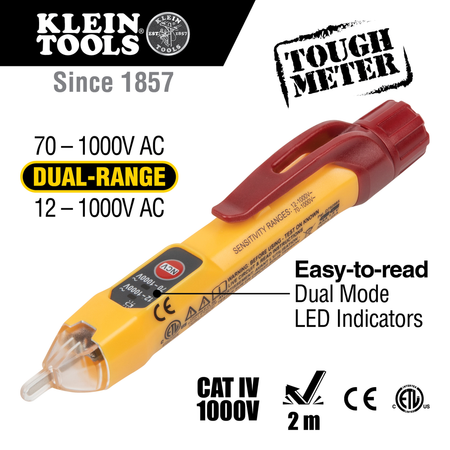

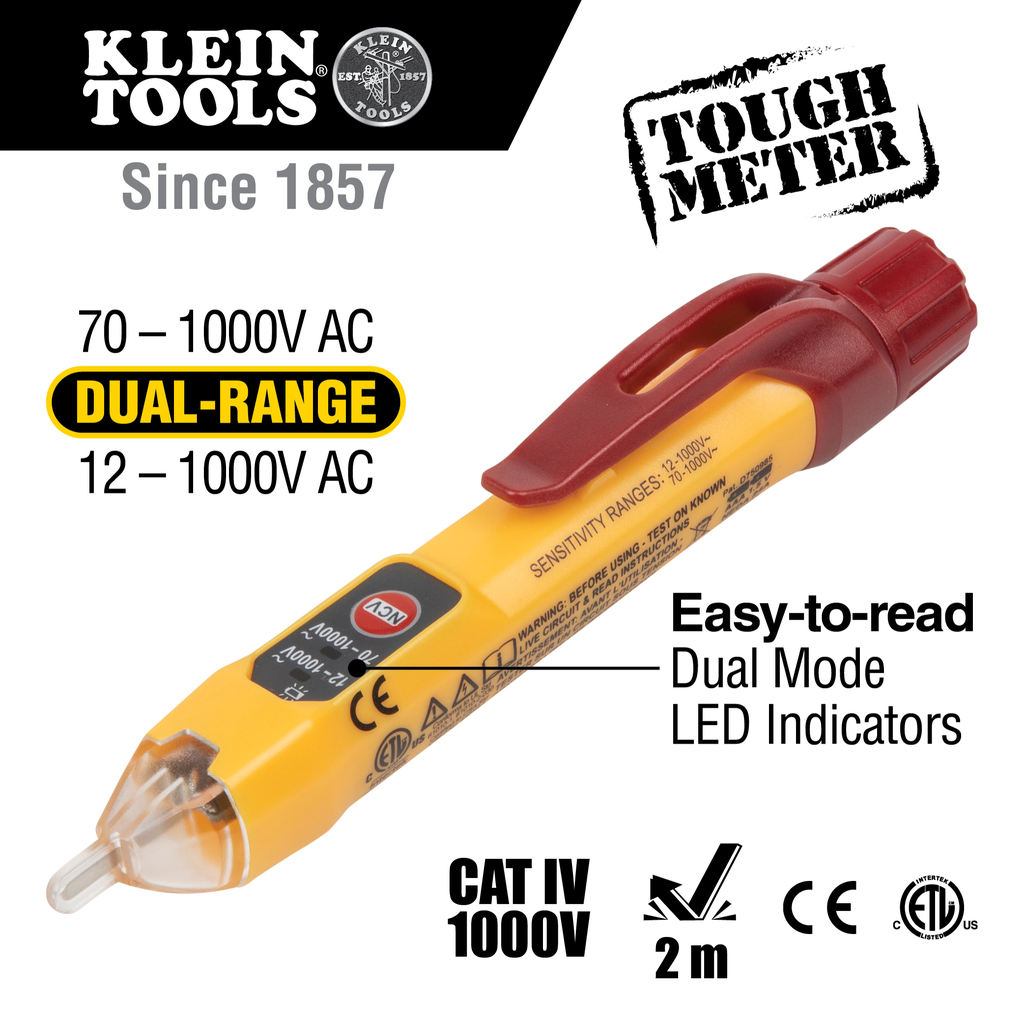

• Two Distinctive Modes on NCVT-2P: 70 to 1000V AC and 12 to 1000V AC
• Kit contains a non-contact voltage tester and receptacle tester
• CAT IV 1000 Volt rating provides expanded operation and protection

Warnings

• Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
• Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.

Specifications

• Material: Polycarbonate
• Depth: 9.6300 in
• Weight (g): 48
• Height: 1.7500 in
• Overall Width (cm): 2.3
• Type: Dual Range for NCVT-2P
• Width: 5.1300 in
• Overall Length (cm): 14.7
• Overall Length (Inch): 5.8
• Voltage: 12 - 1000V AC
• Pollution Degree: NCVT-2P - 2
• Ingress Protection: NCVT-2P - IP54
• Application: Detects and Indicates Low Voltage and Standard Voltage; Detects Most Common Wiring Problems in Standard Receptacles
• Weight (oz): 1.7
• Overall Height (cm): 2.8
• Weight: 0.2990 lbs
• Included: NCVT2P Dual Range Non-Contact Voltage Tester; RT105 Receptacle Tester; Instructions; and All Required Batteries
• Batteries: 2 x AAA
• Standard: NCVT-2P: CAT IV 1000V; RT105: CAT II 125V
• Frequency: 50 - 500 Hz
• Overall Height (Inch): 1.1
• Overall Width (Inch): 0.9
• Drop Protection: NCVT2P - 6.6' (2 m); RT105 - 3.3' (1 m)
• Battery Life: 142 hr
