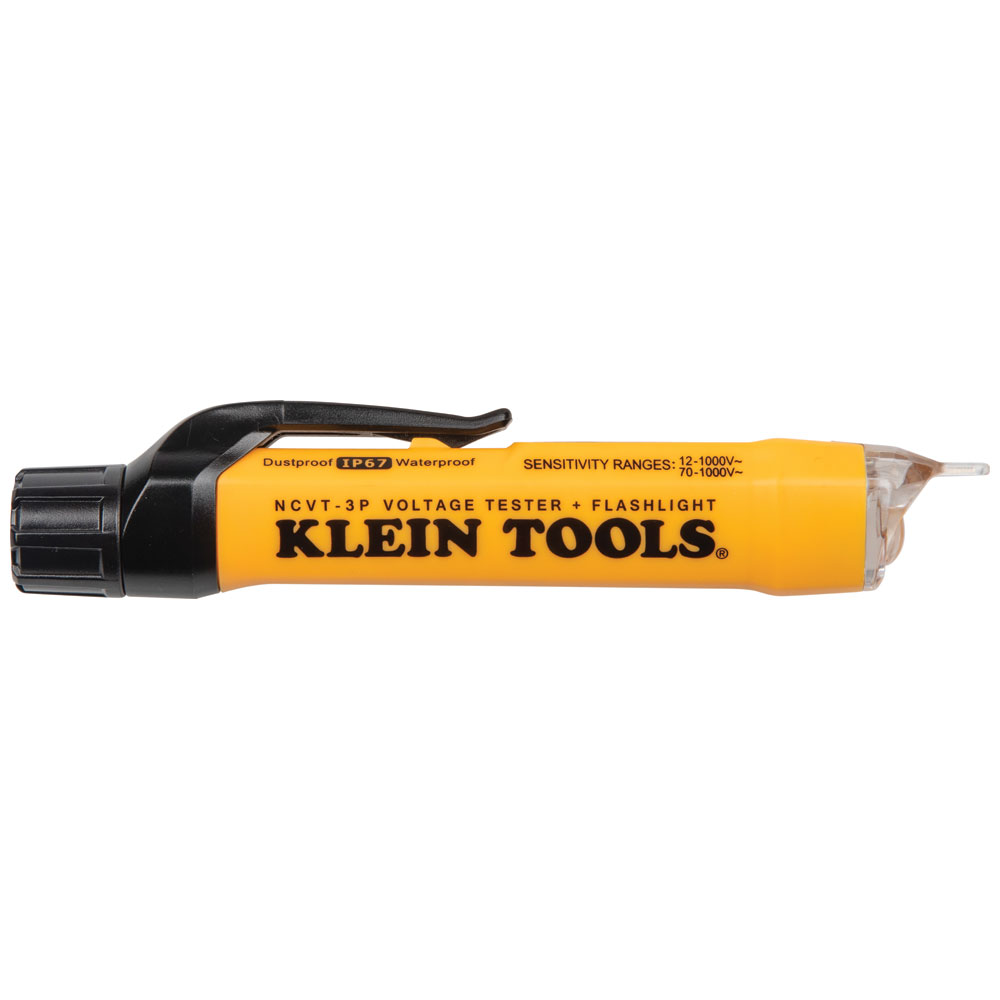

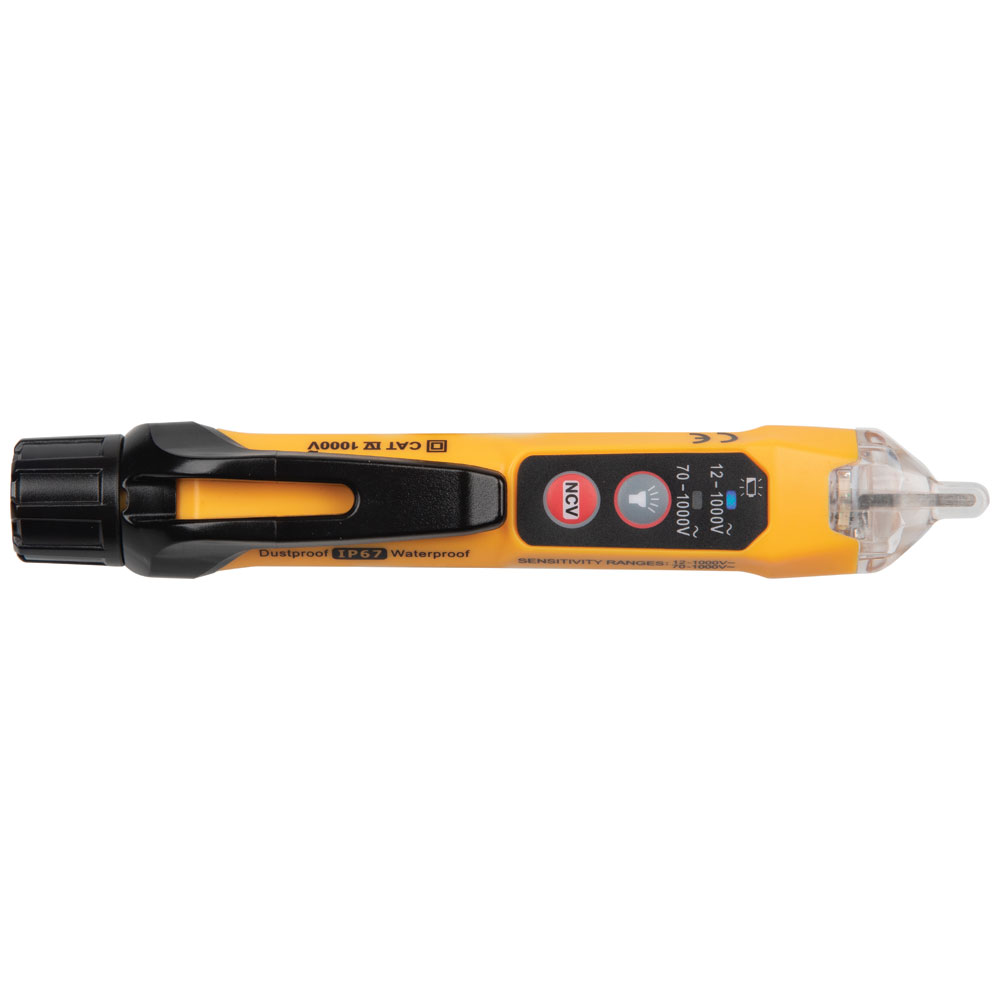

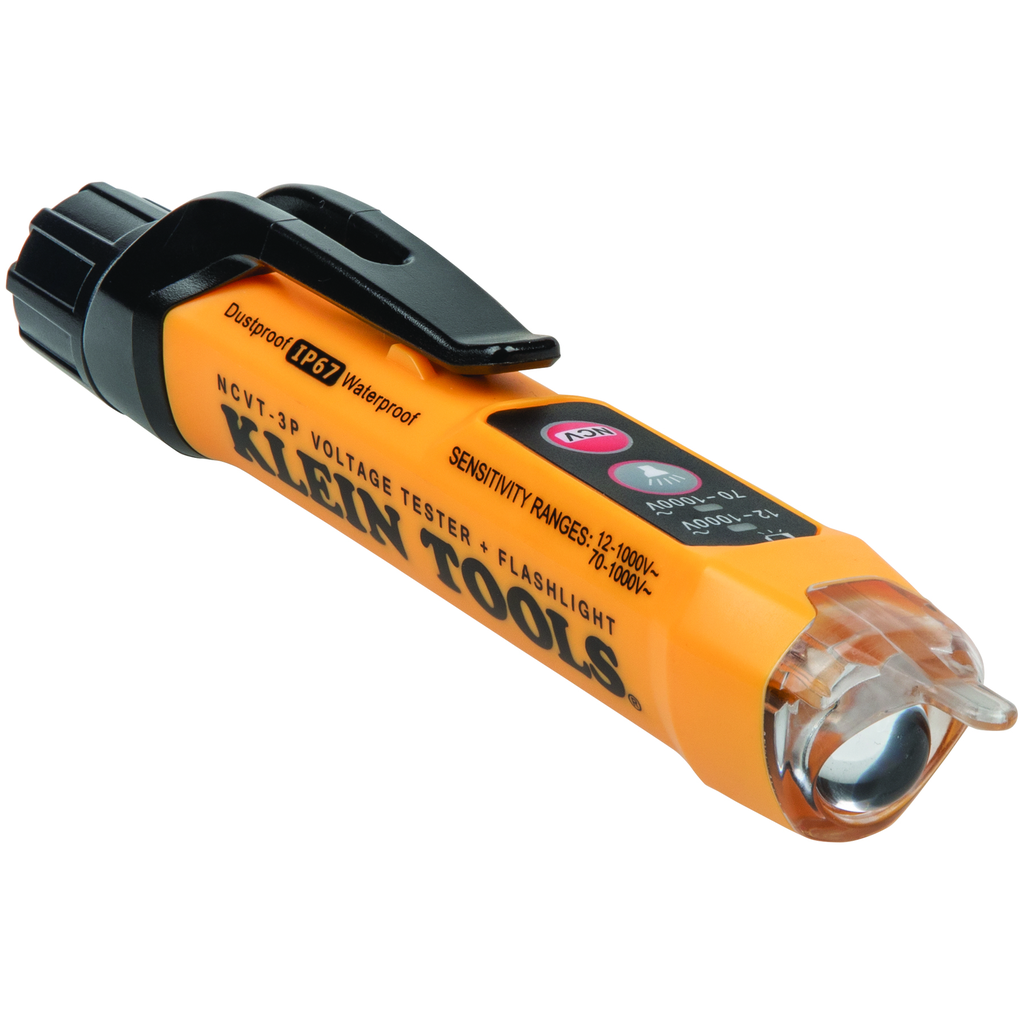

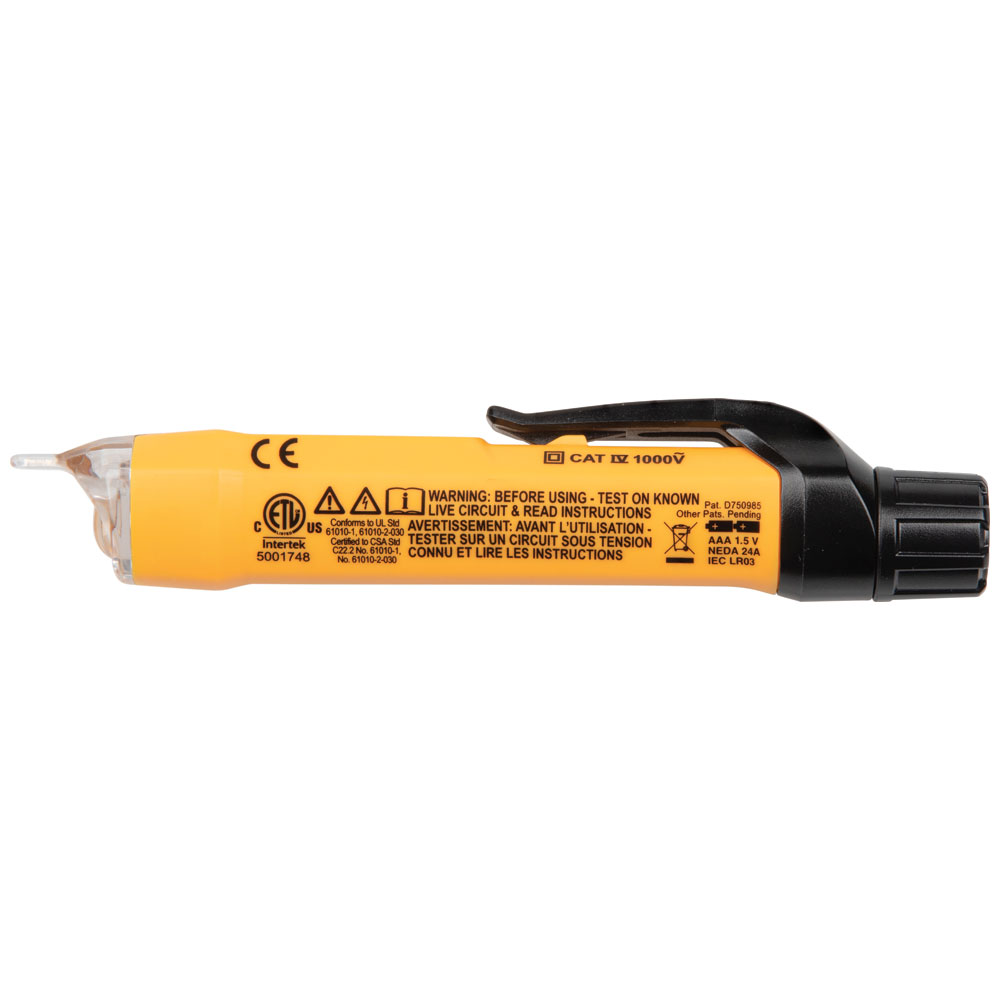

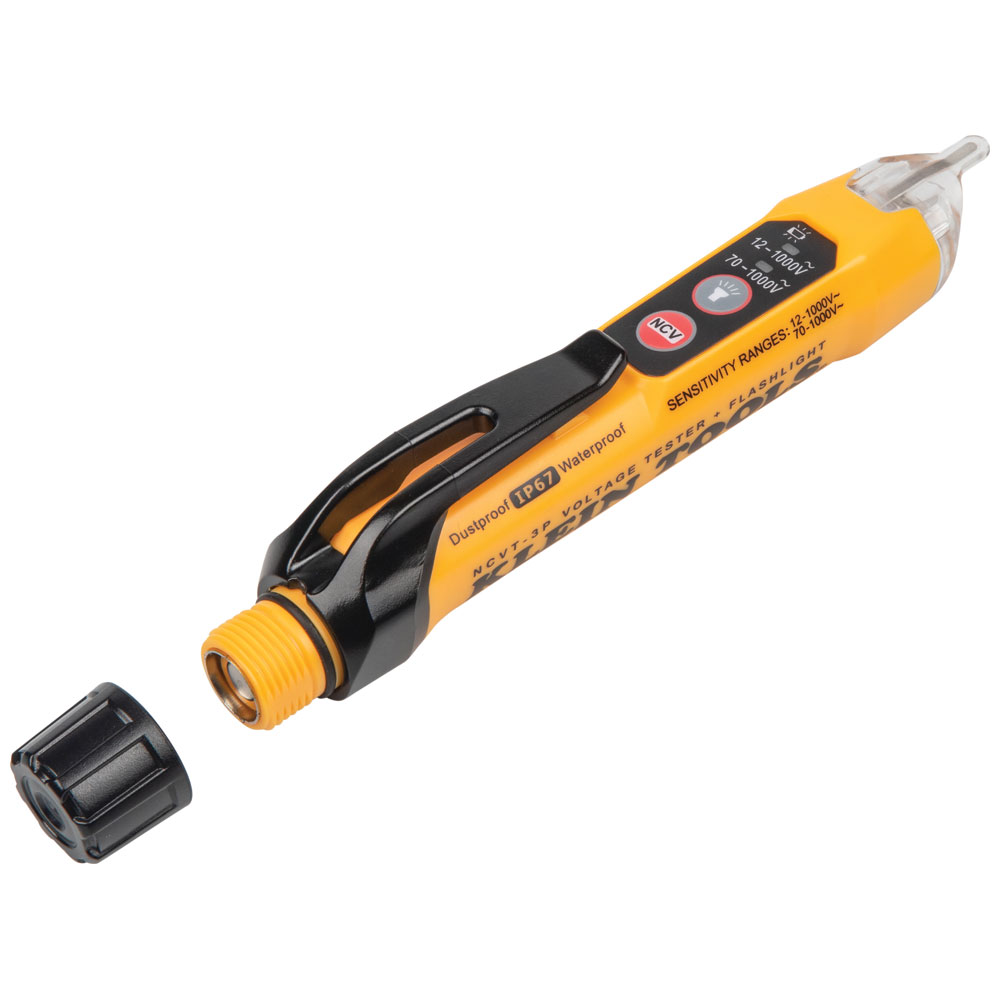

Dual Range Non-Contact Voltage Tester with Flashlight, 12 to 1000V AC

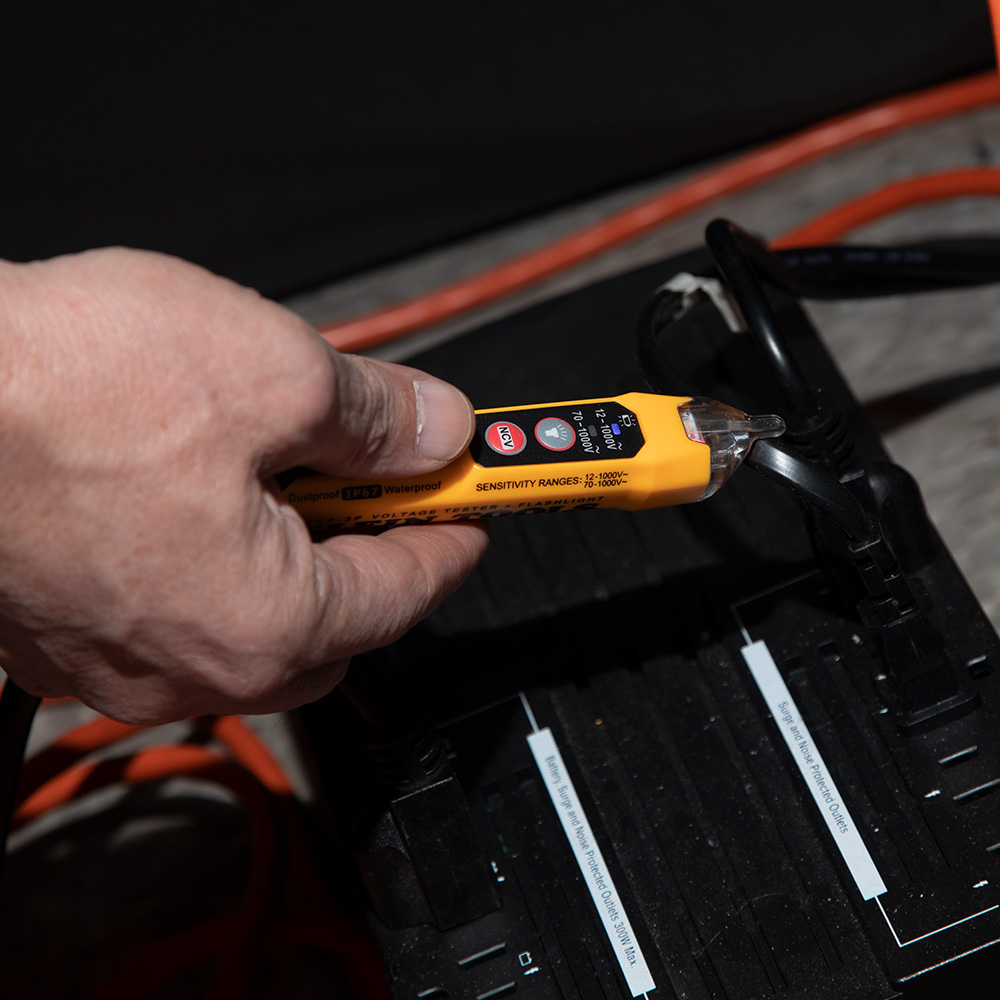

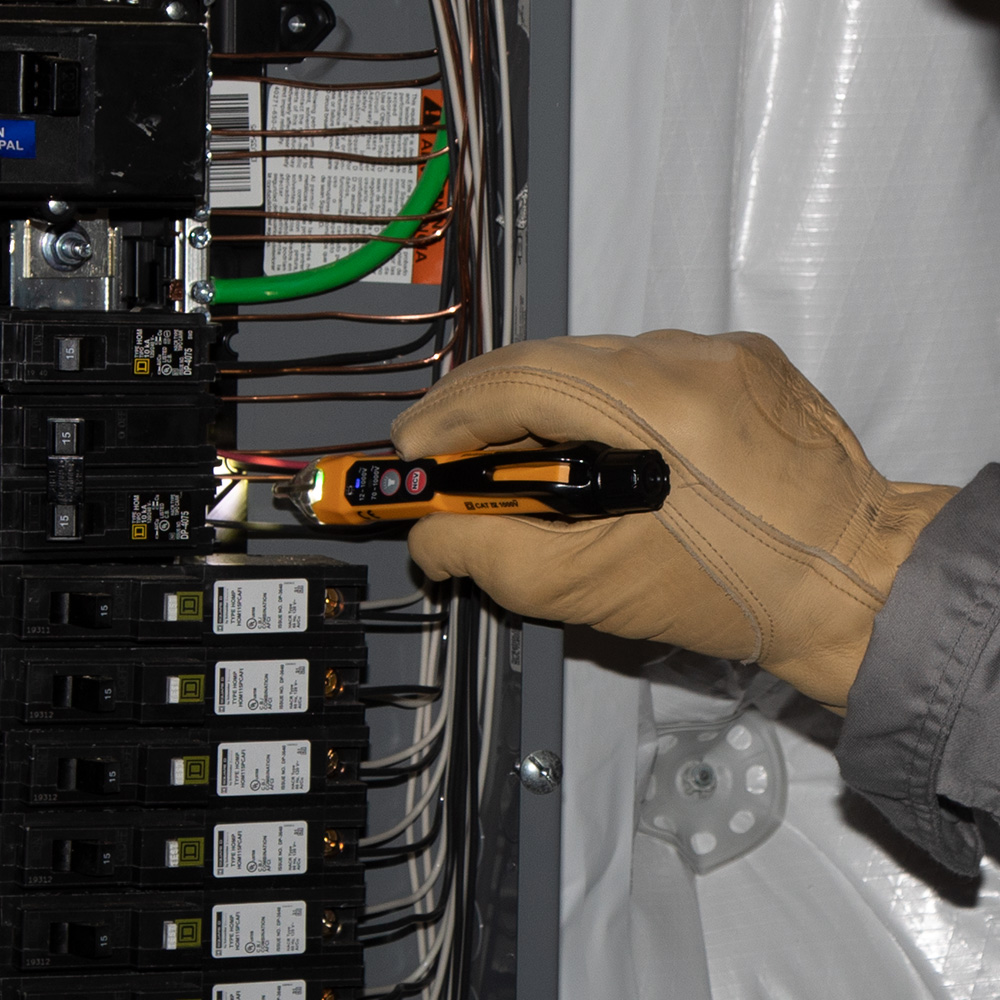

The NCVT-3P is a non-contact voltage tester with an integrated flashlight. The voltage sensor detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The NCVT-3P is rugged enough for any job site.

Features

• US Patent 10,073,142, D750,985 and other patents pending

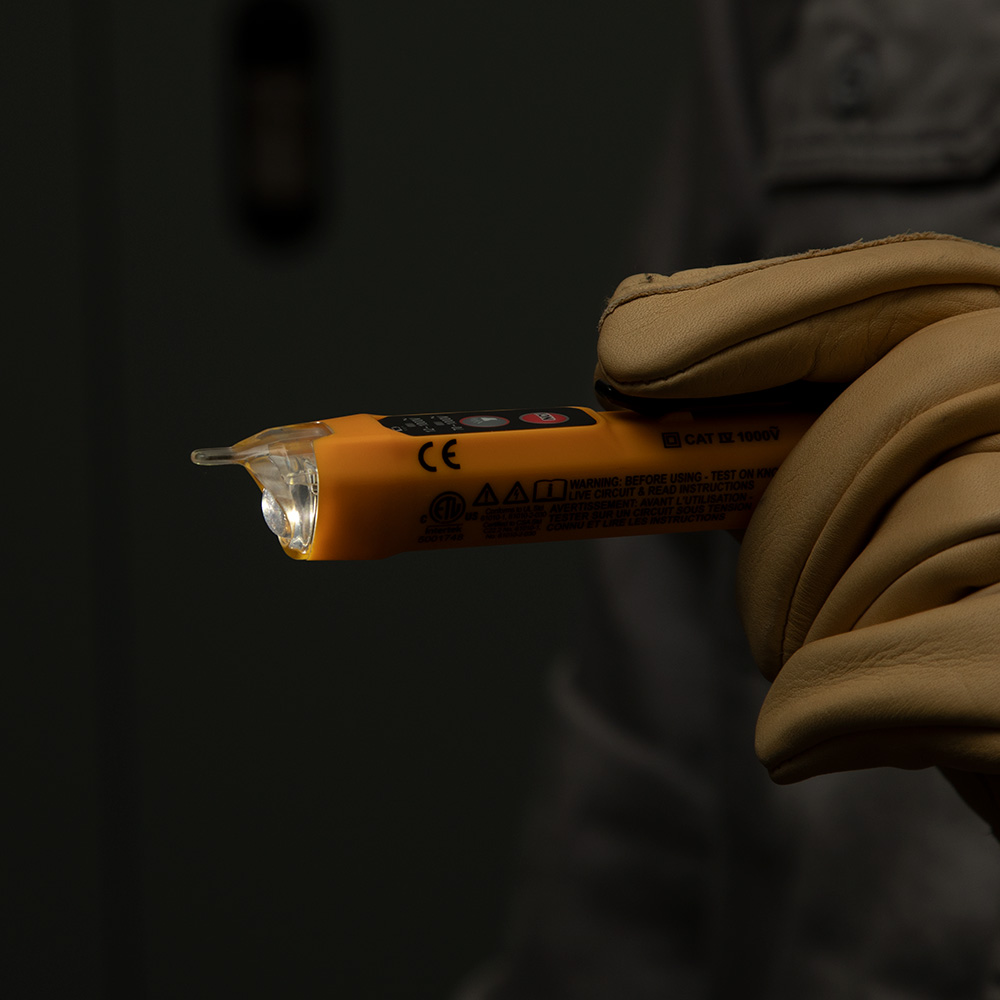

• Bright flashlight illuminates work area and may be used independent of voltage detection function
• Flashlight, LED and Audible Beep Indications, Auto-Power Off, Pocket Clip

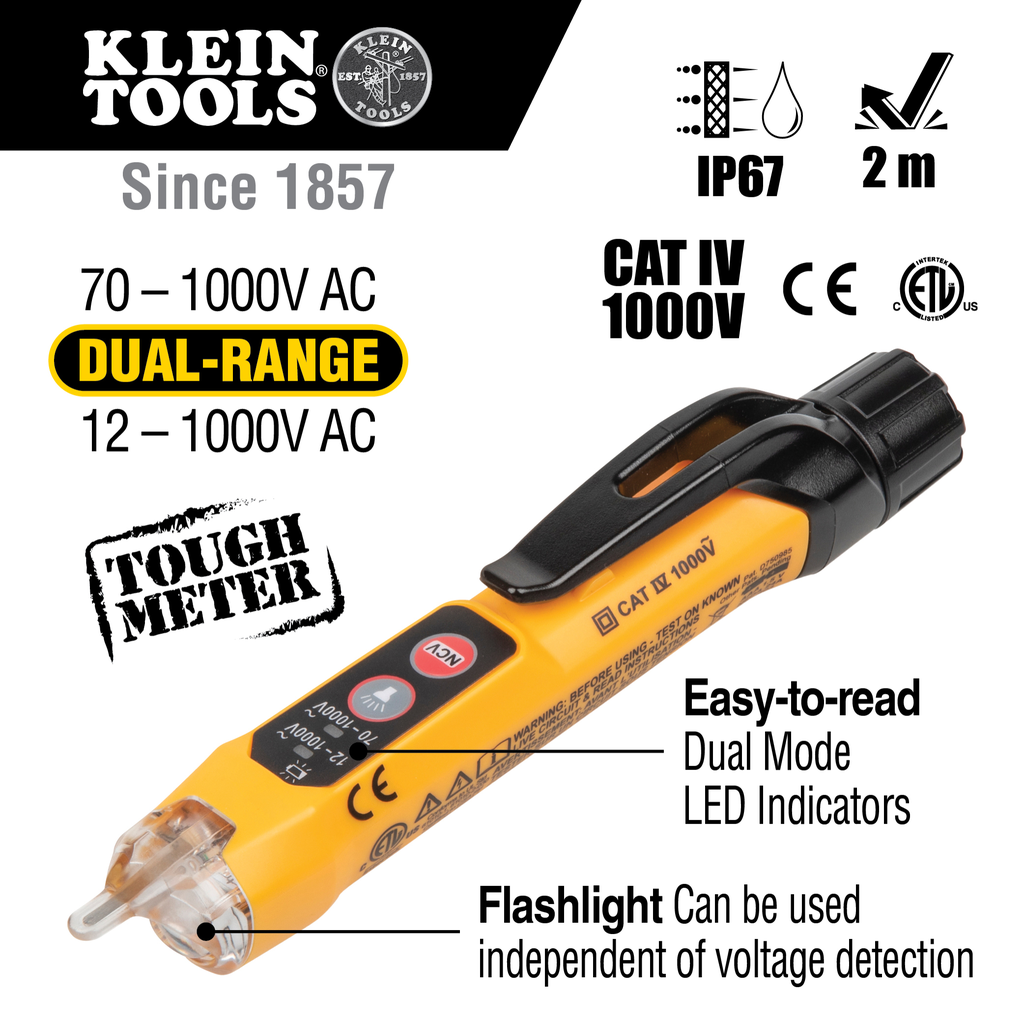

• Dual modes indicates low voltage (12 to 70V AC) and standard voltage (70 to 1000V AC) allowing broad application
• 6.6-Foot (2 m) drop protection
• IP67: Dustproof and waterproof
• Lightweight, compact tool with pocket clip provides convenient storage and quick access
• CAT IV 1000V rating provides expanded operation and protection
• Detects voltage with simultaneous visual and audible voltage indicators
• Screw-thread battery cap with O-ring ensures protection against dust and water ingress
• Conforms to CE requirements
• Green light indicates no voltage
• Auto power-off feature conserves and extends battery life

Warnings

• Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.
• Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.

Specifications

• Frequency: 50 - 500 Hz
• Overall Width: 2.8 cm (1.09 Inch)
• Standard: CAT IV 1000V
• Battery Life: 125 hr
• Depth: 5.7000 in
• Type: Dual Range with Flashlight
• Width: 1.1400 in
• Drop Protection: 6.6' (2 m)
• Overall Length: 5.7 Inch (14.5 cm)
• Included: NCVT; Batteries
• Material: Polycarbonate
• Weight: 0.1040 lbs
• Ingress Protection: IP67 - Dustproof and Waterproof
• Overall Height: 2.4 cm (0.93 Inch)
• Application: Non-Contact Detection and Testing of AC Voltage
• Batteries: 2 x AAA
• Pollution Degree: 2
• Height: 0.9300 in
• Voltage: 12 – 1000V AC; 70 – 1000V AC
