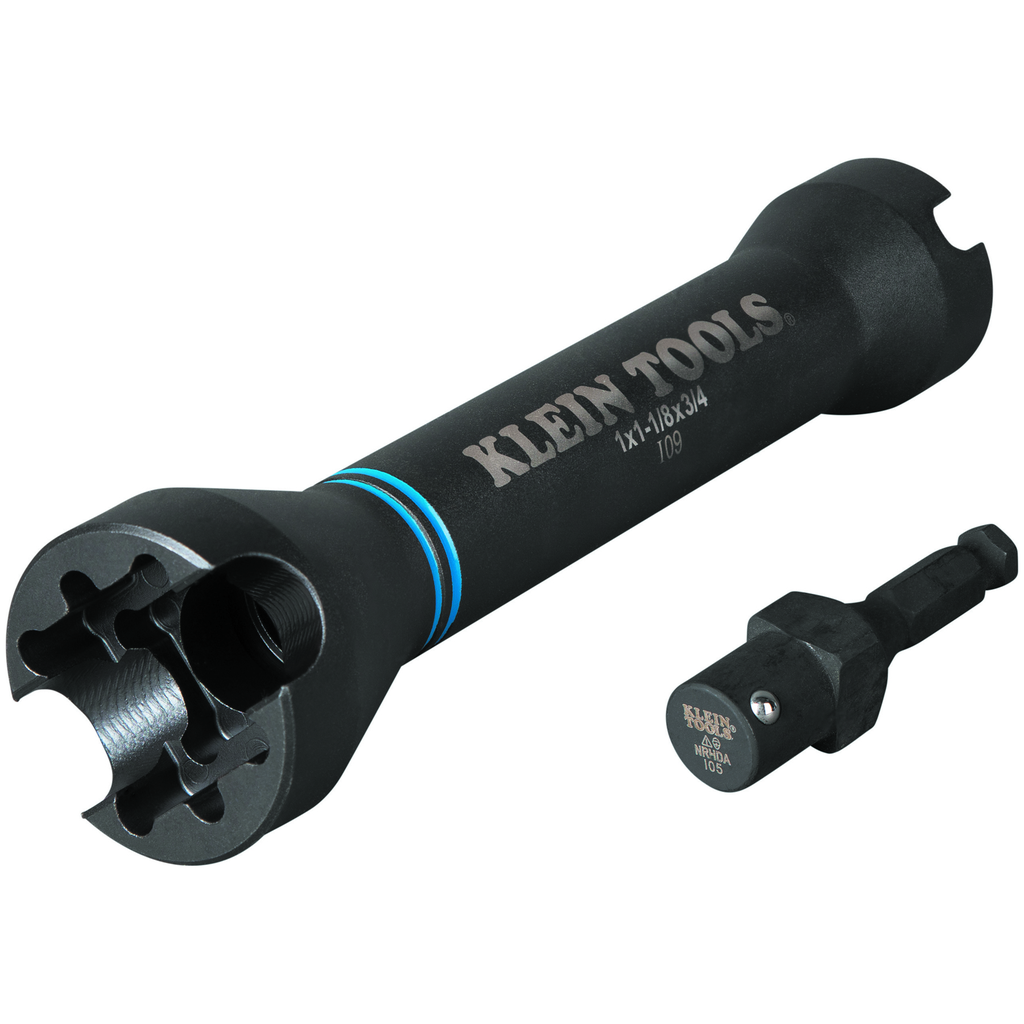

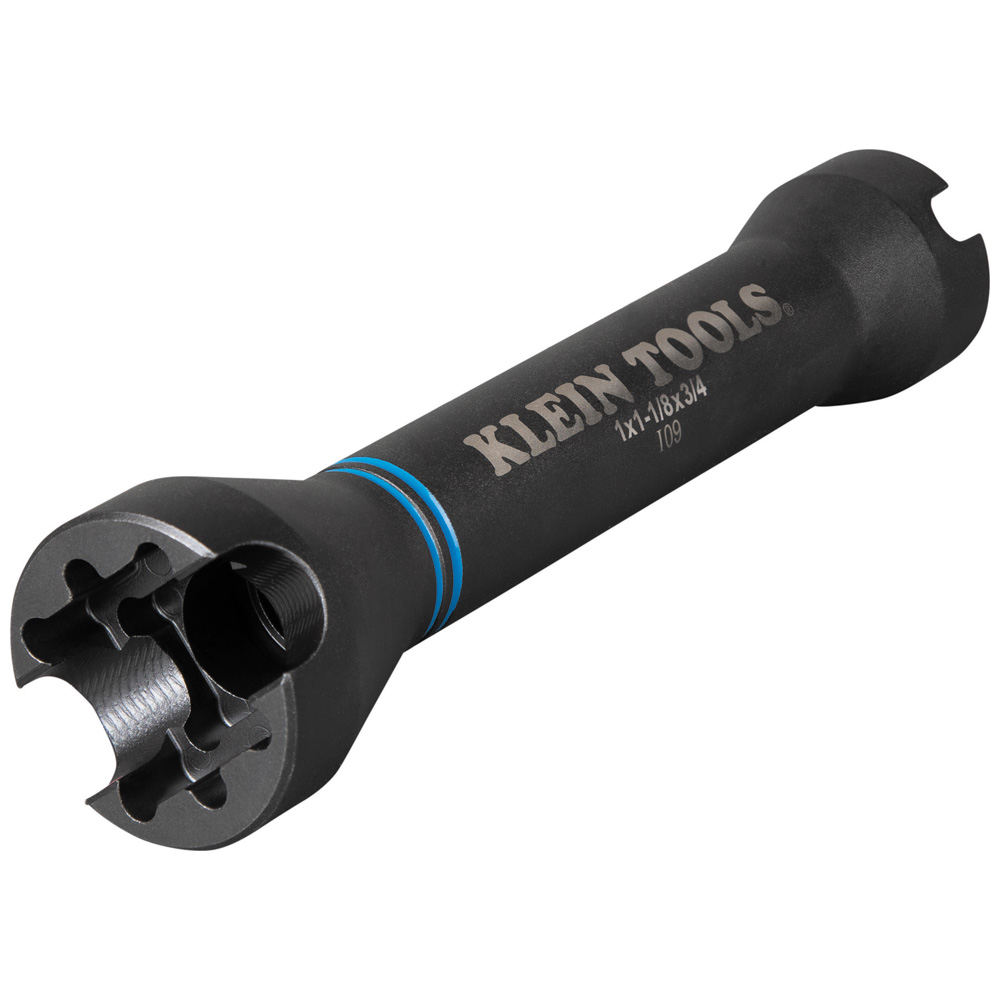

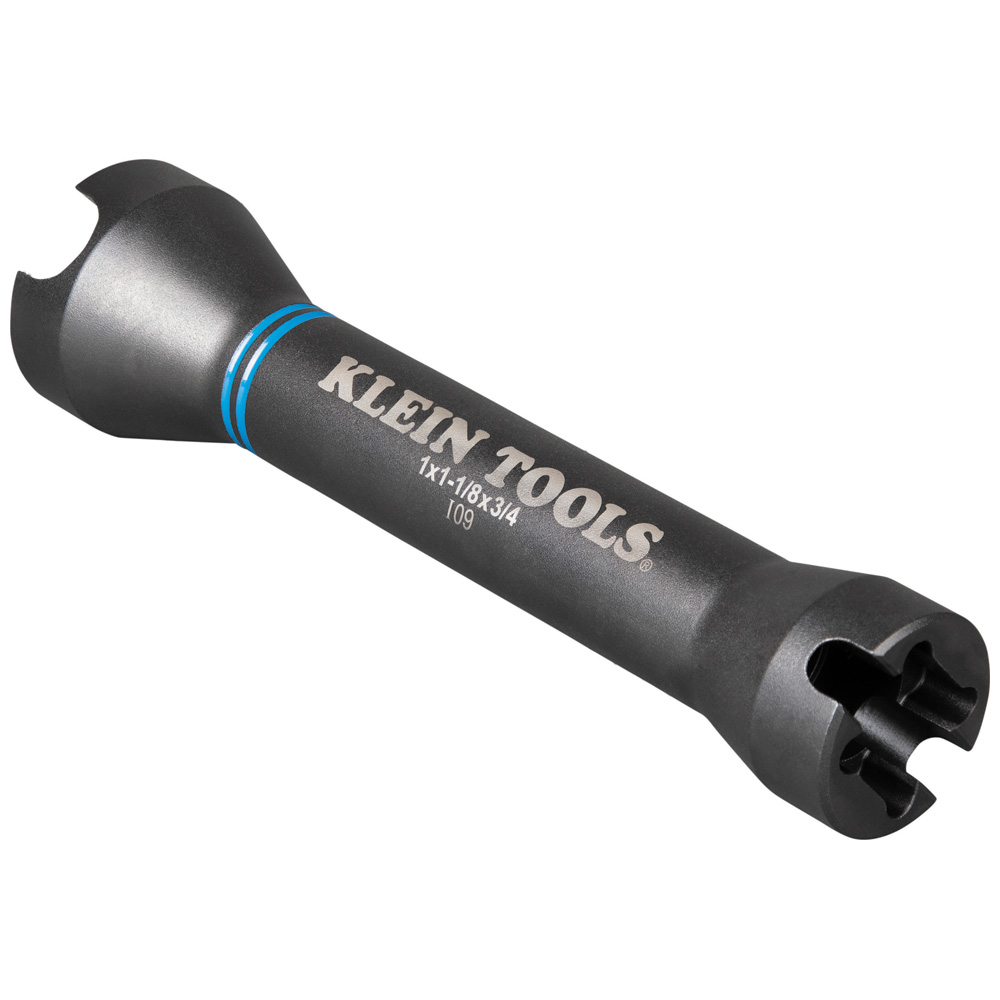

5-in-1 Impact Socket

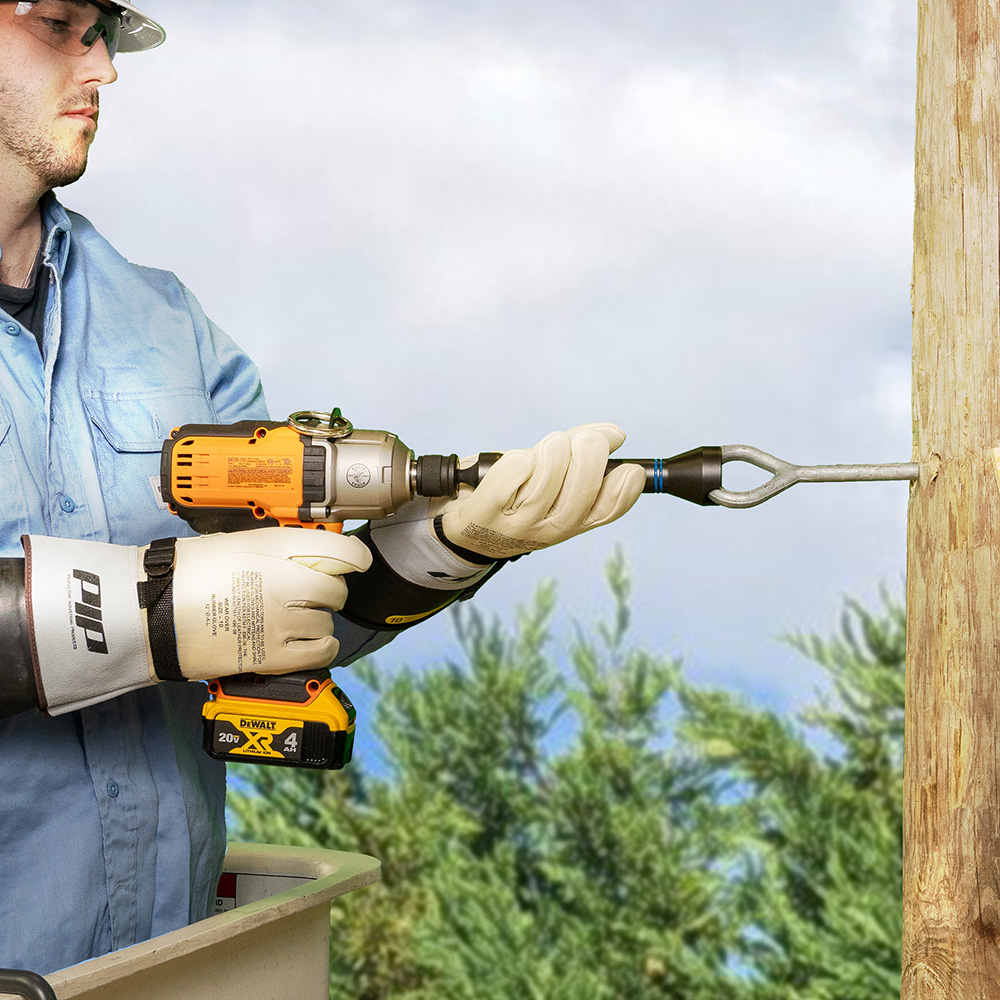

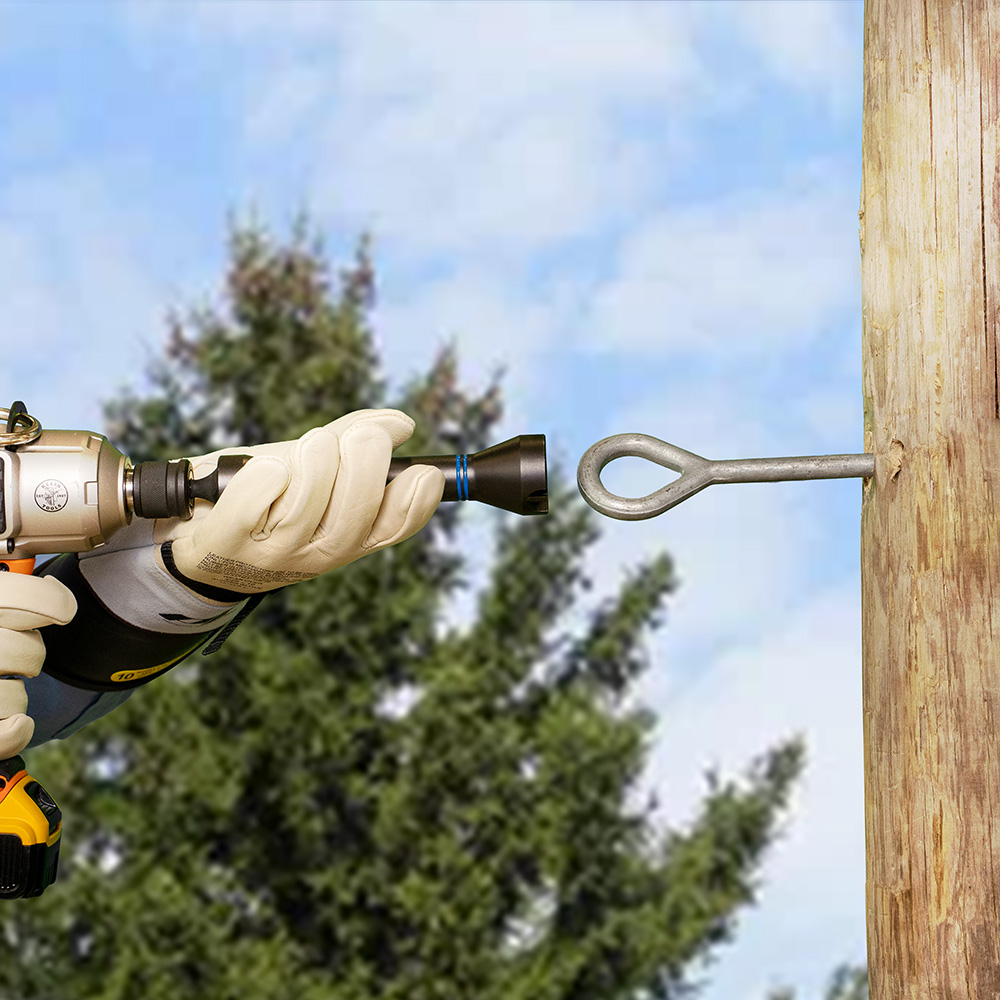

The Klein Tools versatile 5-in-1 Impact Socket reigns as the market leader for Linemen and Utility Workers. It features three popular square sizes that can be quickly and easily converted for a variety of utility type applications. Designed with an alignment slot to tighten and loosen most pole hardware. It also has a long, hollow shaft designed to fit over long threaded bolts.

Features

• Engineered for use with impact drivers

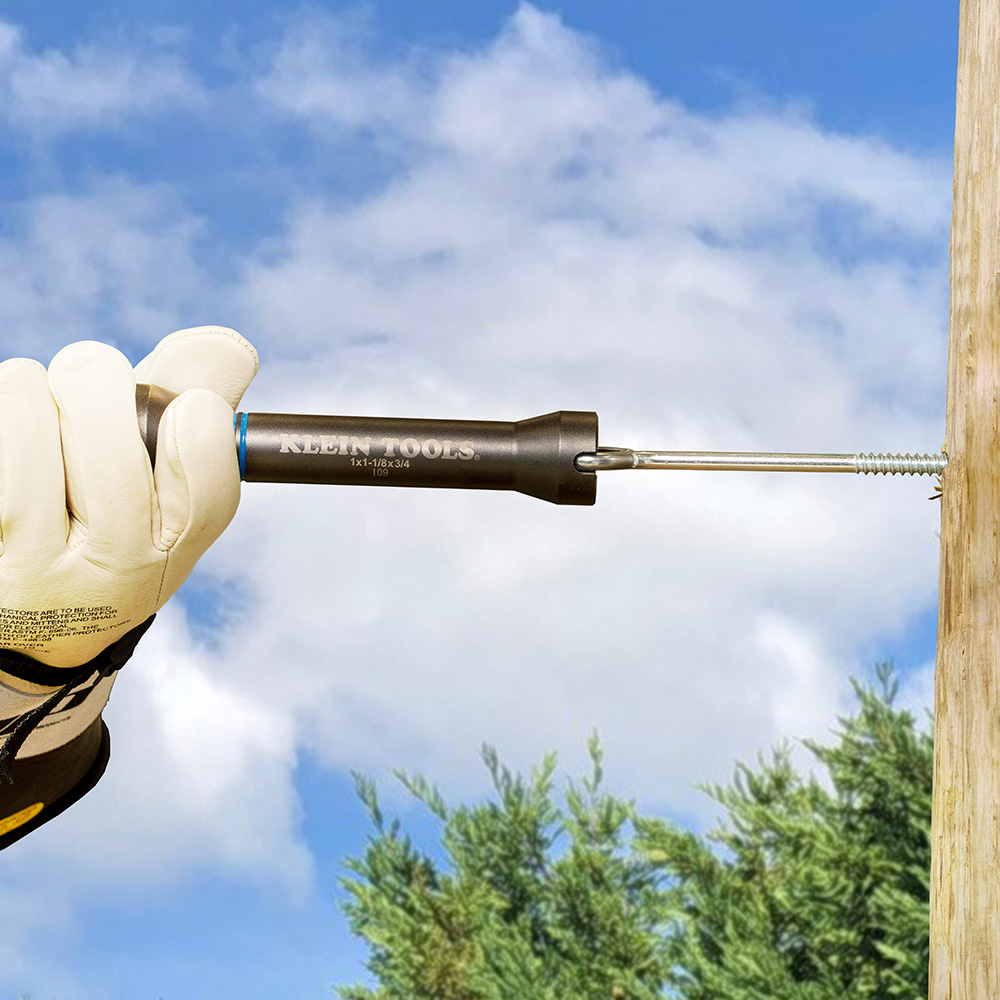

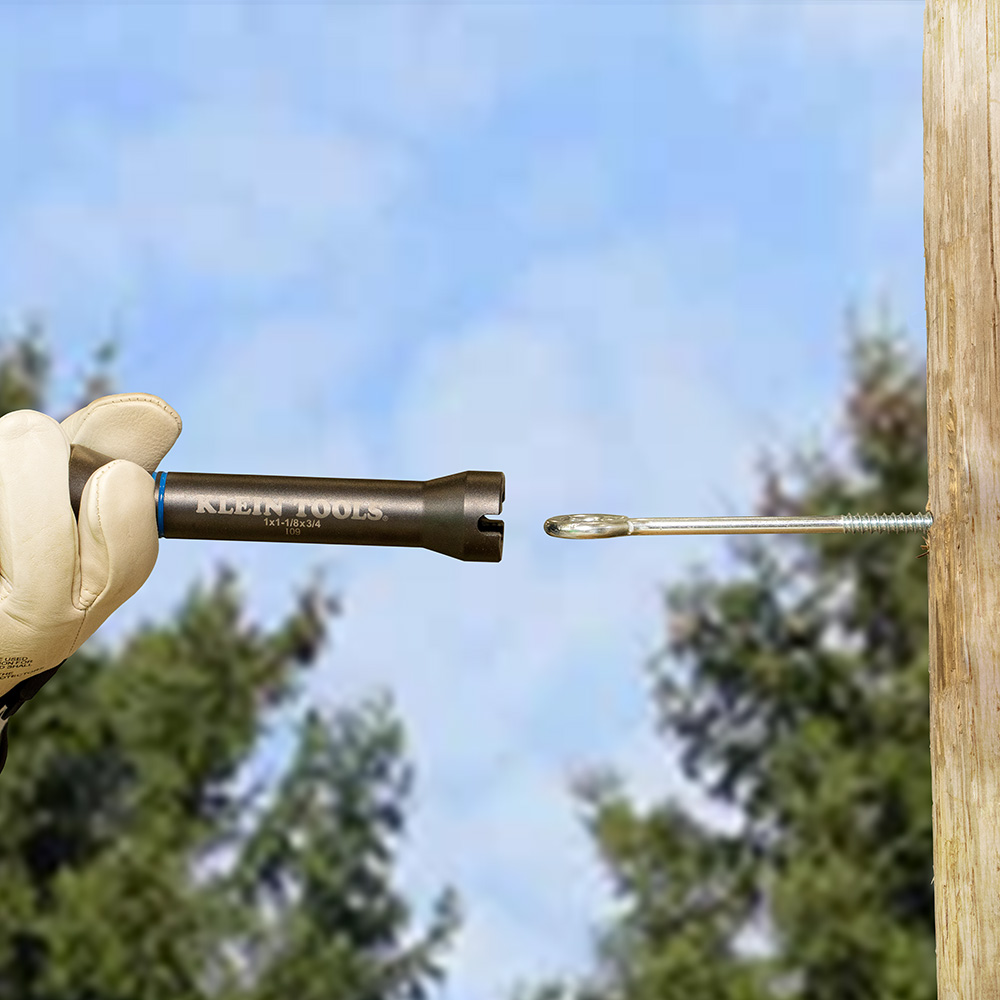

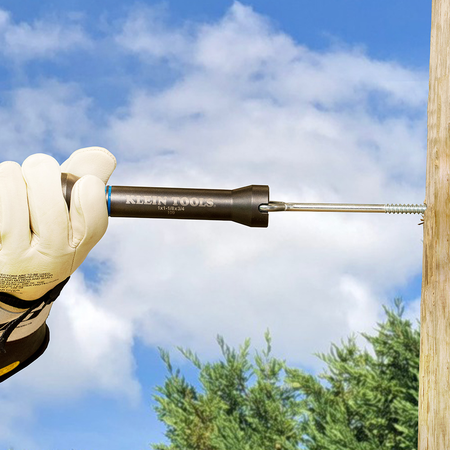

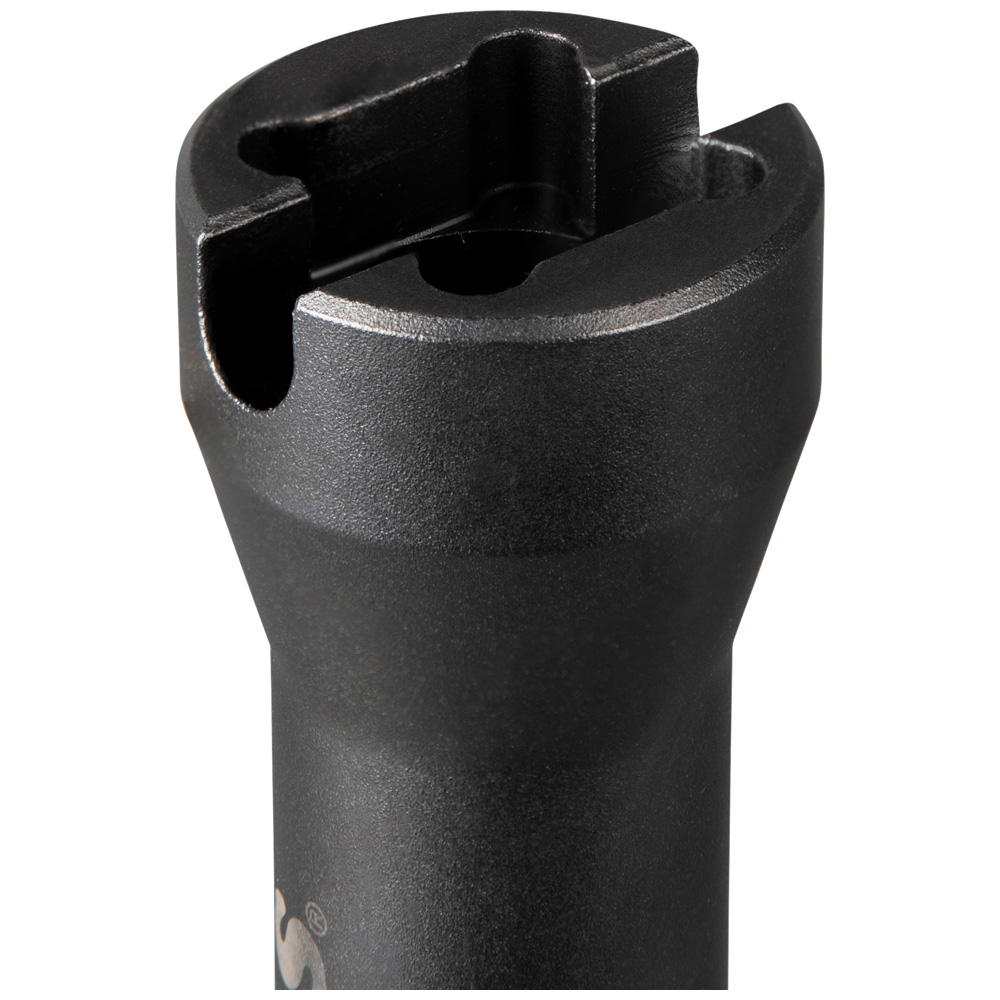

• Alignment slot to tighten and loosen most pole hardware
• 13/16-Inch diameter, 6-Inch (15.2 cm) long hollow shaft allows use on long threaded bolts

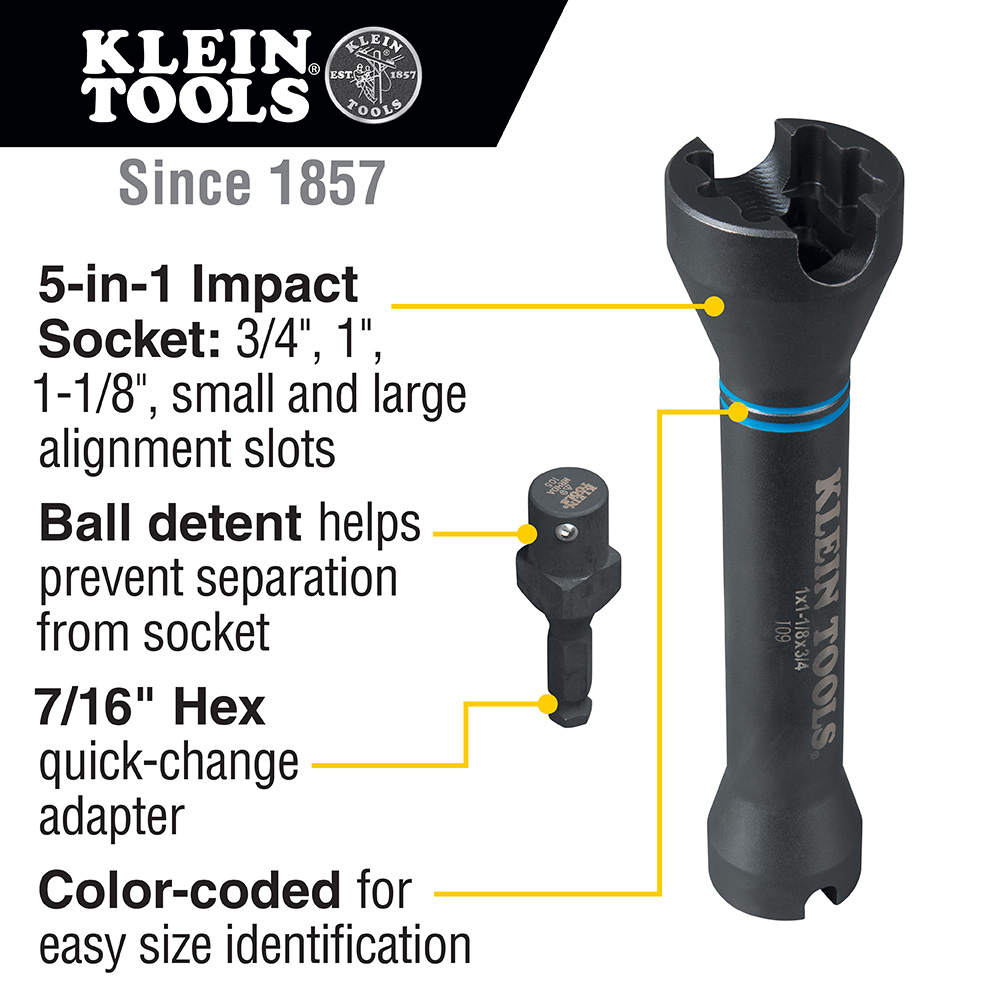

• 5-in-1 Impact Socket features three square socket sizes: 3/4-Inch, 1-Inch and 1-1/8-Inch, and small and large alignment slots

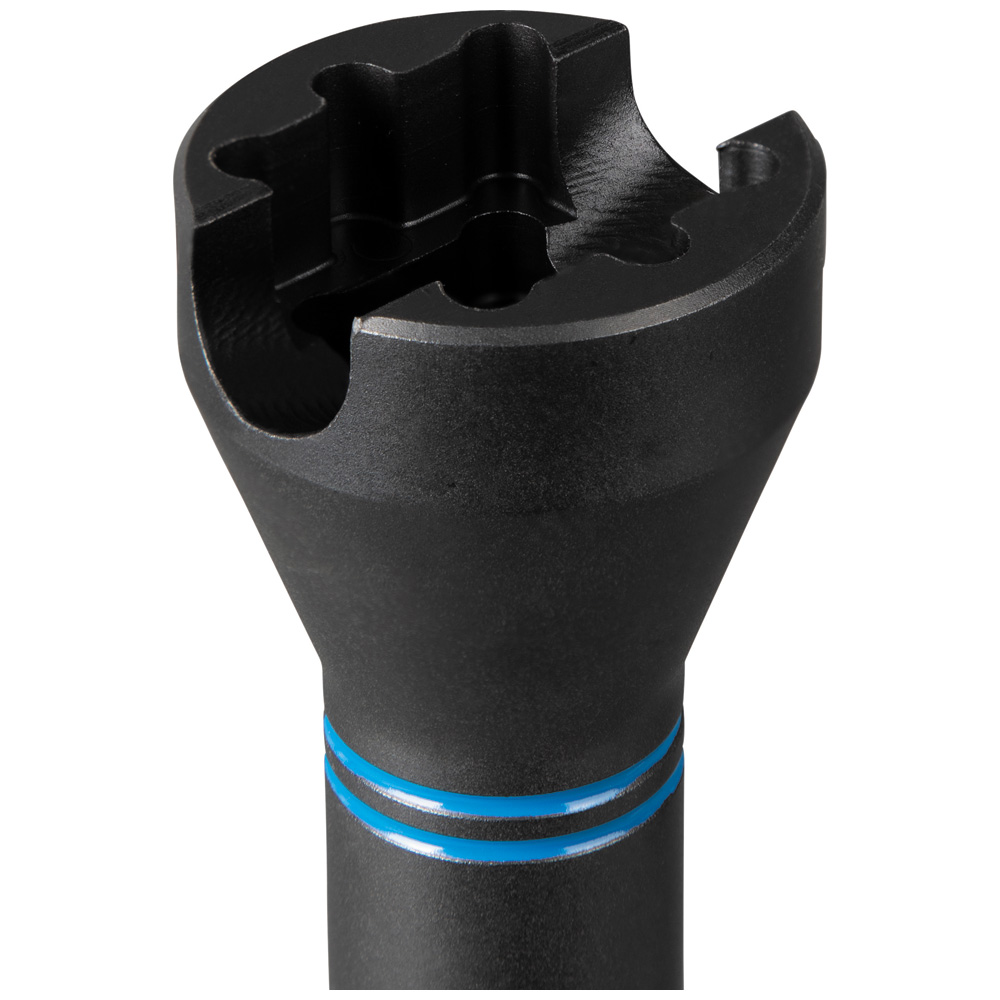

• Color coded with double lines to identify size and slotted feature
• Fine tuned ball tip provides improved retention, minimizing drops
• Replacement adapter is available (Cat. No. NRHDA)
• Large and Small Slots; Easily Switch Between Sizes Without Removing Your Gloves
• 7/16-Inch hex quick-change adapter included

Warnings

• Always wear approved eye protection.

Specifications

• Socket Size: 3/4", 1", 1-1/8"
• Standard: ASME B107.2
• Height: 2.0000 in
• Weight (g): 680
• Depth: 7.7500 in
• Weight: 2.0000 lbs
• Overall Height (Inch): 1.75
• Drive Size: 7/16" Hex
• Overall Width (Inch): 1.75
• Overall Length (cm): 19.7
• Width: 3.0000 in
• Type: Impact Socket
• Material: Steel
• Weight (oz): 24
• Overall Width (cm): 4.4
• Number of Points: 4
• Application: Distribution - 3/4", 1", 1-1/8"
• Overall Height (cm): 4.4
• Overall Length (Inch): 7.75
