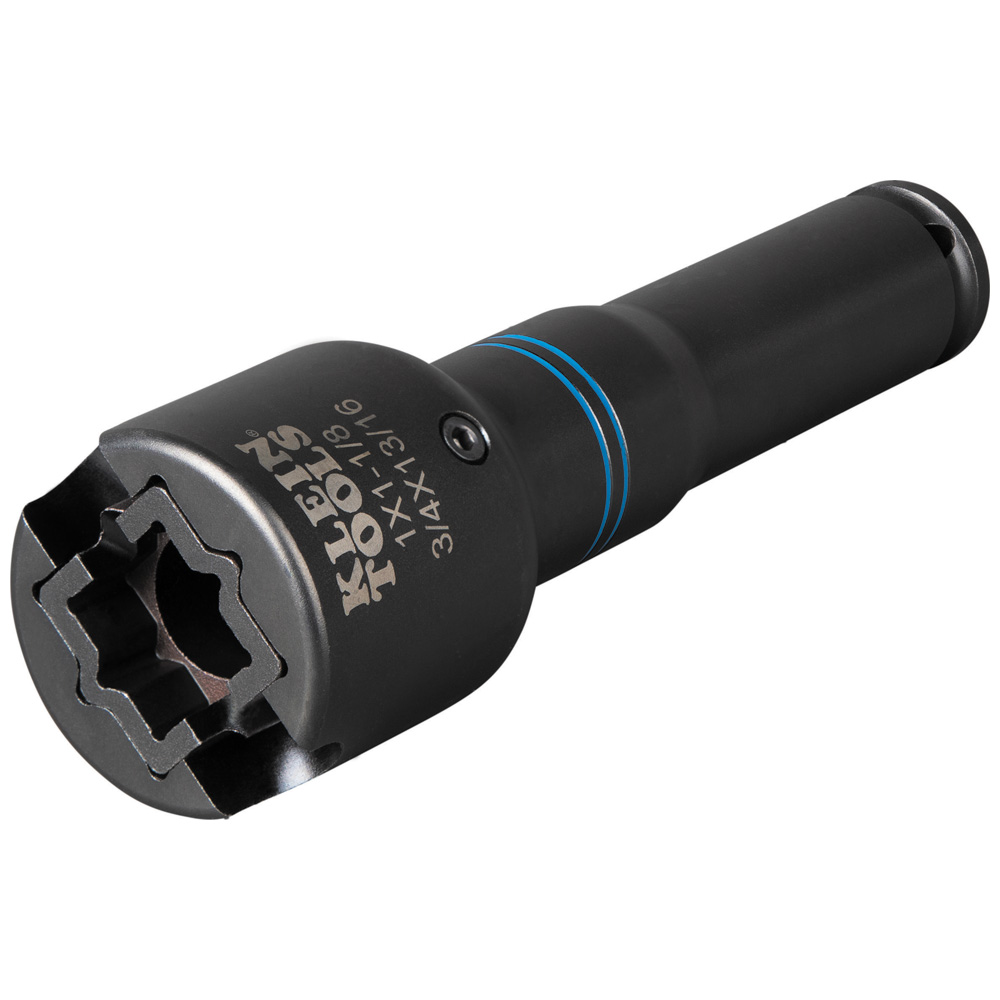

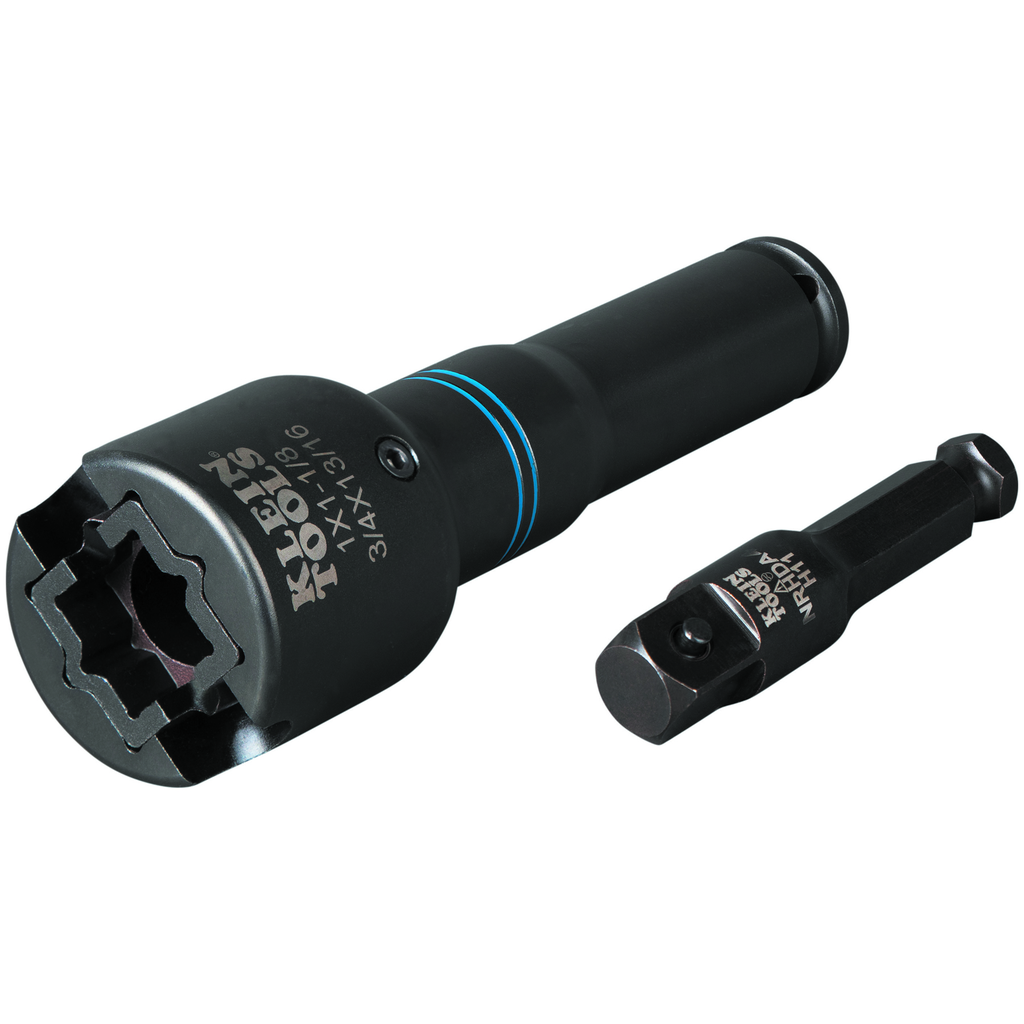

6-in-1 Square Impact Socket

The 6-in-1 Impact Socket Wrench features two spring-loaded sockets in one tool for hands-free pole hardware installation and removal. The tool includes 3/4-Inch, 13/16-Inch, 1-Inch and 1-1/8-Inch square socket sizes plus a 7/16-Inch hex quick-change adapter. Designed with an alignment slot to tighten and loosen most pole hardware. Each model is engineered for use with impact drivers effectively reducing the amount of time needed to finish the job.

Features

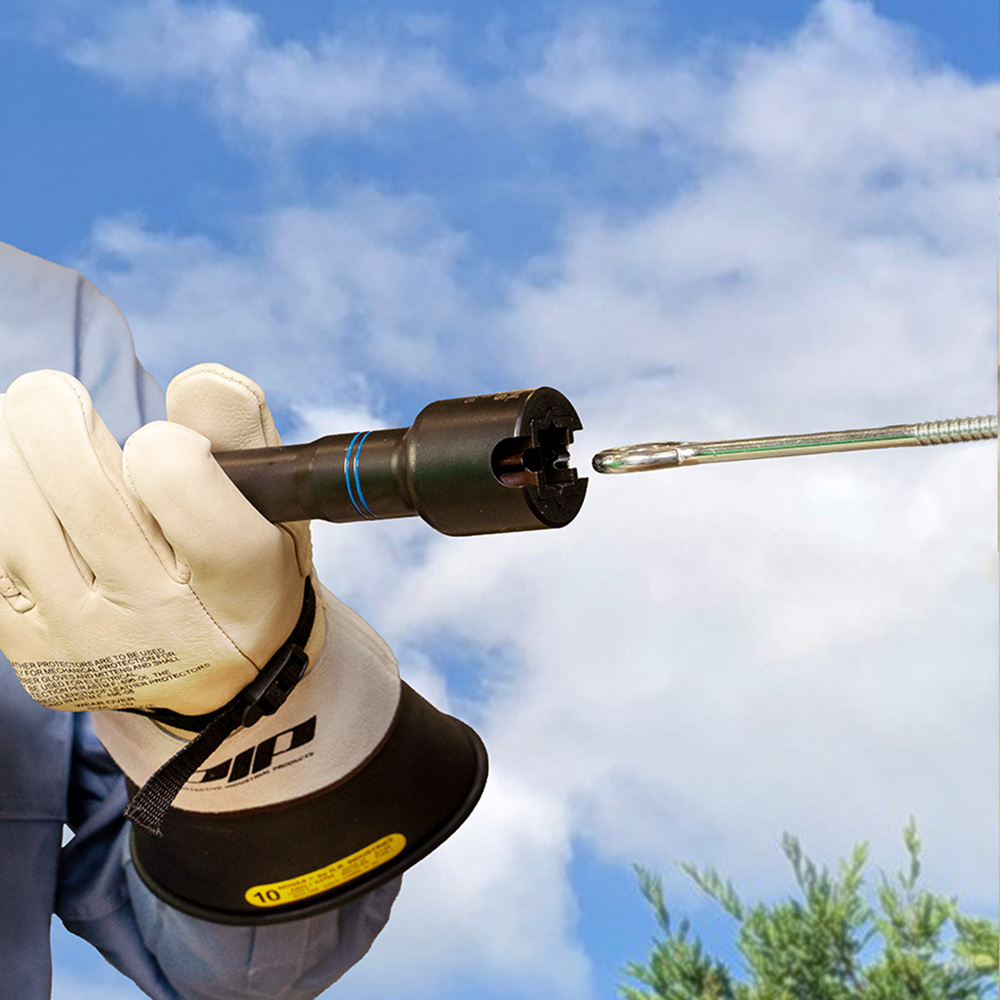

• 13/16-Inch diameter, 6-Inch (15 cm) long hollow shaft allows use on long threaded bolts
• Replacement adapter is available (Cat. No. NRHDA4)

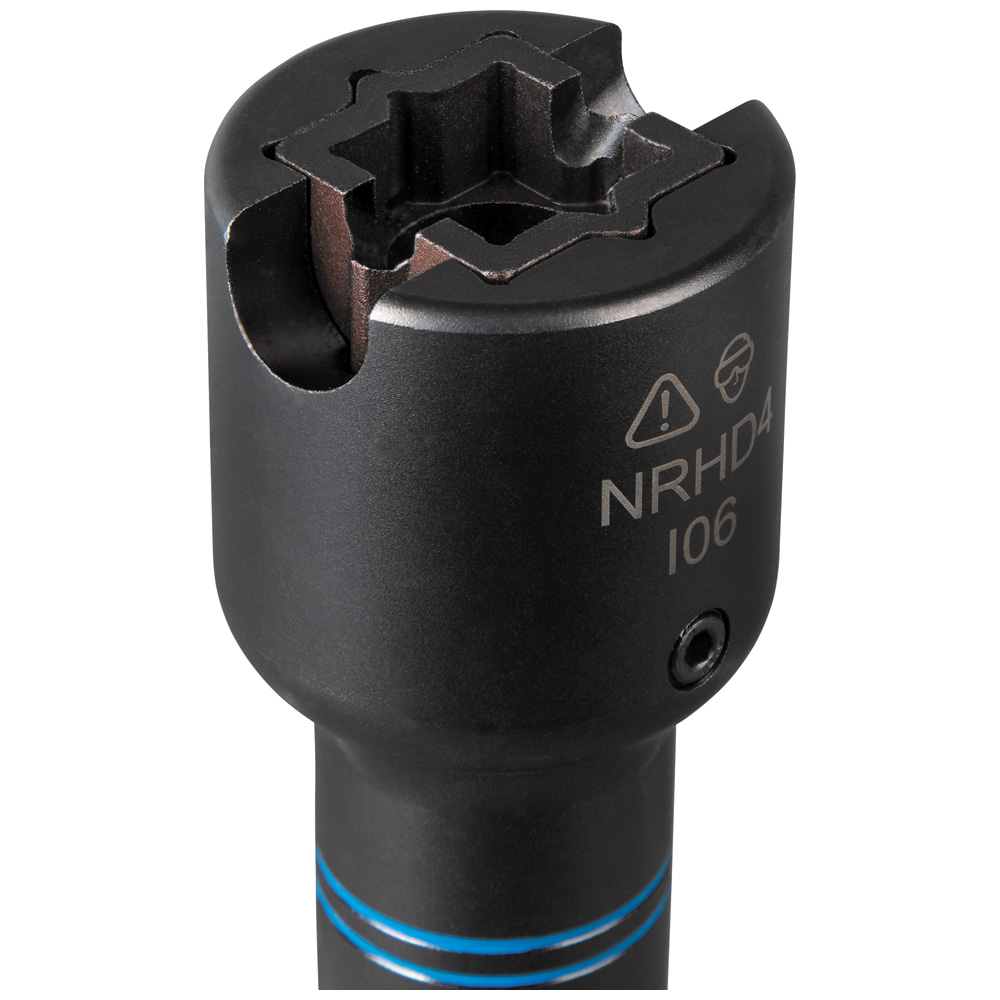

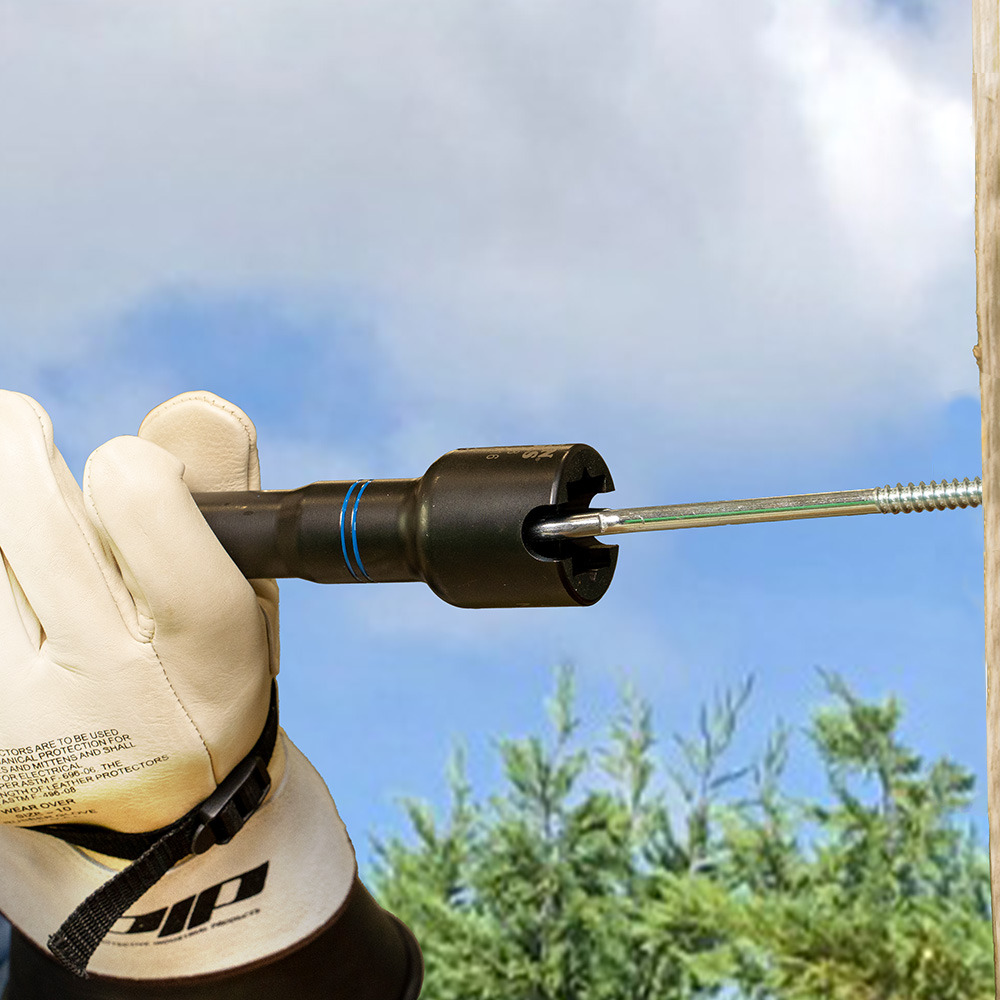

• Alignment slot to tighten and loosen most pole hardware
• Engineered for use with impact drivers
• Works on 1/2-Inch, 5/8-Inch and 3/4-Inch pole hardware
• 6-in-1 single-ended impact socket with hands free adjustment between socket sizes

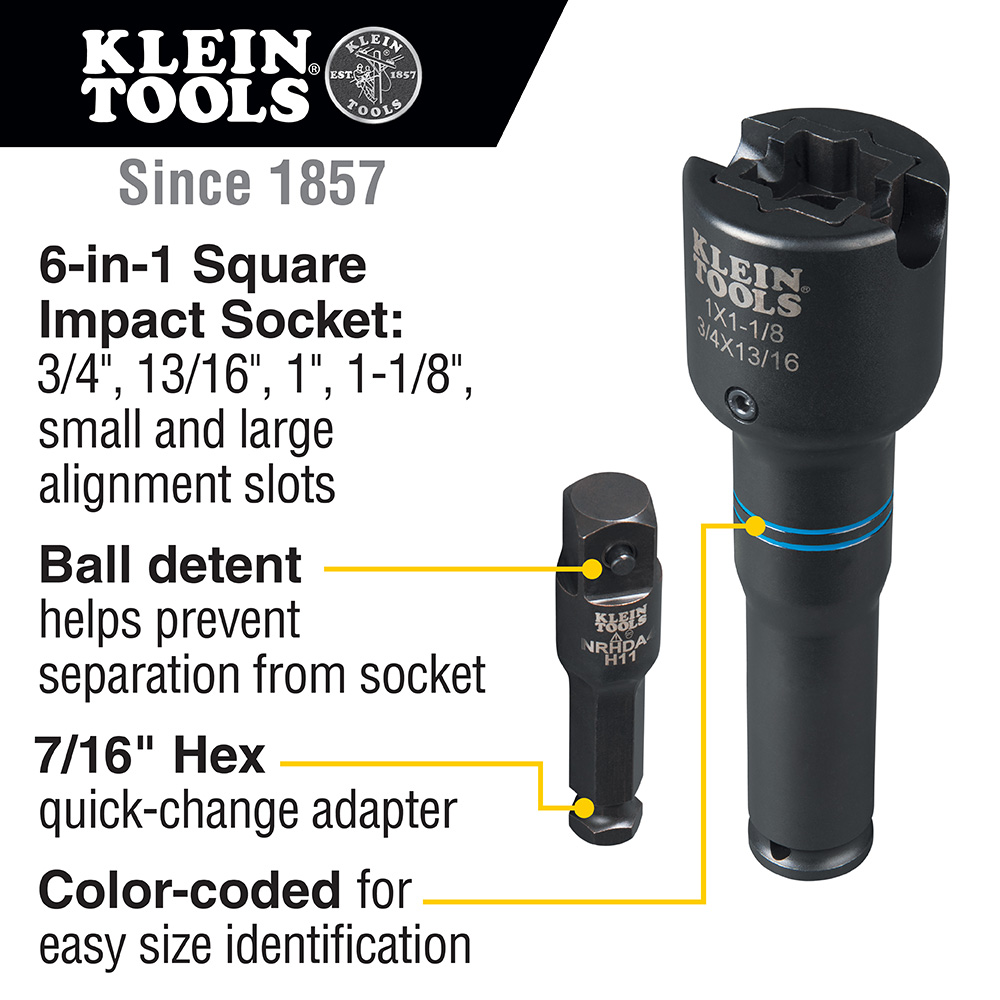

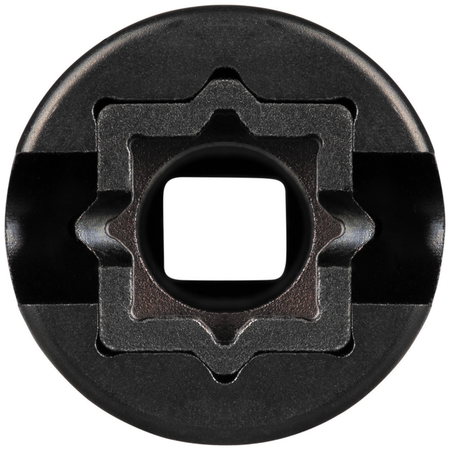

• Includes 3/4-Inch, 13/16-Inch, 1-Inch and 1-1/8-Inch square socket sizes plus a 7/16-Inch hex quick-change adapter

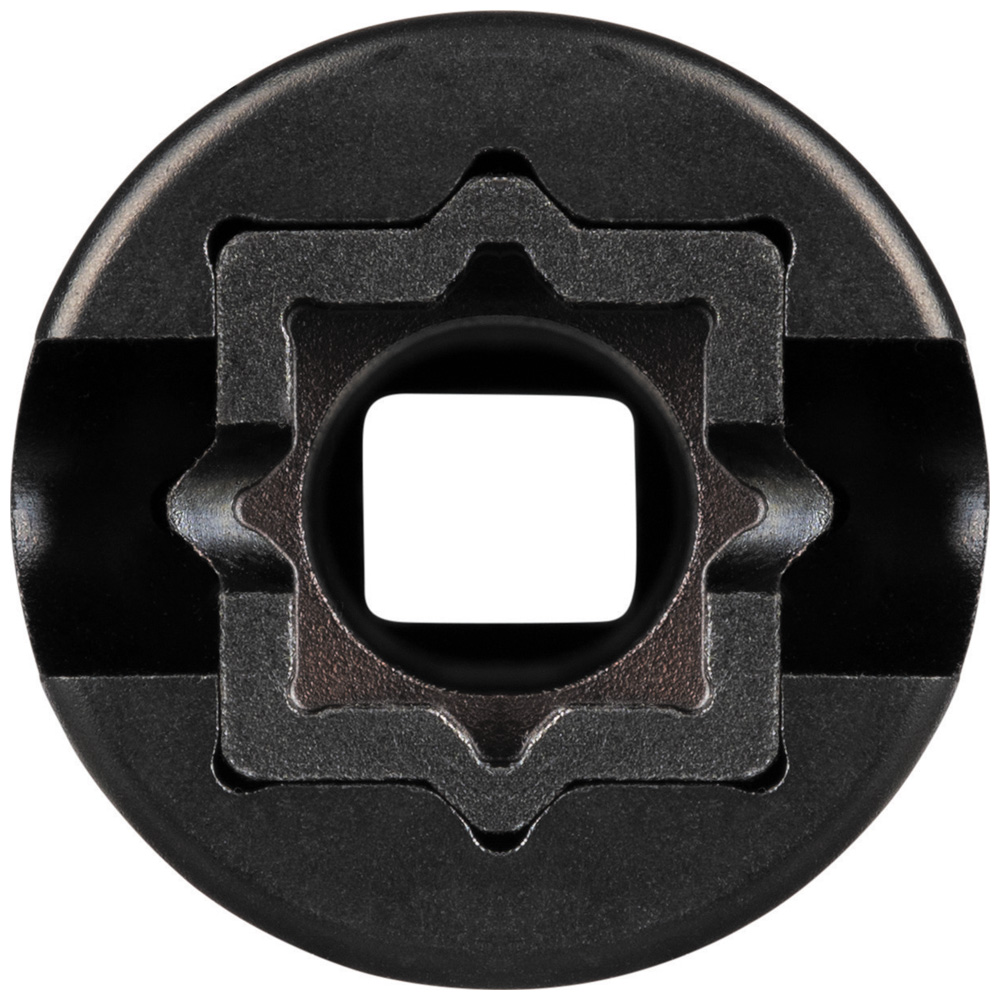

• Two coaxial spring-loaded sockets in one tool
• Color coded with double lines to identify size and slotted feature
• Cross hole design to prevent unintentional separation of adapter and socket
• Large and Small Slots; Hands-free Adjustment

Warnings

• Always wear approved eye protection.

• Socket Size: 3/4 in, 13/16 in, 1 in, 1-1/8 in Square

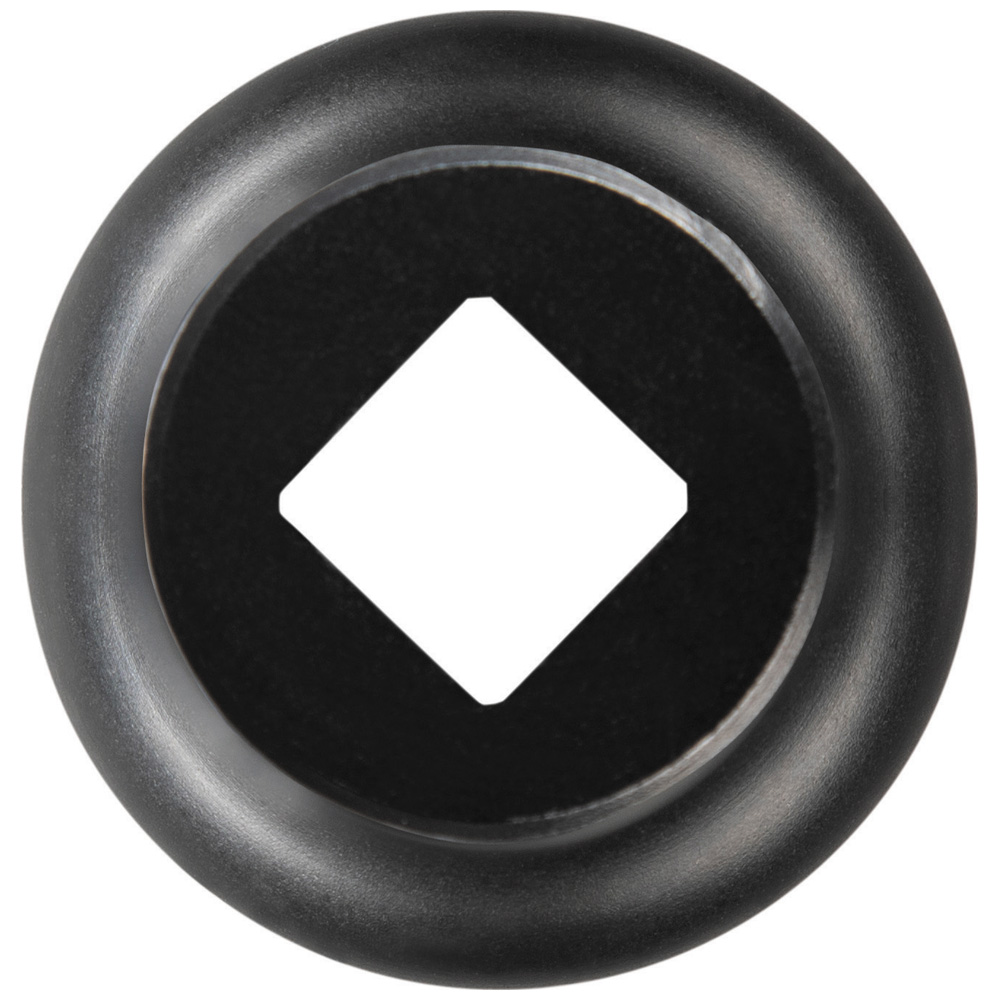

• Drive Size: 7/16 in Hex, 1/2 in Square
• Overall Length: 7 in (17.8 cm)
• Depth: 9.1 in
• Height: 2 in (5.1 cm)
• Width: 2 in (5.1 cm)
• Weight: 2.26 lbs
• Material: Steel
• Standard: ASME B107.2
• Number of Points: 4
• Type: Impact Socket

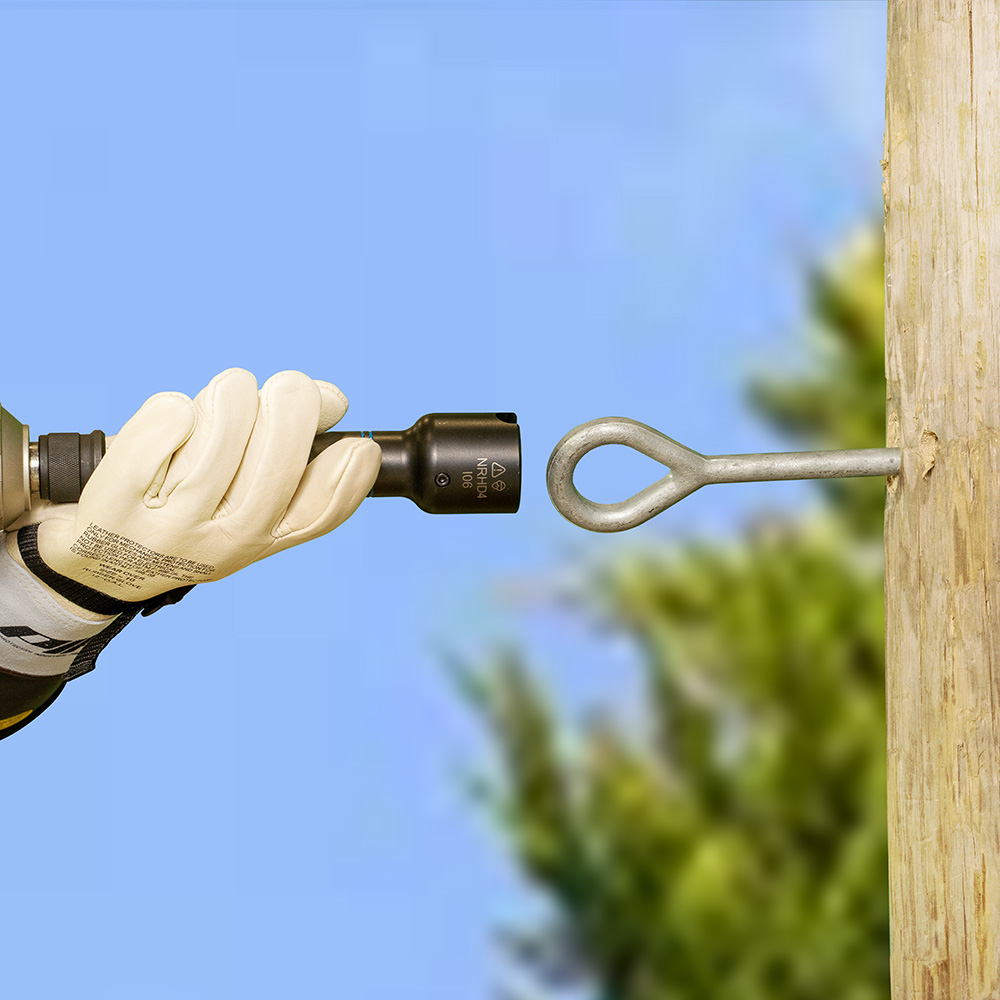

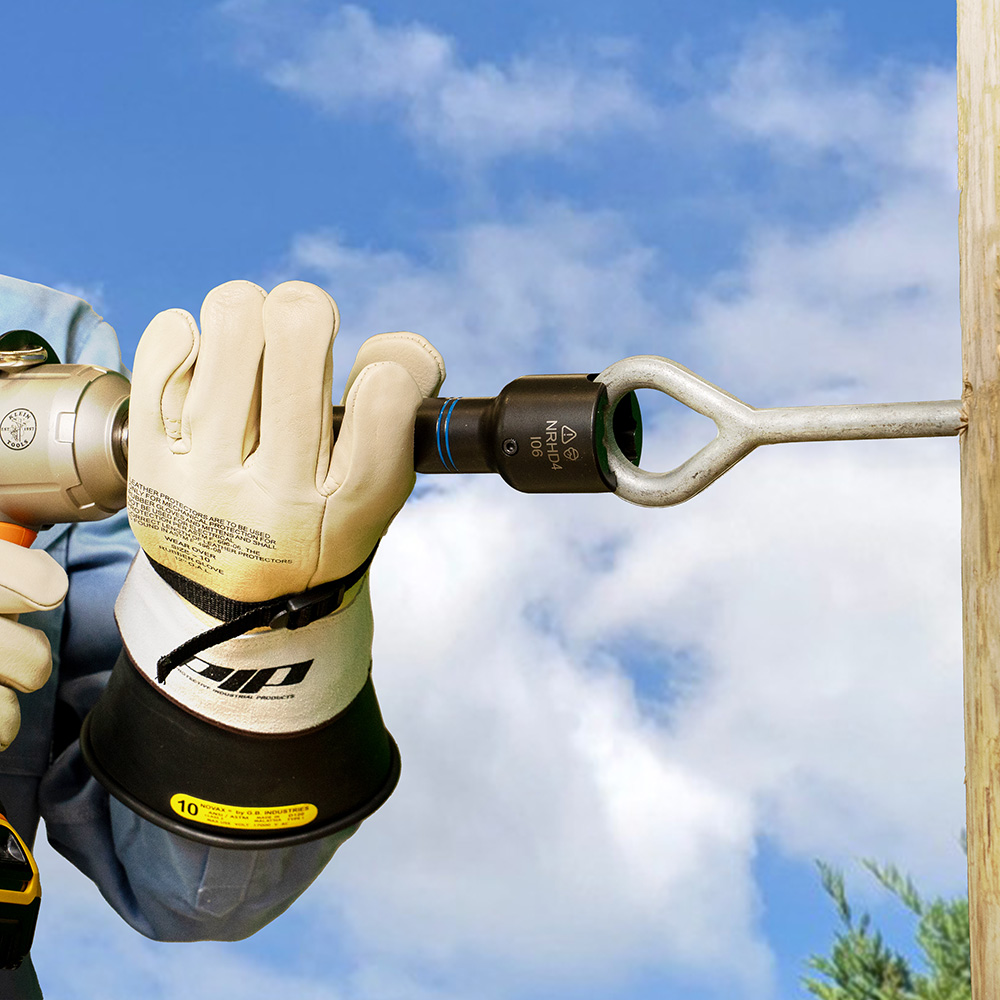

• Application: Pole Hardware Installation and Removal
• Country of Origin: Taiwan
