Adapter for NRHD4

Klein Tools' Impact Socket Adapter is a must-have for lineman and utility workers. It features an improved ball detent which stays in the socket better and has greater separation force. When combined with Klein Tools' Impact Socket, it provides even more versatility with four available socket sizes to work with.

Features

• Improved Ball Detent
• 7/16-Inch hex quick-release adapter for Cat. No. NRHD4
• Black phosphate for corrosion resistance
• Overall length: 2-15/32-Inch (6.3 cm)
• 1/2-Inch male square, works with a 7/16-Inch impact driver

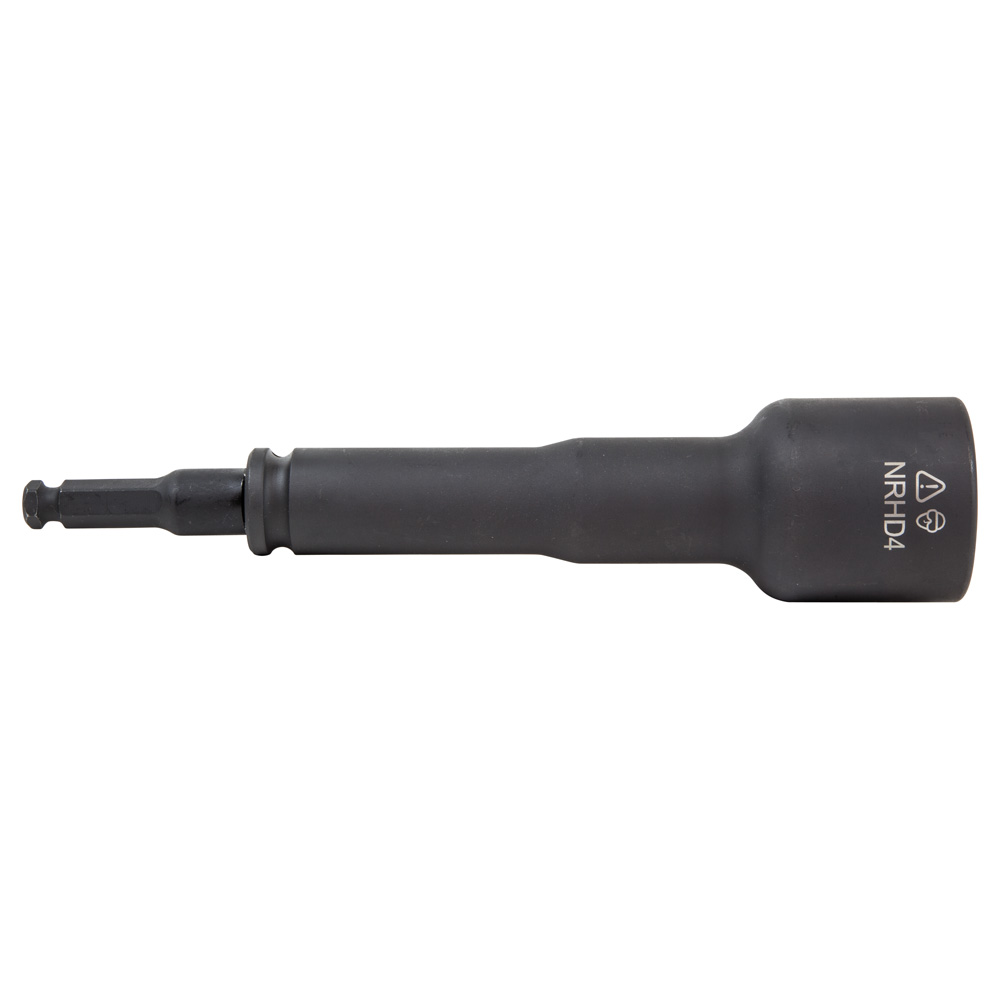

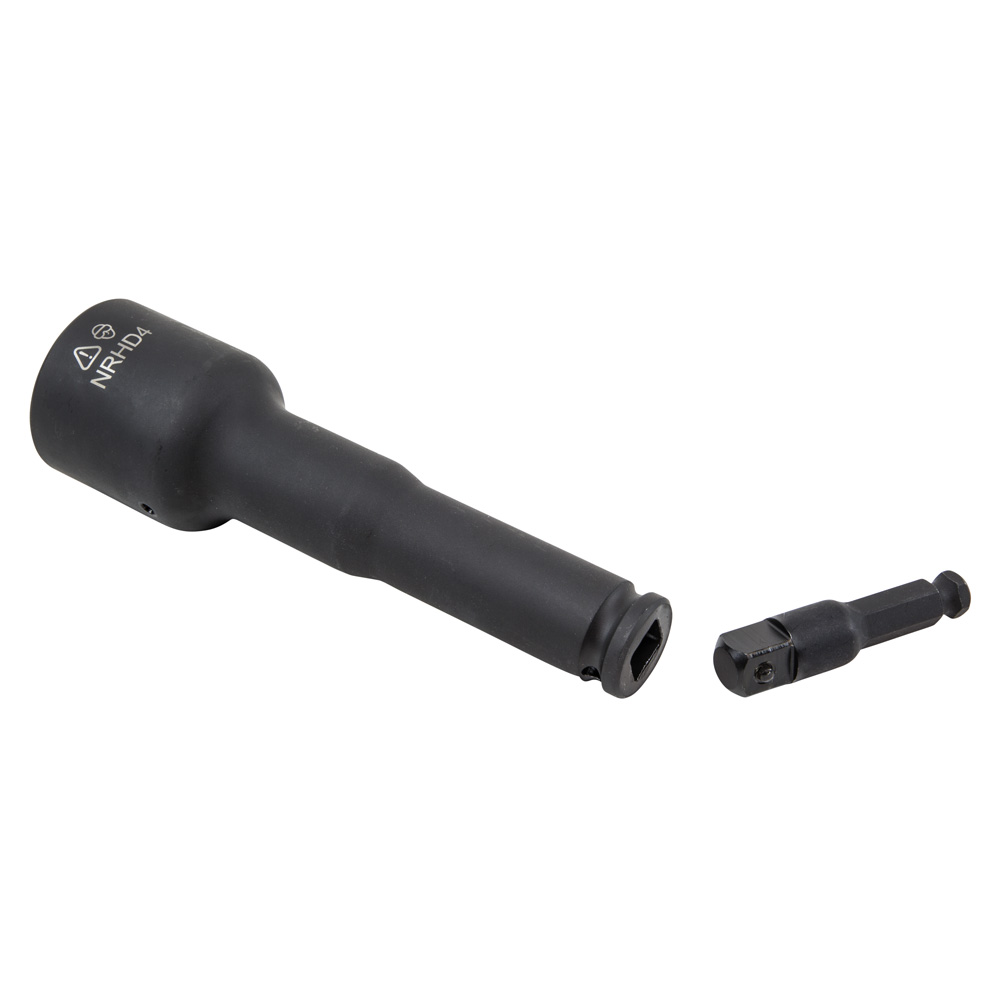

• Adapter sold individually and included with the 4-in-1 Impact Socket (NRHD4)
• Lock pin secures socket

Warnings

• Always wear approved eye protection.

Specifications

• Socket Size: 1/2" Male Square
• Type: Impact Socket Adapter
• Overall Height (cm): 1.6
• Overall Length (cm): 7
• Application: Pole Hardware Installation and Removal
• Material: Steel
• Standard: ASME B107.4
• Depth: 2.4750 in
• Overall Width (Inch): 0.625
• Width: 0.4500 in
• Weight (oz): 2.9
• Height: 0.4500 in
• Overall Height (Inch): 0.625
• Drive Size: 7/16"
• Overall Length (Inch): 2.75
• Weight (g): 82
• Weight: 0.1800 lbs
• Overall Width (cm): 1.6
