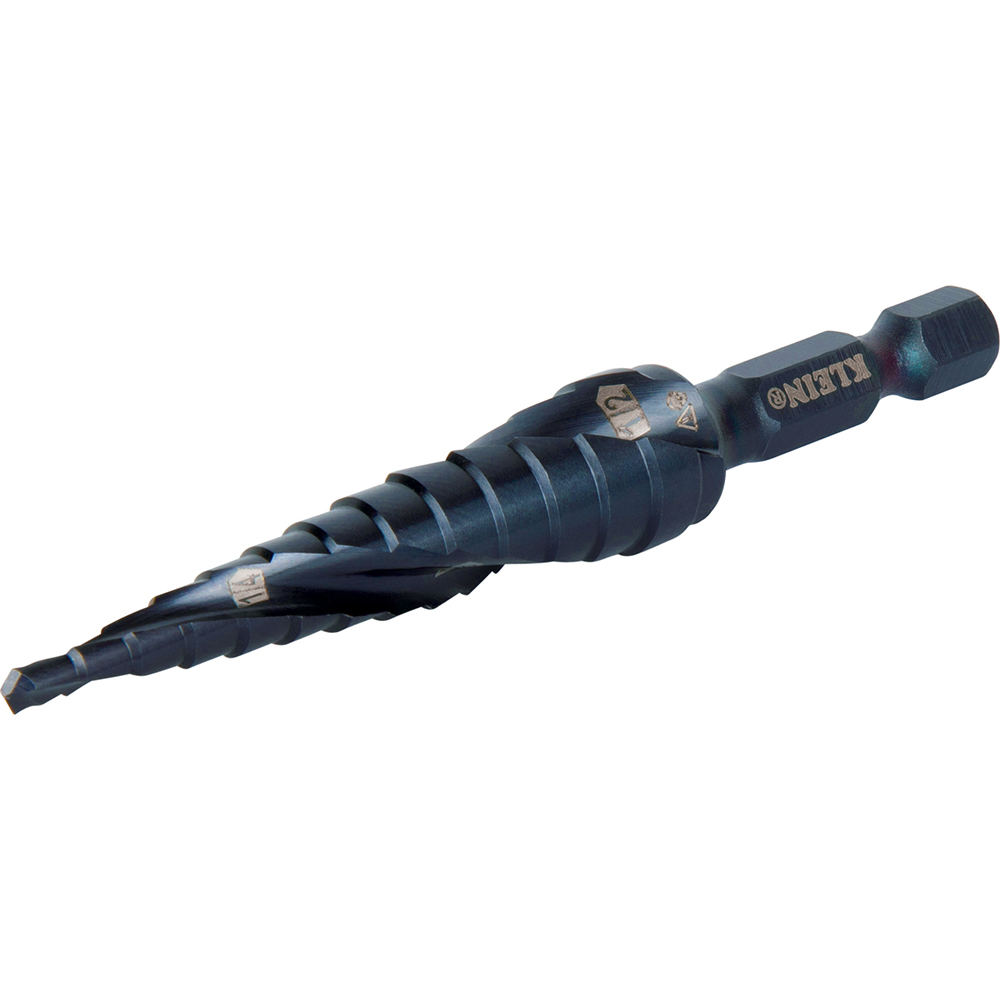

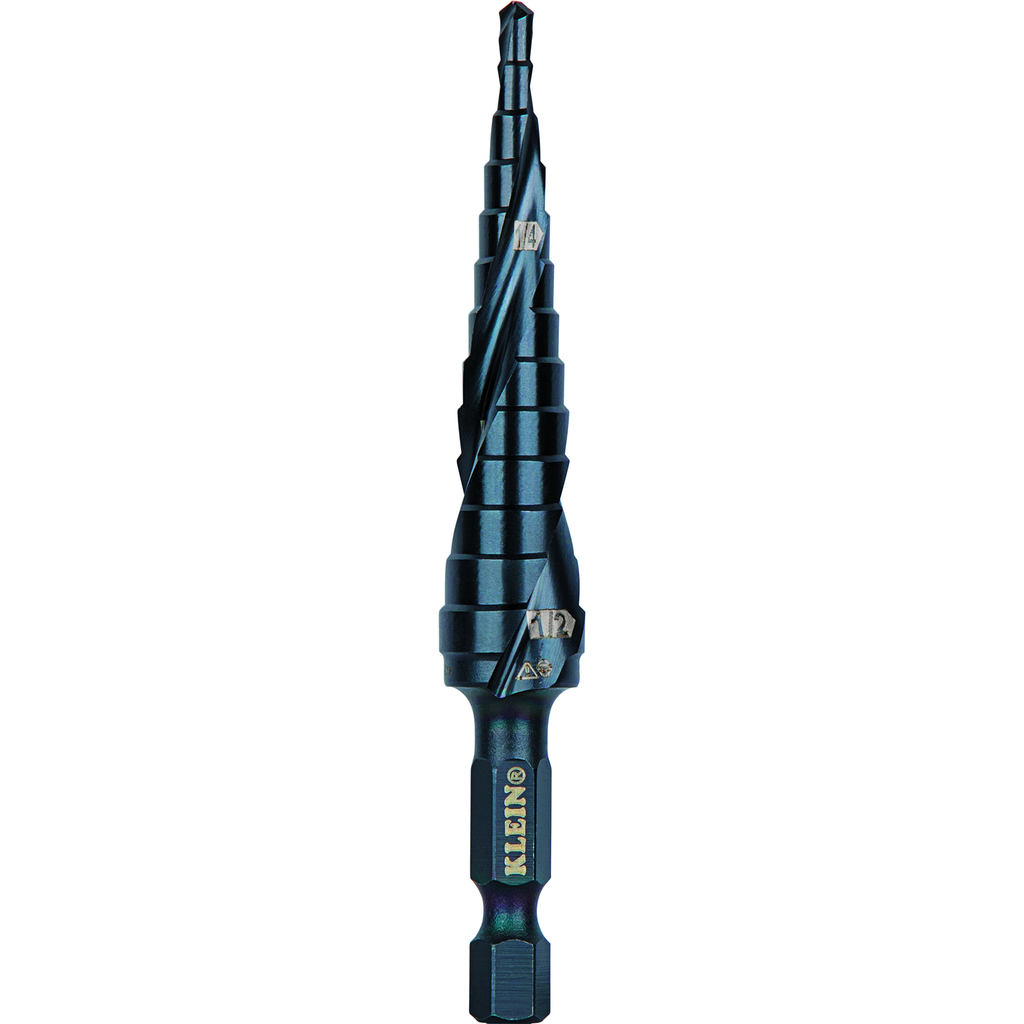

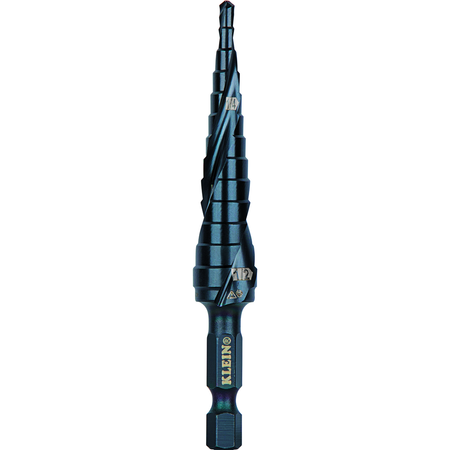

Step Drill Bit, Quick Release, Double Spiral Flute, 1/8 to 1/2-Inch

The dual spiral flutes on Klein Step Drill Bits help pull the step bit through the material for faster cutting. The aluminum titanium coating is 10 times more durable than steamed black oxide for longer bit life. Impact rated, the 1/4-Inch hex shank provides a firm, positive grip and allows quick and convenient usage with an impact driver and a drill. Thirteen hole sizes with laser marking for easy identification.

Features

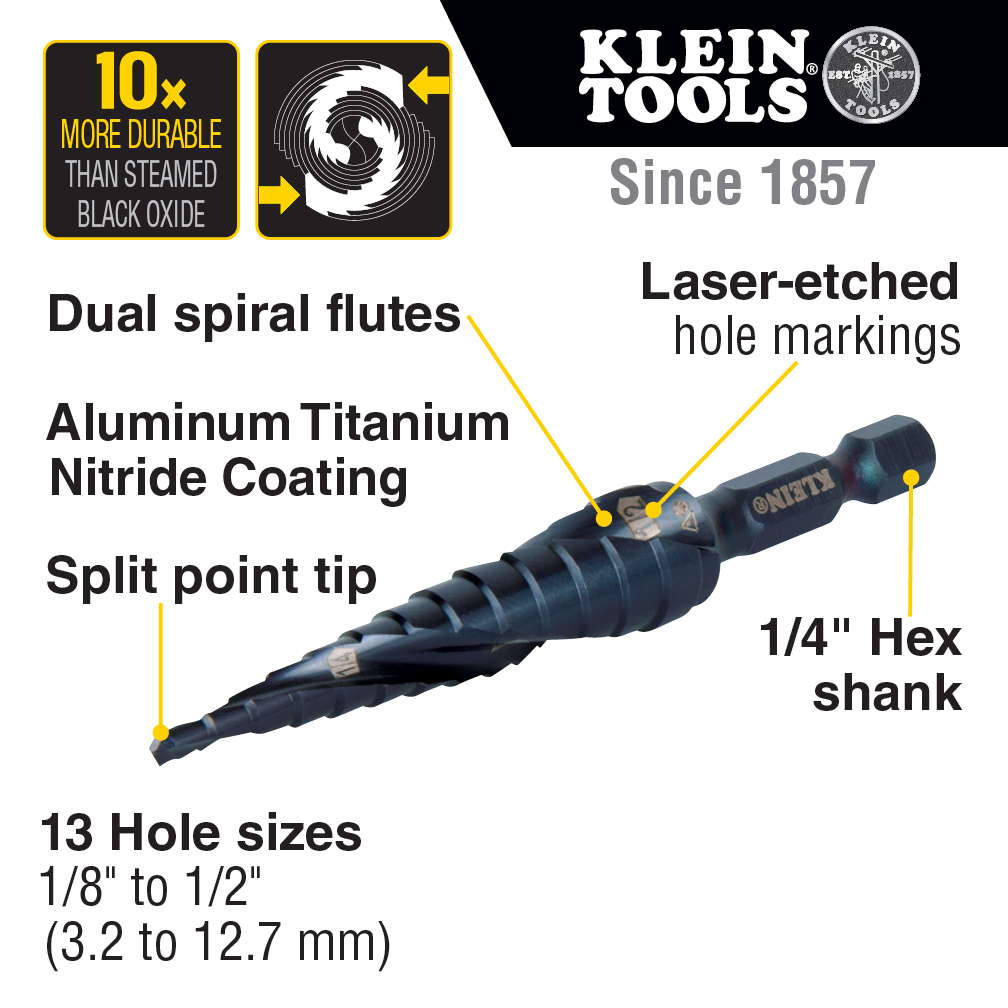

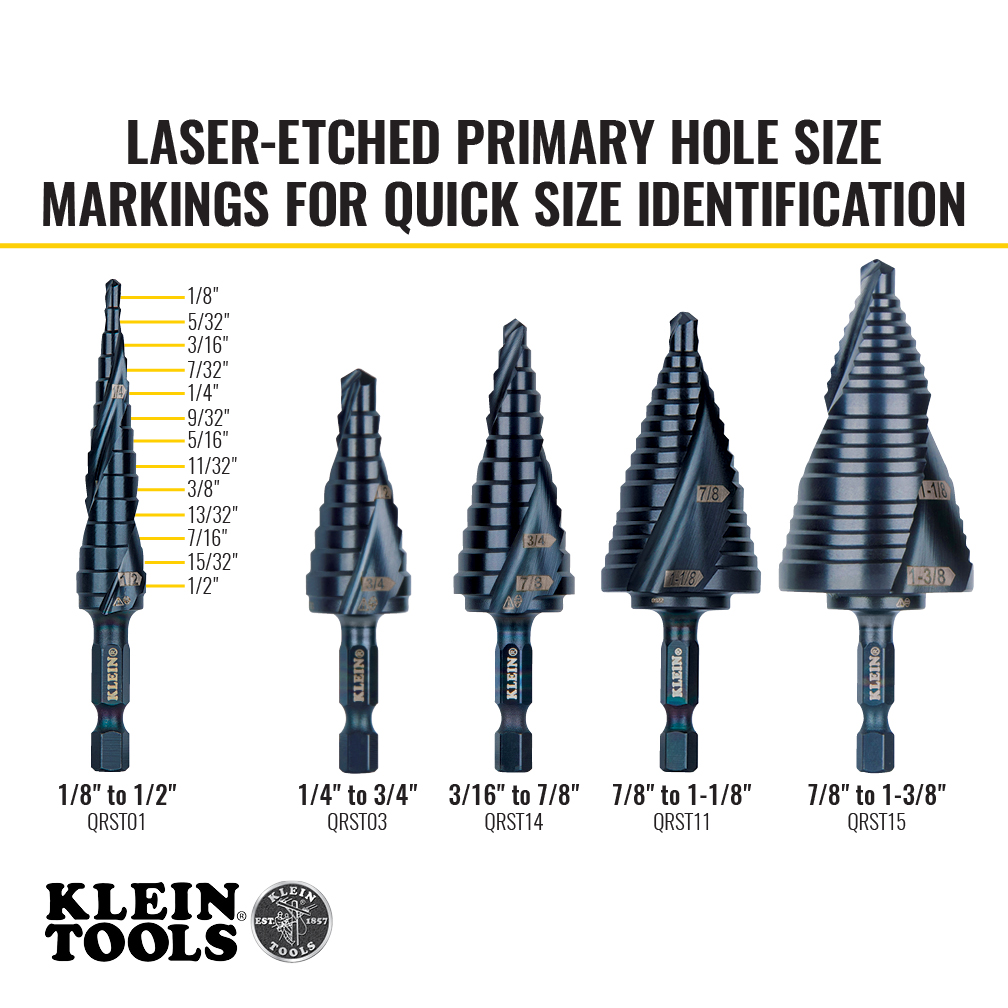

• Laser markings are easy to read for quick size identification of 13 hole sizes
• Fast-starting, non-walking drill tip

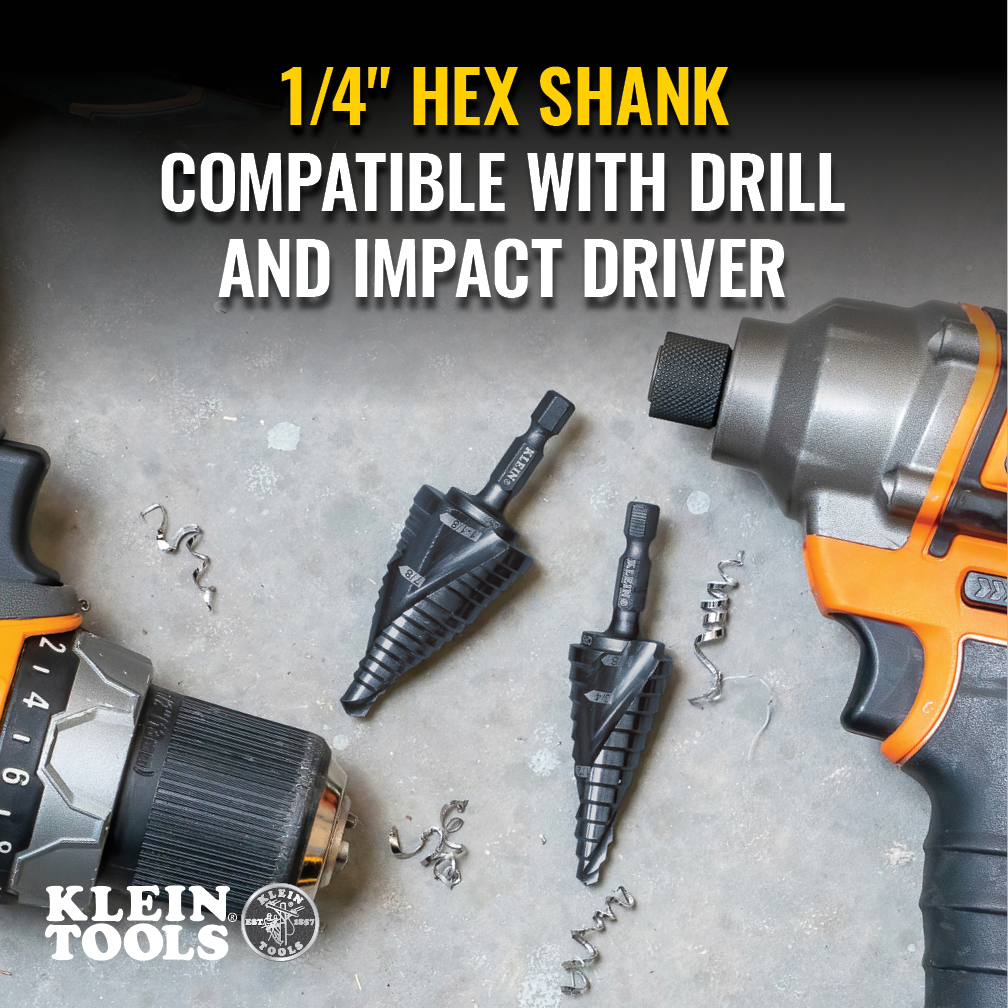

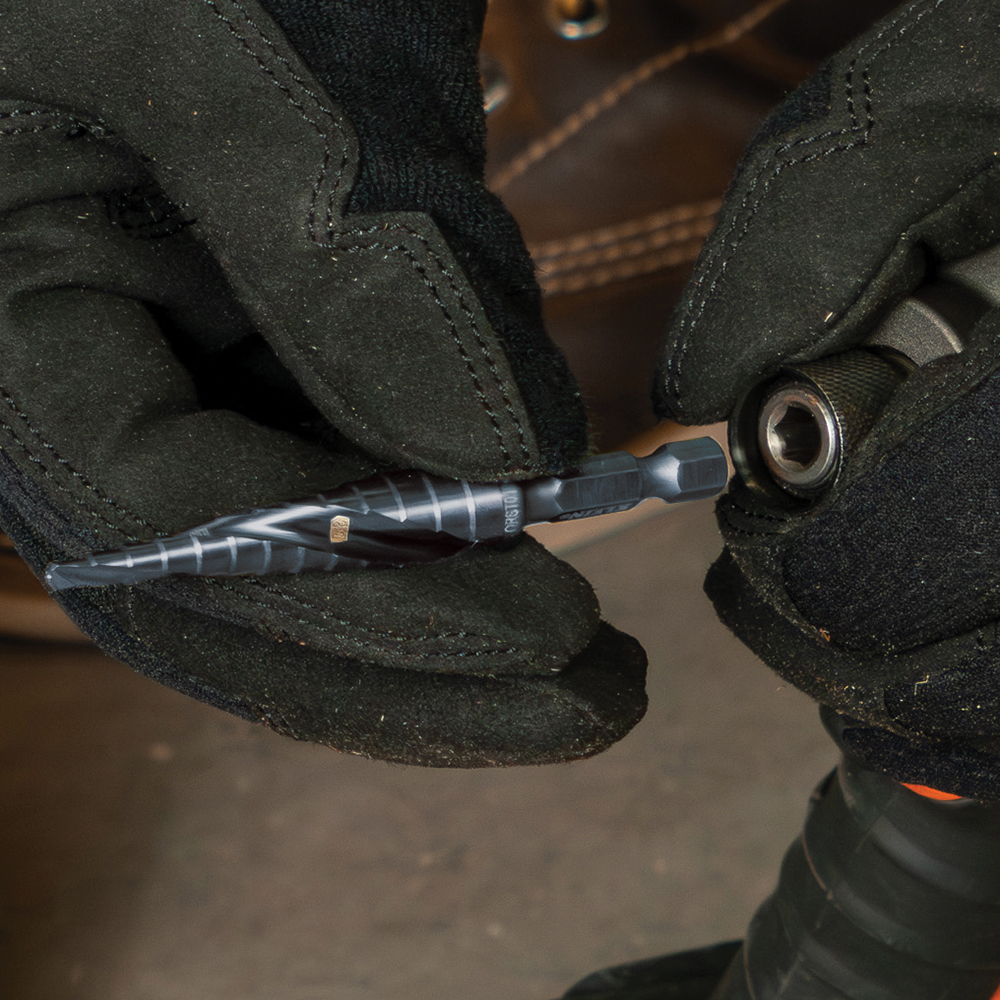

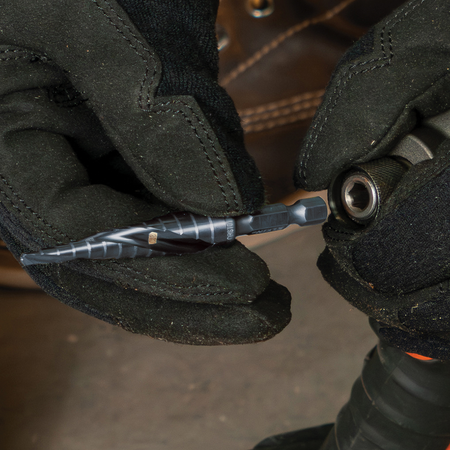

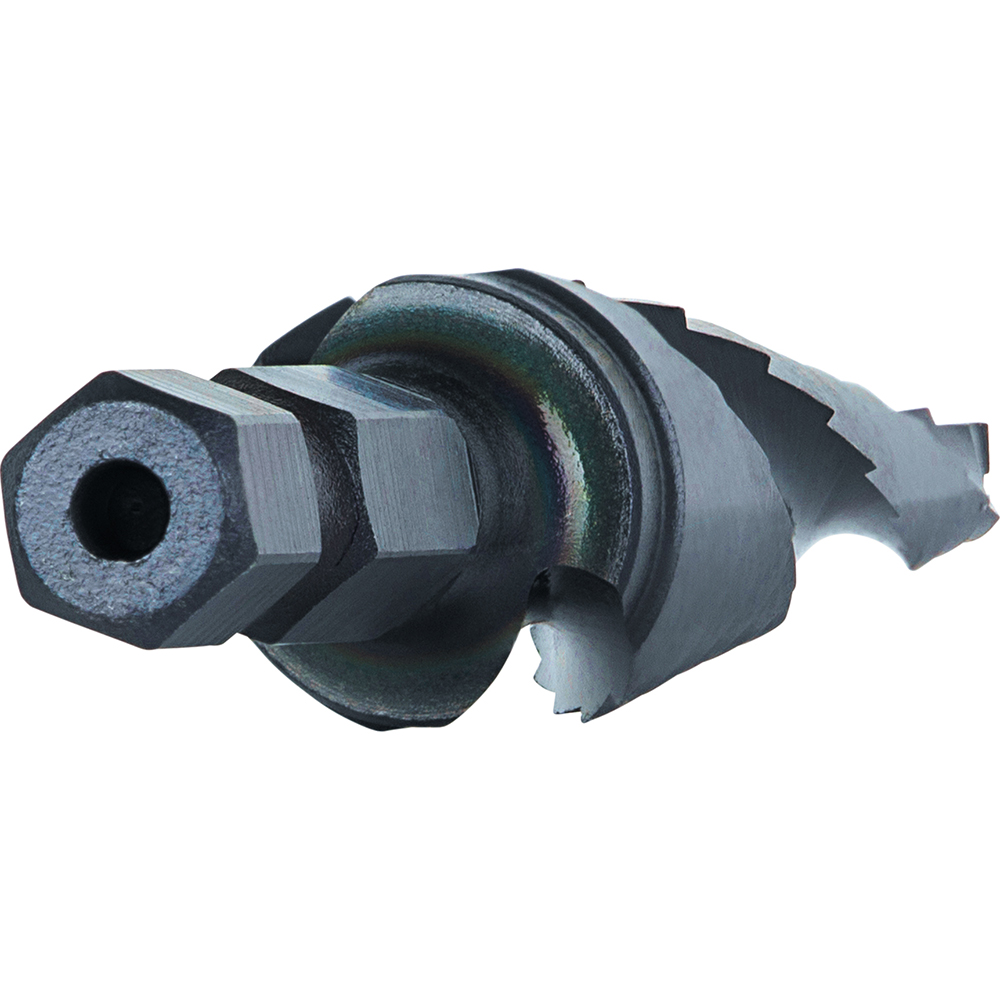

• Quick-release, 1/4-Inch hex shank provides a firm, positive grip and won't spin out in the drill

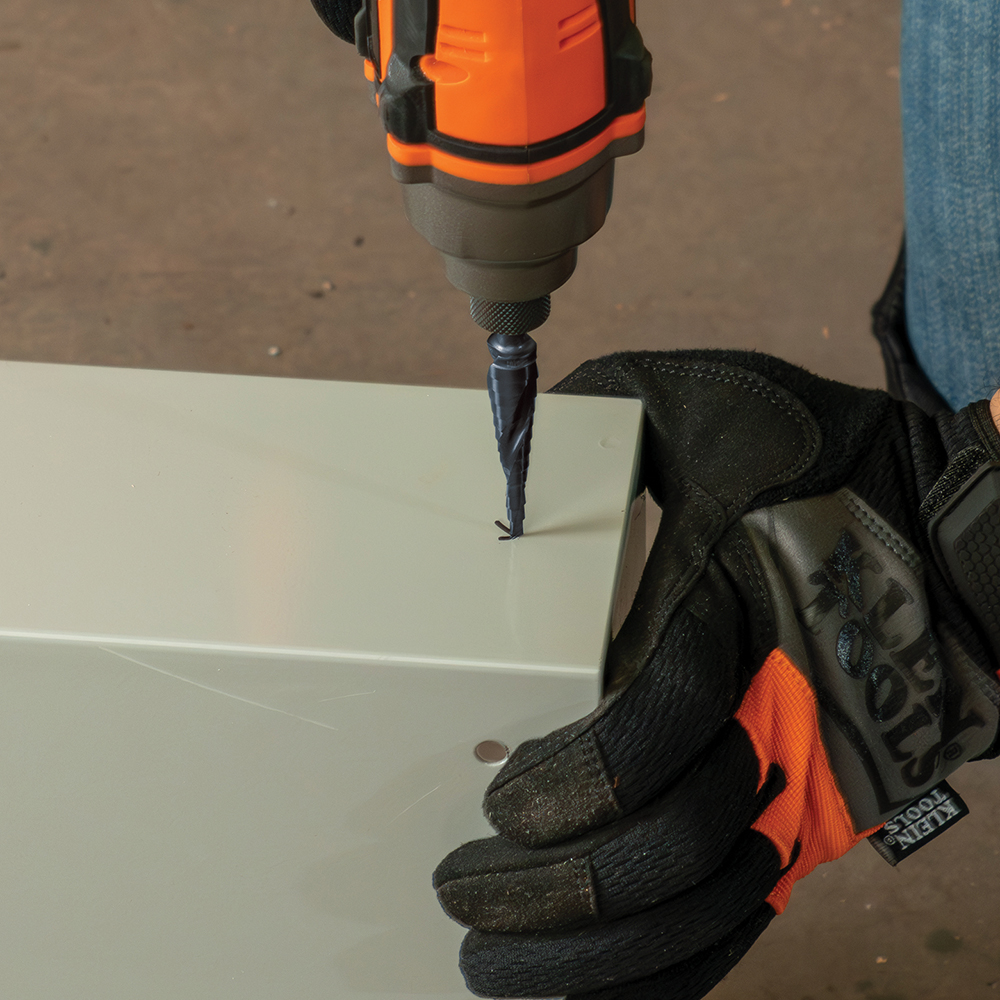

• For use on steel (up to 16 gauge), wood, plastic, and aluminum

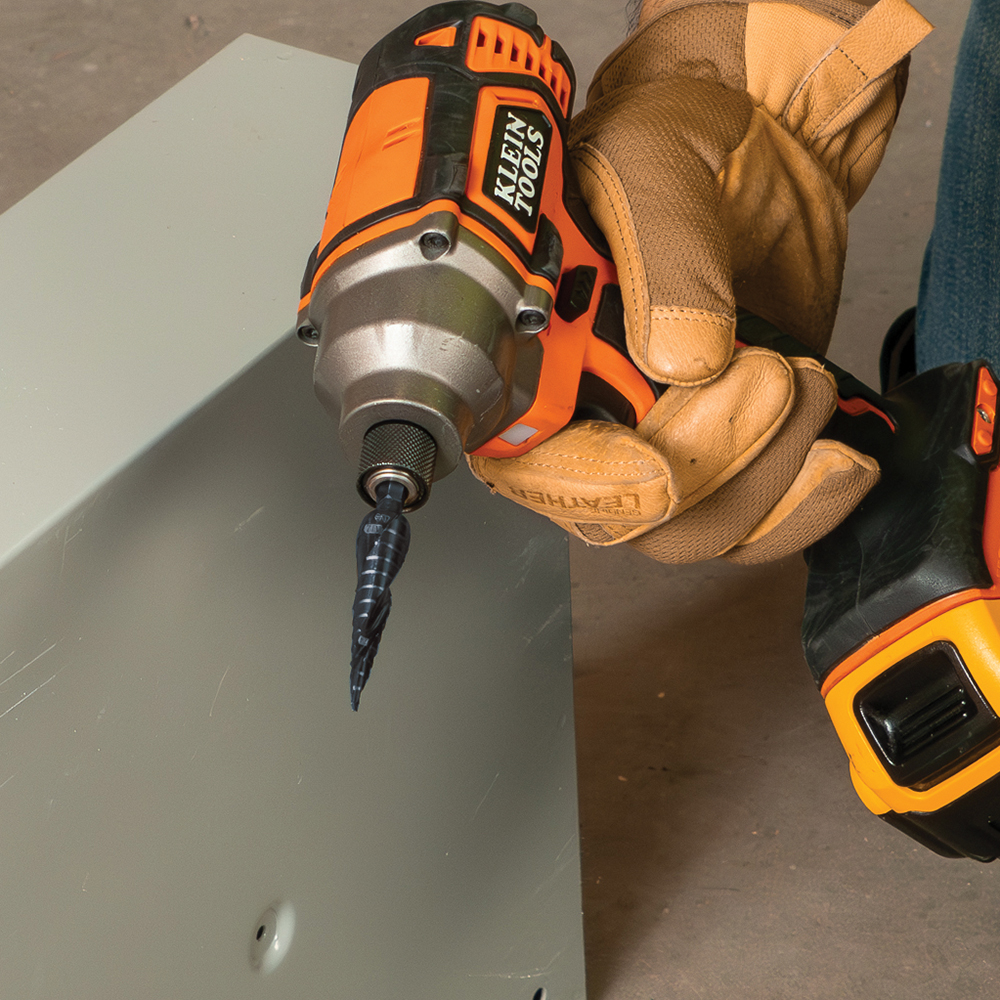

• Impact rated shaft allows for use with impact drivers and standard drills
• Step bits are coated with aluminum titanium nitride and are 10 times more durable than steamed black oxide coating for longer bit life
• Aluminum Titanium Nitride Coating; Dual Spiral Fluting

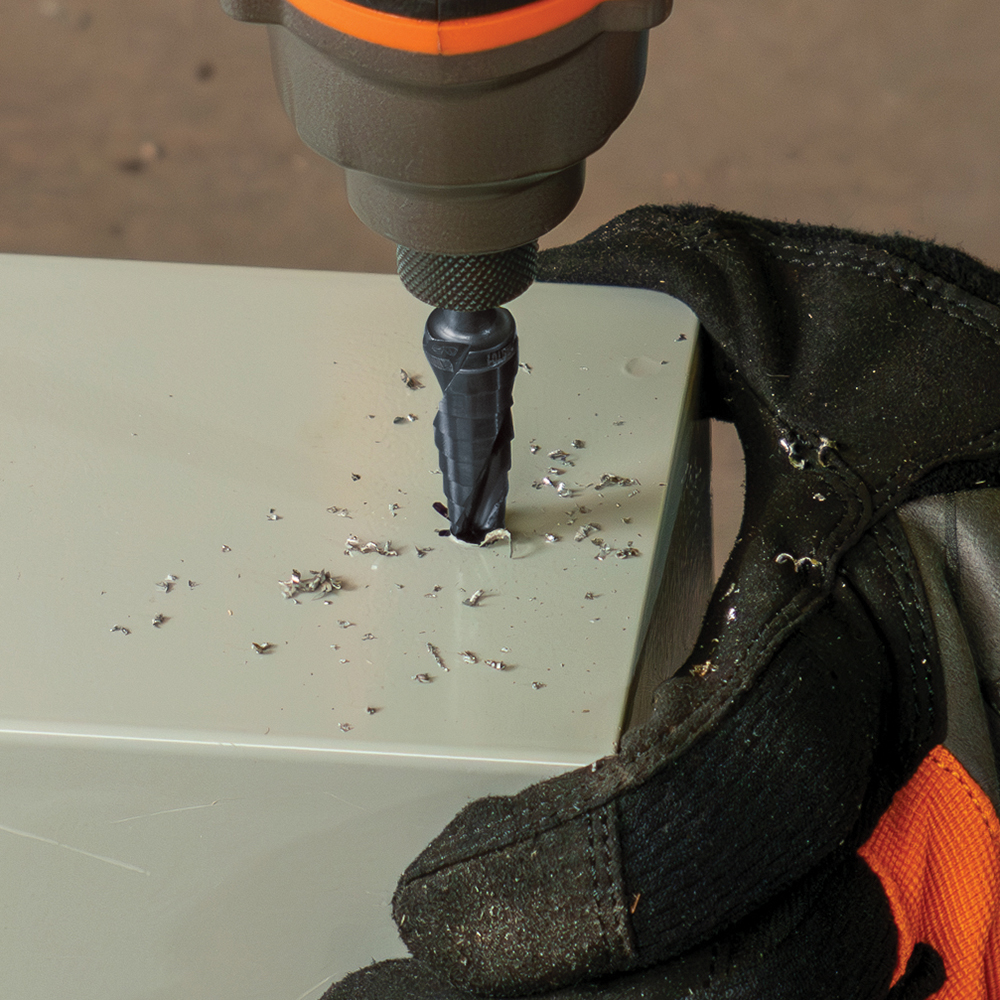

• Double spiral flute removes chips for faster cuts and drilling

Warnings

• Always ensure that you and persons in the vicinity wear approved eye protection.

Note

• Read and follow safety instructions in power tool owner's manual.

Specifications

• Number of Holes: 13
• Shank Type: 1/4" Hex
• Overall Width (cm): 1.3
• Overall Length (Inch): 0.5
• Increment: 1/32" (0.8 mm)
• Depth: 0.5000 in
• Flute Type: Spiral
• Weight: 0.0700 lbs
• Weight (oz): 1.1
• Coating: Aluminum Titanium Nitride (AlTiN)
• Overall Height (cm): 8.6
• Weight (g): 31
• Height: 3.4300 in

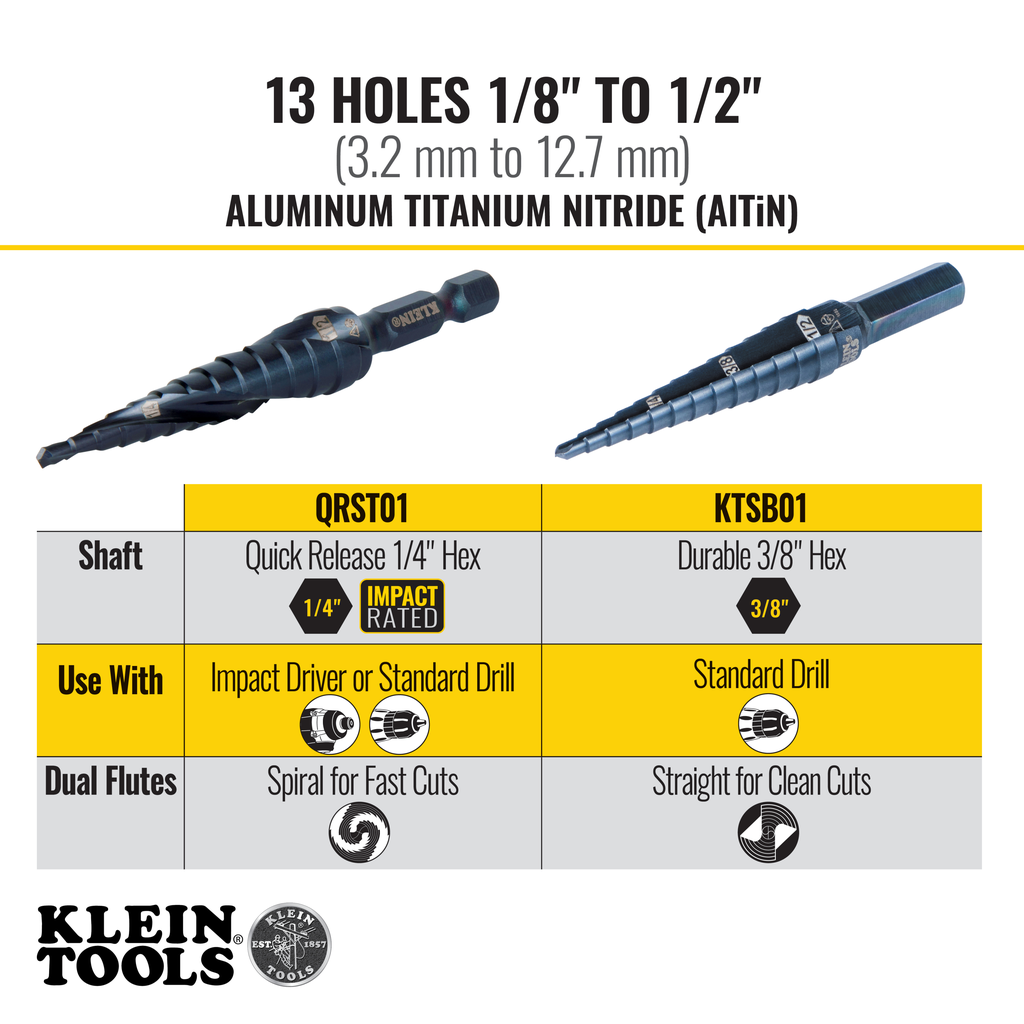

• Size: 1/8" to 1/2" (3.2 mm to 12.7 mm)
• Type: Step Drill Bit
• Overall Height (Inch): 3.4
• Application: Multi-Material Drilling
• Quick Reference: #1
• Material: High Speed Steel
• Overall Length (cm): 1.3
• Overall Width (Inch): 0.5
• Width: 0.5000 in
