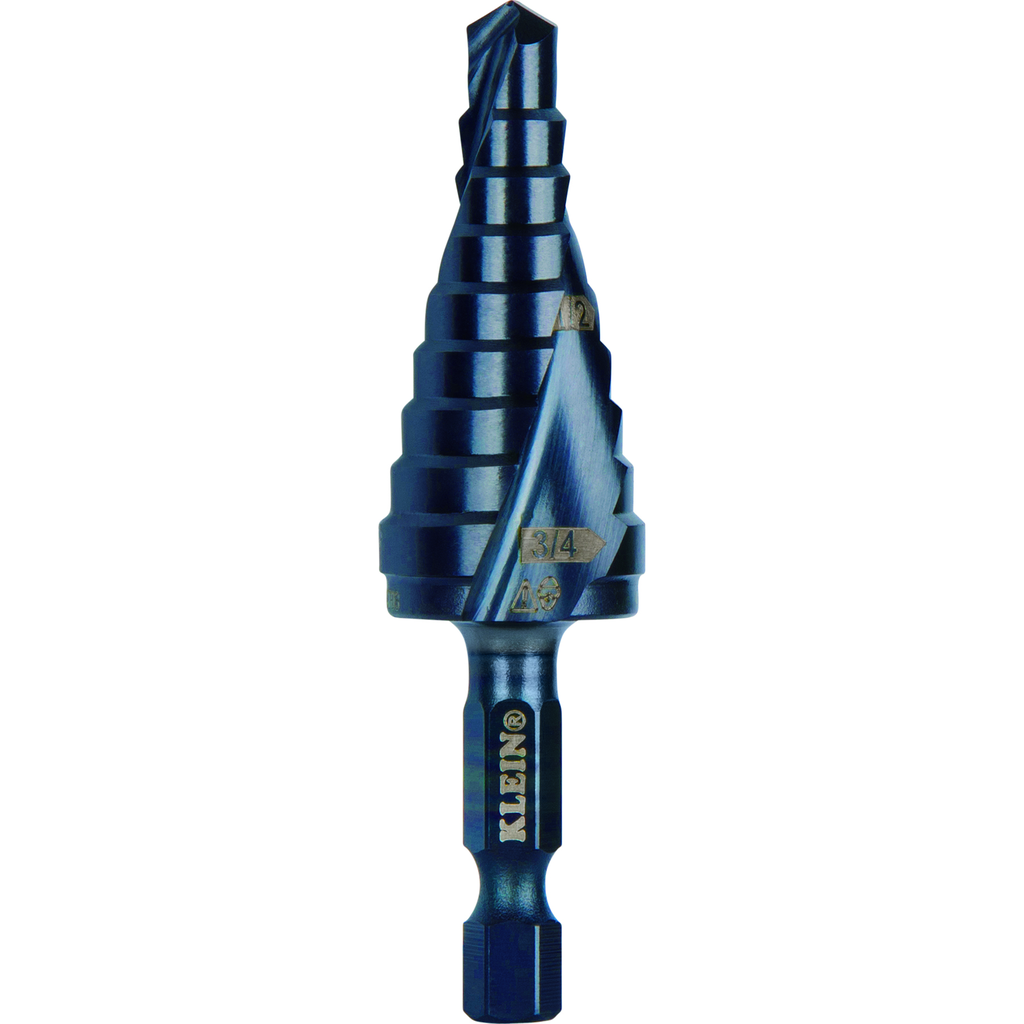

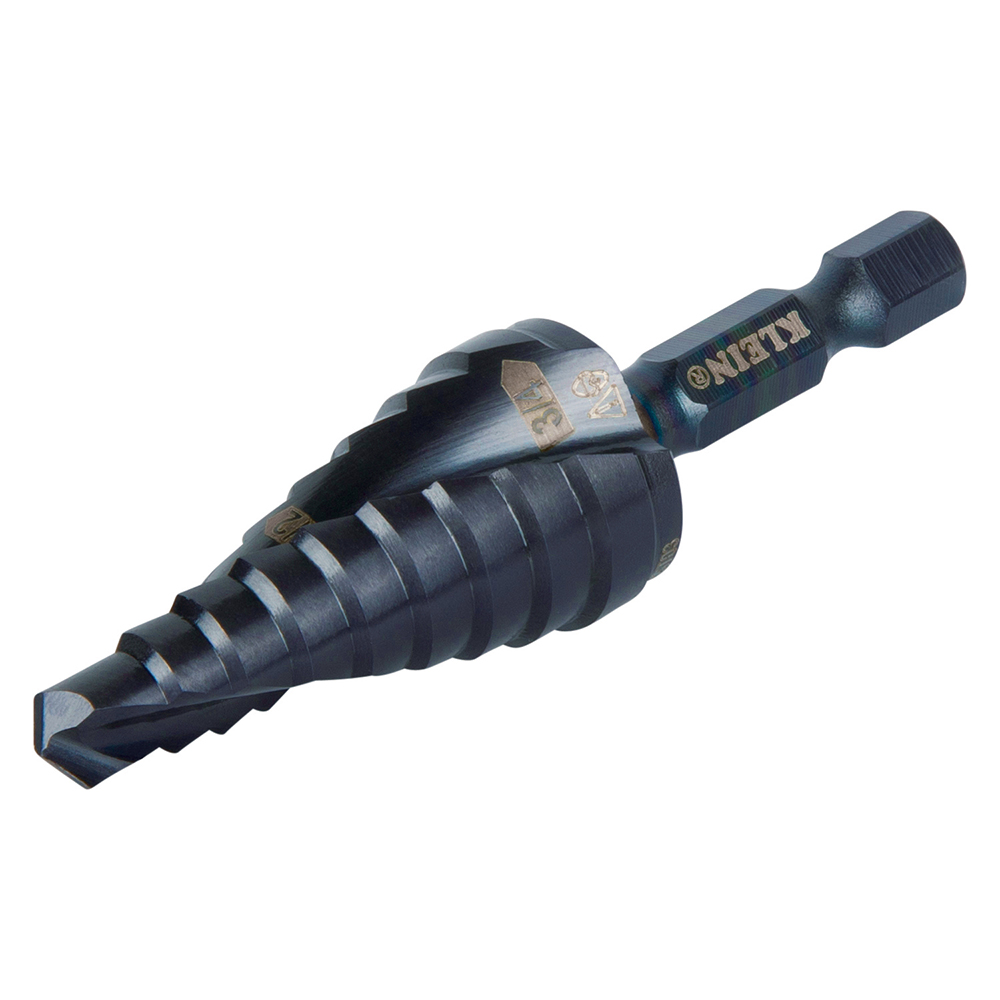

Step Drill Bit, Quick Release, Double Spiral Flute, 1/4 to 3/4-Inch

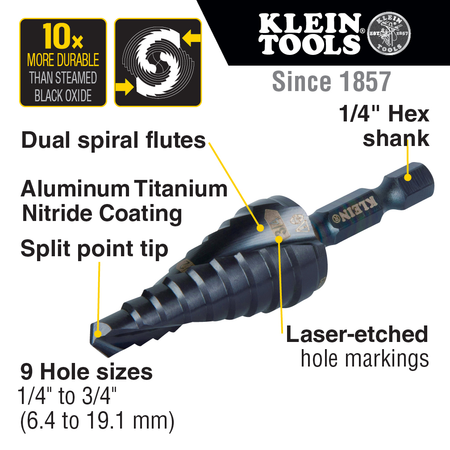

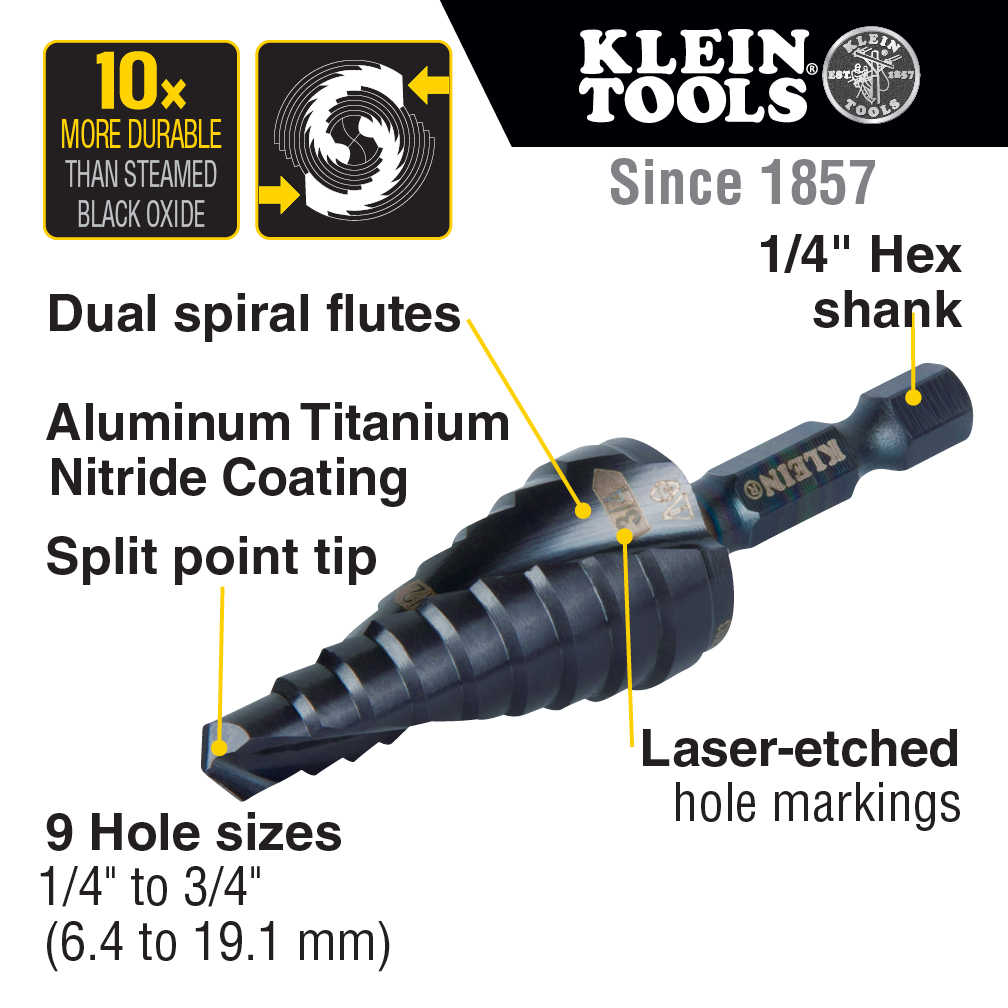

The dual spiral flutes on Klein Step Drill Bits help pull the step bit through the material for faster cutting. The aluminum titanium coating is 10 times more durable than steamed black oxide for longer bit life. Impact rated, the 1/4-Inch hex shank provides a firm, positive grip and allows quick and convenient usage with an impact driver and a drill. Nine hole sizes with laser marking for easy identification.

Features

• Fast-starting, non-walking drill tip

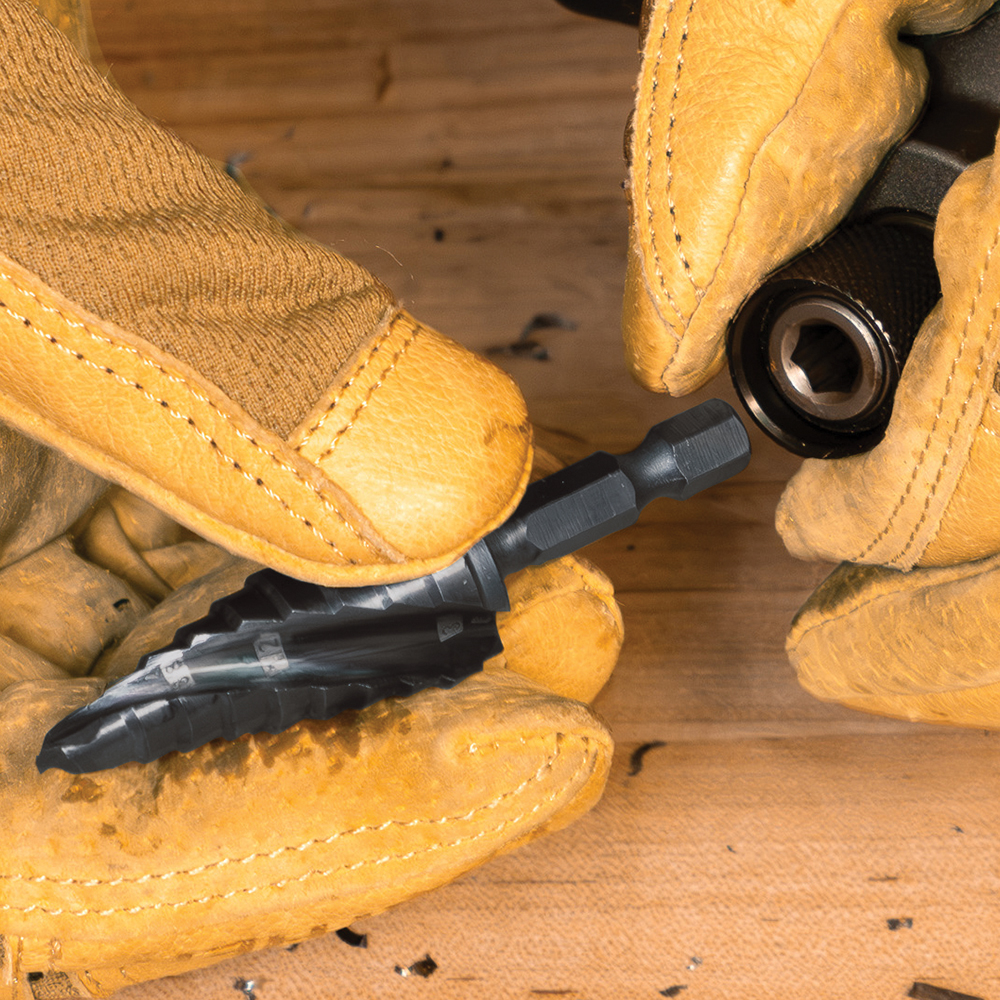

• Quick-release, 1/4-Inch hex shank provides a firm, positive grip and won't spin out in the drill
• Double spiral flute removes chips for faster cuts and drilling

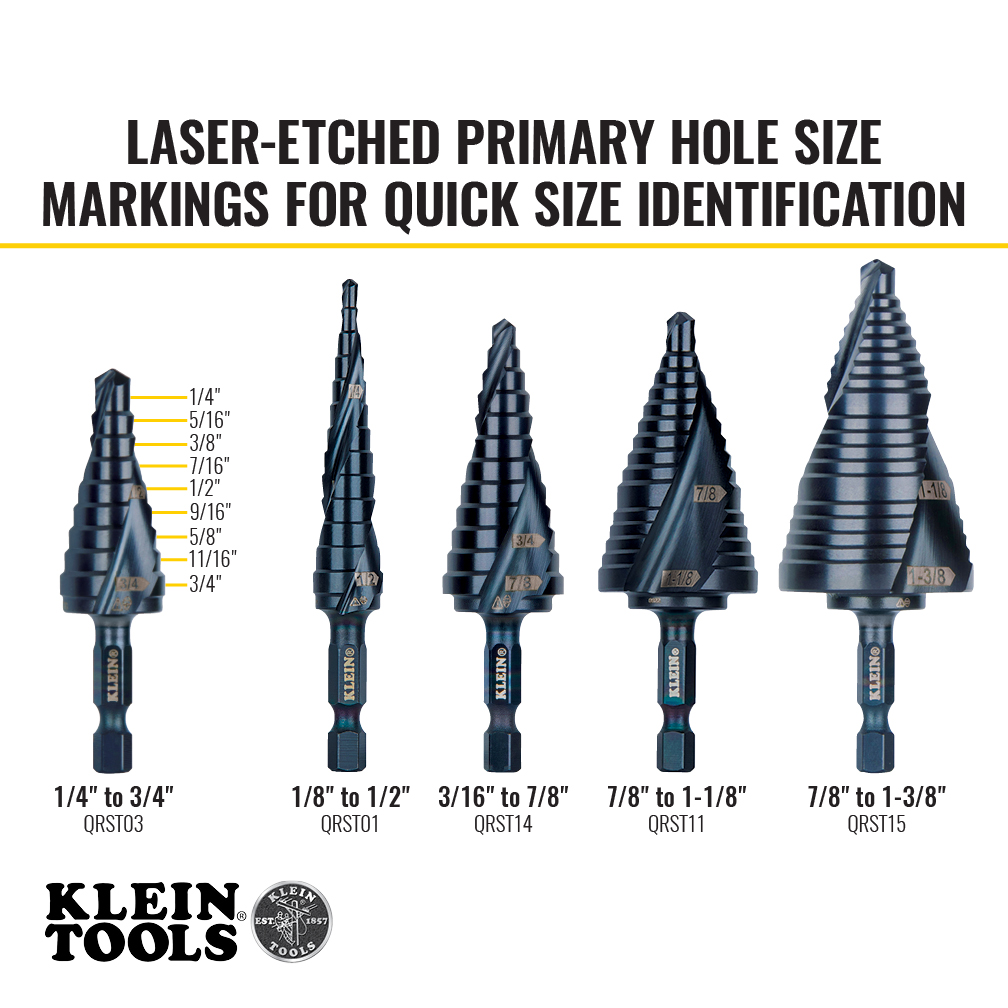

• Laser markings are easy to read for quick size identification of nine hole sizes
• Aluminum Titanium Nitride Coating; Dual Spiral Fluting

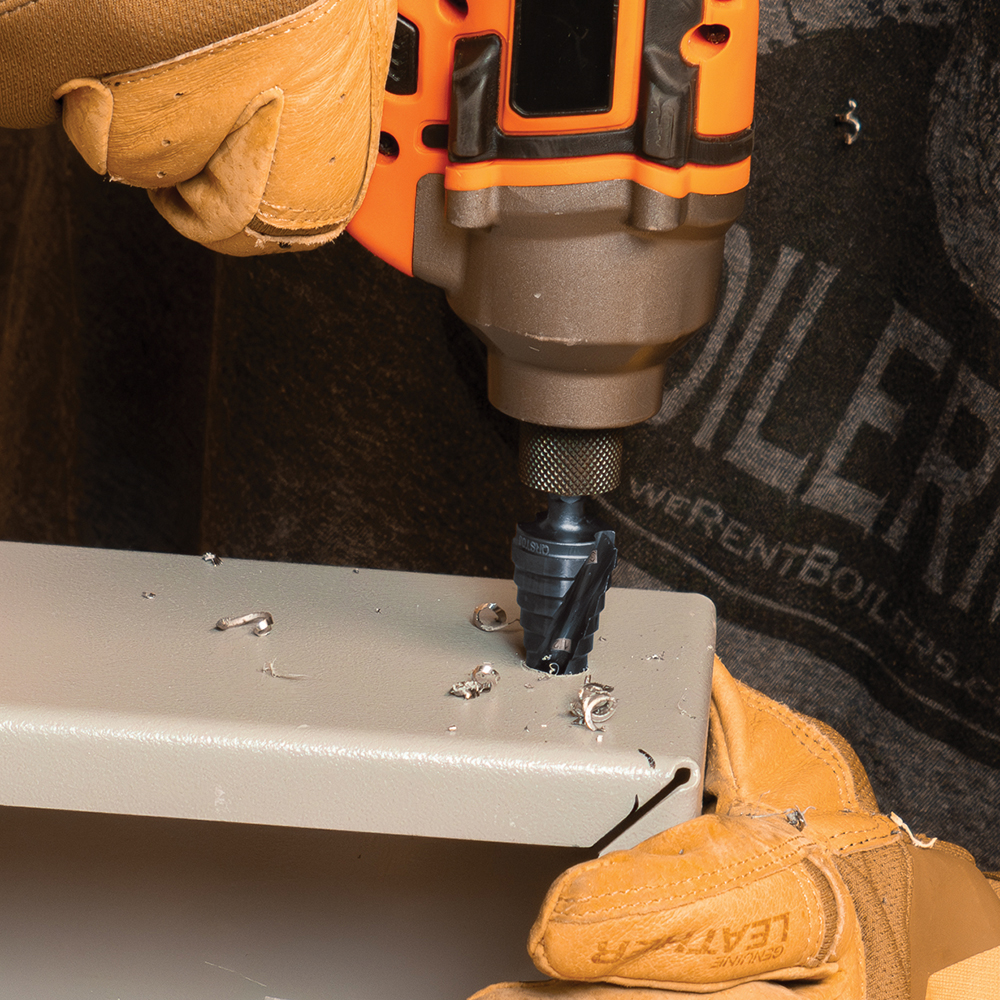

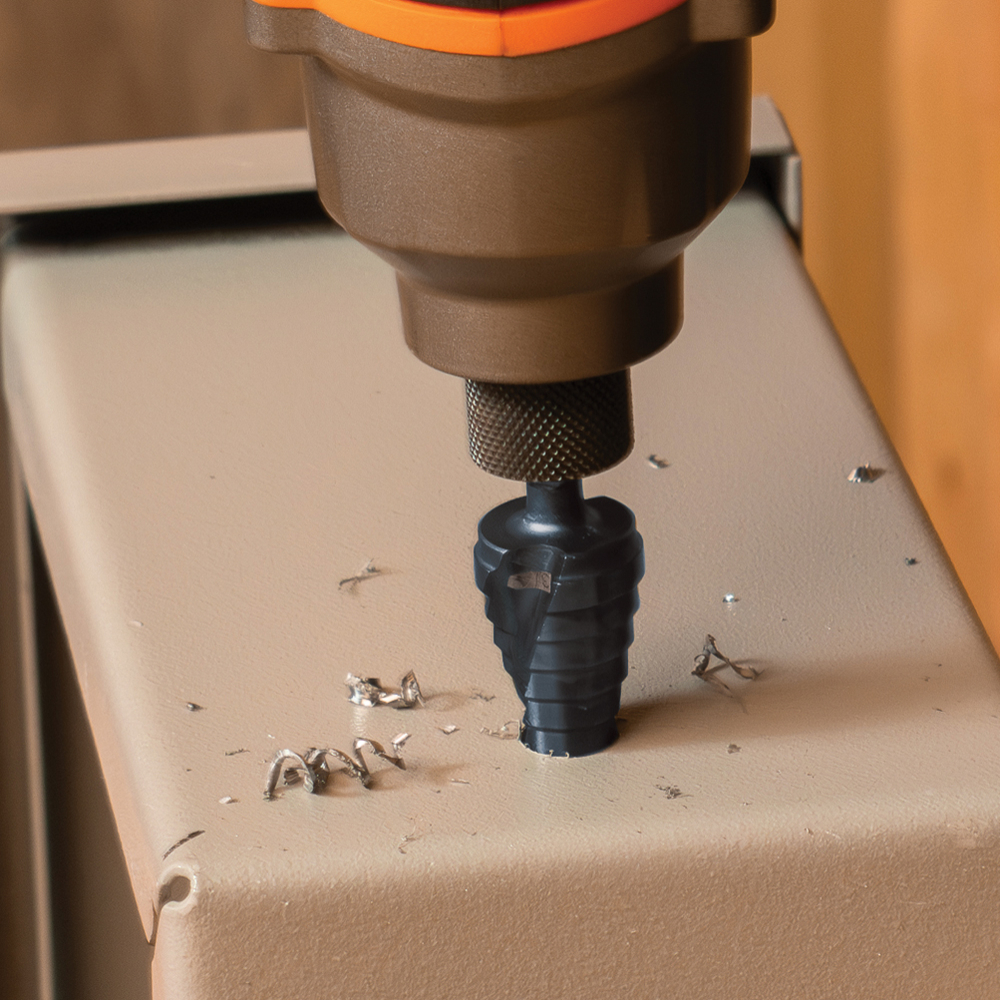

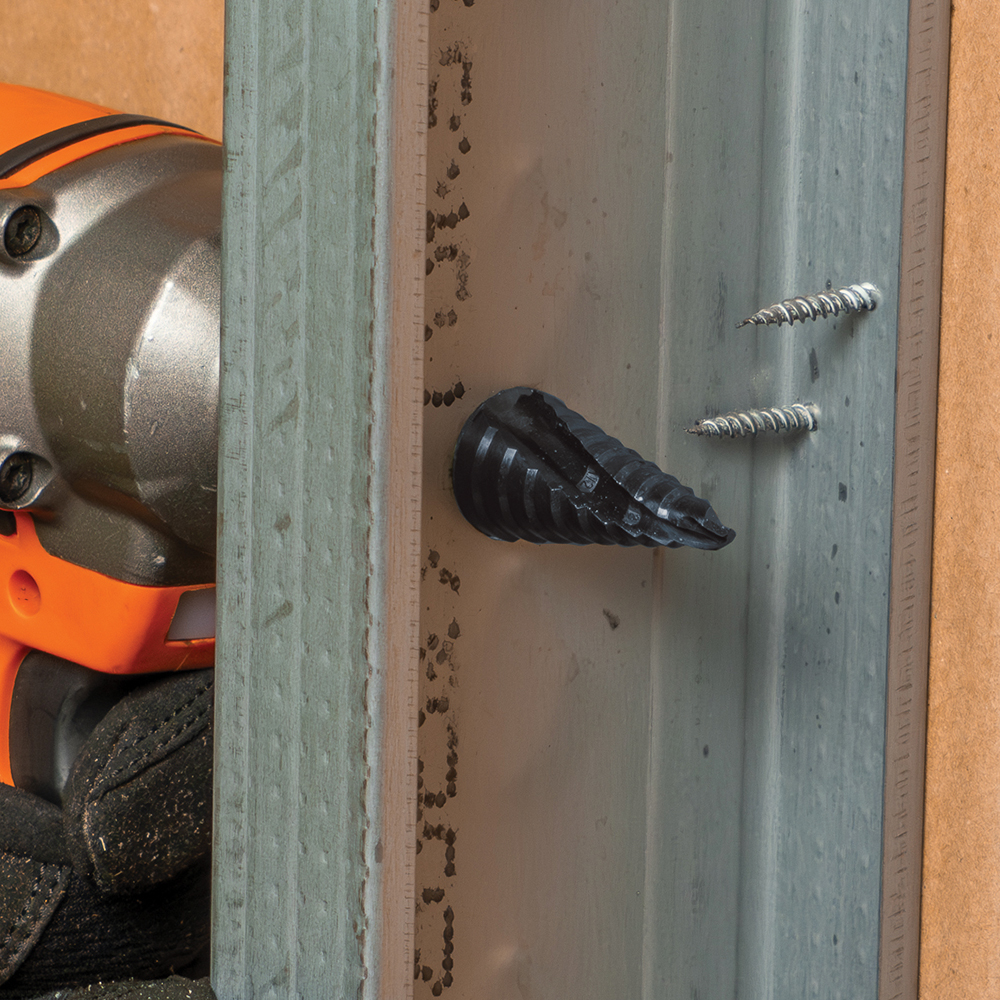

• For use on steel (up to 16 gauge), wood, plastic, and aluminum
• Step bits are coated with aluminum titanium nitride and are 10 times more durable than steamed black oxide coating for longer bit life

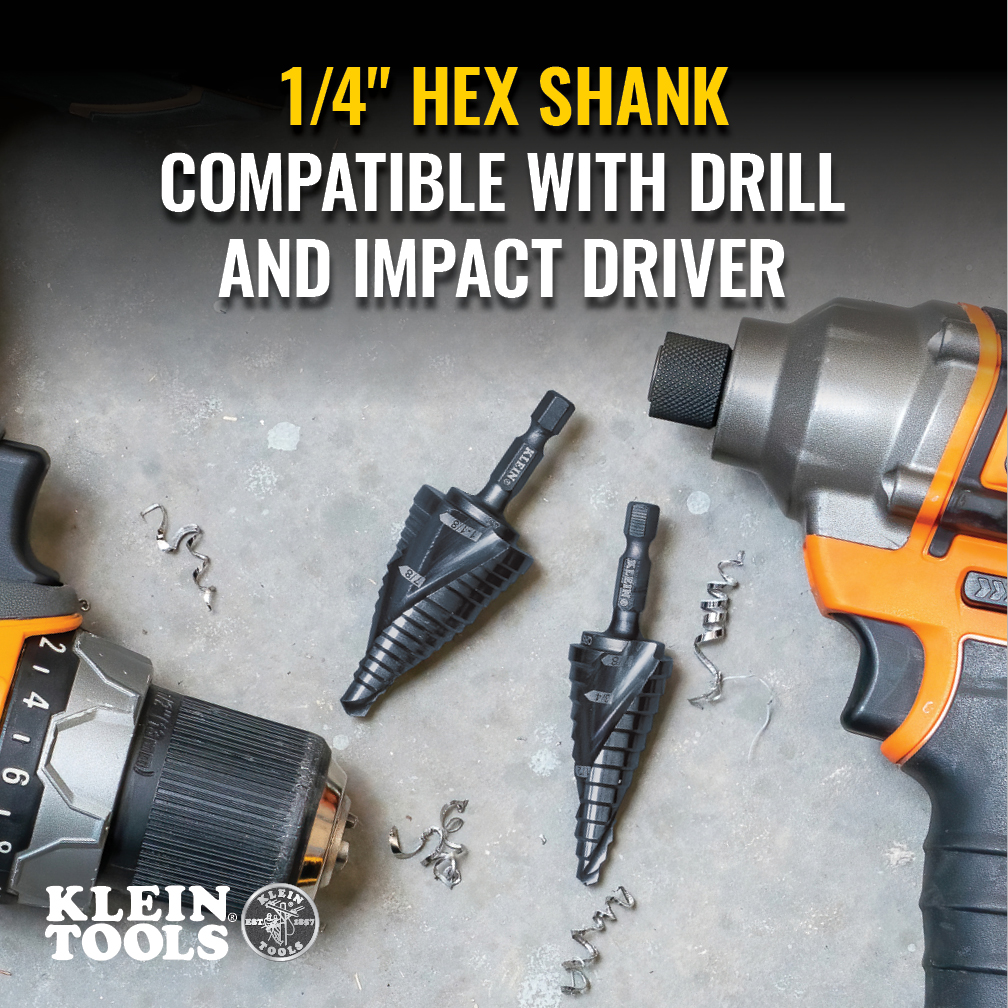

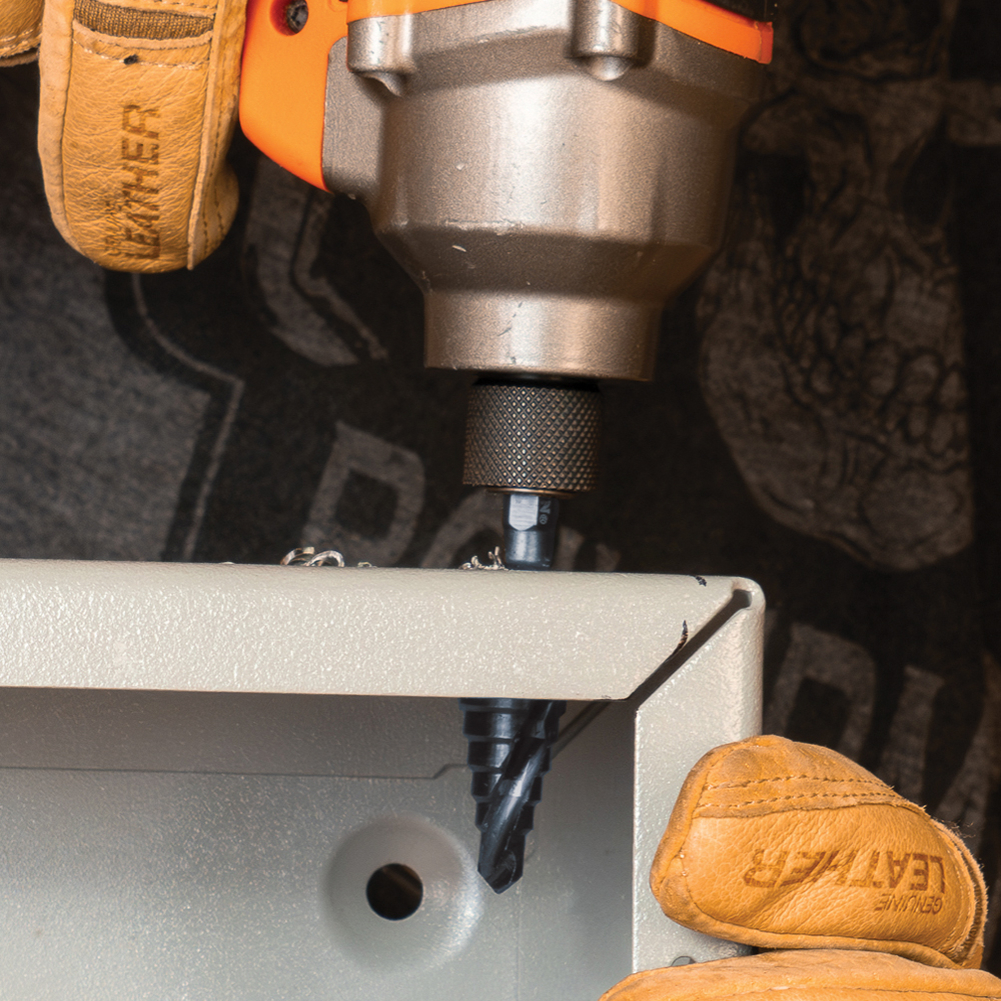

• Impact rated shaft allows for use with impact drivers and standard drills

Warnings

• Always ensure that you and persons in the vicinity wear approved eye protection.

Note

• Read and follow safety instructions in power tool owner's manual.

Specifications

• Overall Height (cm): 7.1
• Coating: Aluminum Titanium Nitride (AlTiN)
• Material: High Speed Steel
• Number of Holes: 9
• Overall Width (cm): 1.9
• Application: Multi-Material Drilling
• Depth: 0.7500 in
• Overall Height (Inch): 2.8
• Quick Reference: #3
• Overall Length (Inch): 0.75
• Width: 0.7500 in
• Weight (g): 51
• Weight: 0.1100 lbs
• Overall Length (cm): 1.9
• Overall Width (Inch): 0.75
• Height: 2.8200 in
• Size: 1/4" to 3/4" (6.4 mm to 19.1 mm)
• Weight (oz): 1.8
• Increment: 1/16" (1.6 mm)
• Type: Step Drill Bit
• Flute Type: Spiral
• Shank Type: 1/4" Hex
