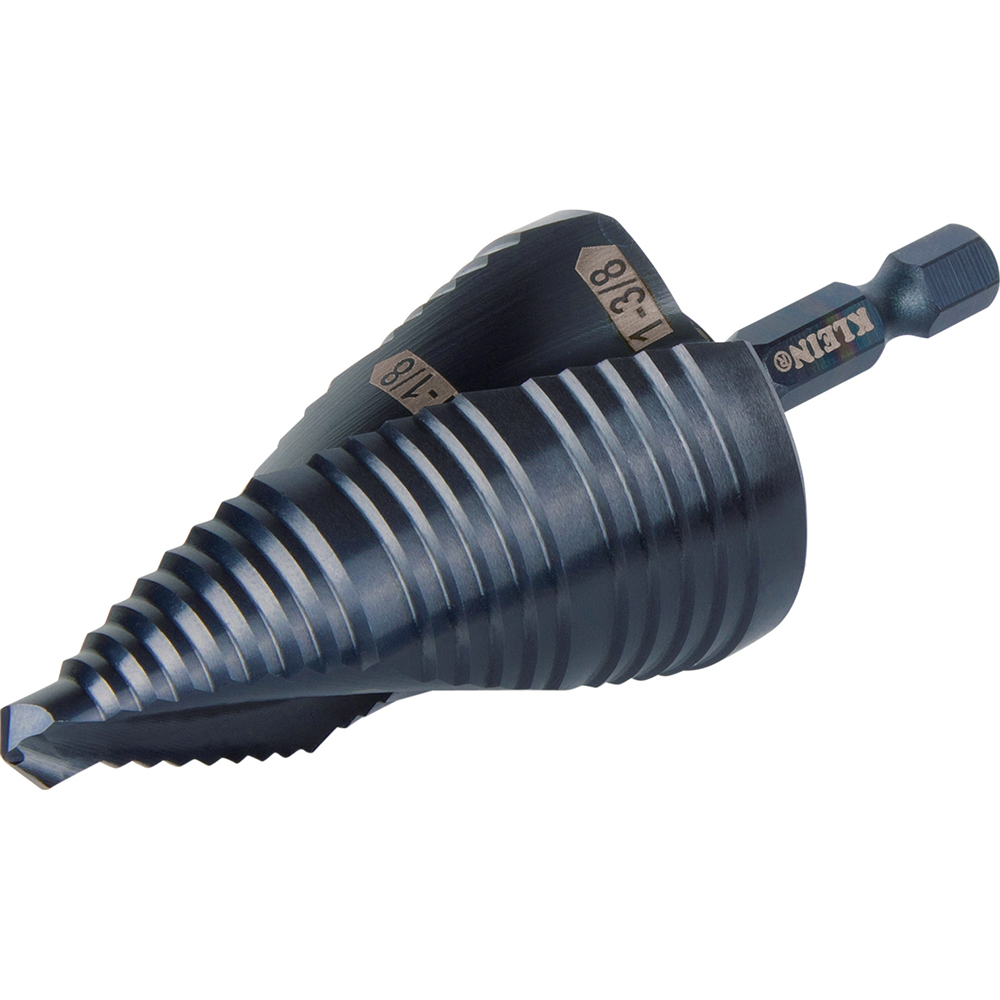

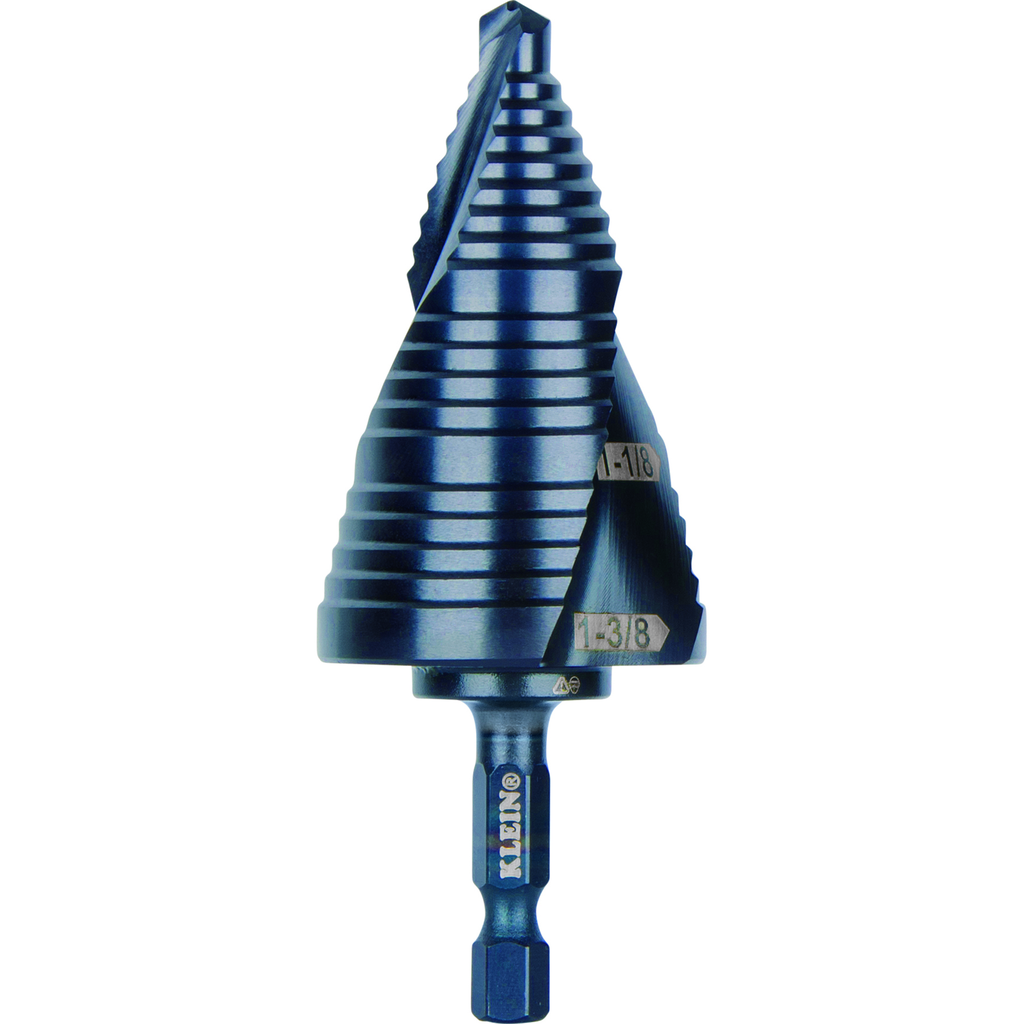

Step Drill Bit, Quick Release, Double Spiral Flute, 7/8 to 1-3/8-Inch

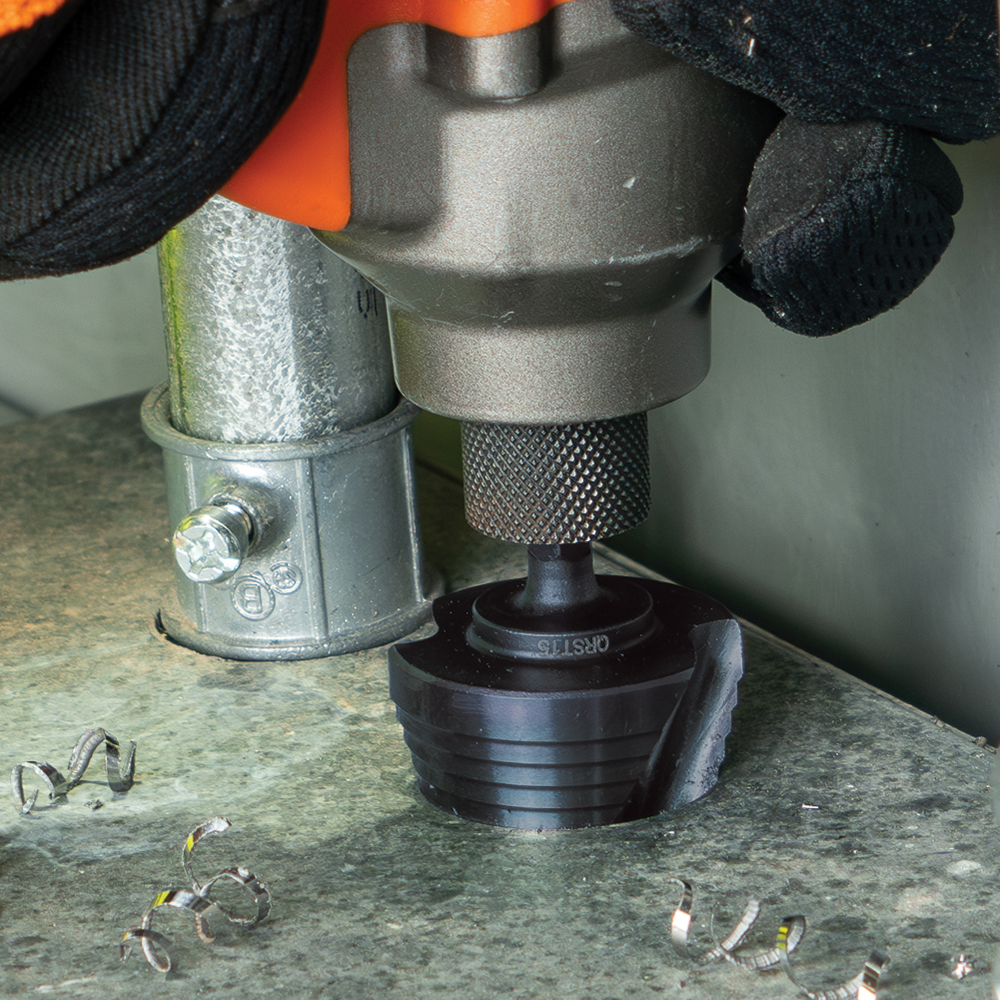

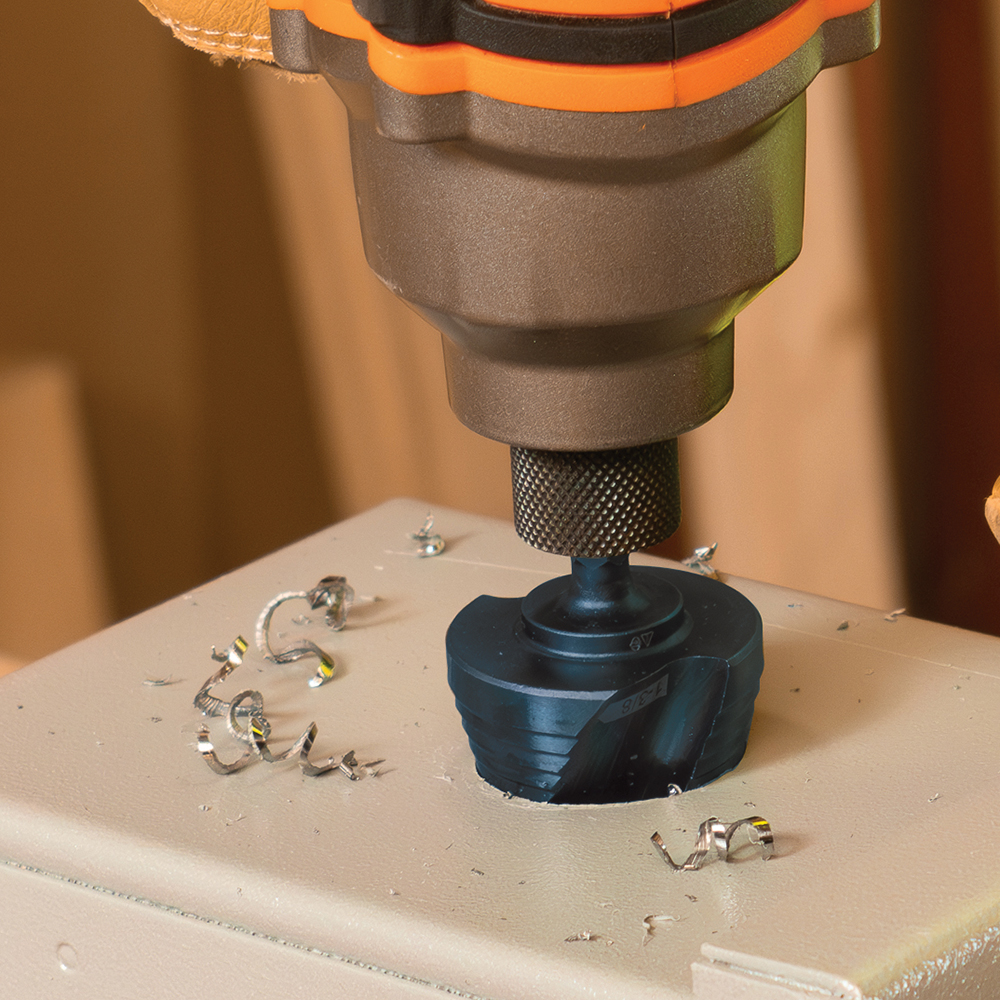

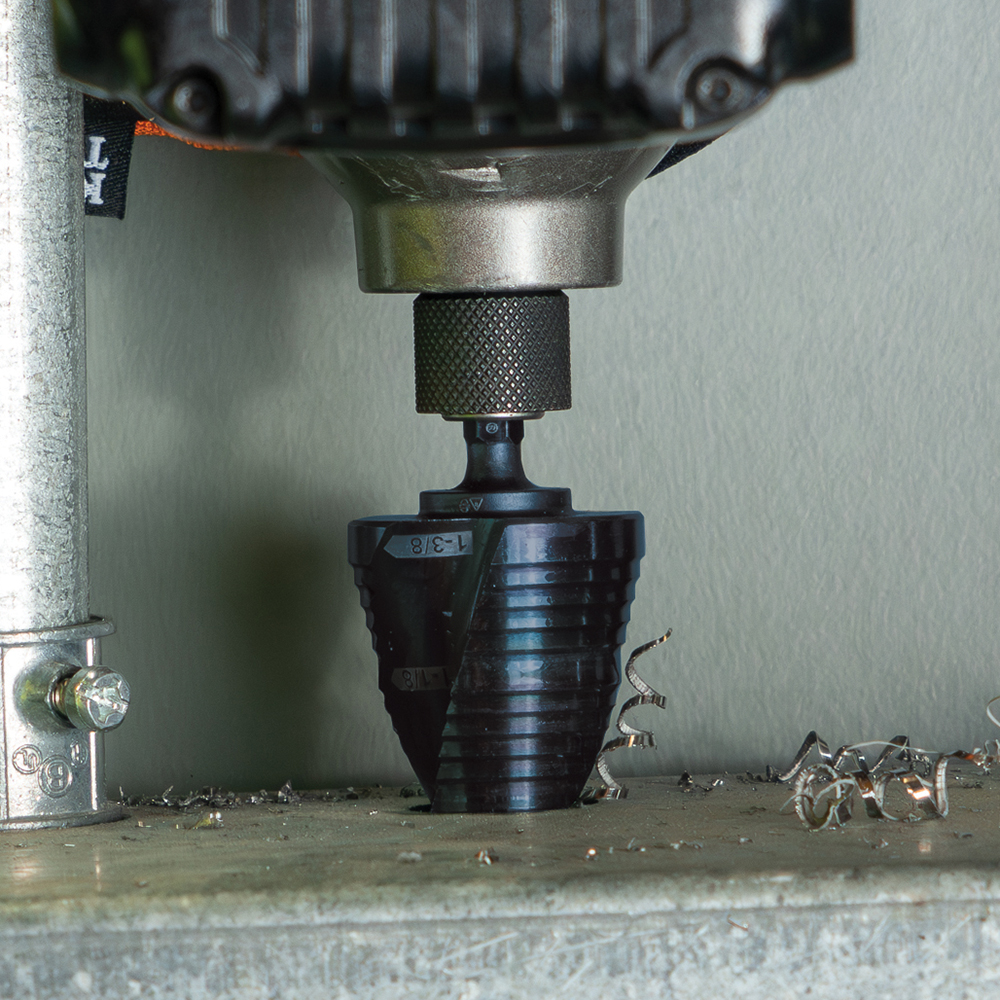

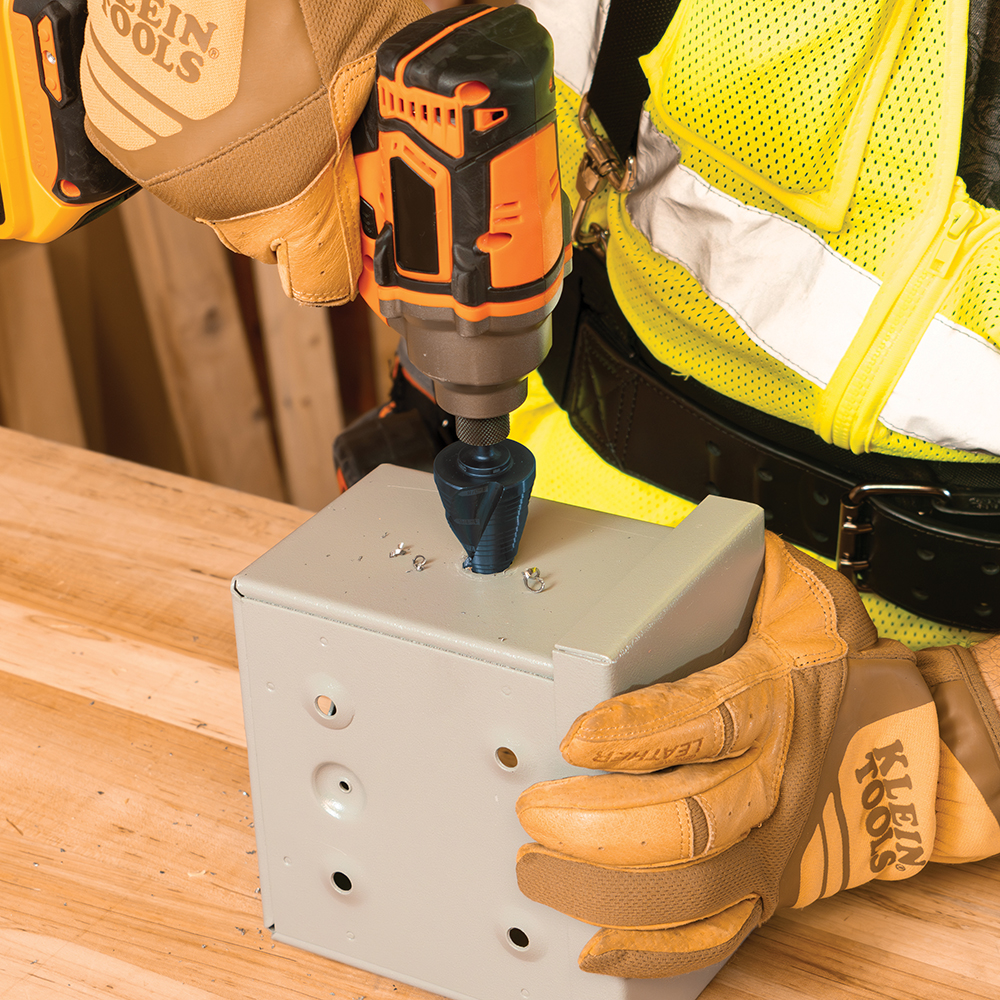

The dual spiral flutes on Klein Step Drill Bits help pull the step bit through the material for faster cutting. The aluminum titanium coating is 10 times more durable than steamed black oxide for longer bit life. Impact rated, the 1/4-Inch hex shank provides a firm, positive grip and allows quick and convenient usage with an impact driver and a drill. Three hole sizes with laser marking for easy identification.

Warnings

• Always ensure that you and persons in the vicinity wear approved eye protection.

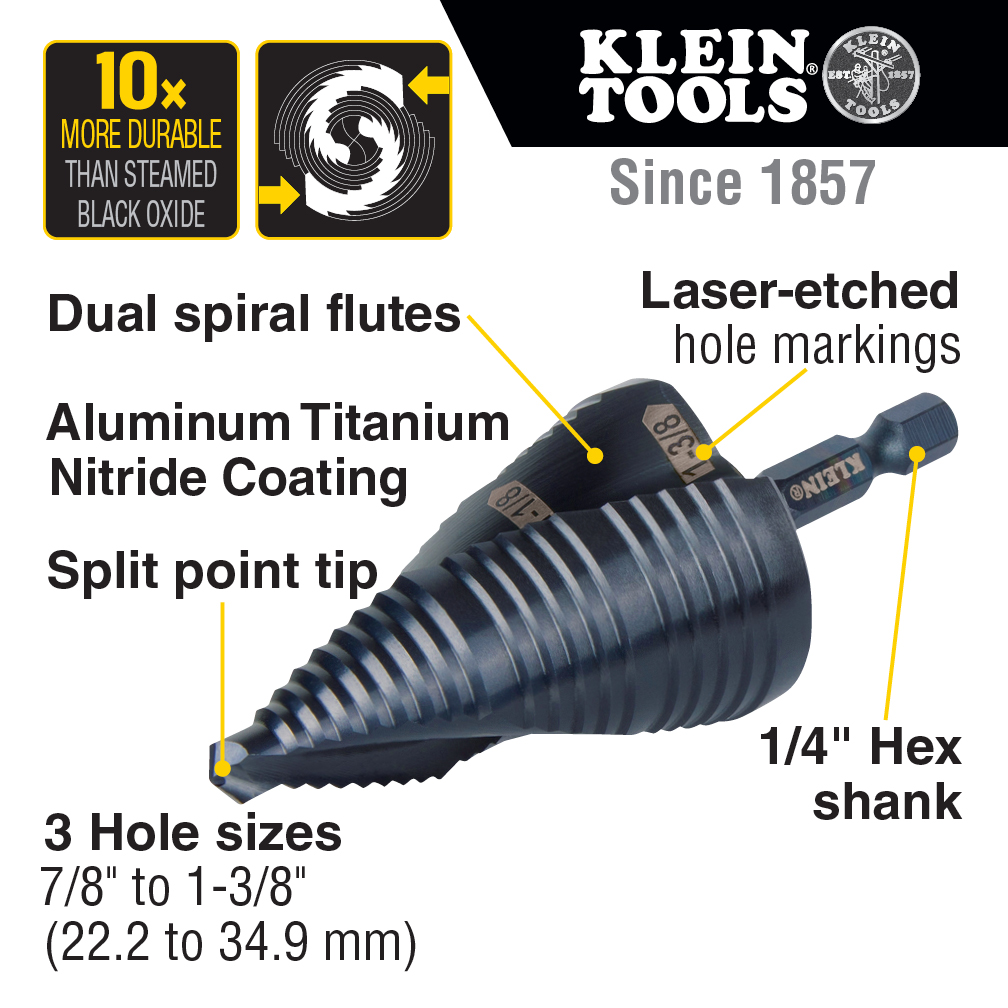

Features

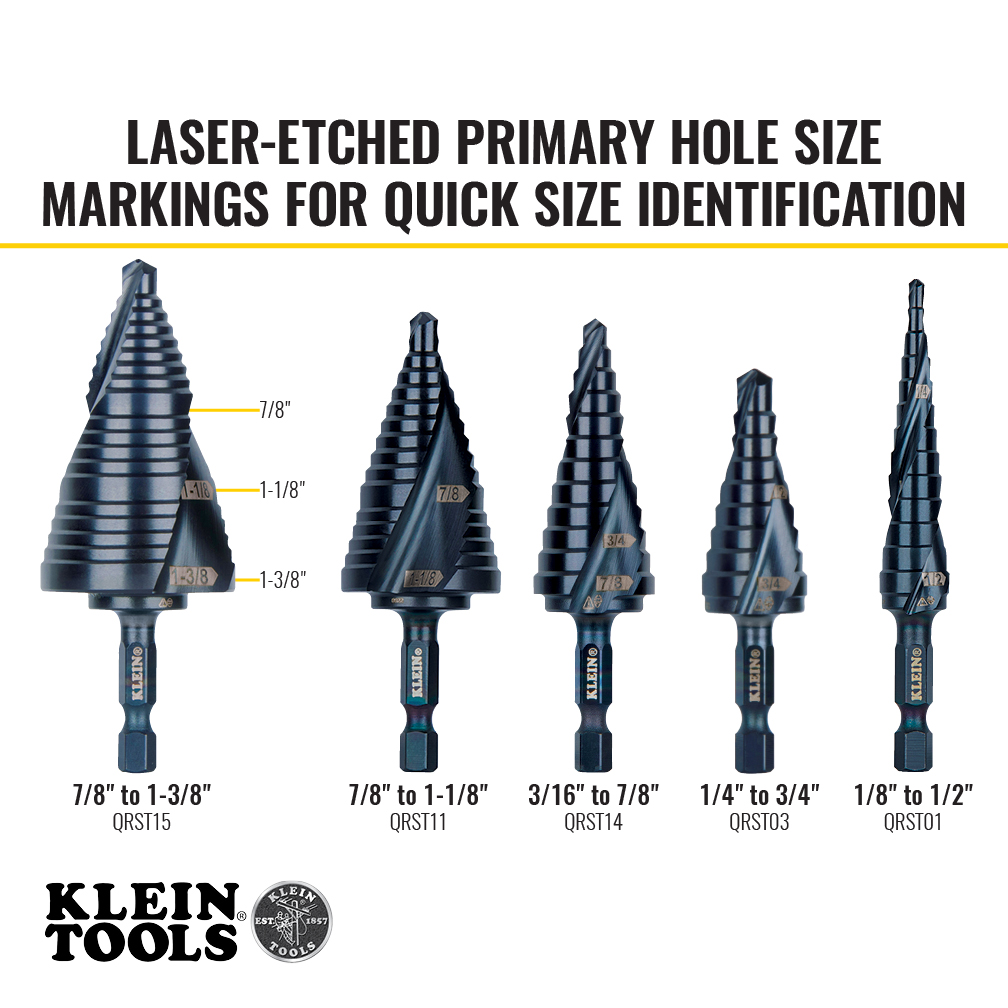

• Laser markings are easy to read for quick size identification of three hole sizes
• Aluminum Titanium Nitride Coating; Dual Spiral Fluting
• For use on steel (up to 16 gauge), wood, plastic, and aluminum
• Double spiral flute removes chips for faster cuts and drilling

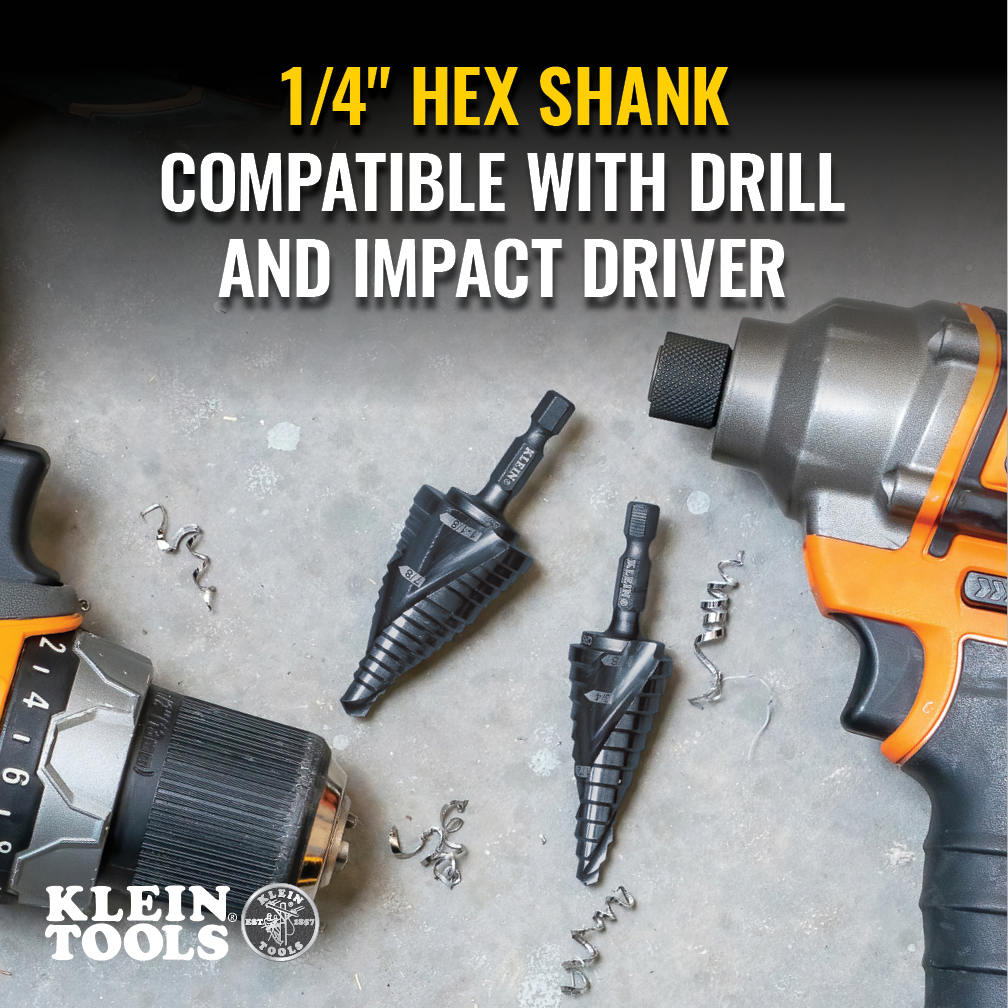

• Impact rated shaft allows for use with impact drivers and standard drills

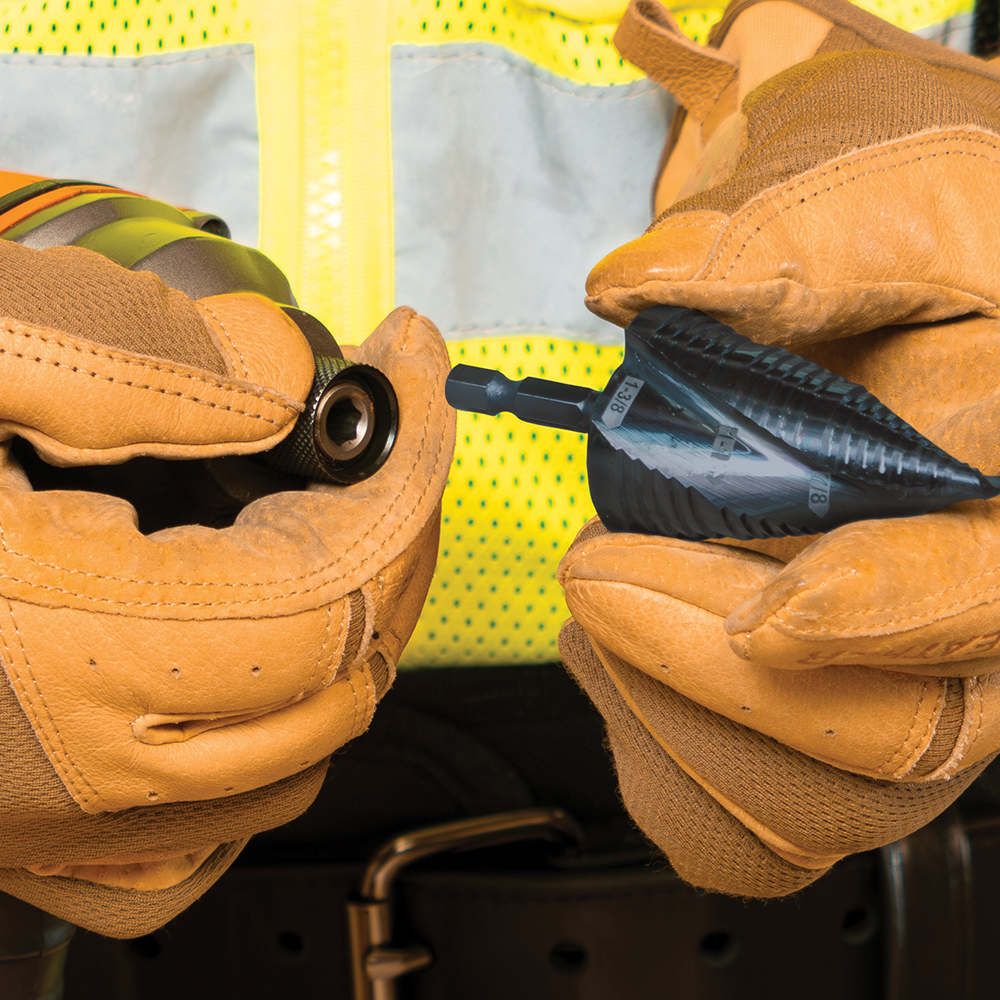

• Quick-release, 1/4-Inch hex shank provides a firm, positive grip and won't spin out in the drill
• Step bits are coated with aluminum titanium nitride and are 10 times more durable than steamed black oxide coating for longer bit life
• Fast-starting, non-walking drill tip

Note

• Read and follow safety instructions in power tool owner's manual.

Specifications

• Overall Height (cm): 9.1
• Type: Step Drill Bit
• Coating: Aluminum Titanium Nitride (AlTiN)
• Shank Type: 1/4" Hex
• Weight (g): 193
• Overall Length (cm): 4.6
• Width: 1.3800 in
• Weight (oz): 6.8
• Weight: 0.4300 lbs
• Application: Multi-Material Drilling
• Material: High Speed Steel
• Height: 3.5700 in
• Overall Width (Inch): 1.8
• Number of Holes: 3
• Overall Length (Inch): 1.8
• Overall Width (cm): 4.6
• Flute Type: Spiral
• Depth: 1.3800 in
• Overall Height (Inch): 3.6

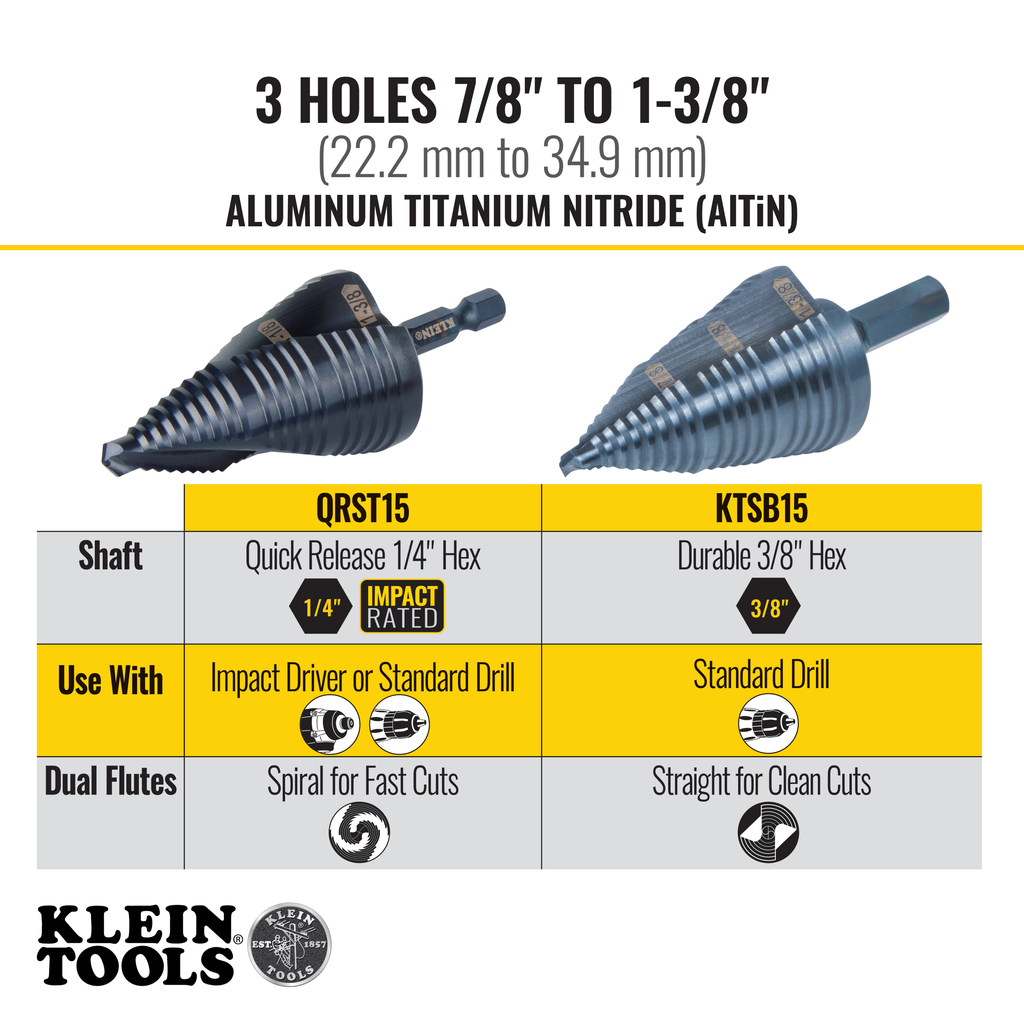

• Size: 7/8" to 1-3/8" (22.2 mm to 34.9 mm)
• Quick Reference: #15
