Premium All Purpose Quick Release Step Bit Kit, 3 Piece

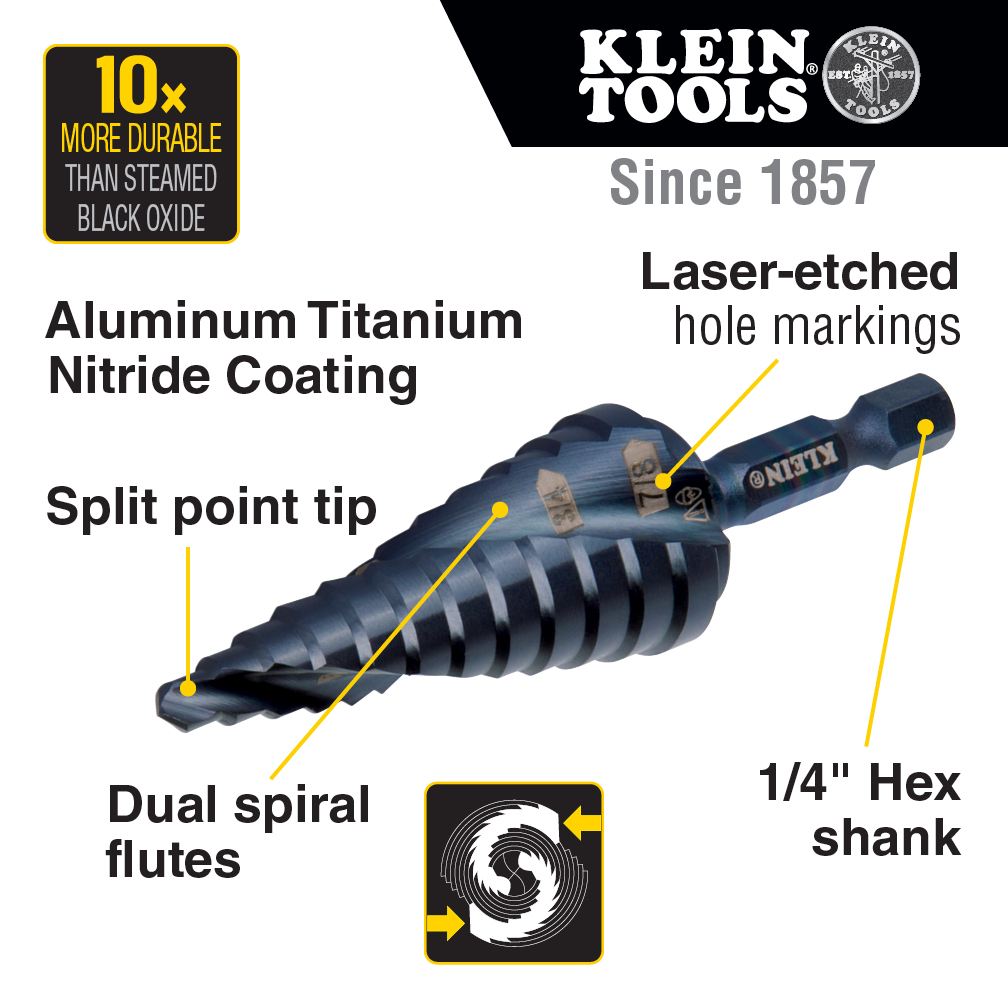

The All Purpose Quick Release Step Bit Set contains three commonly used bits sized 1/2-Inch, 3/4-Inch, and 7/8-Inch plus cutting oil. These Dual Spiral Flutes help pull the step bit through the material for faster cutting. The aluminum titanium coating is 10 times more durable than steamed black oxide for longer bit life. Impact rated, the 1/4-Inch hex shank provides a firm, positive grip and allows quick and convenient usage with an impact driver and a drill. The compact, modular case is designed to nest neatly within MODbox™ toolboxes and on the MODbox™ Case Adapter Side Rail Attachment.

Features

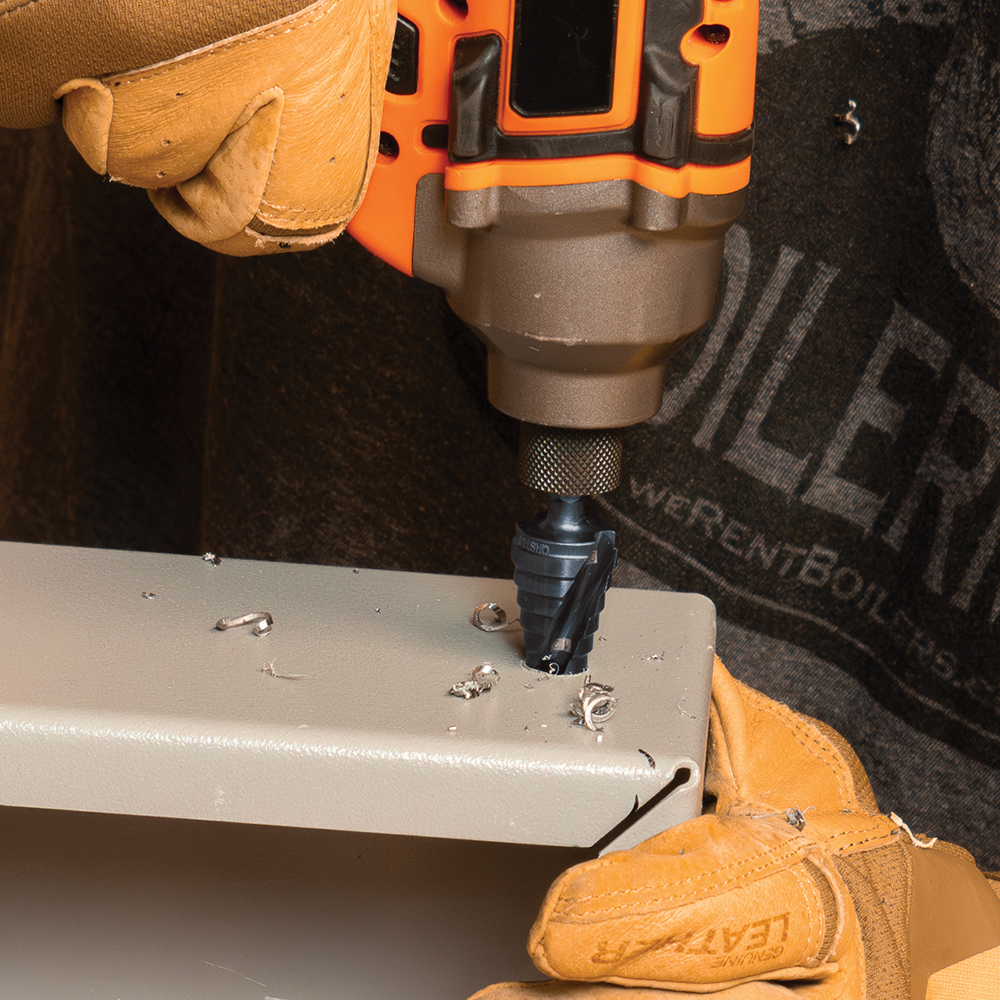

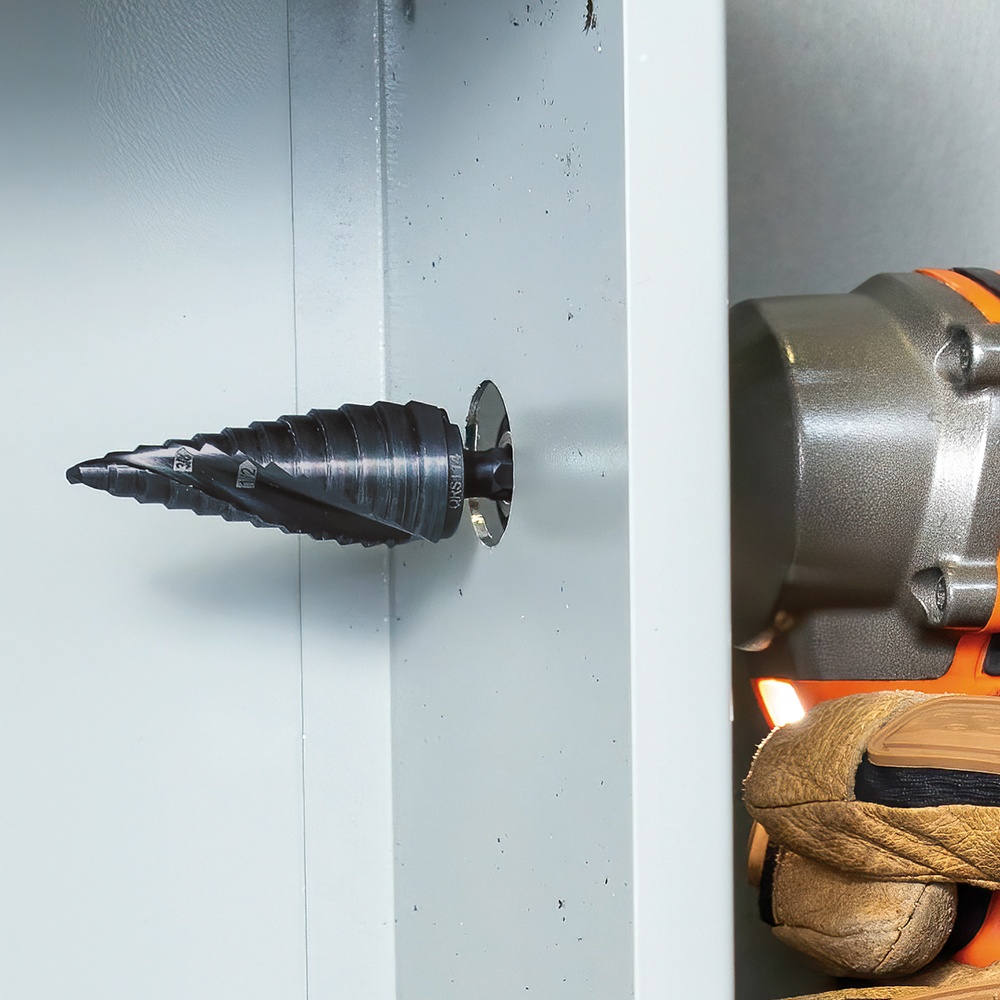

• For use on steel (up to 16 gauge), wood, plastic, and aluminum

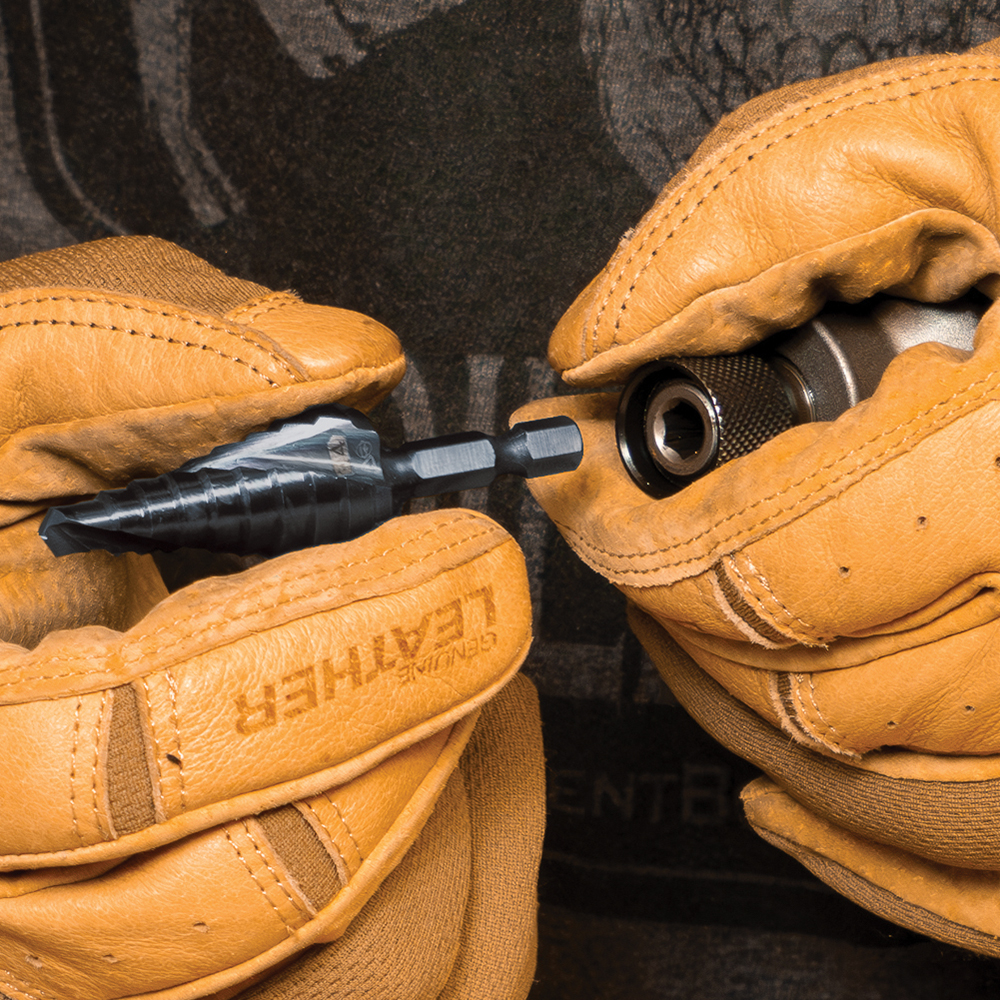

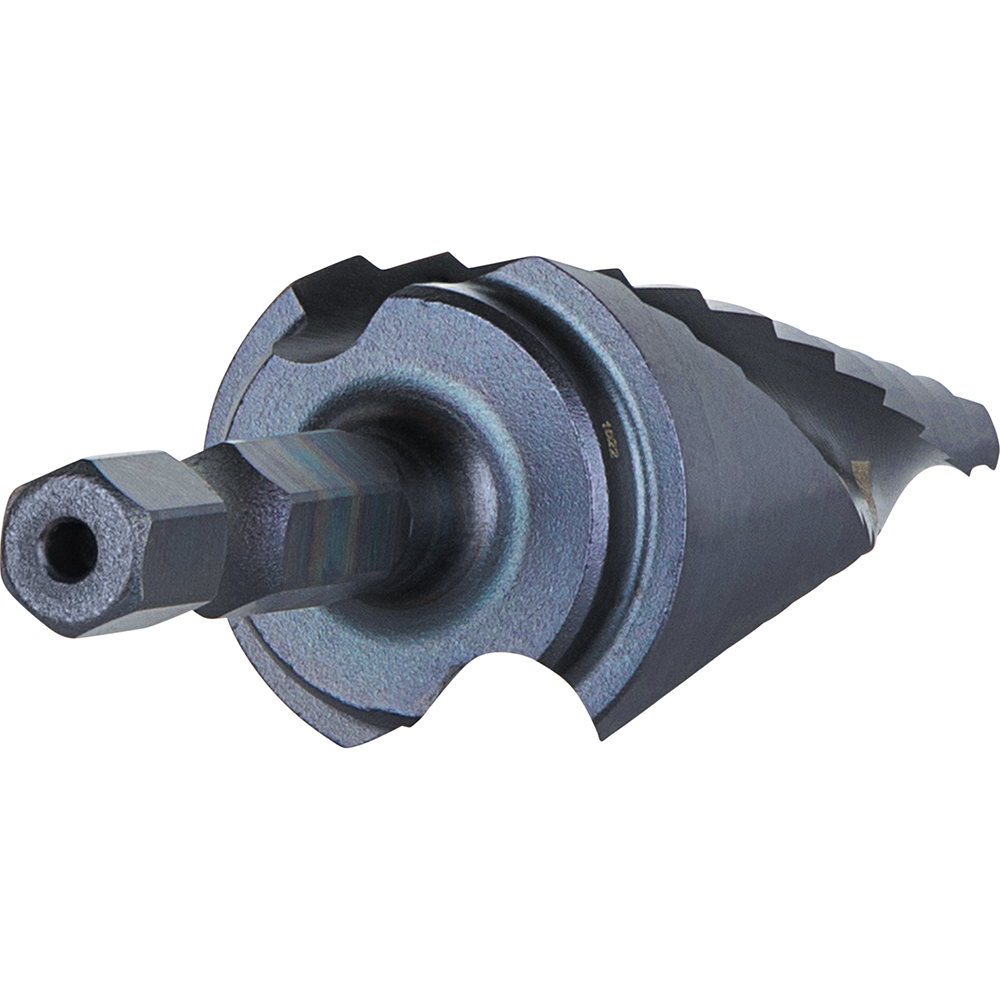

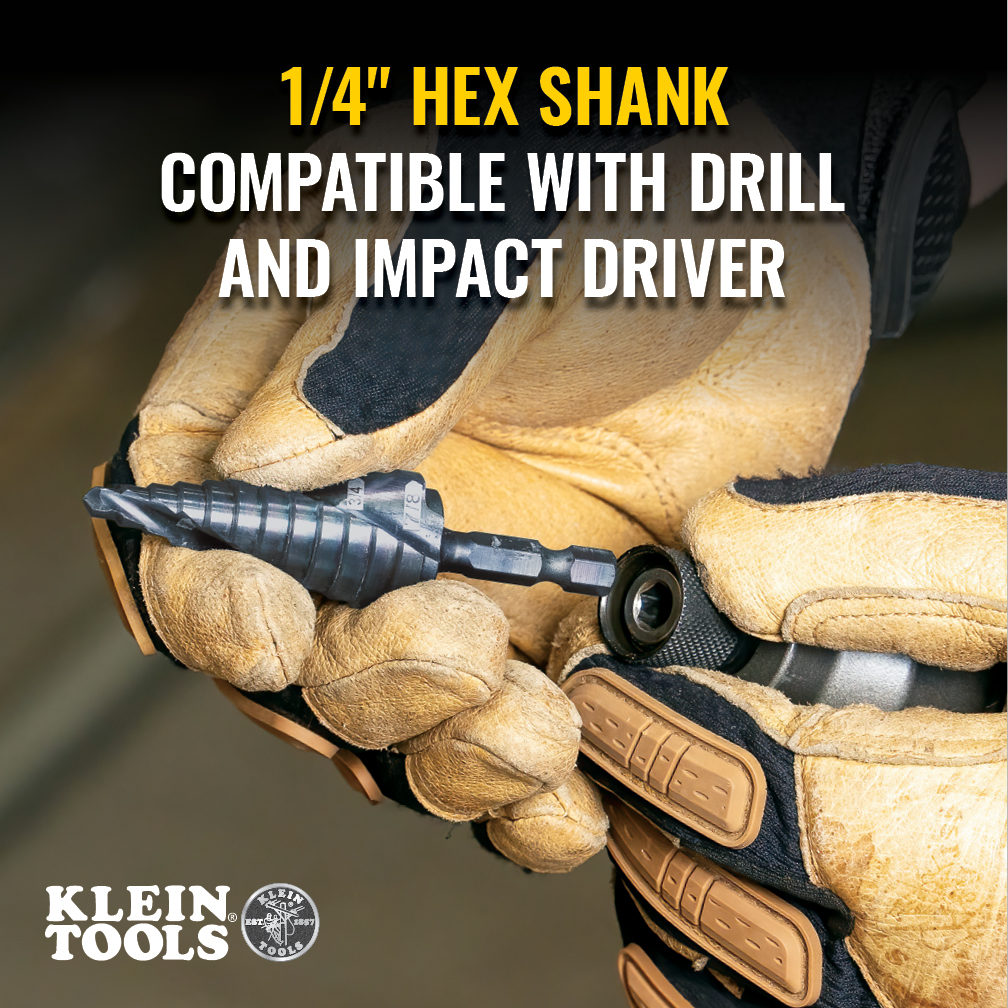

• Quick-release, 1/4-Inch hex shank provides a firm, positive grip and won't spin out in the drill

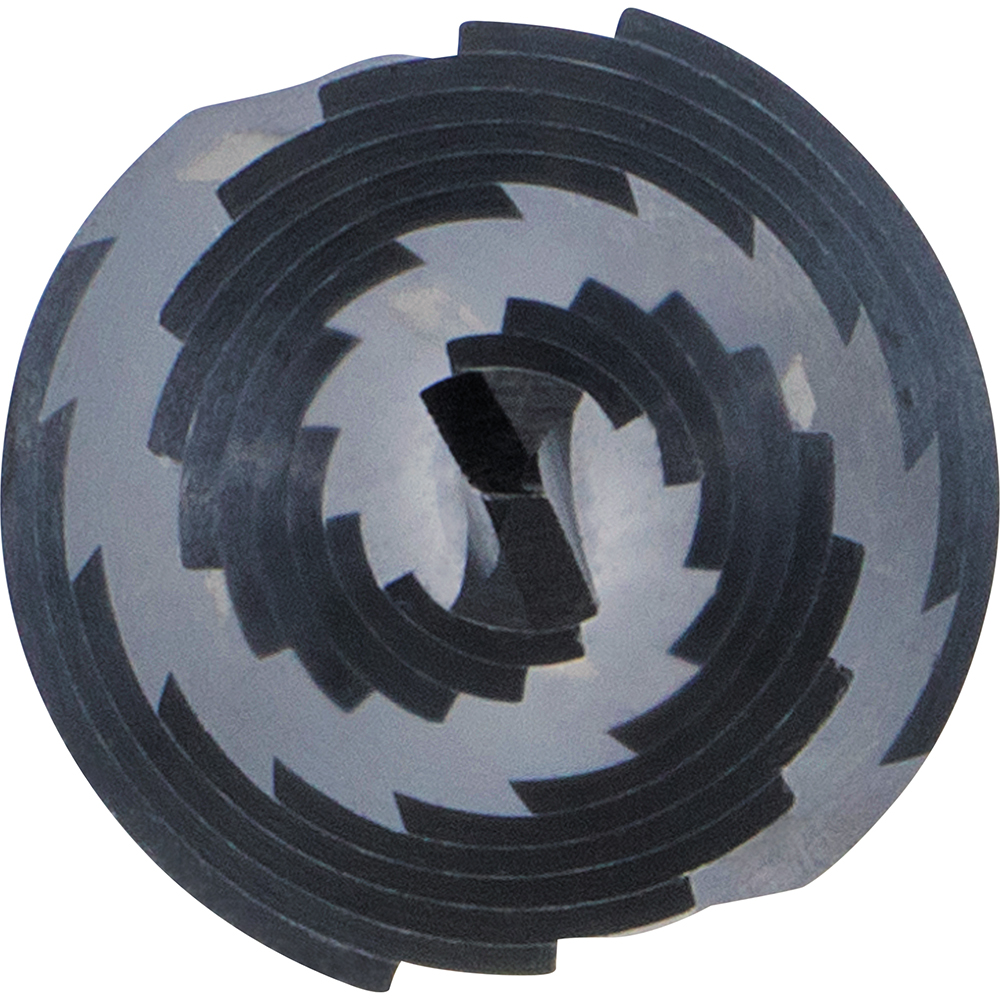

• Double spiral flute removes chips for faster cuts and drilling

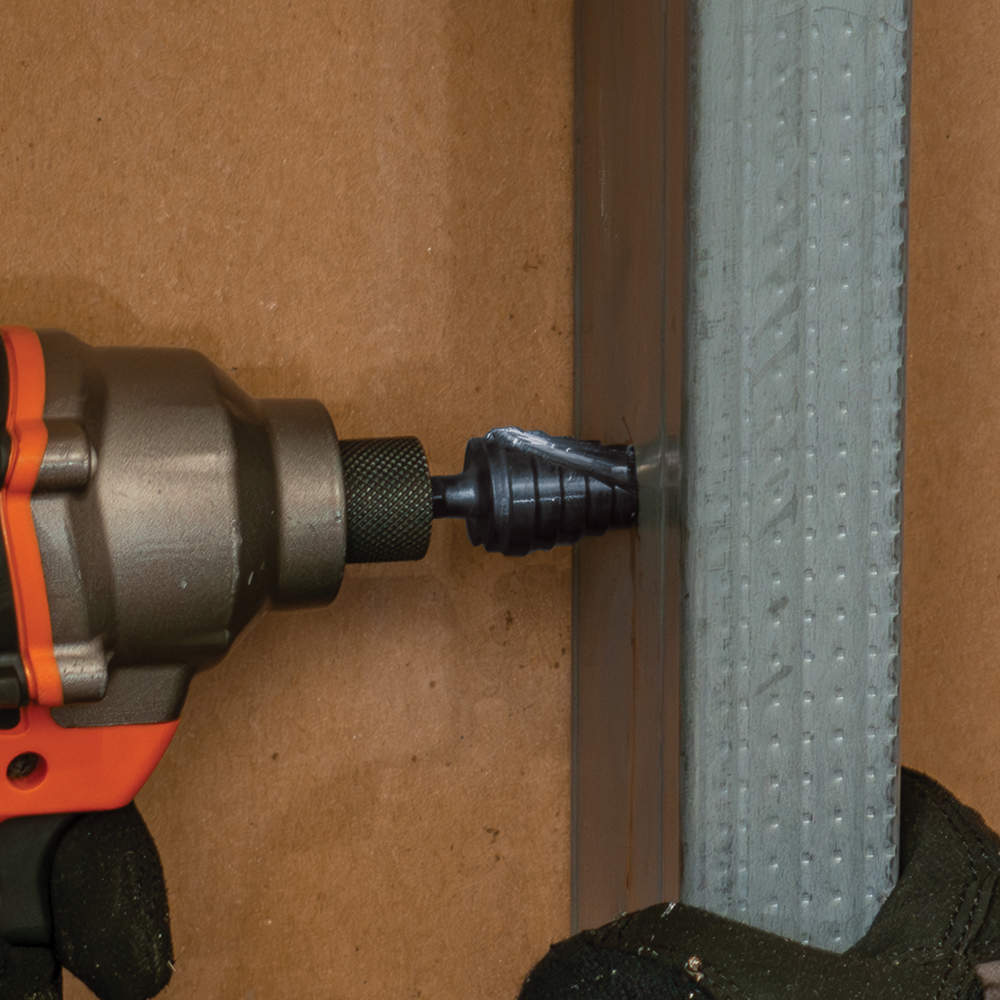

• Impact rated shaft allows for use with impact drivers and standard drills

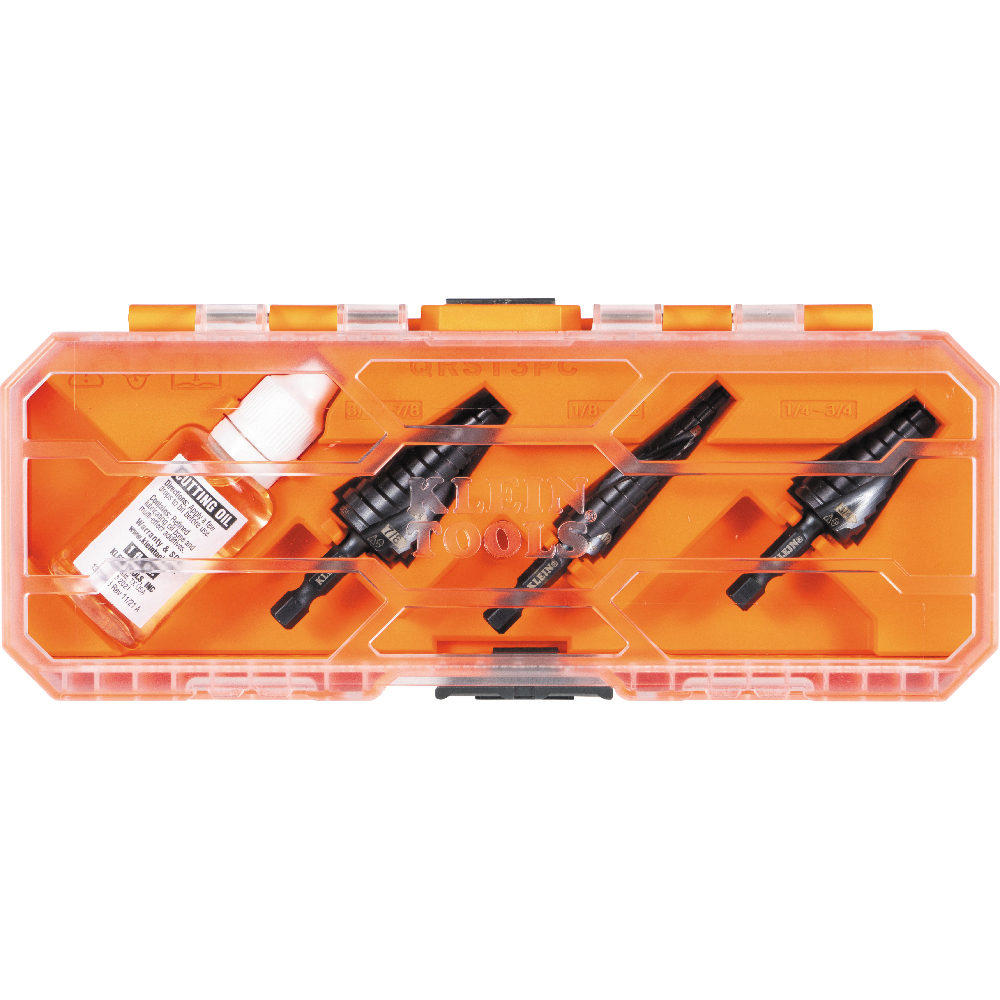

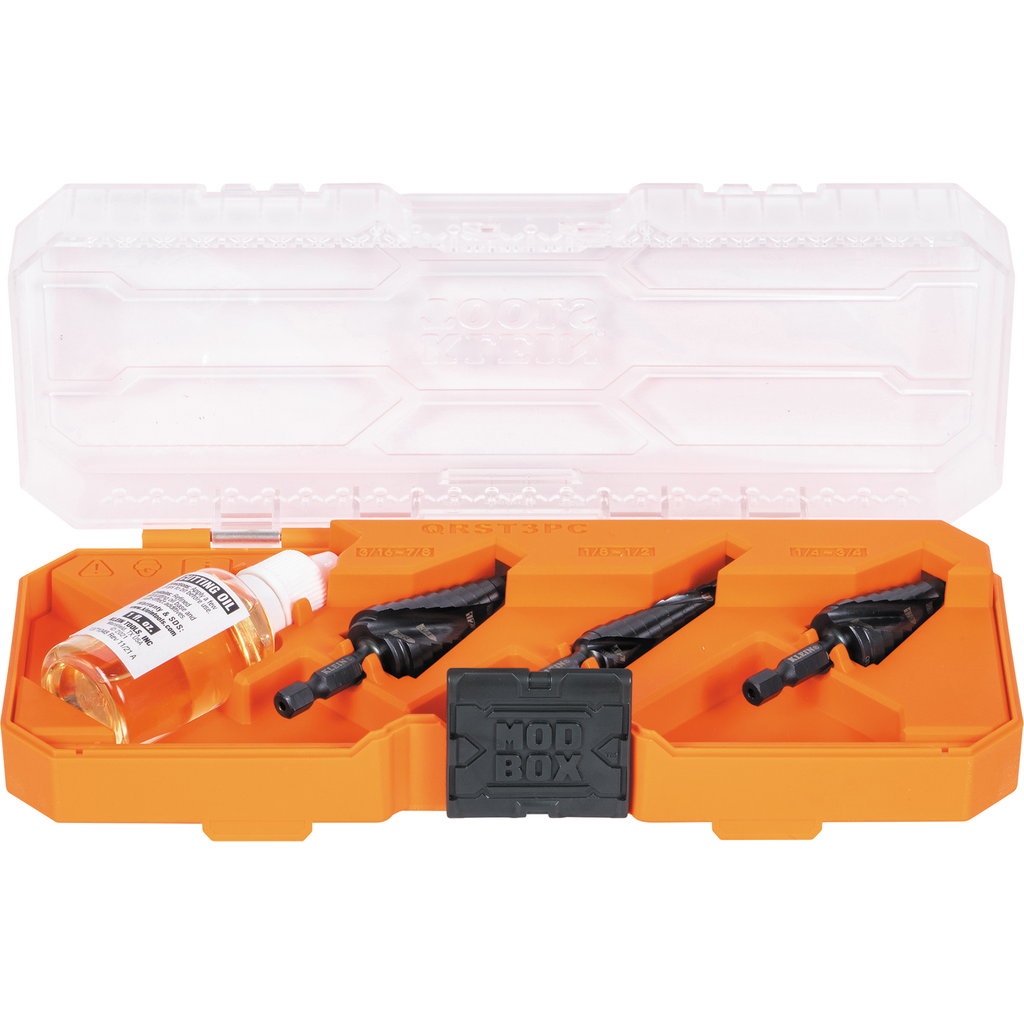

• The compact, modular case comes with cutting oil and is designed to nest neatly within MODbox™ toolboxes and on the MODbox™ Case Adapter Side Rail Attachment
• Modular Case, Aluminum Titanium Nitride Coating; Dual Spiral Fluting; Cutting Oil Included

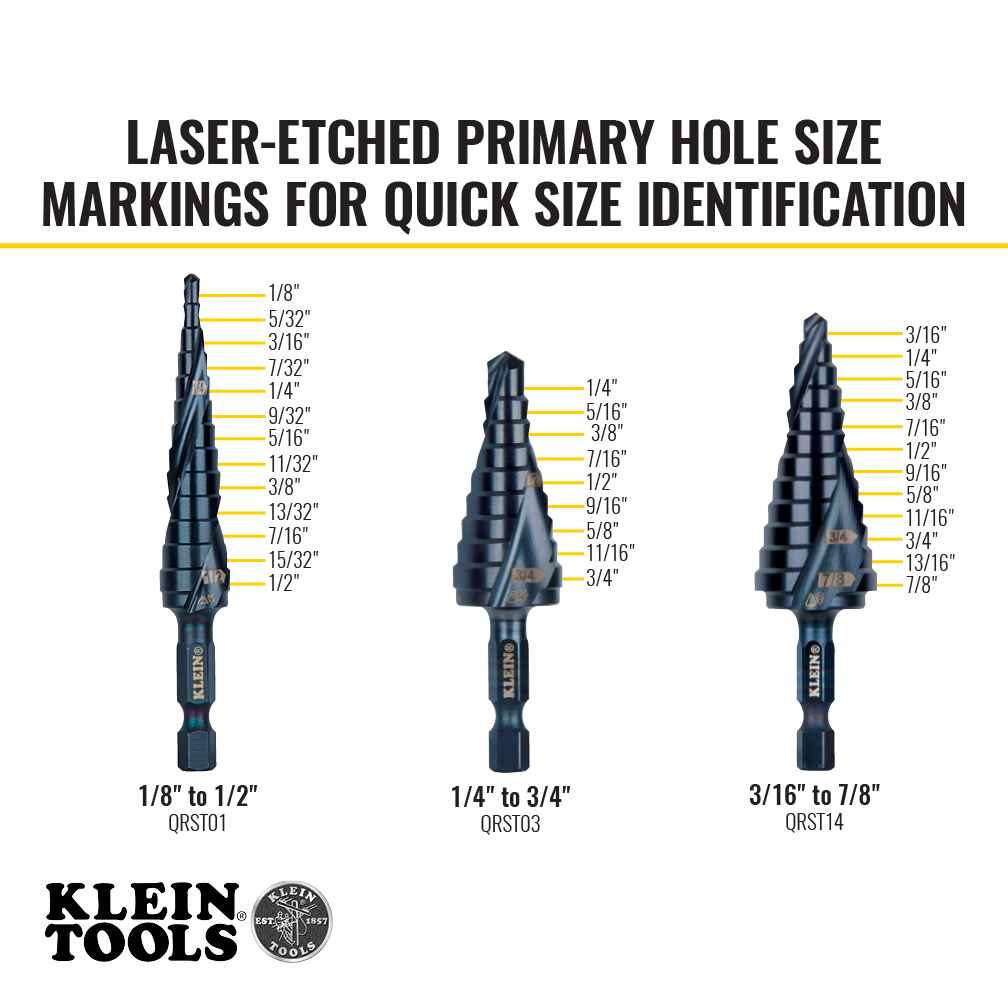

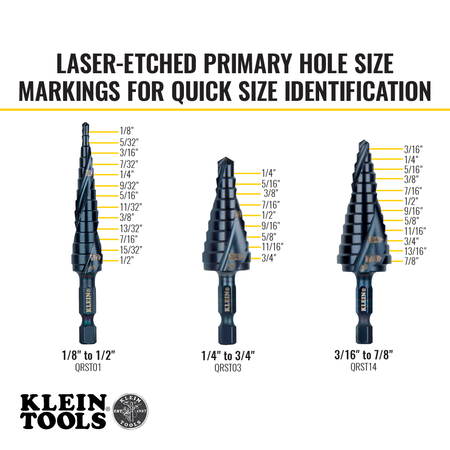

• Laser markings are easy to read for quick size identification
• Fast-starting, non-walking drill tip
• Step bits are coated with aluminum titanium nitride and are 10 times more durable than steamed black oxide coating for longer bit life

Note

• Read and follow safety instructions in power tool owner's manual.

Warnings

• Always ensure that you and persons in the vicinity wear approved eye protection.

Specifications

• Height: 1.8000 in
• Overall Height (cm): 4.6
• Overall Width (cm): 9.4
• Width: 3.7000 in
• Shank Type: 1/4" Hex
• Weight (g): 363
• Flute Type: Spiral
• Quick Reference: #1, #3, #14
• Overall Width (Inch): 3.7
• Overall Height (Inch): 1.8
• Increment: 1/32" (0.8 mm); 1/16" (1.6 mm); 1/16" (1.6 mm)
• Coating: Aluminum Titanium Nitride (AlTiN)
• Size: 1/8" to 1/2" (3.2 to 12.7 mm); 1/4" to 3/4" (6.4 to 19.1 mm); 3/16" to 7/8" (4.8 mm to 22.2 mm)
• Number of Holes: 13, 9, and 12
• Weight: 0.8000 lbs
• Type: Step Drill Bit
• Application: Multi-Material Drilling
• Overall Length (cm): 23.5
• Depth: 9.2500 in
• Material: High Speed Steel
• Weight (oz): 12.8
• Overall Length (Inch): 9.25
