Receptacle Tester

Klein Tools RT110 Receptacle Tester detects the most common wiring problems in standard receptacles. Conditions indicated: wiring correct, open ground, reverse electrical outlet, open hot, open neutral, hot/ground reversed. Conditions not indicated: quality of ground, multiple hot wires, combinations of defects, reversal of grounded and grounding conductors.

Features

• Built to withstand a 6.6-foot (2m) drop

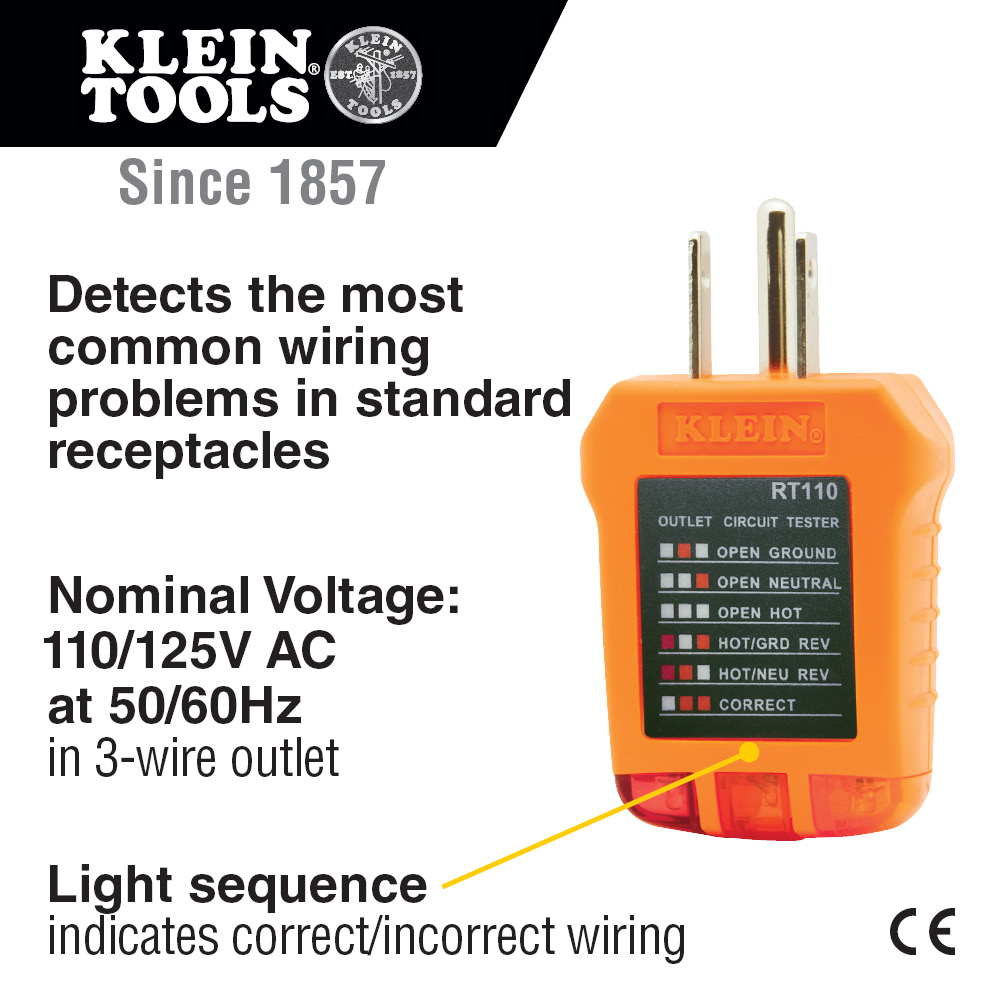

• Designed to detect the most common wiring problems in standard receptacles
• Receptacle tester conforms to UL Std 1436, Certified to CSA Std C22.2 #160
• Outlet tester's light sequence on receptacle tester indicates correct/incorrect wiring
• Operating temp: 32-degrees F to 140-degrees F (0-degrees C to 40-degrees C)
• Nominal Voltage: 110/125V AC at 50/60Hz in 3-wire outlet

Warnings

• Read, understand, and follow all warnings and instructions before operating testers.
• Always consult a qualified electrician to resolve wiring problems.
• Always wear approved eye protection.

Specifications

• GFCI: No
• Overall Height (Inch): 2.88
• Depth: 3.0000 in
• Overall Width (Inch): 1.88
• Width: 1.8750 in
• Overall Height (cm): 7.3
• Voltage: 110/125V AC at 50/60Hz in 3-Wire Outlet
• Height: 1.6250 in
• Overall Width (cm): 4.8
• Overall Length (cm): 4.1
• Overall Length (Inch): 1.62
• Weight: 0.1220 lbs
• Drop Protection: 6.6' (2 m)
• Weight (oz): 1.9
• Weight (g): 54
