GFCI Outlet Tester

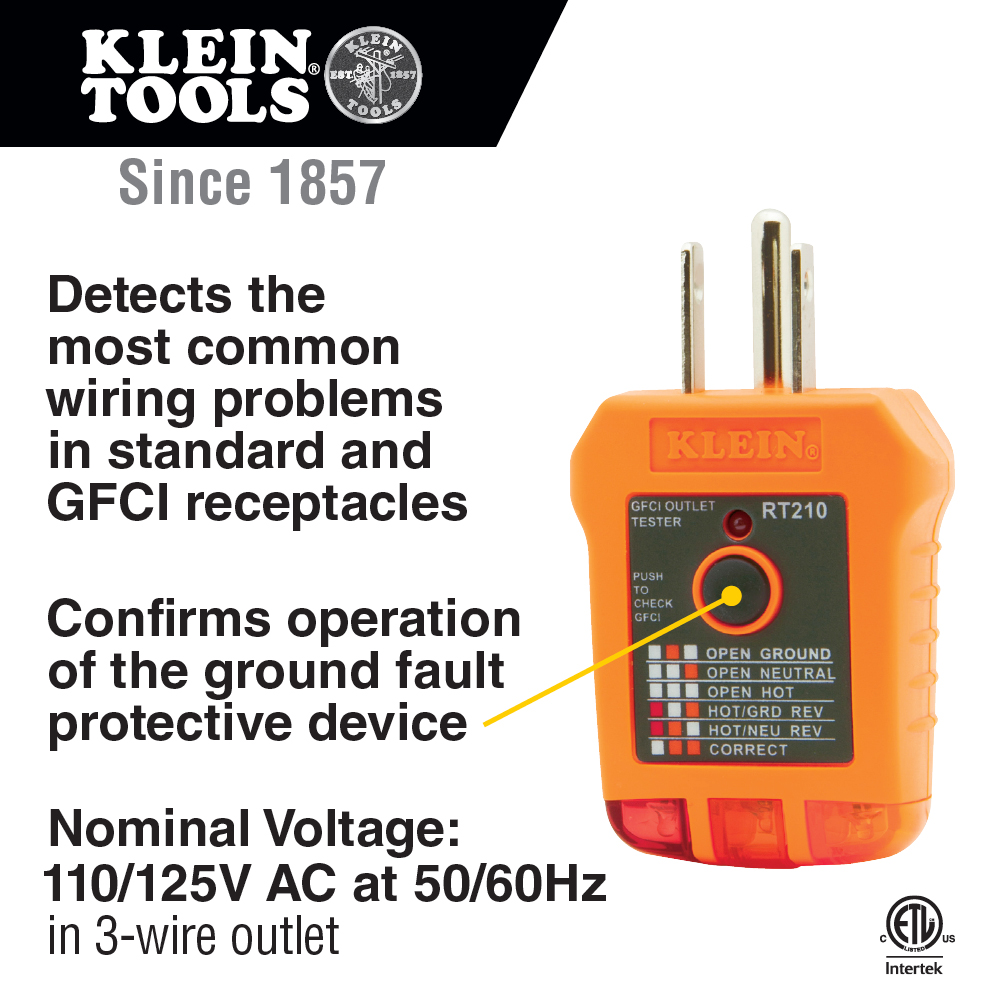

Klein Tools Receptacle Testers are designed to detect the most common wiring problems in standard and GFCI receptacles. A convenient chart on the tester helps determine wiring condition in outlet, based on lights results. Conditions indicated: open ground, reverse polarity, open hot, open neutral, hot/ground reversed.

Warnings

• Always wear approved eye protection.
• Always consult a qualified electrician to resolve wiring problems.
• Read, understand, and follow all warnings and instructions before operating testers.

Features

• Operating temp: 32-Degree to 140-Degree Fahrenheit (0-Degree to 40-Degree Celsius)
• Nominal Voltage: 110/125V AC at 50/60Hz in 3-wire outlet
• Built to withstand a 6.6-foot (2m) drop
• GFCI Tester detects the most common wiring problems in standard and GFCI receptacles
• Works on GFCI outlets and confirms operation of the ground fault protective device
• Convenient Chart on the Tester

Specifications

• Application: Determine Wiring Condition in Outlet
• Drop Protection: 6.6' (2 m)
• Overall Width (Inch): 1.88
• Type: GFCI and Standard Receptacle Tester
• Width: 1.8750 in
• Depth: 3.0000 in
• Overall Height (cm): 7.3
• GFCI: Yes
• Weight (oz): 1.9
• Overall Height (Inch): 2.88
• Standard: CAT II 300V
• Voltage: 110/125V AC at 50/60Hz in 3-Wire Outlet
• Weight (g): 54
• Weight: 0.1230 lbs
• Overall Length (cm): 4.1
• Overall Length (Inch): 1.62
• Overall Width (cm): 4.8
• Height: 1.6250 in
