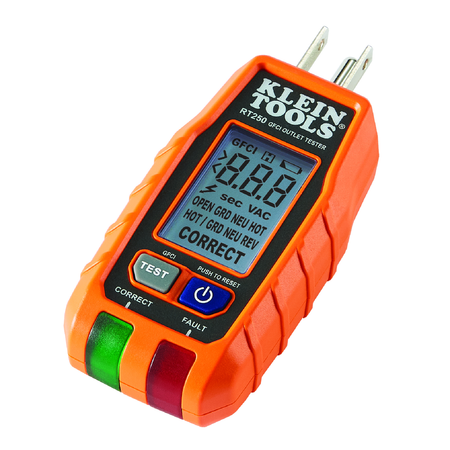

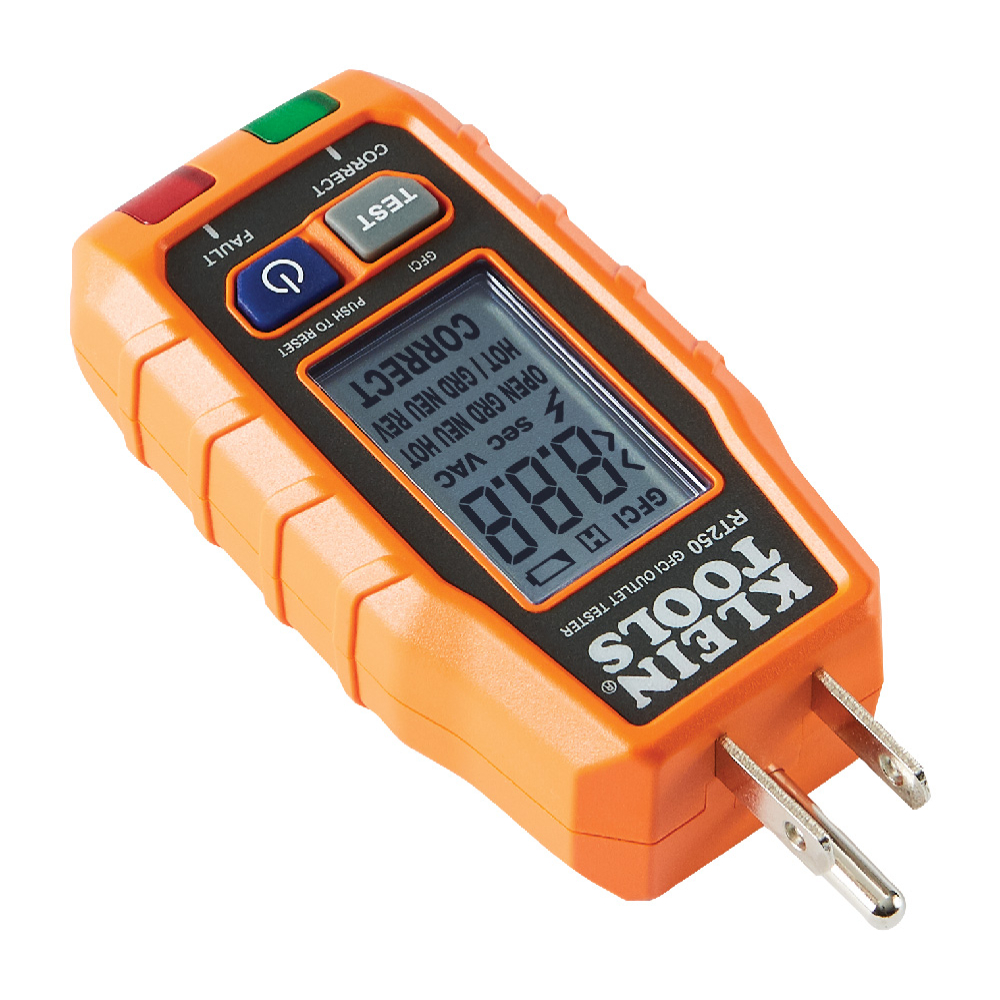

GFCI Receptacle Tester with LCD

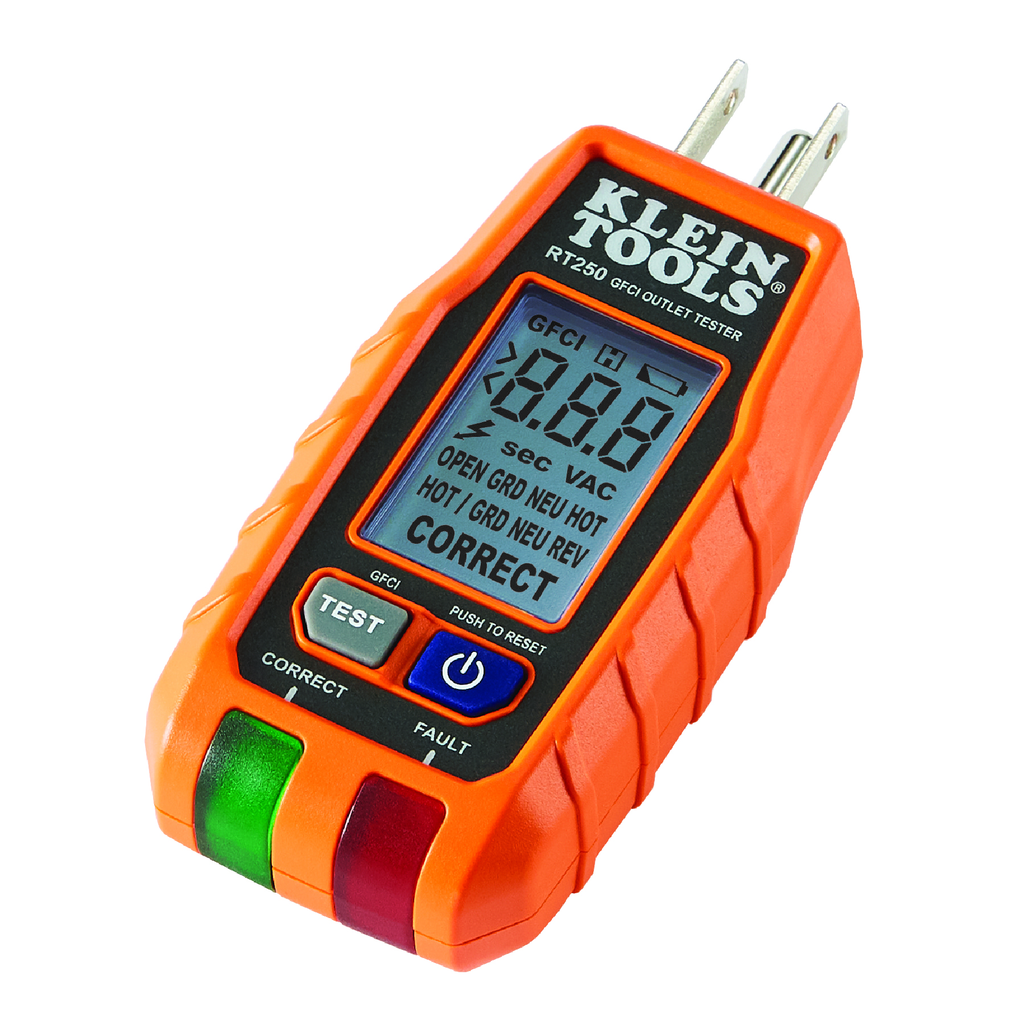

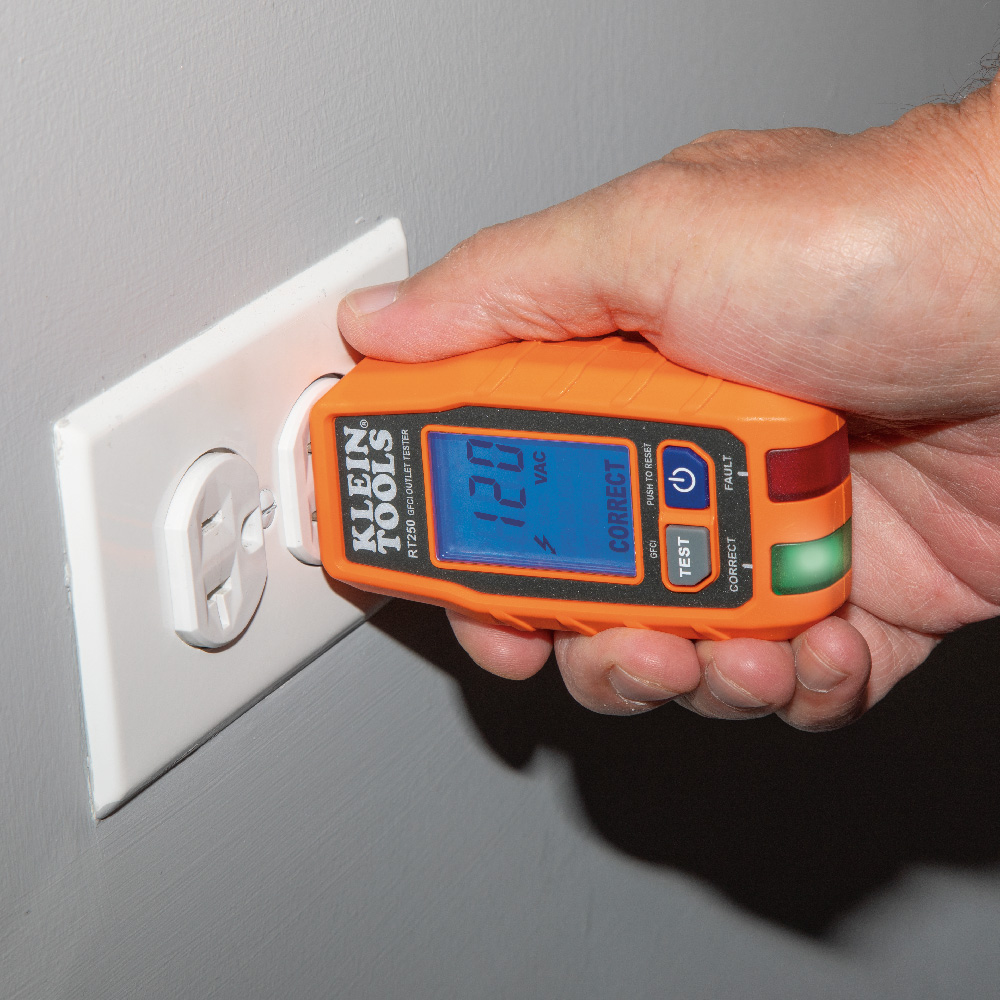

The RT250 is an electrical receptacle tester that tests the wiring conditions at an electrical outlet and inspects GFCI devices. The LCD displays the voltage, identifies the wiring fault, and the time required to trip a GFCI device. It is designated for use with North American 3-wire 120V electrical outlets.

Features

• Large LCD Display; Patent Pending Detection of Open Neutral Open Ground Wiring Fault; Shows Amount of Time it Takes to Trip GFCI

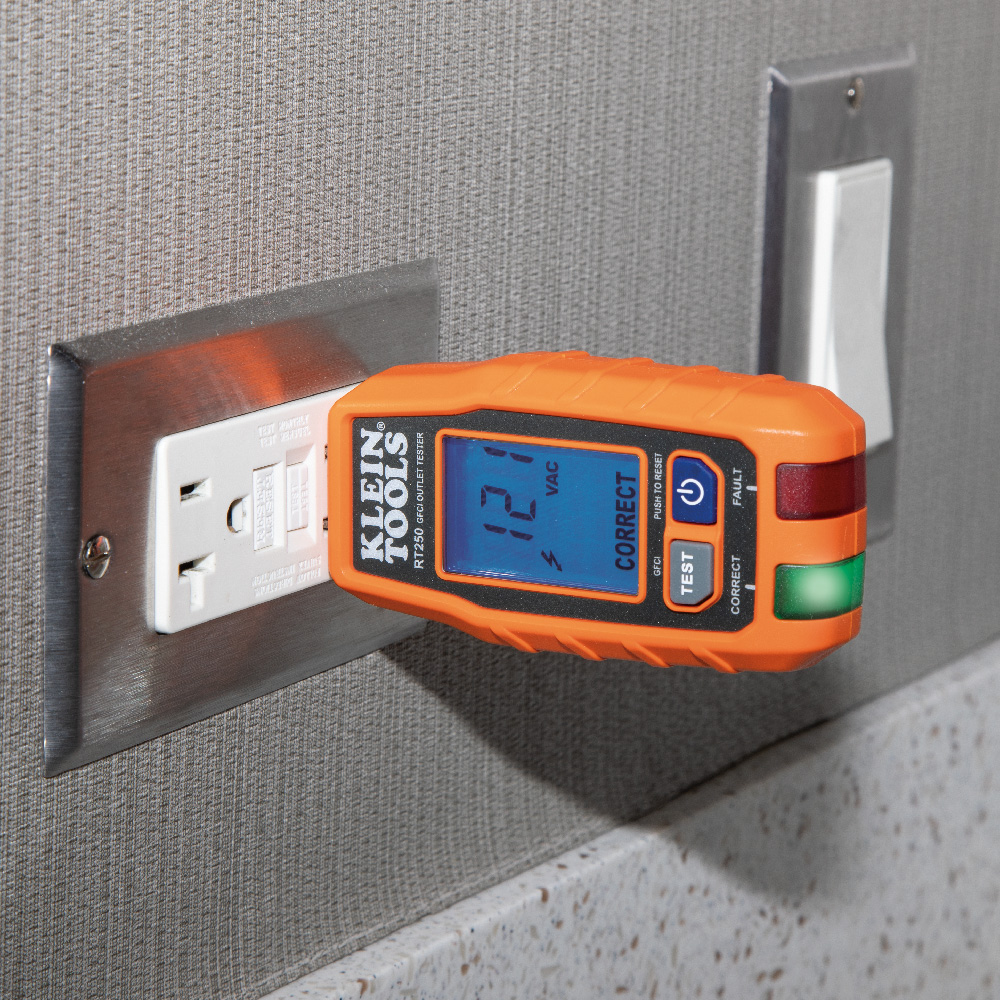

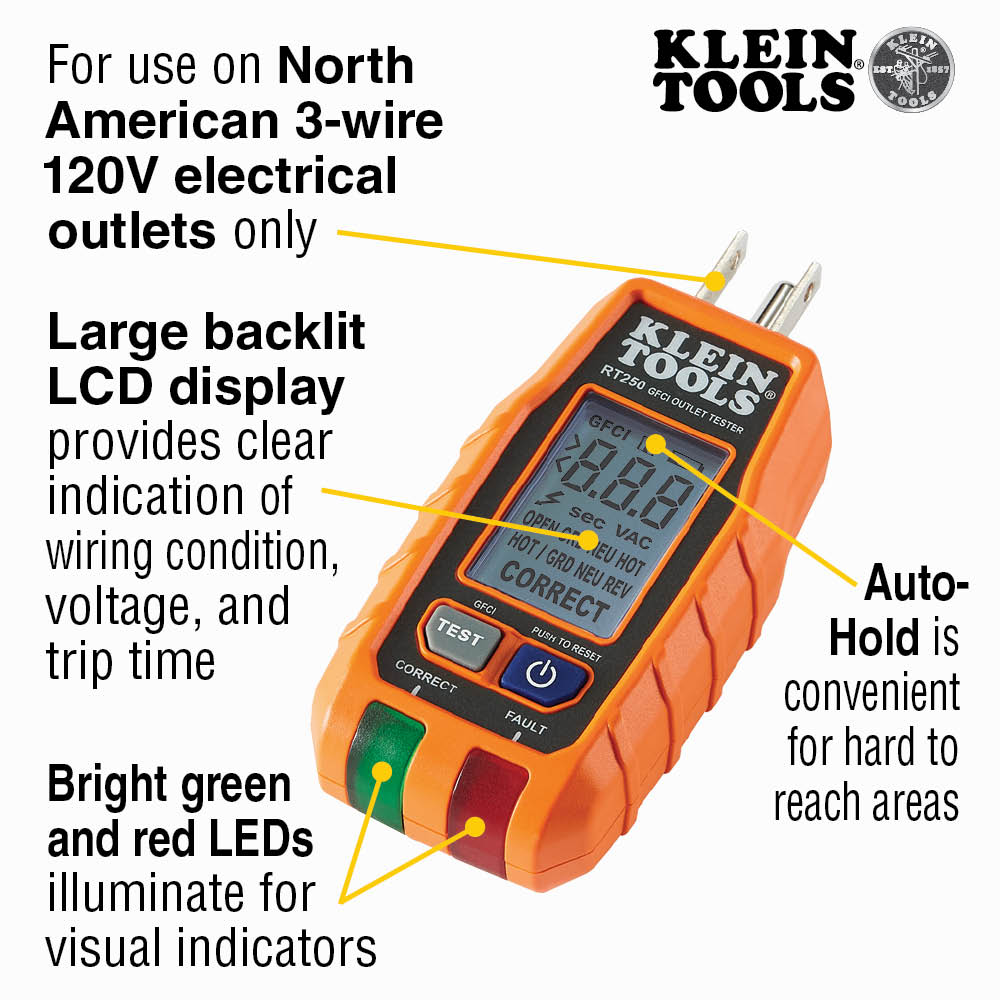

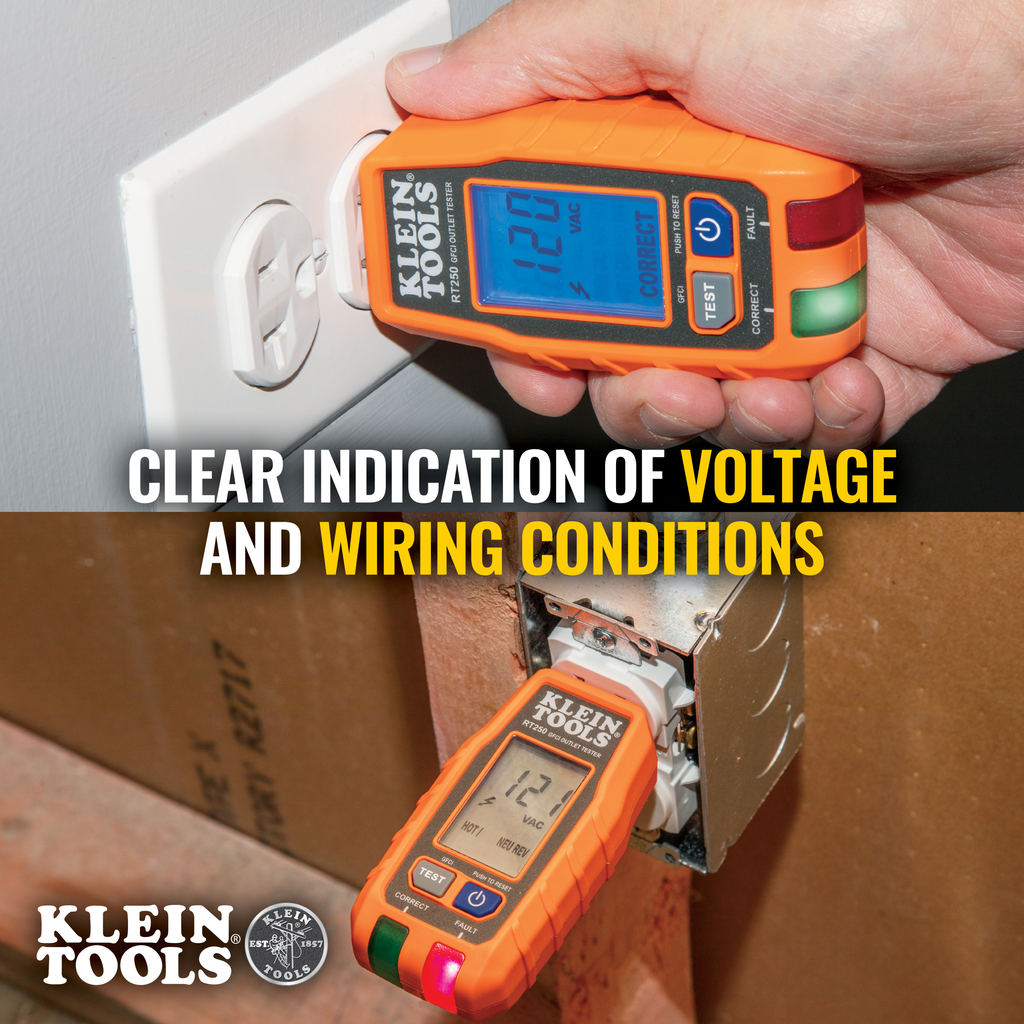

• GFCI Receptacle Tester features a large backlit LCD readout of voltage and clear indication of wiring conditions

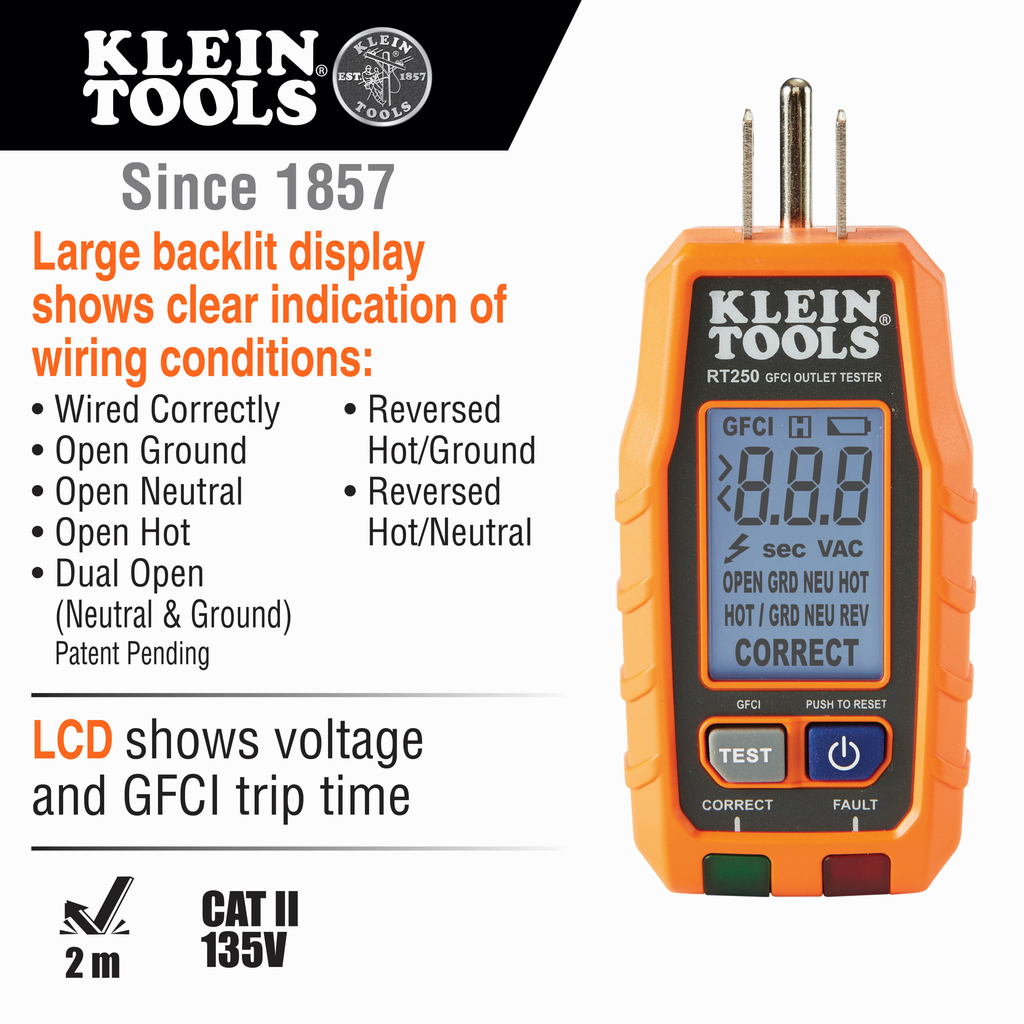

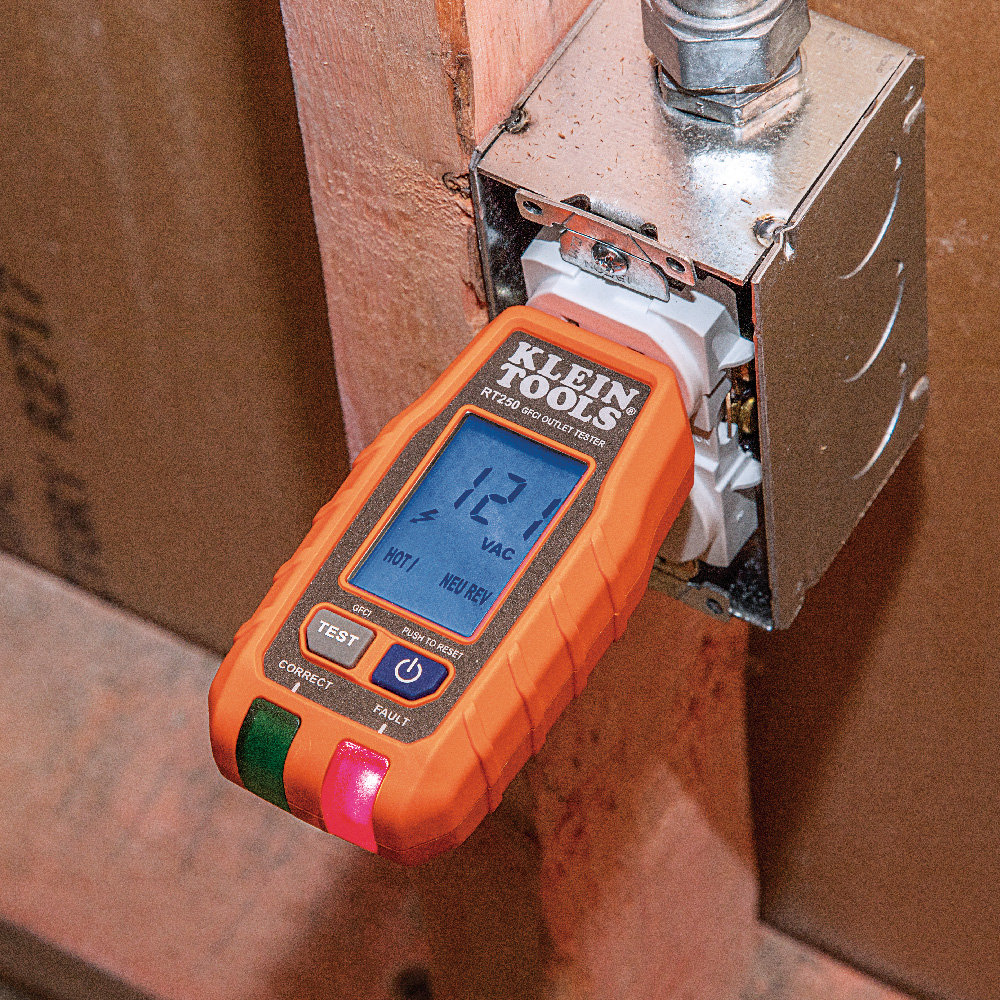

• Detect and identify common wiring faults
• Auto-Hold is convenient for hard-to-reach outlets
• Durable 6.6-Foot (2 m) drop protection

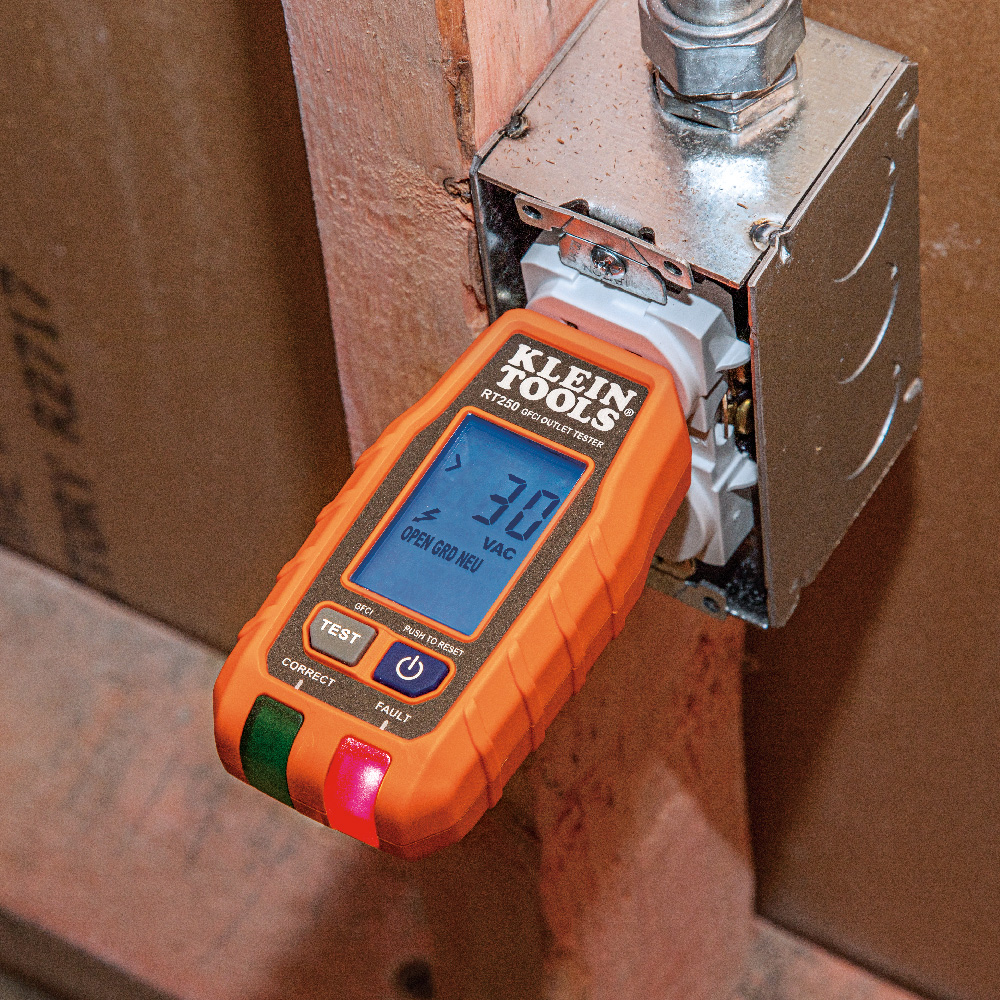

• Patent pending detection of Open Neutral Open Ground wiring fault
• Bright green and red LEDs illuminate for visual indicators

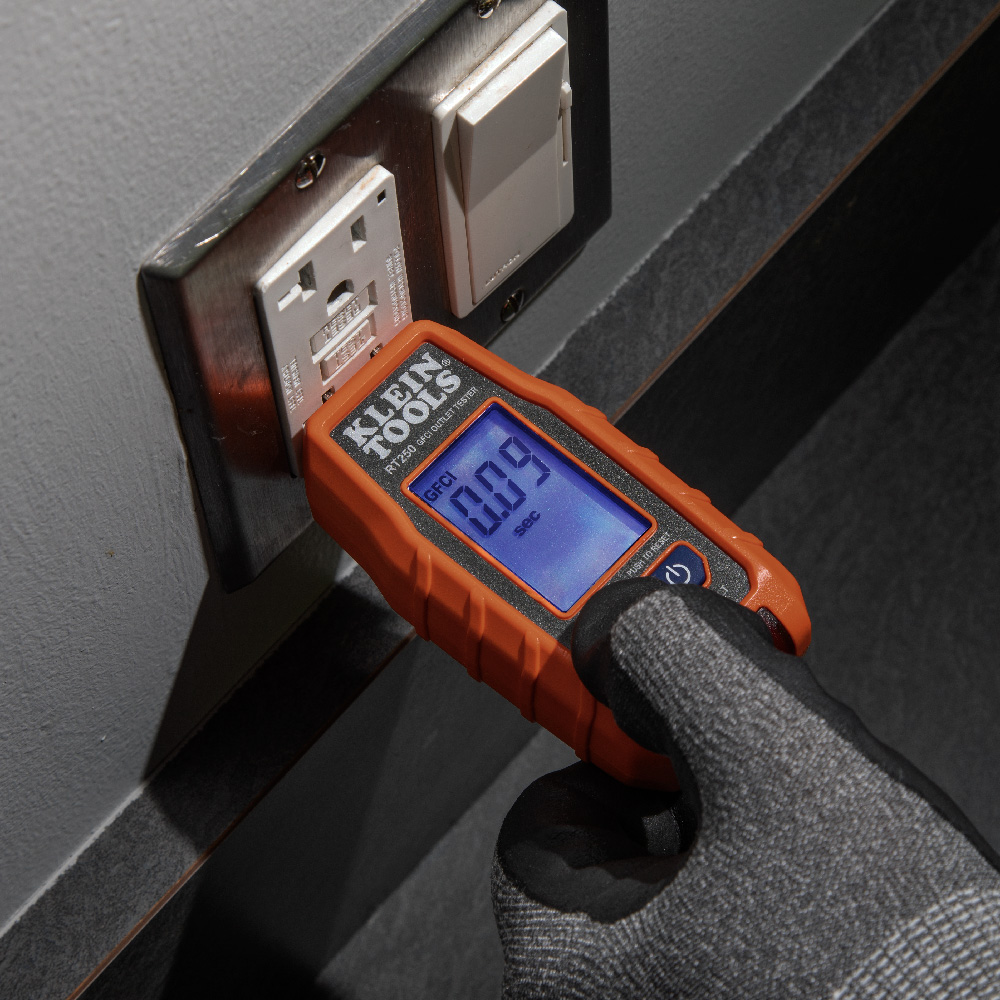

• LCD readout shows the time required to trip a GFCI device

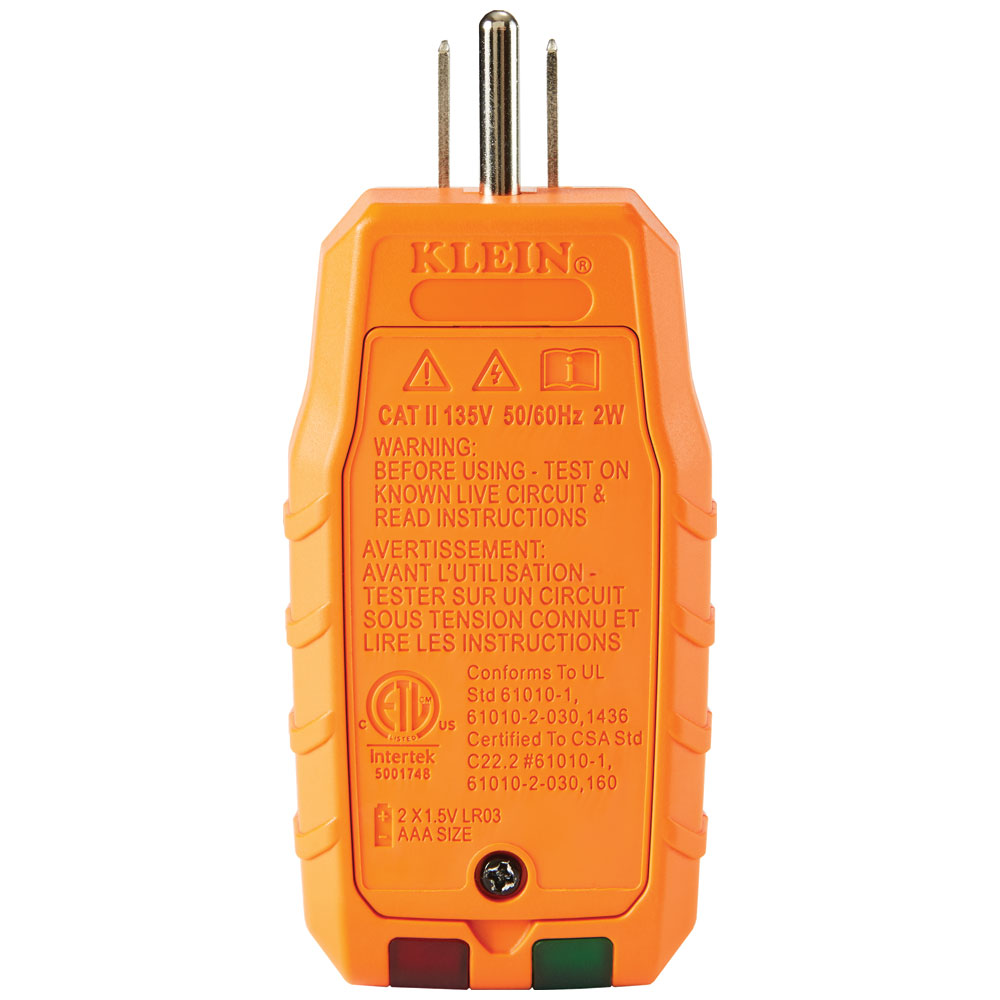

• CAT II 135V safety rating
• For use on 3-wire, North American 120V electrical outlets only

Warnings

• Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.
• Always consult a qualified electrician to resolve wiring problems.

Specifications

• Height: 2.0000 in
• Standard: CAT II 135V Safety Rating
• GFCI: Yes
• Overall Length (Inch): 4.5
• Included: Tester; 2 x 1.5V AAA Alkaline Batteries; Manual
• Overall Width (Inch): 2
• Overall Length (cm): 11.4
• Voltage: 135V AC
• Material: ABS and Electrical Components
• Width: 1.1600 in
• Weight (oz): 4.8
• Overall Width (cm): 5.1
• Weight: 0.2600 lbs
• Drop Protection: 6.6' (2 m)
• Type: GFCI Receptacle Tester
• Depth: 4.5300 in
• Batteries: 2 x AAA
• Application: Detects and Identifies Common Wiring Problems in GFCI Receptacles
• Weight (g): 136
• Overall Height (Inch): 1.1
• Overall Height (cm): 2.8
• AFCI: No
