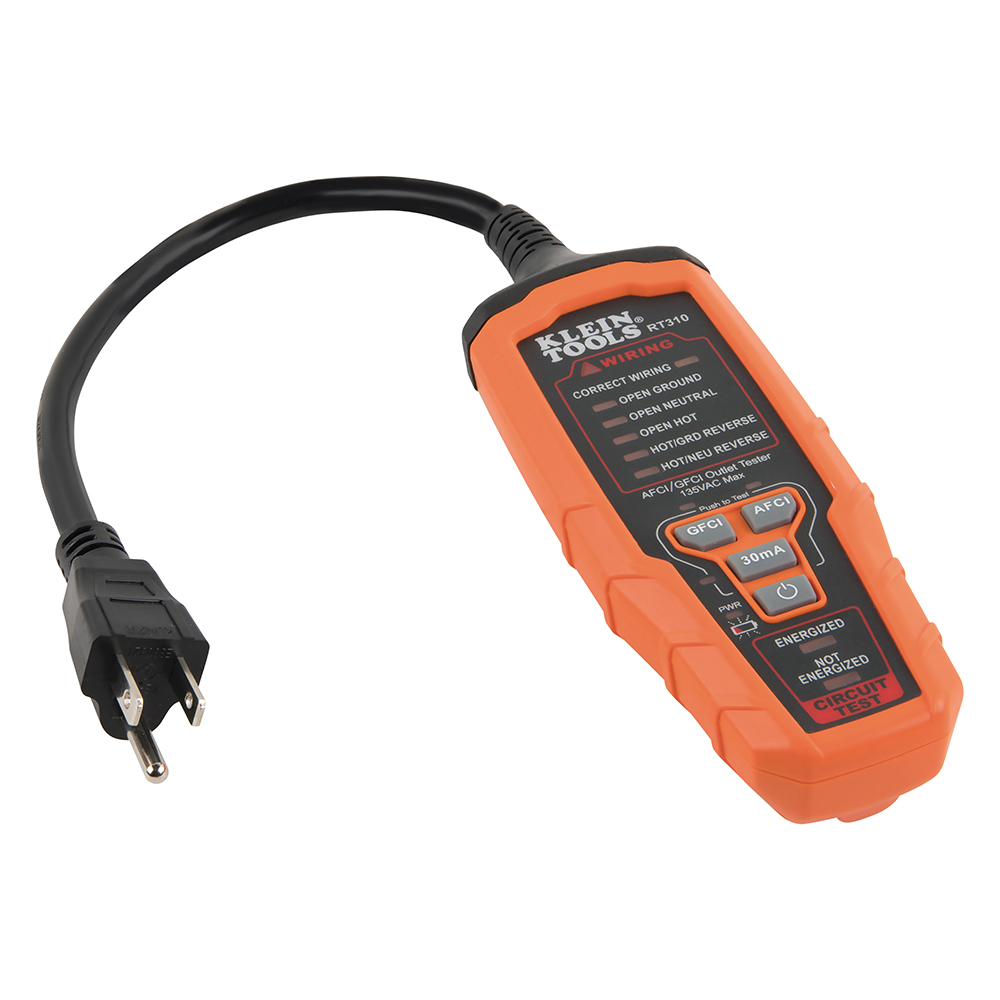

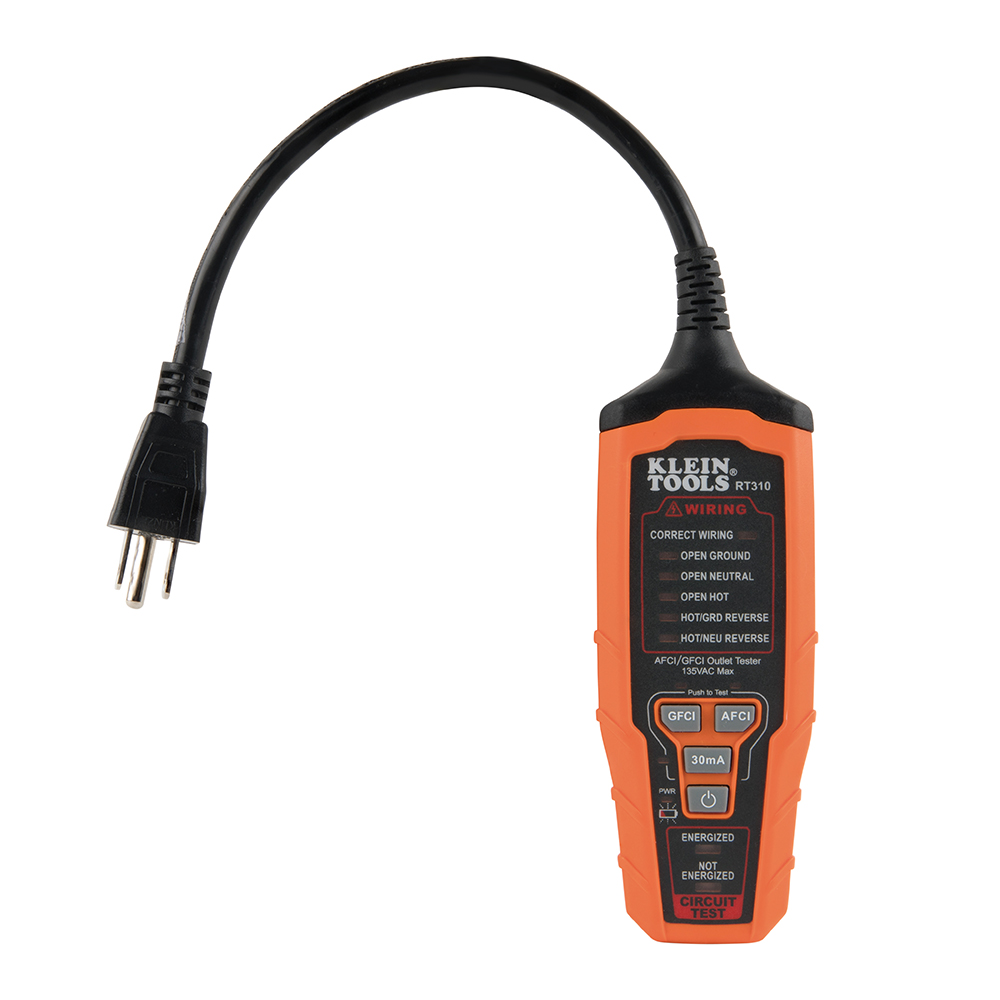

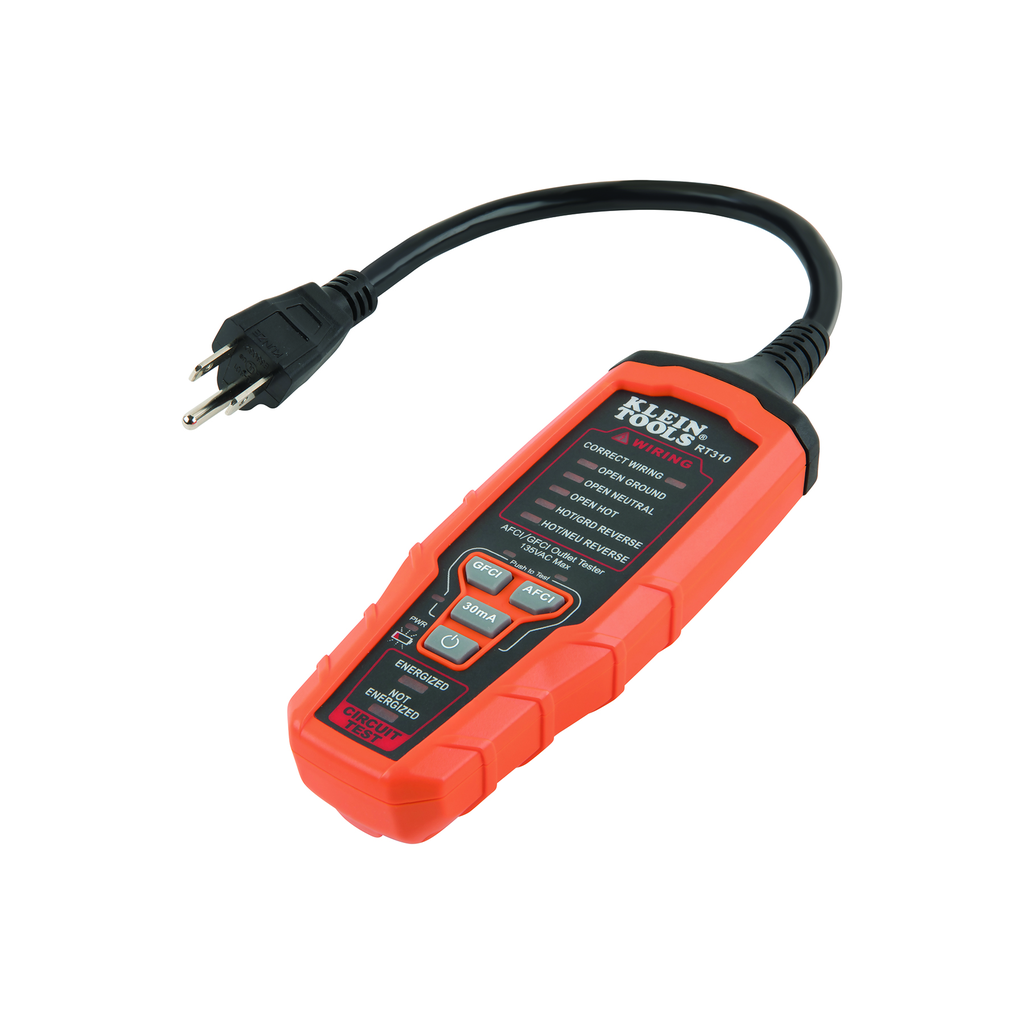

AFCI /GFCI Outlet Tester

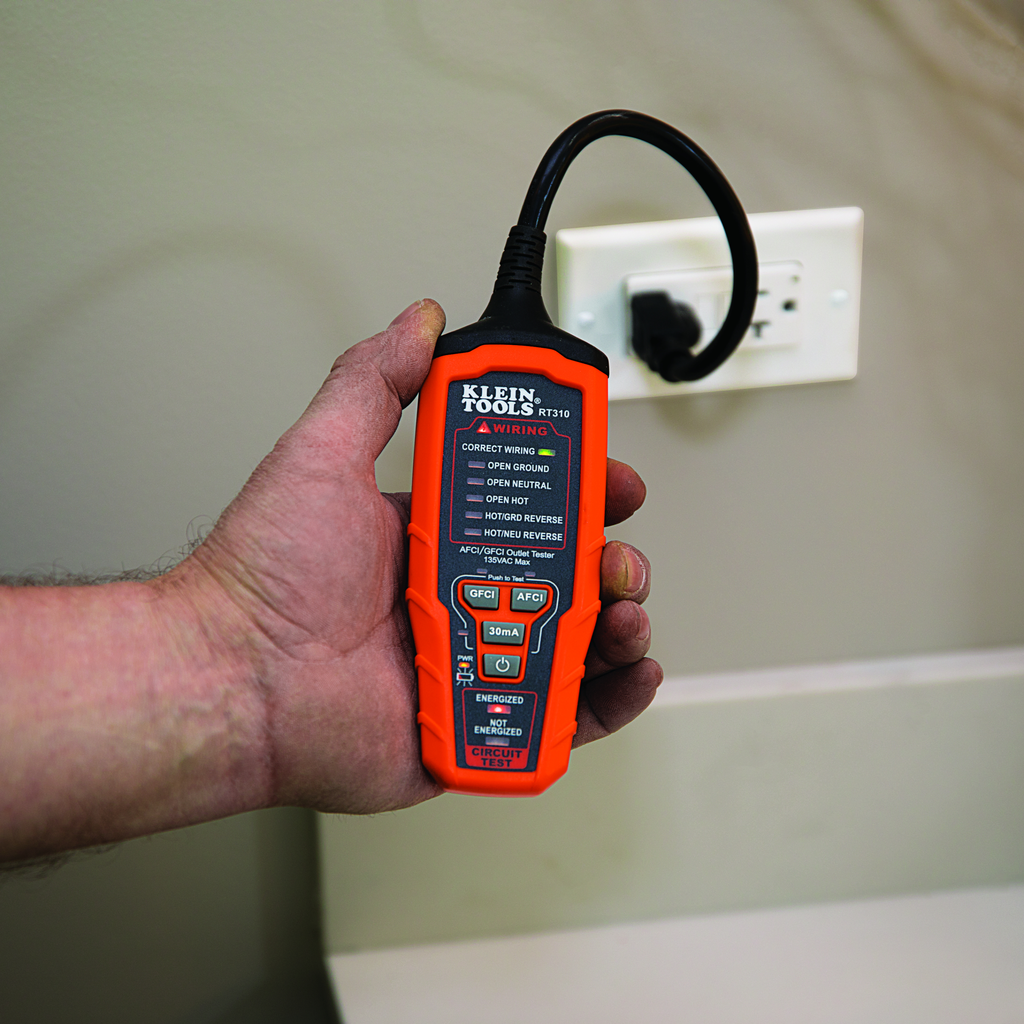

RT310 is an electrical tester that tests the wiring condition at an electrical outlet, and inspects and checks AFCI and GFCI devices. It is designed for use with North American 120V electrical outlets. It can detect and identify common wiring faults. Includes 3 x 1.5V AAA alkaline batteries.

Warnings

• Before each use, verify tester operation by testing on a known live and correctly wired receptacle and circuit
• The tester is intended for indoor use only. Tester is designed for use with 120V AC electrical systems. DO NOT connect to higher voltage electrical supplies.
• This tester only detects common wiring problems. DO NOT attempt electrical testing on an incorrectly wired outlet
• DO NOT use if the tester appears damaged in any way
• Read, understand, and follow all warnings and instructions before operating testers
• Always consult a qualified electrician to resolve wiring problems.

Features

• Designed to test North American-style grounded electrical outlets in 120V AC circuits (incorporates a three-pin plug)
• Test GFCI devices by simulating ground fault conditions

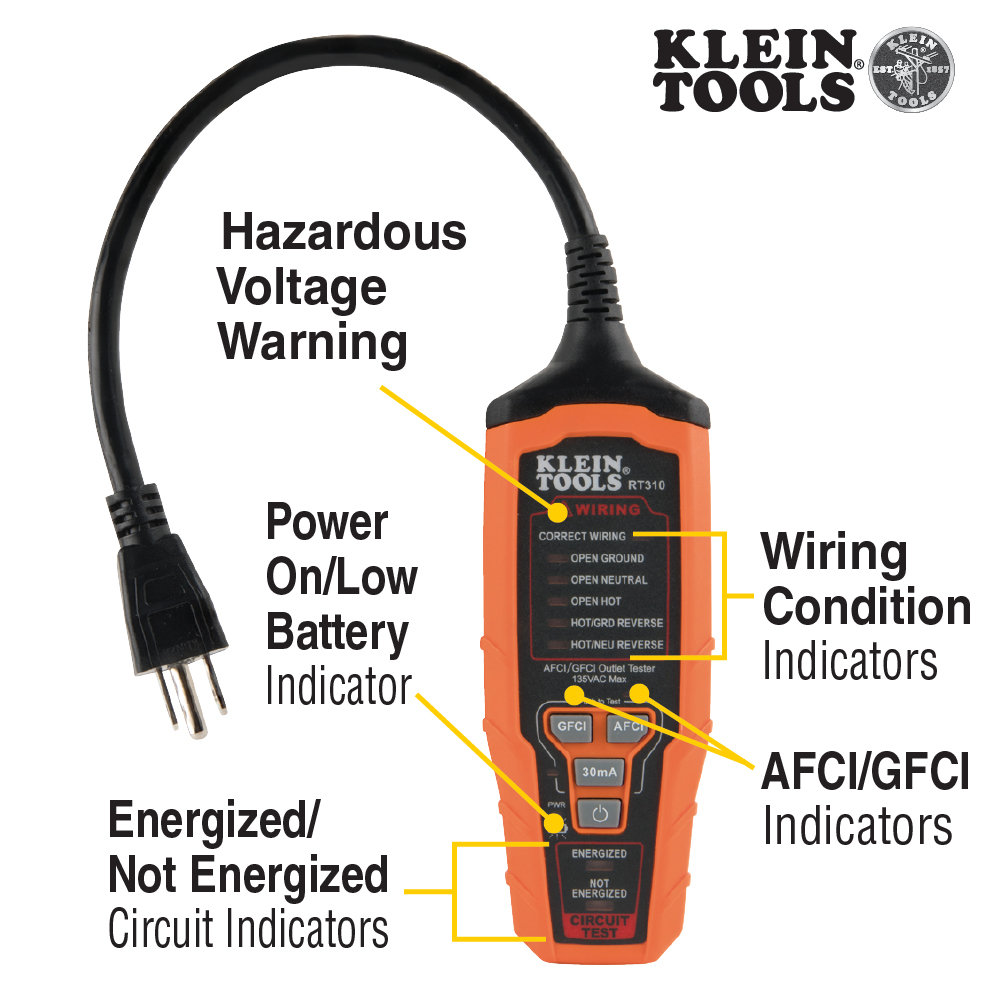

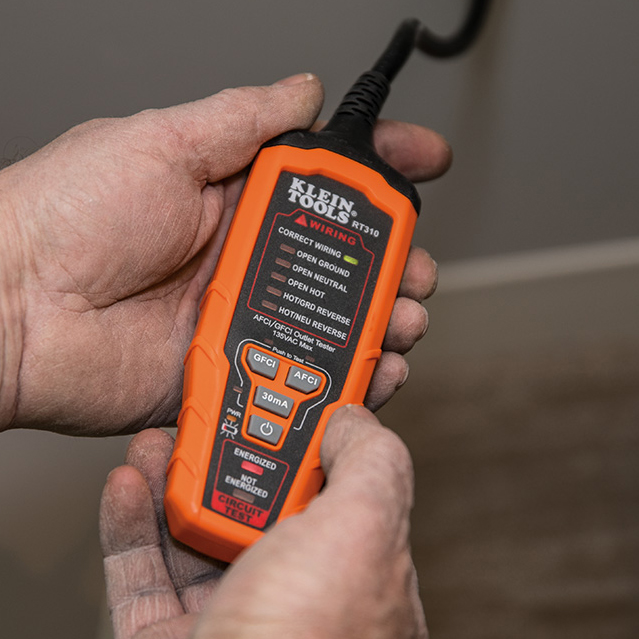

• Tester delivers clear visual indication of the wiring condition at the electrical outlet
• Measurement category III is applicable to test and measuring circuits connected to the distribution part of the building's low-voltage MAINS installation
• Powers off automatically after approximately 2 minutes of non-use to conserve battery life
• Low battery indicator and easily accessible battery compartment; Uses 3 x 1.5V AAA alkaline batteries (included)
• The RT310 features a patent pending AFCI test method that is unique to Klein Tools
• Test AFCI devices by simulating arc fault conditions
• Capable of detecting a dual-open wiring fault with simultaneous open neutral and open ground wires (patent pending technology)
• GFCI Tester detects the most common wiring faults in standard, AFCI, and GFCI electrical outlets
• Electrical plug is on a 10-Inch (25.4 cm) flexible electrical cord to access electrical outlets in difficult to reach locations
• Tests AFCI and GFCI, Simulates Ground Fault and Arc Flash Conditions, Detects Dual-Open Wiring Fault
• Built to withstand a 6.6-Foot (2 m) drop
• CATIII 135V safety rating

Specifications

• Material: PC/ABS Housing with Electronic Components
• Batteries: 3 x AAA
• Depth: 18.5300 in
• Type: AFCI/GFCI Electrical Battery Operated Outlet Tester
• Voltage: 120V AC in 3-Wire Grounded Electrical Outlet
• Application: RT310 is an electrical outlet tester that tests for wiring faults in electrical outlets, and Tests AFCI and GFCI Devices
• Included: Outlet Tester; 3 x 1.5V AAA Alkaline Batteries
• Width: 2.3700 in
• GFCI: Yes
• Overall Width: 2.3 Inch (5.8 cm)
• AFCI: Yes
• Overall Length: 7.4 Inch (18.8 cm)
• Weight: 0.4580 lbs
• Overall Height: 3.3 cm (1.3 Inch)
• Standard: CATIII 135V
• Drop Protection: 6.6' (2 m)
• Height: 1.2800 in
