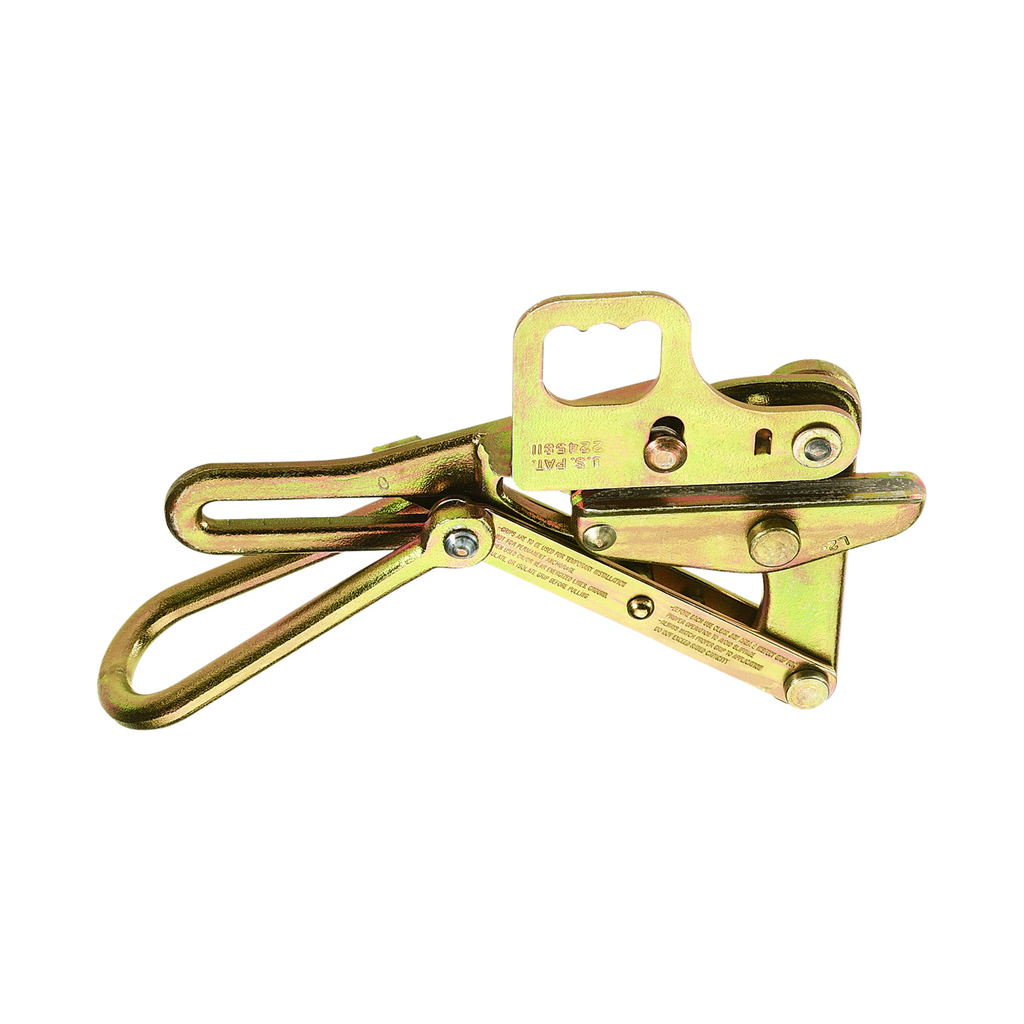

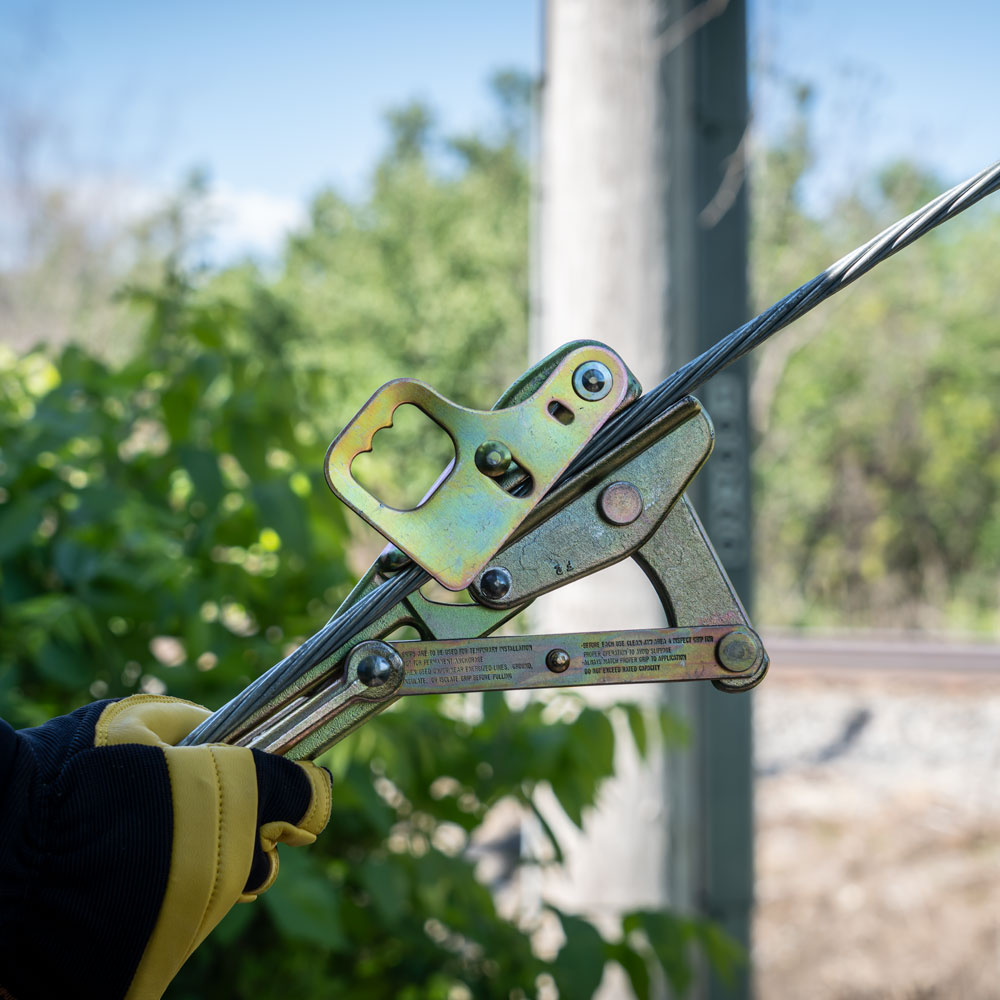

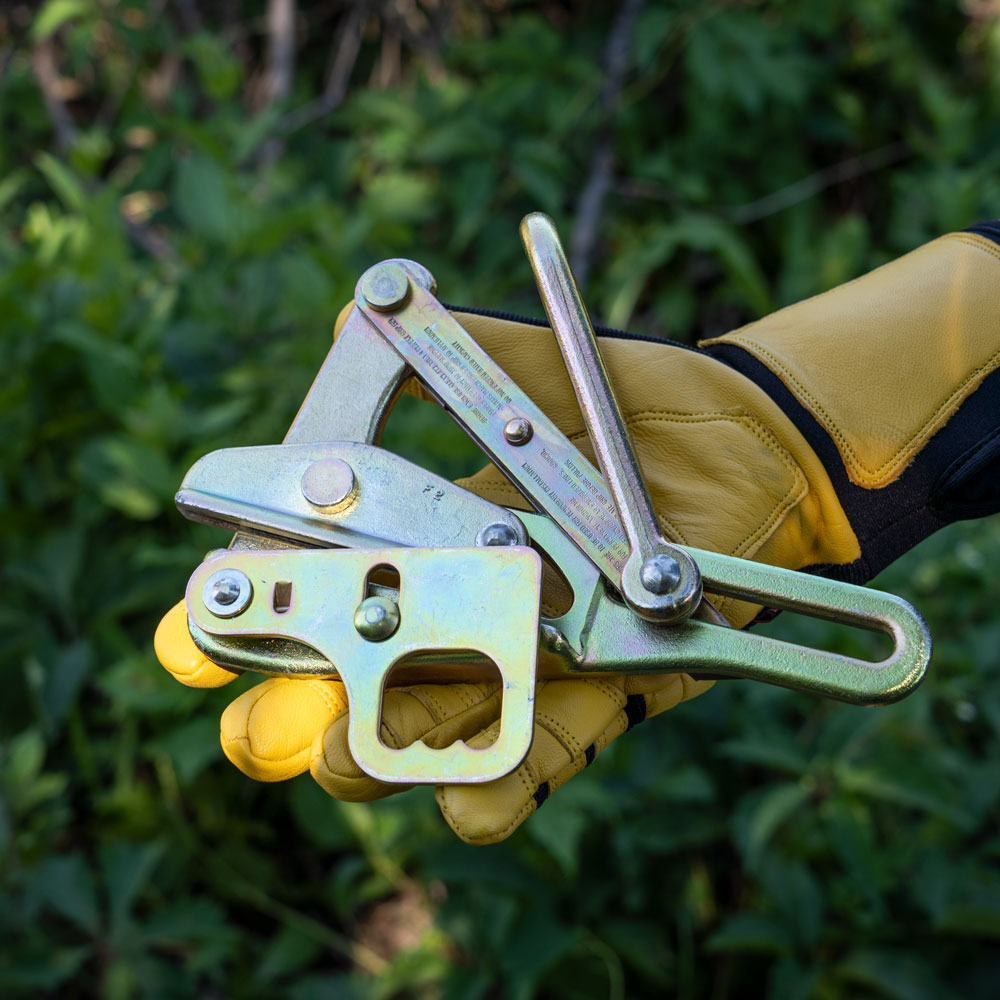

Grip, Hot-Line Latch, Bare Cable .12 to .37-Inch

Klein Tools hard hats are designed and engineered for optimal safety, comfort and fit. Unique features allow the user to comfortably work in a wide variety of applications and demanding environments. Patent pending accessory mounts on front and back ensure optional Klein headlamps attach securely - no straps needed.

Features

• Grip has a hot latch and can be used with a hot-line stick
• Designed for EHS (Extra-High-Strength)
• Made in USA
• Cable diameter range 0.12 to 0.37-Inch (3.05 to 9.40 mm)
• Messenger and Guy Strand Cable
• Has Double V inside-jaw contour
• 4500-Pound maximum safe load
• Locking handle keeps jaw open while grip is placed on cable with a hot stick
• 4-3/16-Inch jaw length

Warnings

• Always match proper size and type of grip to application.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Specifications

• Spring: Yes
• Locking Handle: Yes
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Cable Diameter: 0.12" to 0.37" (3.05 to 9.4 mm)
• Jaw Length (Inch): 4.188
• Maximum Safe Load (lb): 4500
• Weight: 3.2000 lbs
• Type: Chicago Grip
• Teeth Type: Smooth
• Jaw Length (cm): 10.6
• Maximum Safe Load (kg): 2041.2
• Swing Latch: No
• Hot Latch: Yes
• Jaw Type: Double V
• Material: Steel
• Application: Wire Pulling
• Weight (kg): 1.5
• Weight (lb): 3.2

Downloads

Instructions
