Chicago Grip, Forged, Hot-Line, 0.20 to 0.40-Inch

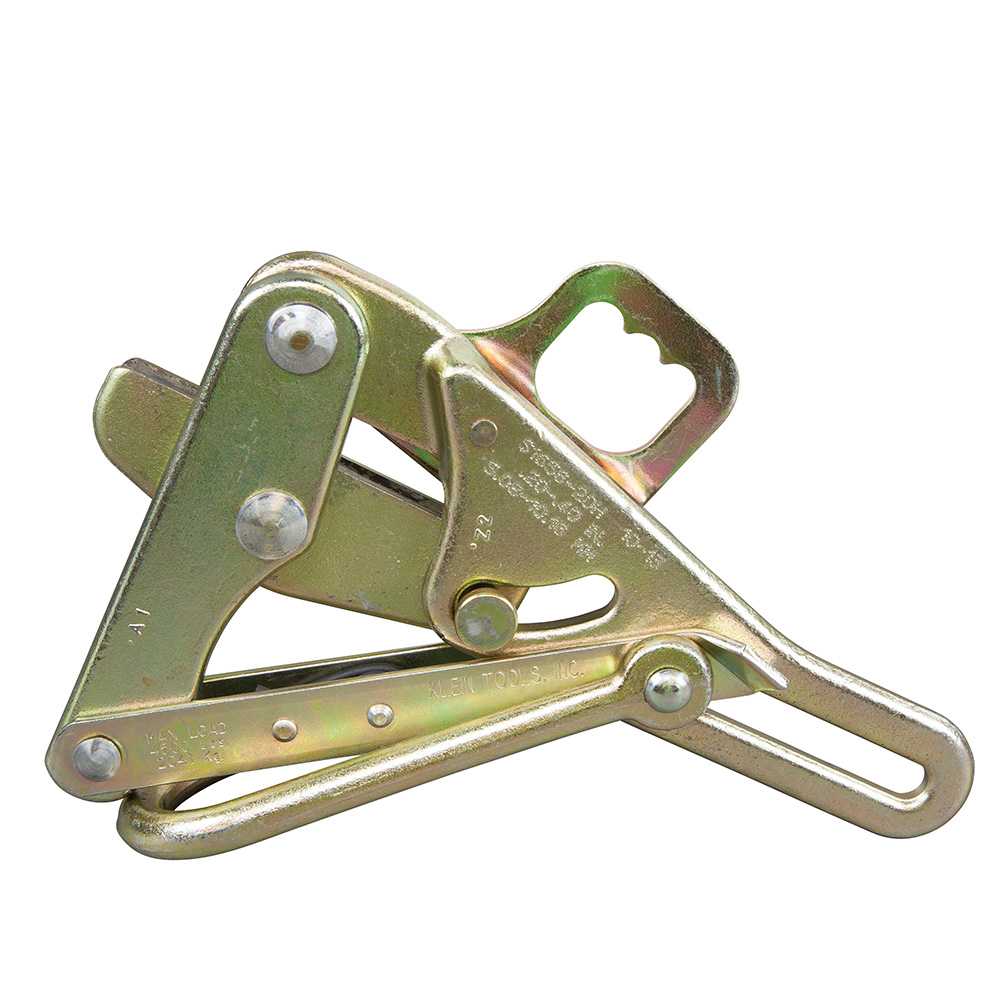

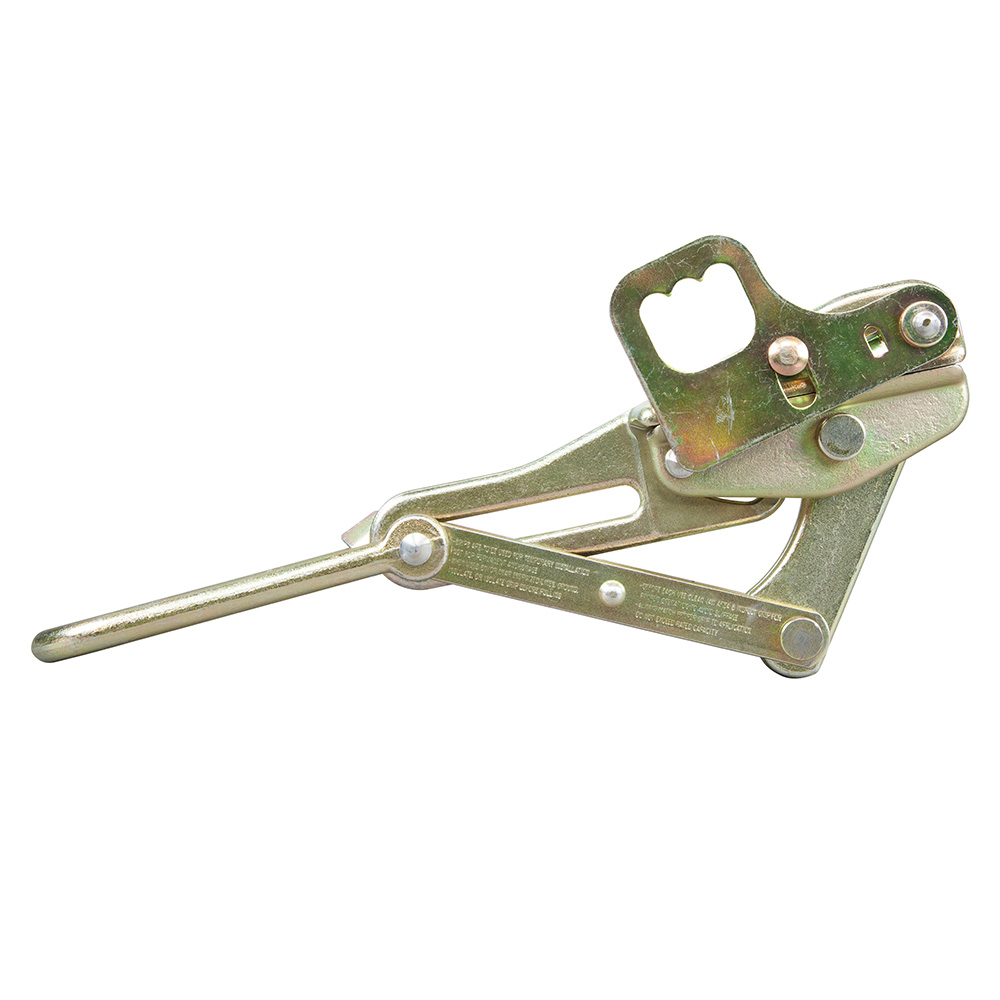

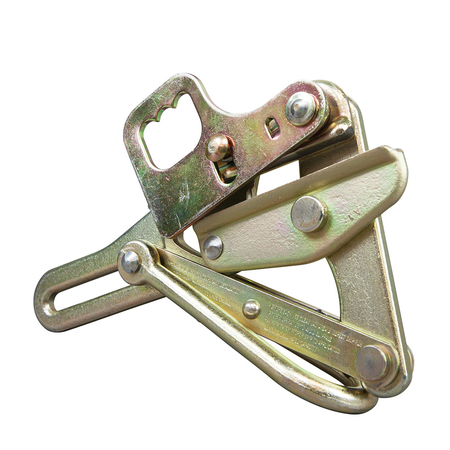

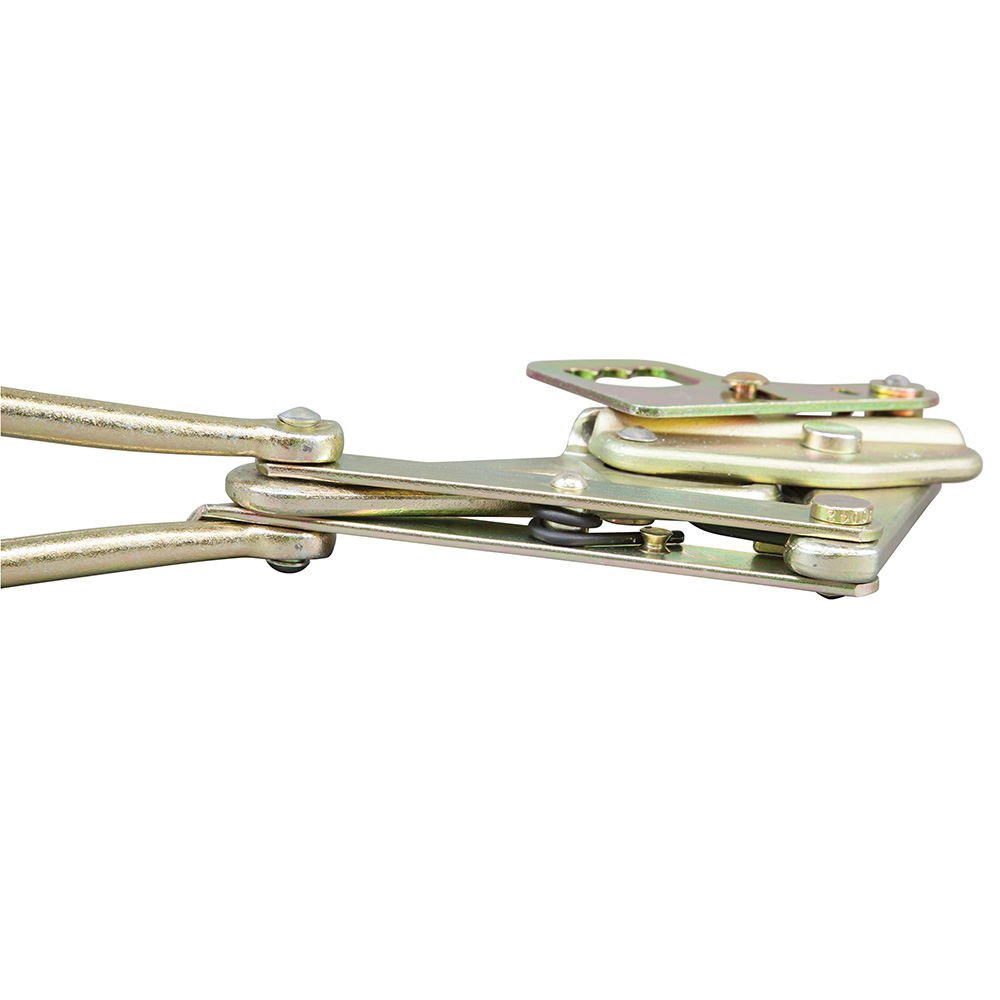

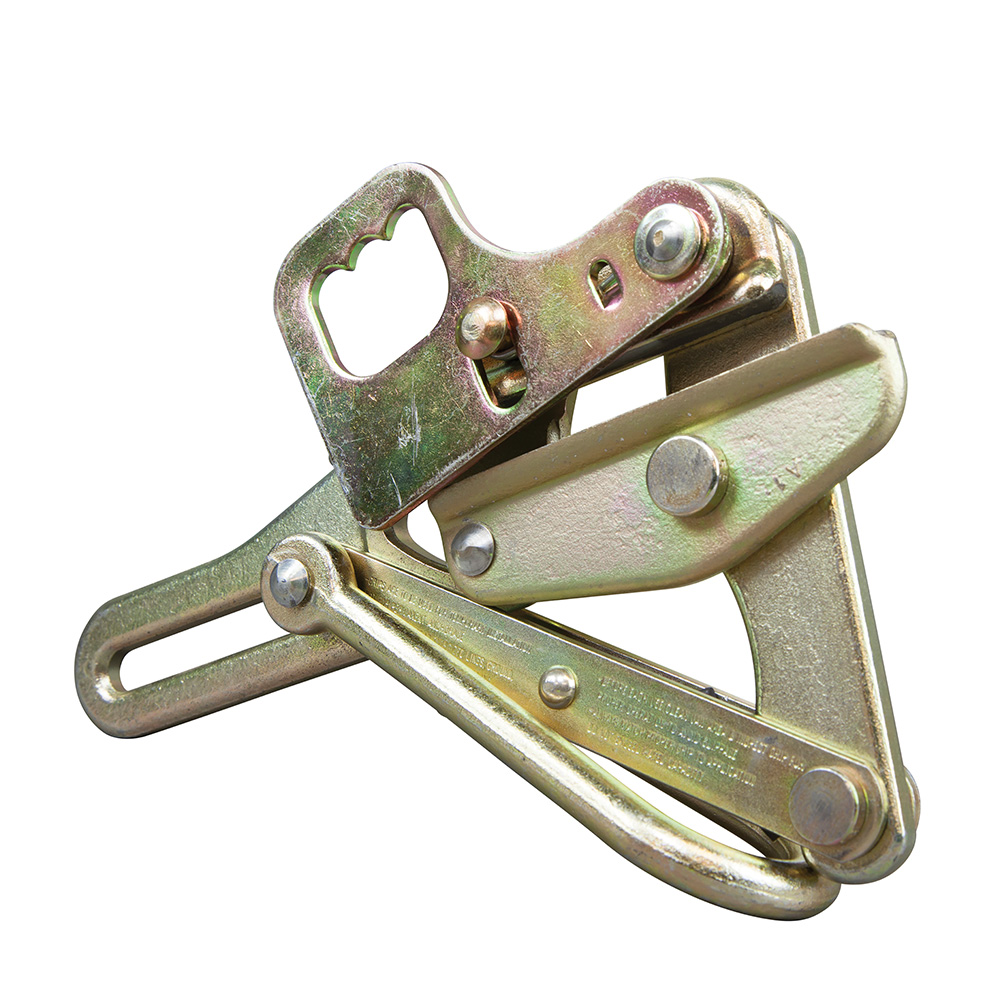

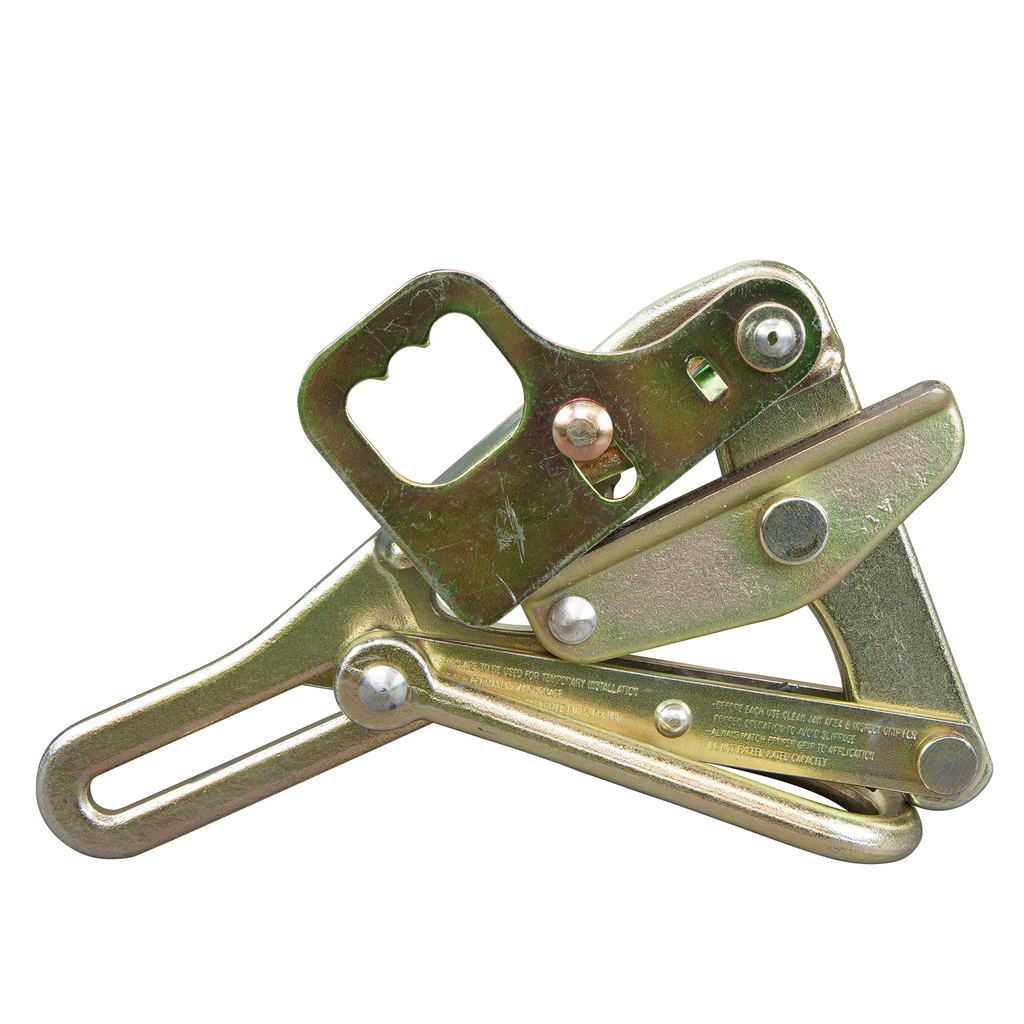

The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors is for both bare and insulated conductors. The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors may be placed on wire with hot-line stick. When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire.

Features

• Jaw length: 4-3/16-Inch
• The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors has round inside-jaw contour
• Made in USA
• Standard hot-line grips are not supplied with springs or lock-open features
• Maximum safe load of 4,500 pounds
• Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product

Warnings

• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.

Specifications

• Overall Width (Inch): 2.13
• Jaw Length (cm): 10.2
• Weight: 0.1000 lbs
• Overall Length (Inch): 12.5
• Jaw Length (Inch): 4
• Overall Width (cm): 5.4
• Weight (lb): 3.15
• Cable Diameter: 0.2" to 0.4" (5.08 to 10.16 mm)
• Cable Type: Copper, ACSR, AAC
• Width: 6.0000 in
• Application: Wire Pulling
• Teeth Type: Smooth
• Height: 2.0000 in
• Overall Length (cm): 31.8
• Maximum Safe Load (lb): 4500
• Hot Latch: Yes
• Maximum Safe Load (kg): 2041.2
• Swing Latch: No
• Weight (kg): 1.4
• Material: Steel
• Type: Chicago Grip
• Jaw Type: Round
• Locking Handle: Yes
• Depth: 8.0000 in
• Spring: Yes
