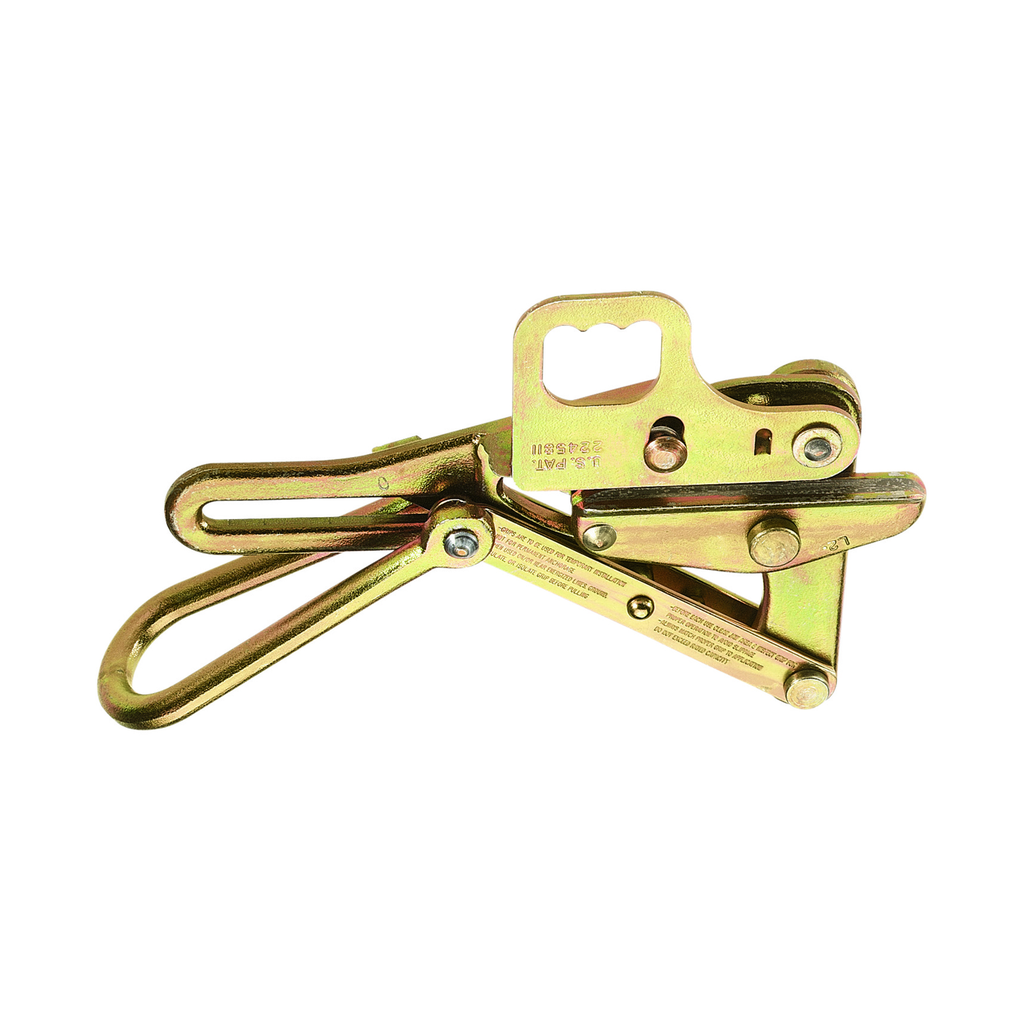

Chicago Grip Hot-Line 0.31 to 0.53-Inch

The Klein S1656-30H Chicago Grip-with Hot-Line Latch for Bare Conductors is for both bare and insulated conductors. The Klein S1656-30H Chicago Grip-with Hot-Line Latch for Bare Conductors may be placed on wire with hot-line stick. When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire.

Features

• Jaw length: 4-7/8-Inch
• Maximum safe load of 4,500 pounds
• Chicago Grip-with Hot-Line Latch for Bare Conductors has round inside-jaw contour
• Standard hot-line grips are not supplied with springs or lock-open features
• Made in USA
• Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product

Warnings

• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.
• Grips are to be used for temporary installation, not for permanent anchorage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.

Specifications

• Application: Wire Pulling
• Type: Chicago Grip
• Jaw Type: Round
• Weight (kg): 1.8
• Material: Steel
• Cable Type: Copper, ACSR, AAC
• Spring: Yes
• Hot Latch: Yes
• Maximum Safe Load (kg): 2041.2
• Cable Diameter: 0.1" to 0.53" (7.87 to 13.46 mm)
• Weight (lb): 4
• Teeth Type: Smooth
• Jaw Length (Inch): 4.75
• Jaw Length (cm): 12.1
• Maximum Safe Load (lb): 4500
• Weight: 4.0000 lbs
• Swing Latch: No
• Locking Handle: Yes
