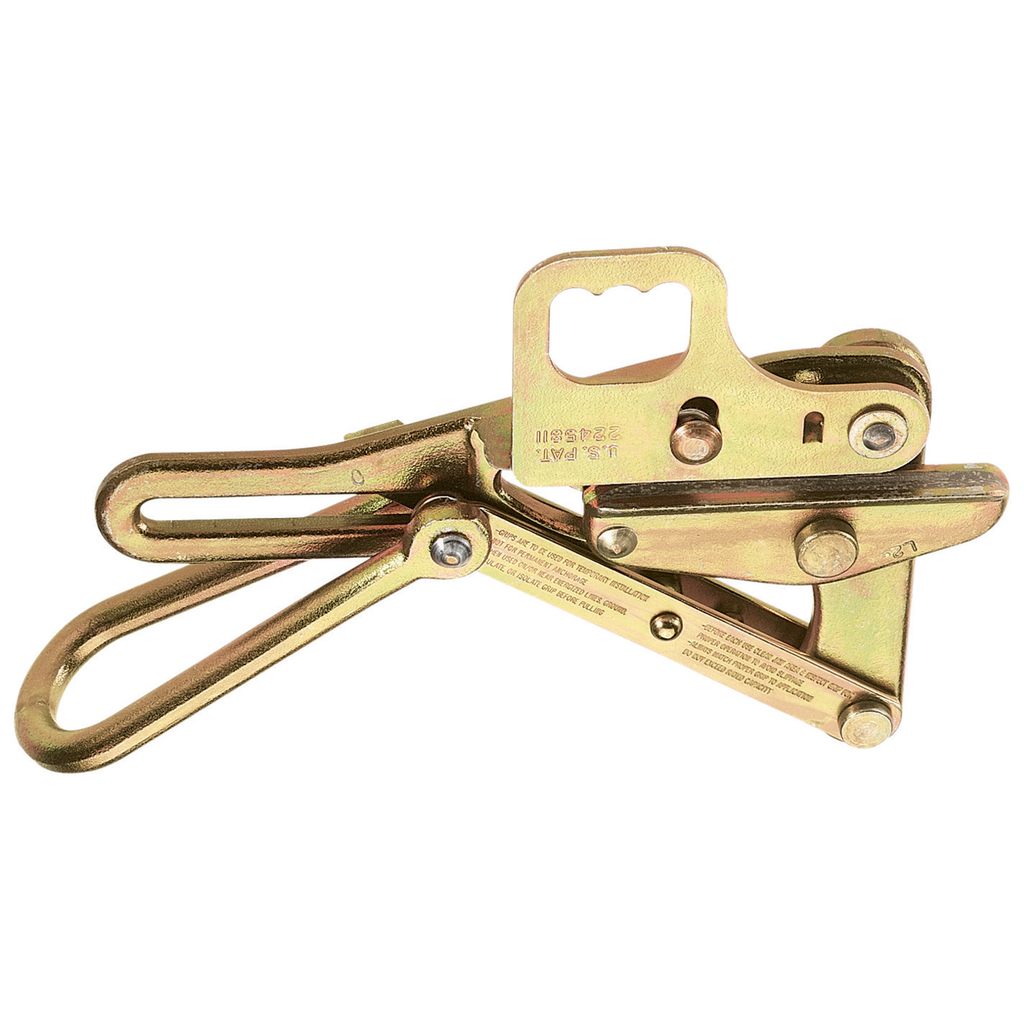

Chicago Grip, Forged, Hot-Line, .218 to .55-Inch

The Klein S1684-5H Chicago Grip-with Hot-Line Latch for Bare Conductors are for both bare and insulated conductors . The Klein S1684-5H Chicago Grip-with Hot-Line Latch for Bare Conductors grip may be placed on wire with hot-line stick. When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire.

Features

• Made in USA
• Jaw length: 5-Inch
• Standard hot-line grips are not supplied with springs or lock-open features
• Double V inside-jaw contour
• Maximum Safe Load: 8000-Pound (3629 kg)
• Works with Aircraft, EHS, Messenger, Guy Strand cable
• Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product

Warnings

• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.

Specifications

• Hot Latch: Yes
• Cable Diameter: 0.218" to 0.55" (5.54 to 13.97 mm)
• Overall Width (Inch): 2.38
• Overall Width (cm): 6
• Locking Handle: Yes
• Teeth Type: Smooth
• Jaw Length (Inch): 5
• Jaw Length (cm): 12.7
• Weight (lb): 6.7
• Maximum Safe Load (lb): 8000
• Maximum Safe Load (kg): 3628.7
• Width: 8.0000 in
• Weight (kg): 3
• Overall Height (Inch): 8.63
• Type: Chicago Grip
• Application: Wire Pulling
• Depth: 10.0000 in
• Overall Length (Inch): 14.75
• Material: Steel
• Overall Height (cm): 21.9
• Jaw Type: Double V
• Weight: 0.1000 lbs
• Spring: Yes
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Swing Latch: No
• Overall Length (cm): 37.5
• Height: 3.0000 in
