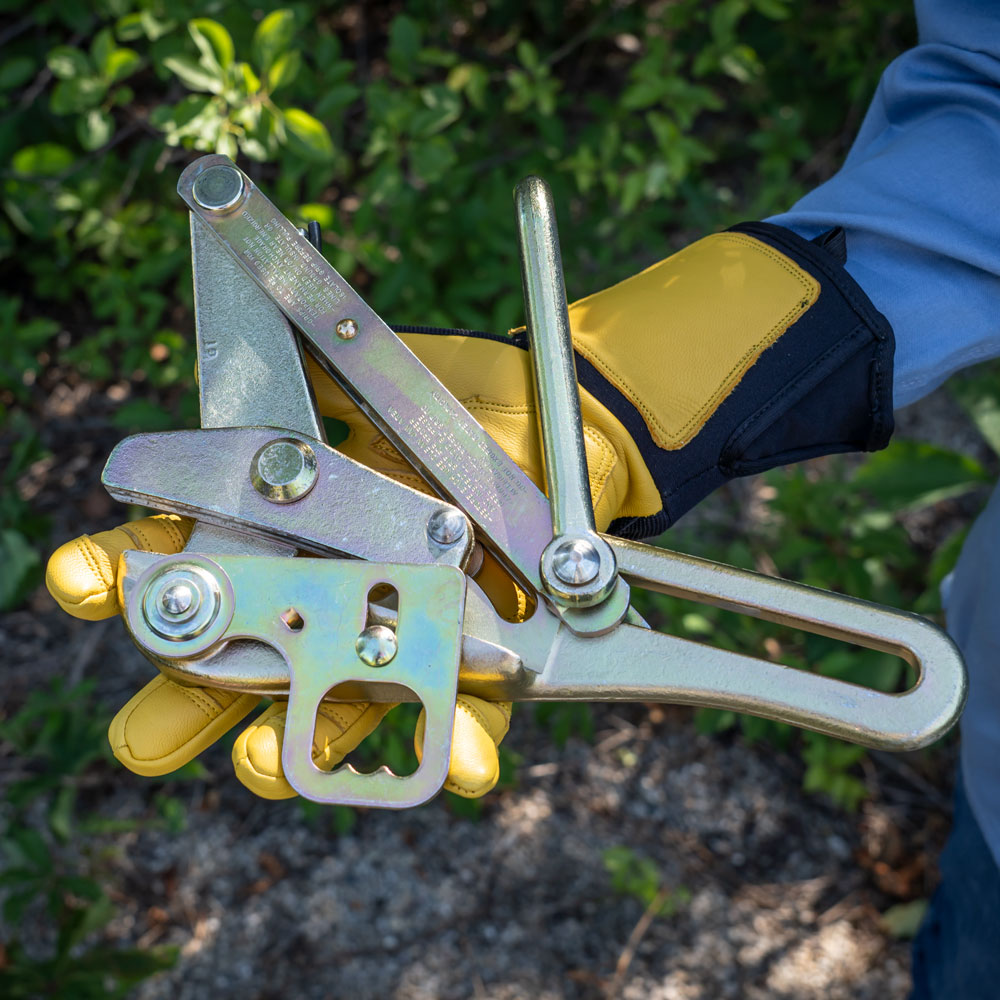

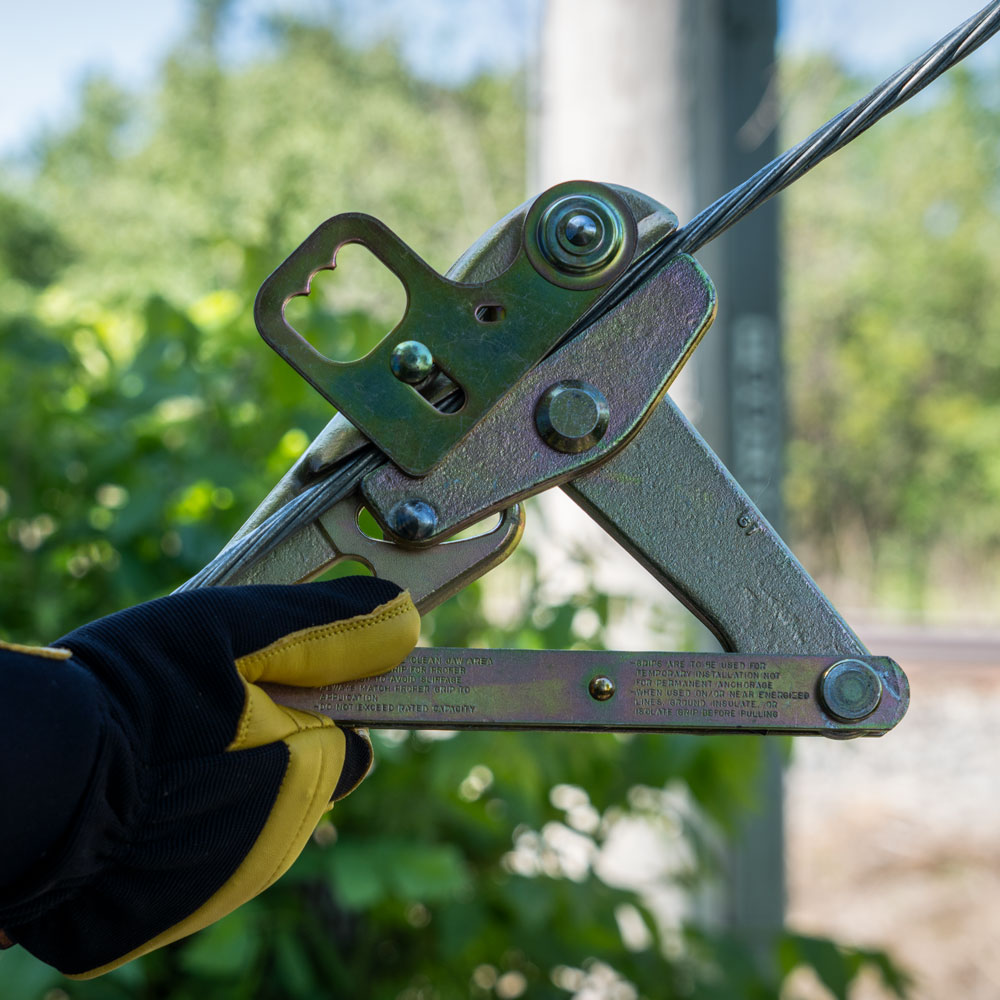

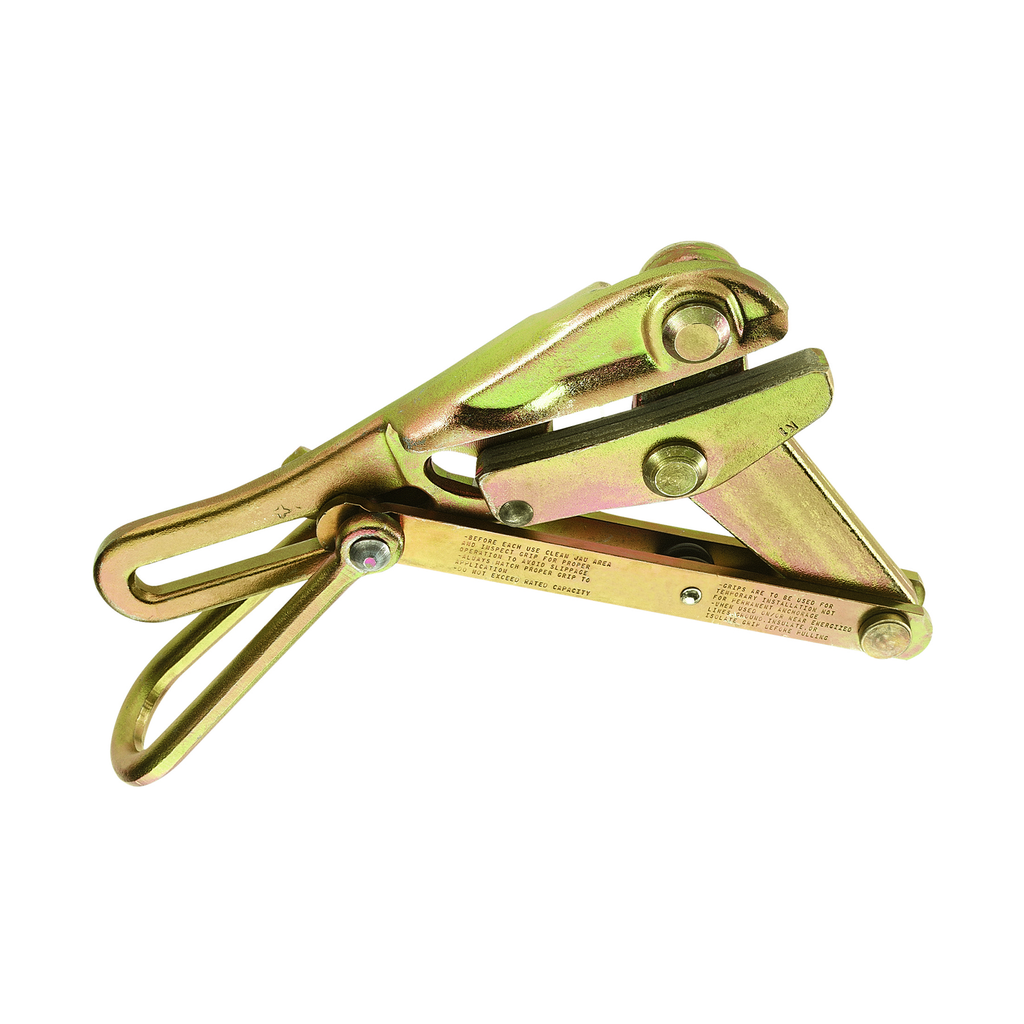

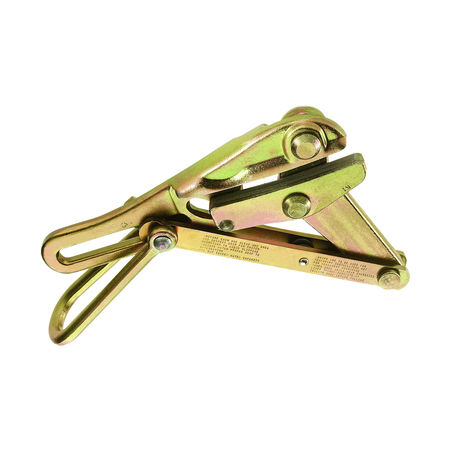

Curved Jaw Grip for EHS Cable with Latch

Designed for use on EHS (extra-high-strength) galvanized-steel cable. Double ''V'' contour reduces the possibility of slippage and damage to the cable. Manufactured in the United States to provide line workers with maximum strength and durability.

Warnings

• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Always match proper size and type of grip to application.
• Grips are to be used for temporary installation, not for permanent anchorage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.

Features

• To reduce the possibility of slippage and damage to the cable, the jaws of this grip are milled on a curve with a double ''V'' contour
• Available with hot-line latch and spring
• Made in USA to provide line workers with maximum strength and durability
• When pulling EHS (extra-high-strength) galvanized-steel cable, the galvanizing has a tendency to coat the jaws of any grip, causing the cable to slip

Specifications

• Swing Latch: No
• Material: Steel
• Overall Width (Inch): 7.203
• Overall Length (Inch): 9
• Weight: 5.8500 lbs
• Weight (kg): 2.9
• Jaw Length (cm): 12.7
• Maximum Safe Load (lb): 8000
• Overall Height (Inch): 2.25
• Teeth Type: Milled/Curved
• Height: 2.2500 in
• Locking Handle: Yes
• Jaw Type: Double V
• Weight (lb): 6.45
• Overall Height (cm): 5.7
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Type: Chicago Grip
• Hot Latch: Yes
• Cable Diameter: 0.218" to 0.55" (5.54 to 13.97 mm)
• Depth: 9.0000 in
• Spring: Yes
• Application: Wire Pulling
• Jaw Length (Inch): 5
• Overall Width (cm): 18.3
• Overall Length (cm): 22.9
• Width: 7.2000 in
• Maximum Safe Load (kg): 3628.7
