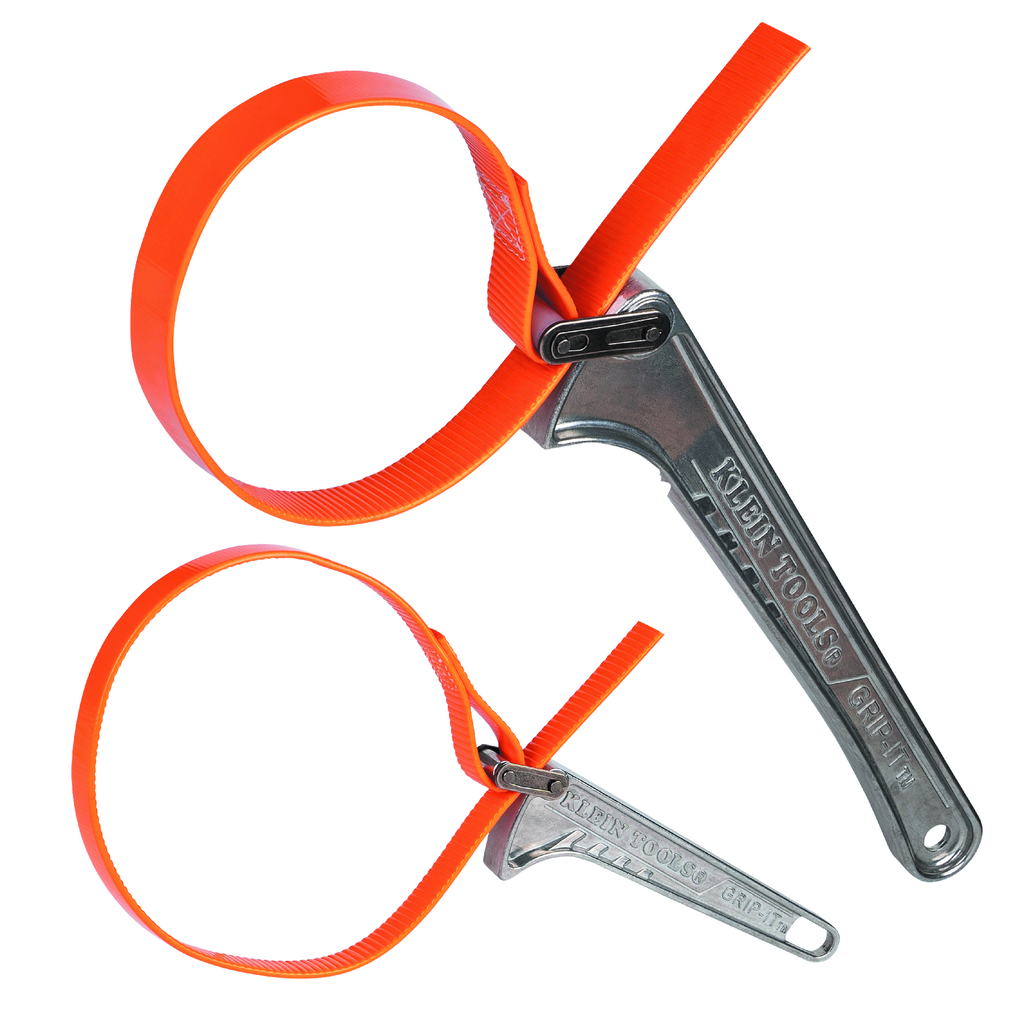

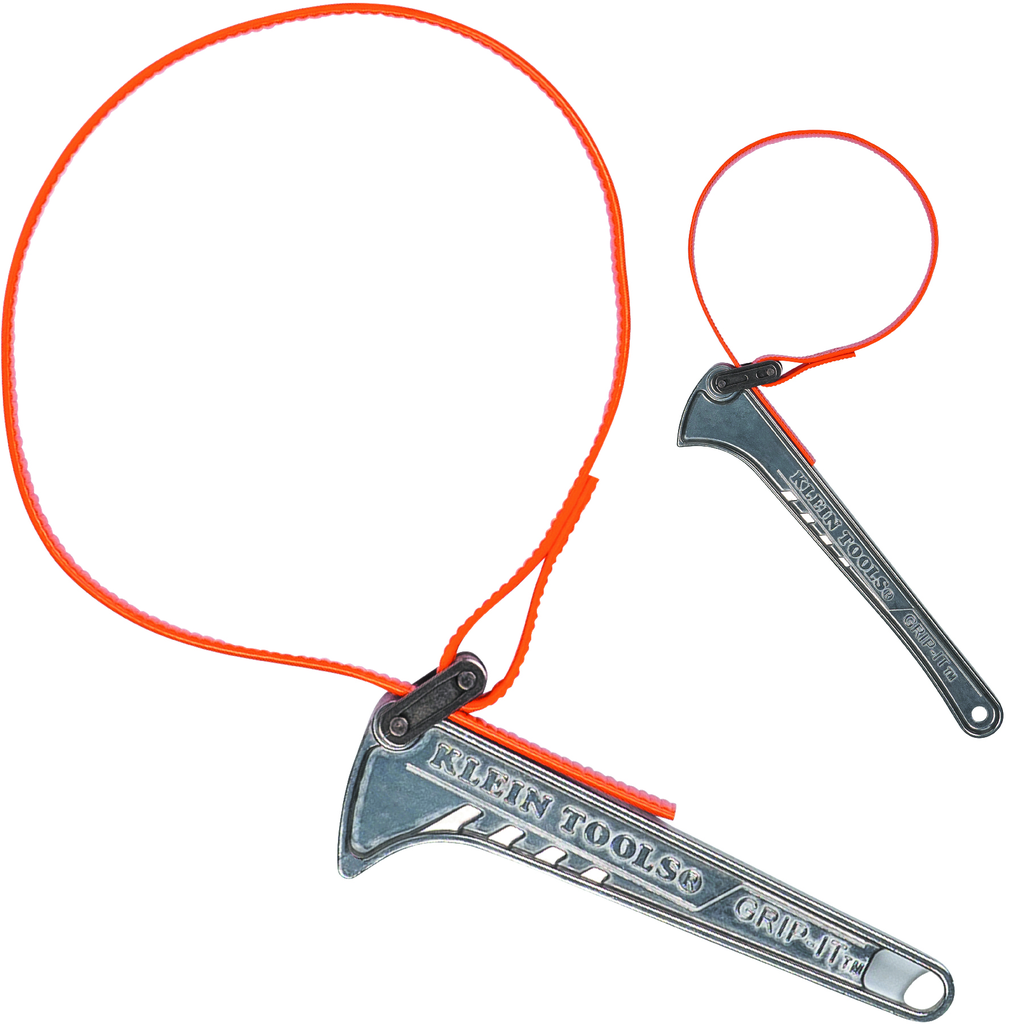

Grip-It™ Strap Wrench Kit, 6-Inch and 12-Inch Handles, 2-Piece

From Klein Tools, the Grip-It™ Strap Wrench is completely adjustable to work in the tightest quarters. Solidly constructed of urethane-covered, high-strength belting attached to a lightweight I-beam handle. The patented, cam-action design permits uniform, high-torque application. The Grip-It™ Strap Wrench is made to resist scratching, damaging or deforming polished pipe and fittings, plastic pipe and fittings, oil and water filters, glass pipe, PVC conduit, and polished shafts. Also works on alternator belts, flywheels, and propeller assemblies. Grip-It™ Strap Wrenches are also available in 18-Inch length (Cat. No. S18HB)

Warnings

• Always wear approved eye protection.
• Do NOT extend handle length.
• Do NOT push or hammer wrench.

Features

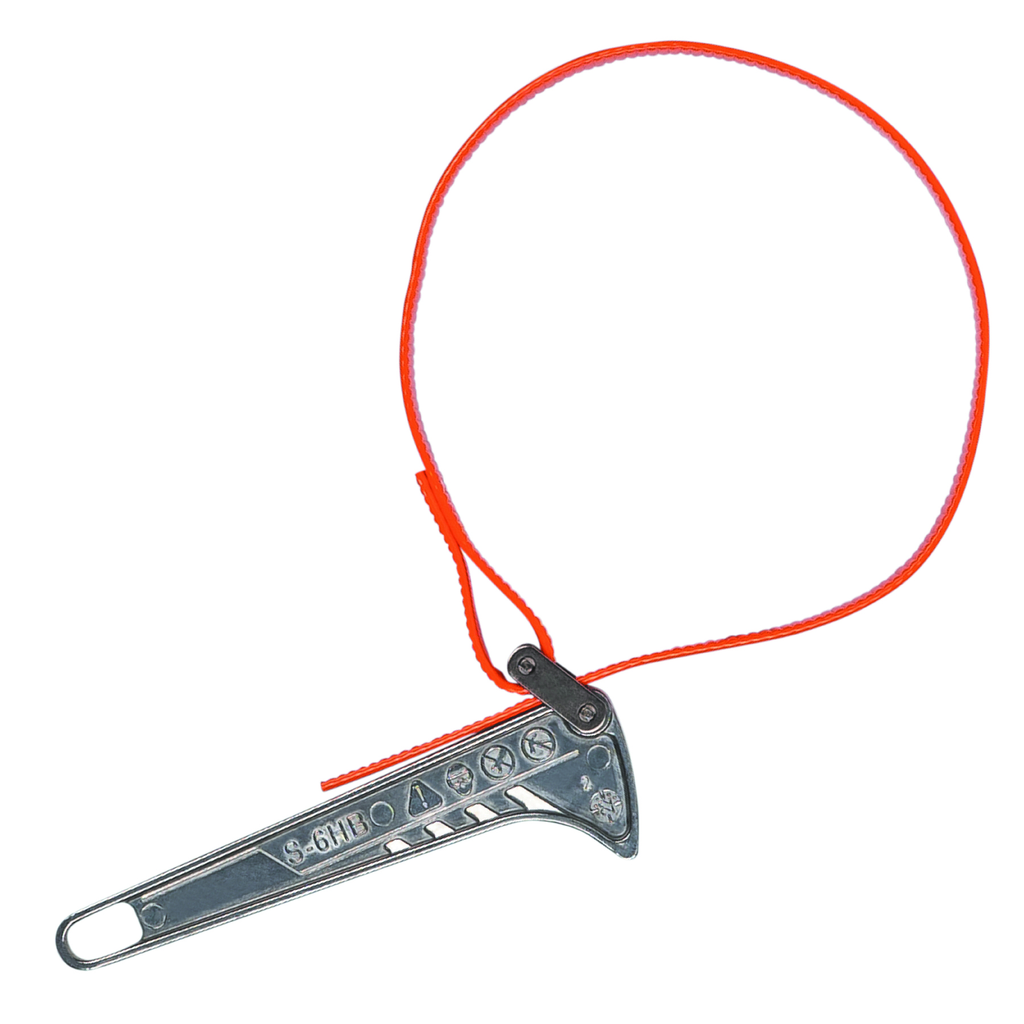

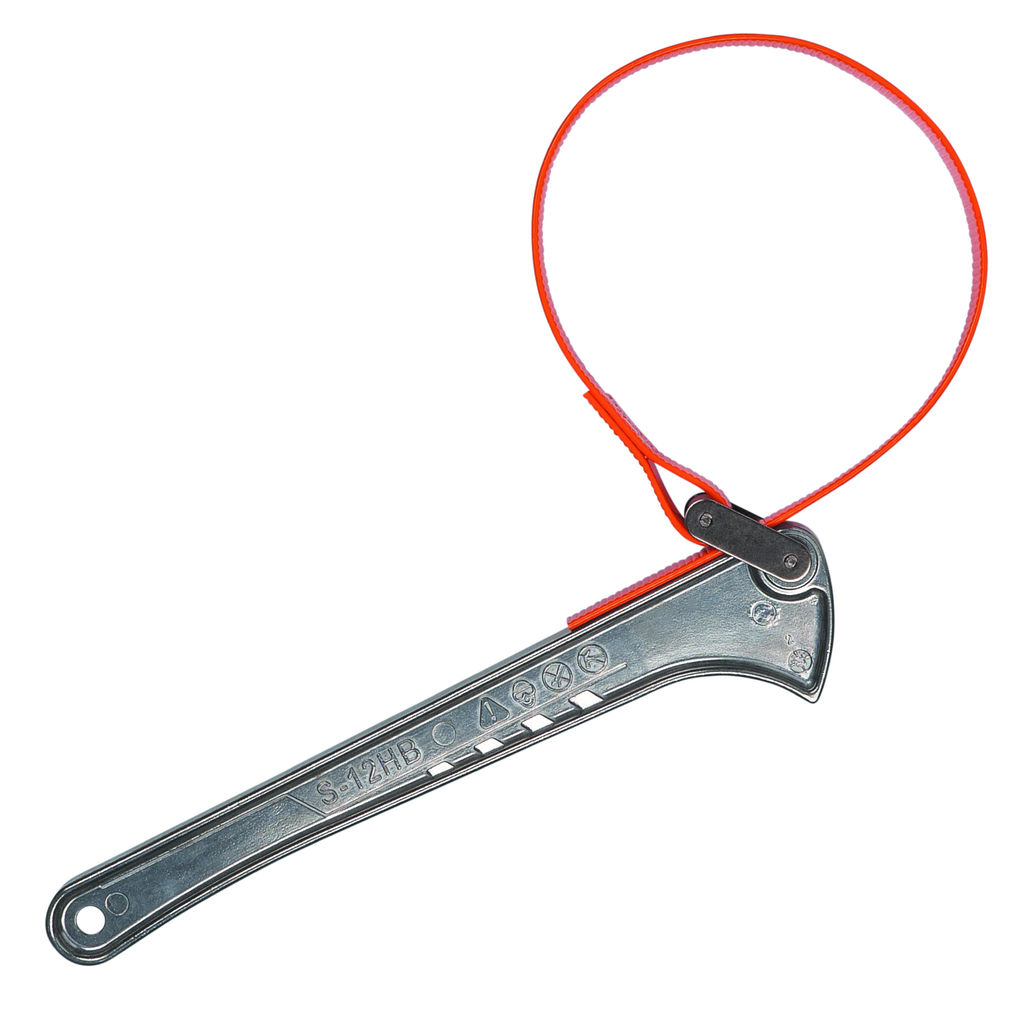

• 6-Inch Strap Wrench adjusts from 1-1/2 to 4-Inch capacity and 12-Inch Strap Wrench adjusts from 1-1/2 to 5-Inch capacity

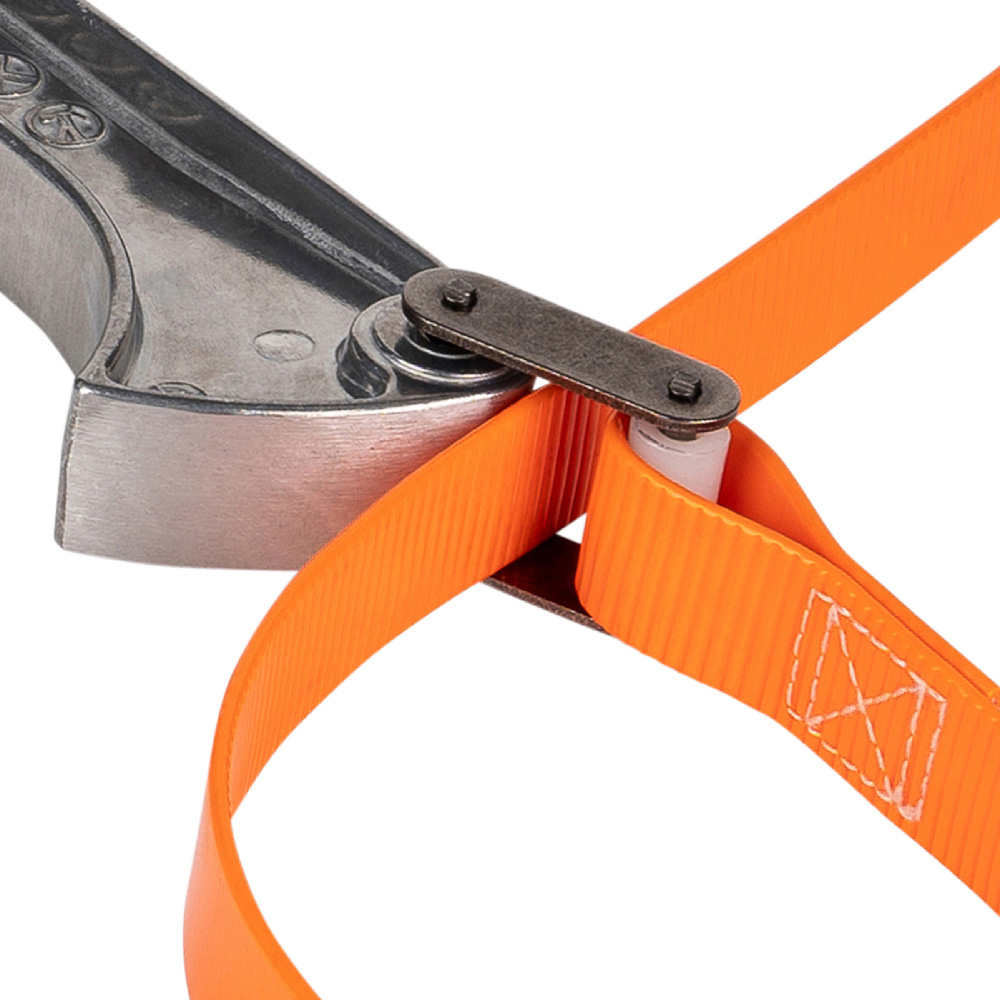

• Cam-action design permits uniform, high-torque application
• Also works on alternator belts, flywheels, and propeller assemblies
• Works in the tightest quarters
• Under normal conditions, will not scratch, damage or deform polished pipe and fittings, plastic pipe and fittings, oil and water filters, glass pipe, PVC conduit, and polished shafts
• Adjustability, Grip Strength
• Strap Wrench is completely adjustable

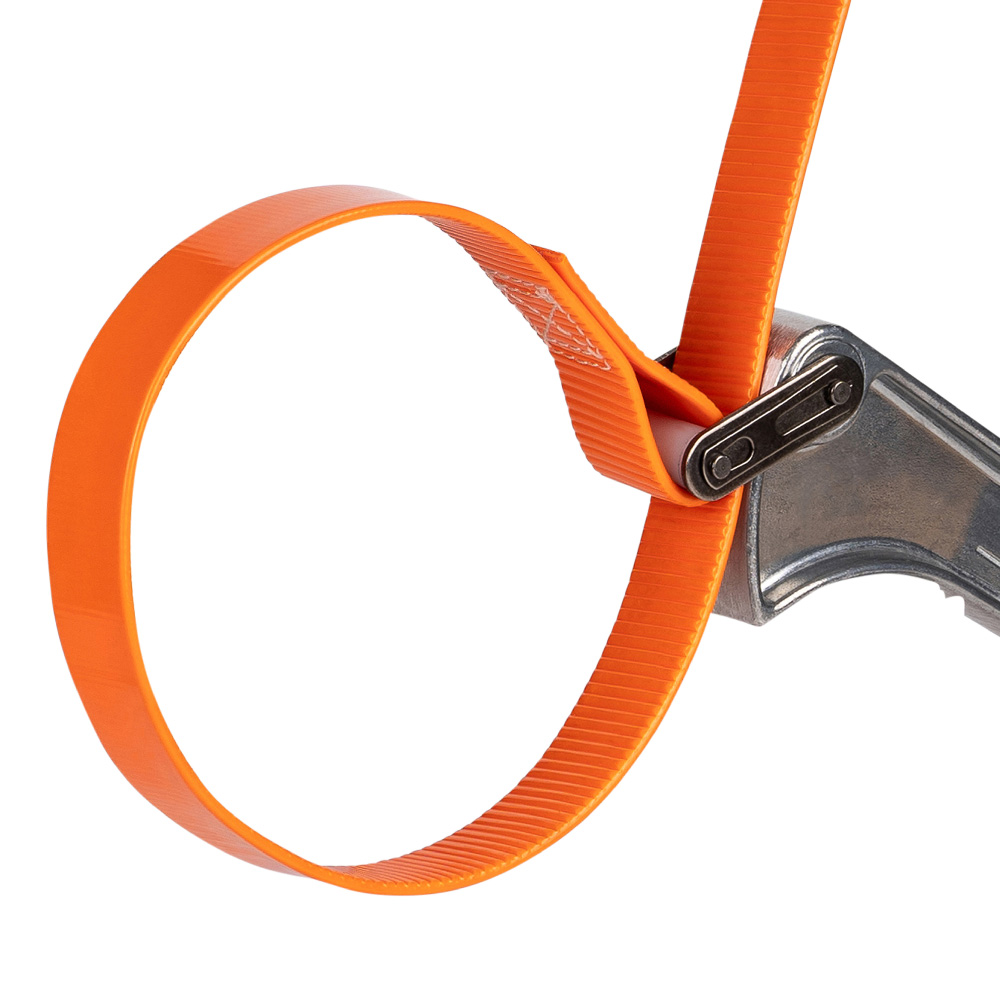

• Urethane-covered, high-strength belting attached to lightweight I-beam handle

• Diameter Capacity O.D.: S6HB: 1.5 to 4 in; S12HB: 1.5 to 5 in
• Handle Length: S6HB: 6 in (15.2 cm); S12HB: 12 in (30.5 cm)
• Strap Length: S6HB: 21.25 in (54 cm); S12HB: 22.25 in (57 cm)
• Strap Width: S6HB: 0.63 in (1.6 cm); S12HB: 1 in (2.5 cm)
• Overall Length: S6HB: 6 in (15.2 cm); S12HB: 12 in (30.5 cm)
• Overall Height: S6HB: 1.74 in (4.4 cm); S12HB: 2.4 in (6.1 cm)
• Overall Width: S6HB: 0.93 in (2.4 cm); S12HB: 1.51 in (3.8 cm)
• Depth: 12.5 in
• Height: 2 in
• Width: 4.25 in
• Weight: S6HB: 3.2 oz (91 g); S12HB: 12 oz (340 g)
• Strap Material: Urethane-coated nylon
• Handle Material: Die cast aluminum I-beam
• Color: Orange
• Country of Origin: China

Downloads

Instructions
