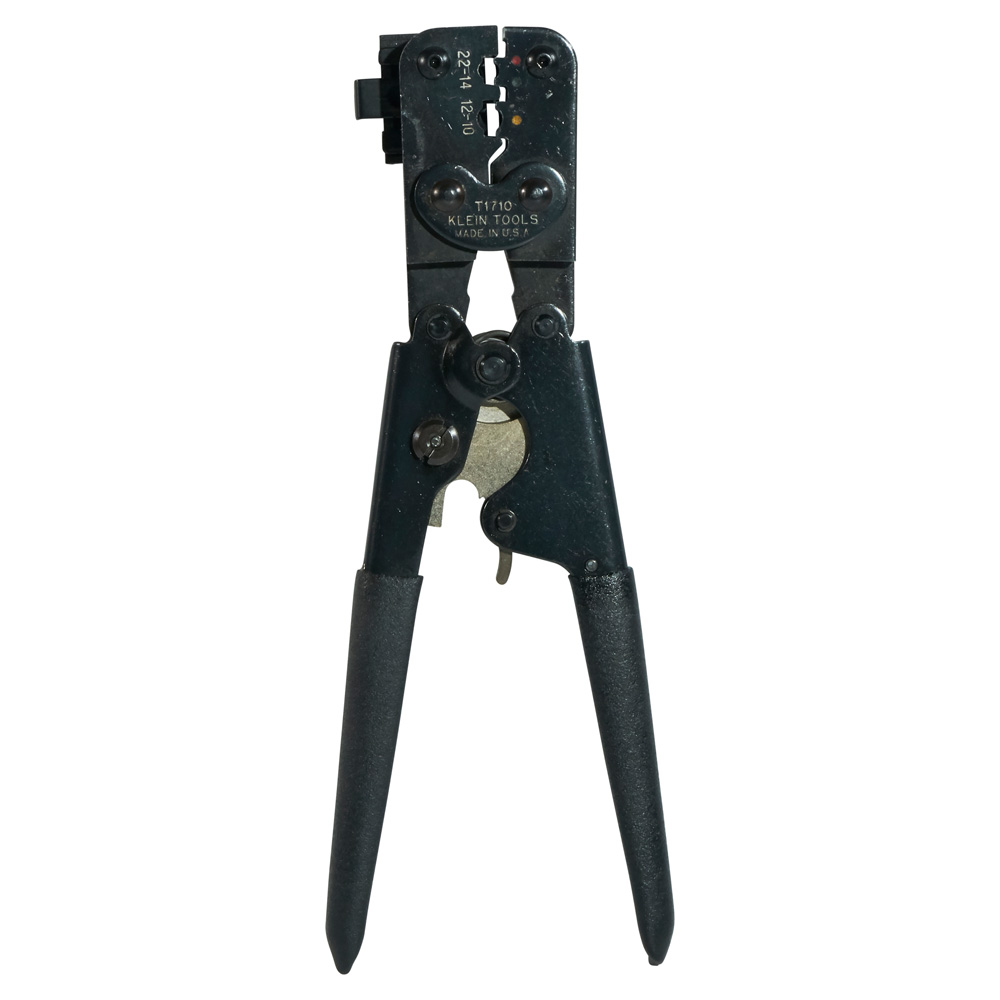

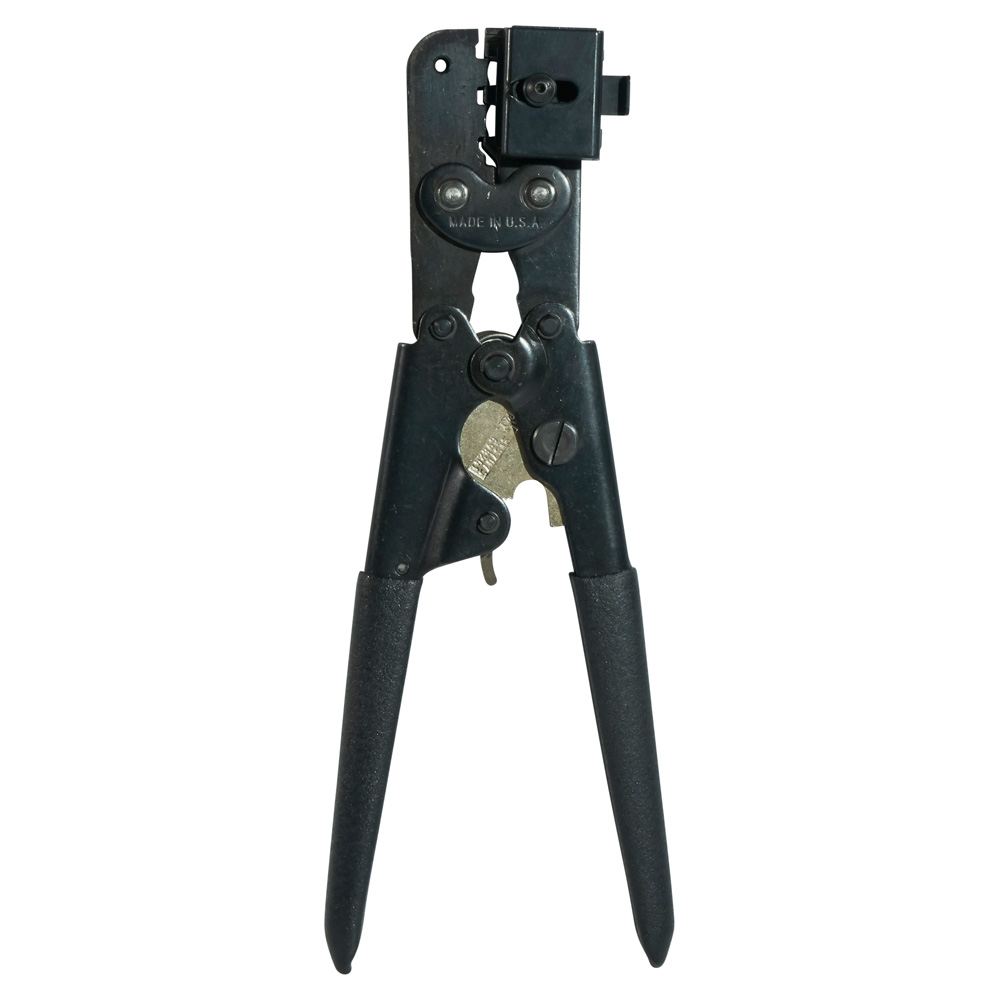

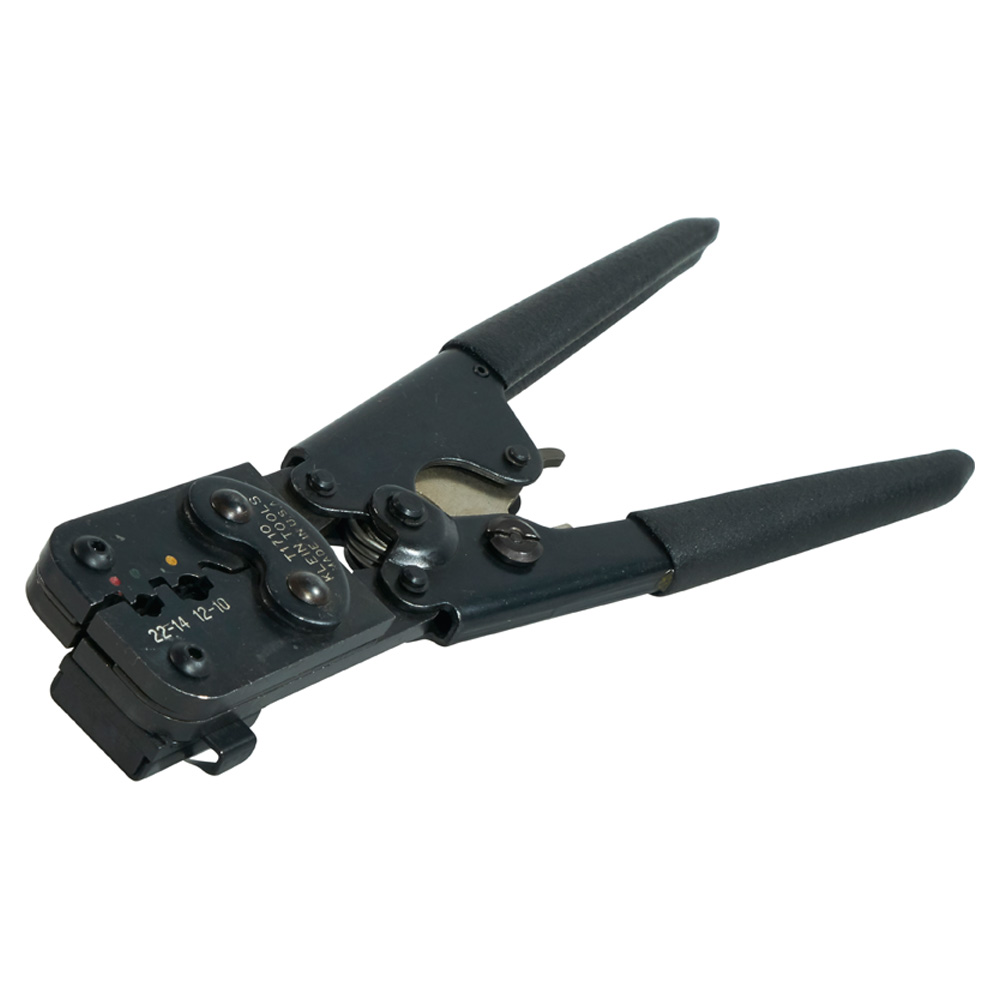

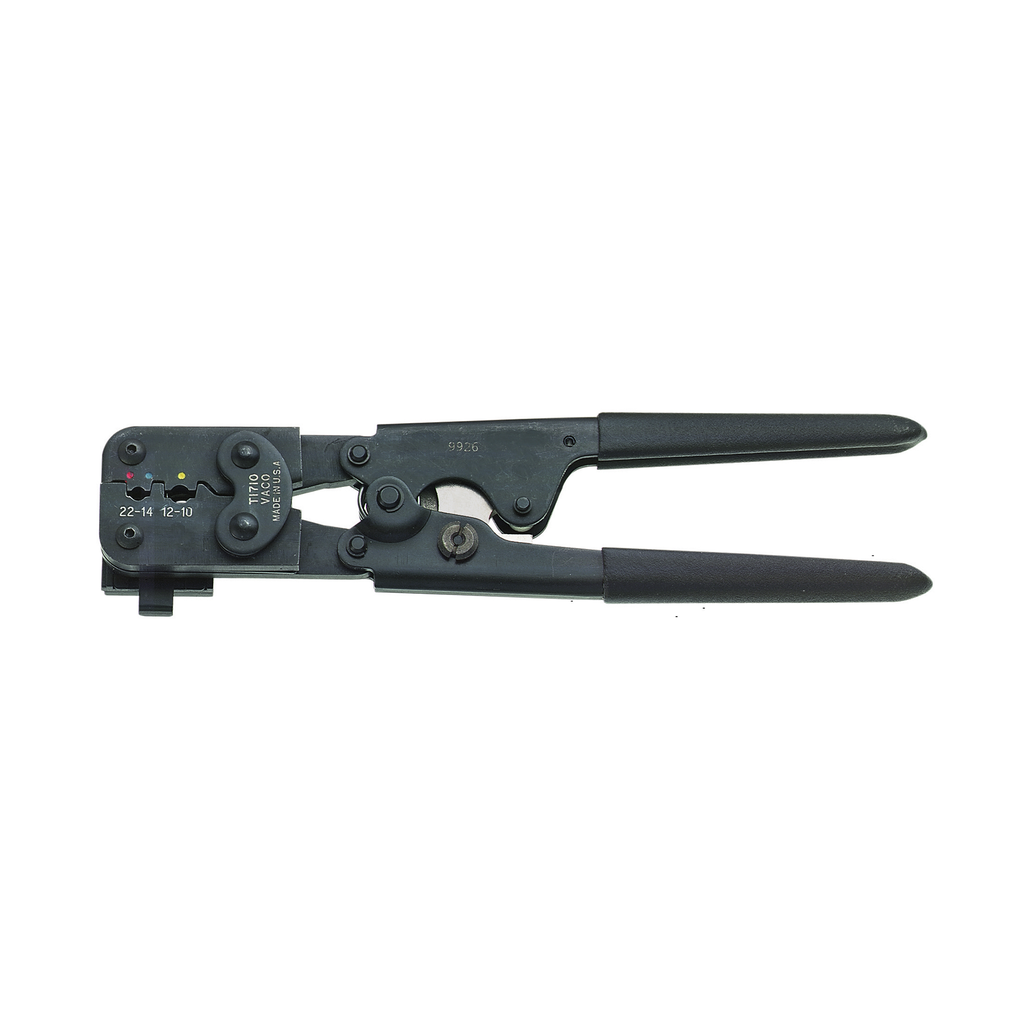

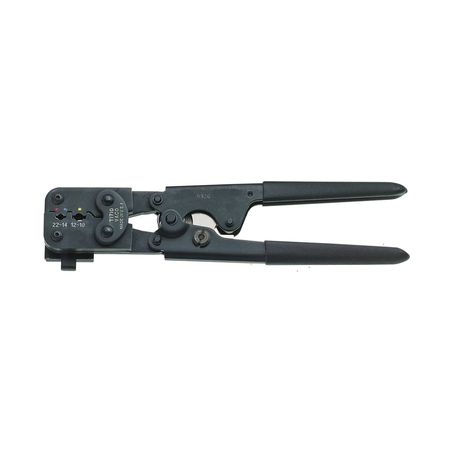

Compound Action Ratcheting Crimper - Insulated Terminals

Compound-action tool crimps 10-22 AWG insulated terminals to meet or exceed MIL-SPEC pull-out tests. Built-in ratchet with safety release ensures uniform crimps every time. Compound lever-action of narrow-span handles puts more crimping power into each squeeze.

Features

• Built-in ratchet with safety release assures uniform crimps every time
• Comfort-grip plastic handles
• Compound lever-action of narrow-span handles puts more crimping power into each squeeze
• Compound-action tool crimps 10-22 AWG insulated terminals to meet or exceed MIL-SPEC pull-out tests
• Special locator quickly positions terminal for double crimp
• Made in USA

Warnings

• Always wear approved eye protection.
• NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.

Specifications

• Width: 4.0000 in
• Weight: 1.0500 lbs
• Height: 2.0000 in
• Application: Wire Crimping
• Handle Finish: Plastic-Dipped
• Weight (lb): 1.1
• Overall Length (Inch): 9
• Depth: 9.0000 in
• Overall Length (cm): 22.9
• Weight (kg): 0.5
• Cable Size: 10-22 AWG
• Handle Color: Black
