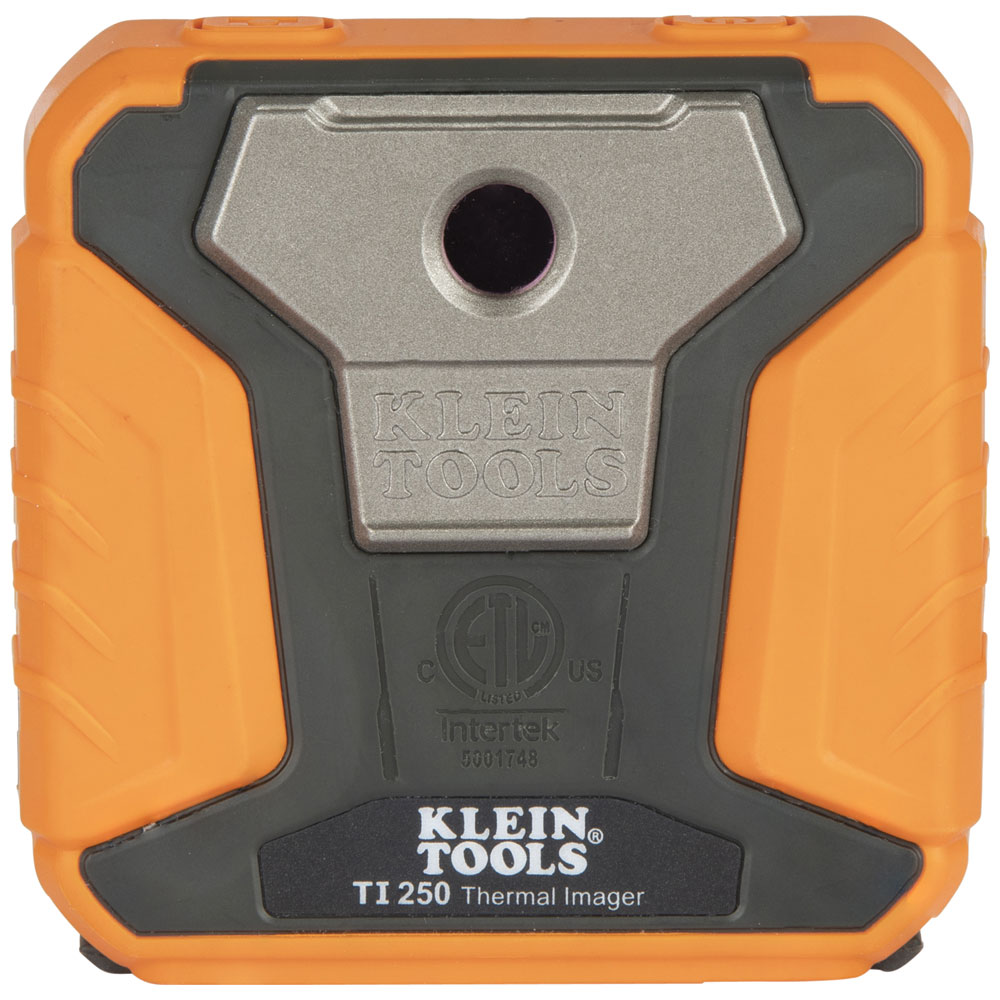

Rechargeable Thermal Imaging Camera, Over 19,200 Pixels

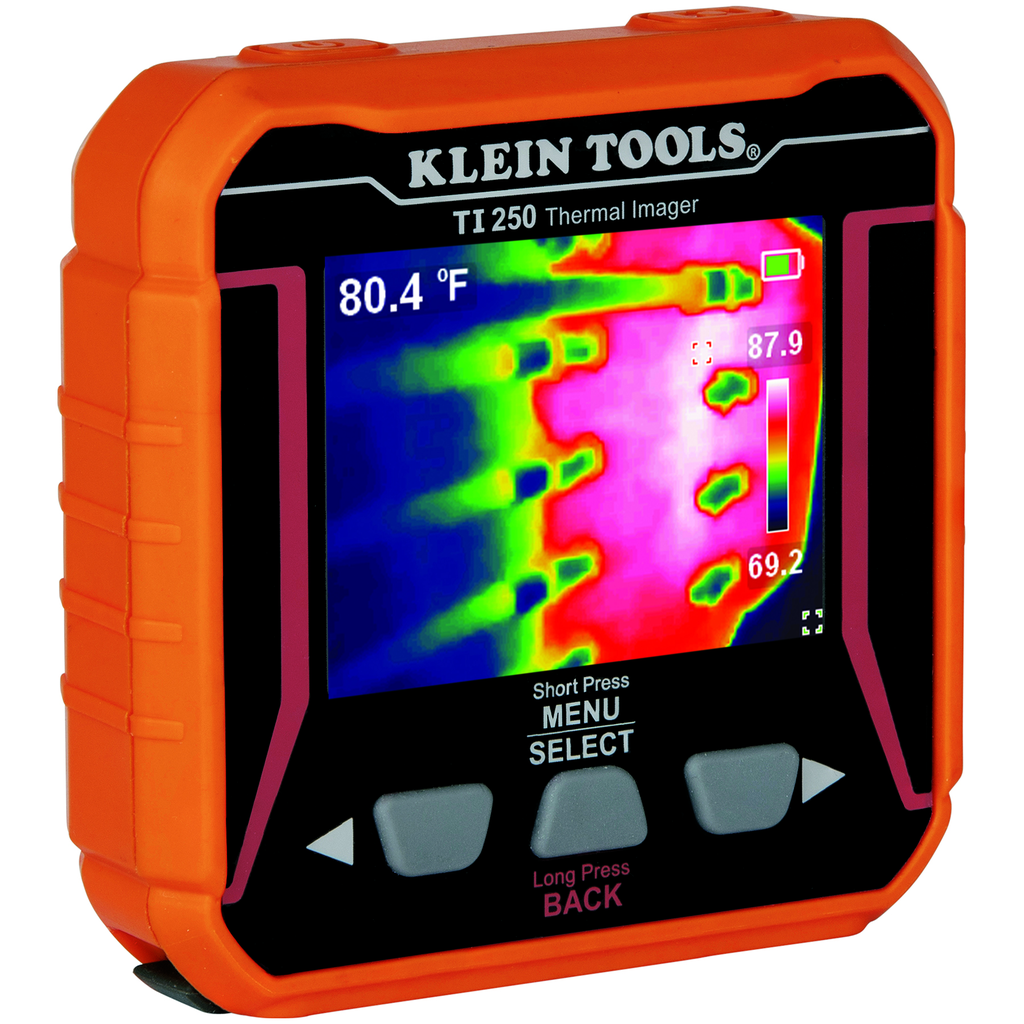

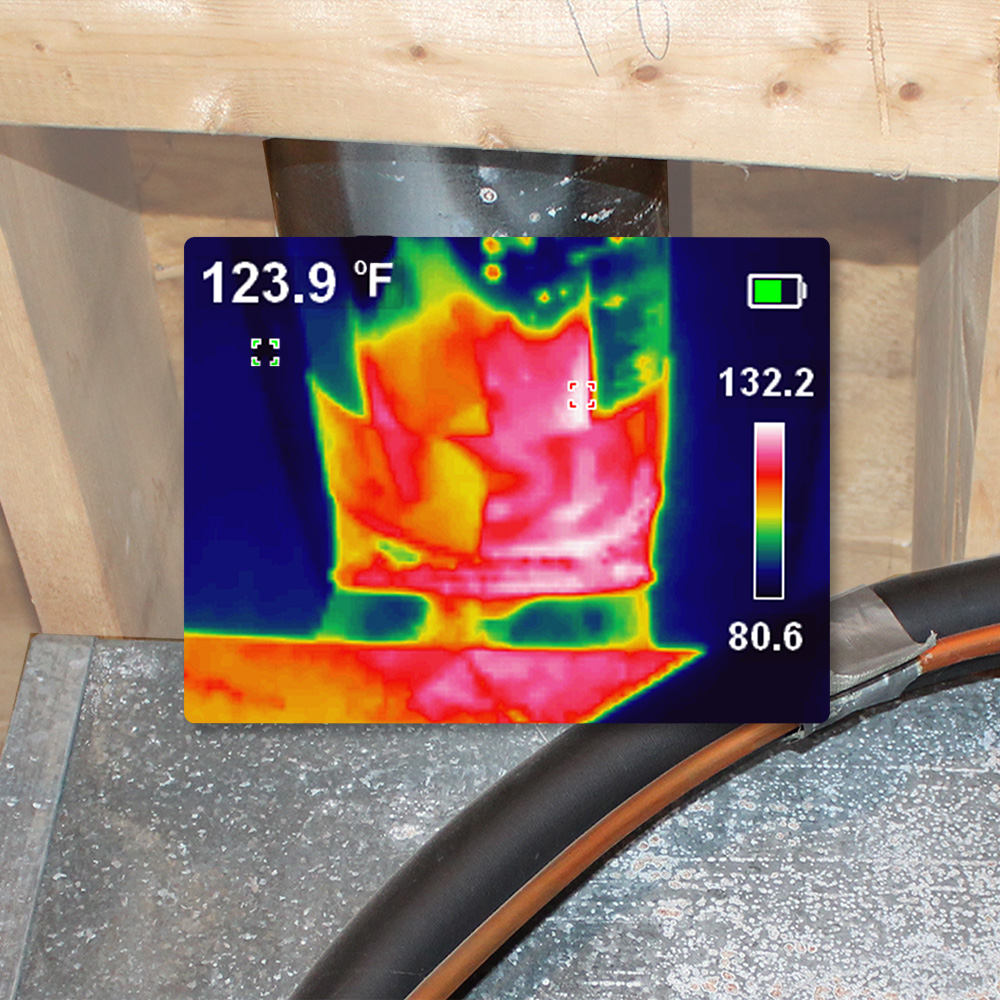

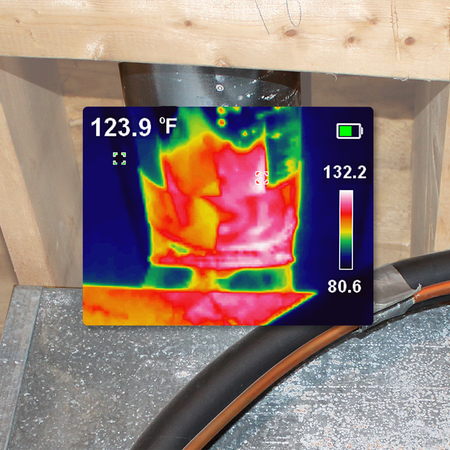

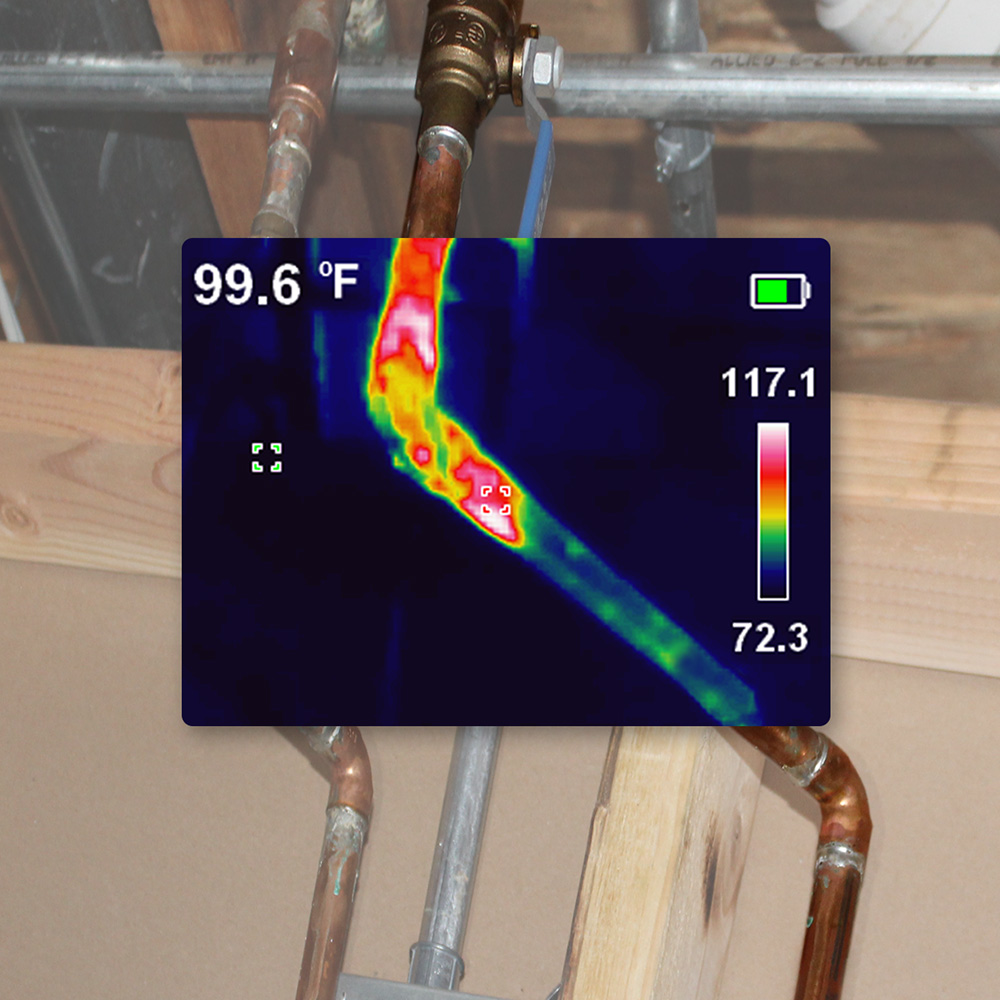

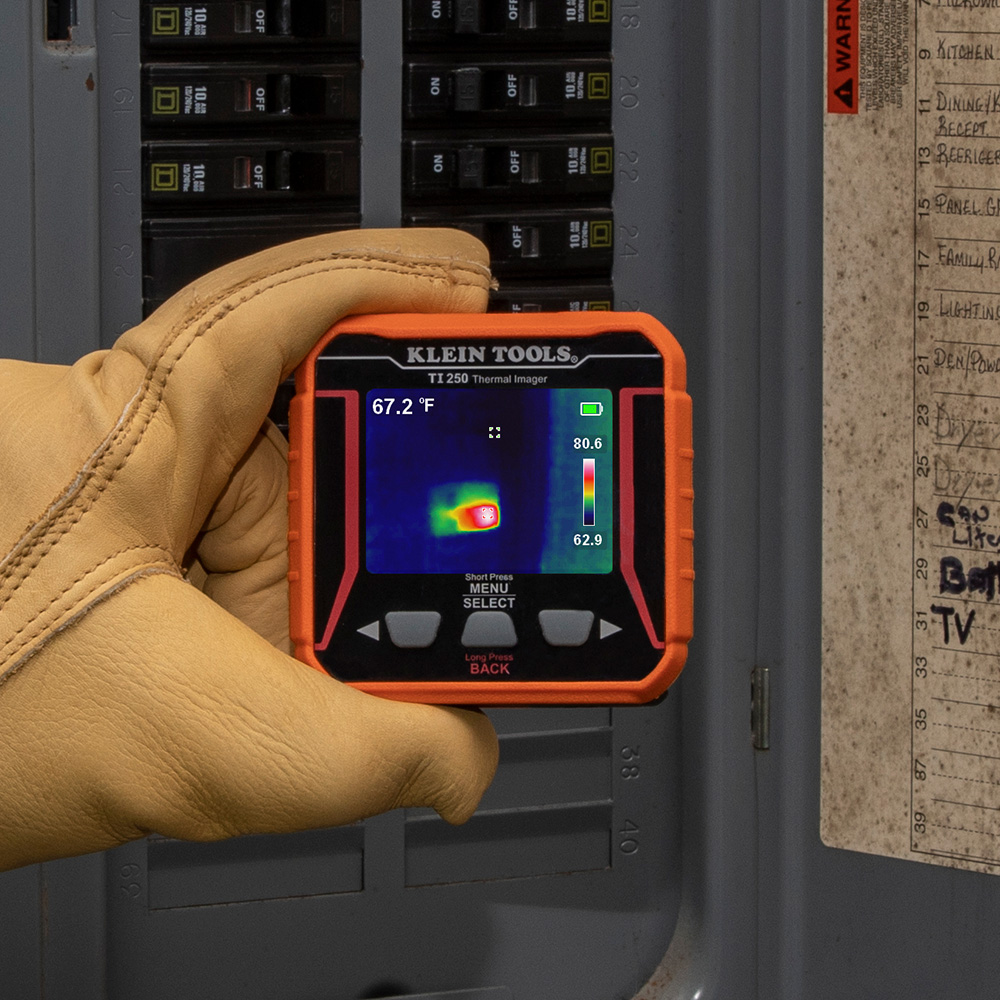

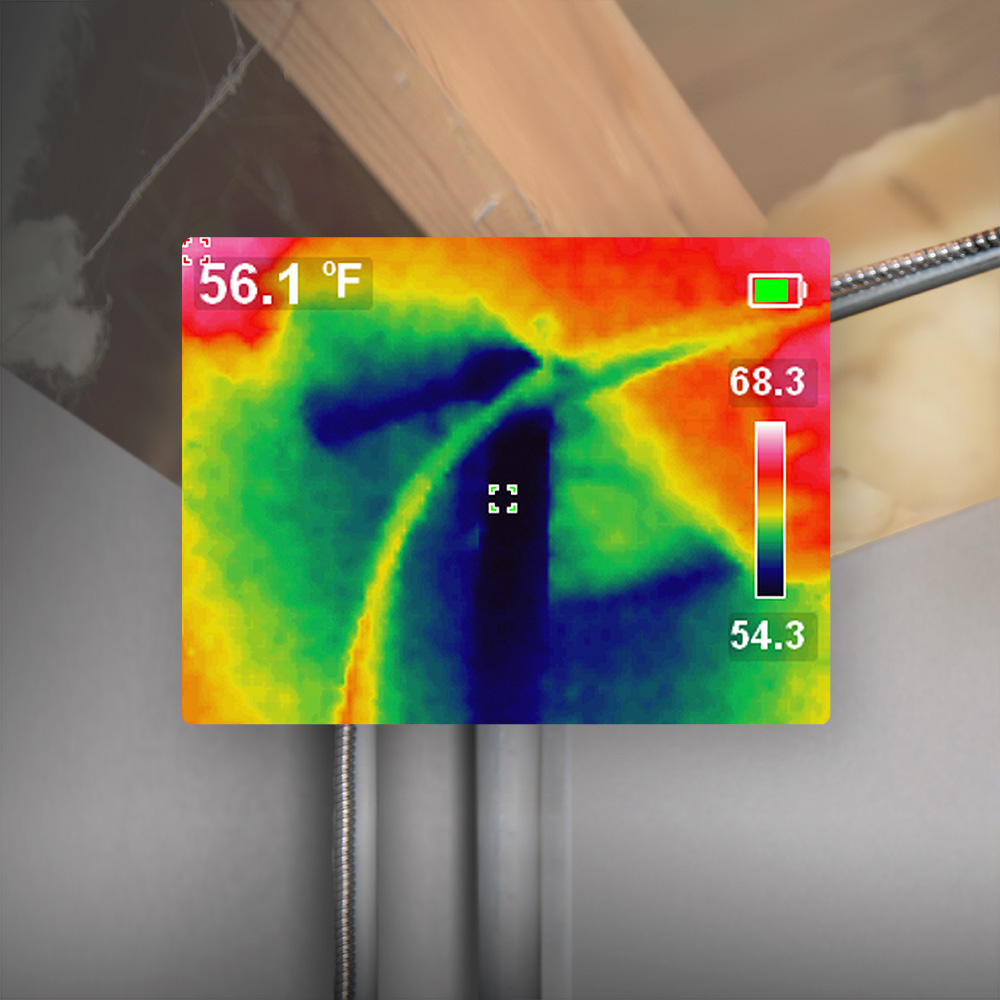

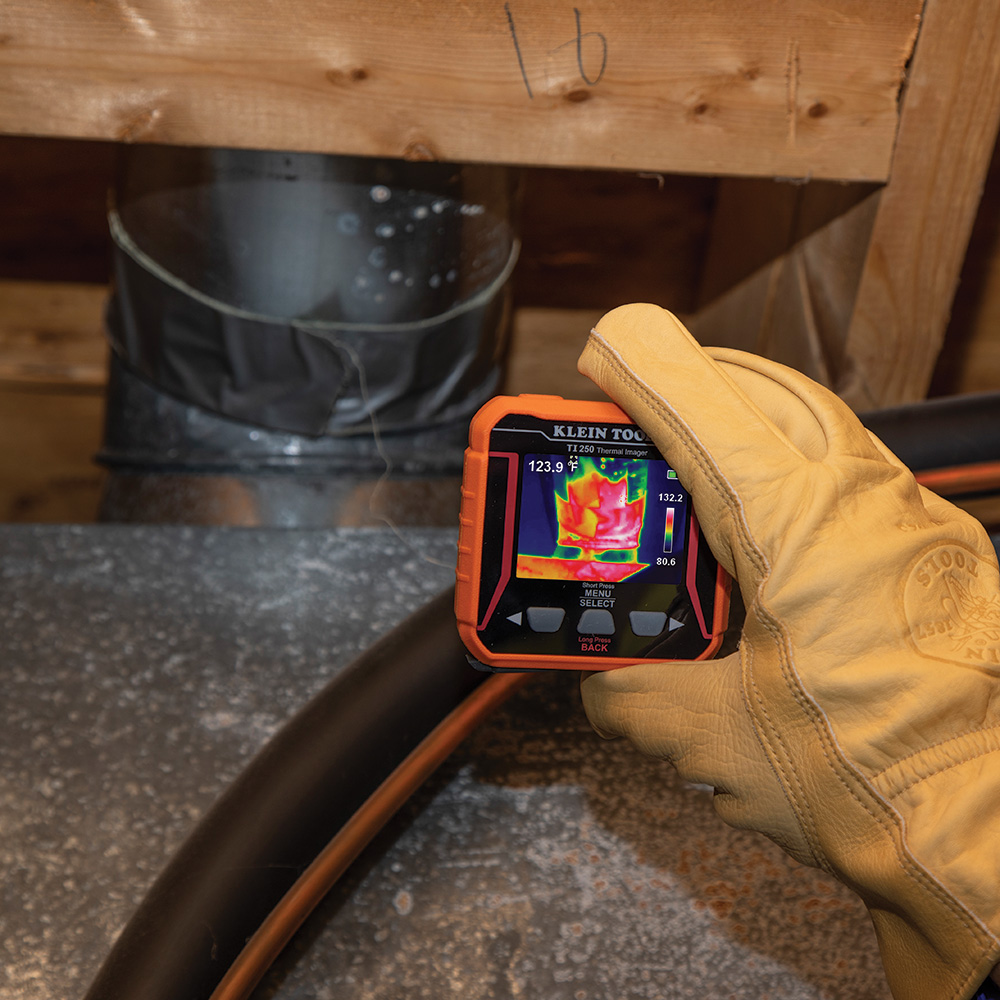

The Klein Tools TI250 is an easy-to-use, USB rechargeable Thermal Imager. The large LCD displays unseen hot and cold spots for instant troubleshooting. Excellent resolution with over 19,200 pixels and your choice of three color palettes. The meter provides high and low temperature points, crosshairs to pinpoint specific temperatures, and options for temperature alarms. Easily capture and transfer images with USB-C port for reporting.

Features

• Select color palettes to best capture the event
• Rechargeable lithium-ion battery
• Adjustable emissivity from 0.01 to 0.99
• Store and share images via USB-C
• Thermal Imager has over 19,200 pixels to troubleshoot hot and cold spots
• User selectable high and low temperature alarms from -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius)
• Includes thermal imager, charging cable, carrying case, and instructions
• High and Low Temperature Points, Crosshairs to Pinpoint Specific Temperatures, Options for Temperature Alarms, 3 Color Pallets

Warnings

• Never use on or near live electrical circuits. NOT insulated. Will NOT protect against electrical shock.
• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with device before each use.

Specifications

• Application: View Hot and Cold Spots For Instant Troubleshooting
• Standards: CE and UKCA
• Weight (g): 241
• Display: 2.4" (6.1 cm) TFT LCD
• Accuracy: At More Than 212°F (100°C) - +/- 2° or 2% (Whichever is Greater); At Less Than 212°F (100°C) - +/- 3° or 3% (Whichever is Greater)
• Weight: 0.5370 lbs
• Memory: Internal 32GB
• Depth: 3.1800 in
• Emissivity: 0.01 to 0.99, Adjustable
• Field of View: 50° +/- 3°
• Material: ABS/PC, Electronic Components
• Weight (oz): 8.5
• Batteries: Lithium-Ion
• Maximum Frames per Second: <9 Hz
• Overall Width (cm): 2.5
• Display Resolution: 320 x 240 Pixels
• Type: Thermal Imager
• Thermal Sensitivity: <60 mK
• Overall Height (Inch): 3.1
• Temperature Range: -4° to 752°F (-20° to 400°C)
• Overall Width (Inch): 1
• Included: Rechargeable Thermal Imager, Charging Cable, Carrying Case, and Instructions
• Sensor Type: VOx Microbolometer
• Width: 3.1100 in
• Height: 1.0300 in
• Color Palettes: Ironbow, Rainbow, and Grayscale
• Overall Length (Inch): 3.1
• Sensor Resolution: 19,200 Pixels
• Photo Capture: Yes
• Spectral Range: 8 to 14μm
• Laser Sighting: No
• Overall Length (cm): 7.9
• Overall Height (cm): 7.9
