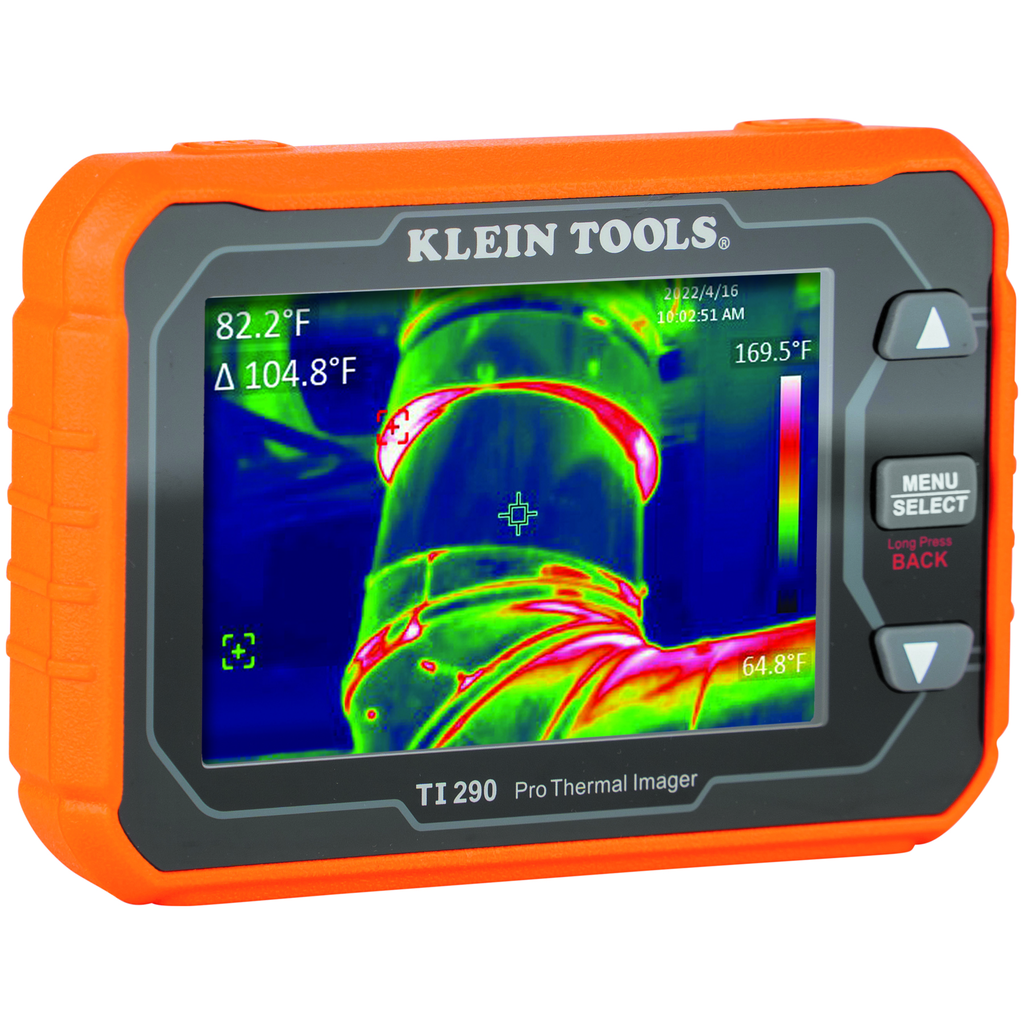

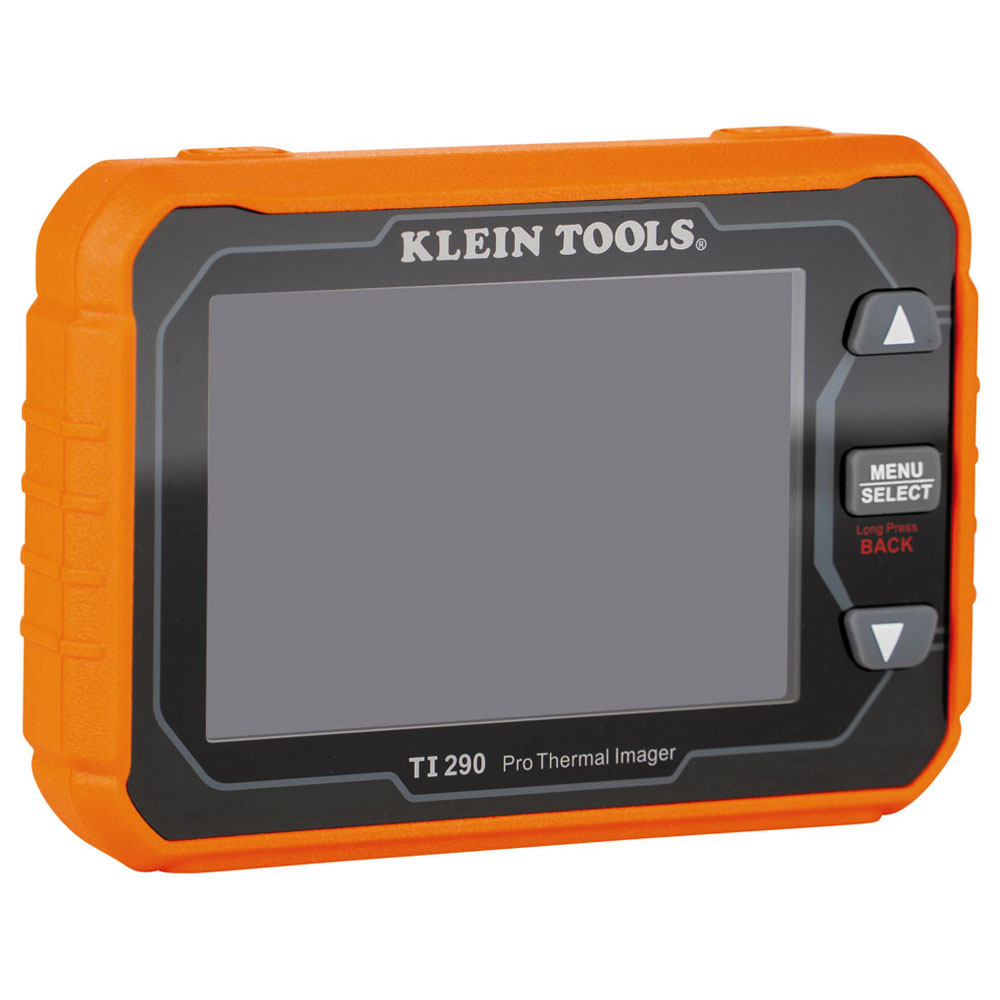

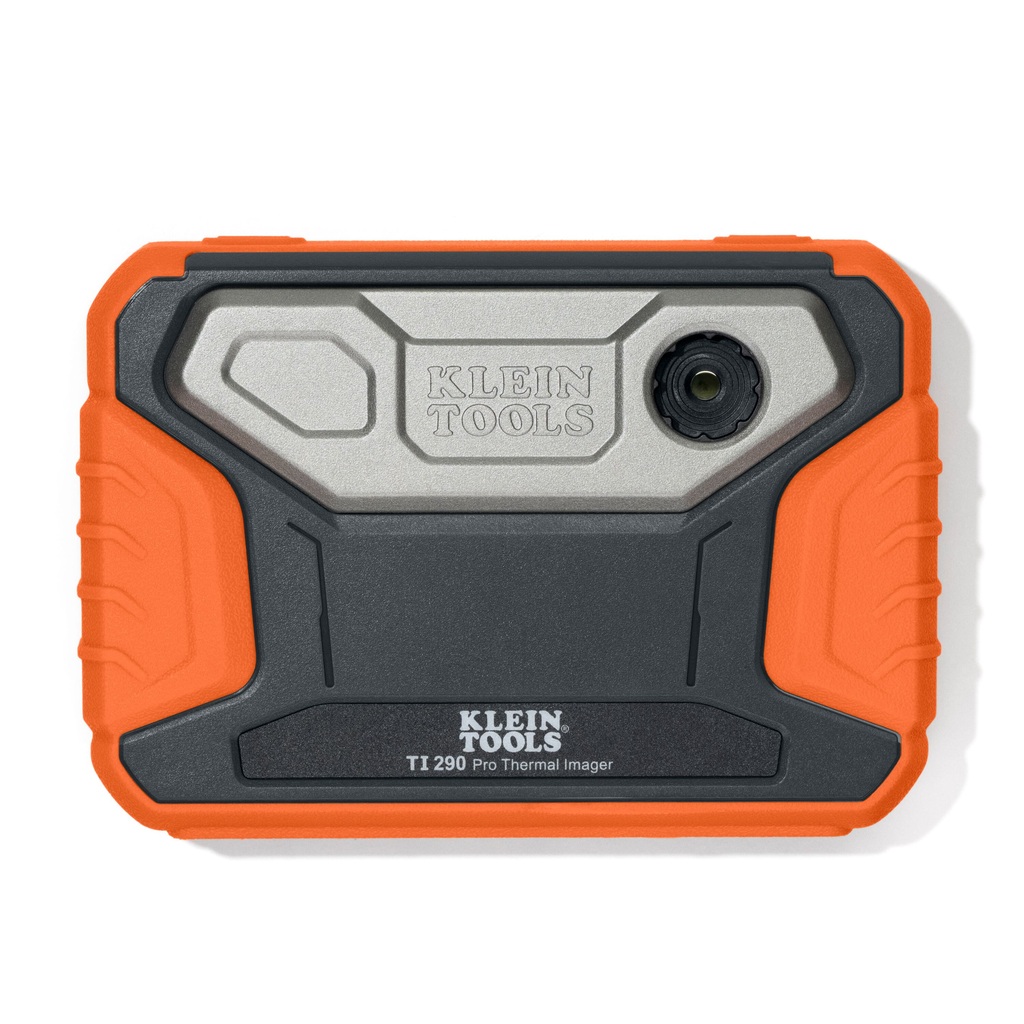

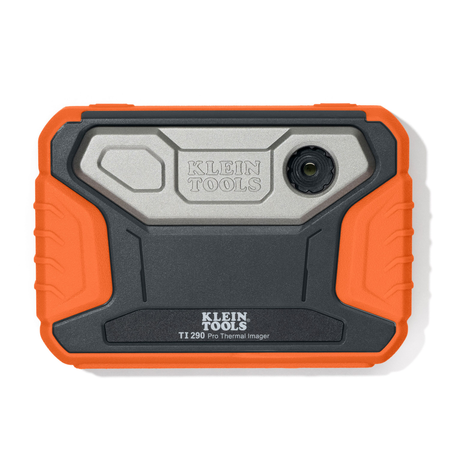

Rechargeable Pro Thermal Imaging Camera, 76,800 Pixels, Wi-Fi Data Transfer

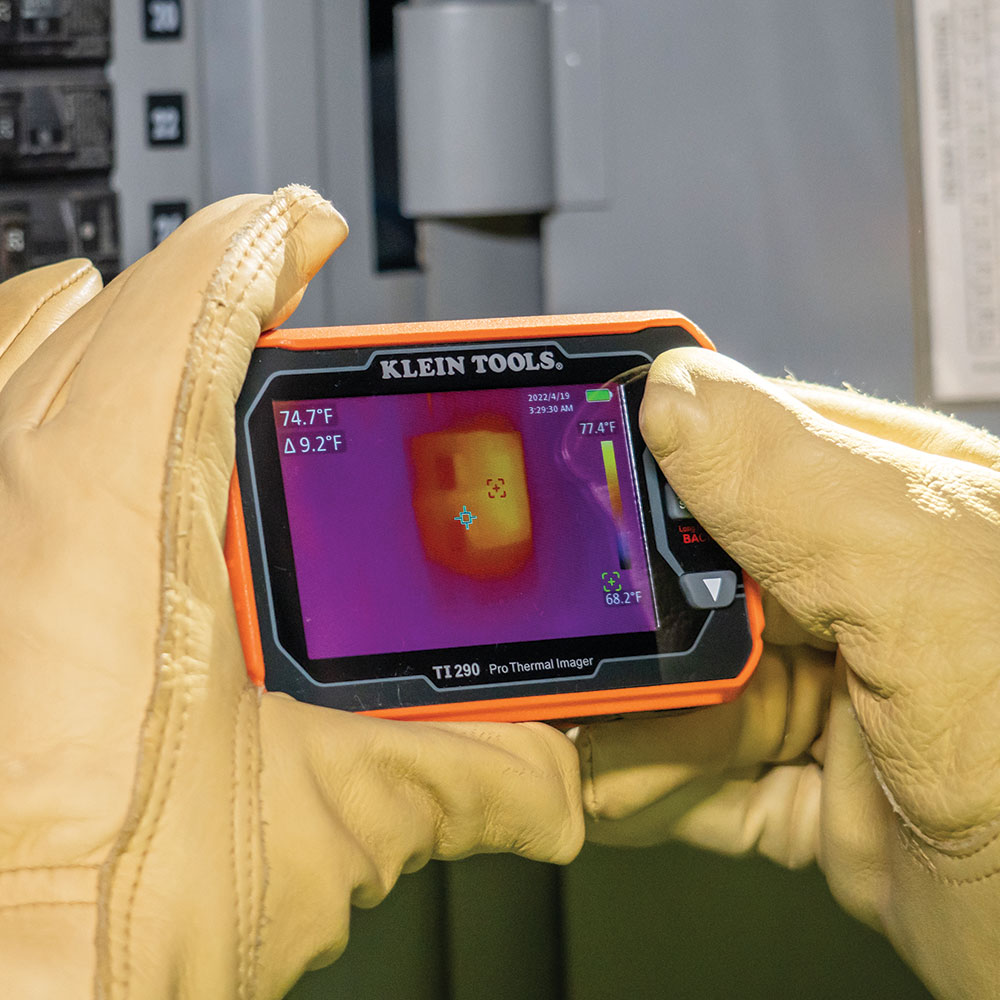

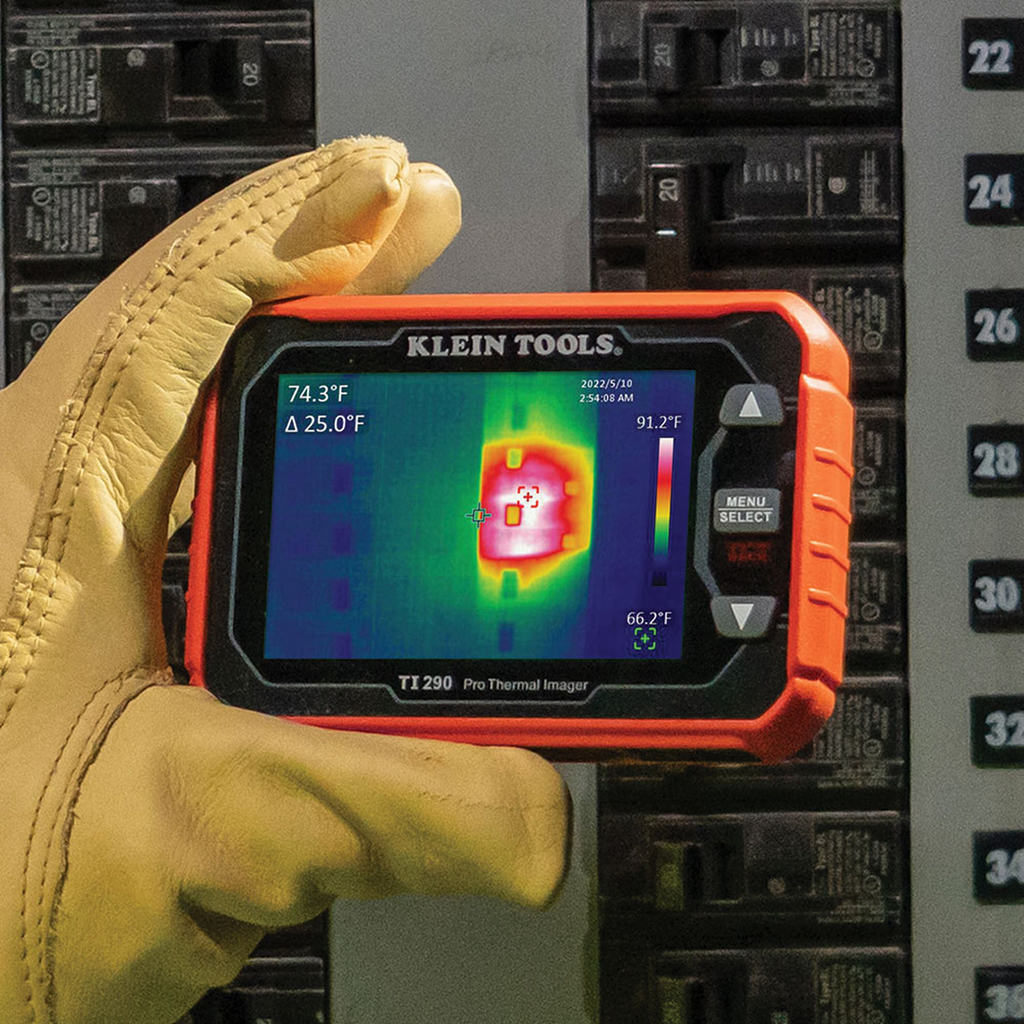

The Klein Tools TI290 is a high resolution, Wi-Fi enabled, professional model USB rechargeable Thermal Imager. The large LCD displays unseen hot and cold spots for instant troubleshooting. Excellent resolution with over 76,800 pixels and your choice of three color palettes. The meter provides high and low temperature points, crosshairs to pinpoint specific temperatures, and options for temperature alarms. App is available for free in Google Play™ store and in the App Store.

Features

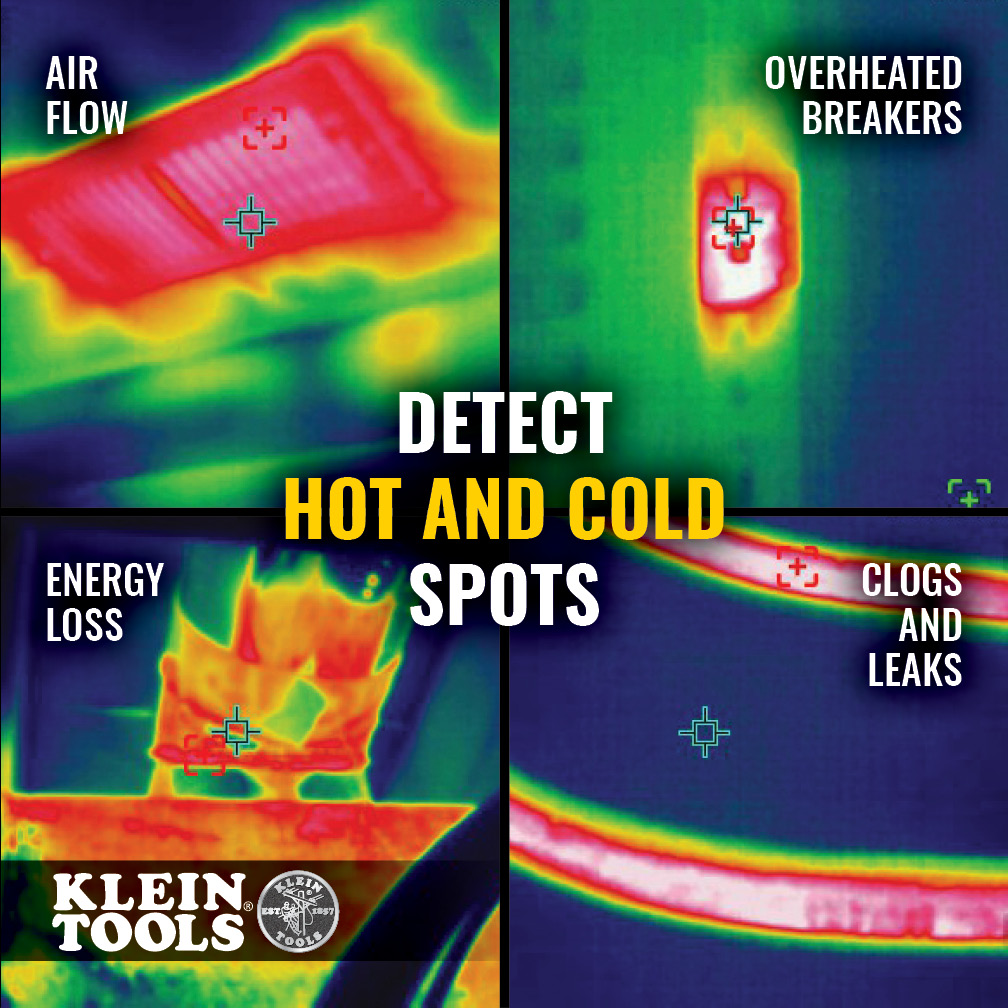

• Thermal Imager has over 76,800 pixels to troubleshoot hot and cold spots
• App is available for free in Google Play™ store and in the App Store
• User selectable high and low temperature alarms from -40 to 752-Degree Fahrenheit (-4 to 400-Degree Celsius)
• Adjustable emissivity from 0.01 to 0.99

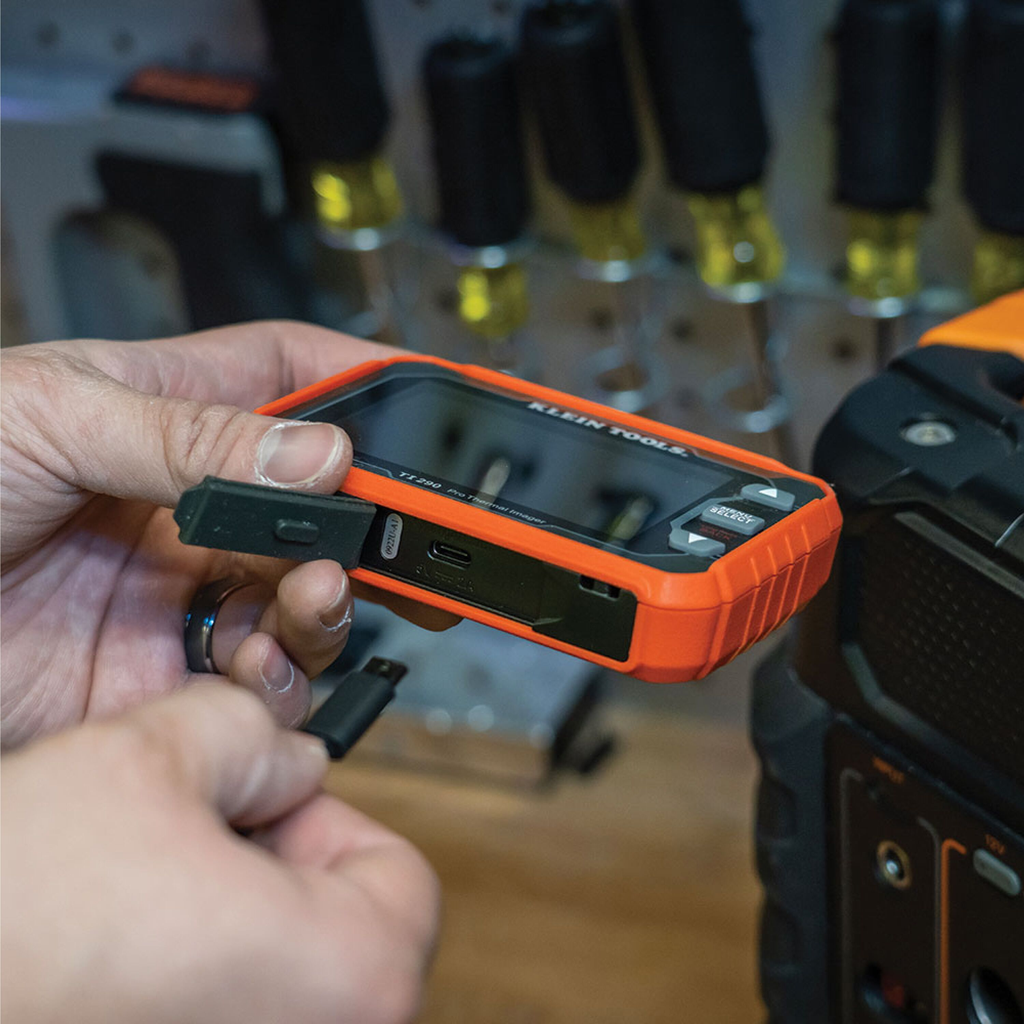

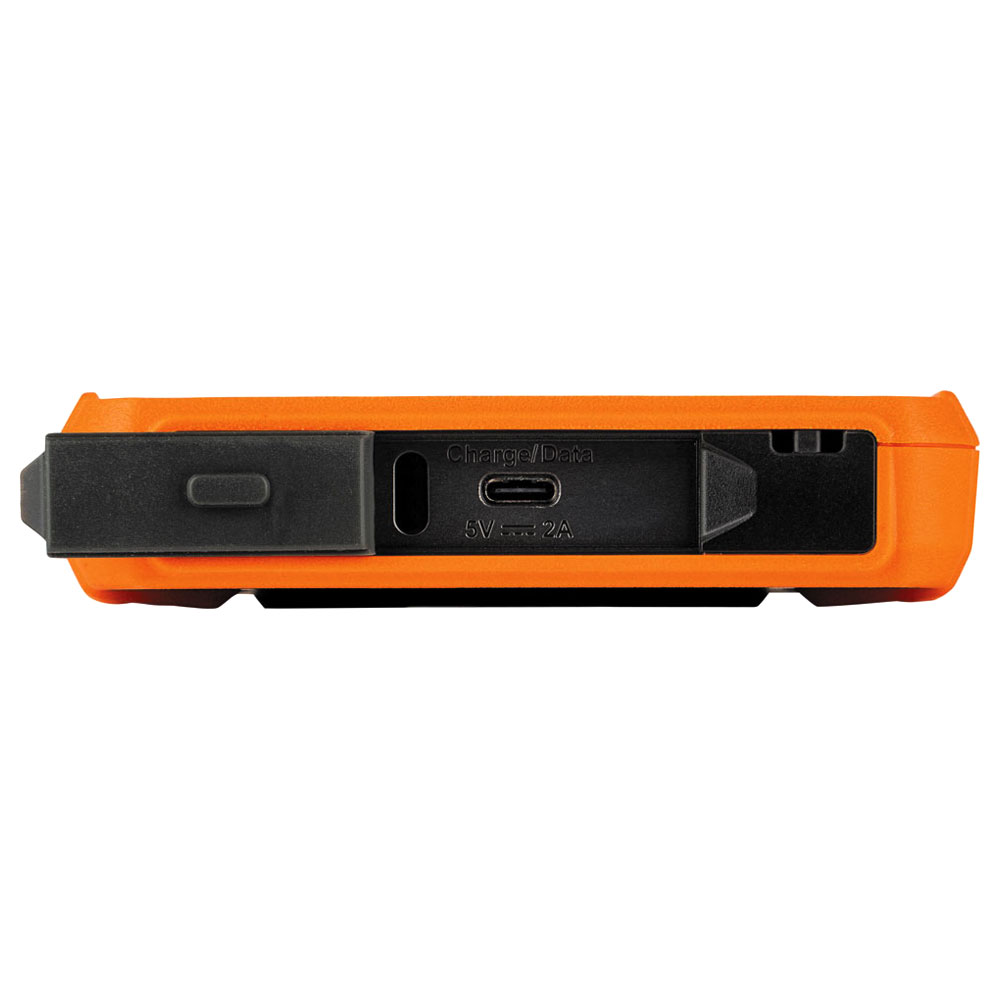

• Includes thermal imager, USB-C charging cable, molded soft-storage case with carabiner, and instructions
• Rechargeable lithium-ion battery
• Select color palettes to best capture the event; ironbow, rainbow, or grayscale
• Easily capture, store and share thermal images with Wi-Fi capabilities
• Wi-Fi Transfer, High and Low Temperature Points, Crosshairs to Pinpoint Specific Temperatures, Options for Temperature Alarms, 3 Color Palettes
• Durable 6.6-Foot (2 m) drop test protection

Warnings

• Never use on or near live electrical circuits. NOT insulated. Will NOT protect against electrical shock.
• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with device before each use.

Specifications

• Sensor Type: VOx Microbolometer
• Overall Length (Inch): 4.5
• Overall Length (cm): 11.4
• Standards: CE and UKCA
• Height: 1.0600 in
• Field of View: 56° +/- 2.8°
• Display Resolution: 480 x 320 Pixels
• Maximum Frames per Second: <9 Hz
• Type: Thermal Imager
• Temperature Range: -40° to 752°F (-4° to 400°C)
• Accuracy: ±2°C (±3.6°F) or 2%, Whichever is Greater
• Display: 3.5" (8.9 cm) TFT LCD
• Weight (g): 235

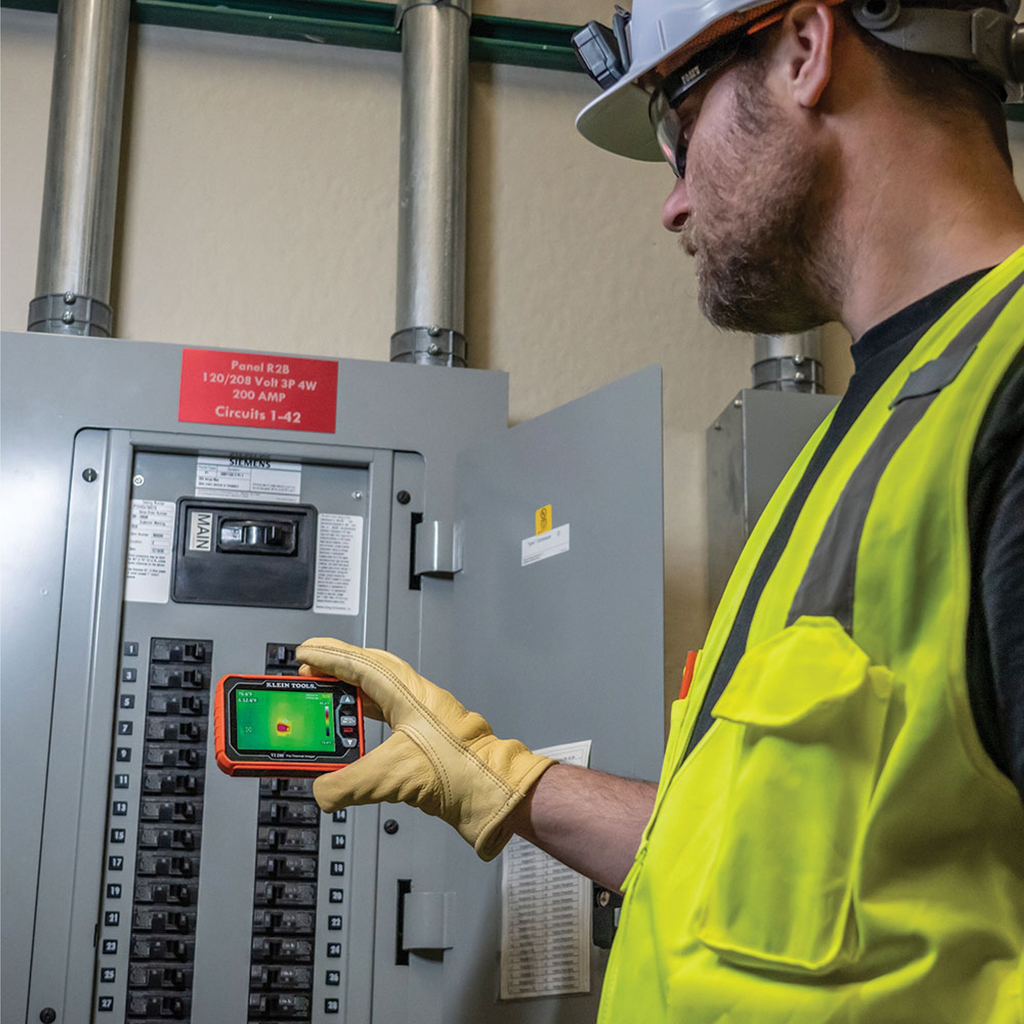

• Application: View Hot and Cold Spots for Instant Troubleshooting
• Memory: 10,000 Images
• Weight (oz): 8.3
• Battery Life: 5 yr
• Weight: 0.4700 lbs
• Color Palettes: Ironbow, Rainbow, Grayscale

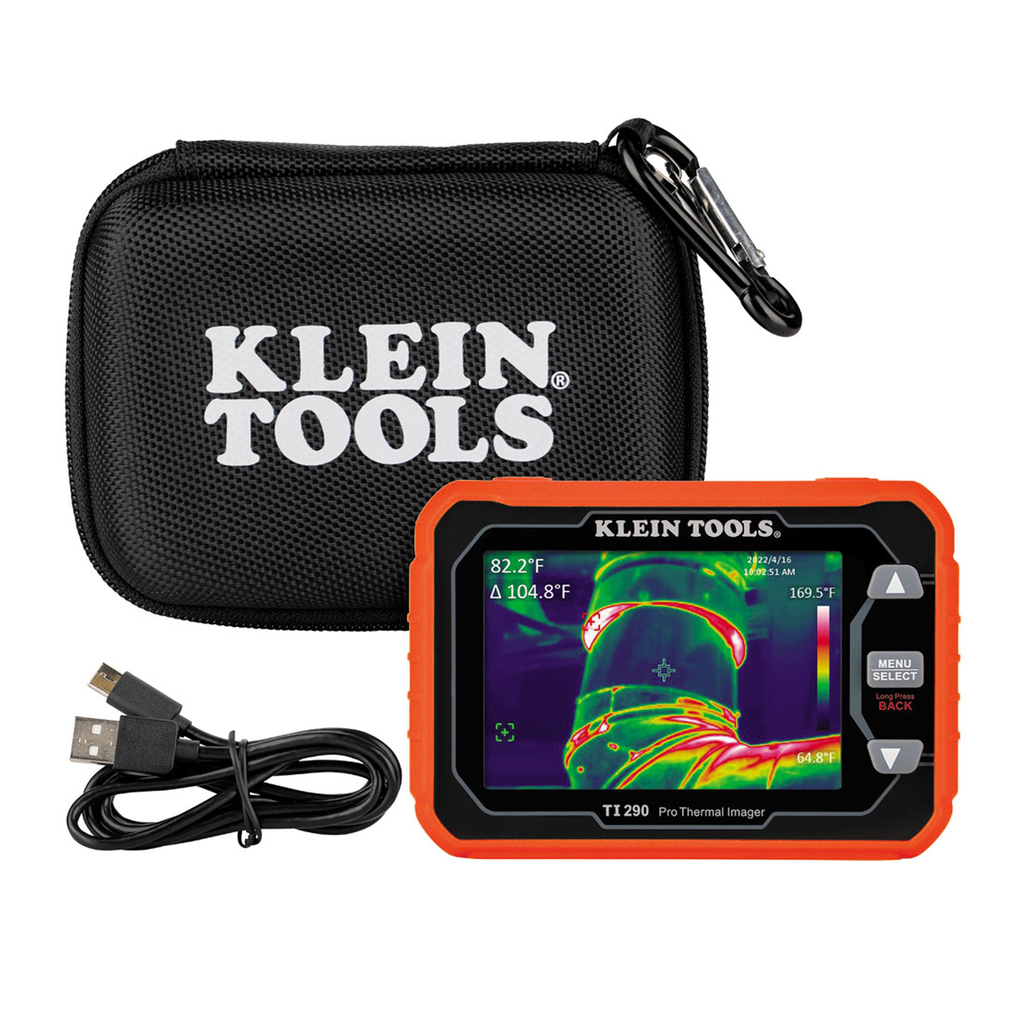

• Included: Rechargeable Thermal Imager, USB Charging Cable,Molded Soft-Storage Case with Carabiner, and Instructions
• Sensor Resolution: 76,800 Pixels
• Thermal Sensitivity: <50 mK
• Emissivity: 0.01 to 0.99, Adjustable
• Overall Width (Inch): 1.1
• Depth: 4.4800 in
• Spectral Range: 8 to 14μm
• Material: ABS and Electronic Components
• Overall Height (Inch): 3.1
• Photo Capture: Yes
• Laser Sighting: No
• Overall Width (cm): 2.8
• Width: 3.1000 in
• Overall Height (cm): 7.9
• Batteries: Lithium-Ion
