Punchdown Screwdriver Multi-Tool

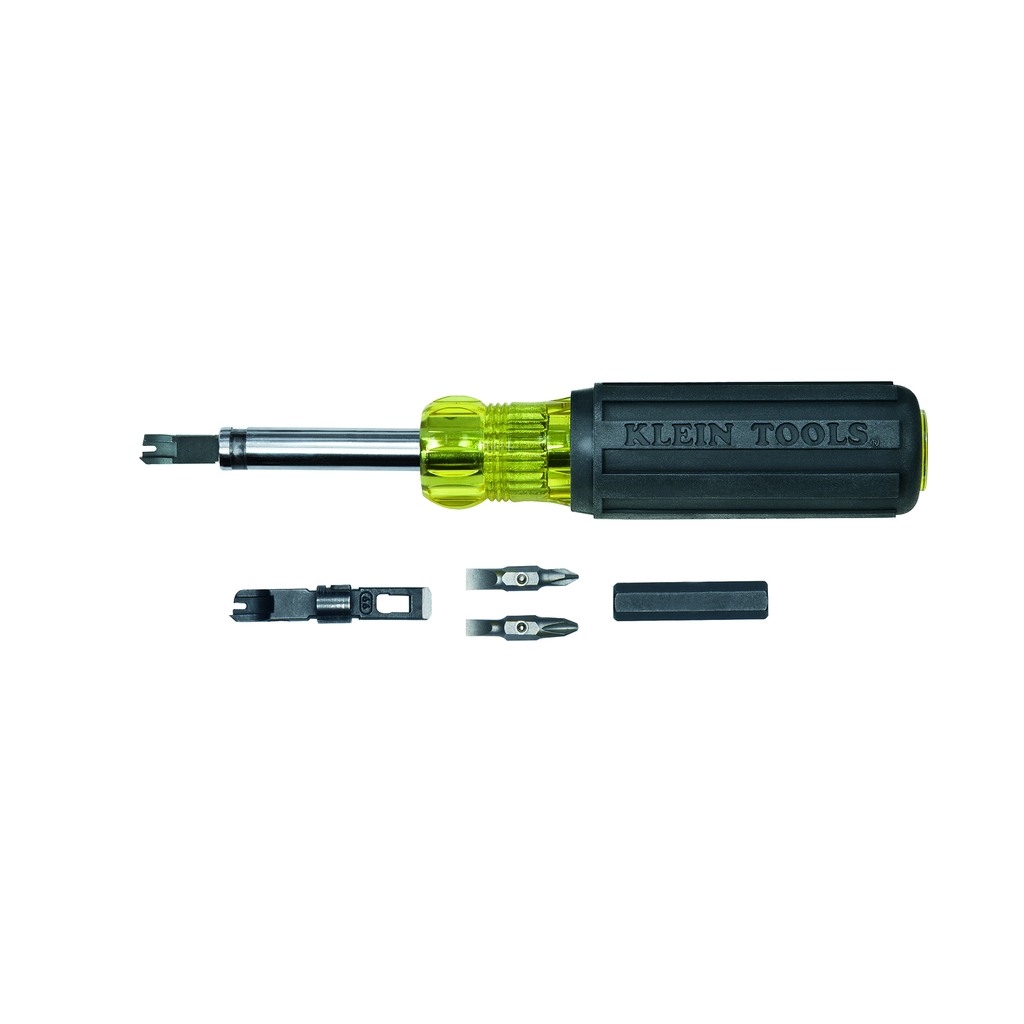

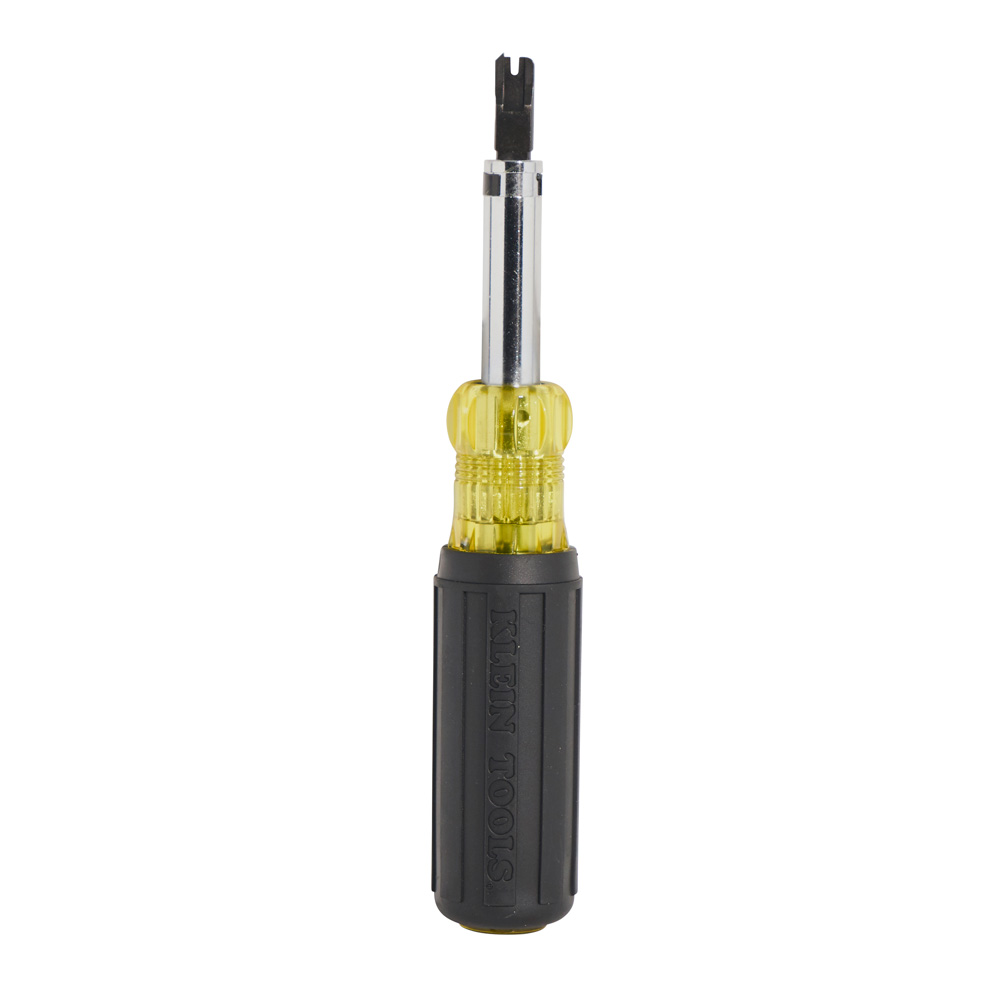

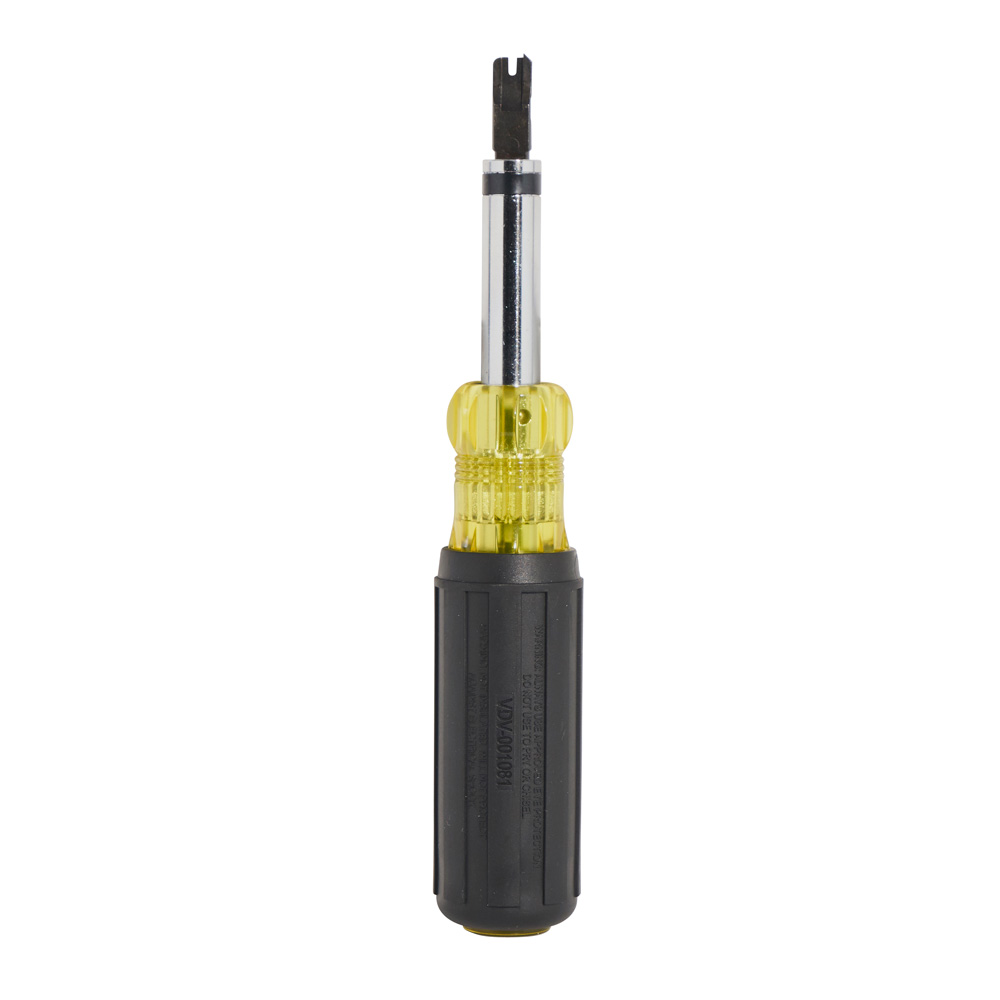

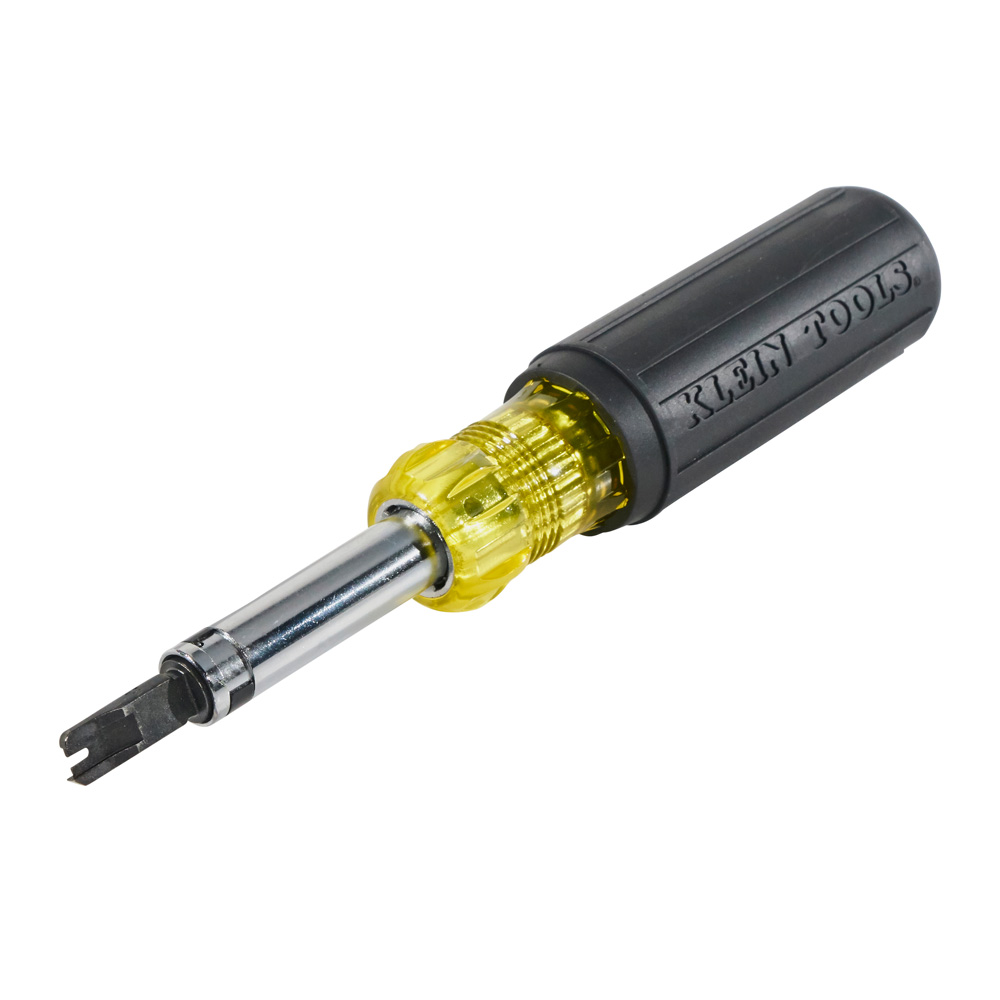

Klein Tools multi-bit punchdown screwdriver / nut driver gives you the convenience of manually punching down wall jacks and patch panels. With its machined tool steel for greater strength, this product comes with multi-bits to make your job easier. Shaft holds 4 universal tips and converts to 2 nut driver sizes and 1 hex driver. Great for use on 110 terminal/patch panel and 66 patch panels.

Features

• Punchdown Screwdriver Multi-Tool terminates and cuts wire in one step with 110/66 combination cut-type punchdown blade and its precision ground cutting edge
• Two Phillips screwdriver tips: #1 and #2
• Cushion-Grip™ handle for greater torque and enhanced comfort
• 6-piece counter display also available: VDV001-0816
• Two nut drivers: 1/4-Inch (6 mm) and 3/8-Inch (10 mm)
• Heavy-duty blade barrel provides storage for bits
• U.S. Patent No. 8,856,994
• Non-impact wire termination
• Two slotted screwdriver tips: 3/16-Inch (5 mm) and 1/4-Inch (6 mm)

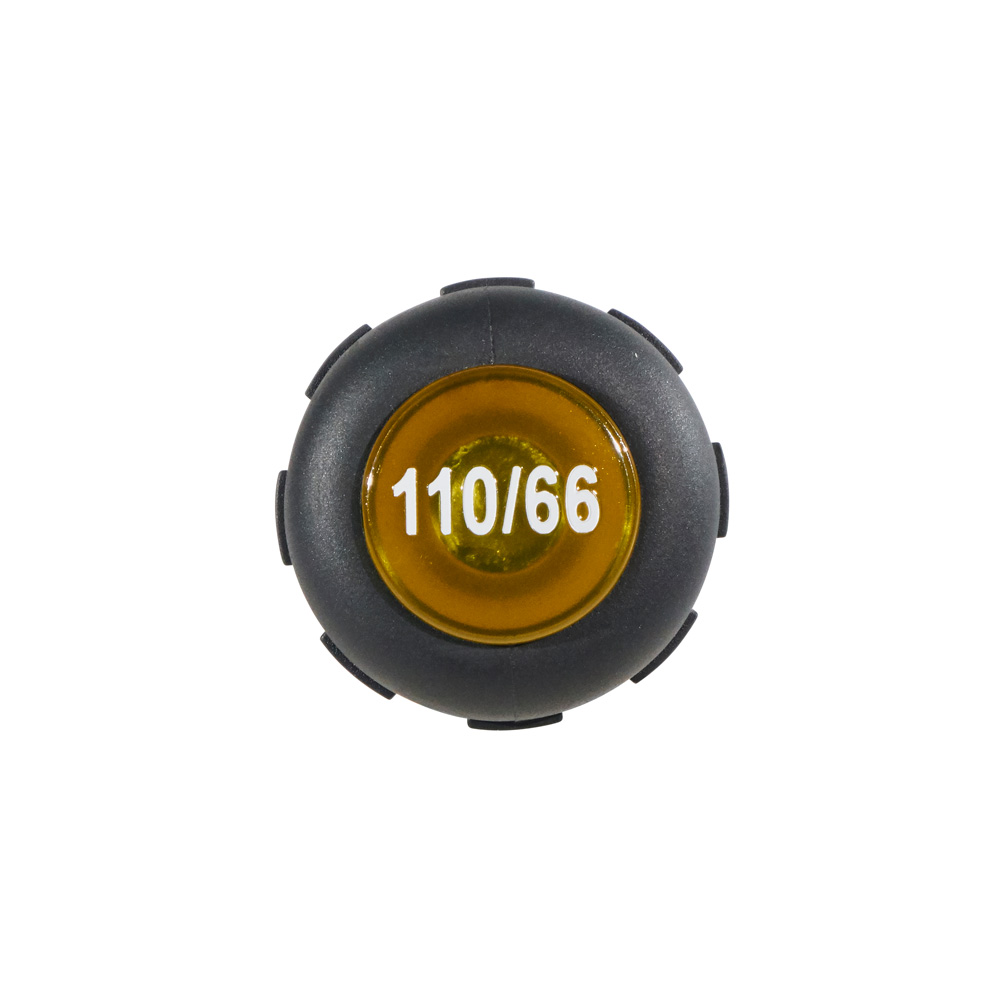

• Tip-Ident® for quick identification of tool
• Bayonet-style (twist & lock) socket accepts most manufacturers' punchdown blades
• One hex key: 3/8-Inch
• Machine-tooled steel bits for superior strength

Warnings

• Do NOT use to pry or chisel.
• Never use on or near live electrical circuits.
• Always wear approved eye protection.
• NOT insulated. Will NOT protect against electrical shock.

Specifications

• Hex Bits: 3/8"
• Other Bits: 66/110 Terminate and Cut
• Width: 1.0000 in
• Weight: 0.5880 lbs
• Height: 1.0000 in
• Slotted Bits: 1/4" (6.4 mm), 3/16" (4.8 mm)
• Weight (g): 266
• Overall Length (cm): 20.3
• Depth: 8.0000 in
• Weight (oz): 9.4
• Nut Driver Sizes: 1/4", 3/8"
• Phillips Bits: #1, #2
• Application: Cable Termination
• Overall Length (Inch): 8
