VDV Apprentice Cable Installation Kit with Scout® Pro 3, 6-Piece

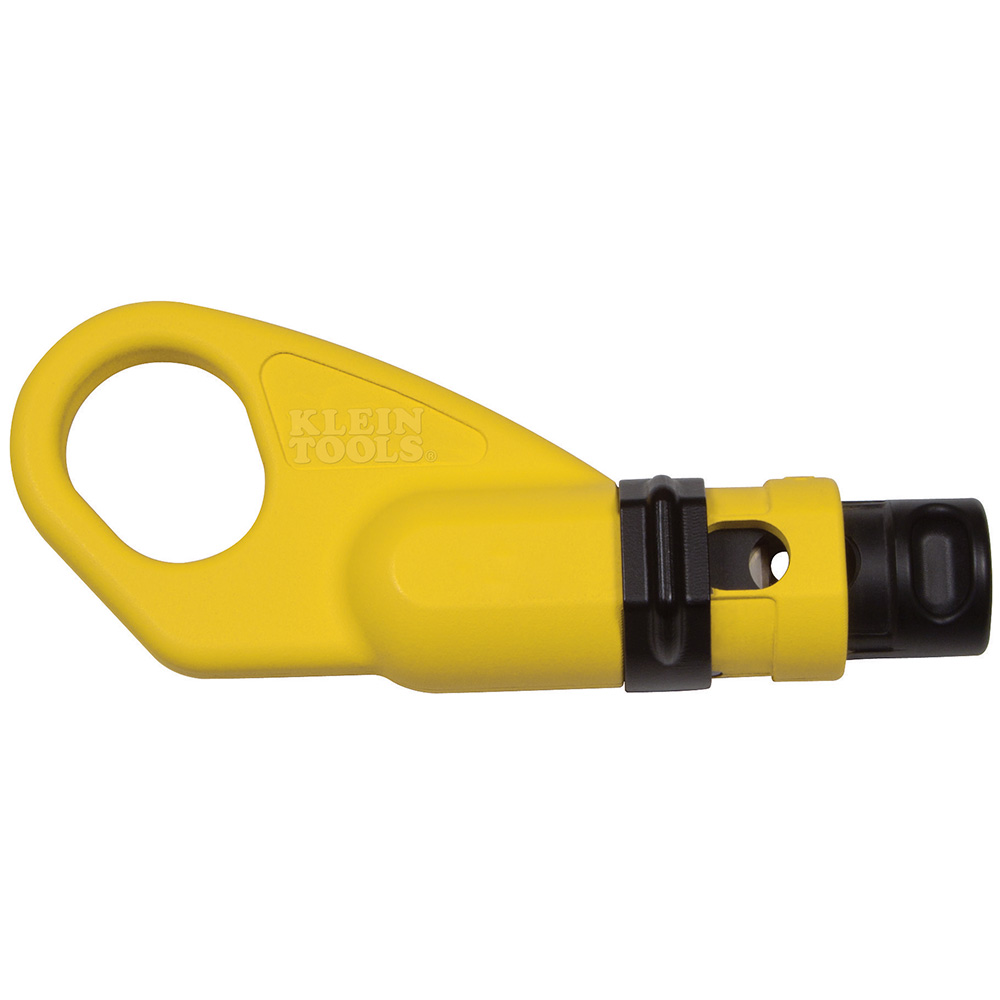

This six-piece Cable Installation and Tester set includes a Free-Fall Snip, Coax Cable Radial Stripper, an Impact Punchdown Tool, a multi-connector Compression Crimper plus a Ratcheting Modular Crimper/Stripper. The Scout® Pro 3 Tester includes the remotes to test voice (RJ11/12), data (RJ45) and video (F-connector) coax connections. Includes a carrying case.

Warnings

• Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
• Always wear eye protection.

Features

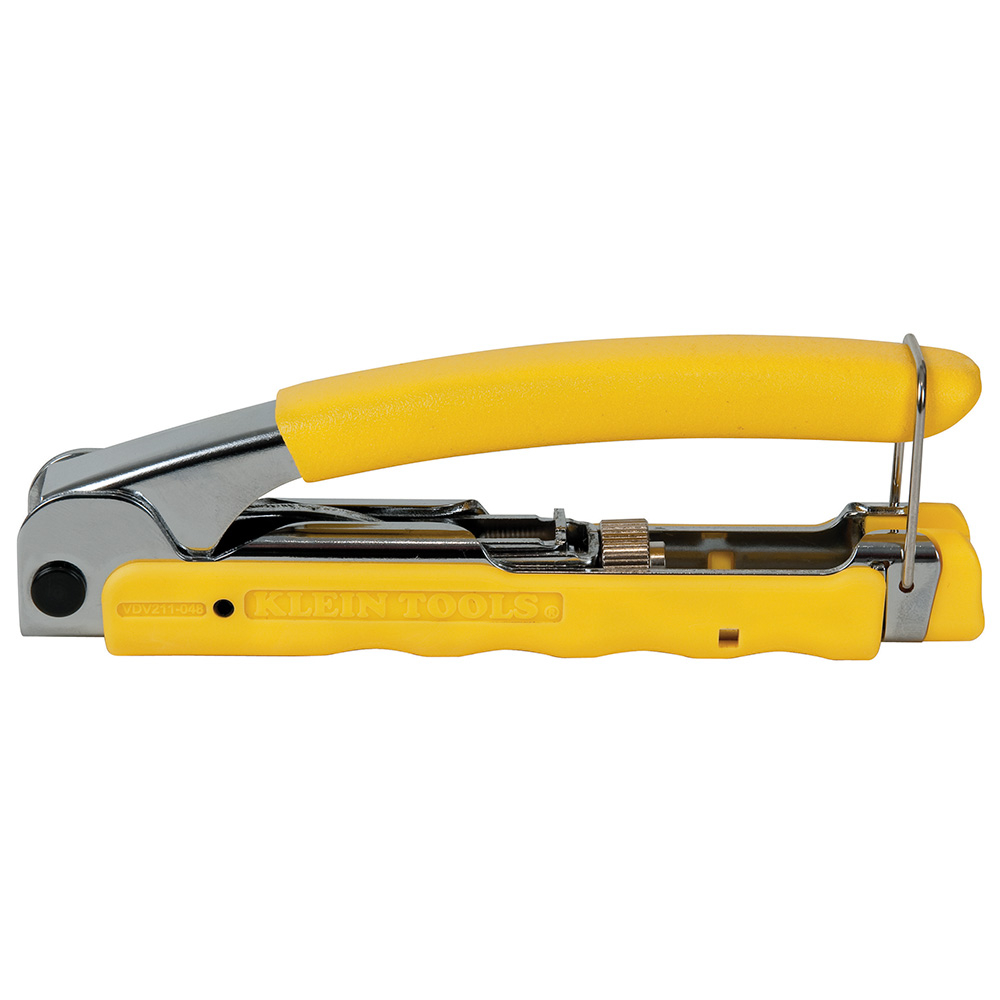

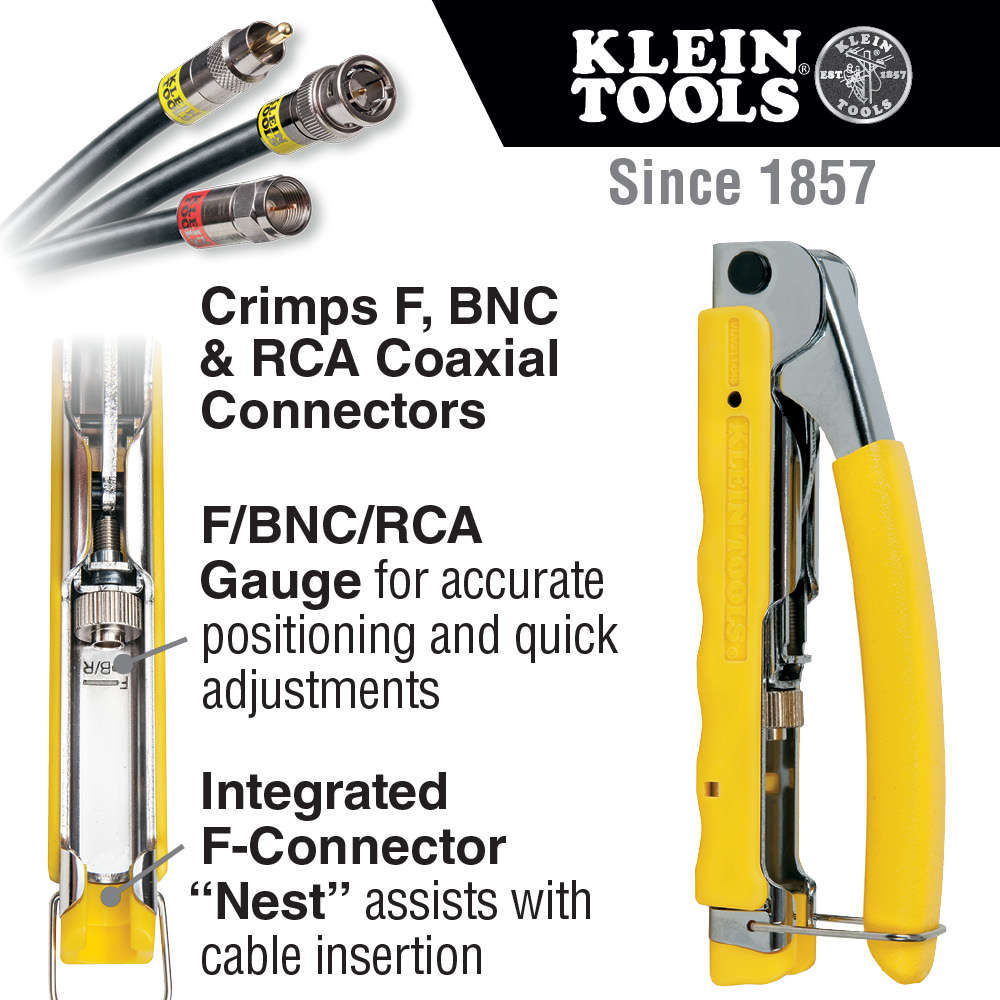

• Multi-Connector Crimper crimps compression F, BNC, and RCA connectors to inside (premises) coaxial cable: Mini-coax, RG58, RG59, RG6, RG62, and RG6QS

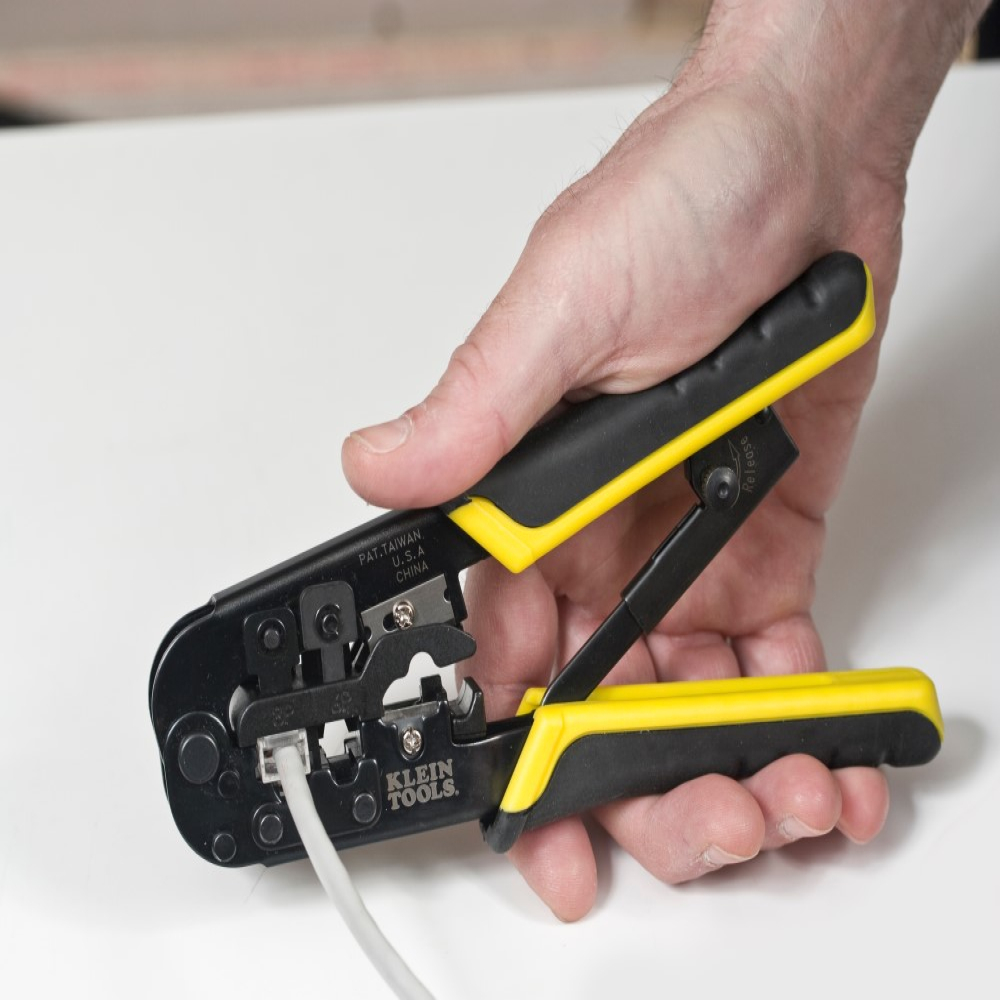

• Ratcheting Modular Crimper cuts, strips and crimps Twisted Pair, Ethernet, RJ45 voice and data cables

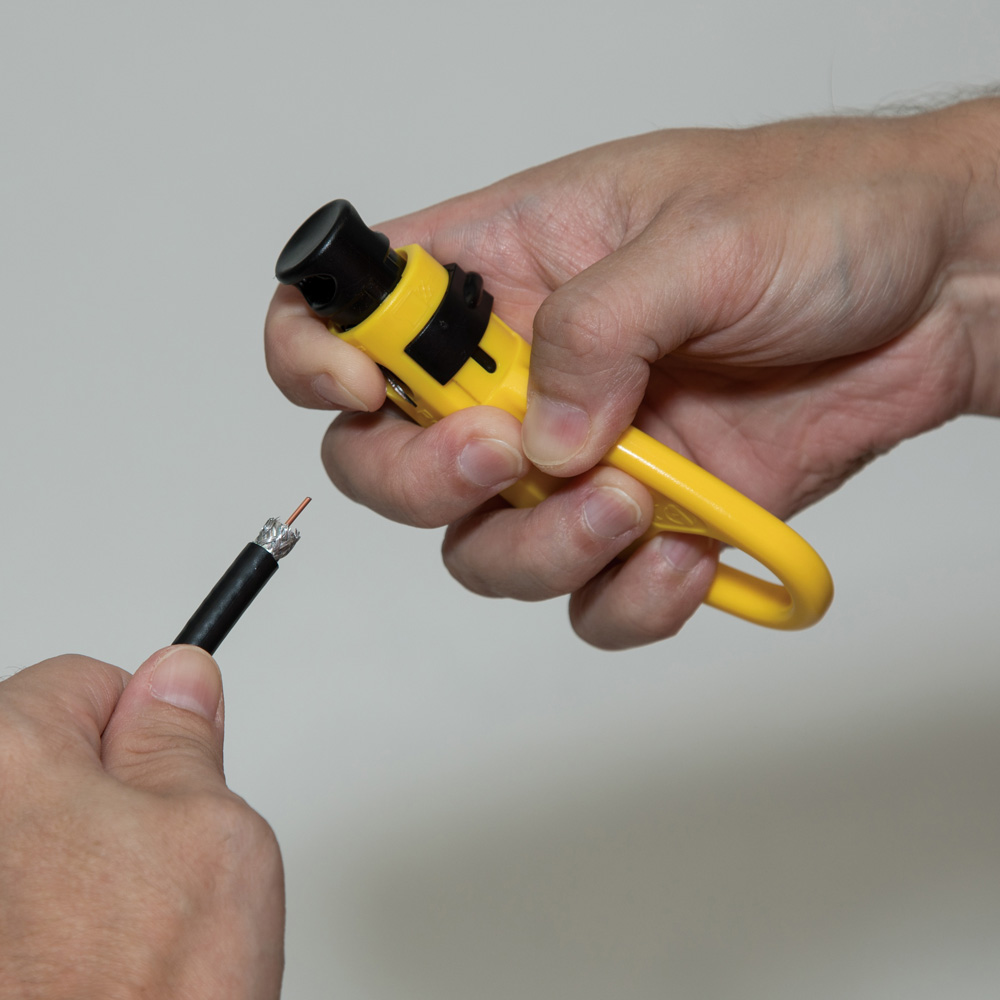

• Cable Stripper features exclusive sliding cable stop pre-measures cable for fast, accurate and repeatable strips

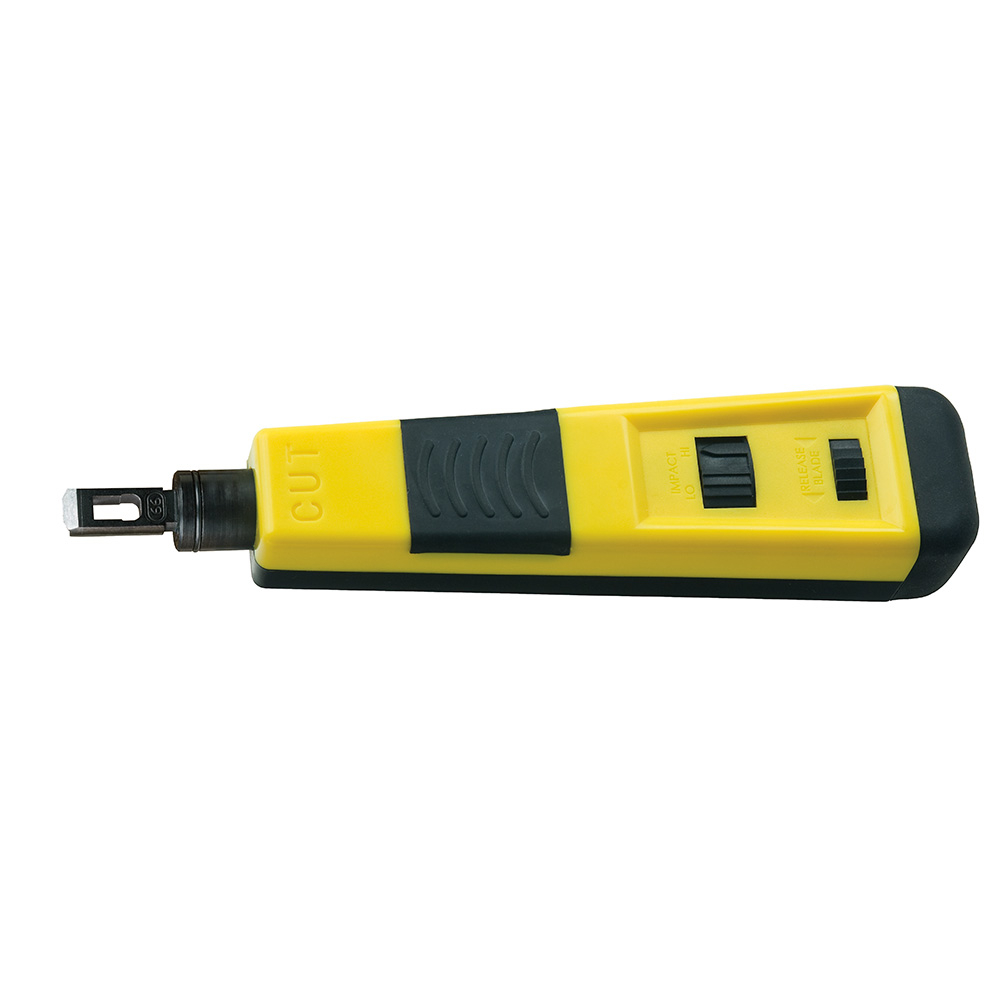

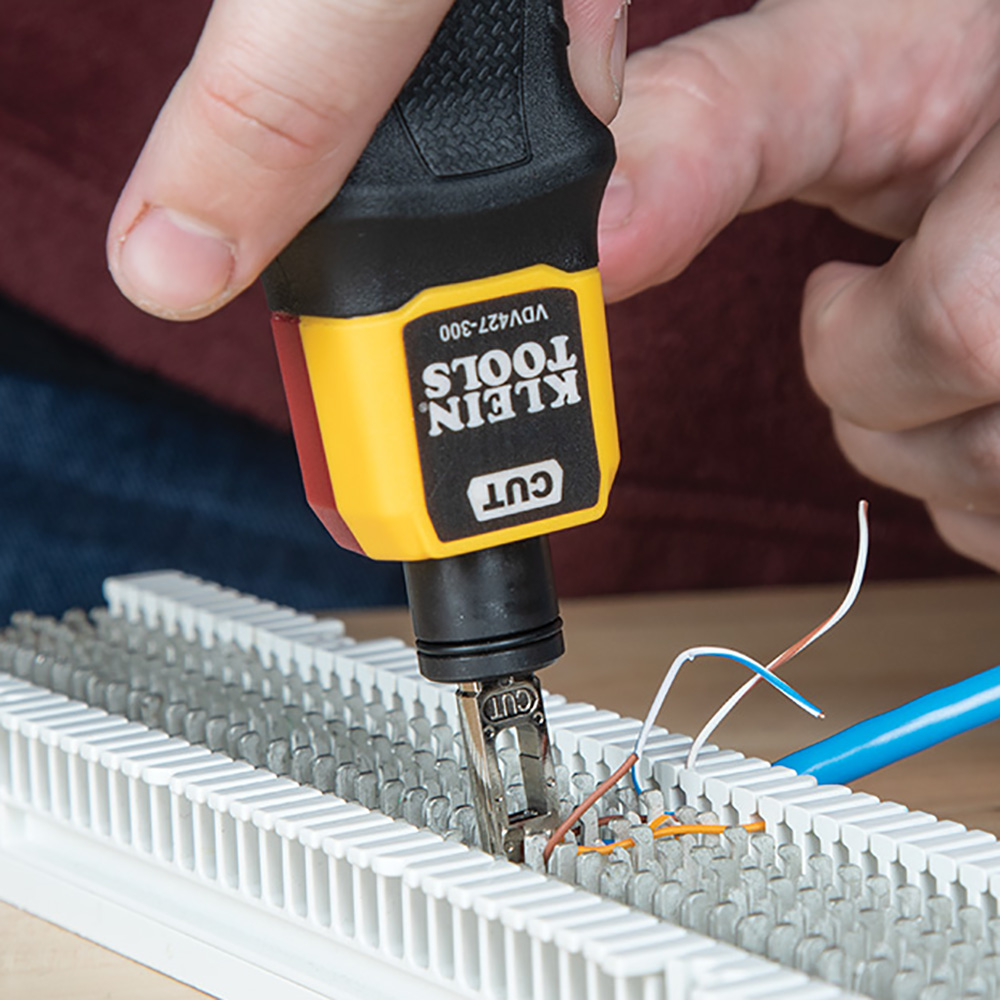

• Punchdown Tool terminates cable in a variety of cross-connect panels, blocks and keystone jacks
• DuraBlade, Data Plug Wiremap and Coax Tester, Compression Crimper and Ratcheting Twisted Pair Crimp Tool
• See the individual item for instructions on use

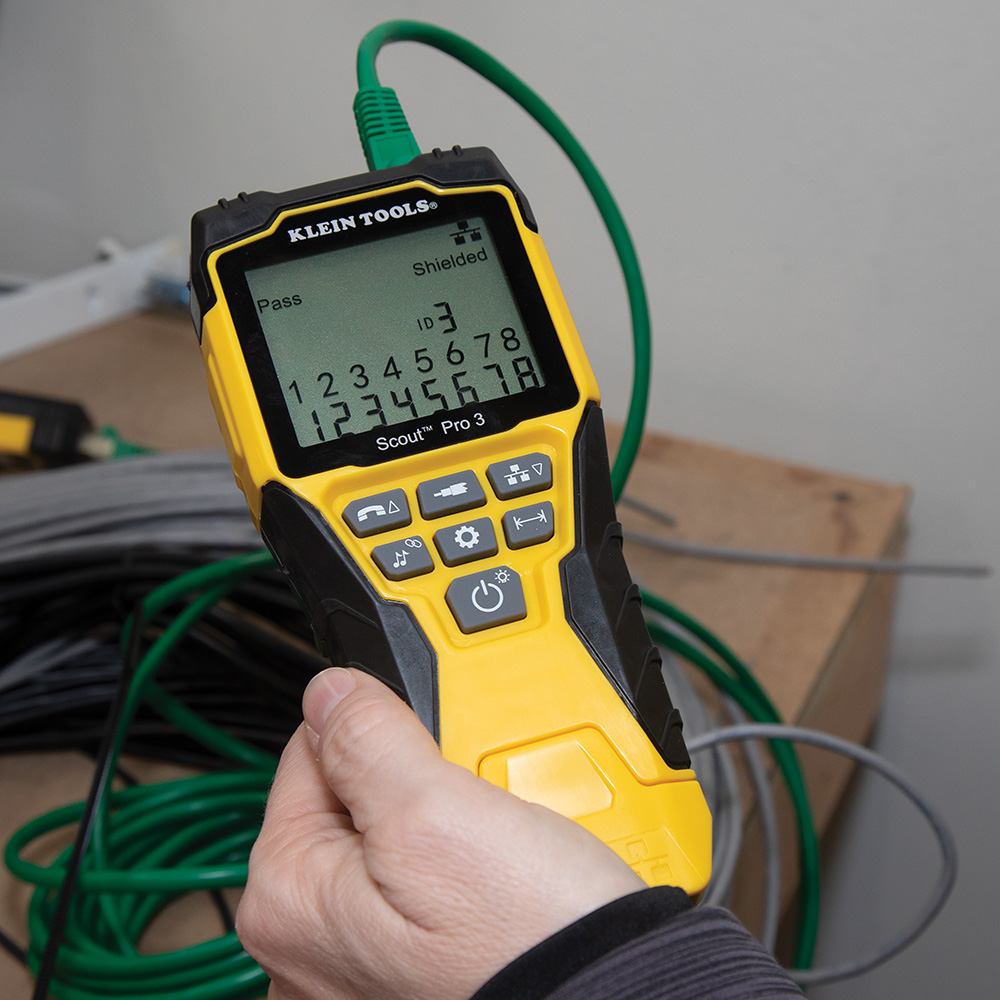

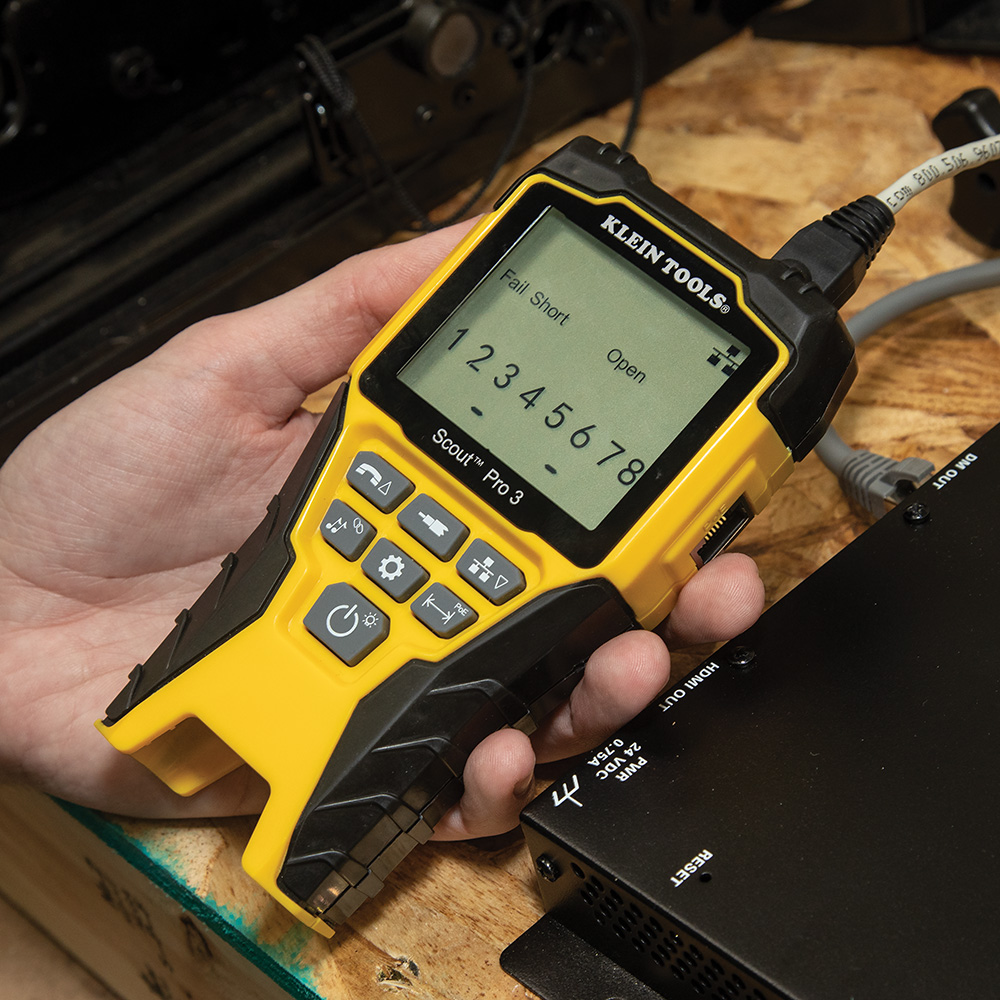

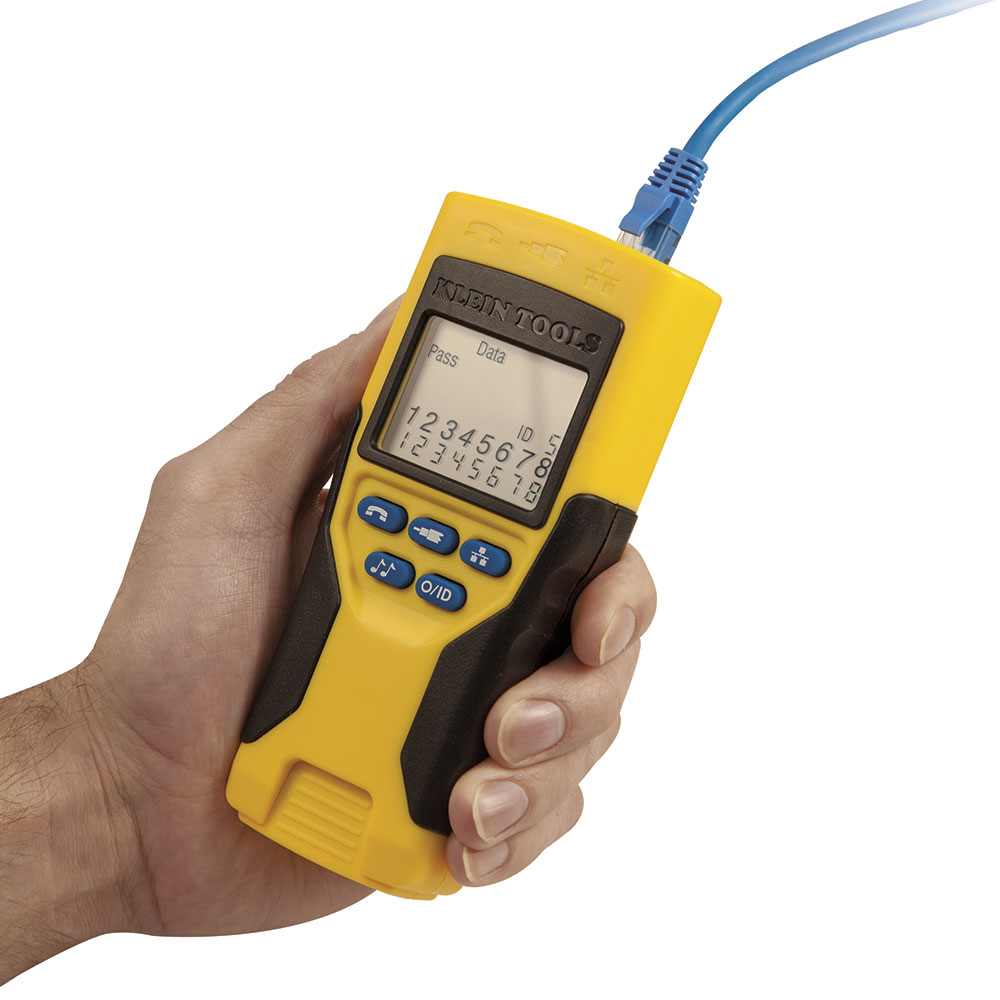

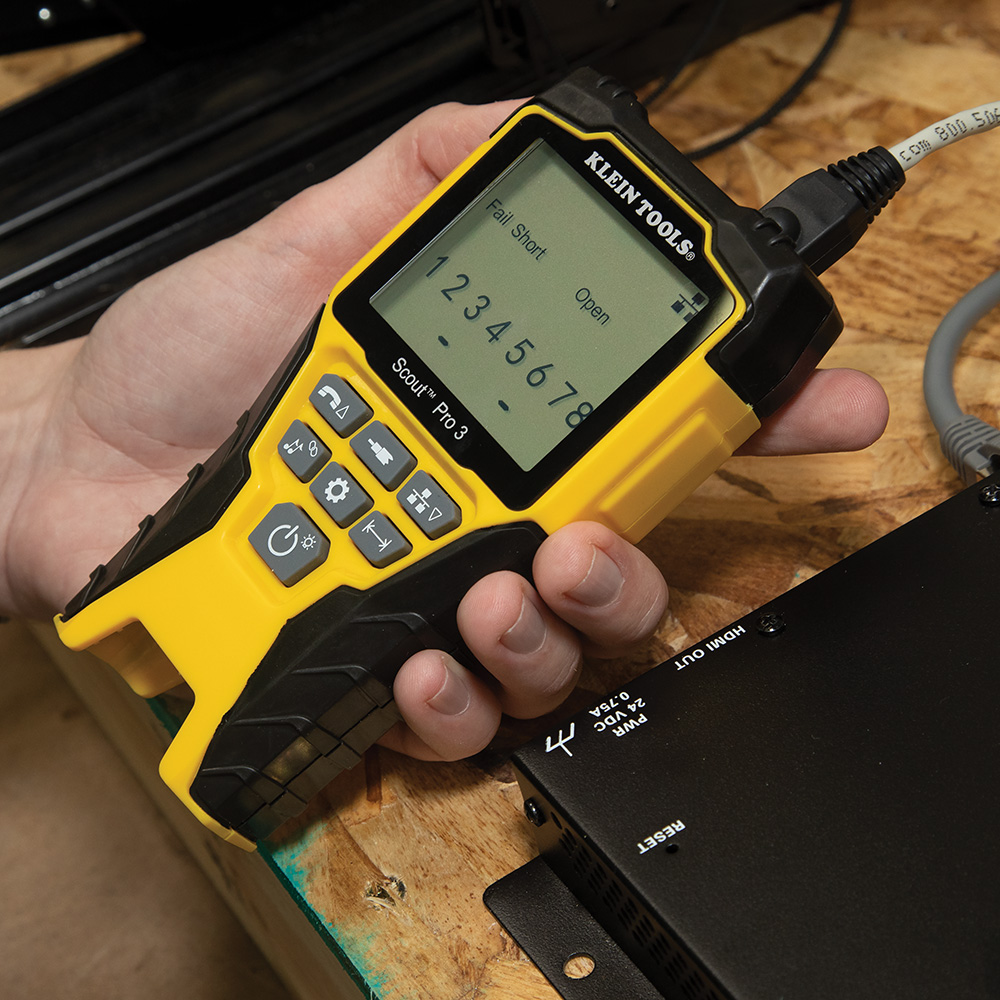

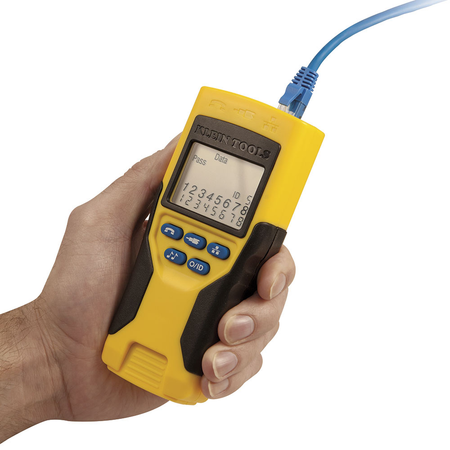

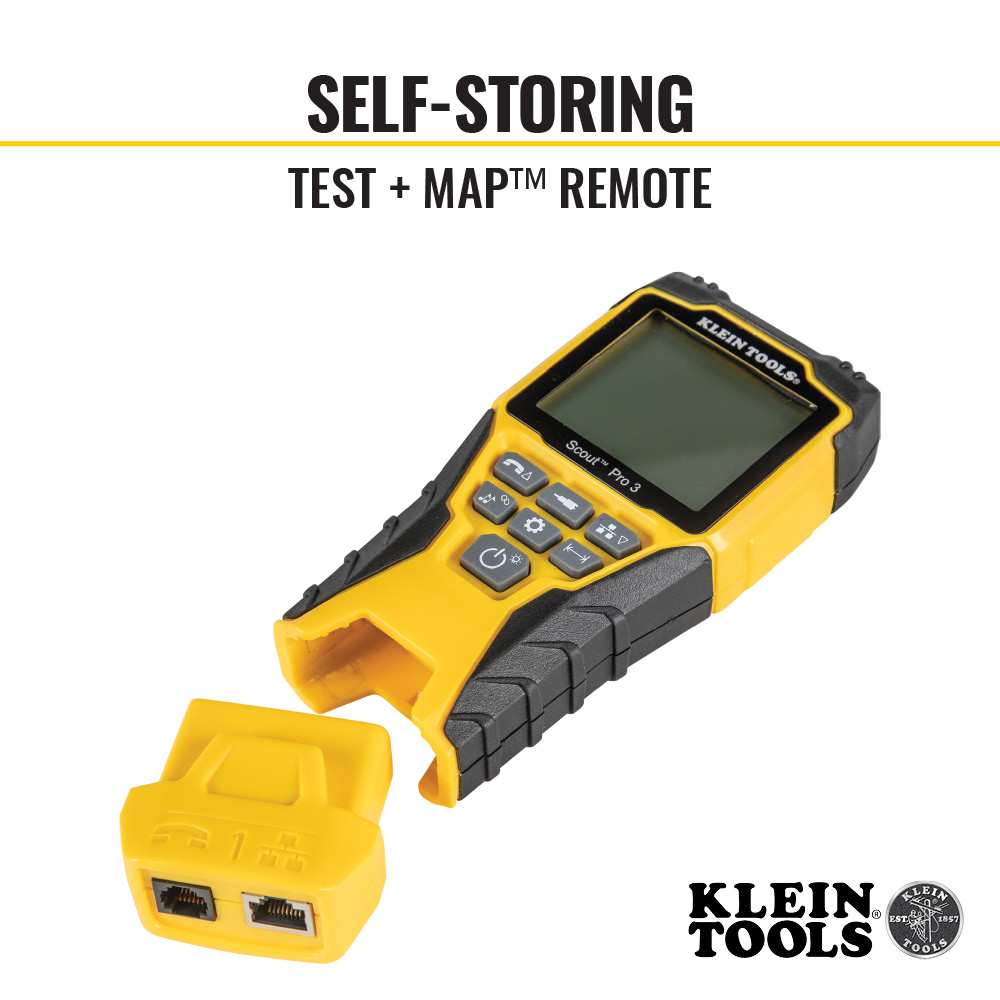

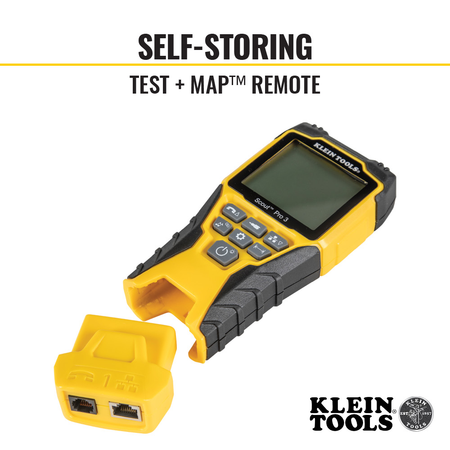

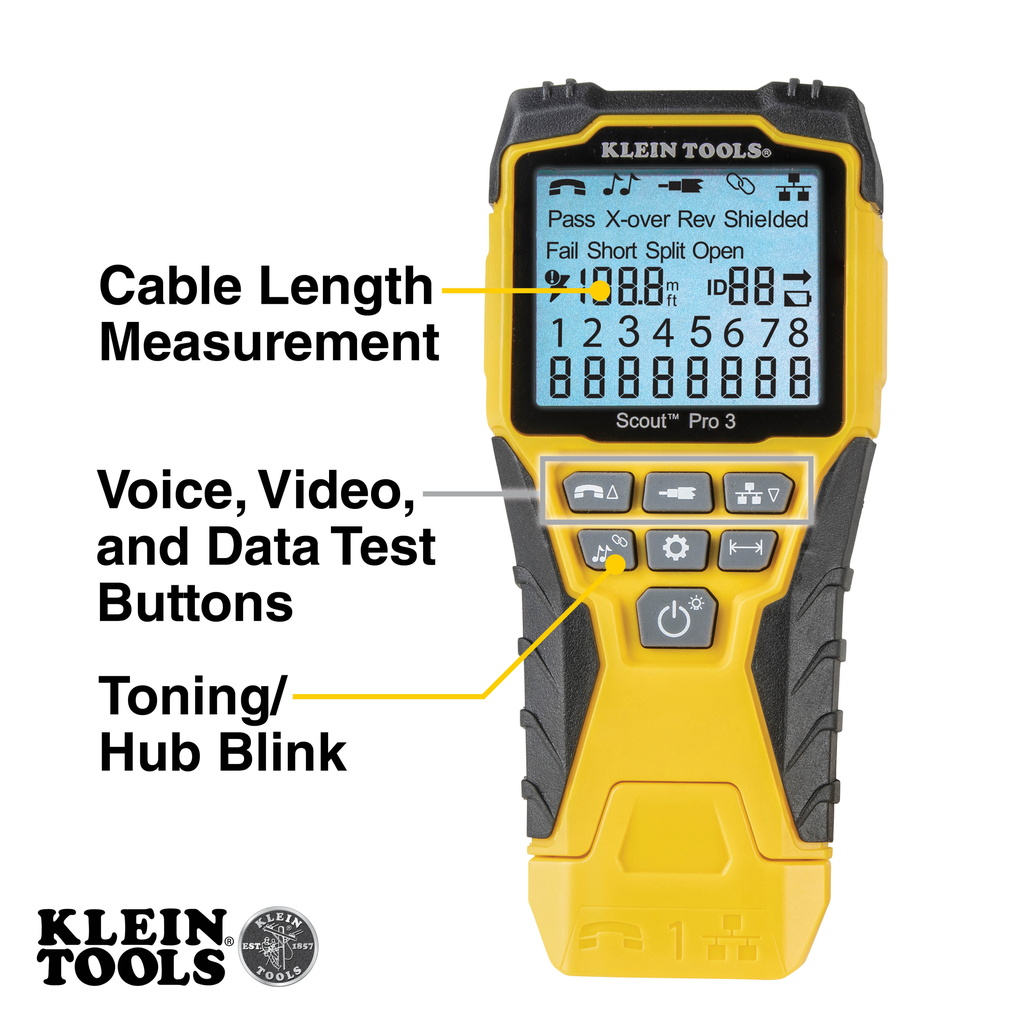

• Versatile Scout® Pro 3 Tester locates and tests coax, data and telephone cables
• This cable installation tools kit has all the essential tools for the VDV professional and is assembled in USA

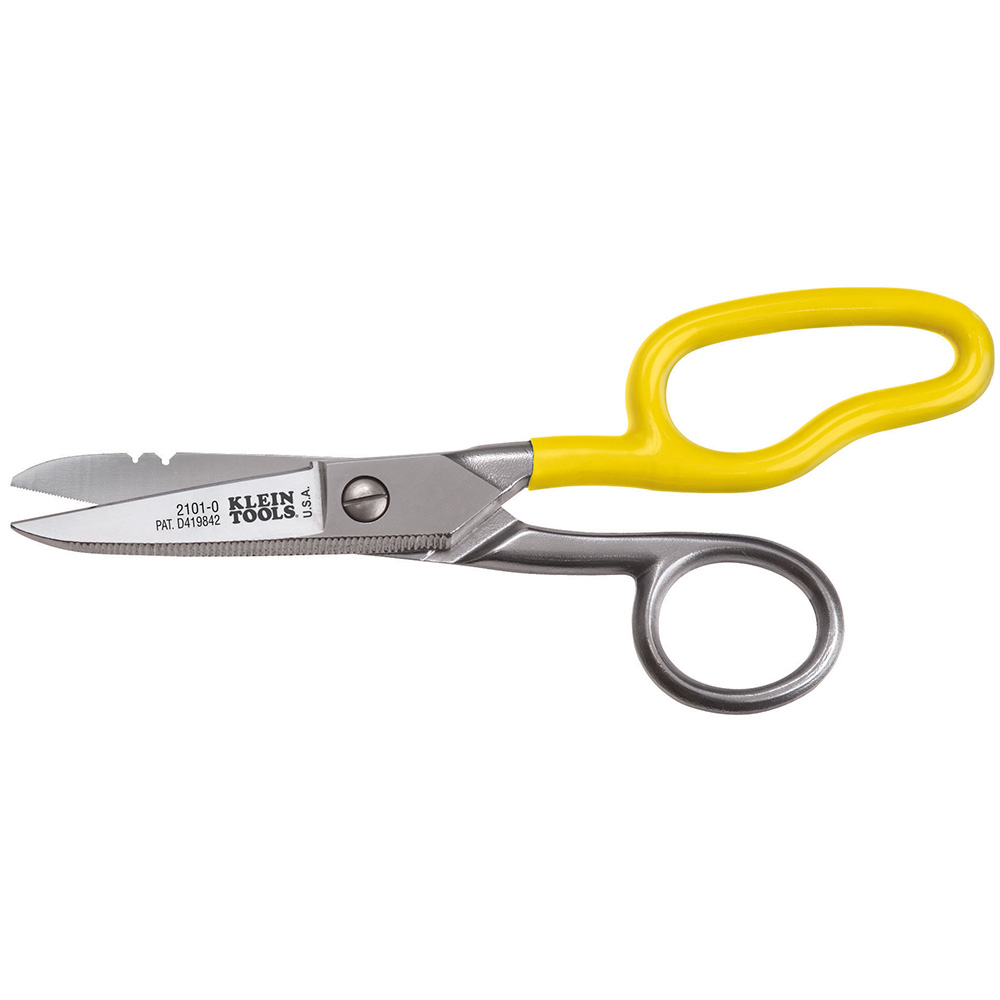

• Snip features high carbon steel blades to maintain blade durability and sharpness

Specifications

• Material: Metal and Plastic

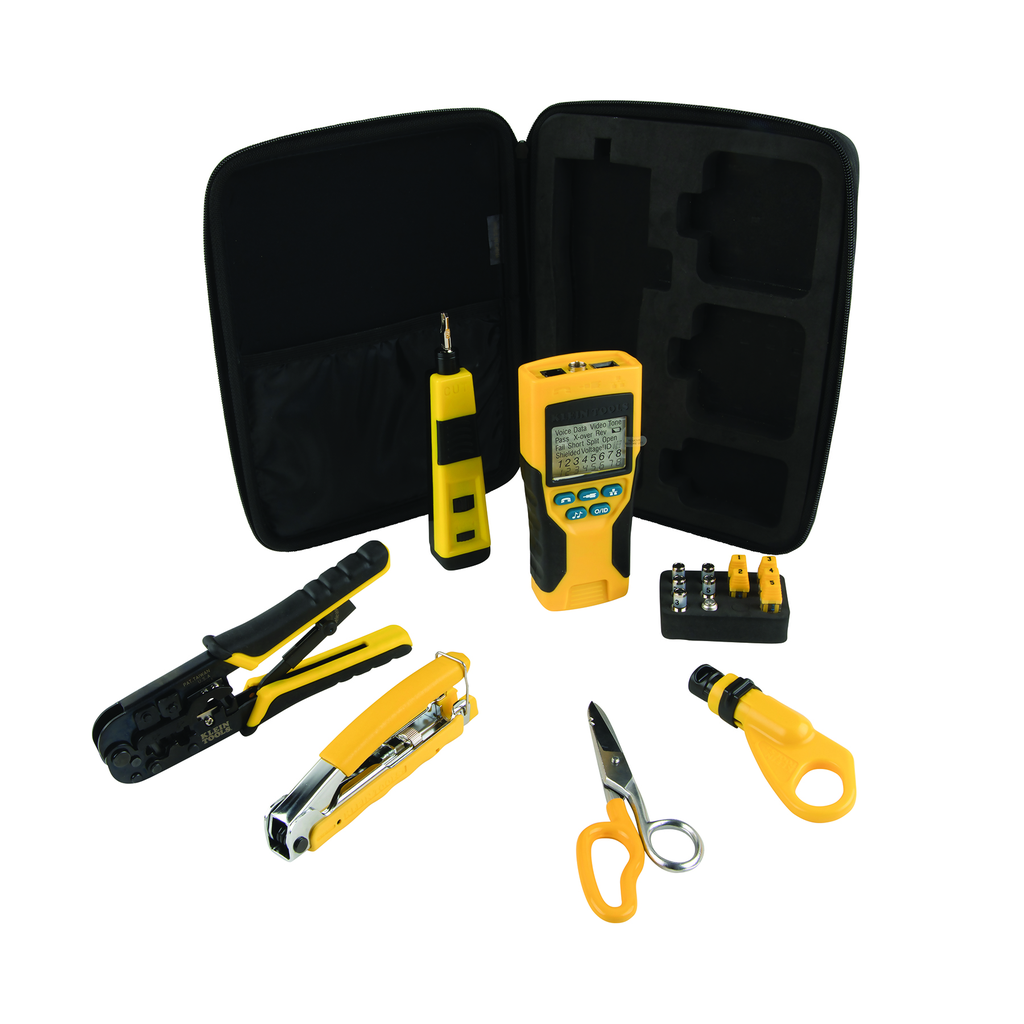

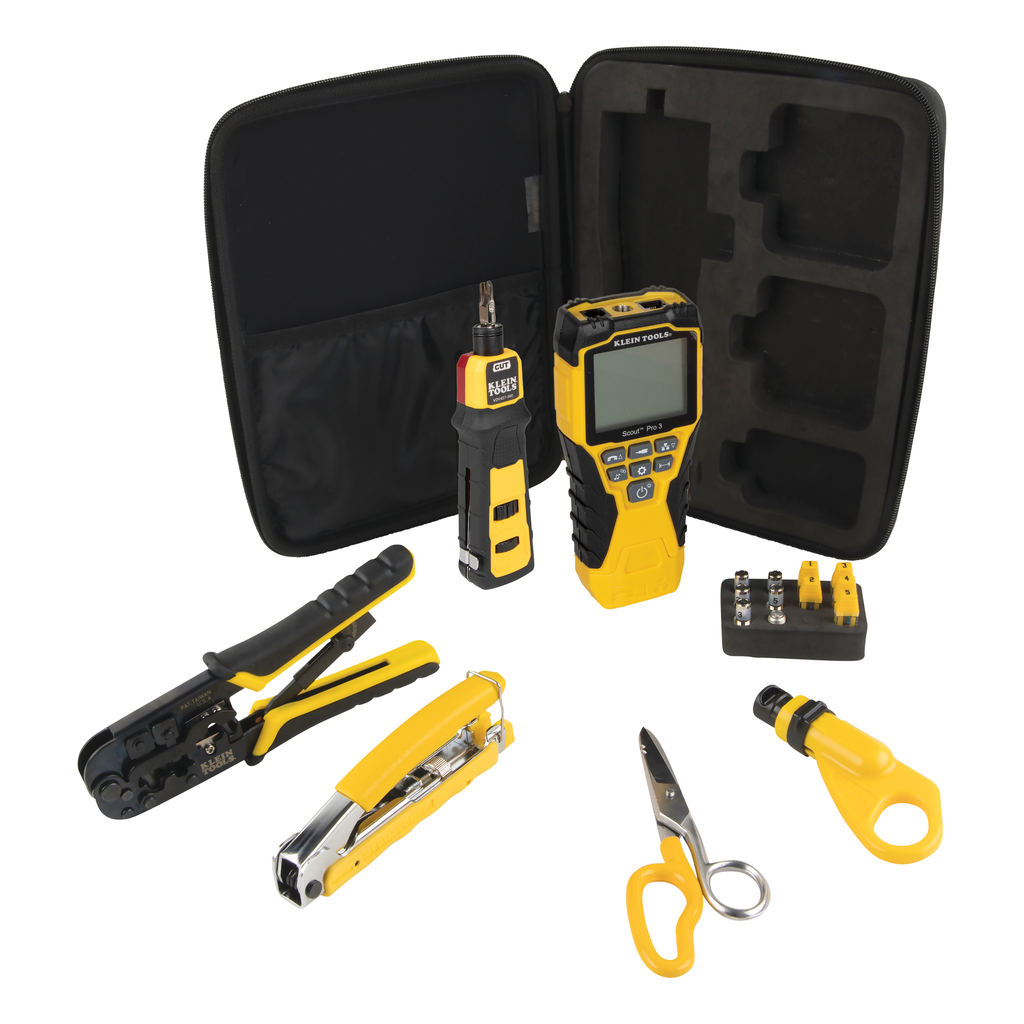

• Included: Snip, Cable Stripper, Punchdown Tool, (2) Crimpers, (1) Tester with Batteries, and Carry Case
• Cable Type: CAT3, CAT5E, CAT6/6A, RG59, and RG6/6Q
• Overall Length: 11.125 Inch (28.3 cm)
• Overall Width: 10.875 Inch (27.6 cm)
• Overall Height: 4.125 Inch (10.5 cm)
• Batteries: 1 x 9V
• Weight: 4.2500 lbs
• Display: LCD
• Depth: 11.2500 in
• Drop Protection: 9.8' (3 m)
• Supported Remotes: VDV770827
• Cable Identification: Yes
• Height: 4.1250 in
• Multiple Style Tone Generator: Yes
• Width: 10.8750 in
• Accuracy: Length Measurement - +/- 5% (ft) or 5% m
• Application: Twisted Pair and Coax Installation
• Connection & Adapter Types: RJ11/ RJ12, RJ45, and Coax F
• Type: Kit
• Test & Measure Types: Resistivity
