Cable Installation Kit for Pass-Thru™

This Pass-Thru™ Cable Installation Kit includes the tools needed to connect and test Klein Tools' RJ45 Pass-Thru™ connectors onto category cables. Test CAT3, CAT5e and CAT6/6A cables with the LAN Explorer® Data Cable tester. The kit includes the tester, a Pass-Thru™ crimper, a pack of 50 CAT5e/CAT6 Pass-Thru™ connectors and a zippered storage pouch.

Features

• Test CAT3, CAT5e and CAT6/6A cables
• Exclusive Pass-Thru™ Connectors
• Compact tester easily fits in your pocket
• Includes tester, crimper, Pass-Thru™ connectors and USA-made zippered pouch for storage
• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
• Certified for PoE+

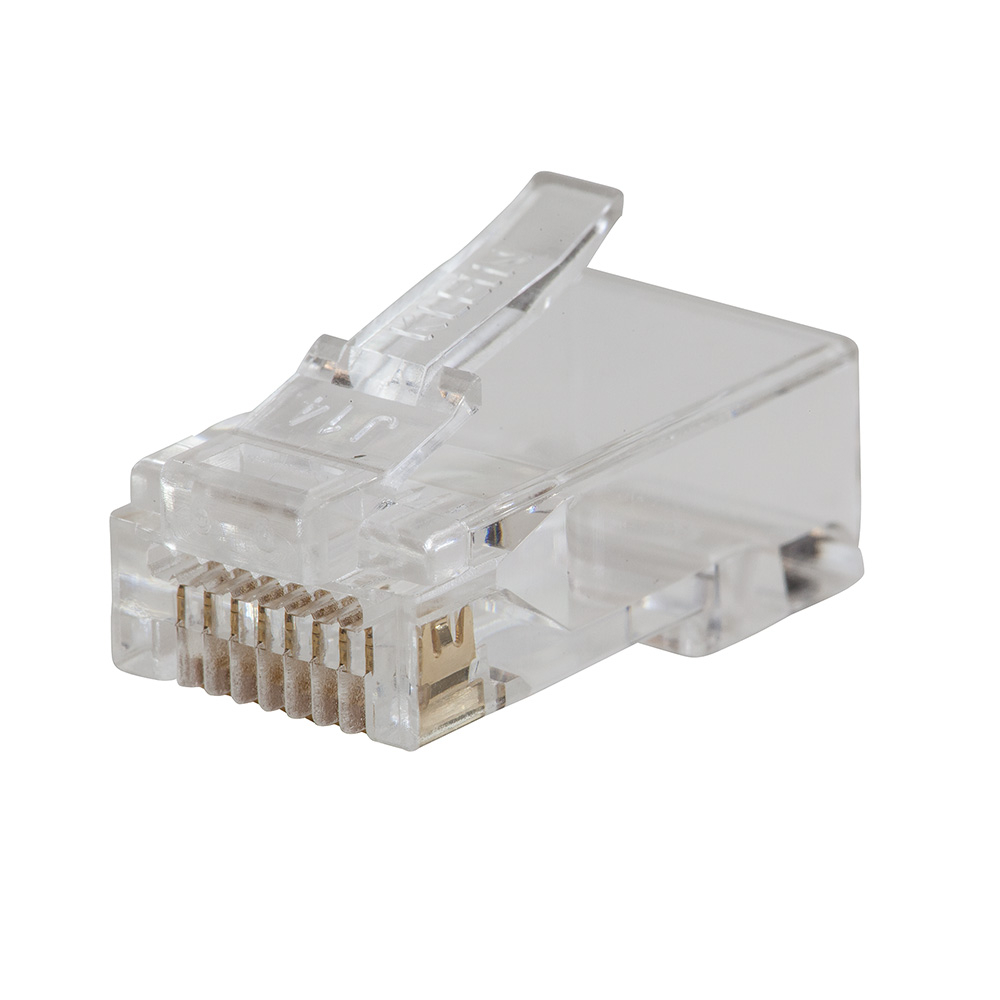

• 8 position, 8 contact Pass-Thru™ style data plug for solid or stranded cable

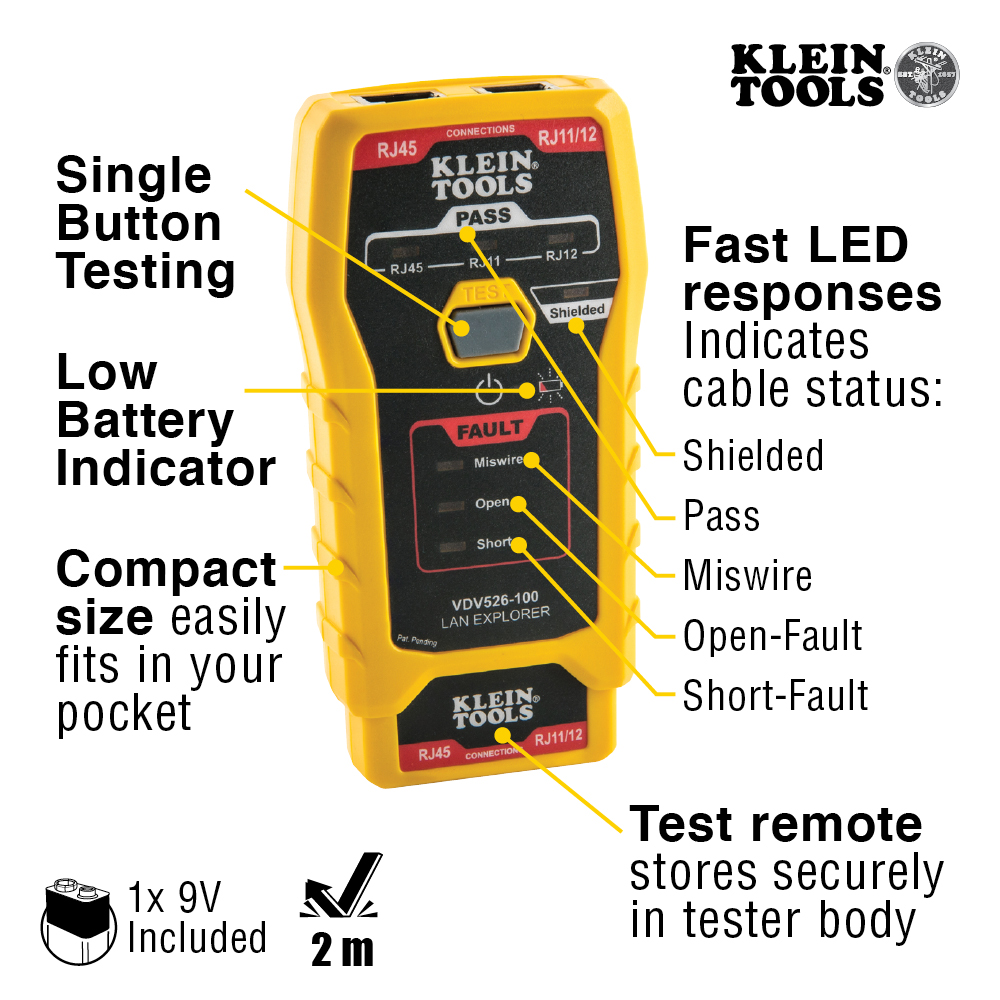

• Fast LED responses indicate cable status (Pass, Miswire, Open-Fault, Short-Fault, and Shield)

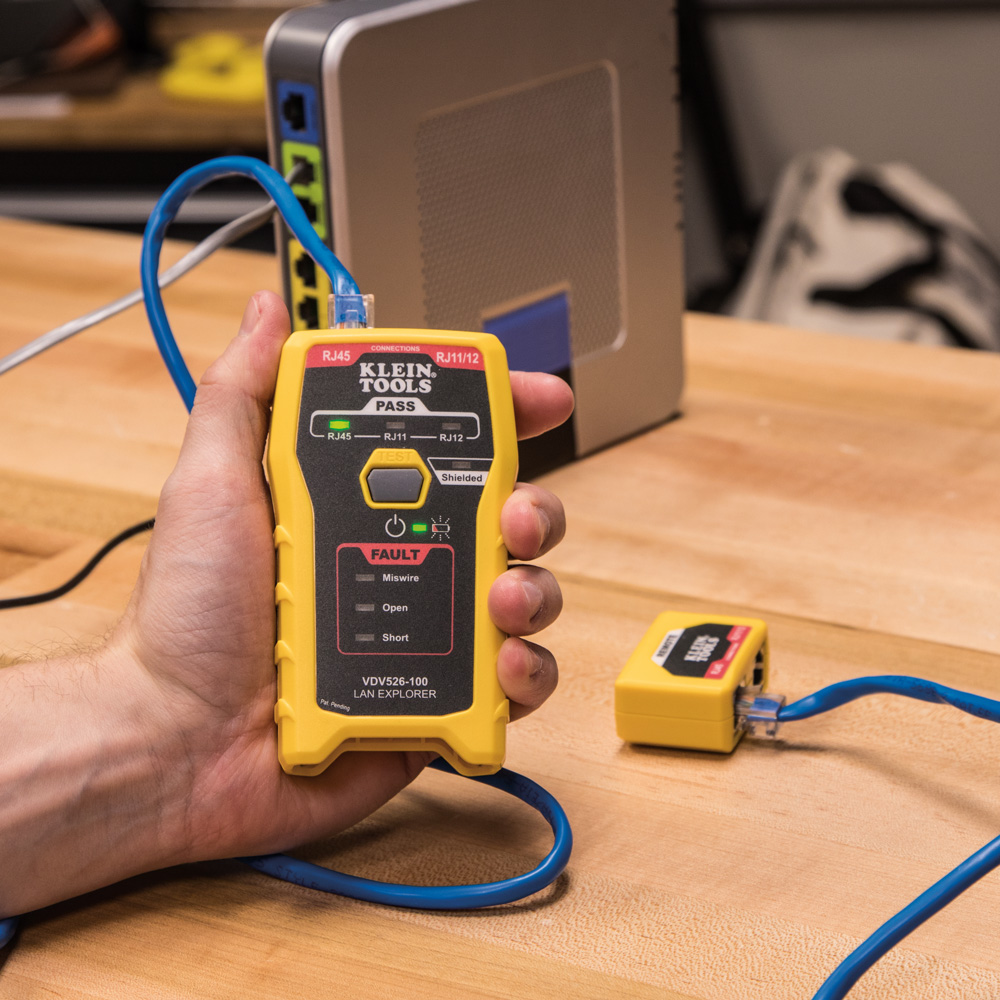

• Cable tester (Cat. No. VDV526-100) with single button testing of terminated voice and data cables

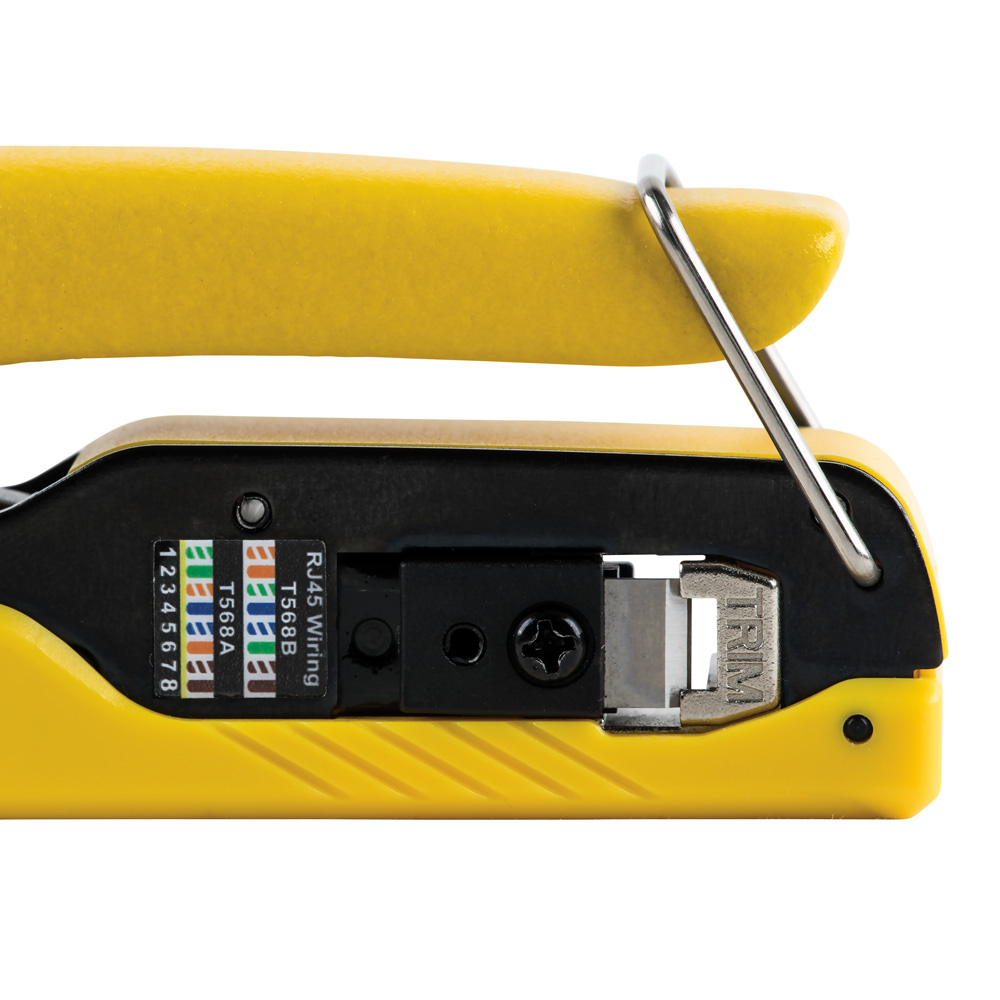

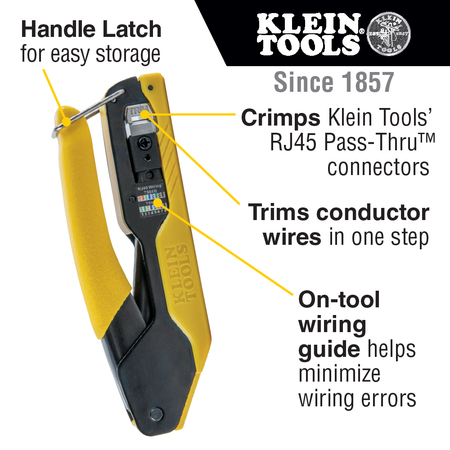

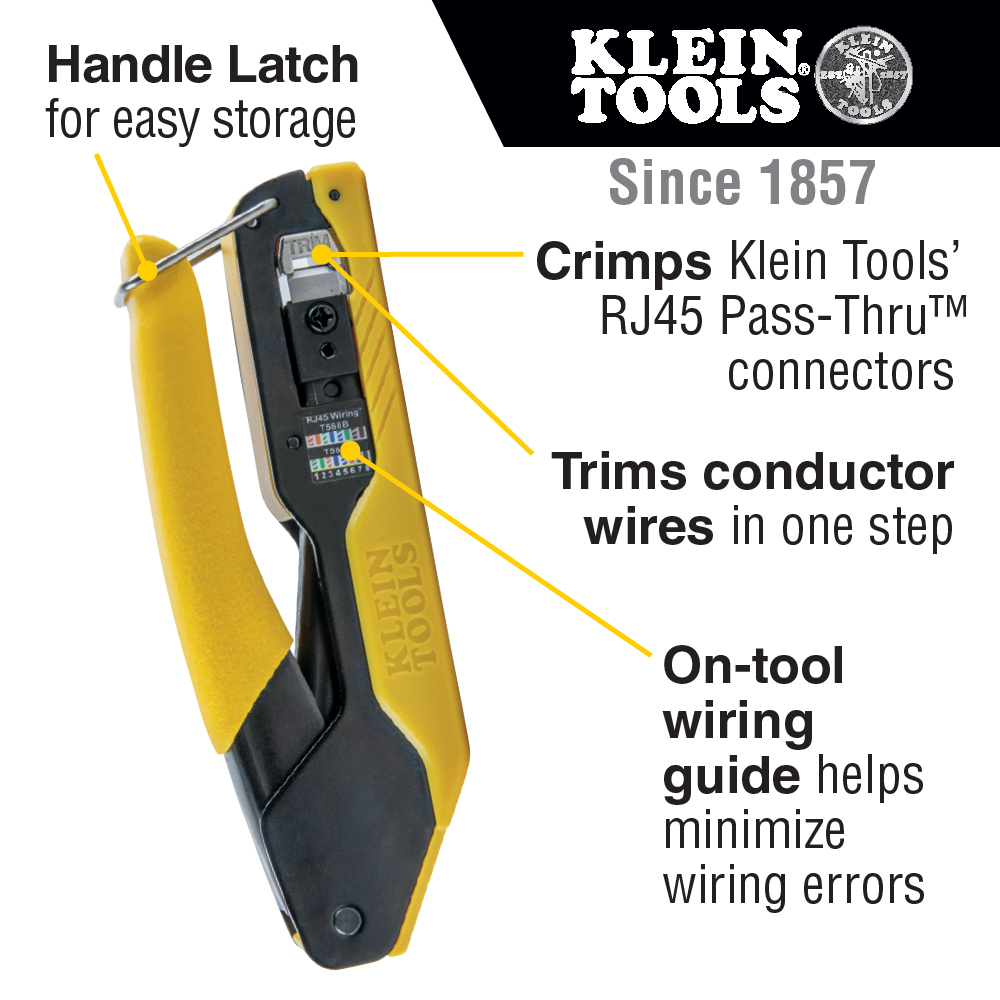

• Wiring guide on crimper helps minimize wiring errors

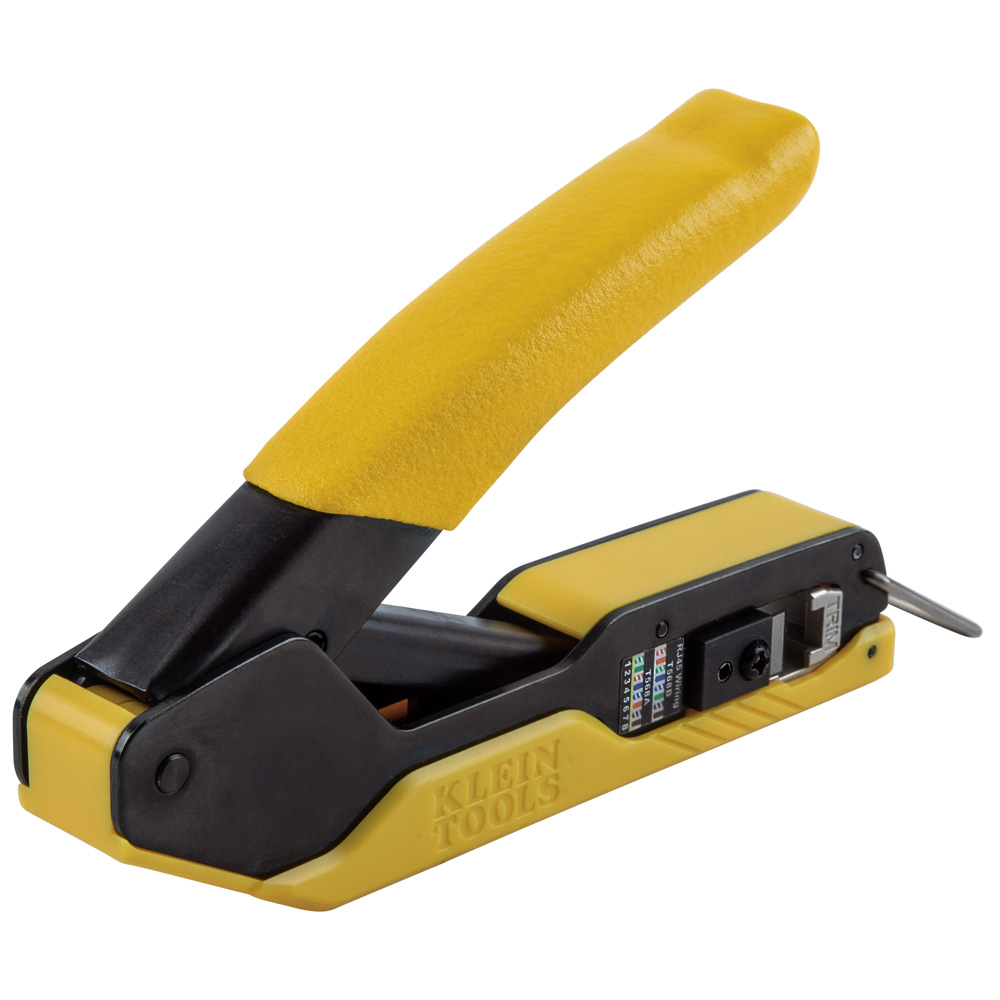

• Fast, simple RJ45 Pass-Thru™ Crimper (Cat. No. VDV226-005) crimps and trims Klein Tools RJ45 Pass-Thru™ connectors onto data cables (round STP / UTP cables)
• Cable Tester Kit includes the components needed to terminate data cables using time saving Pass-Thru™ technology

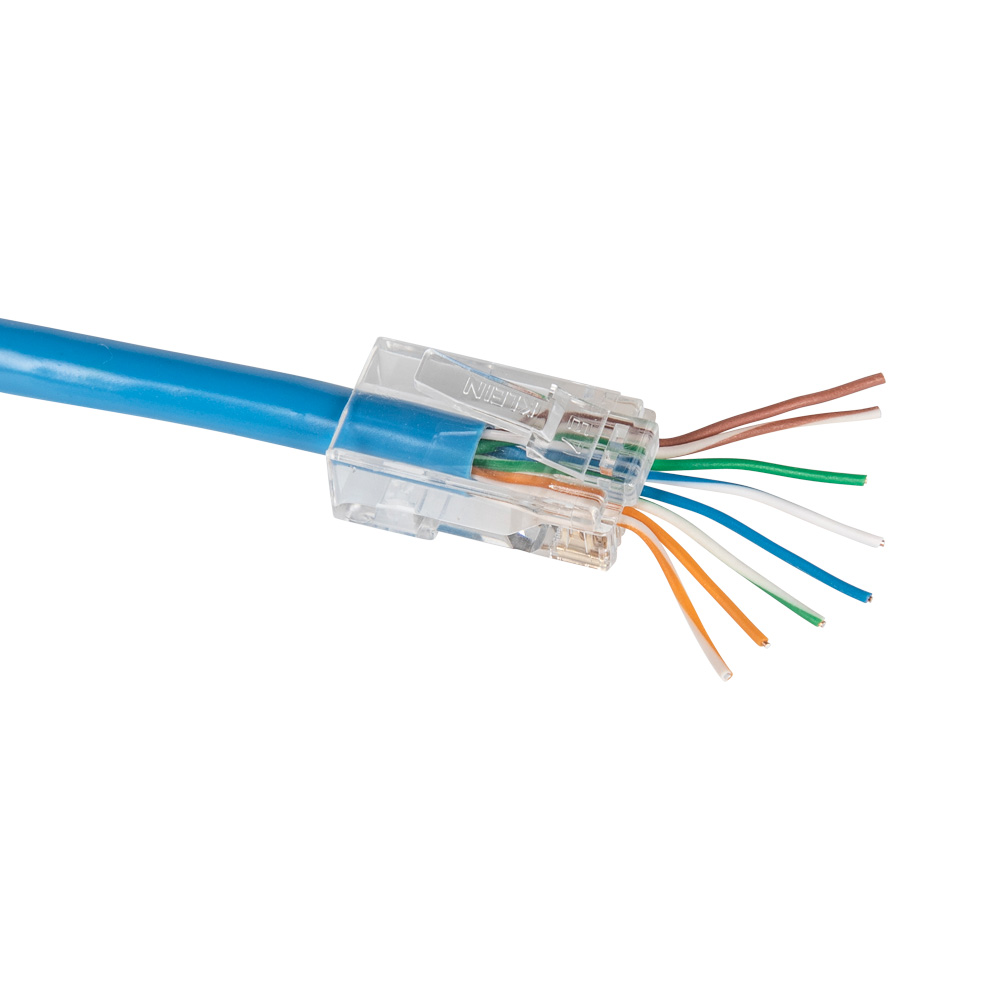

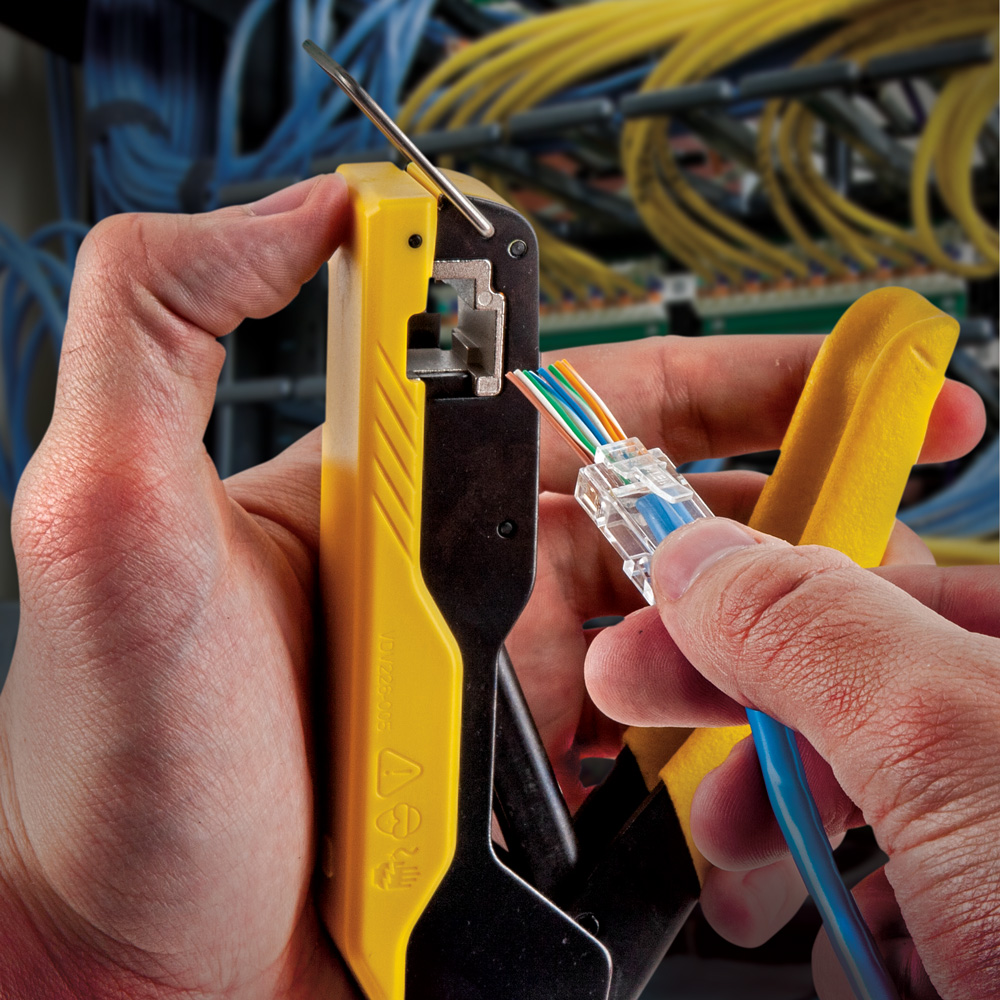

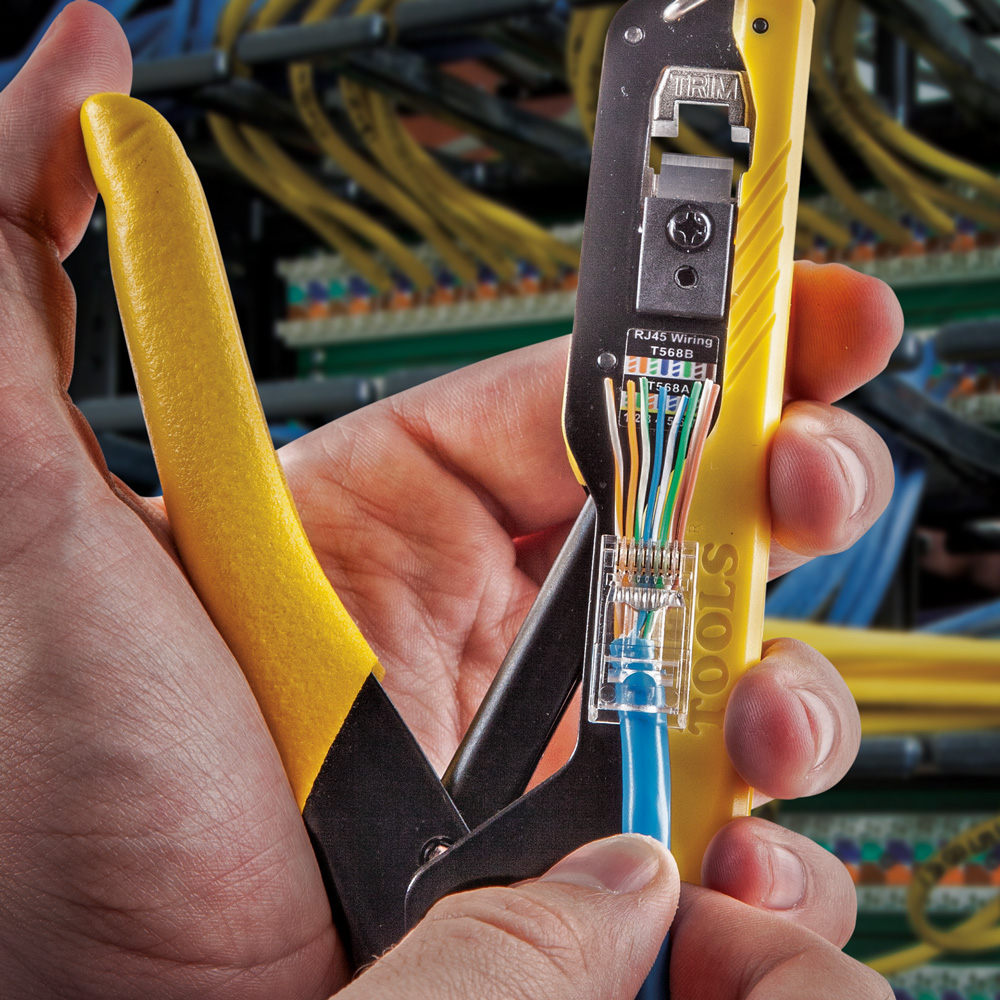

• CAT5e/CAT6 cables easily pass through connector to visually ensure that wires are in the correct order for consistent and secure terminations

Warnings

• Do NOT use on energized circuits or cabling systems.
• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use

Specifications

• Multiple Style Tone Generator: No
• Test & Measure Types: Pin to Pin Wiremap; Shield
• Overall Width: 4" (10.2 cm)
• Material: High Carbon Steel, Polycarbonate Plastics, Stamped Steel, Vinyl
• Depth: 15.1250 in
• Display: LED
• Batteries: 1 x 9V

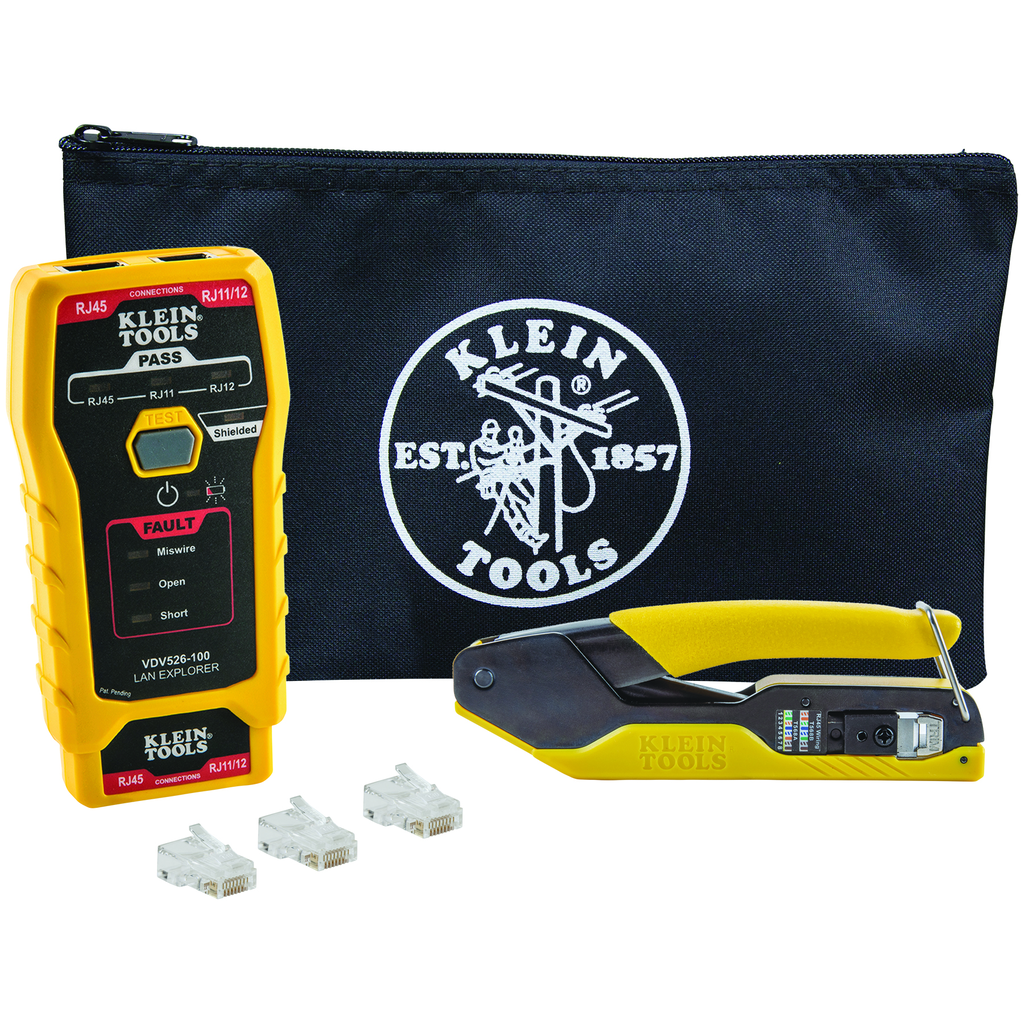

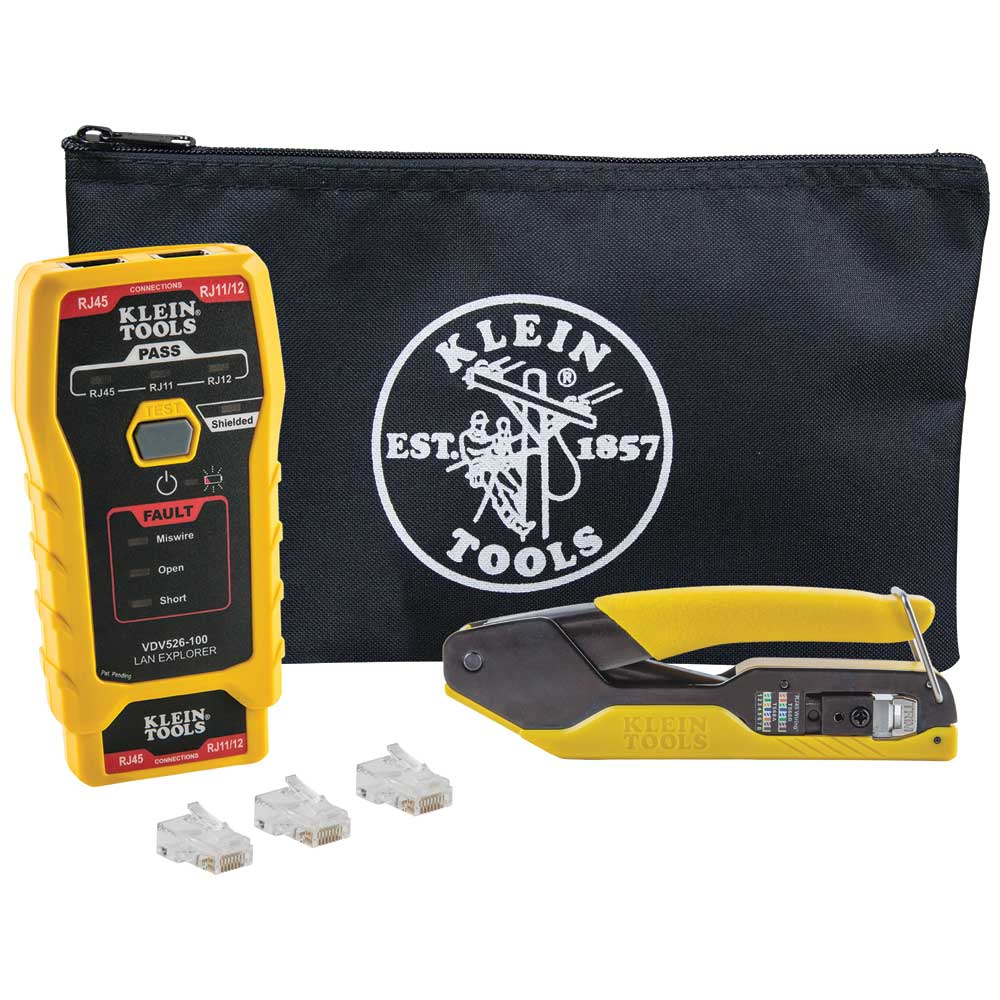

• Included: Tester, Crimper, Connectors, Pouch
• Cable Identification: No
• Overall Height: 15.2" (39 cm)
• Drop Protection: 2' (0.6 m)
• Application: Pass-Thru™ Installation
• Battery Life: Active - 80 hr; Standby - 3.5 yr.
• Supported Remotes: Single, Stored on Tester
• Width: 5.0000 in
• Type: Cable Installation Kit
• Cable Type: CAT3, CAT5e, CAT6/6A
• Connection & Adapter Types: RJ45, RJ11/12
• Height: 4.0000 in
• Weight: 1.6000 lbs
• Country of Origin: United States
• Overall Length: 5" (13 cm)
