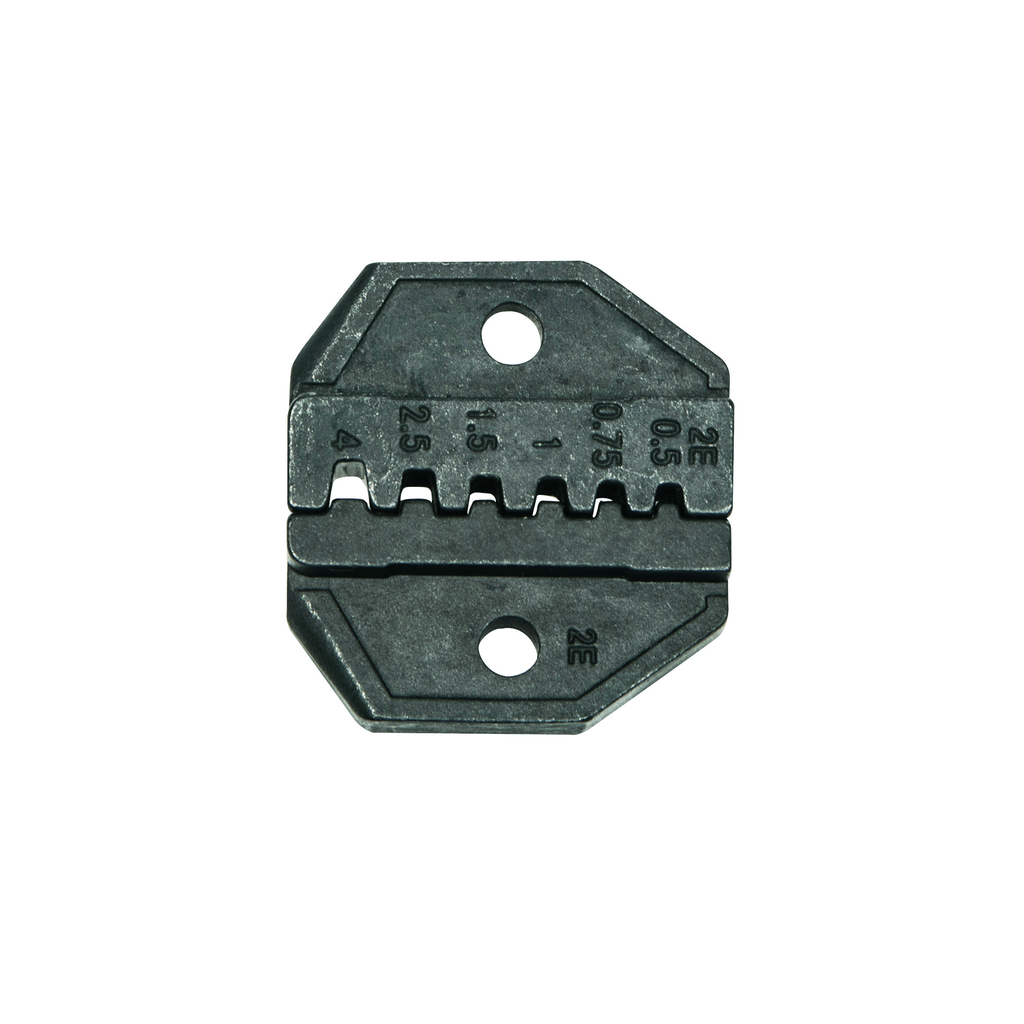

Die Set Pin Term, Ins or Non-Ins Ferrule

Klein Tools' VDV205-039 Die Set is for use with Klein's VDV200-010 Insulated Terminals (sold separately). Made from induction hardened high-carbon steel for durability and long life. Designed to be easy to change from one to the next.

Features

• Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
• Additional, optional die sets include: VDV211-038 (RG 58/59/62); VDV201-040 (RG58/59/62/174 Fiber Optic); VDV211-041 (RG58/59/62/6); VDV201-042 (RG174/179/Belden 8218 and Fiber Optic); VDV211-043 (RG8/11/174/179/213
• Weight: 2.4 ounces
• Precise nest dimensions ensure accurate terminations that meet or exceed common standards
• Die Set only

Specifications

• Die Set: Pin Terminal Insulated or Non-Insulated Ferrules, AWG 12-22

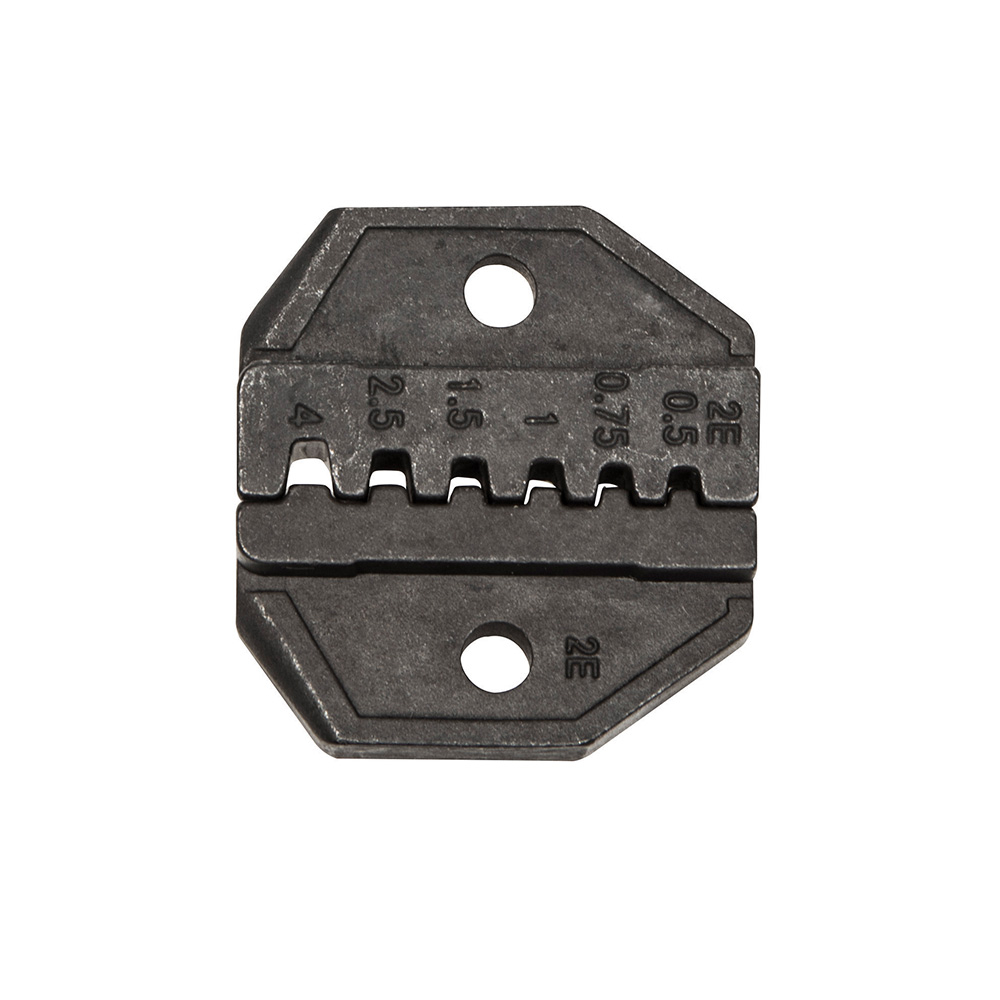

• Nest Dimension: AWG 22/20/18/16/14/12 DIN 0.5/0.75/1.0/ 1.5/2.5/4 mm
• Style Name: Pin Terminal or 12-22 AWG Die Set, VDV200-010, VDV212-803
• Weight: 0.1350 lbs
• Height: 0.3600 in
• Country of Origin: Taiwan
• Width: 3.3300 in
• Depth: 2.5200 in
