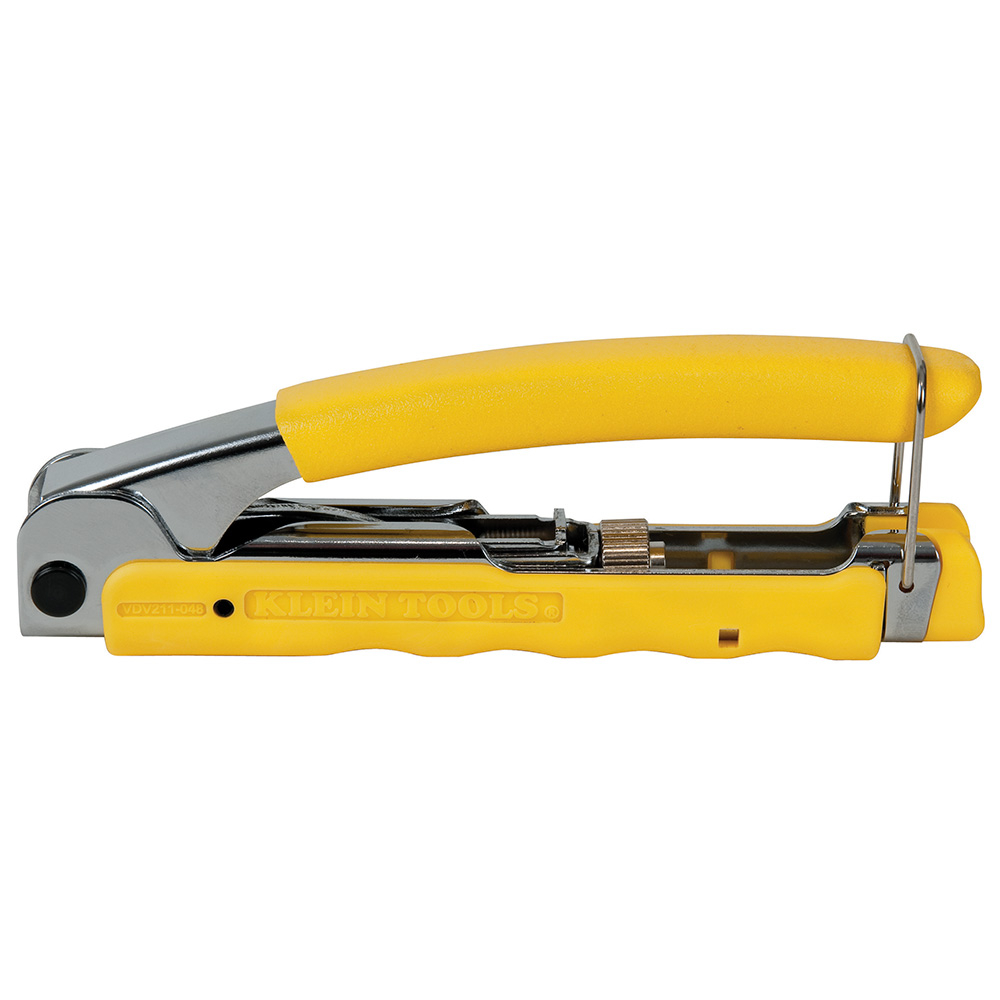

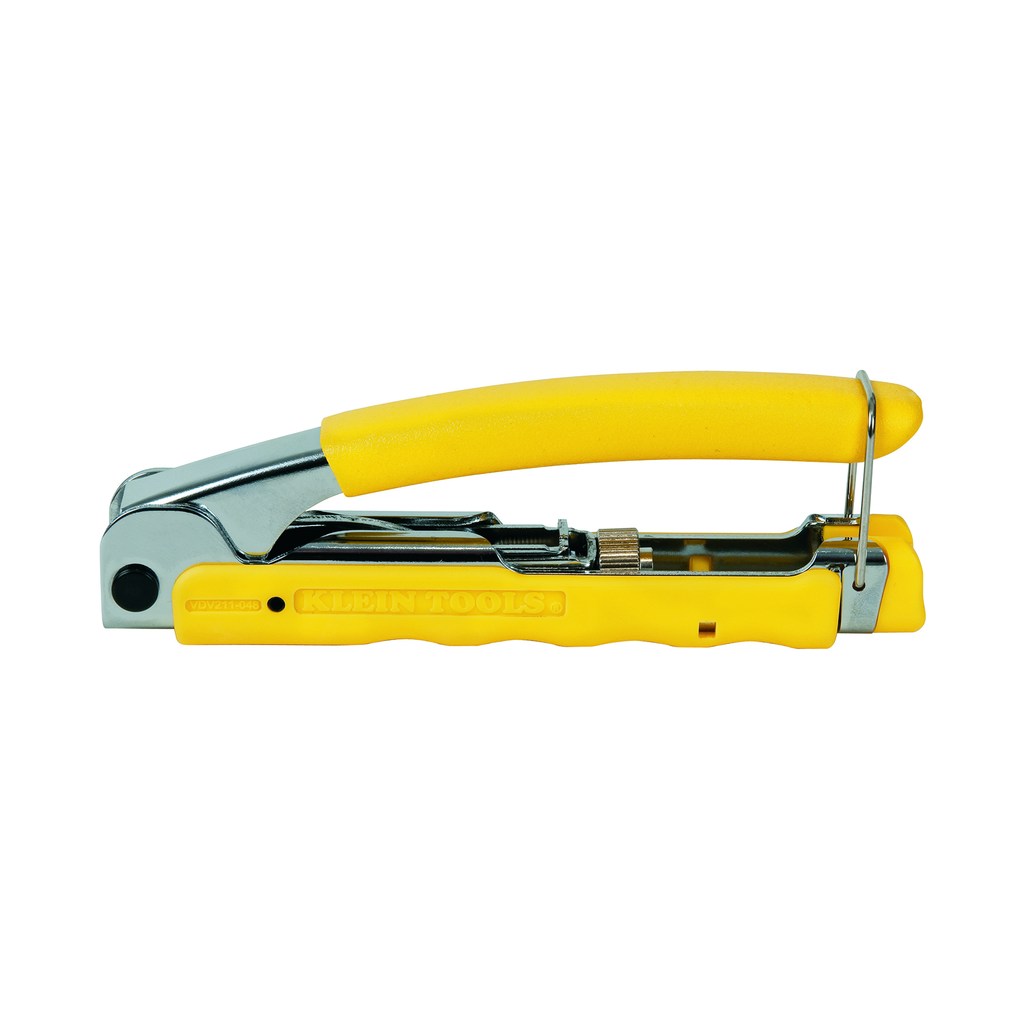

Compact, Multi-Connector Compression Crimper

This compact Multi-Connector Compression Crimper features an adjustable universal plunger that quickly and accurately crimps multiple types of compression connectors. User-friendly gauge markings indicate correct plunger positions saving you time and eliminating guesswork. An enhanced pivot point provides smooth wobble-free operation. This compact tool also has an integrated handle lock for easy storage.

Warnings

• Always wear approved eye protection.
• Never use on or near live electrical circuits.
• NOT insulated. Will NOT protect against electrical shock.

Features

• Steel body with chrome finish resists corrosion and extends tool life
• Yellow contoured grips enhance comfort, visibility and allow quick identification
• Compression crimper provides fast, reliable multiple-type compression connector installations
• Enhanced pivot point for smooth wobble-free operation
• Compact tool with integrated handle lock for easy storage
• Spring loaded return increases user comfort and ease of use

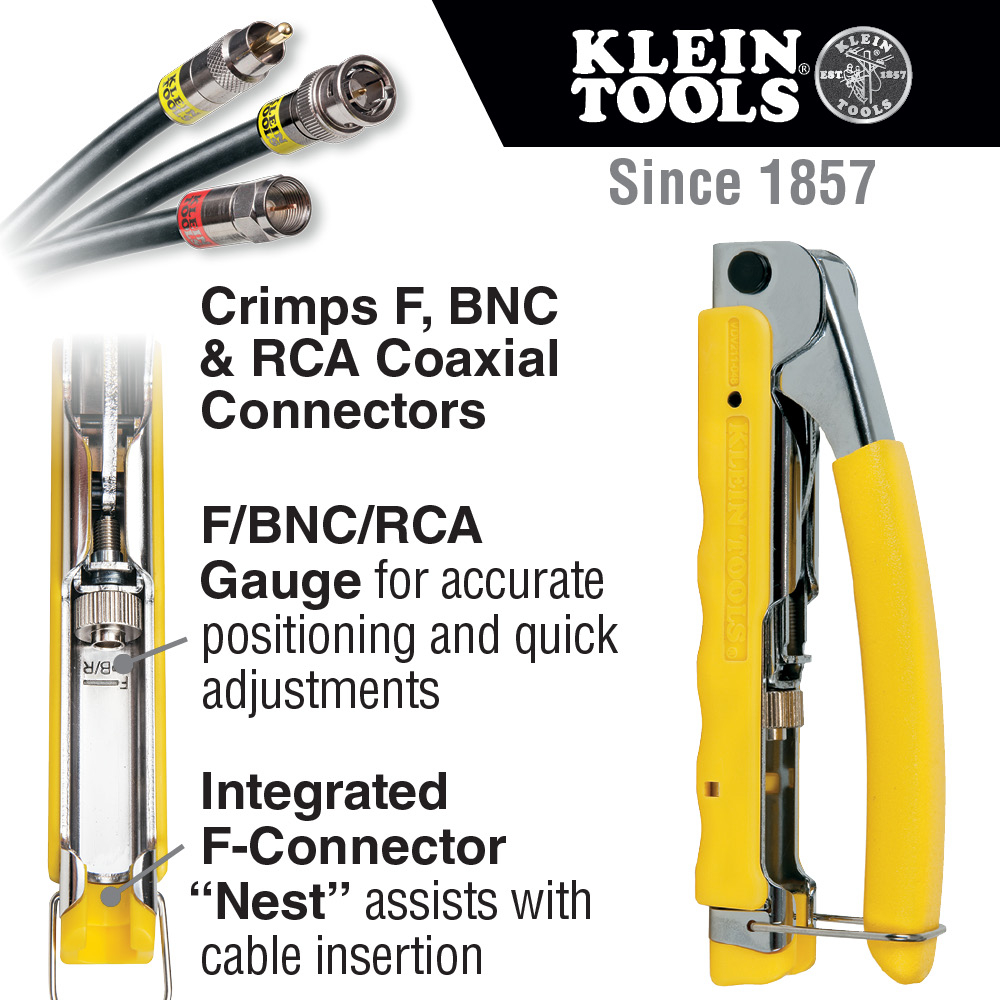

• Crimps compression F, BNC, and RCA connectors to inside (premises) coaxial cable: Mini-coax, RG58, RG59, RG6, RG62, and RG6QS
• Integrated F-connector ''nest'' assists with cable insertion
• Open channel design for easy insertion of all connector head styles
• User-friendly F/BNC/RCA gauge markings on tool for accurate positioning and quick adjustments of the plunger
• Adjustable universal plunger ensures optimized crimping on multiple types of connectors

Specifications

• Cable Type: RG59, RG6/6Q
• Overall Length: 5.594" (14.2 cm)
• Material: Steel with Chrome
• Crimps: Yes
• Country of Origin: Taiwan
• Connector Type: BNC, F and RCA
• Application: Cable Connection
• Color: Yellow/Chrome
• Style Name: Compact Adjustable Compression Crimper - F
• Cable Size: RG59, RG6/6Q
• Type: Compression Crimper
• Width: 2.0000 in
• Cuts: Yes
• Depth: 5.6000 in
• Weight: 0.5000 lbs
• Height: 1.0000 in
