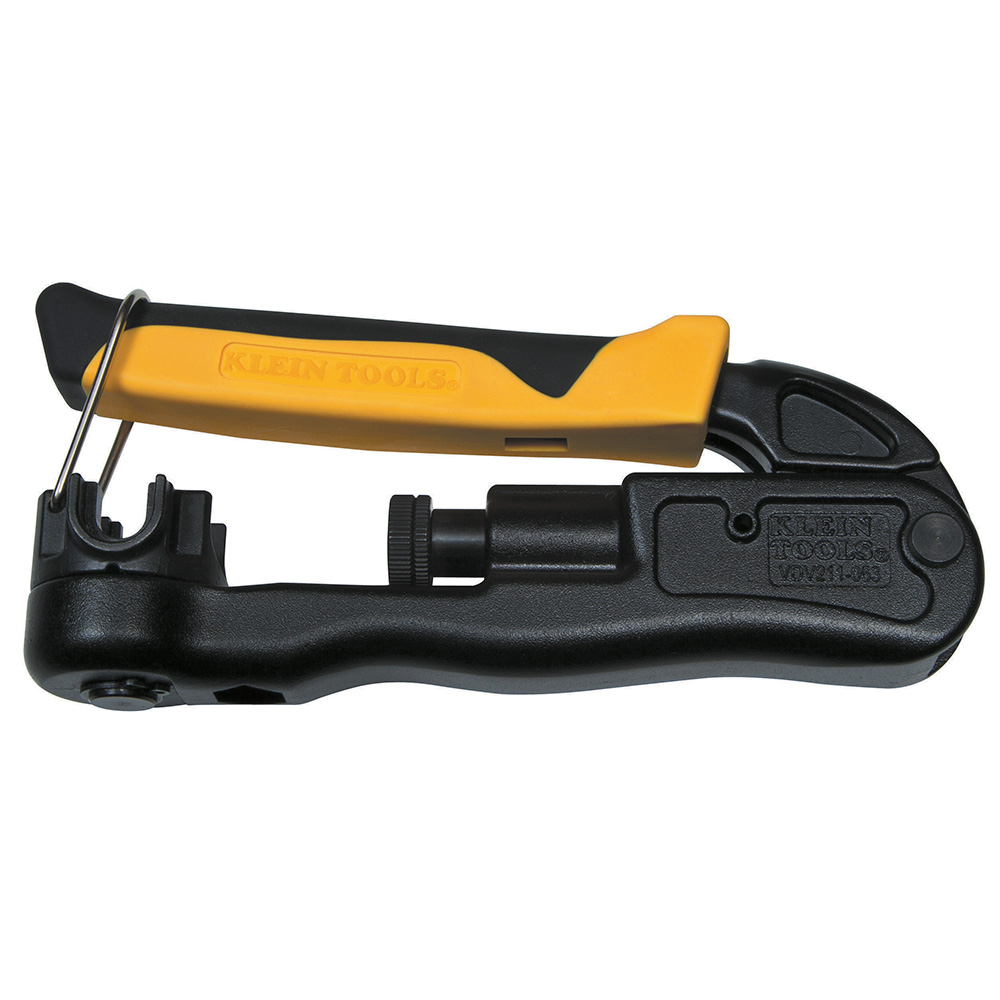

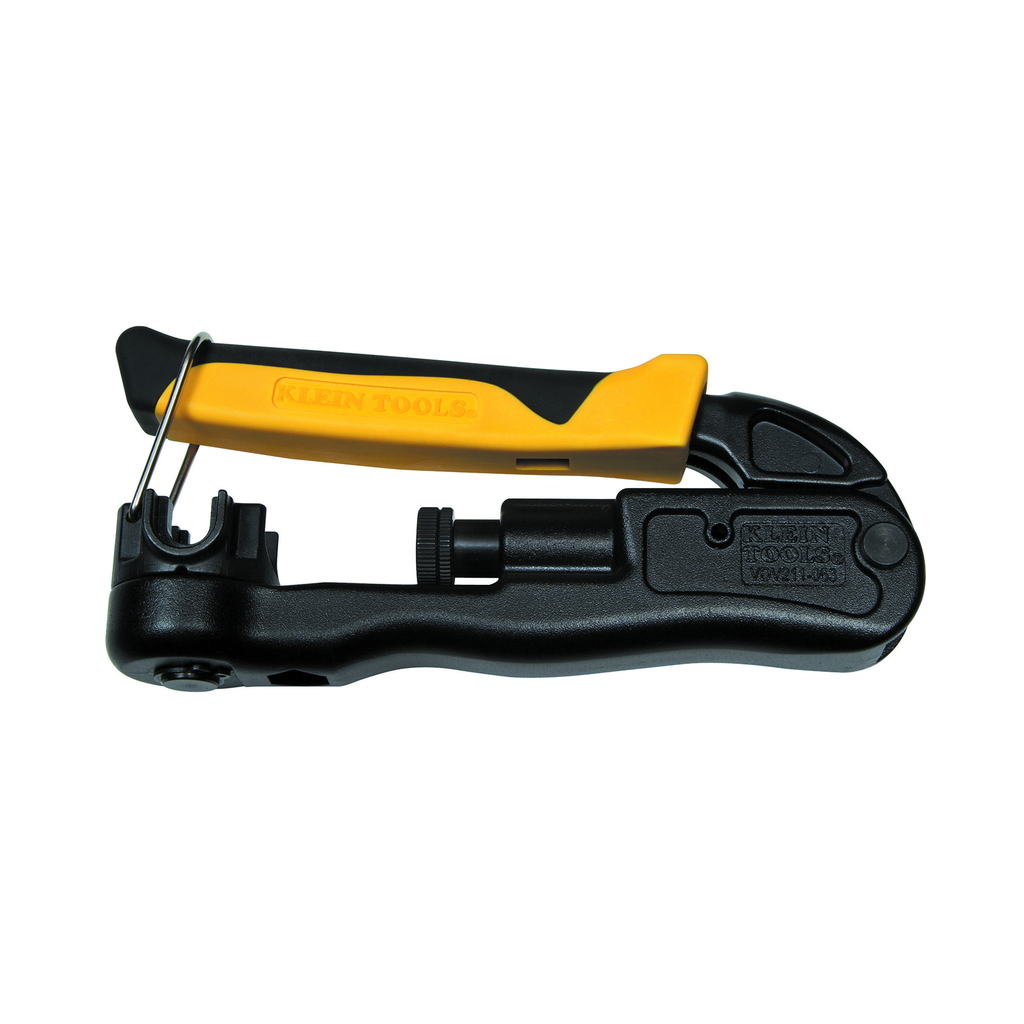

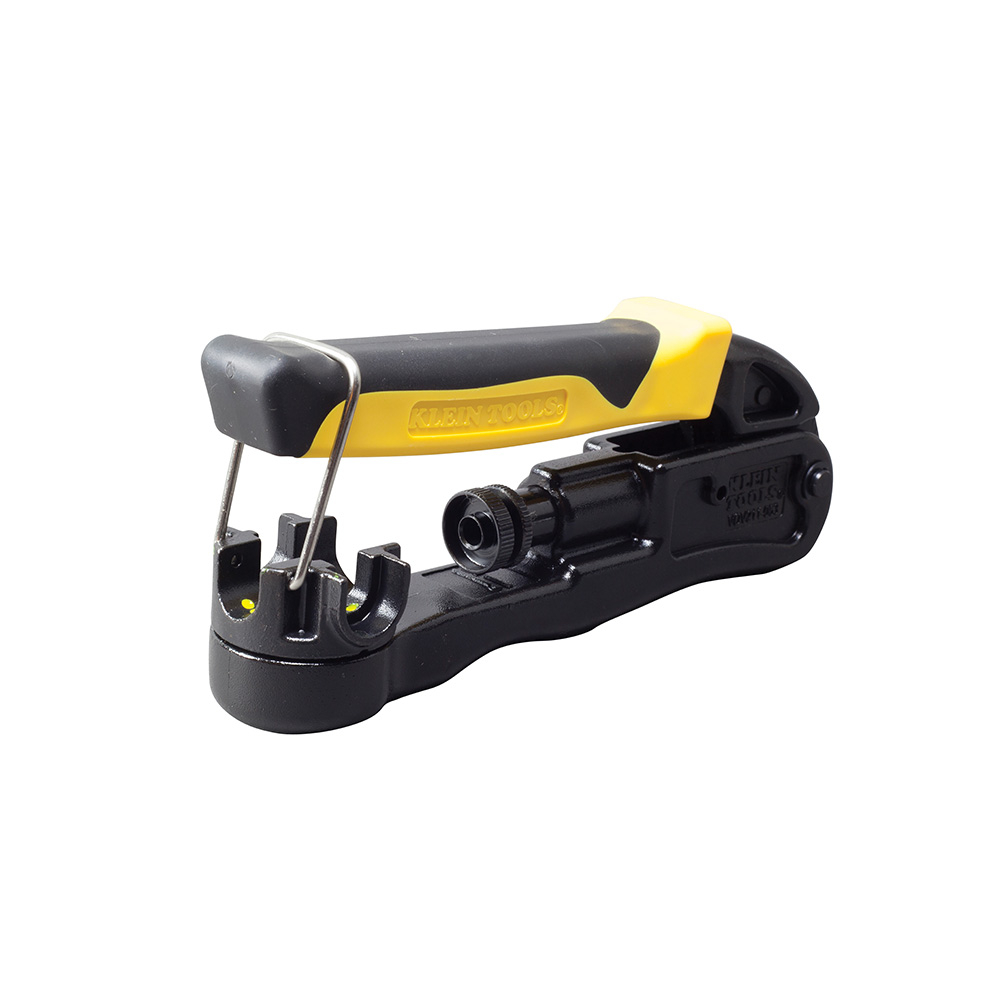

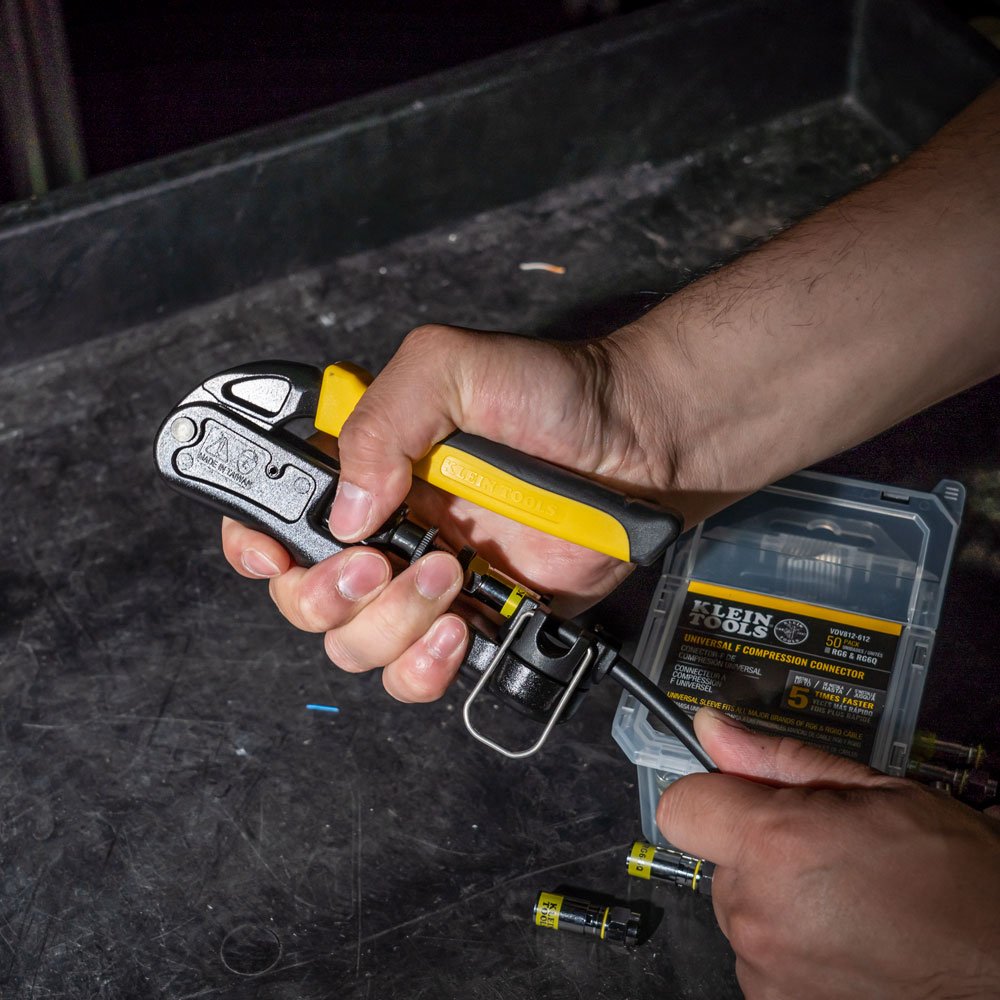

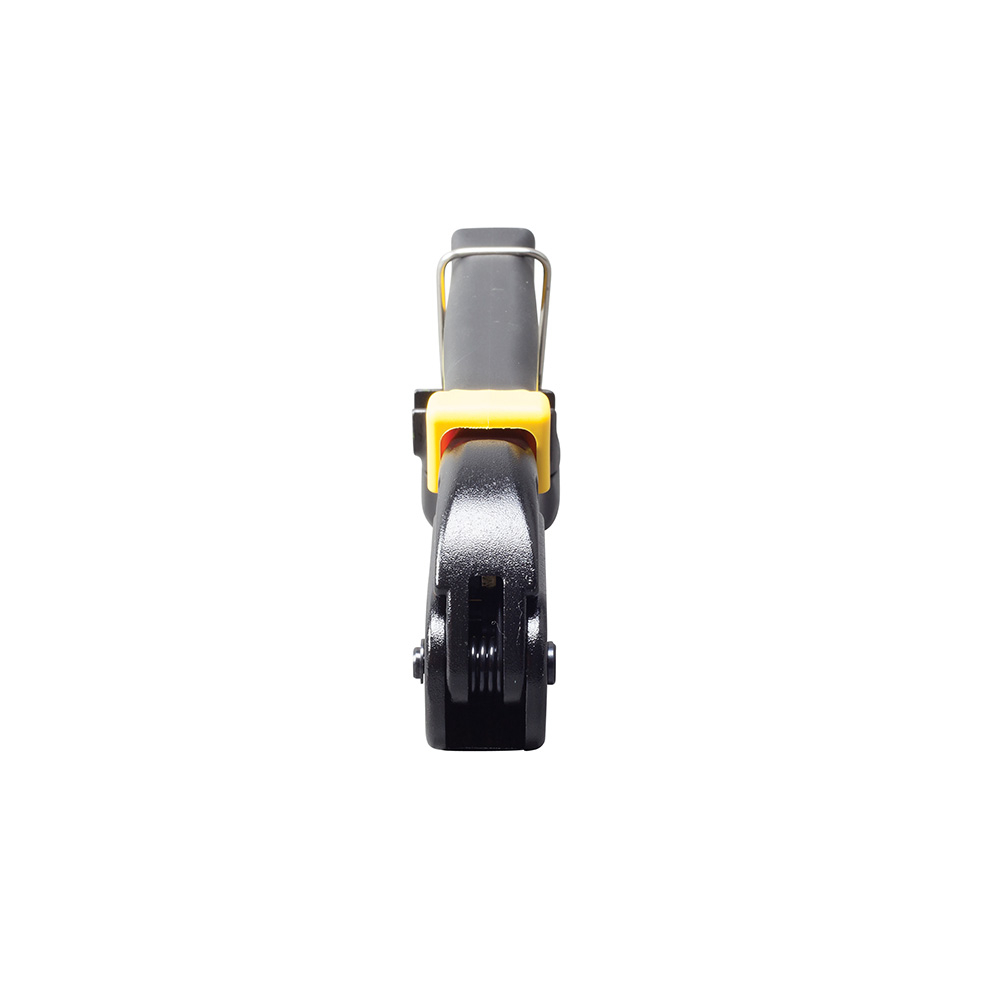

Heavy-Duty Multi-Connector Compression Crimper

This Heavy-Duty, Multi-Connector Compression Crimper crimps most connectors to the majority of coaxial cables. for both inside (premises) and outside (utility) cabling. User-friendly gauge markings indicate correct plunger positions saving time and eliminating guesswork. The yellow and black contoured grips enhance comfort, visibility and allow quick identification. An integrated handle lock allows for easy storage on or off the jobsite.

Features

• Heavy duty zinc die-cast chassis for durable, long lasting performance

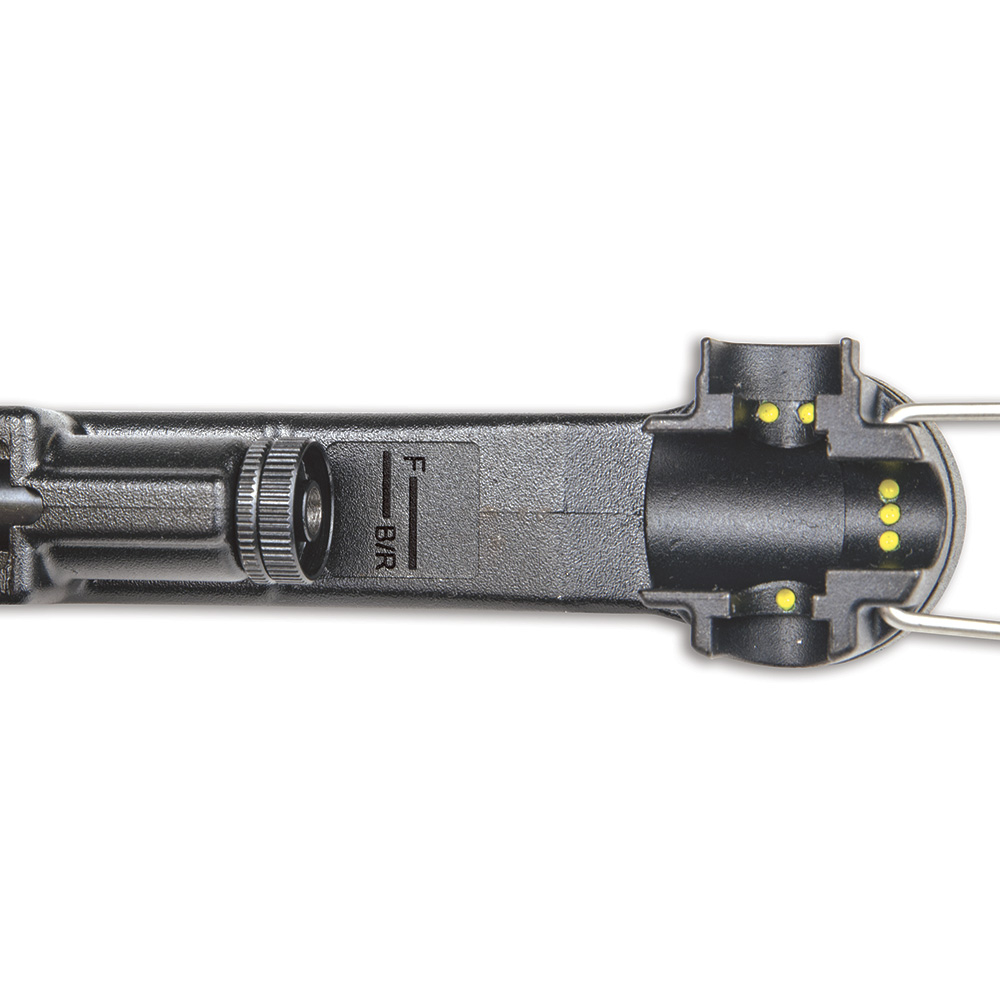

• Unique cable selection wheel eliminates the need to change plunger tips, saving time and avoids lost parts

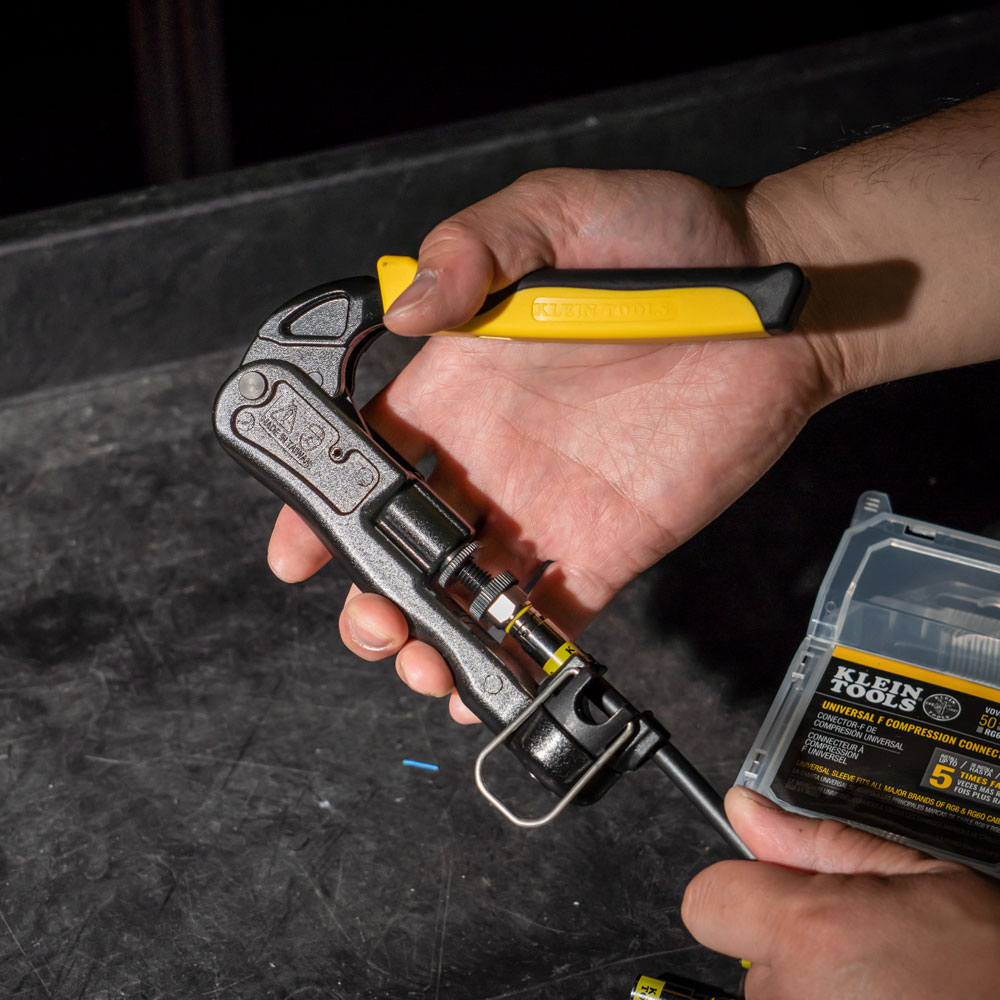

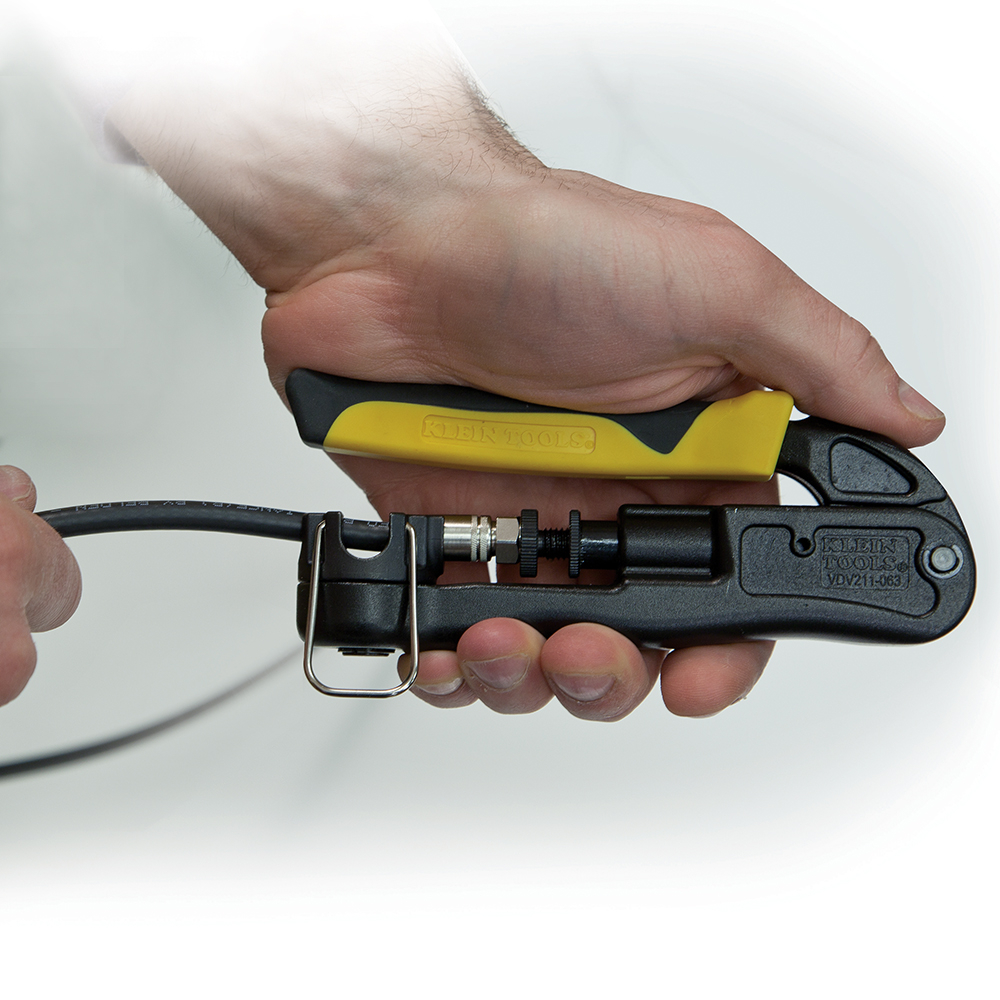

• Open design for easy connector insertion, compression and removal of cable and connector
• Adjustable universal plunger ensures optimized crimping on multiple types of connectors
• Integrated handle lock for easy storage
• Spring loaded return increases user comfort and ease of use

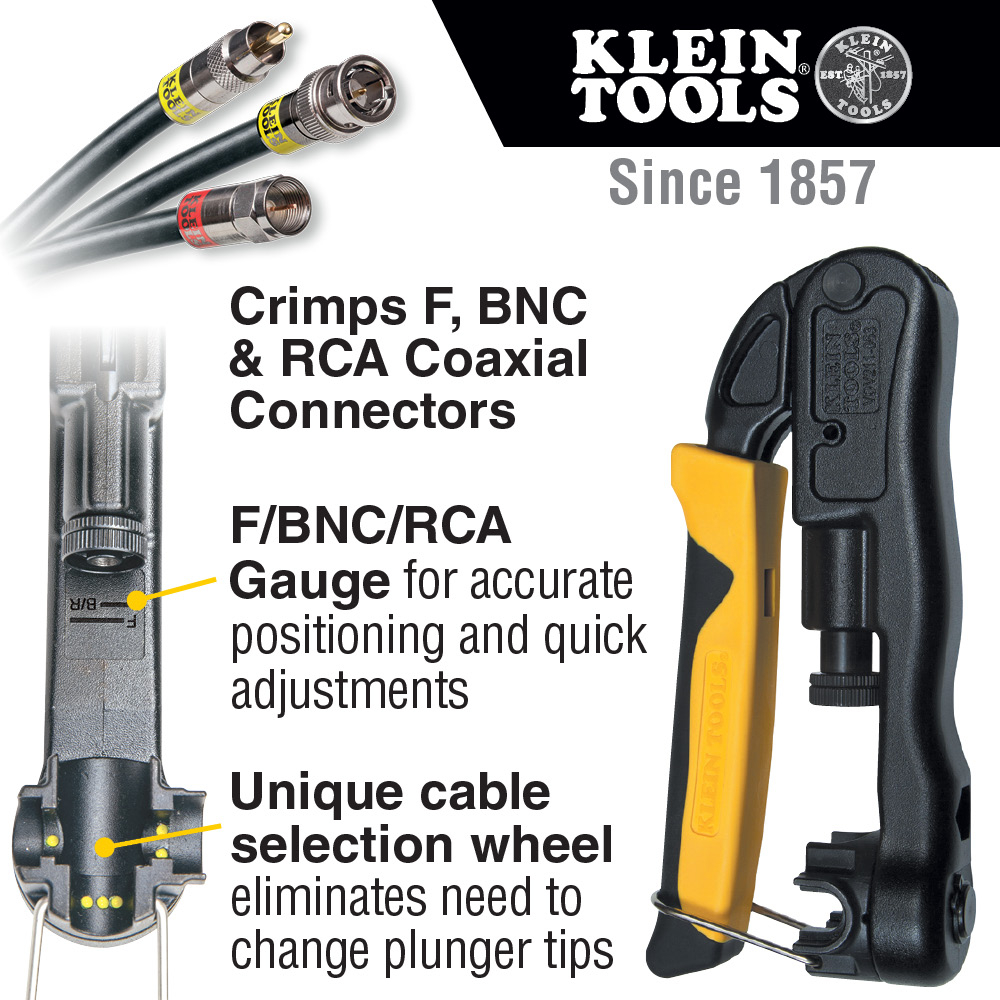

• F/BNC/RCA gauge markings on tool for accurate positioning and quick adjustment of the plunger
• Crimps F, BNC, and RCA connectors to coaxial cables: Mini-coax, RG58, RG59, RG62, RG6/6Q, RG7, and RG11
• For convenience, the locking-nut retains plunger settings
• One tool crimps most cable sizes for both inside (premises) and outside (utility) cabling

Warnings

• Read carefully and understand instructions before using this tool.
• NOT insulated. Will NOT protect against electrical shock.
• Never use on or near electrical circuits.
• Always wear approved eye protection.

Specifications

• Connector Type: F, BNC and RCA
• Depth: 6.2500 in
• Weight: 1.1560 lbs
• Color: Yellow/Black
• Type: Compression Crimper
• Application: Cable Connection
• Height: 1.7500 in
• Width: 4.7500 in
• Material: Zinc Die-Cast
• Cable Type: Minicoax, RG58, RG59, RG62, RG6/6Q, RG7, RG11, etc.
• Overall Length: 15.9 cm (6.25 Inch)
