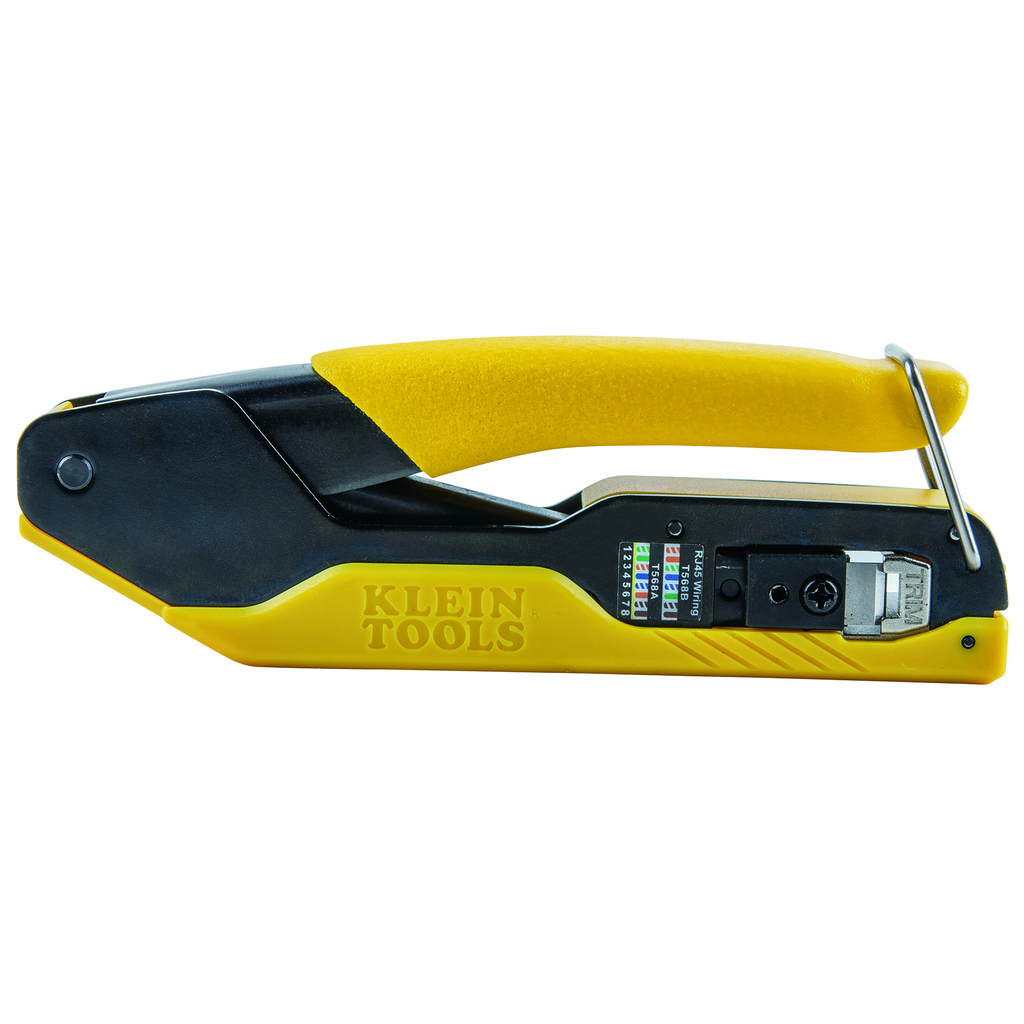

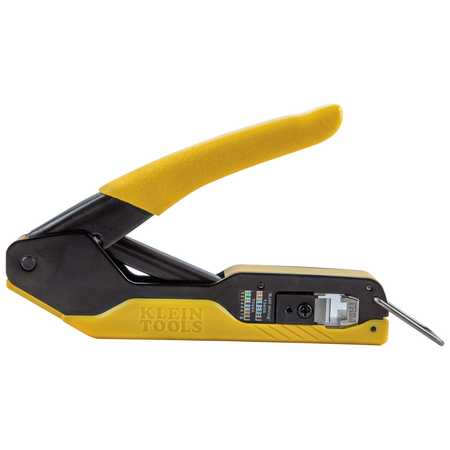

Data Cable Crimping Tool for Pass-Thru™, Compact

Klein Tools Compact Data Cable Crimper is a premium, long-lasting tool for CAT3, CAT5e and CAT6/6A cable using Klein RJ45 Pass-Thru™ connectors. Pass-Thru™ technology significantly reduces prep work time; wiring diagram on the tool helps eliminate rework and wasted materials. Compact, non-slip comfort grip reduces hand strain and stores easily. For use with Klein Pass-Thru™ Connectors (in packs of 10, 50 or 200).

Features

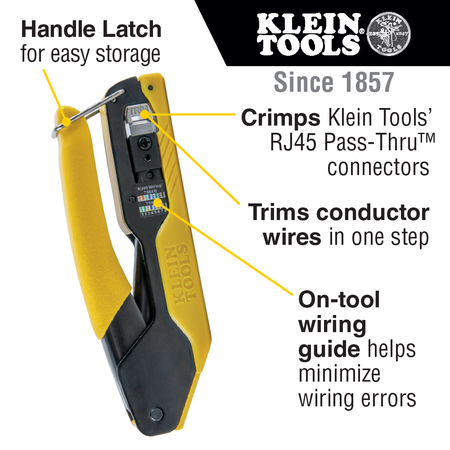

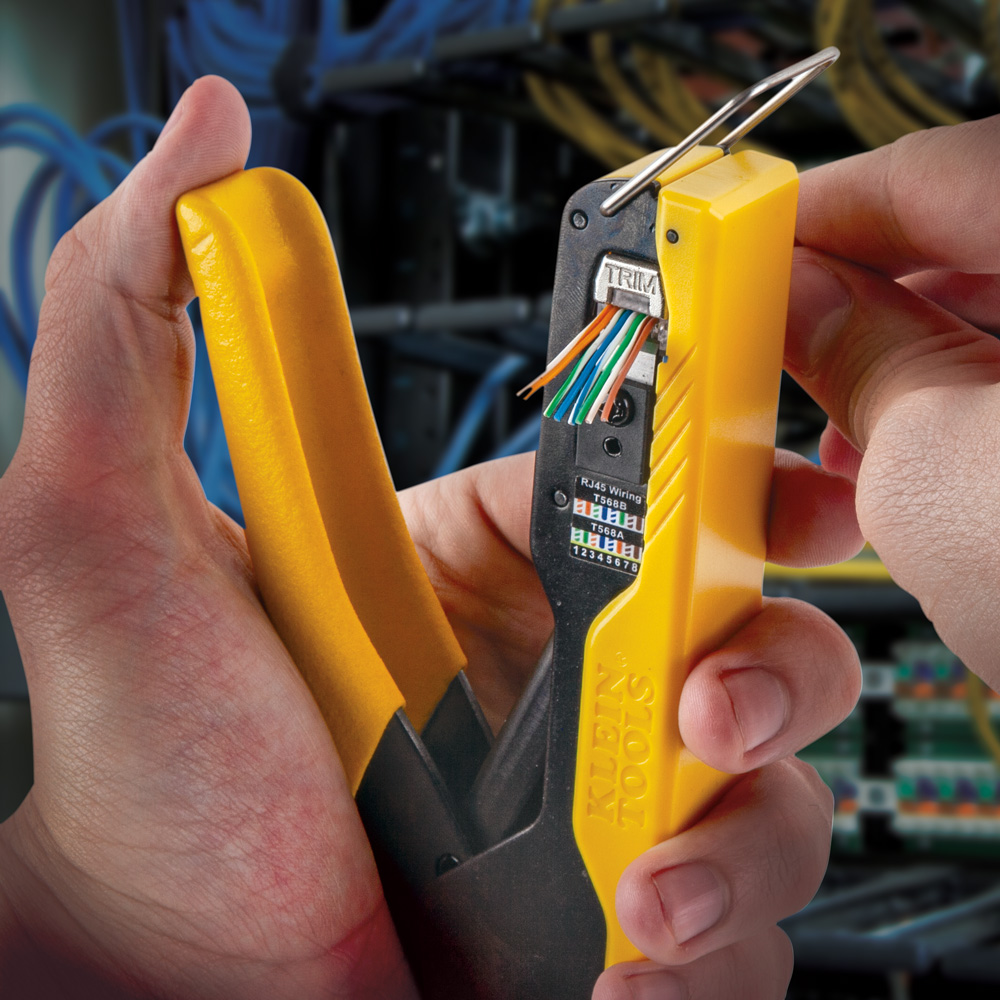

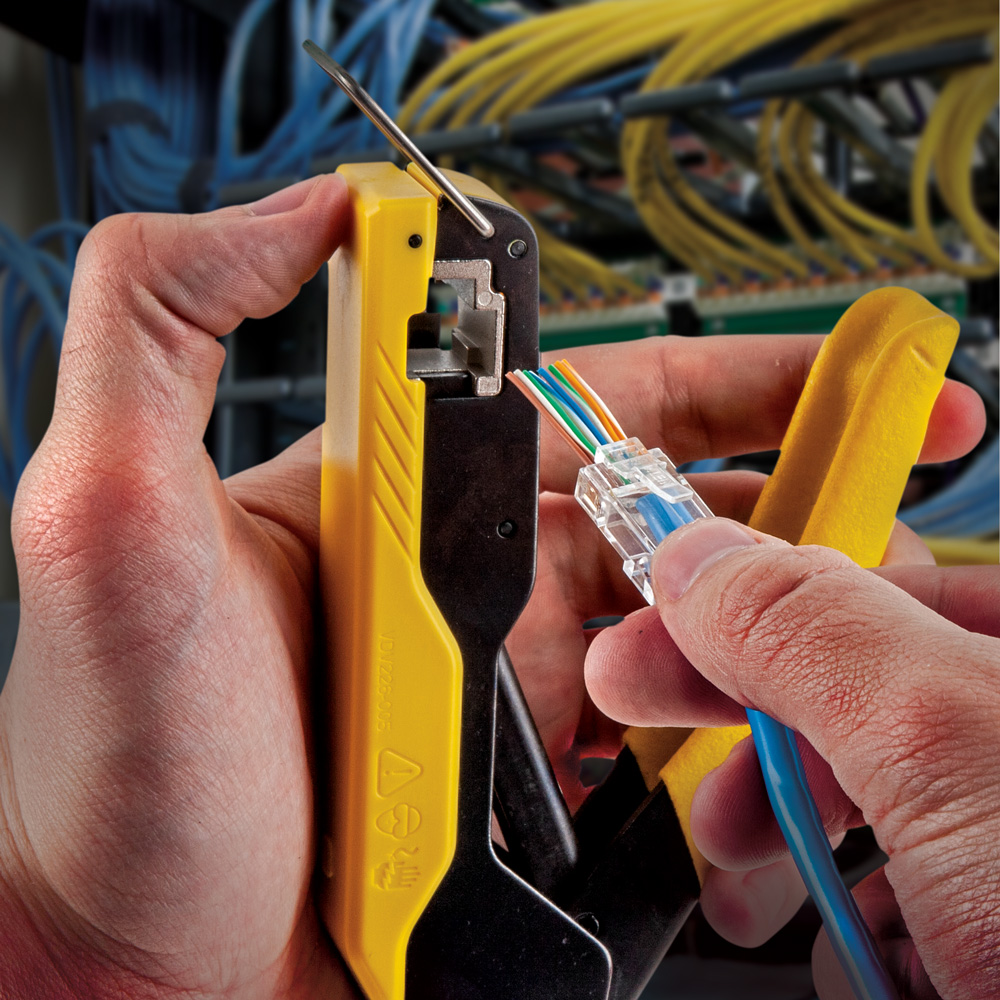

• Compact Crimper crimps and trims Klein Tools RJ45 Pass-Thru™ connectors onto paired-conductor cables (round STP/UTP cables)
• Modular crimp-connector installation tool for voice and data applications with Pass-Thru RJ45 connector plug
• Replacement blades available (Cat. No. VDV999-078)
• Use with Klein Tools Pass-Thru™ Connectors

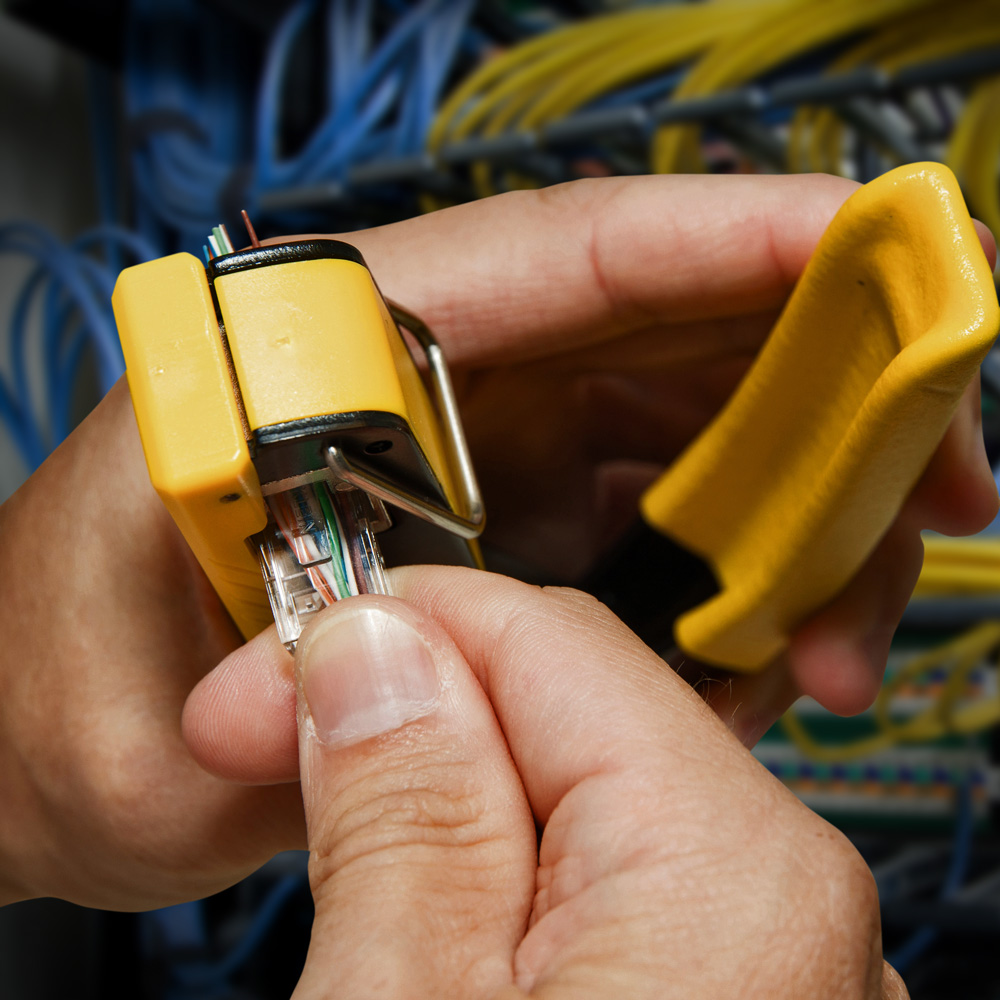

• Fast, reliable RJ45 Pass-Thru™ modular crimper installs connectors for data applications
• Not for use with standard (non Pass-Thru™) connectors

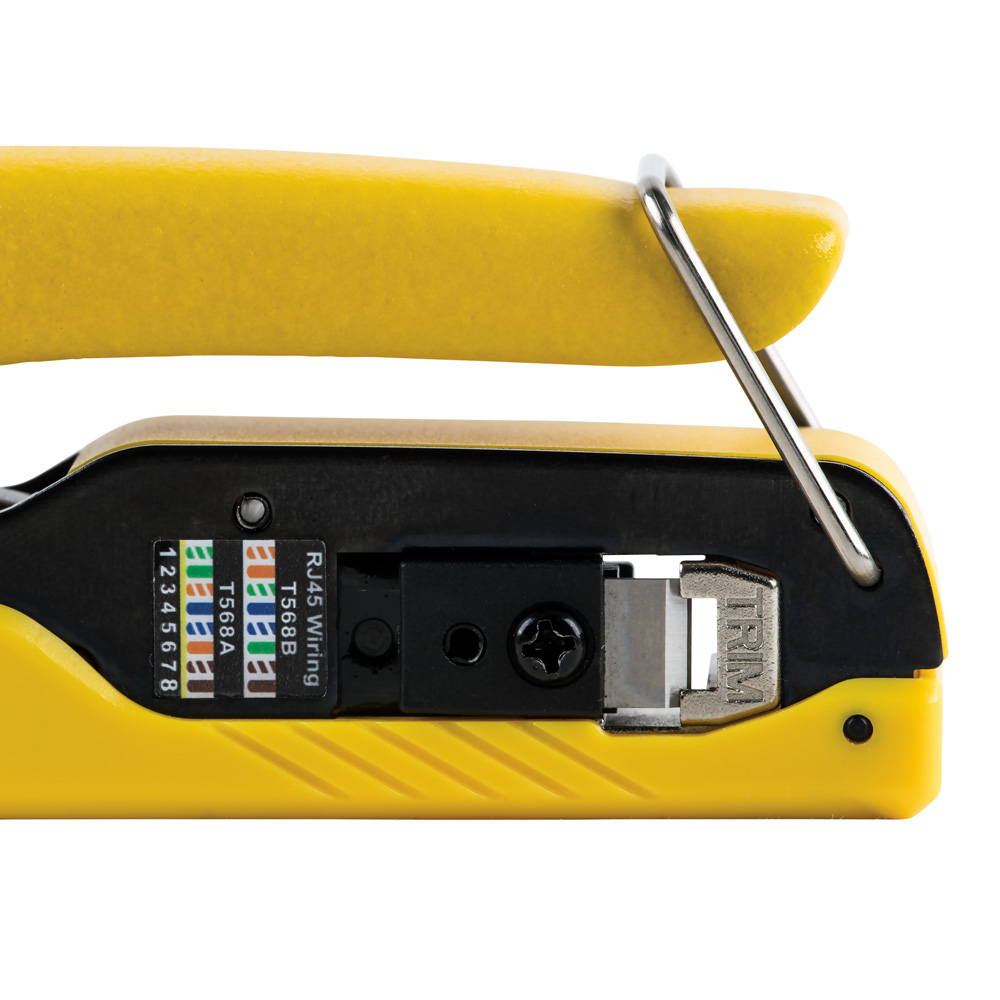

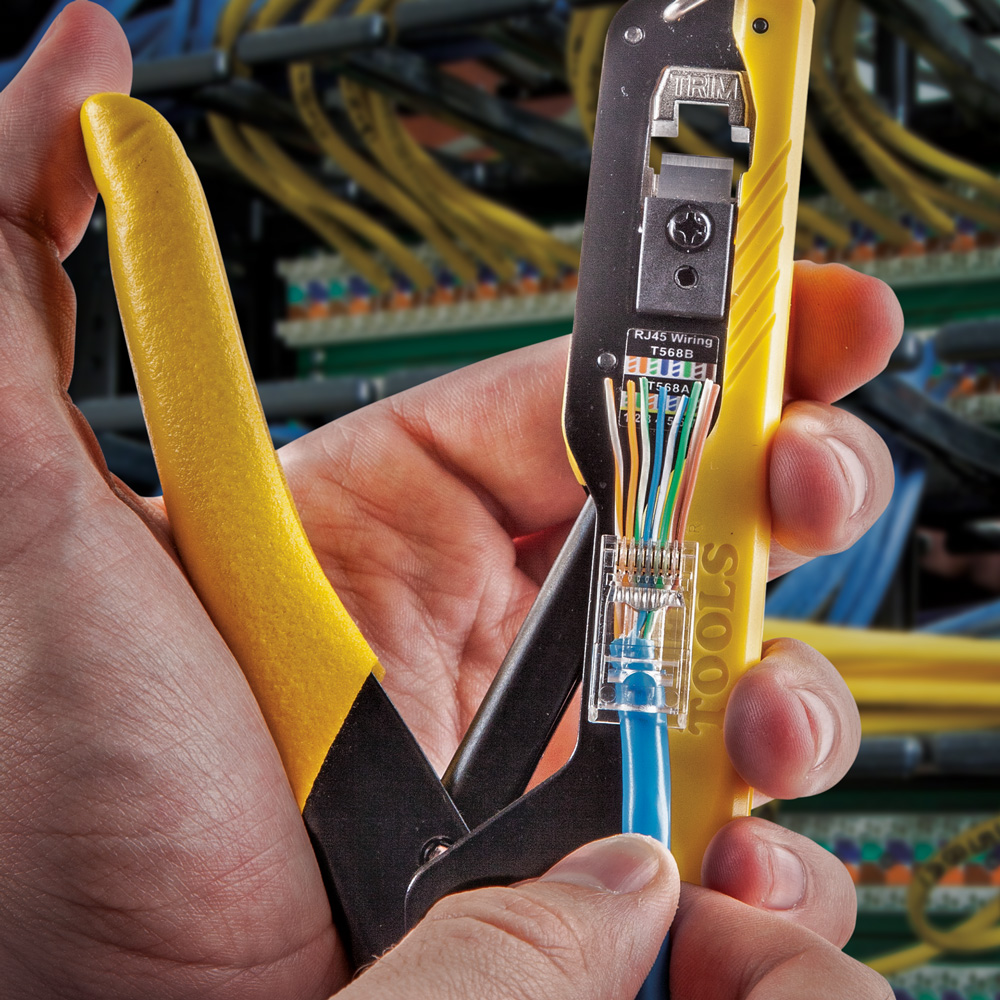

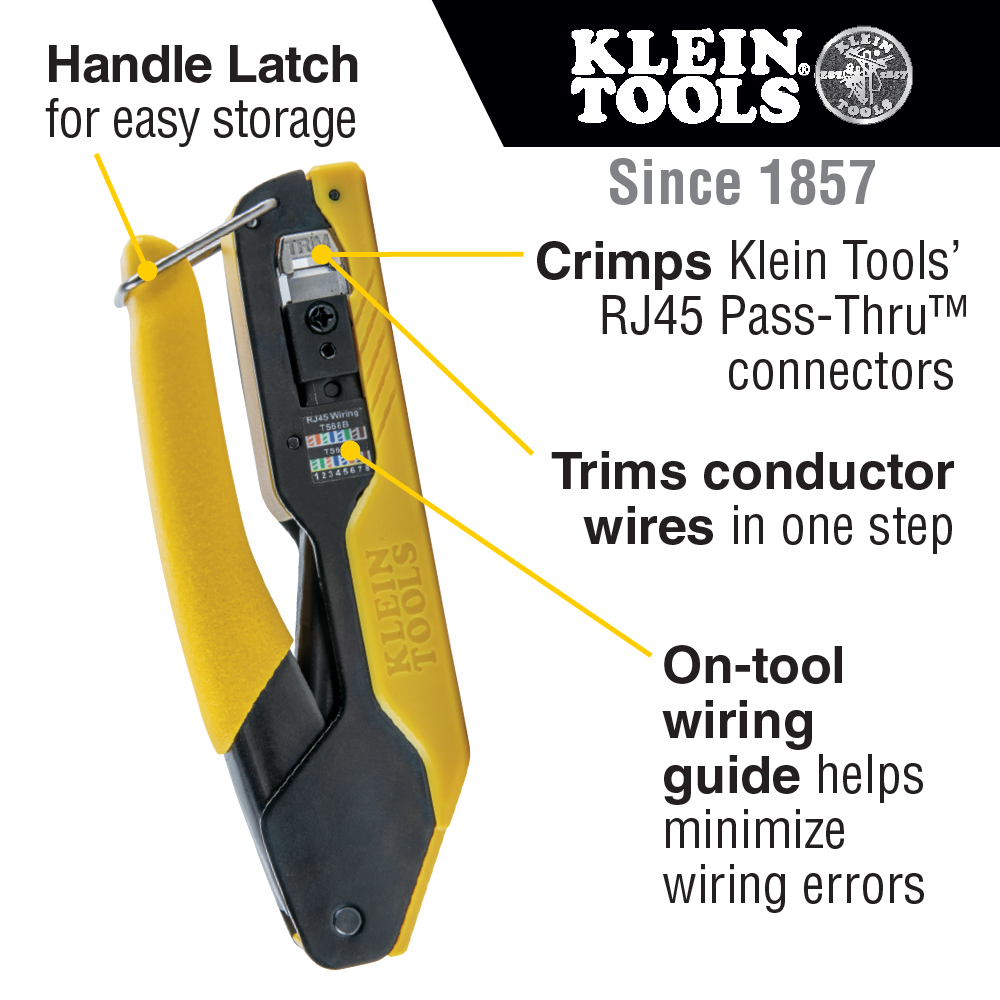

• On-tool wiring guide helps minimize wiring errors
• Pass-Thru Technology

Warnings

• Read carefully and understand instructions before using this tool.
• Never use on or near live electrical circuits.
• Always wear approved eye protection.
• Do NOT use the tool to pull the outer jacket off of the cable. Doing so may damage the conductors and the tool.
• NOT insulated. Will NOT protect against electrical shock.

Specifications

• Weight: 0.6000 lbs
• Overall Length (cm): 14
• Position/Pair/Conductors: 8-Position, 4-Pair/8-Conductor
• Material: Steel with Chrome
• Cable Size: CAT5e, CAT6
• Crimps: Yes
• Width: 2.3000 in
• Overall Width (Inch): 1.75
• Connector Type: RJ45 Klein Tools Pass-Thru™
• Overall Width (cm): 4.4
• Overall Length (Inch): 5.5
• Height: 1.0000 in
• Weight (g): 278
• Application: Cable Connection
• Depth: 5.3000 in
• Handle Color: Yellow/Black
• Type: Crimper
• Weight (oz): 9.8
